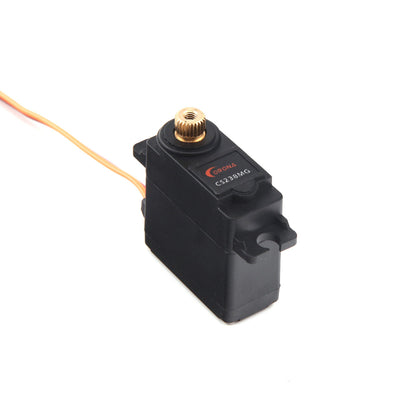

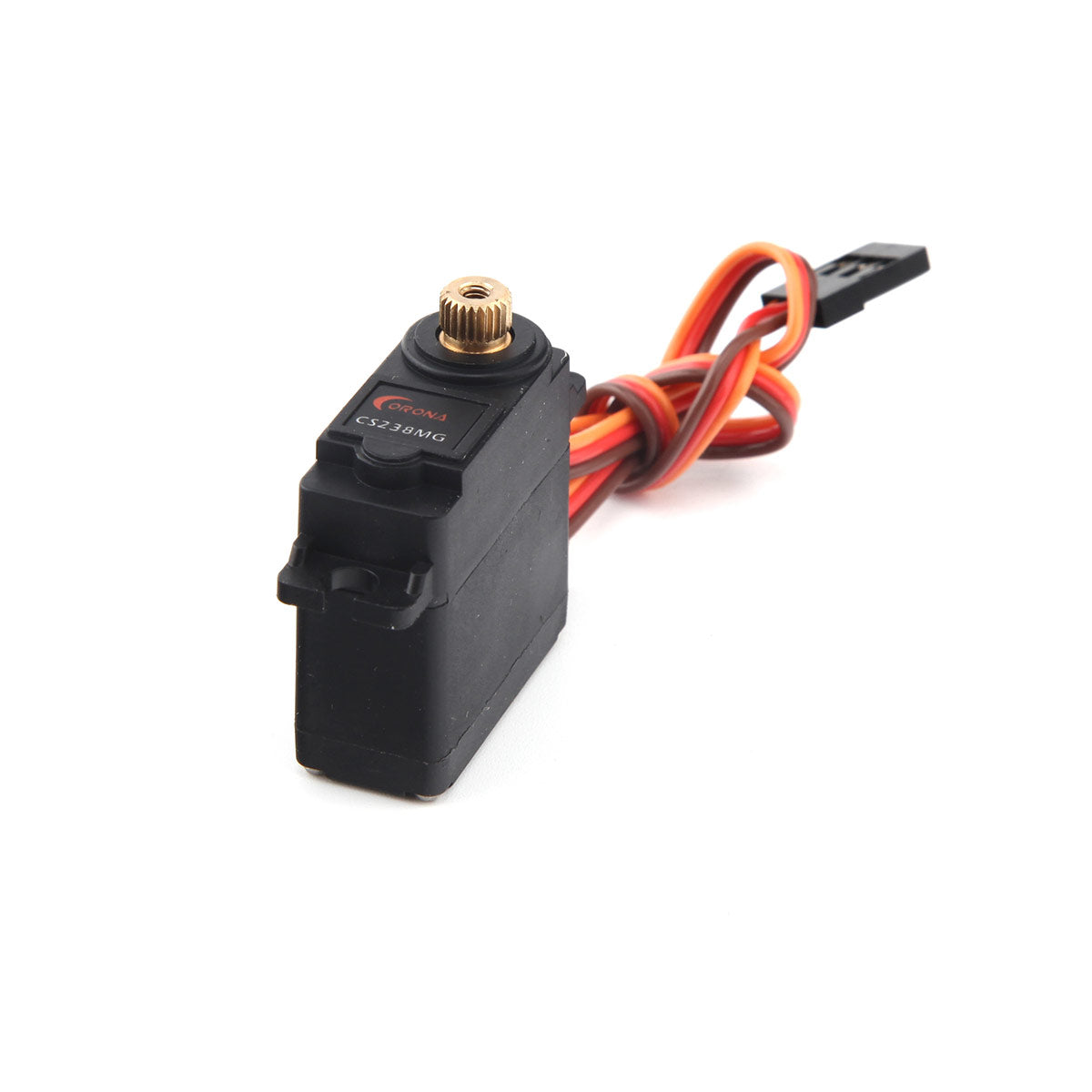

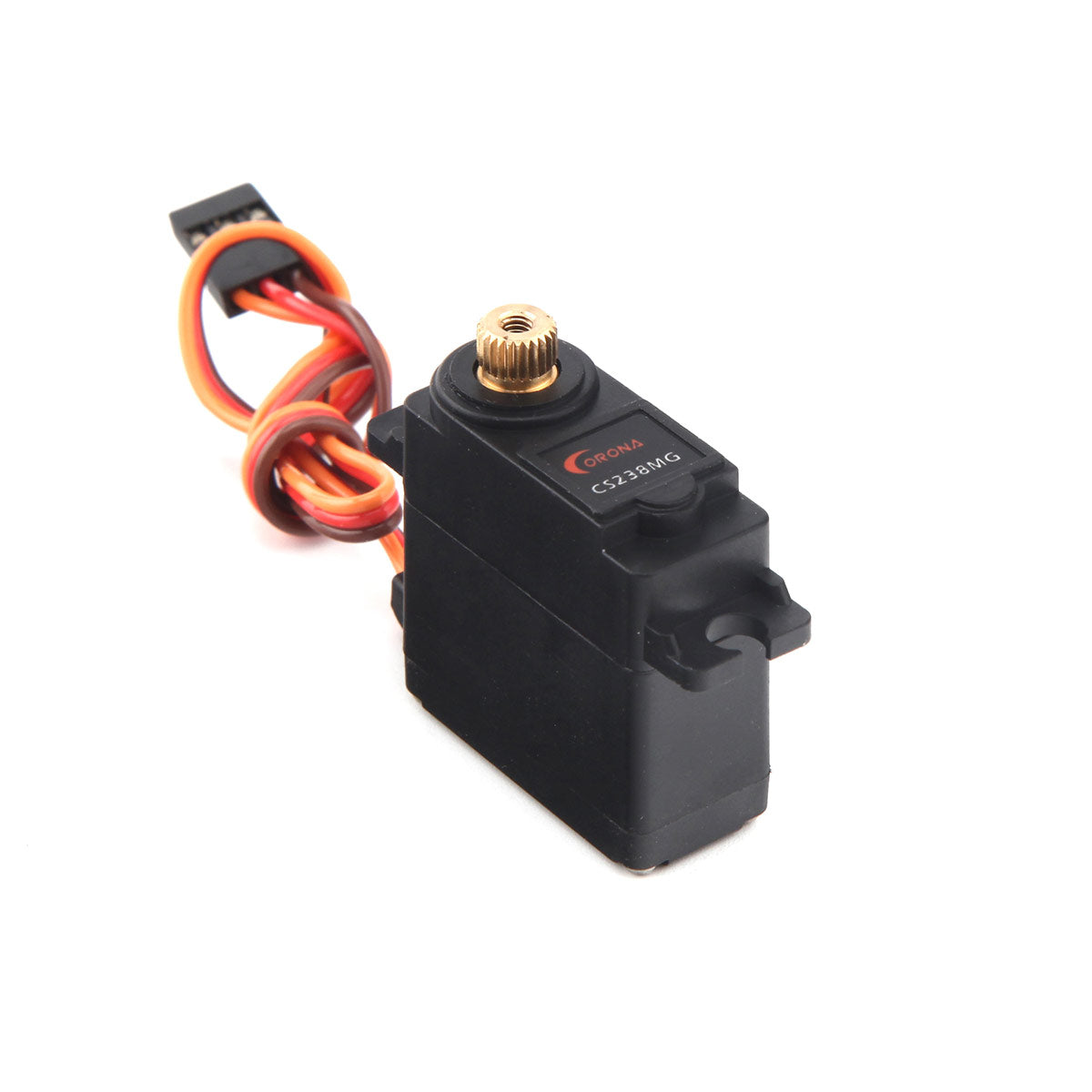

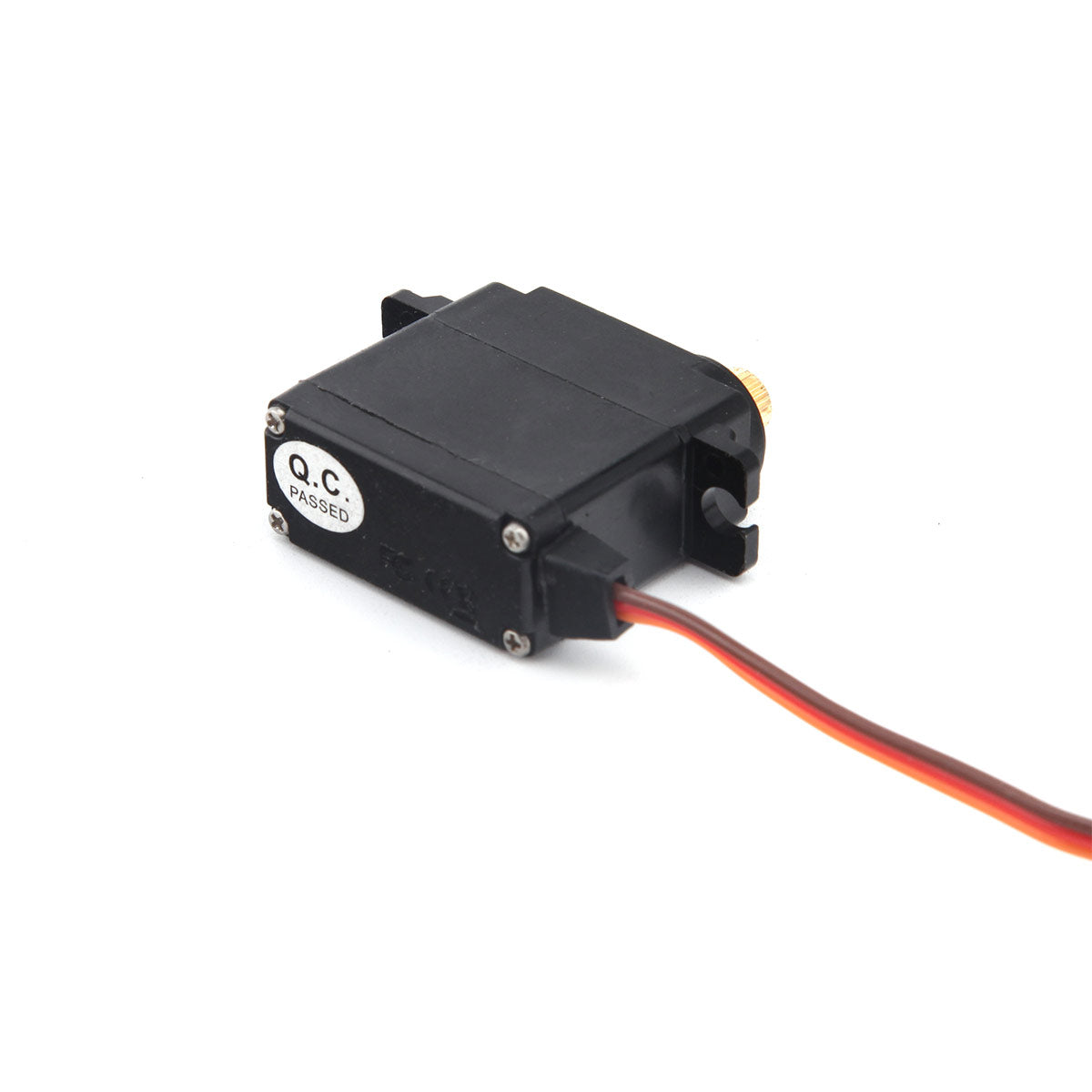

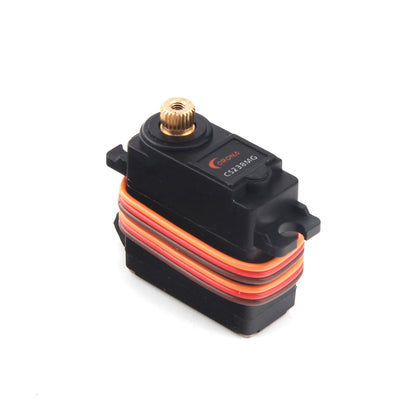

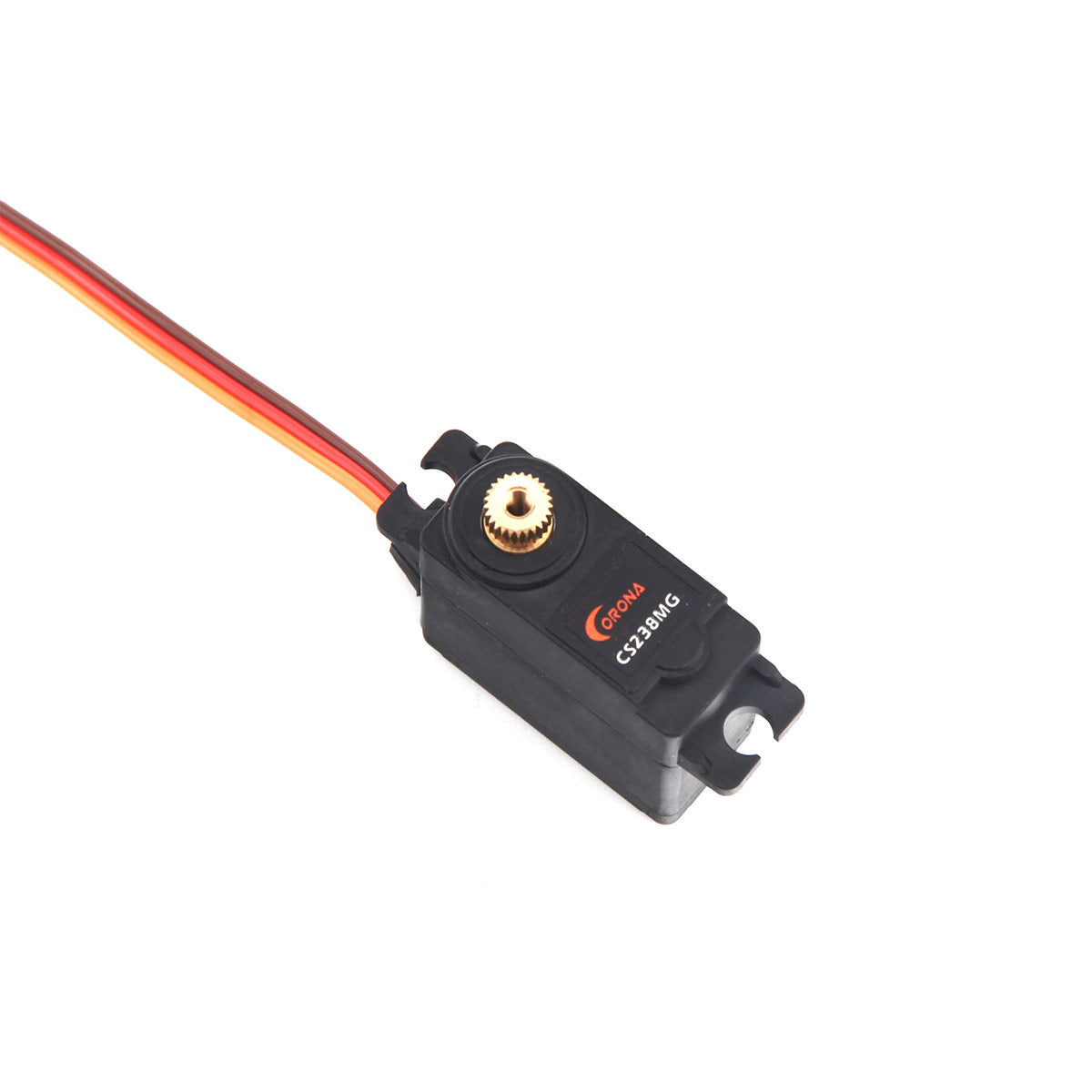

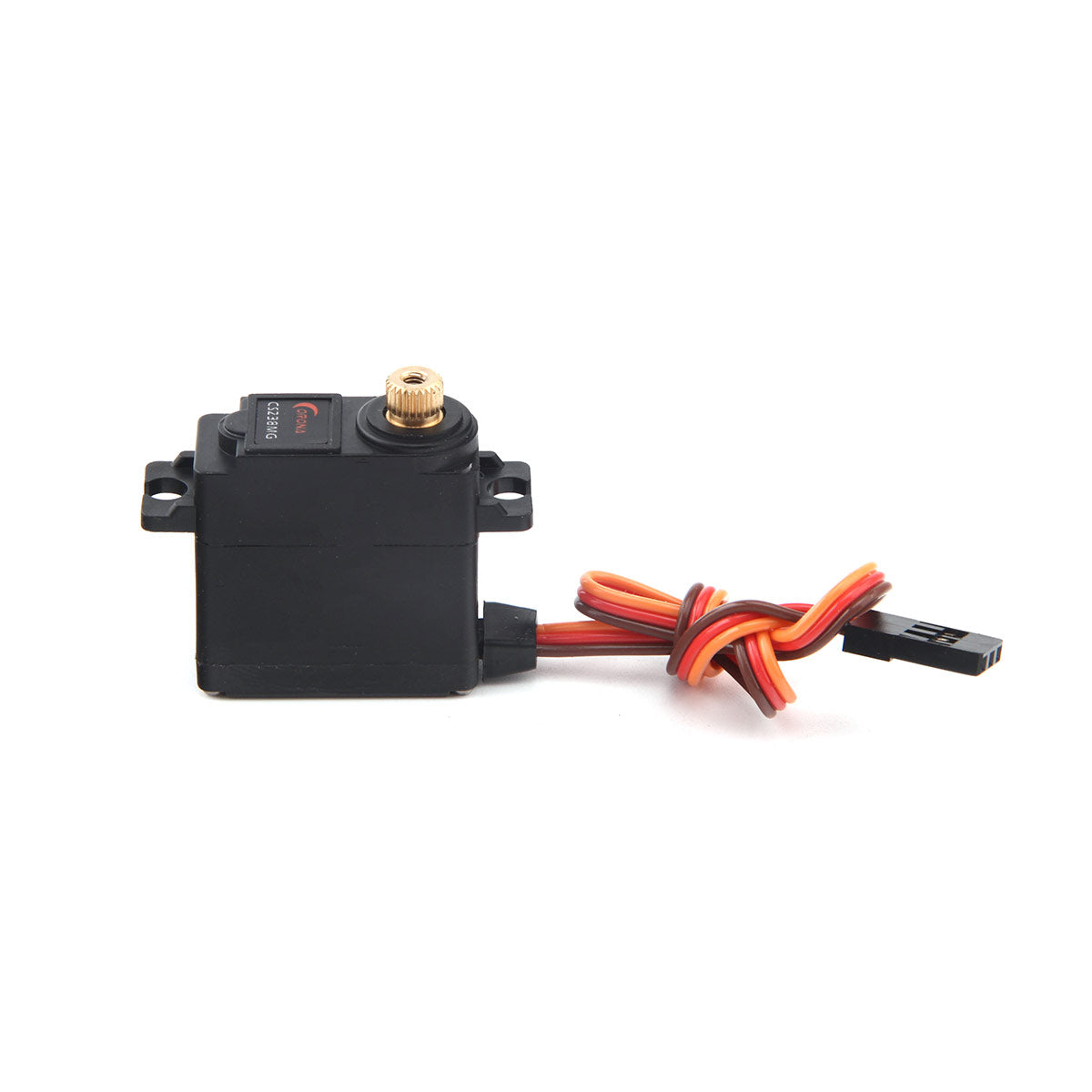

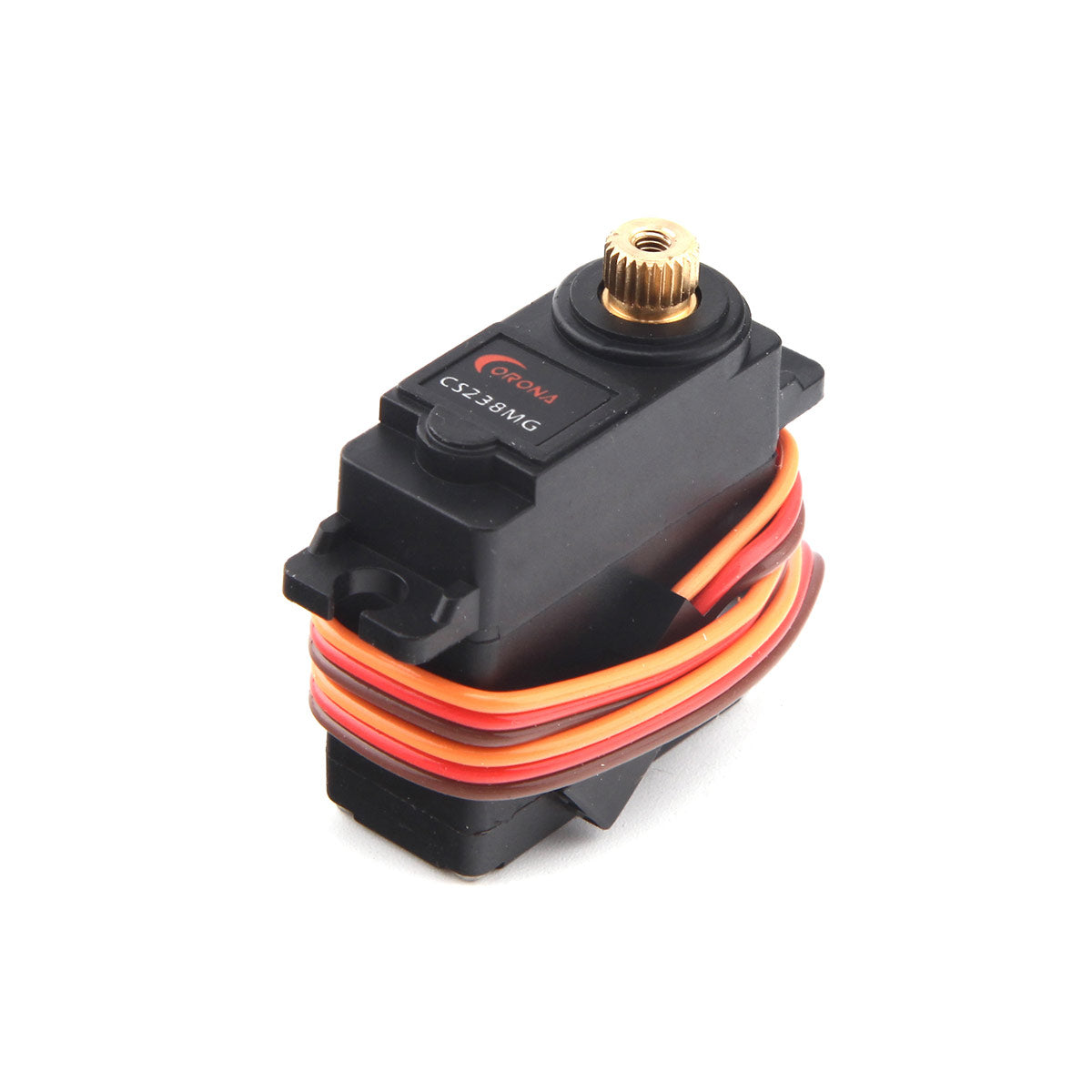

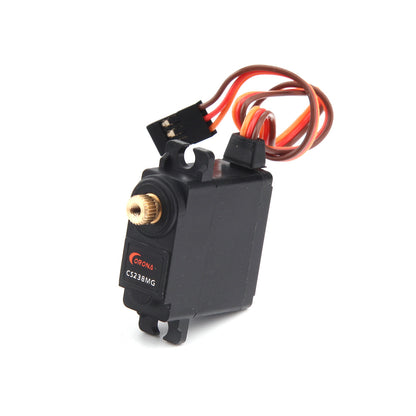

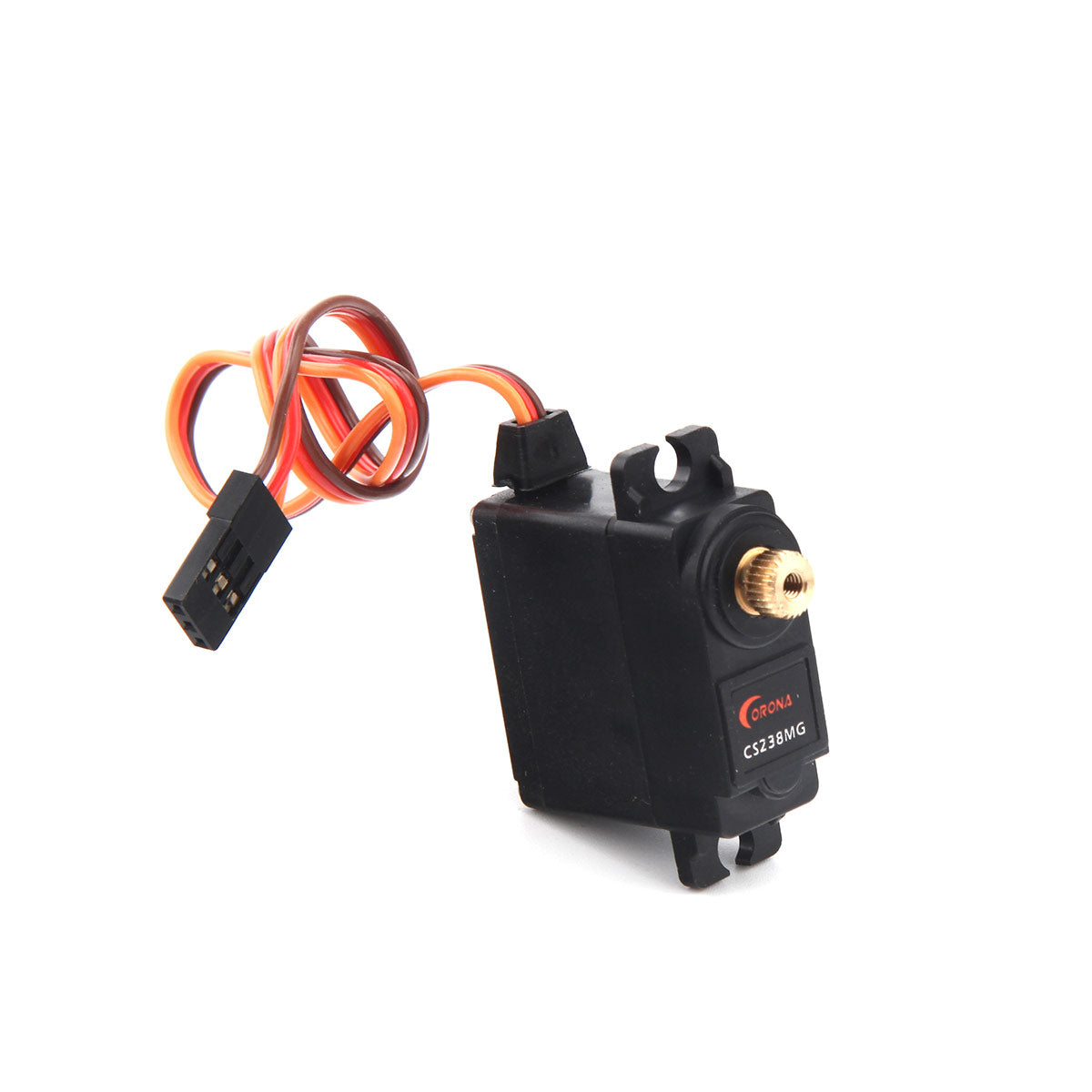

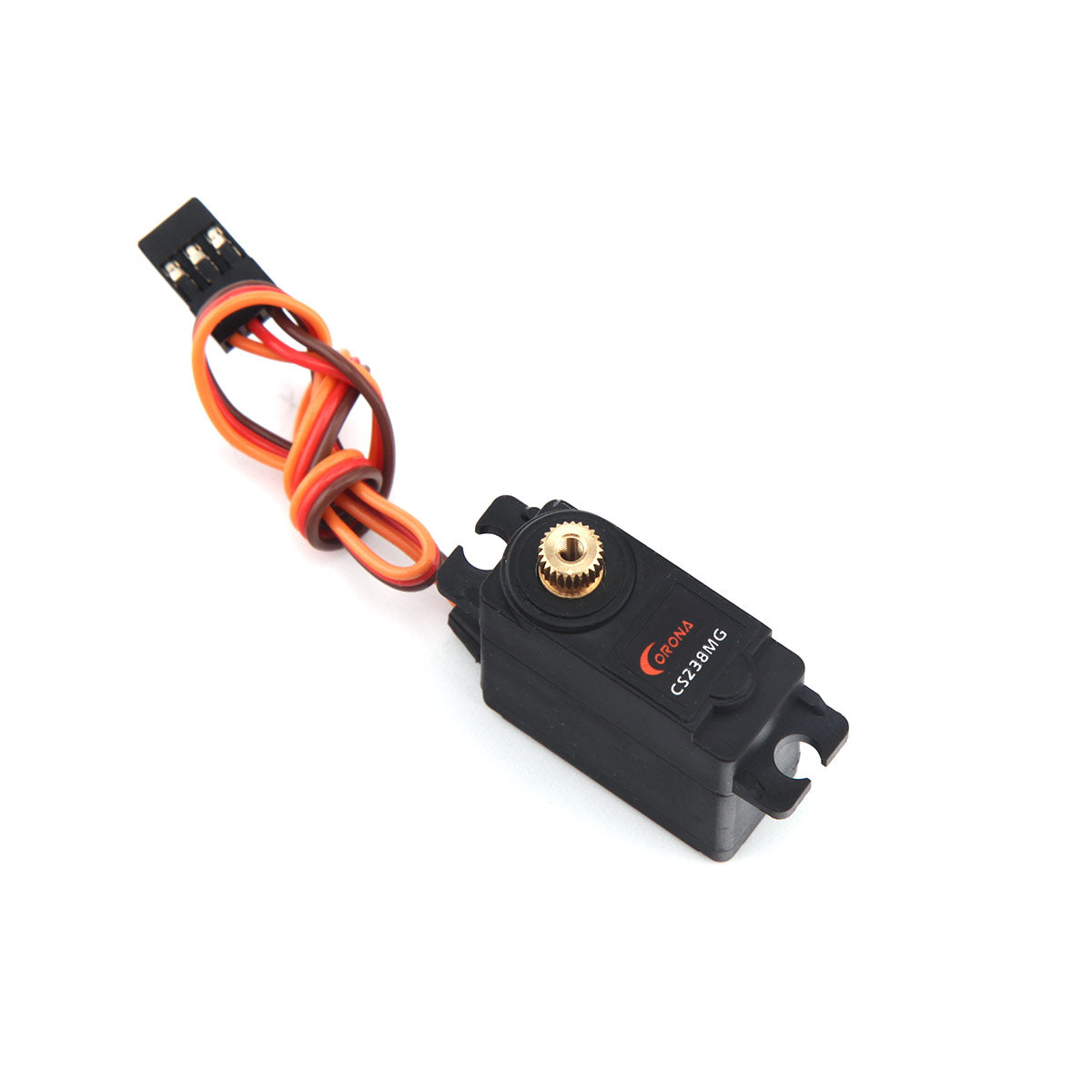

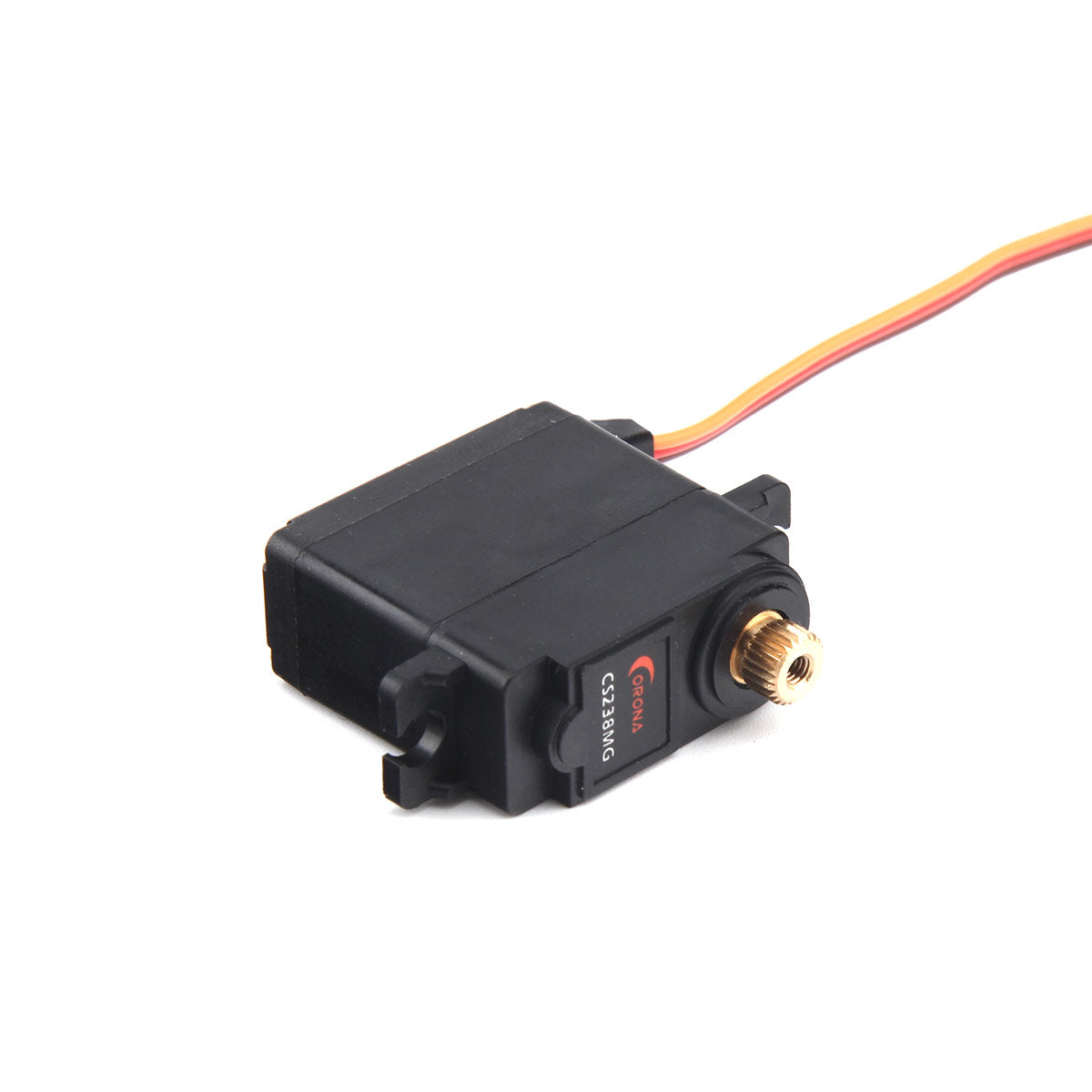

Corona DS238MG Metal Gear Digital Servo 22g
Description
Model: DS238MG
Operating Voltage: 4.8V / 6.0V
Operating Current: 300mA / 400mA
Operating Speed: 0.15sec.60º/ 0.14sec.60º
Stall Torque: 4kg.cm / 4.6kg.cm
Size: 29X13X30mm
Weight: 22g
Dead Band: ≤3uSec
Operating Travel: 40º/one side pulse traveling 400us
Potentiometer: 3 slider/Direct Drive
Ball bearing: MR106
Gear: Metal
Gear Type: Digital
Motor: Brushless
Connector wire: 215mm
Operating Temperature Range: -20c ~ +60c
Spline count: 25
