1 Pair of Carbon Folding Paddles for Hobbywing X6/X8/X9/X9PLUS/X11 Power Systems

Flight ModelSKU: PHY2388-F

Adapt to blade clamp: X6
Precio:
Precio de venta$6.99

Descripción

Product Description

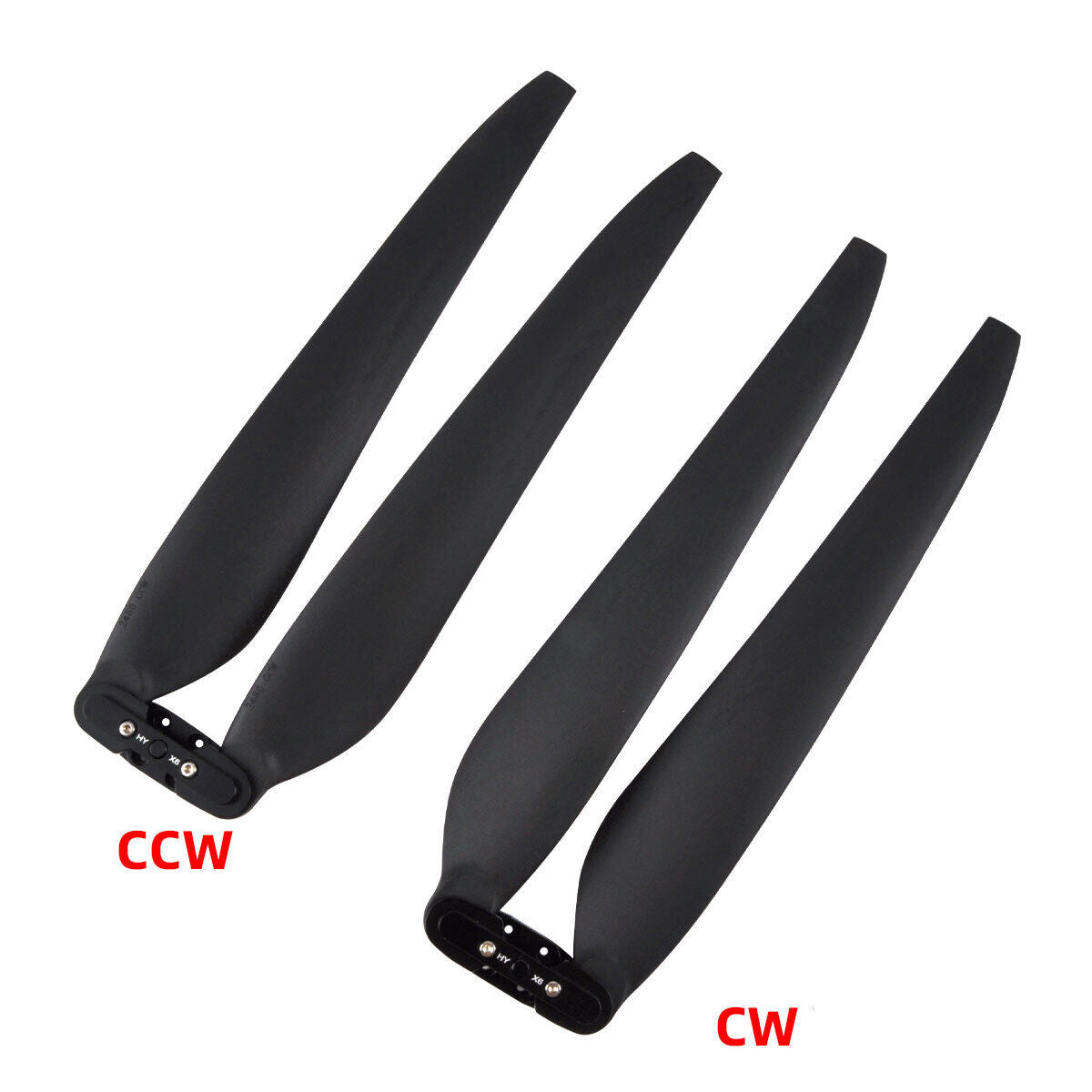

1Pair Carbon Folding Paddle Suitable Hobbywing X6/X8/X9/X9PLUS/X11 power system



PHY2388-F、PHY2480-F——X6:
Hole spacing: 20MM hole spacing, 8MM middle hole spacing, 3MM installation hole spacing, installation screw size: 3 * 10
Diameter of steel column for locking blade: 4mm, inner diameter of gasket: 4mm, outer diameter of gasket: 16mm, thickness of gasket: 0.6mm
Distance between locking slurry holes: 51MM


2388 Carbon Folding Pulp
Suitable for the Haoying X6 power system blade length: 28CM, single blade weight: 34.2g, blade width at the widest point: 52CM
Inner diameter of slurry hole: 4MM
Root height: 67MM

2480 Carbon Folding Award
Suitable for the "Haoying X6Plus" power system
Material: Advanced aluminum coated nanocarbon fiber technology+high
Toughness and low water absorption imported double 6 nylon
Material model: M-Max spiral award exclusive
Length of D-shaped leaf: 29.7CM
Single blade weight: 34.5g/blade
prize hole inner diameter: 6MM
Root height: 7MM
The widest part of the award leaf: 4.7CM


PHY3090-F、PHY32121-F——X8:
Hole pitch: 31MM hole pitch, 6MM middle hole, 3MM side hole
Installation screw size: 3 * 10
Lock screw: 6 * 22 Lock screw diameter: 6MM Inner diameter of washer: 6MM Outer diameter of washer: 15.7MM Thickness of washer: 0.7MM Aperture distance: 70MM


3090 Carbon Folding Award
Length suitable for Haoying X8 power blade: 36CM
Weight of single blade: 56.5g
The widest part of the blade: 6CM
Inner diameter of slurry hole: 6MM
Blade root height: 7MM




PHY3411-F、PHY36120-F、PHY36190-F——X9 plus:
Hole spacing: 31MM, middle hole 14MM, side hole 4MM, installation screw size: 4 * 16,
locking screw: 4 * 14, steel column diameter: 8MM, gasket inner diameter: 8MM, gasket outer diameter: 27MM, hot plate thickness: 2MM, aperture distance: 70MM


36120 Carbon Folding Paddle
Applicable to "Haoying X9, X9 PLUS, X9 Max"
The strength and blade efficiency are the same as the original factory!!
D Blade length: 44CM
Weight of 2 single award leaves: 113g
Paddle hole inner diameter: 8mm or 10mm
pieces height: 9mm
The widest part of the award leaf: 7.5CM

36190 Carbon Folding Paddle
Suitable for the "Haoying X9Plus, Max" power system
The strength and paste efficiency are the same as the original factory!!
Blade length: 44.5CM
Single blade weight: 83g
hole inner diameter: 8MM
pieces height: 10mm
leaves at the widest point: 7CM



PHY41135-F——X11:
Hole spacing: 31mm, middle hole 14mm, side hole 4mm, installation screw size: 4 * 16
Screw for locking the propeller: 6 * 16
Lock award steel column diameter: 10mm, gasket inner diameter: 10mm, gasket outer diameter: 32mm, gasket thickness: 2mm, aperture distance: 80mm, purpose: suitable for "Good fit X11"

41135 Carbon Folding Paddle
Applicable to Haoying X11 model
Blade length: 50CM
Single leaf weight: 146g
Paddle hole inner diameter: 10mm
Blade root height: 13MM



X9:
Hole pitch: 32MM hole pitch, 10mm middle hole, 4mm side hole
Installation screw size: 4 * 16
Lock screw: 5 * 20, column diameter: 10mm
Inner diameter of gasket: 101MM Outer diameter of gasket: 21MM Thickness of gasket: 0.6MM Aperture distance: 70MM





Package included
  • 1Pairs Rc Airplane Carbon Folding Paddle(Four slice Paddle)
