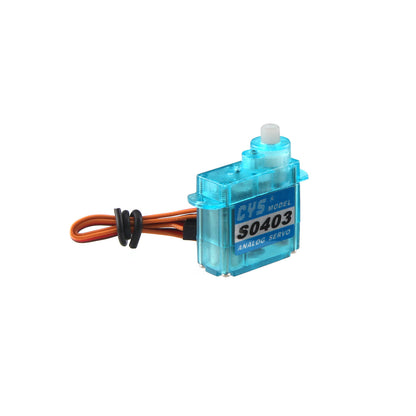

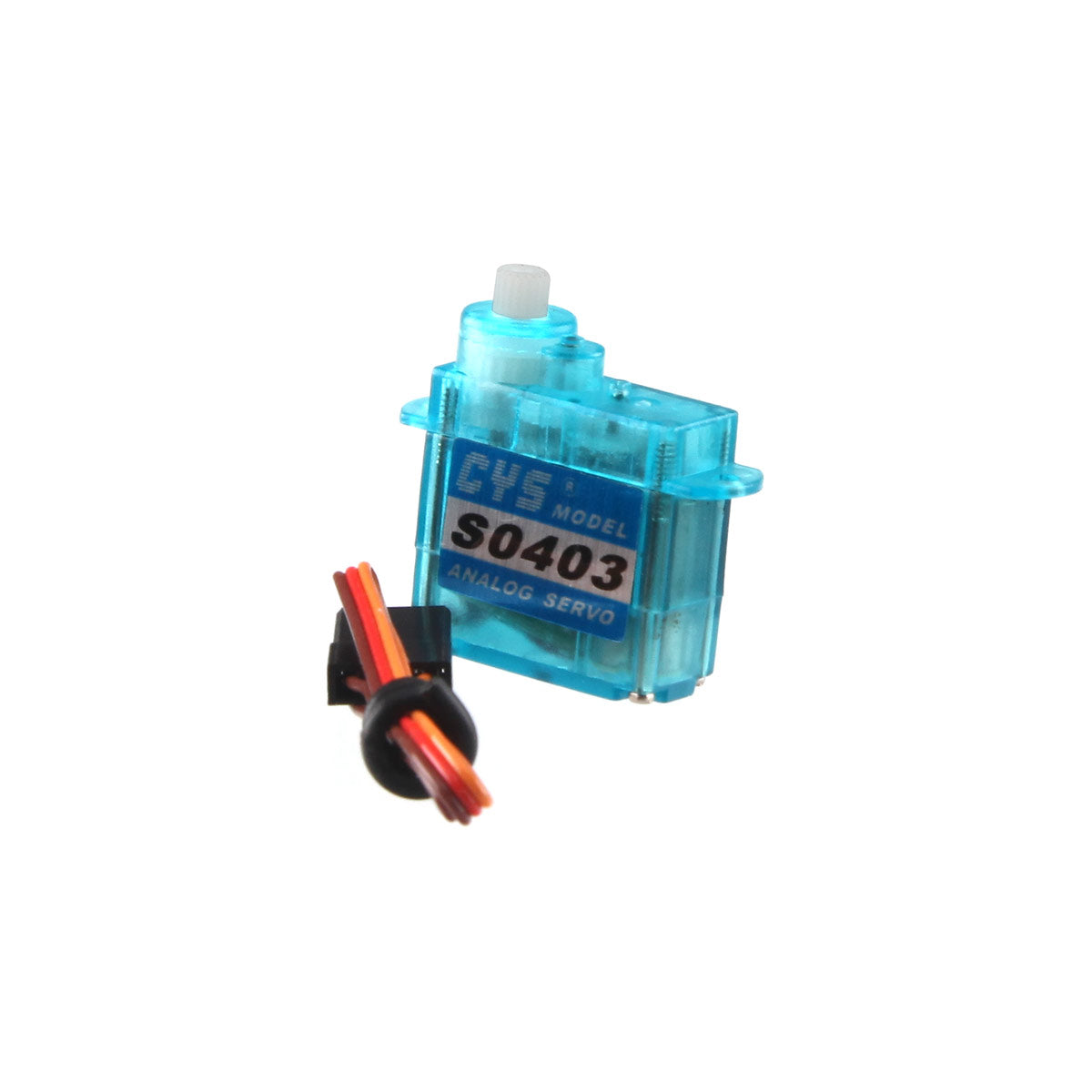

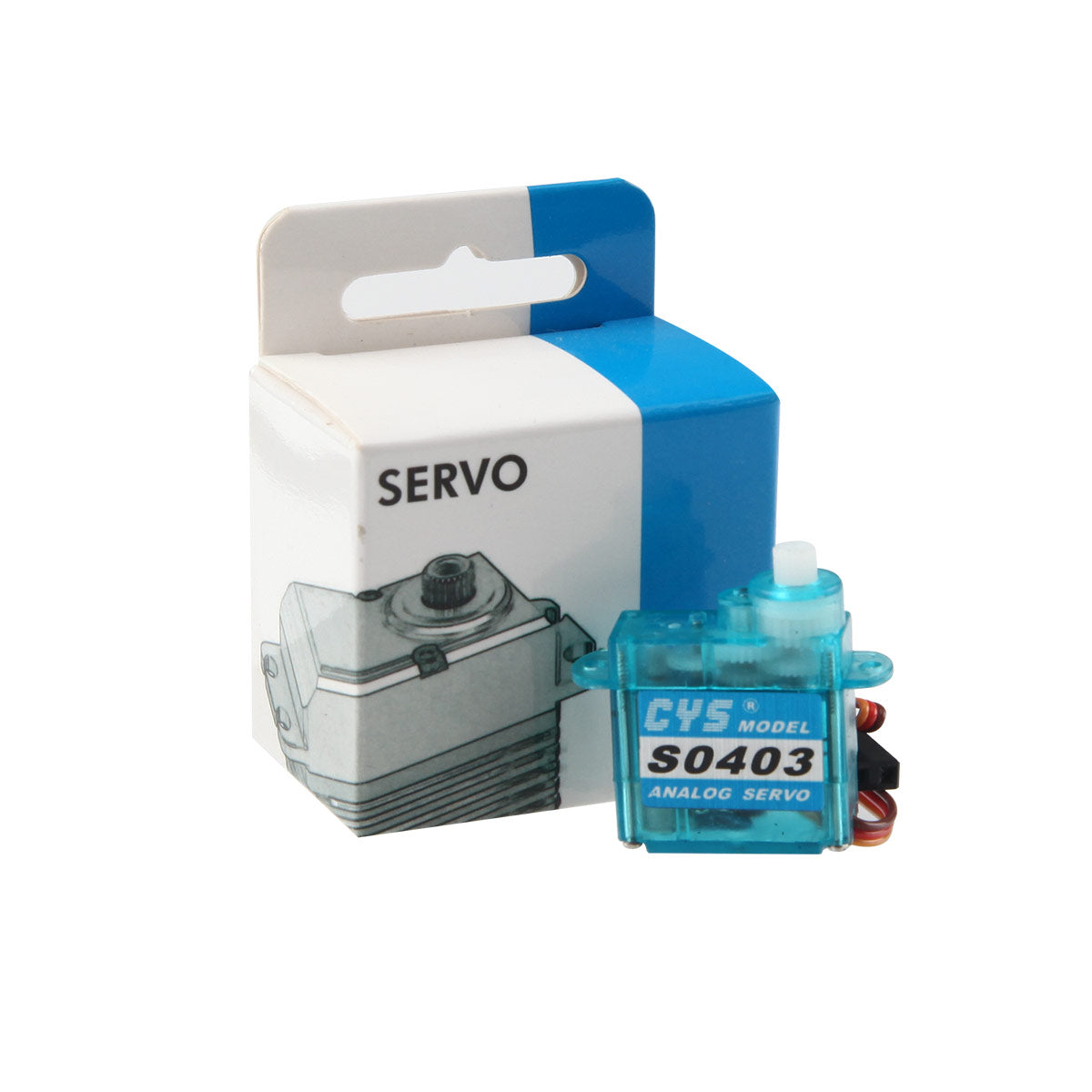

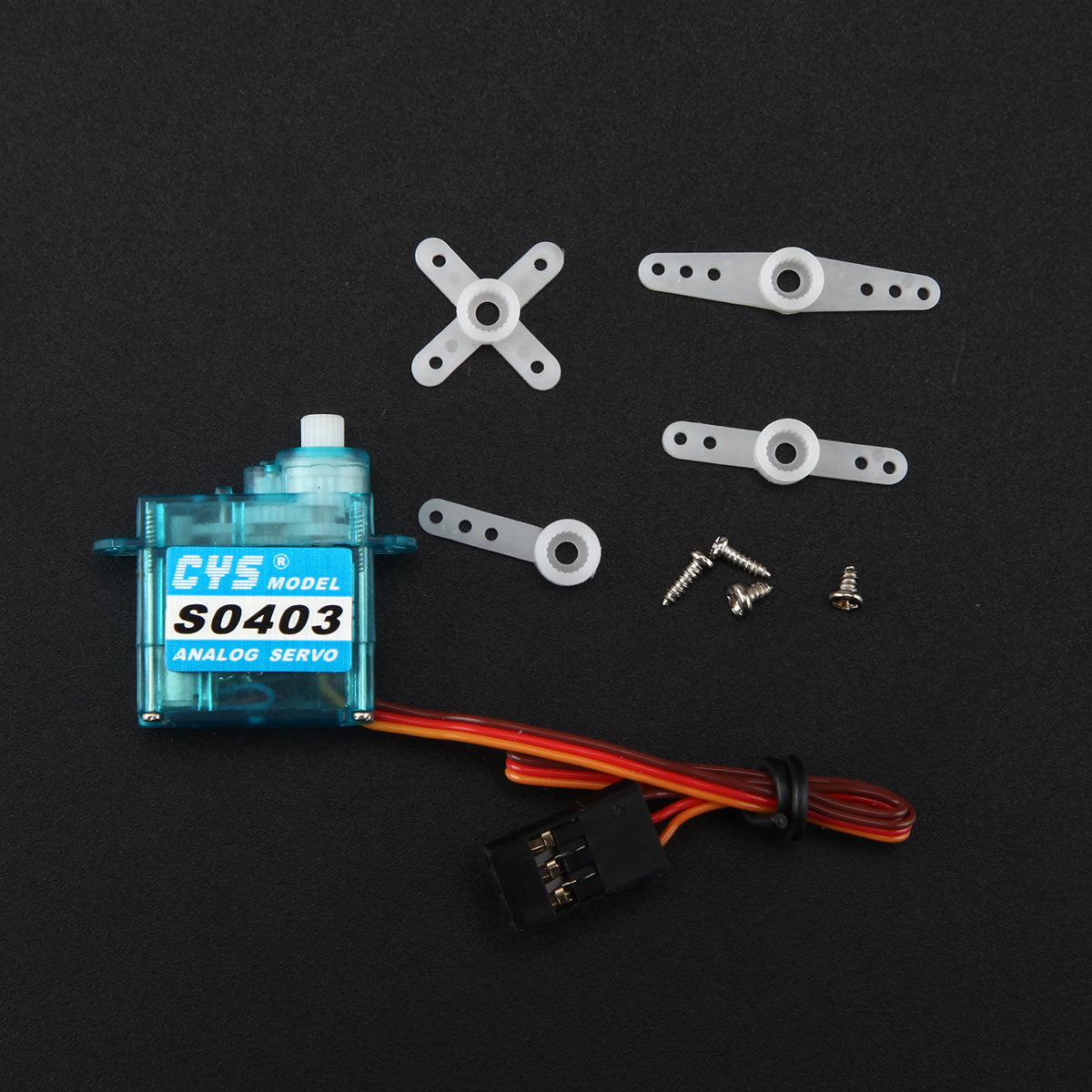

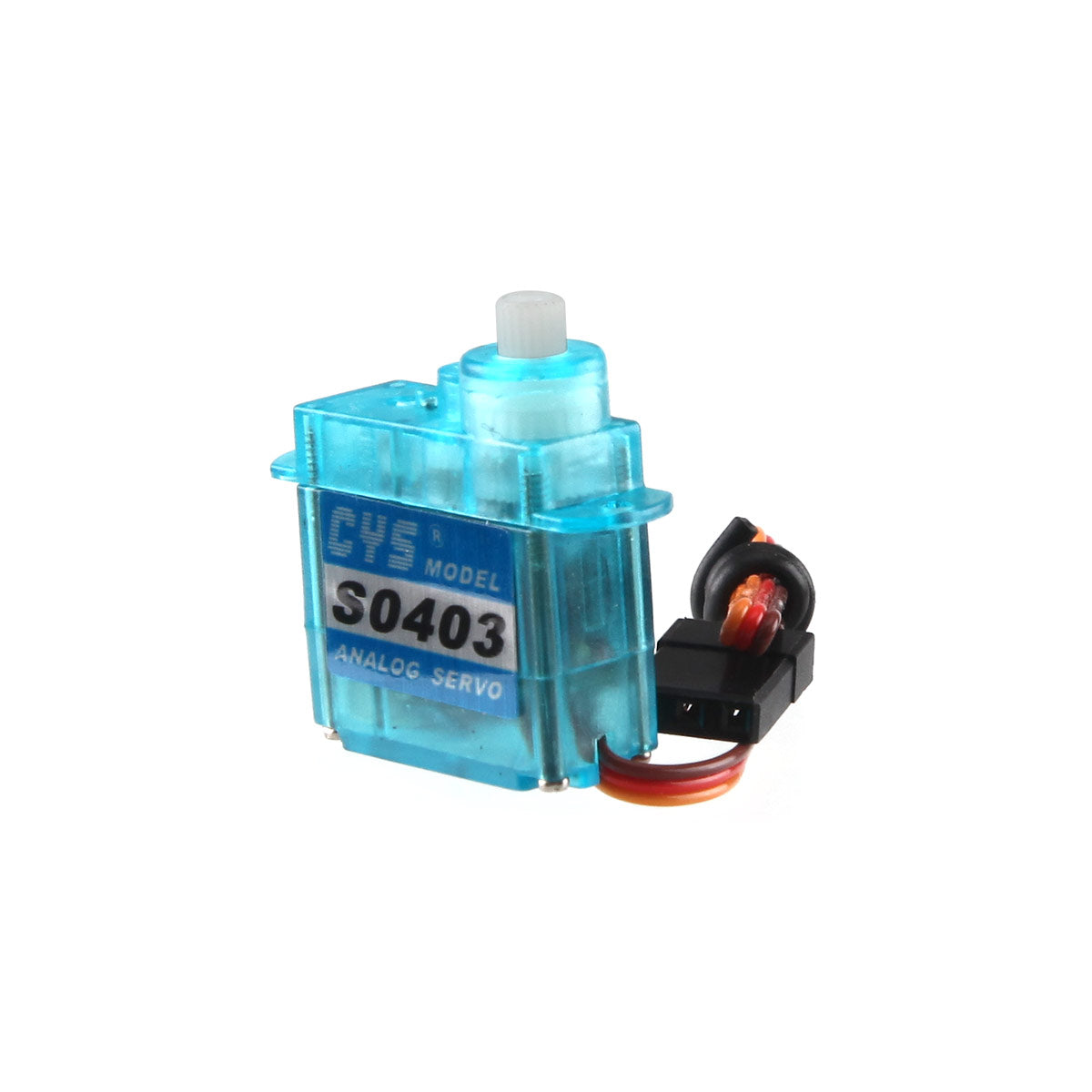

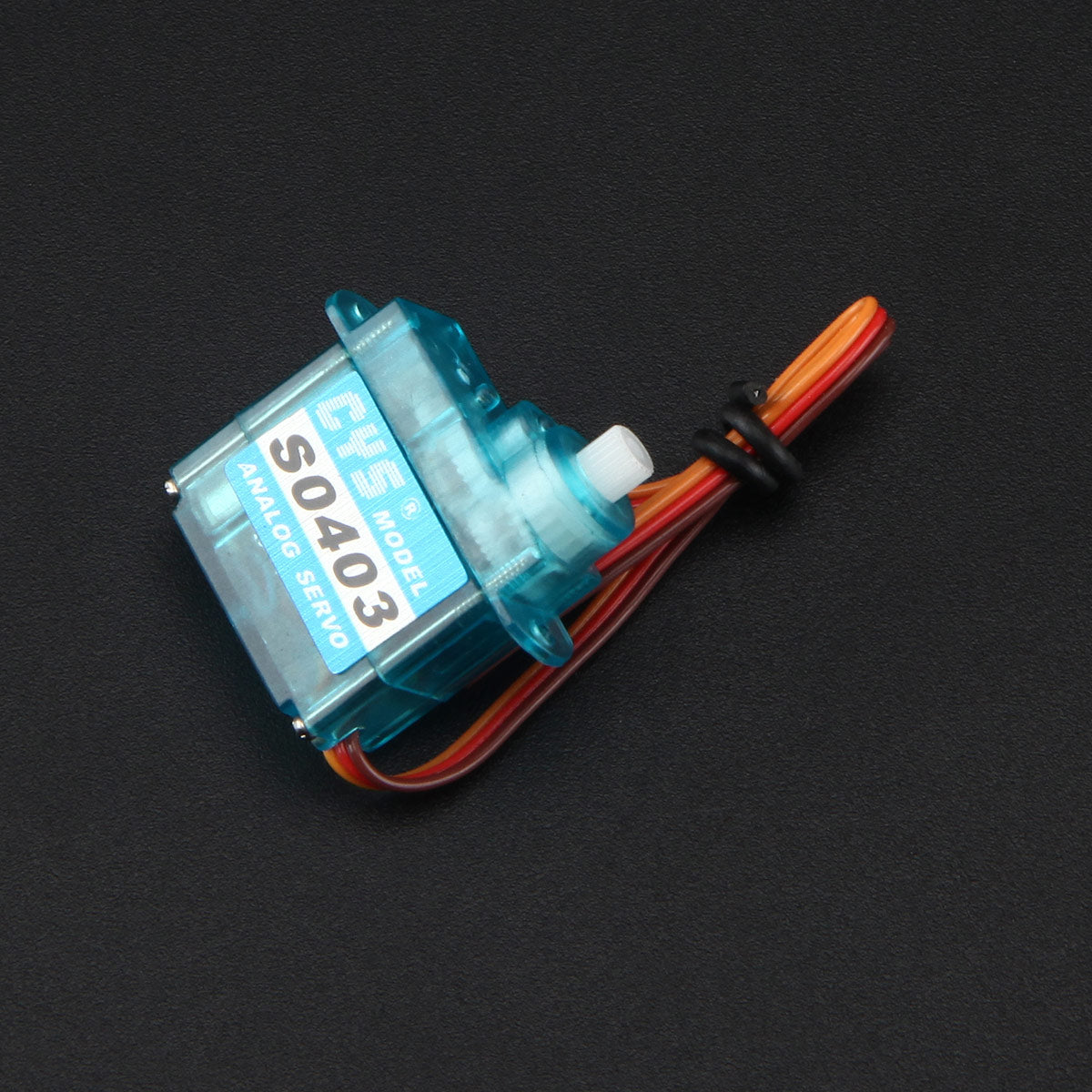

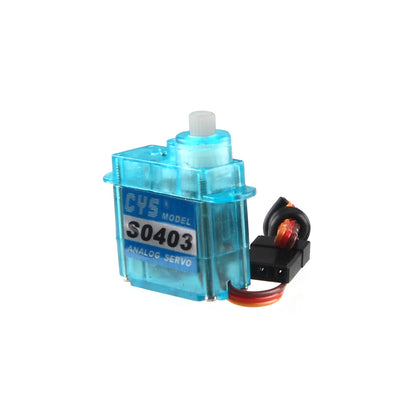

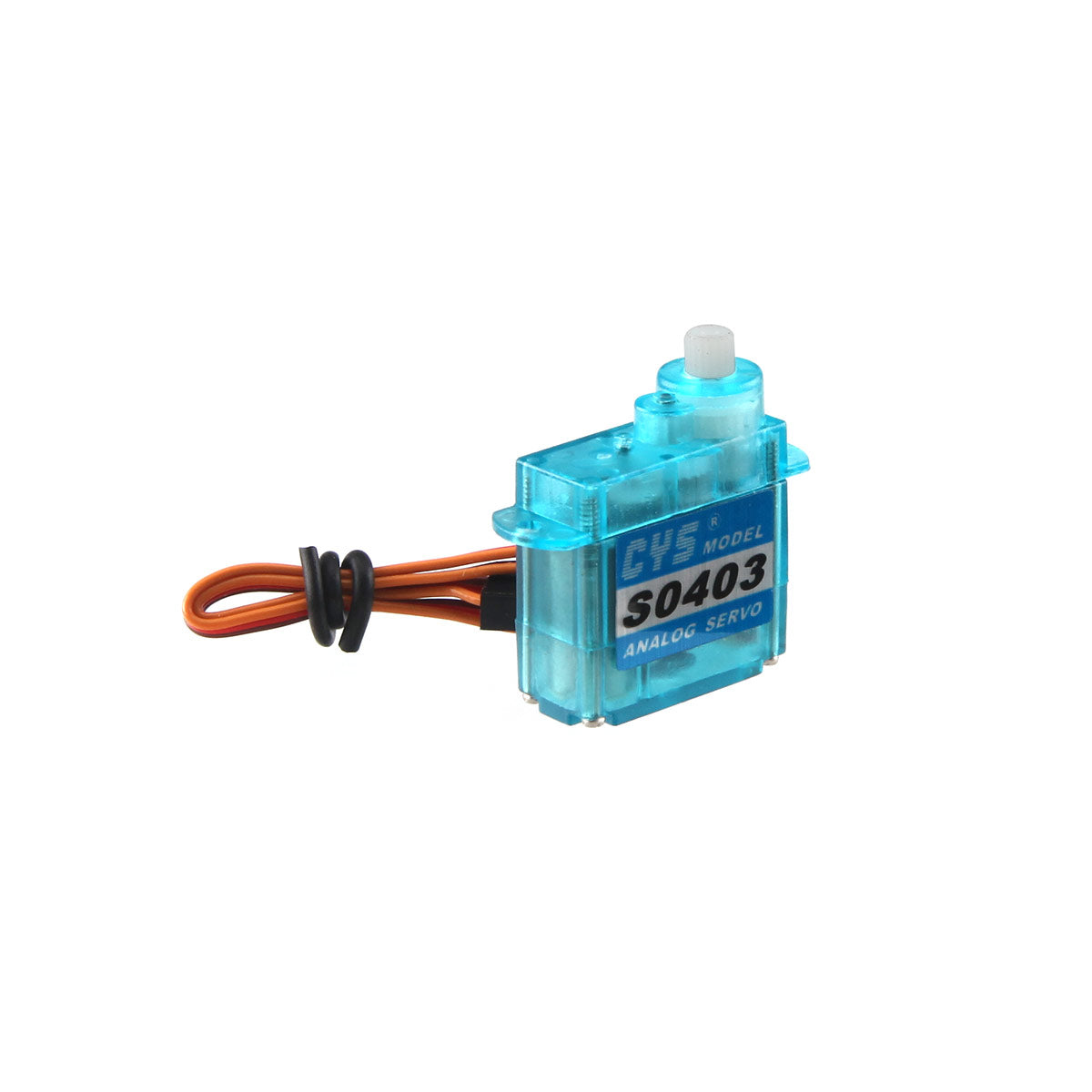

CYS-S0403 4.3g 19.8X8.4X23.3mm Plastic Gear Micro Servo For RC Plane Boat Car

Specification

Dimensions :19.8X8.4X23.3mm

Operating Voltage: DC4.2-4.8V

Dead band: 4sec

Operating Speed (4.2V): 0.14sec/60 degrees

Operating Speed (4.8V): 0.12sec/60 degrees

Stall Torque (4.2V): 0.6kg.cm (8.33oz/in)

Stall Torque (4.8V): 0.8 kg.cm (11.11 oz/in)

Running Current(4.2V): 100mA

Running Current(4.8V): 140mA

Stall Current(4.2V): 500mA

Stall Current(4.8V): 600mA

Idle Current(4.2V): 10mA

Idle Current(4.8V): 10mA

Weight: 4.3g (0.15oz)
