Flight model cys servo
SKU:CYS-S8218
Precio habitual
$25.90 USD
Precio habitual
Precio de oferta
$25.90 USD
Precio unitario
/
por
No se pudo cargar la disponibilidad de retiro

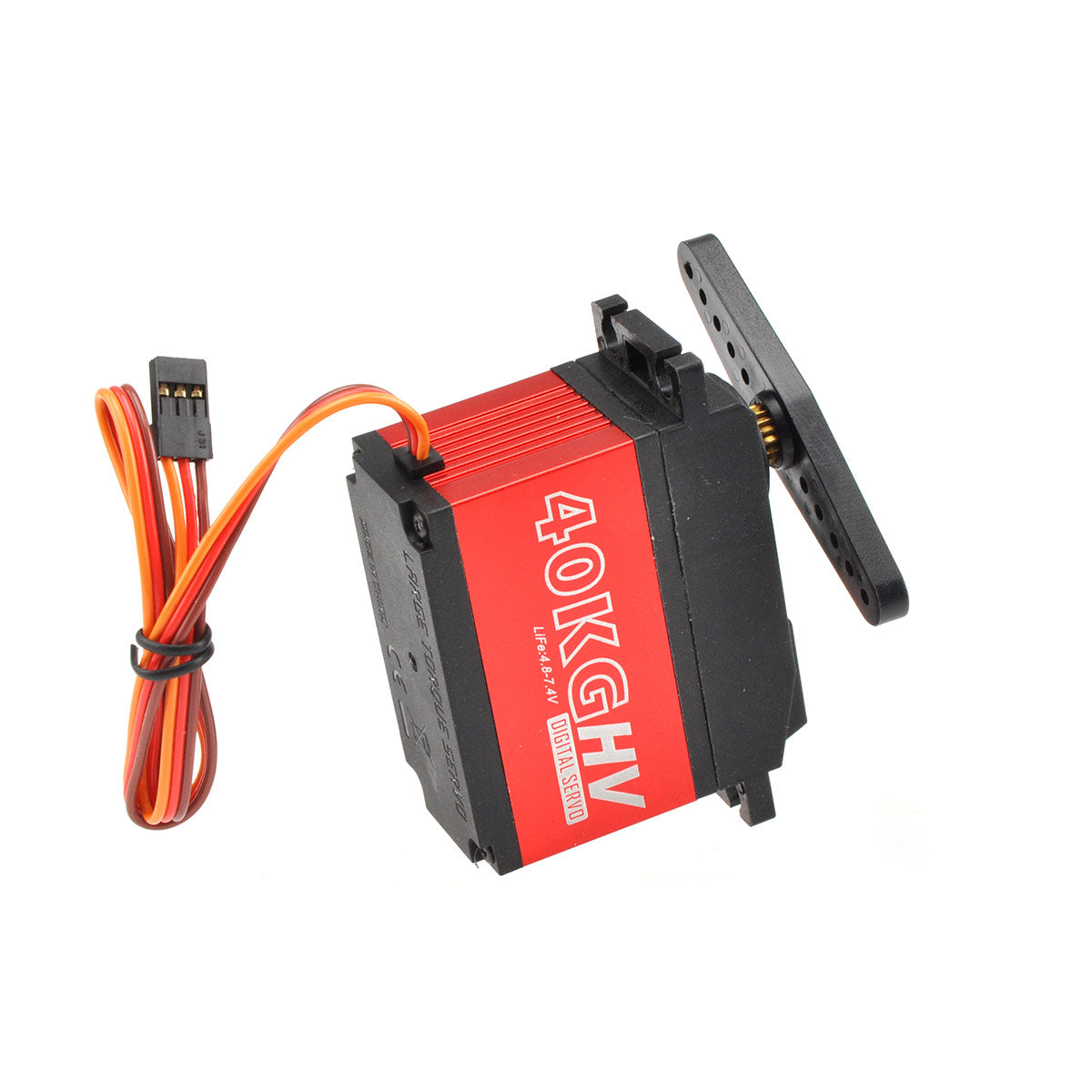

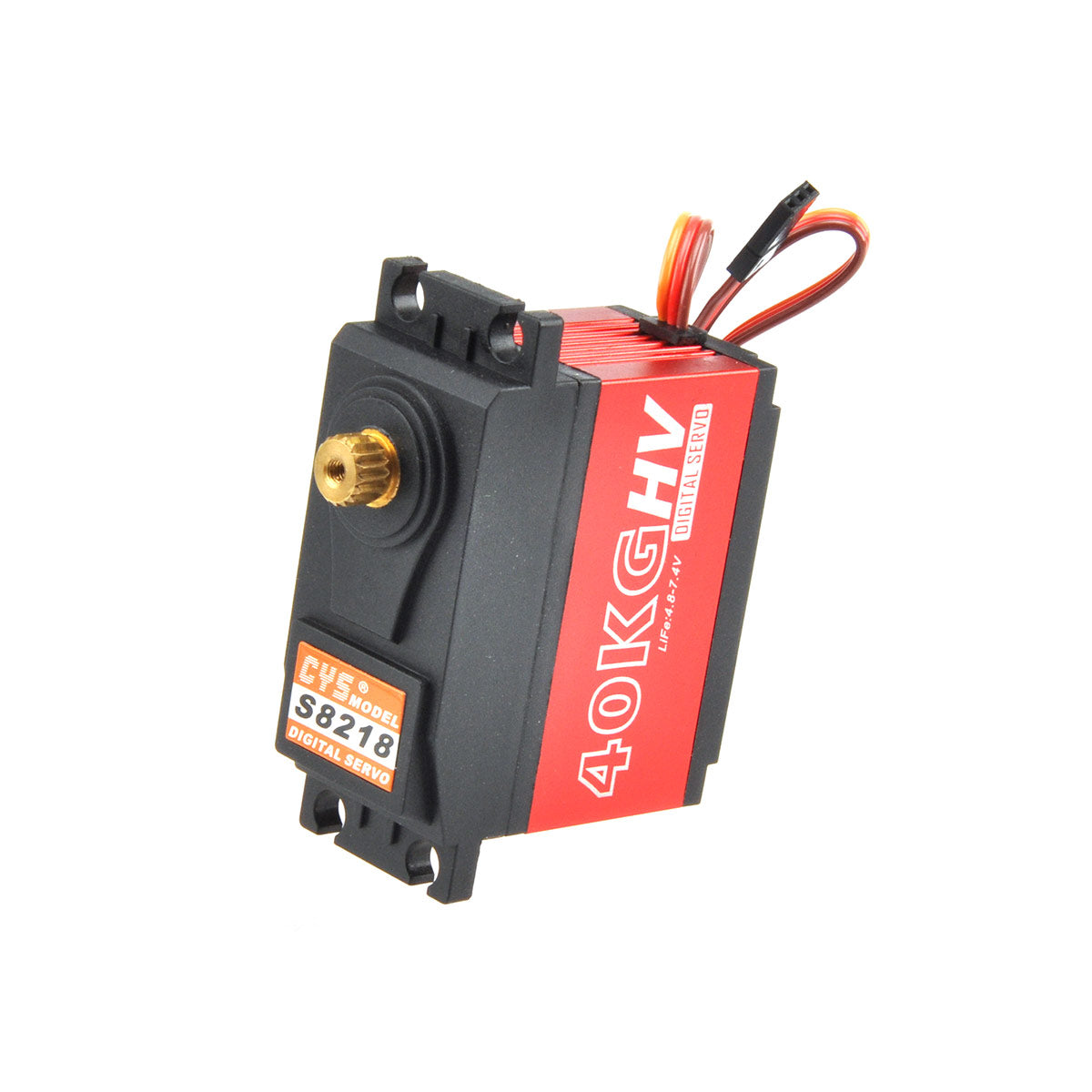

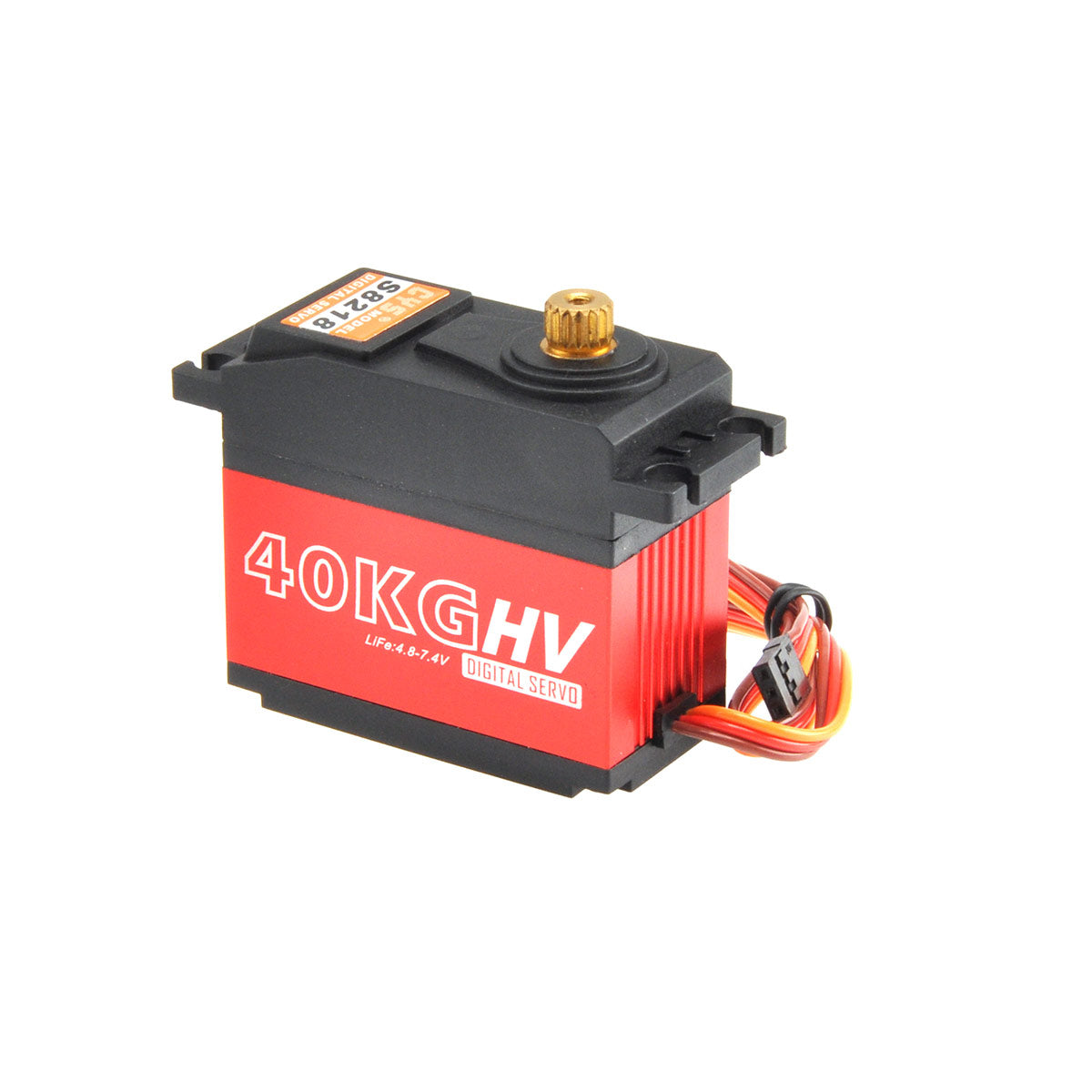

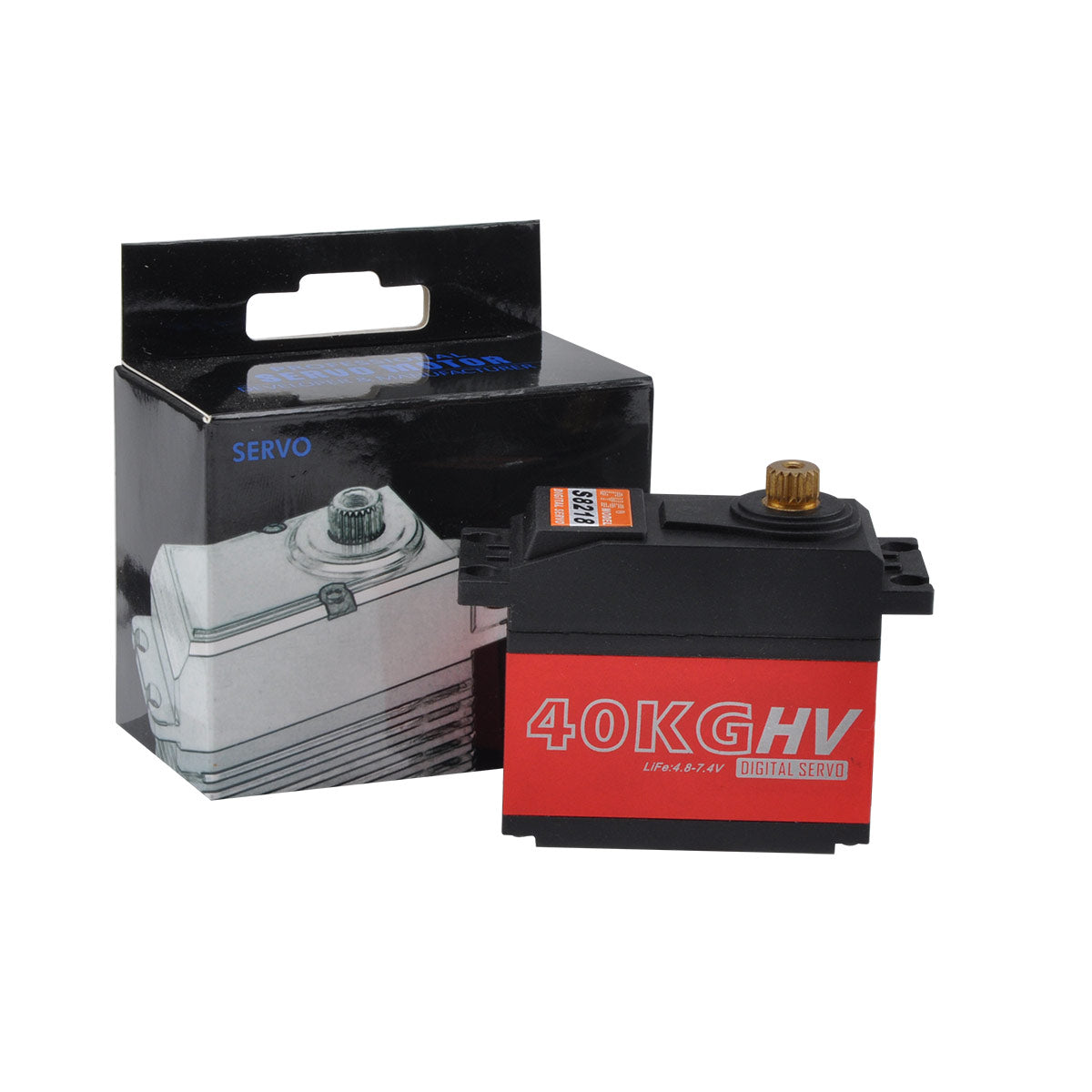

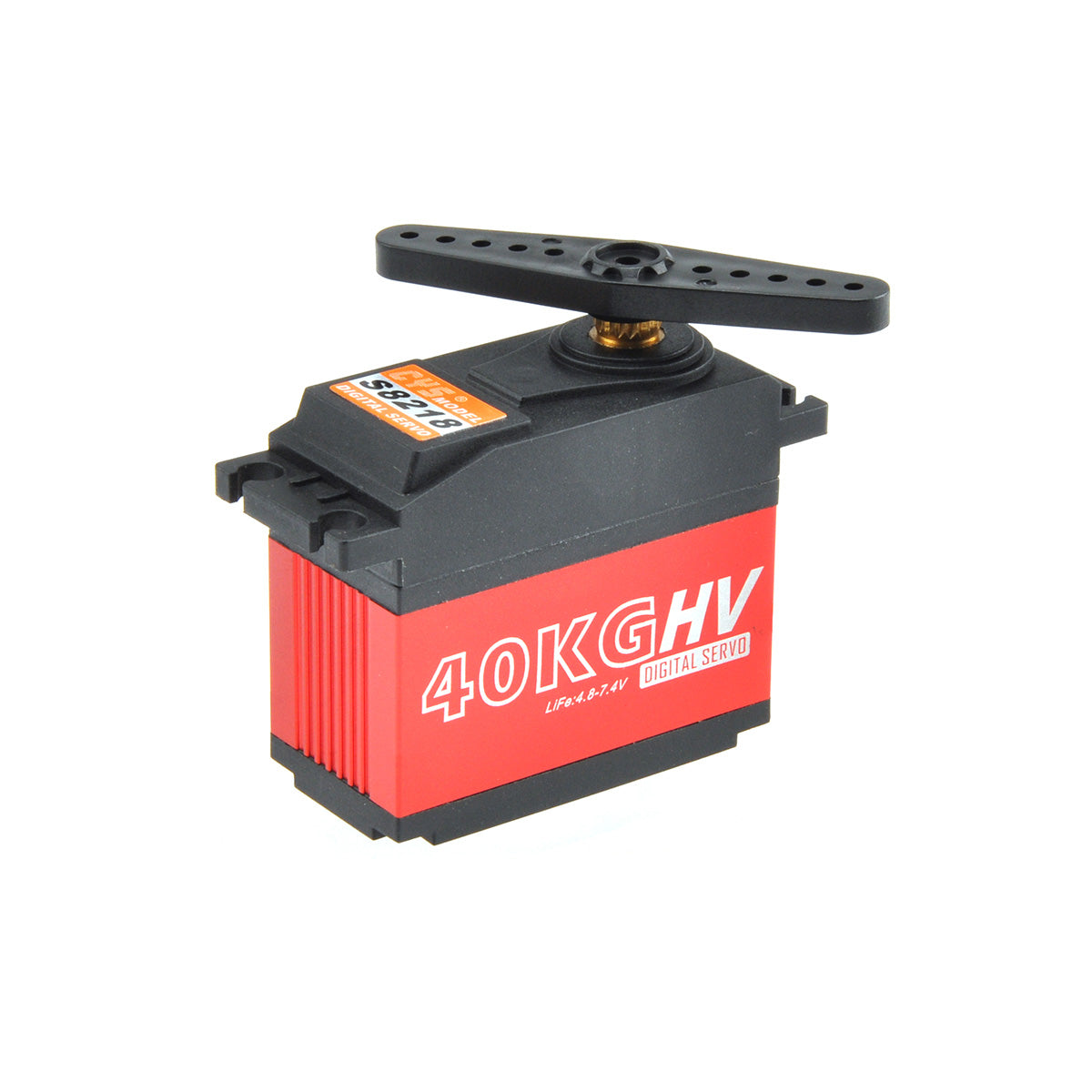

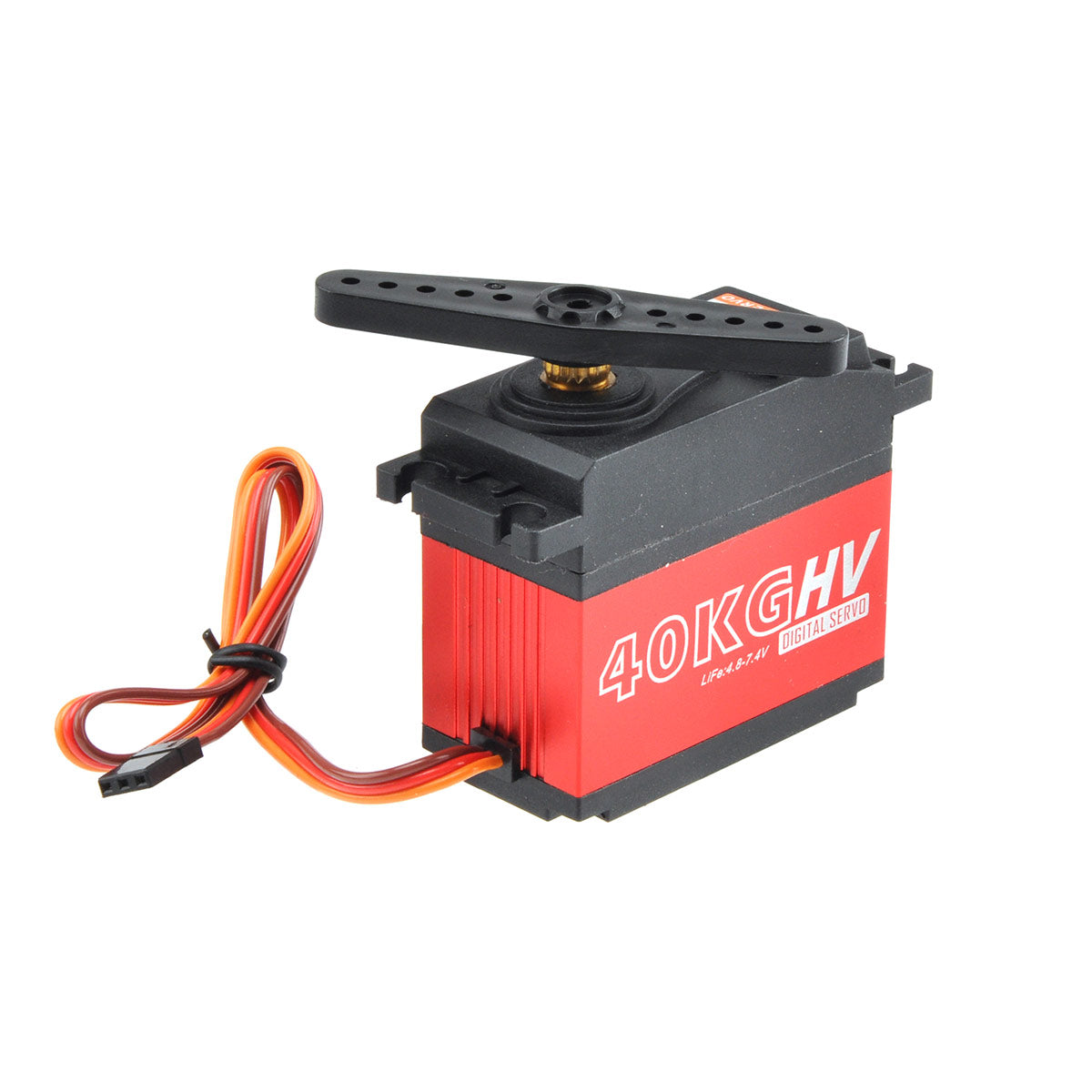

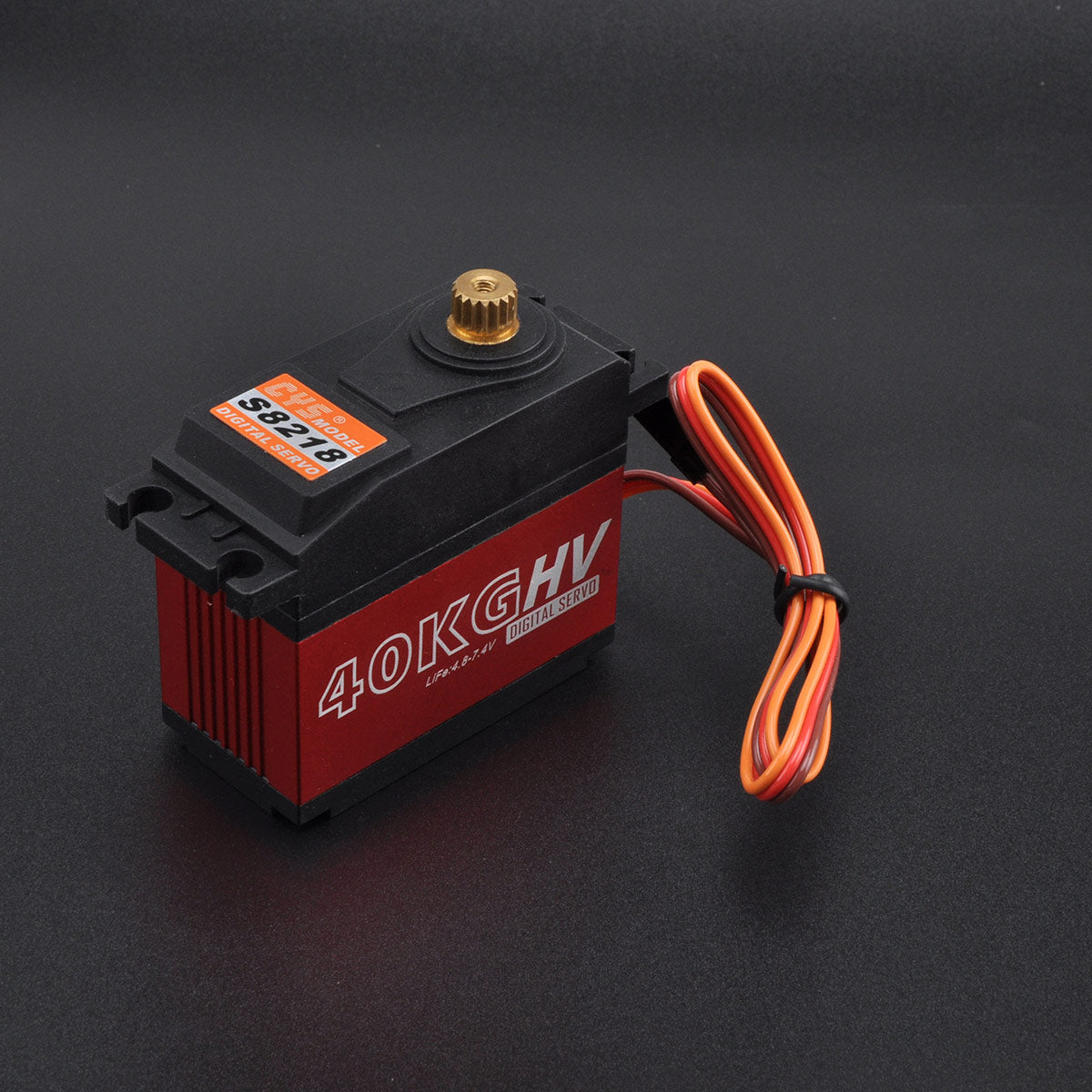

CYS S8218 40KG Metal Gear Digital Servo Waterproof High torque steering gear For RC Car
Specification:
| Item No. |
CYS-S8218 |
| Type |
Digital |
| Weight |
164g |
| Size |
59.5*29*55.2mm |
| Control System |
(+)Pulse Width Control 1500usec Neutral |
| Required Pulse |
| Operating Voltage |
6.0~7.4Volts |
| Operating Temperature Range |
(-)10 to +50 degree C |
| Operating Speed (6.0V) |
0.20sec/60° at no load |
| Operating Speed (7.4V) |
0.18sec/60° at no load |
| Stall Torque (6.0V) |
36kg.cm |
| Stall Torque (7.4V) |
38kg.cm |
| |
| Operating Angle |
45deg.one side pulse traveling 500 usec |
| 360 Modifiable |
No |
| Direction |
Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) |
20mA/idle and 700mA no load operating |
| Current Drain (7.4V) |
20mA/idle and 900mA no load operating |
| Stall Current |
7.5A/8.6A |
| Dead Band Width |
4usec |
| Motor Type |
3 Pole Ferrite Drive |
| Bearing Type |
Dual Ball Bearing |
| Horn gear spline |
17T |
| Gear Type |
Metal |
| Connector Wire Length |
300mm |
| Wire info |
Brown/Black = Negative |
| Red = Positive |
|
Orange/White = Signal
|

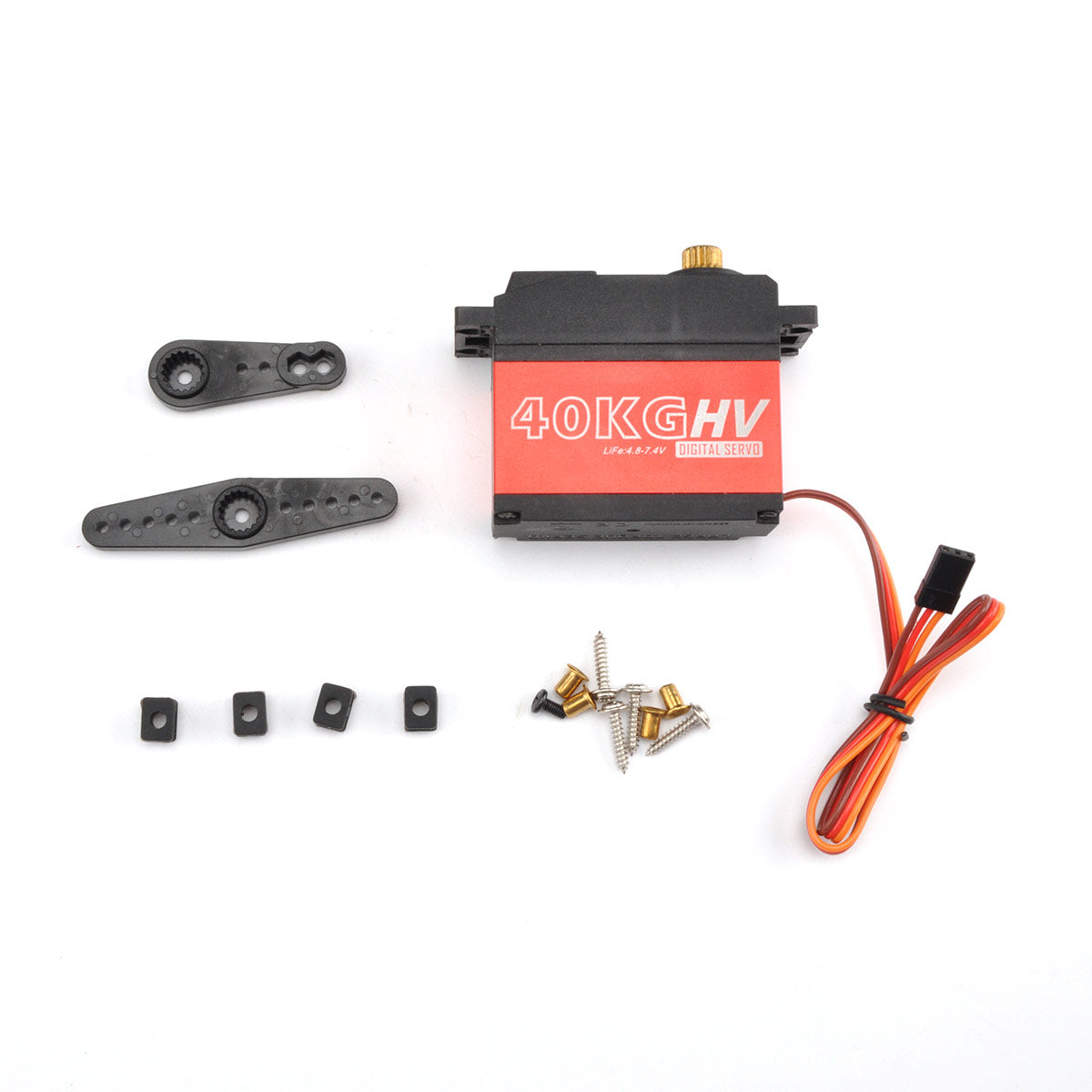

Package list :
1PCS CYS SERVO
