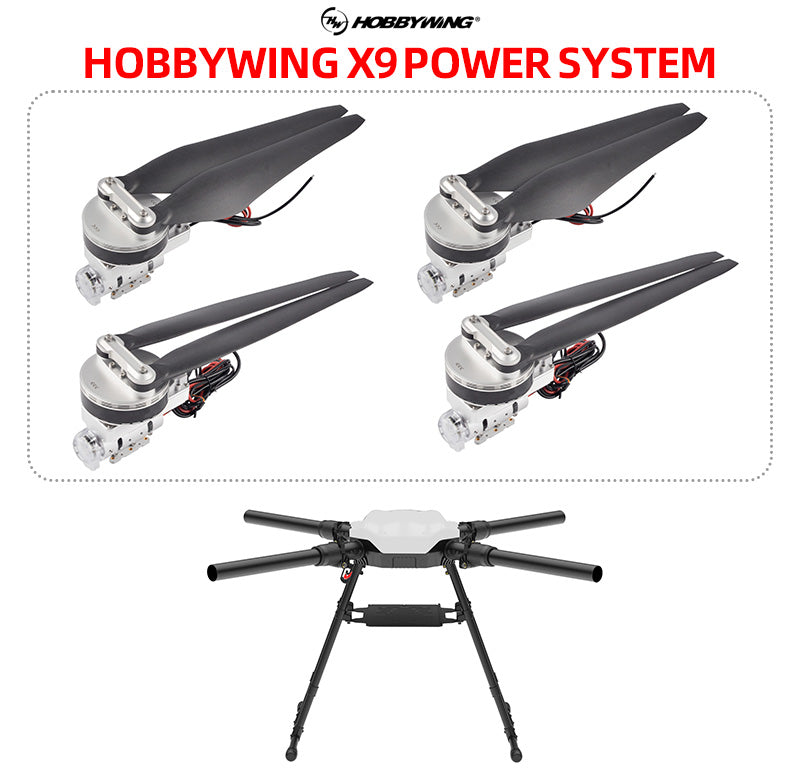

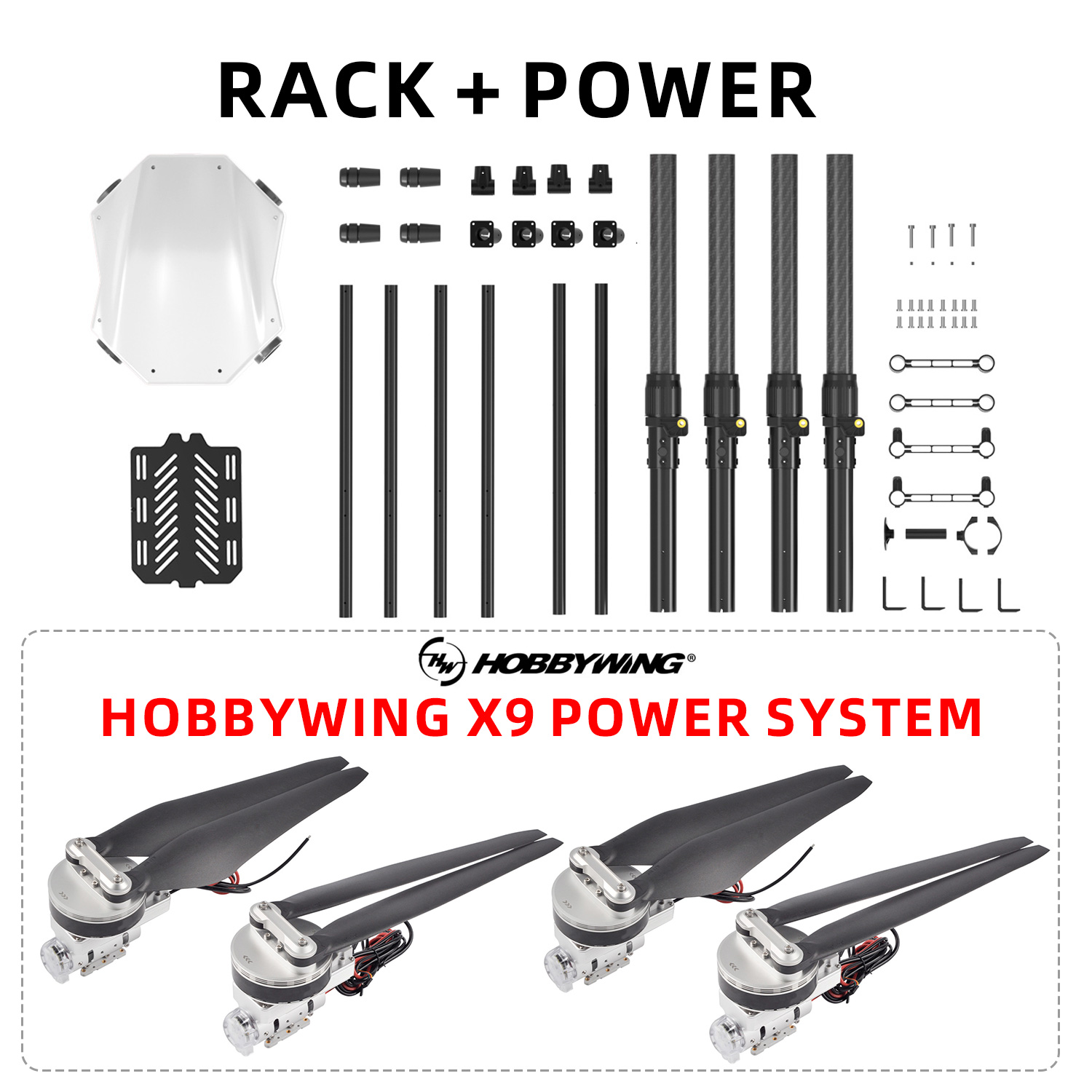

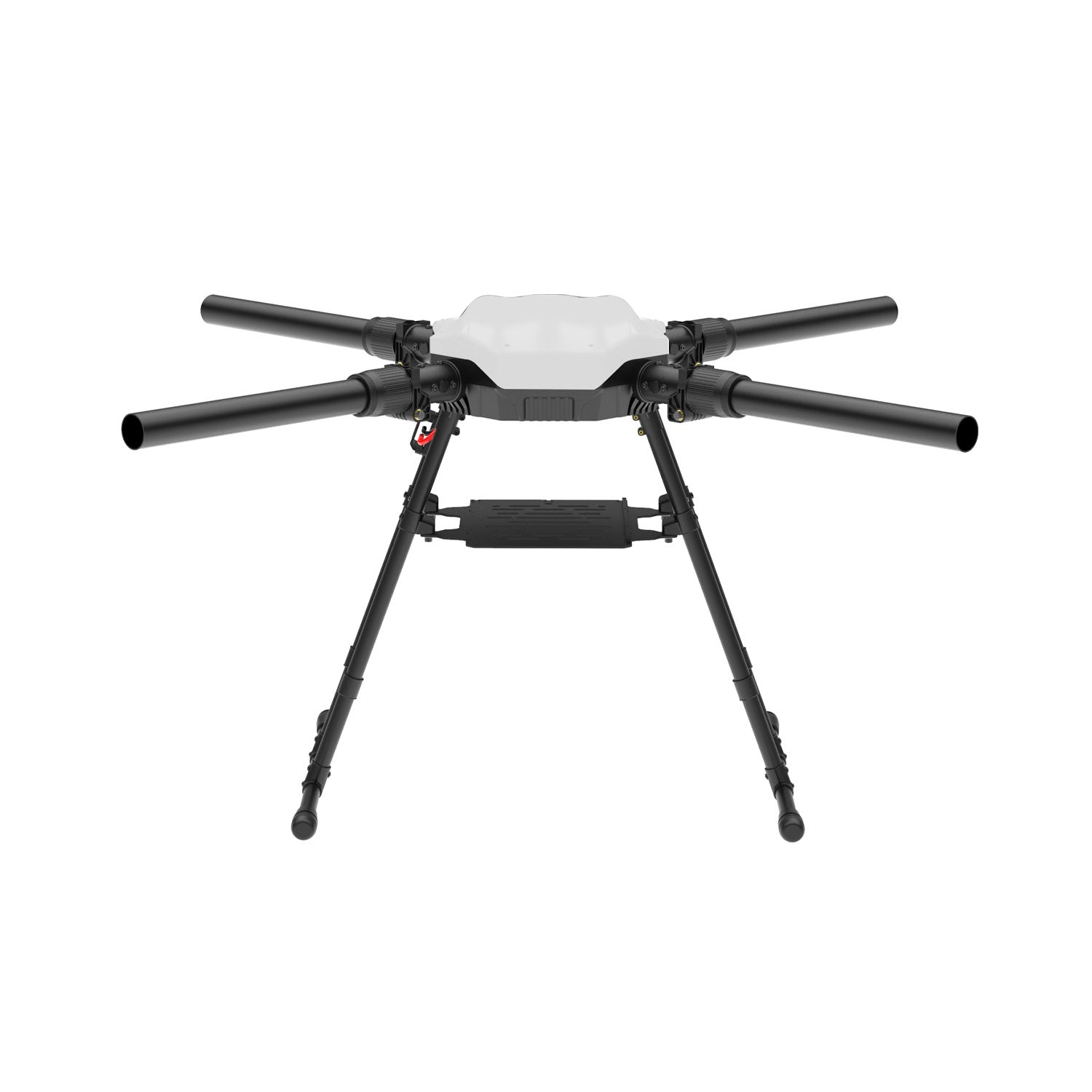

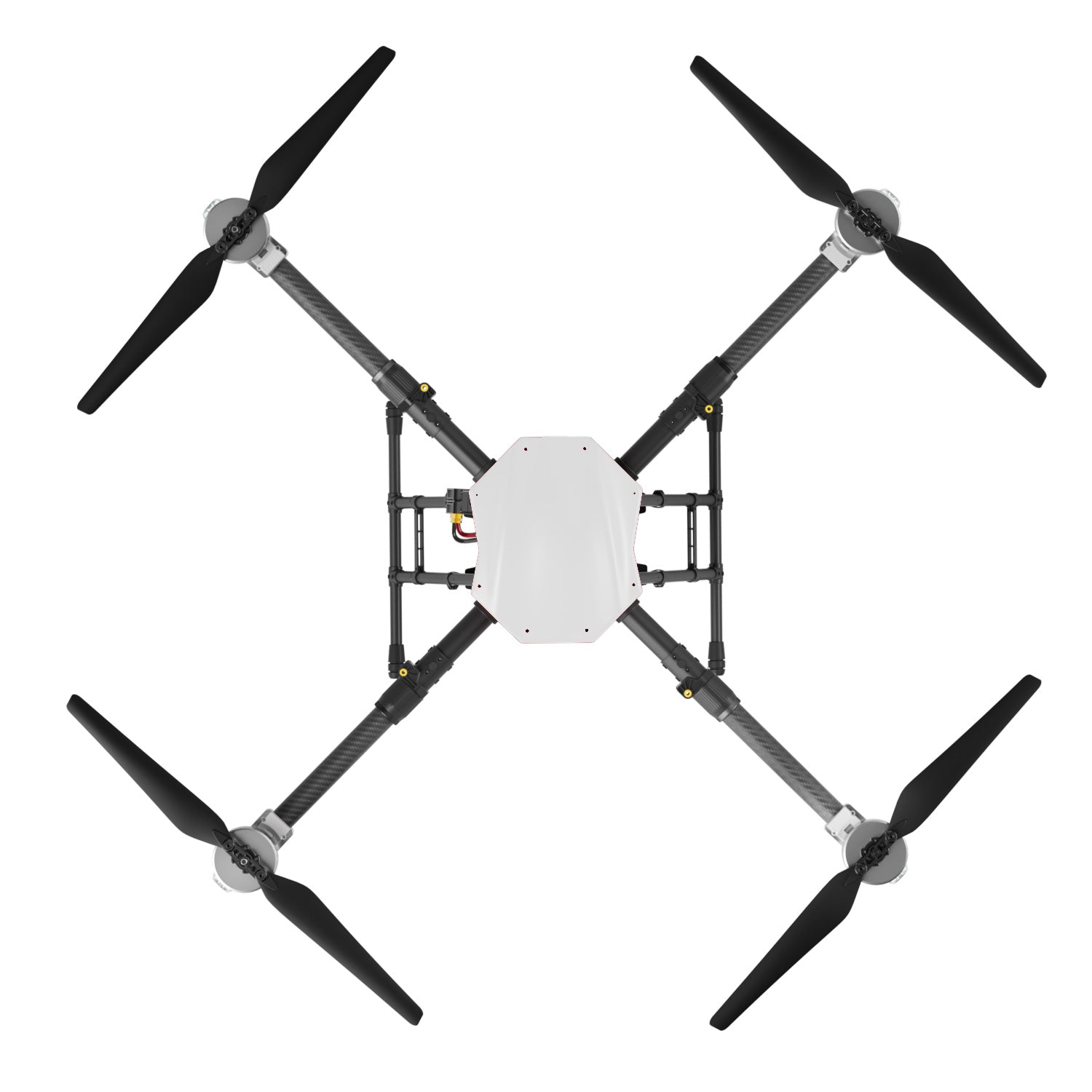

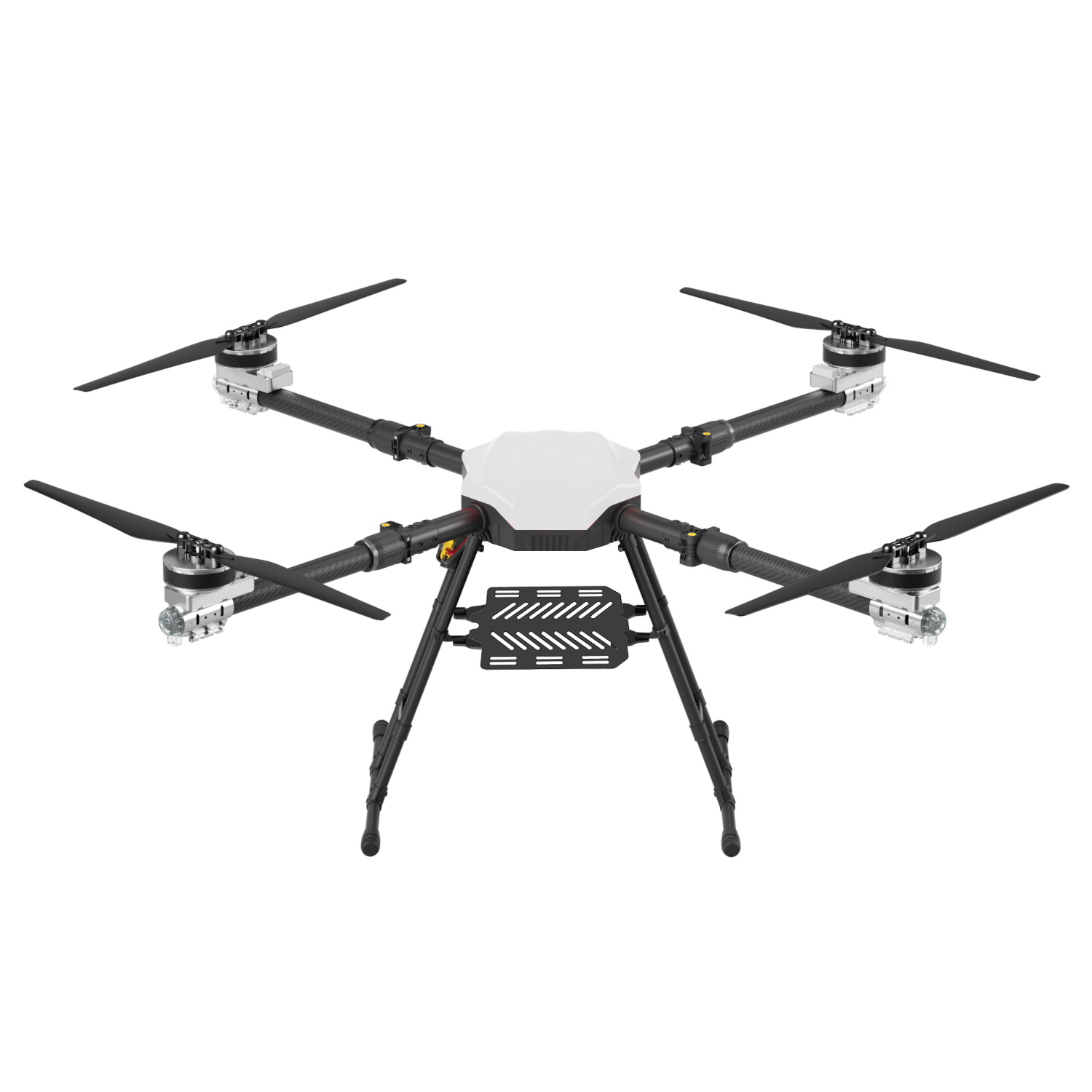

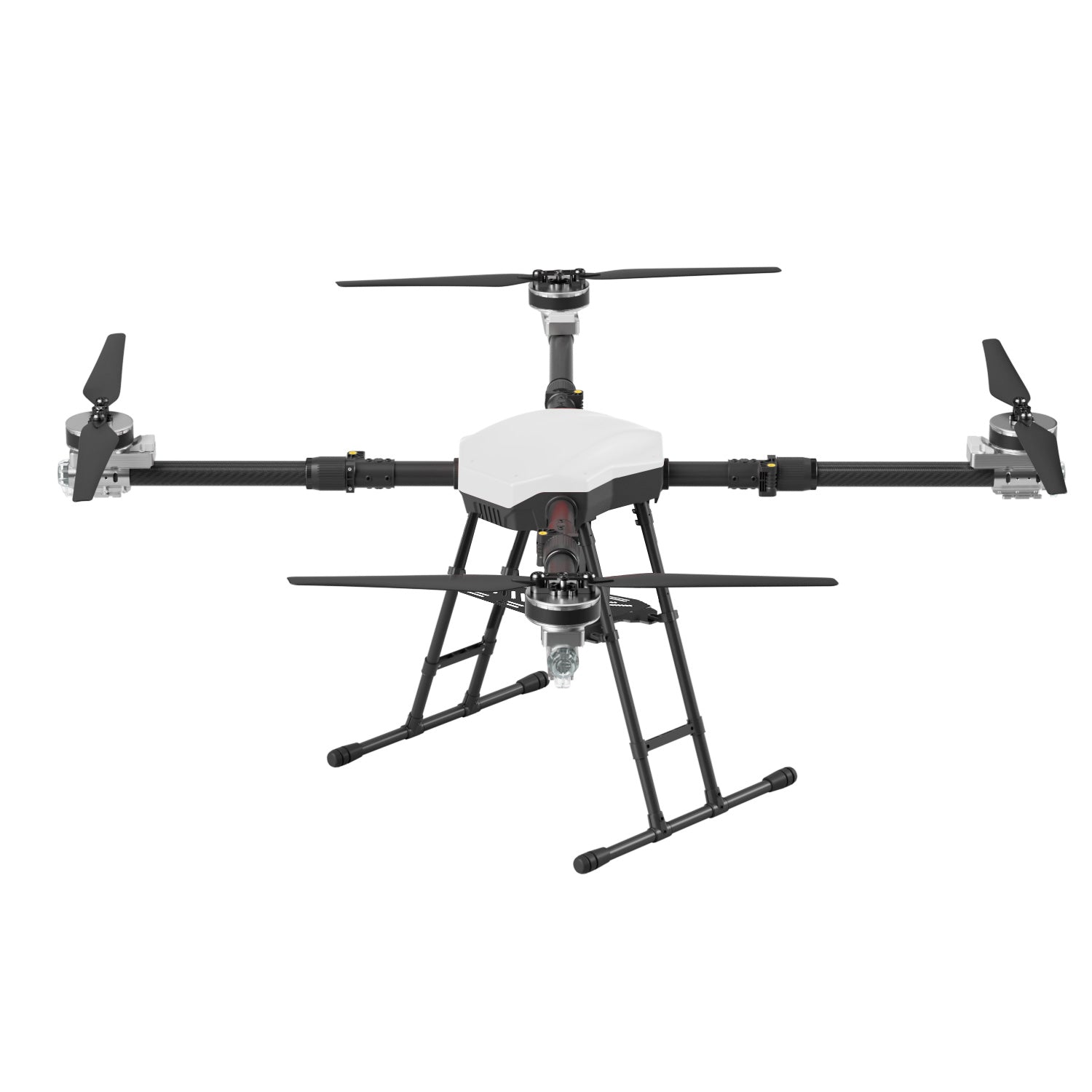

15KG Payload Training Machine Drone Frame UAV Frame With Hobbywing X9 Power System
15KG Payload Training Machine Drone Frame UAV Frame With Hobbywing X9 Power System
SKU:ZB15KG-4M-B
Precio habitual
$266.99 USD
Precio habitual
$0.00 USD
Precio de oferta
$266.99 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
For Other Inquiries,Please Contact Customer Service
Please contact us in advance to obtain accurate shipping cost.
Product Specifications
*Product dimensions, weight, battery capacity, etc., may vary due to configuration differences. Actual product specifications prevail.
Basic Parameters:
Unfolded Dimensions: 1100*1100*600mm
Folded Dimensions: 650*650*600mm
Wheelbase: 1400mm
Load Capacity: 15kg
Unit Weight: 12.5kg
Takeoff Weight: 32.5kg
Waterproof Rating: IP64
Materials: PE, PP, PA+GF, Aluminum Alloy
Packaging Parameters:
Frame Case Dimensions: 710*410*240mm
Frame Case Weight: 6.9kg
Please contact us in advance to obtain accurate shipping cost.
Product Specifications
*Product dimensions, weight, battery capacity, etc., may vary due to configuration differences. Actual product specifications prevail.
Basic Parameters:
Unfolded Dimensions: 1100*1100*600mm
Folded Dimensions: 650*650*600mm
Wheelbase: 1400mm
Load Capacity: 15kg
Unit Weight: 12.5kg
Takeoff Weight: 32.5kg
Waterproof Rating: IP64
Materials: PE, PP, PA+GF, Aluminum Alloy
Packaging Parameters:
Frame Case Dimensions: 710*410*240mm
Frame Case Weight: 6.9kg

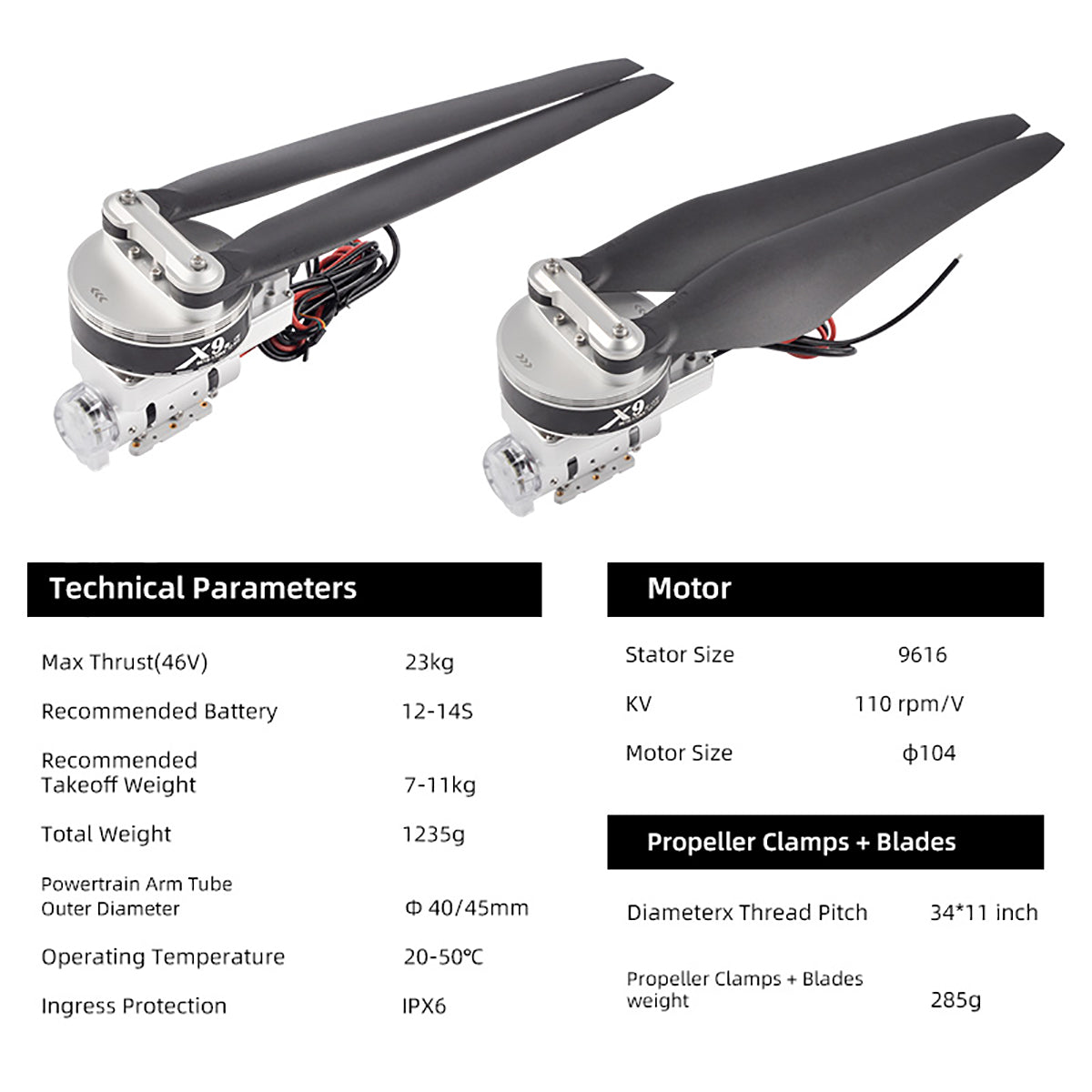

Technical Parameters

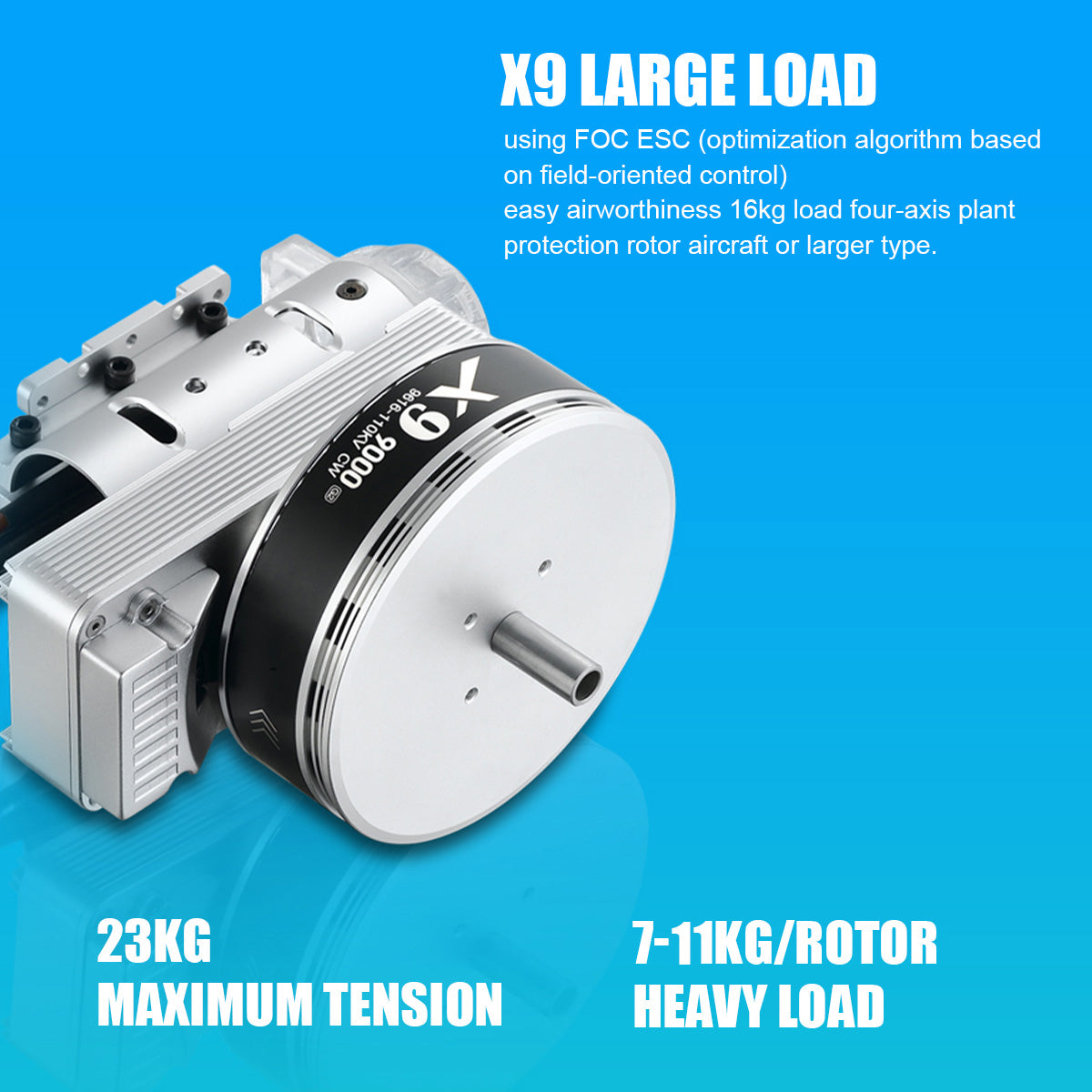

Max Thrust (46V):23kg
Max Thrust (46V):23kg
Recommended Battery:12-14S
Recommended Takeoff Weight:7-11kg

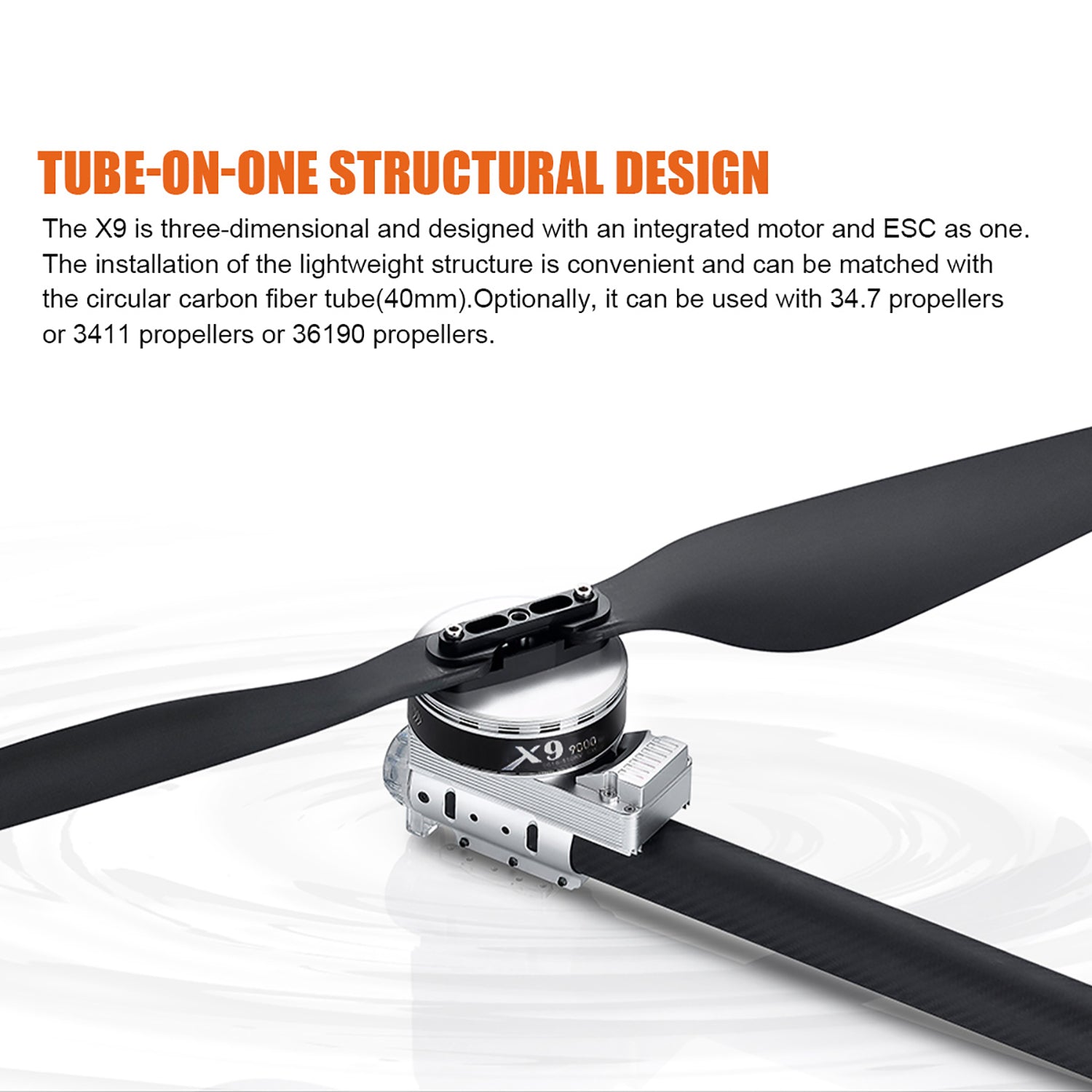

Powertrain Arm Tube 0uter Diameter:Ф 40/45mm
Operating Temperature:-20-50℃
Ingress Protection:IPX6
Recommended Takeoff Weight:7-11kg
Powertrain Arm Tube 0uter Diameter:Ф 40/45mm
Operating Temperature:-20-50℃
Ingress Protection:IPX6

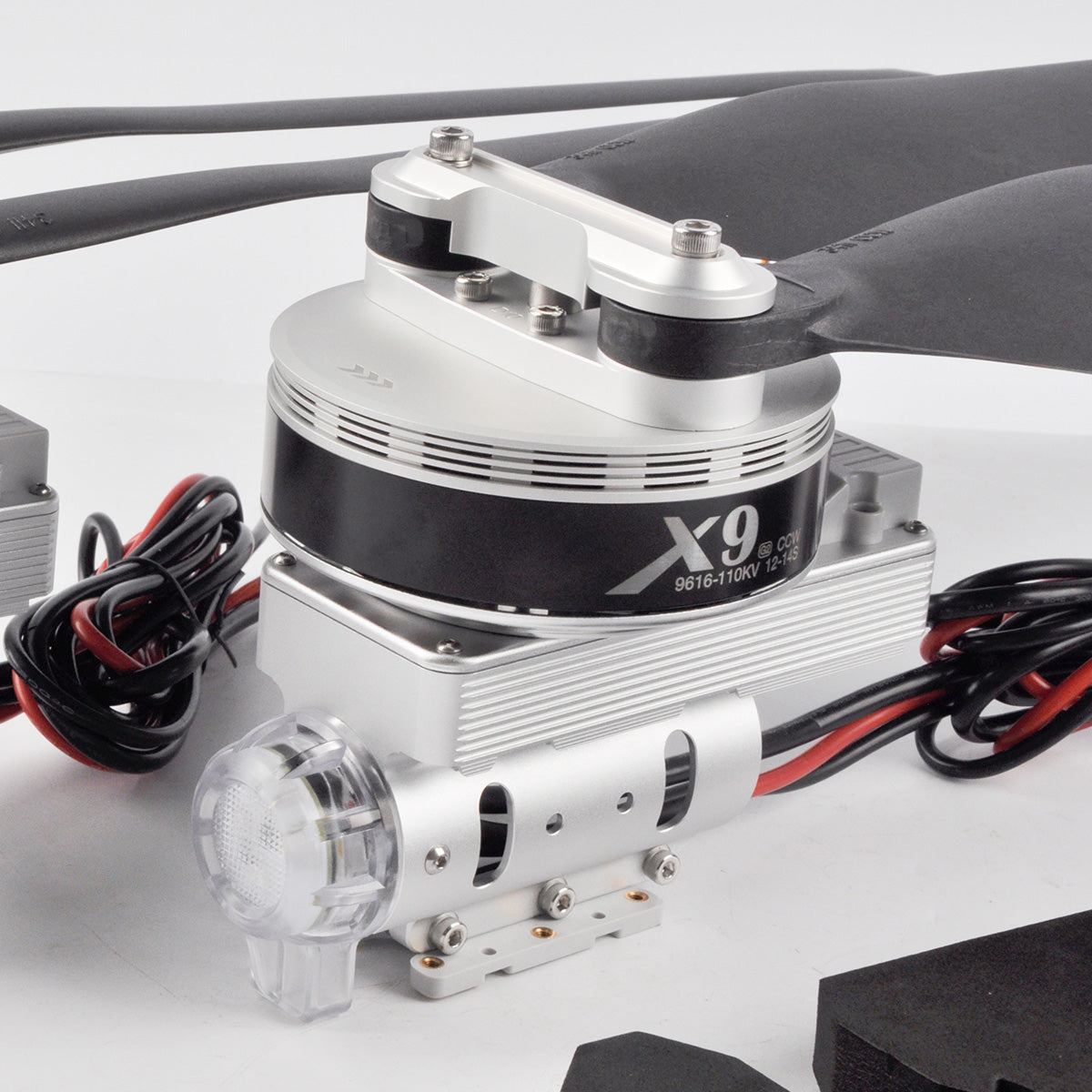

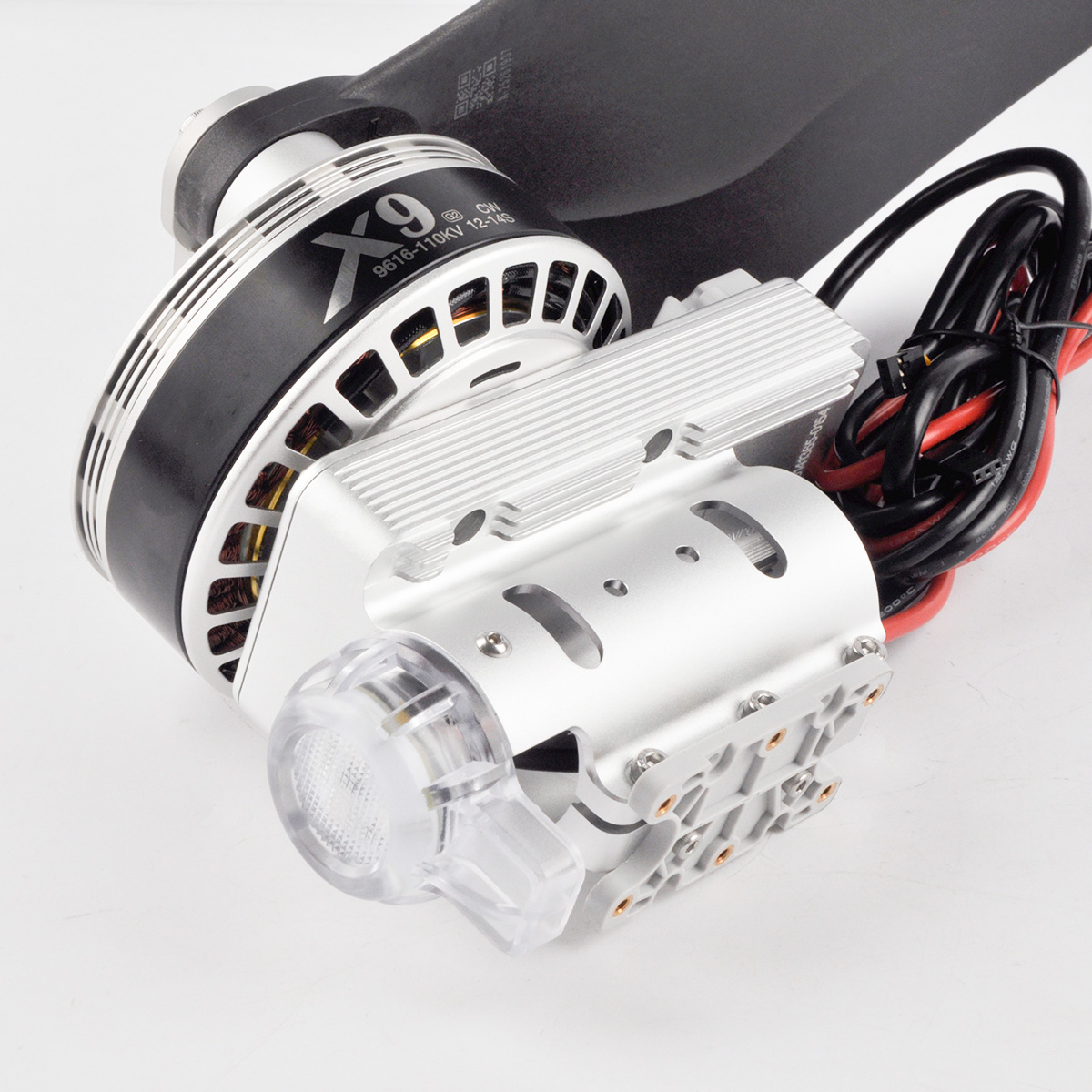

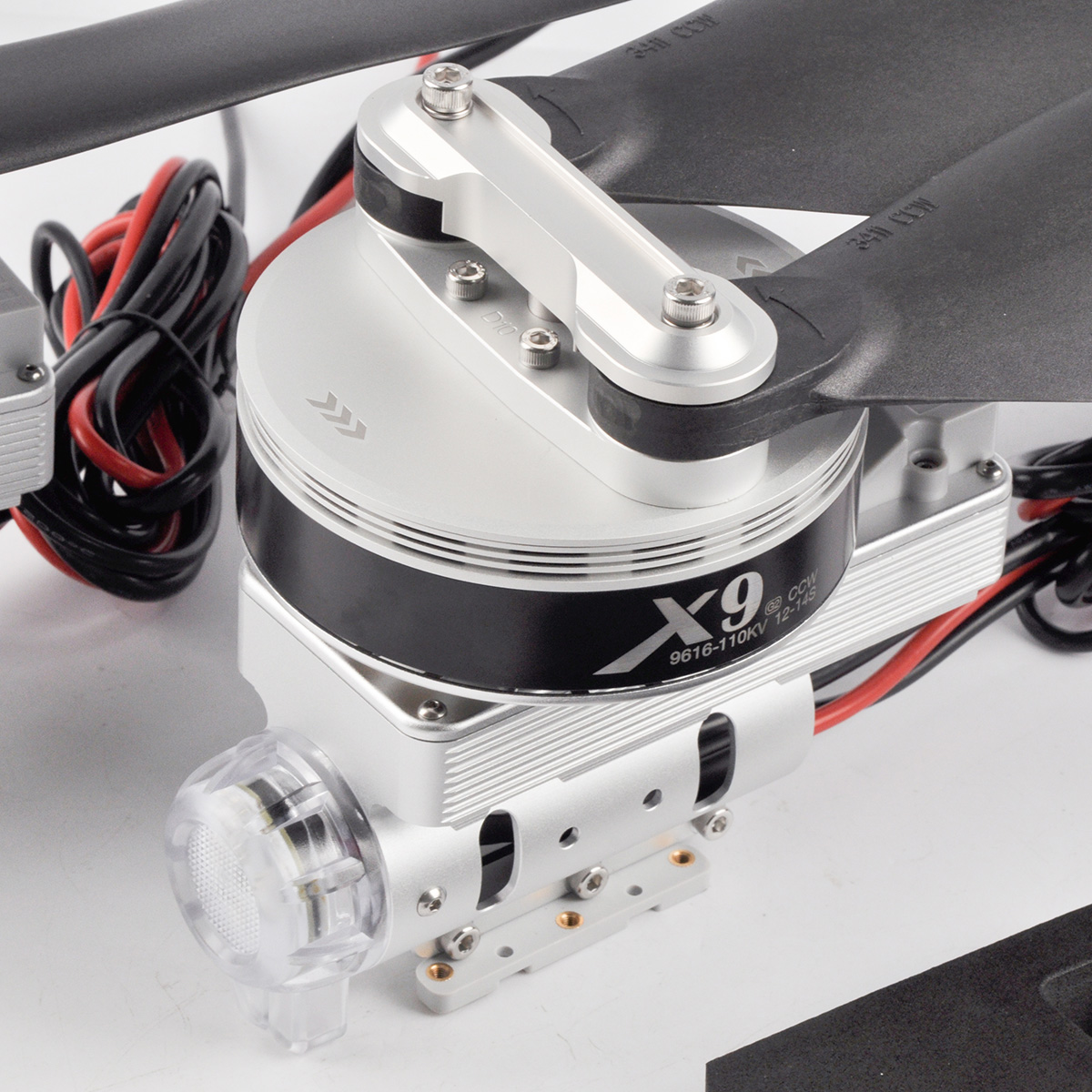

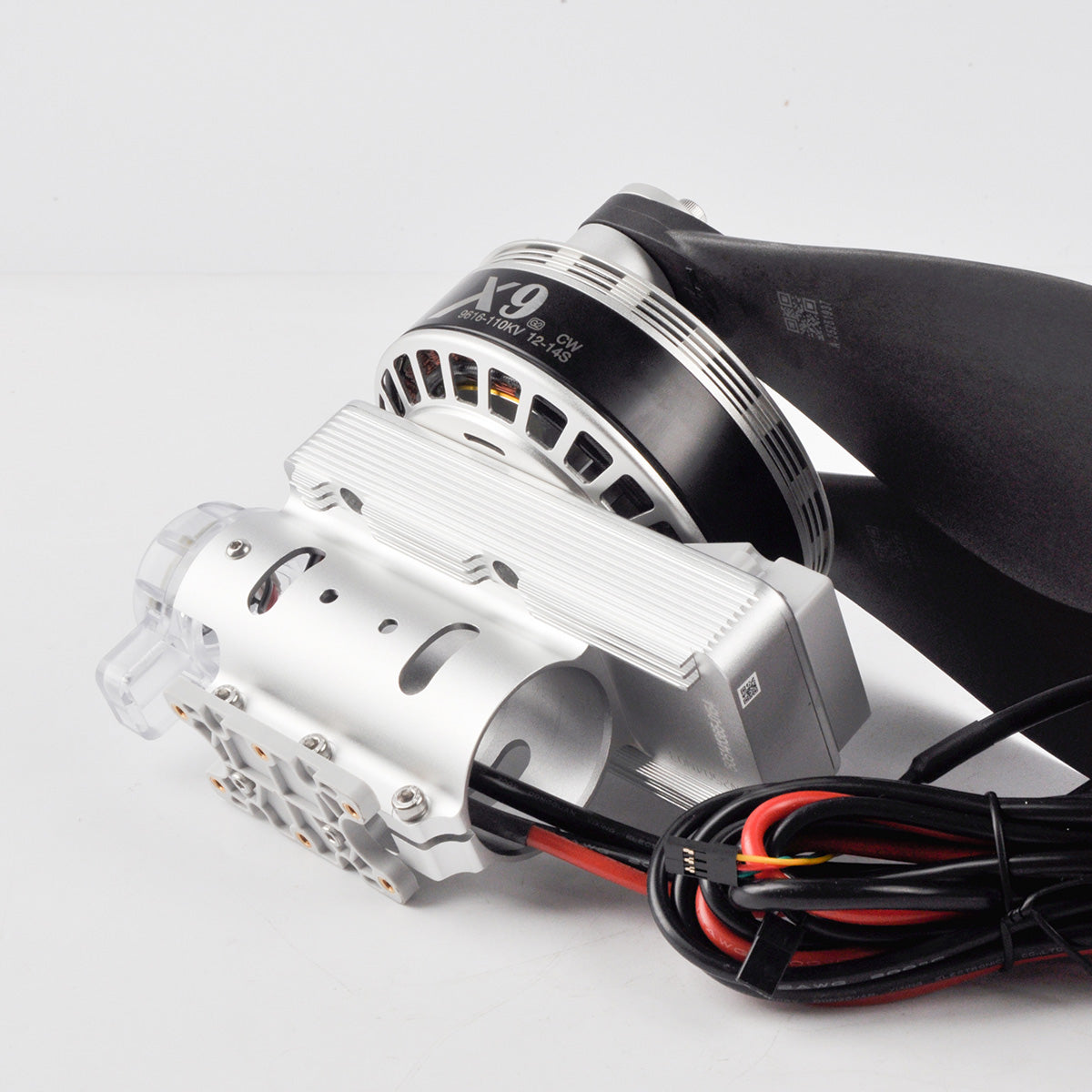

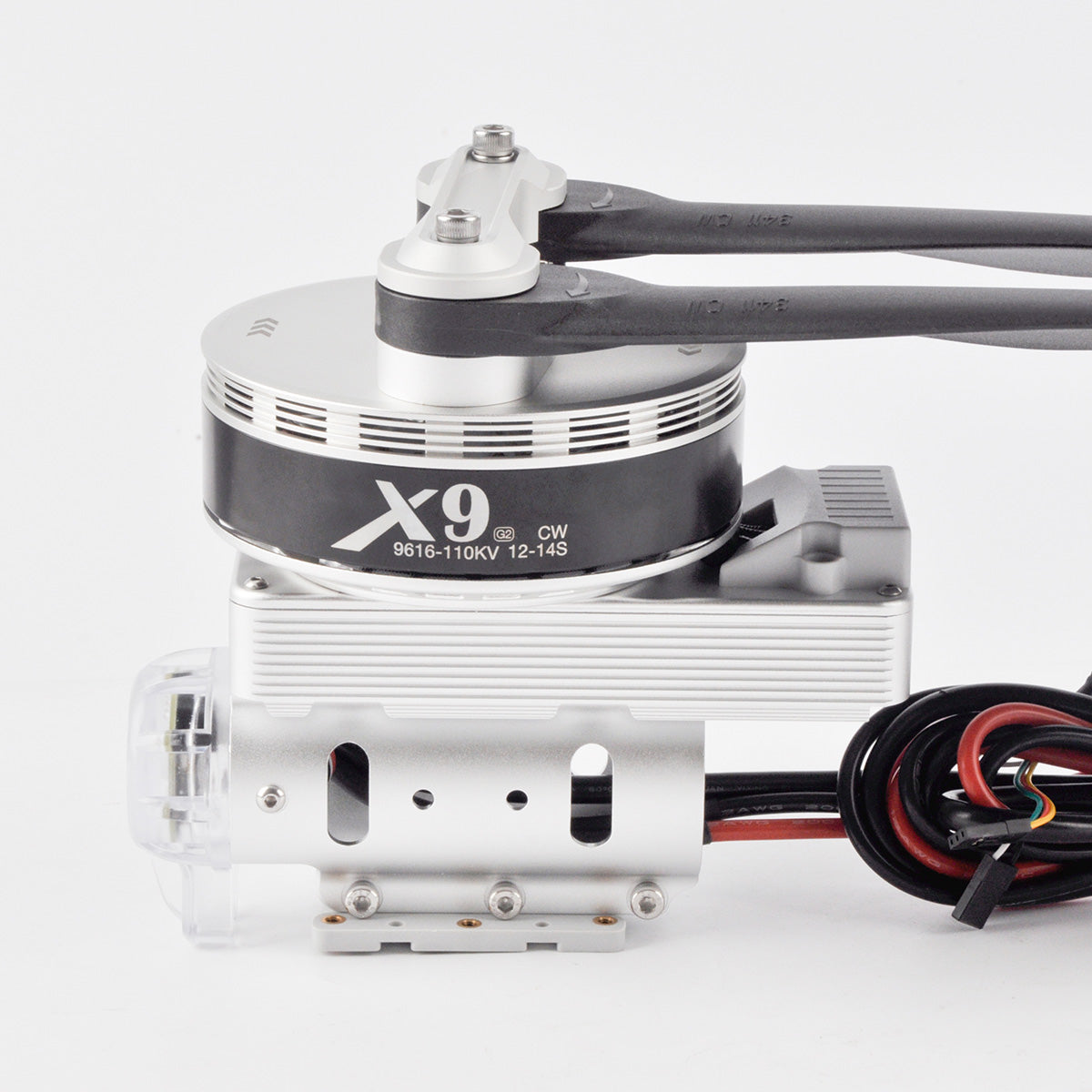

Motor：
Stator Size:9616
KV:110 rpm/V
Motor Size:Ф 104
KV:110 rpm/V
Motor Size:Ф 104
Propeller:
34*11inch
