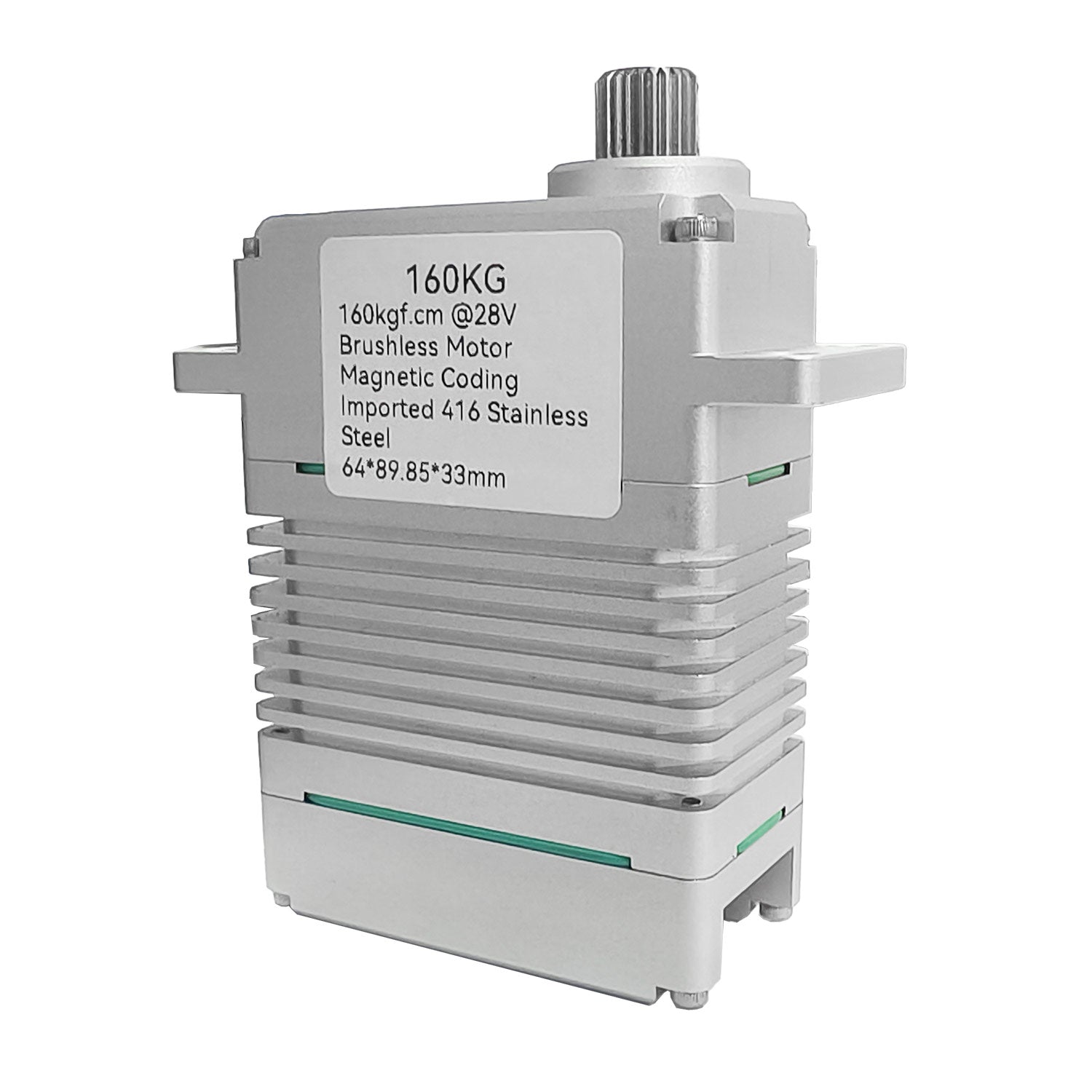

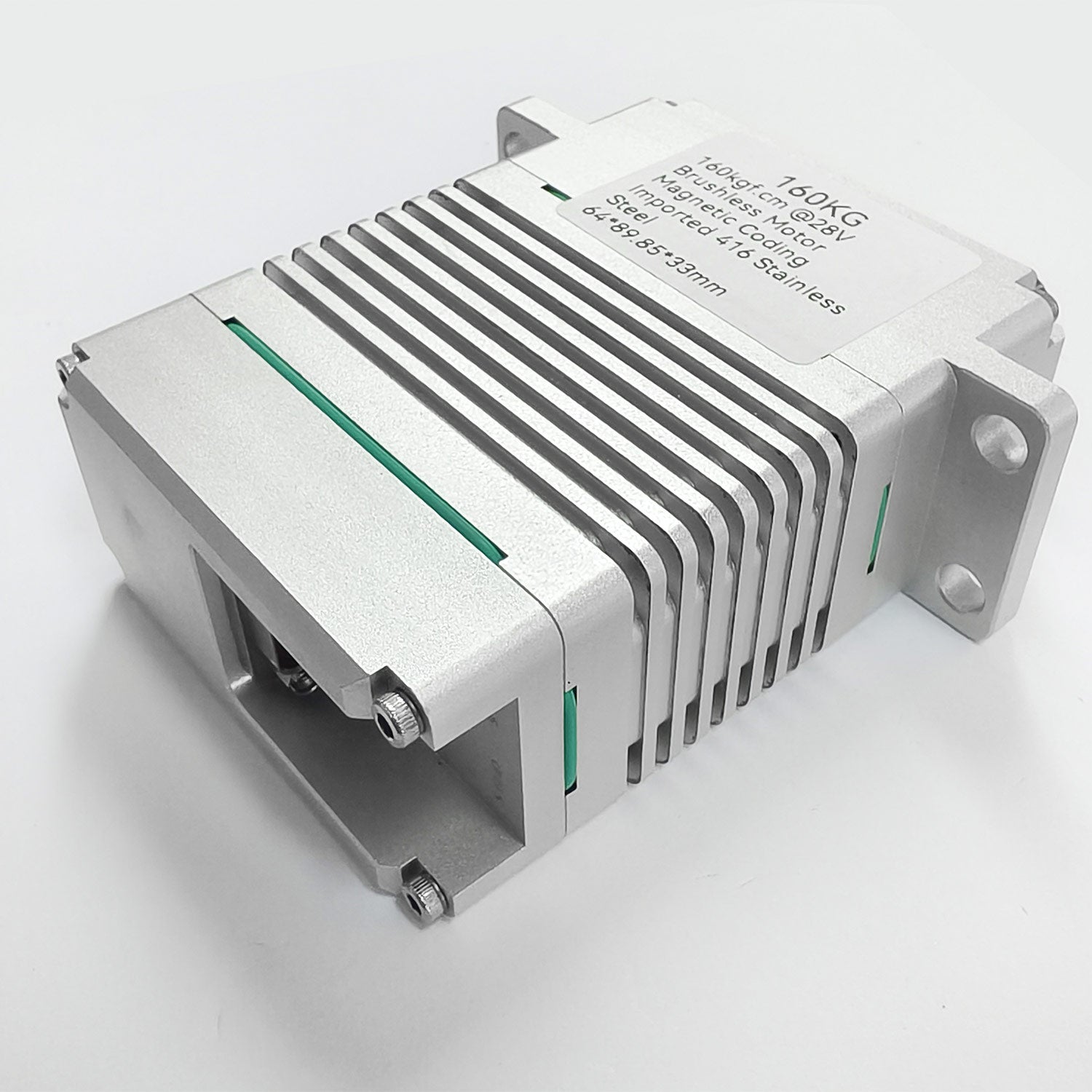

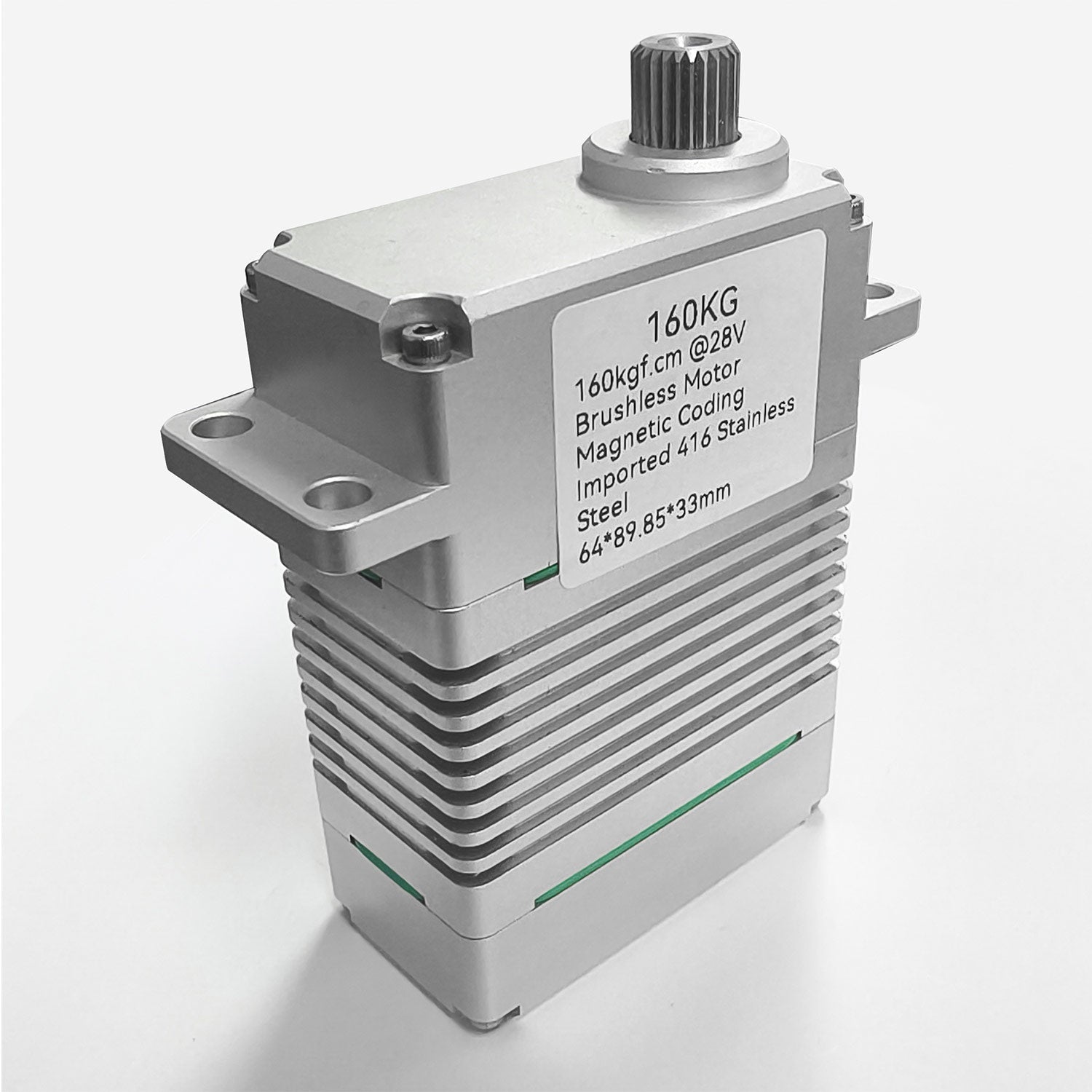

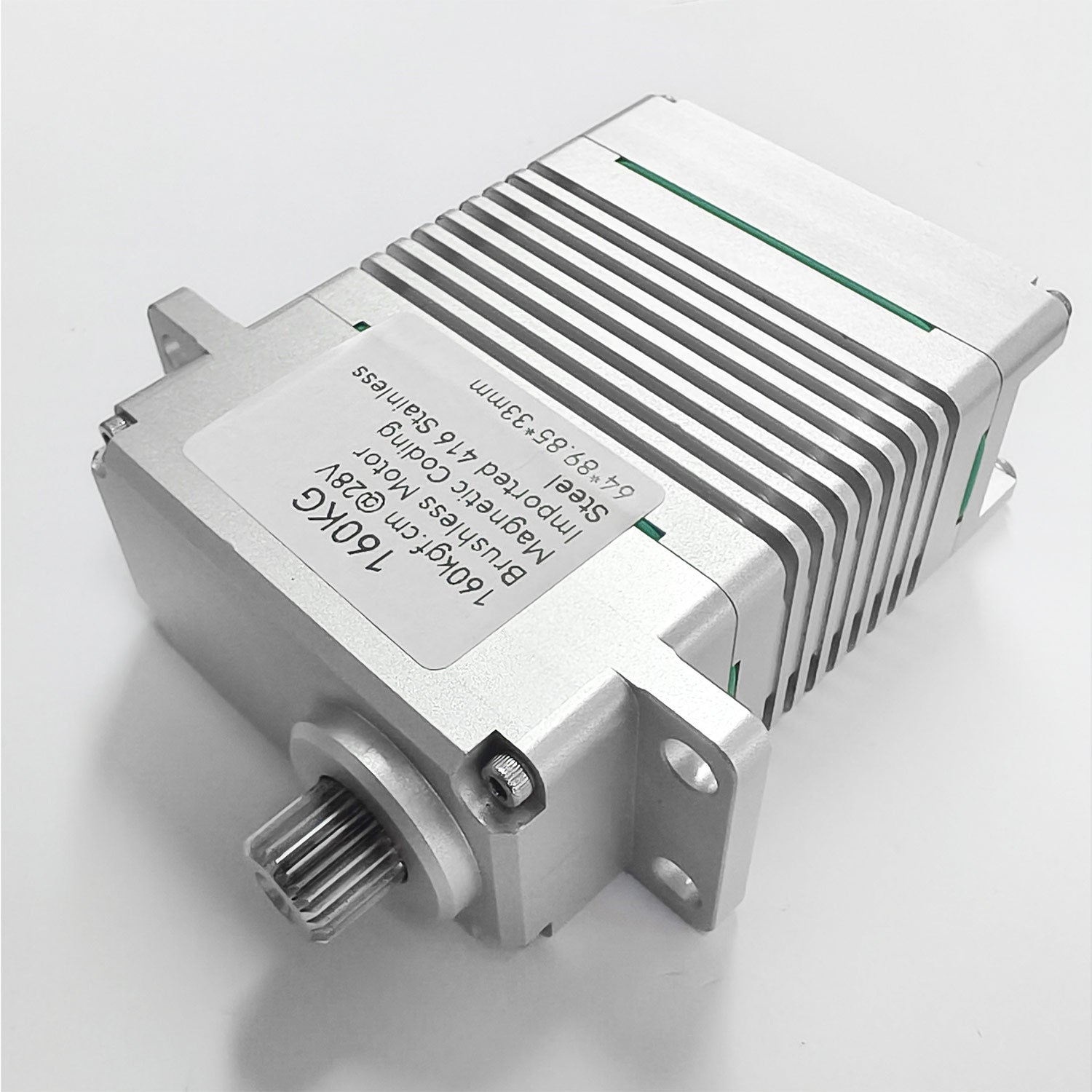

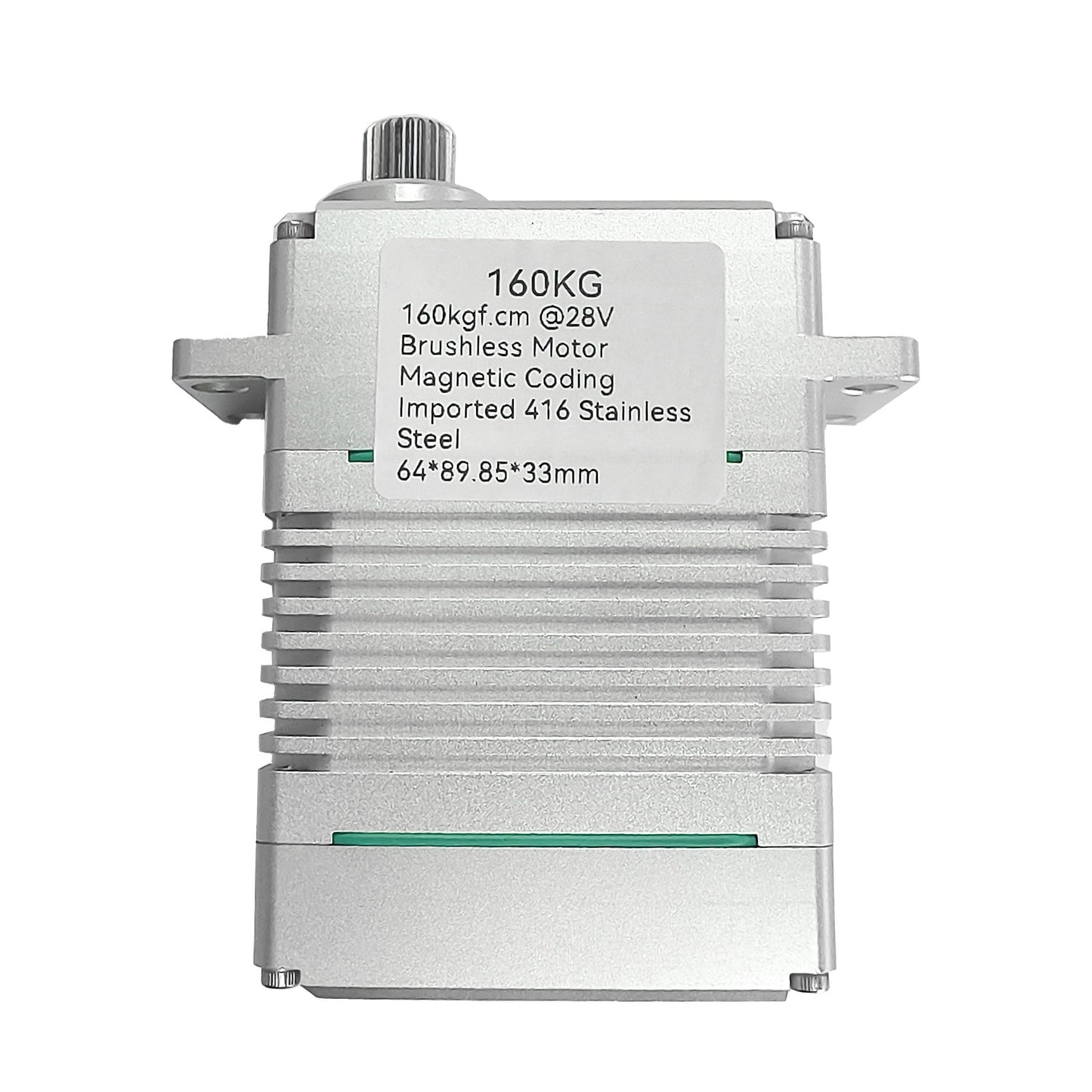

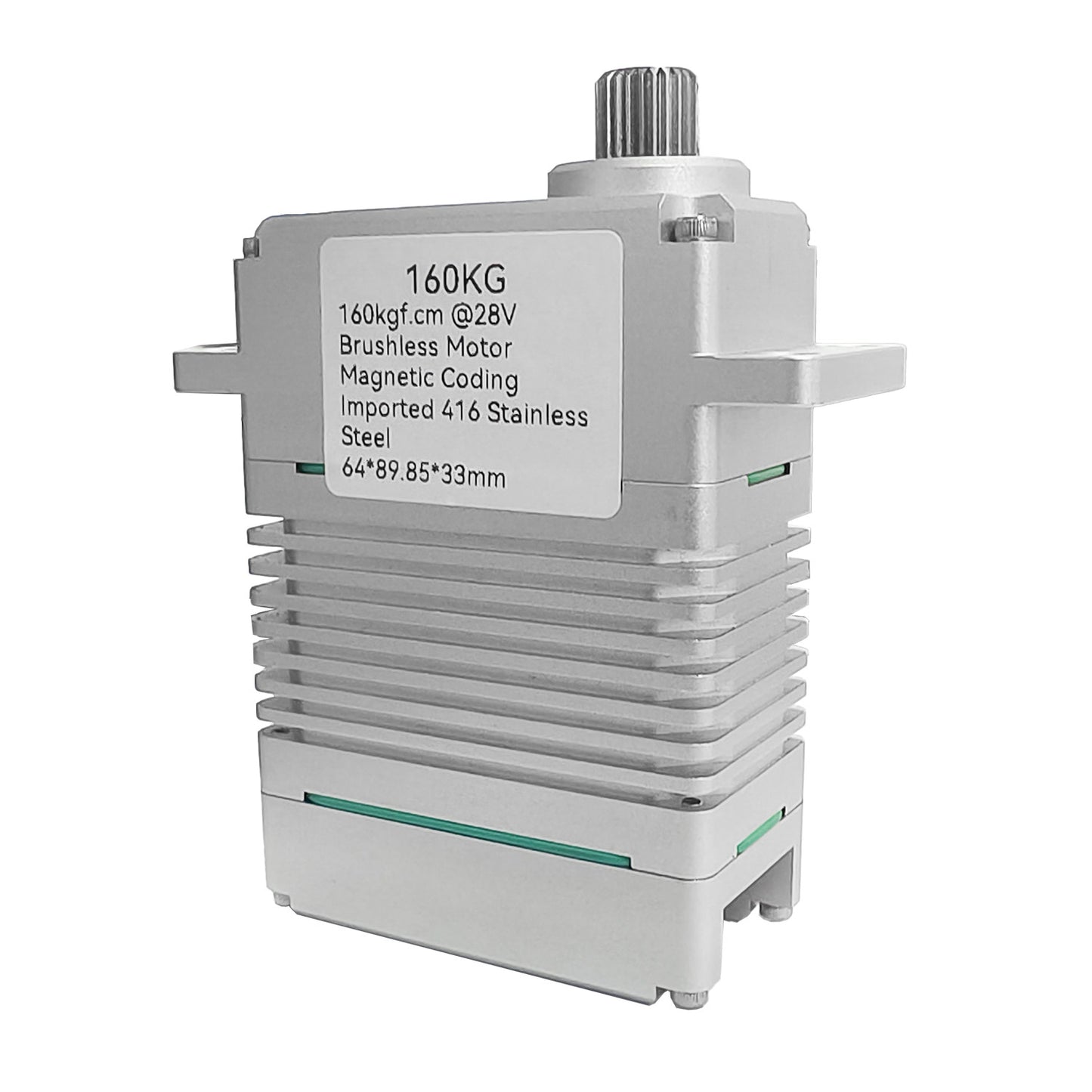

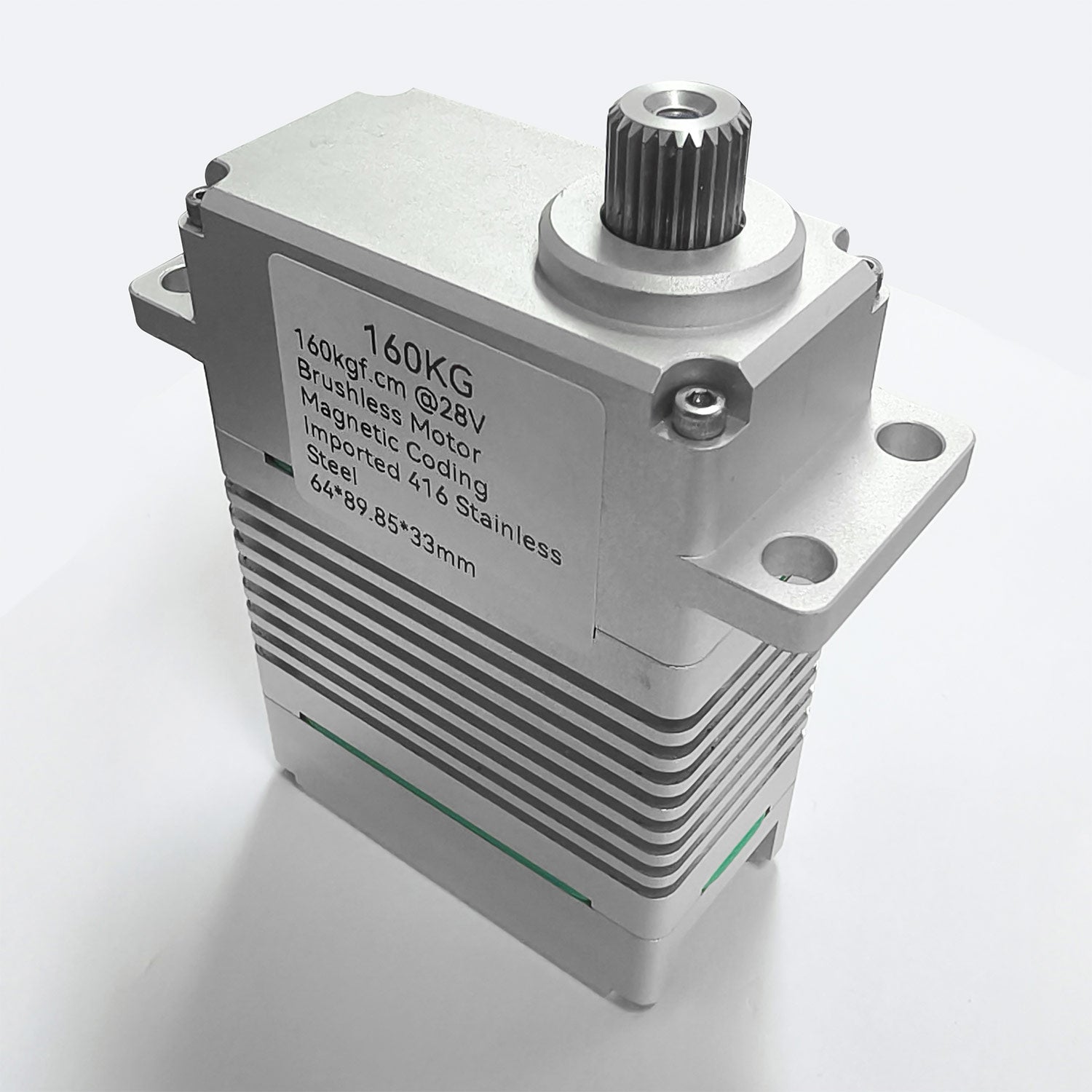

160KG High Torque Brushless Motor waterproof Alu alloy case 220° DIGITAL Servo

Name: 160KG High Torque Brushless Motor waterproof Alu alloy case 220° DIGITAL Servo
Brand: Flight Model
SKU: ZY-168HV-160KG
Price: 189.99 USD
Availability: InStock

SKU:ZY-168HV-160KG

$189.99 USD

~~$0.00 USD~~ $189.99 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

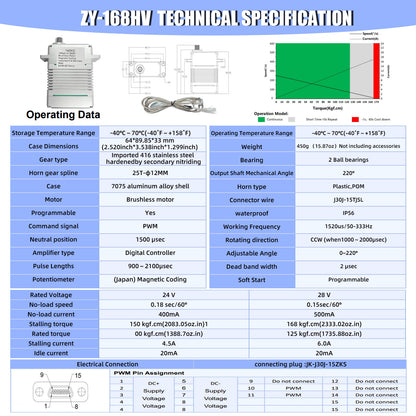

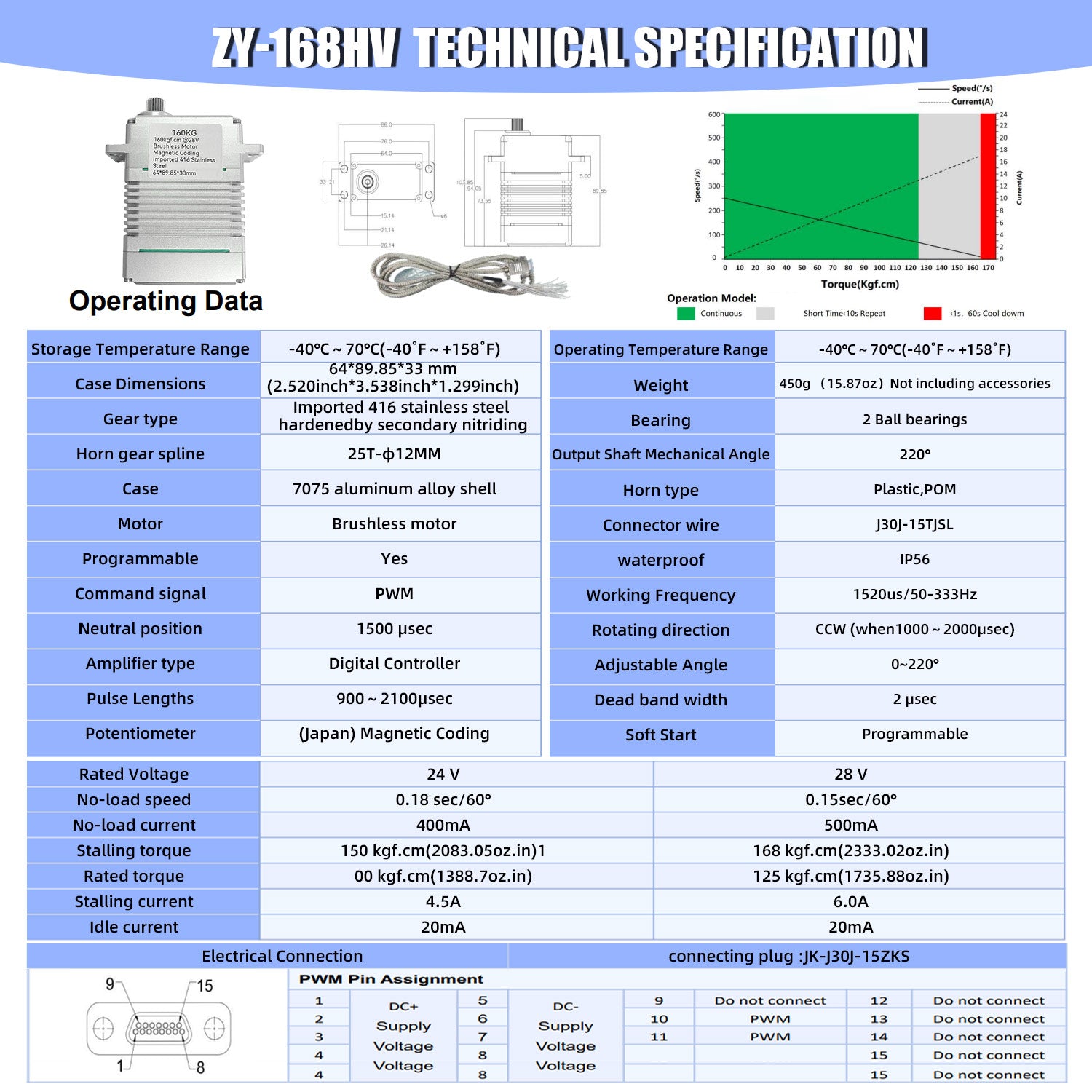

Specifications：

Storage Temperature Range：-40°C~70°C(-40°F~+158°F)
Case Dimensions： 64*89.85*33mm (2.520inch*3.538inch*1.299inch)
Gear type： Imported 416 stainless steel hardenedby secondary nitriding
Horn gear spline： 25T-ф11.8MM
Case：7075 aluminum alloy shell
Motor： Brushless motor
Programmable： Yes
Command signal：PWM
Neutral position： 1500 μsec
Amplifier type： Digital Controller
Pulse Lengths： 900~2100usec
Potentiometer：（Japan) Magnetic Coding

Operating Temperature Range： -40°C-70°(-40°F~+158°F)
Weight： 450g(15.87oz)Not including accessories
Bearing： 2 Ball bearings
0utput Shaft Mechanical Angle： 220°
Horn type： Plastic,PoM
Connector wire： J30J-15TJSL
waterproof： IP56
Working Frequency： 1520us/50-333Hz
Rotating direction： CCW(when1000-2000μsec)
Adjustable Angle： 0-220°
Soft Start： Programmable

Package Includes:

Quantity：1 pc
