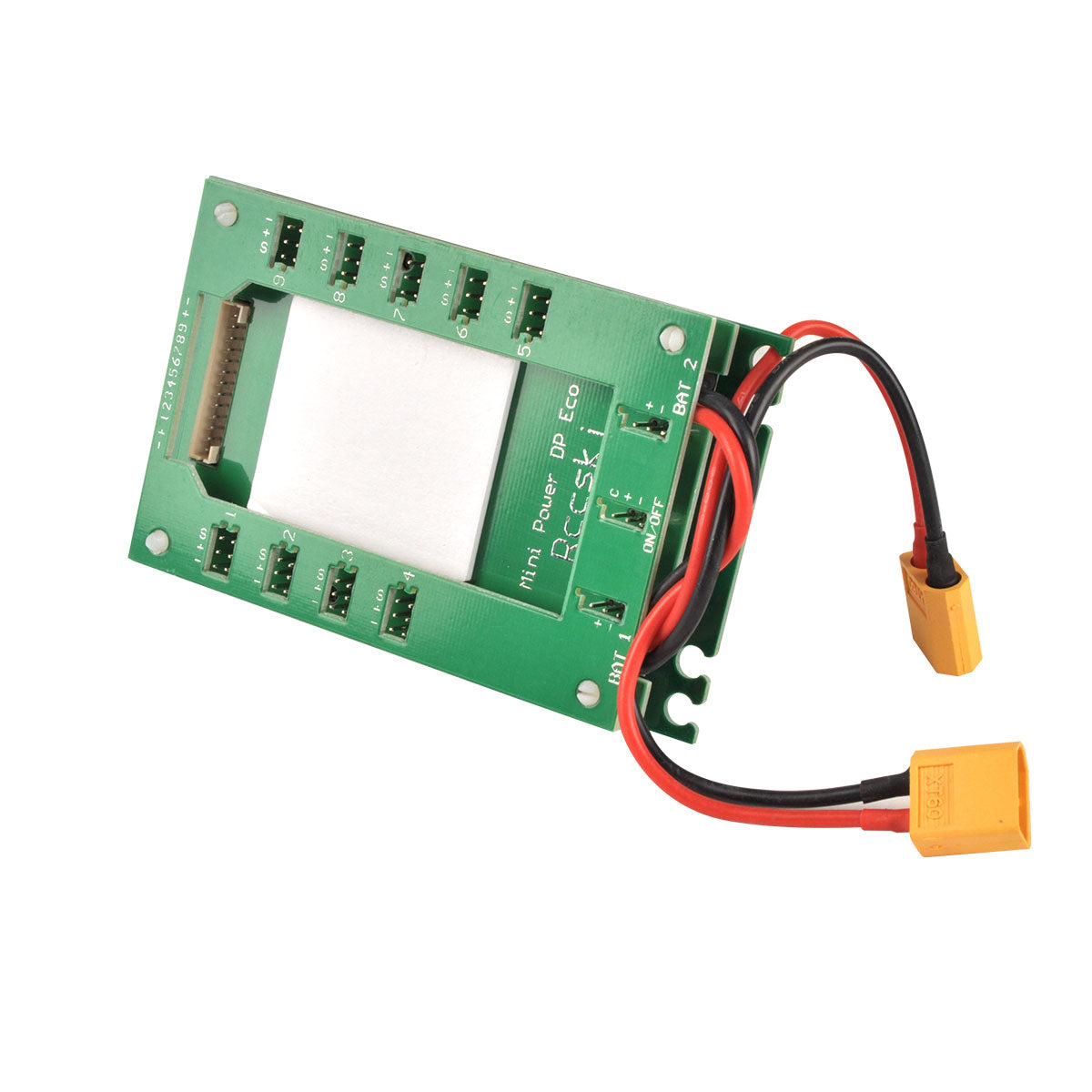

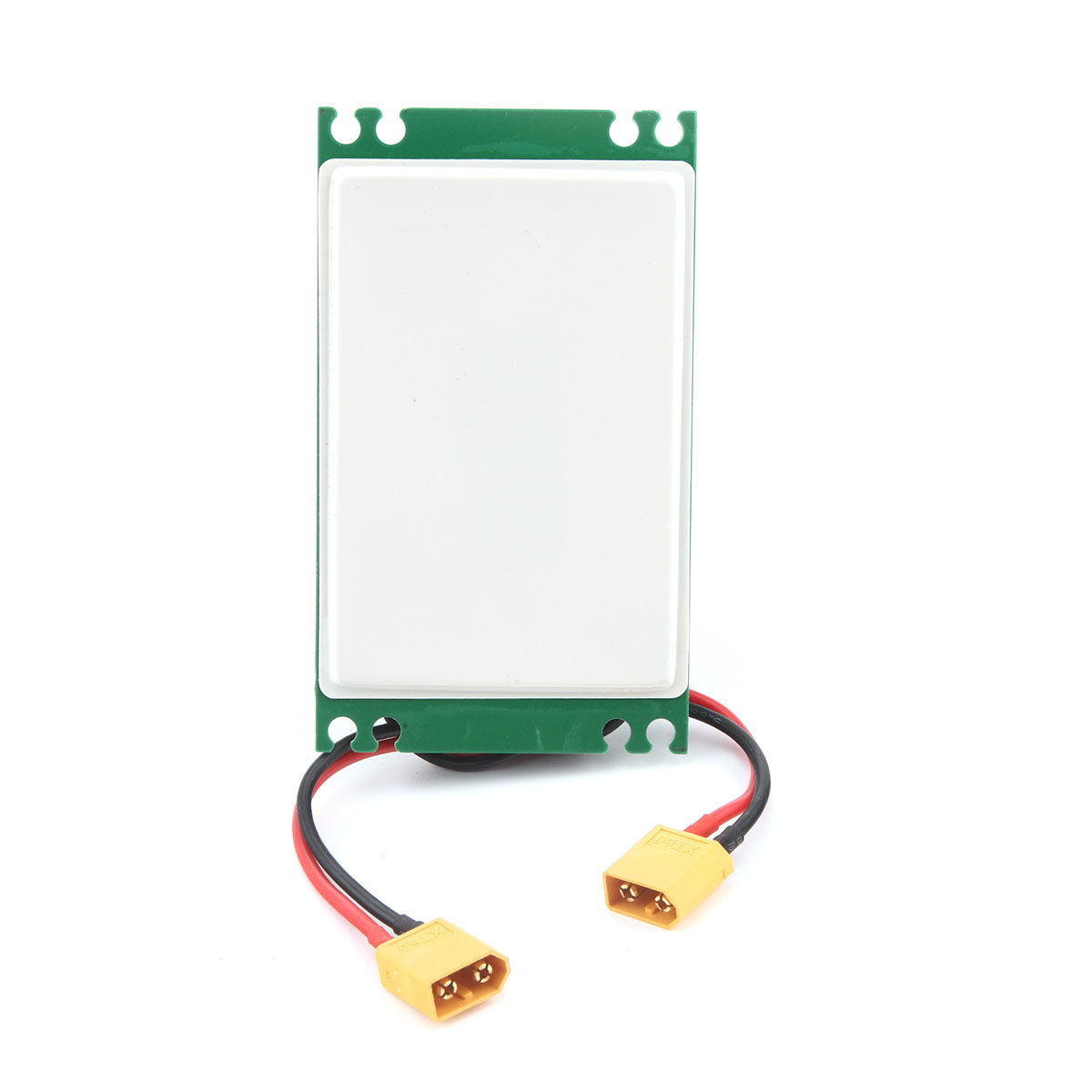

Descripción

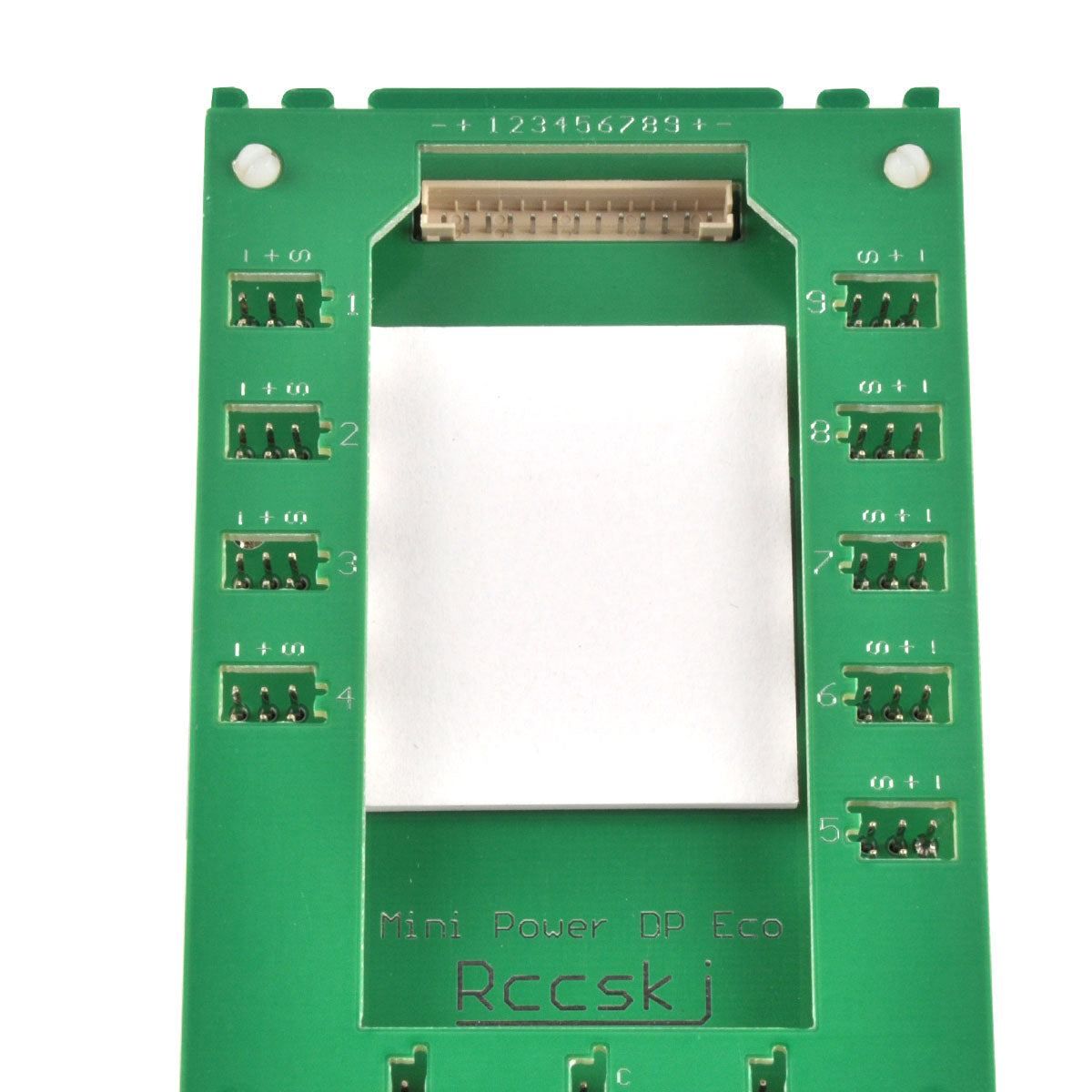

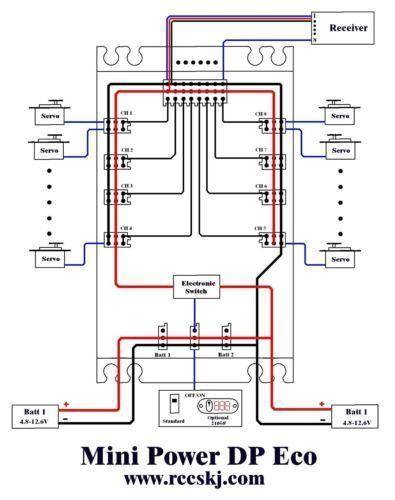

Eight channels for input, and sixteen channels for output.(every one channel input with two channels output
Three leds display the distribution board's working states
Compared with the traditional mechanical switch integrated electronic switch has a higher security and stability.
Input / output power is communicated directly,so the input voltage equal to the steering gear and receiver power supply voltage, simply use the different voltage values of the battery can be adapted to a variety of high and low voltage actuator and receiver.
Special place is designed for receiver to avoid the accidental from bombing damage in receiver.

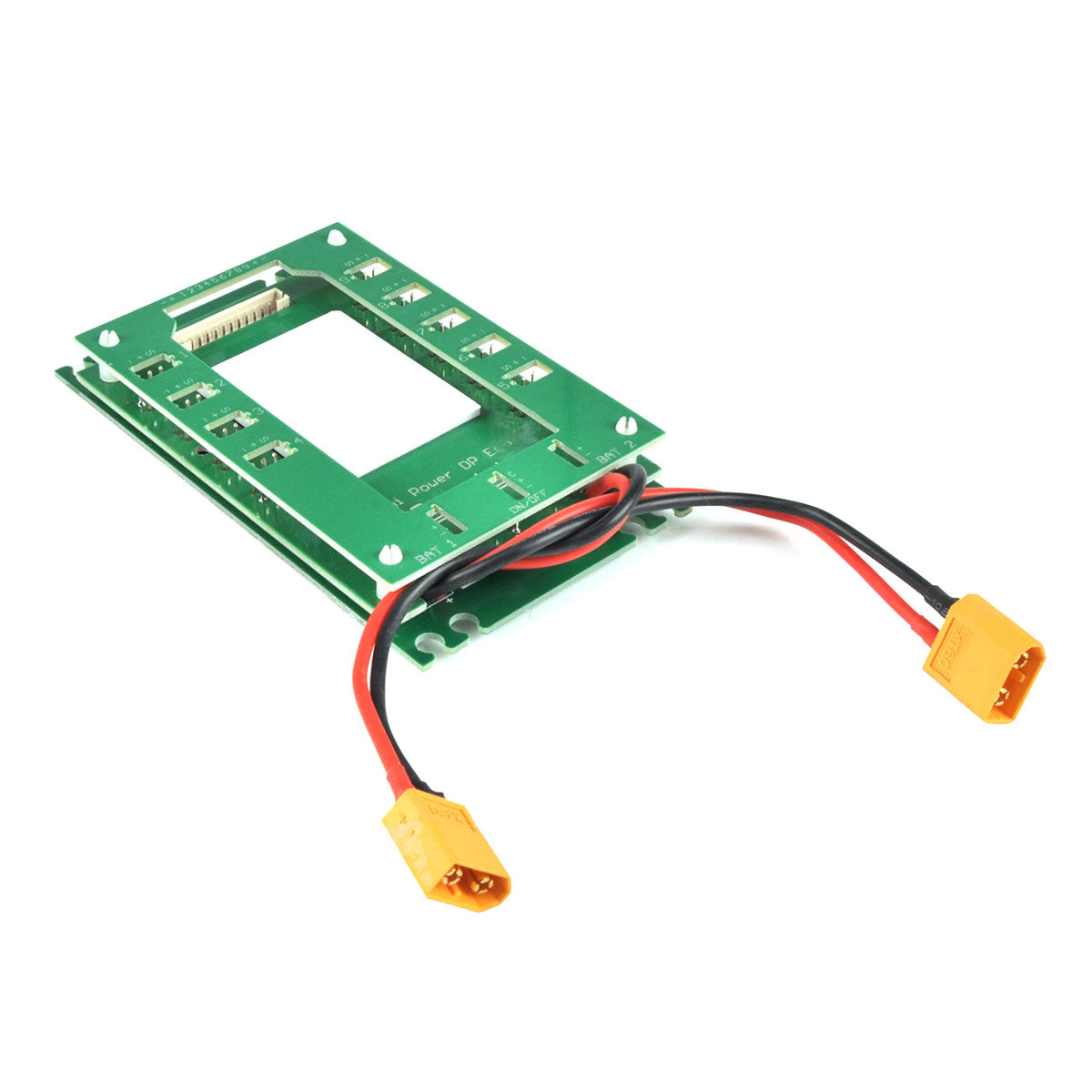

Double power input to improve the stability of power supply, which can effectively avoids the accident cause by poor contact of a single block of power batteries.
Technology parameters:
working electricity:0A-30A
Working voltage: 4.8V-12.6V
Volume:116mm(long)*68mm(wide)*13mm(height)
Weight: 70g
Working temperature:-20 Centigrade to 85 Centigrade
SUITABLE FOR AIRPLANES.
