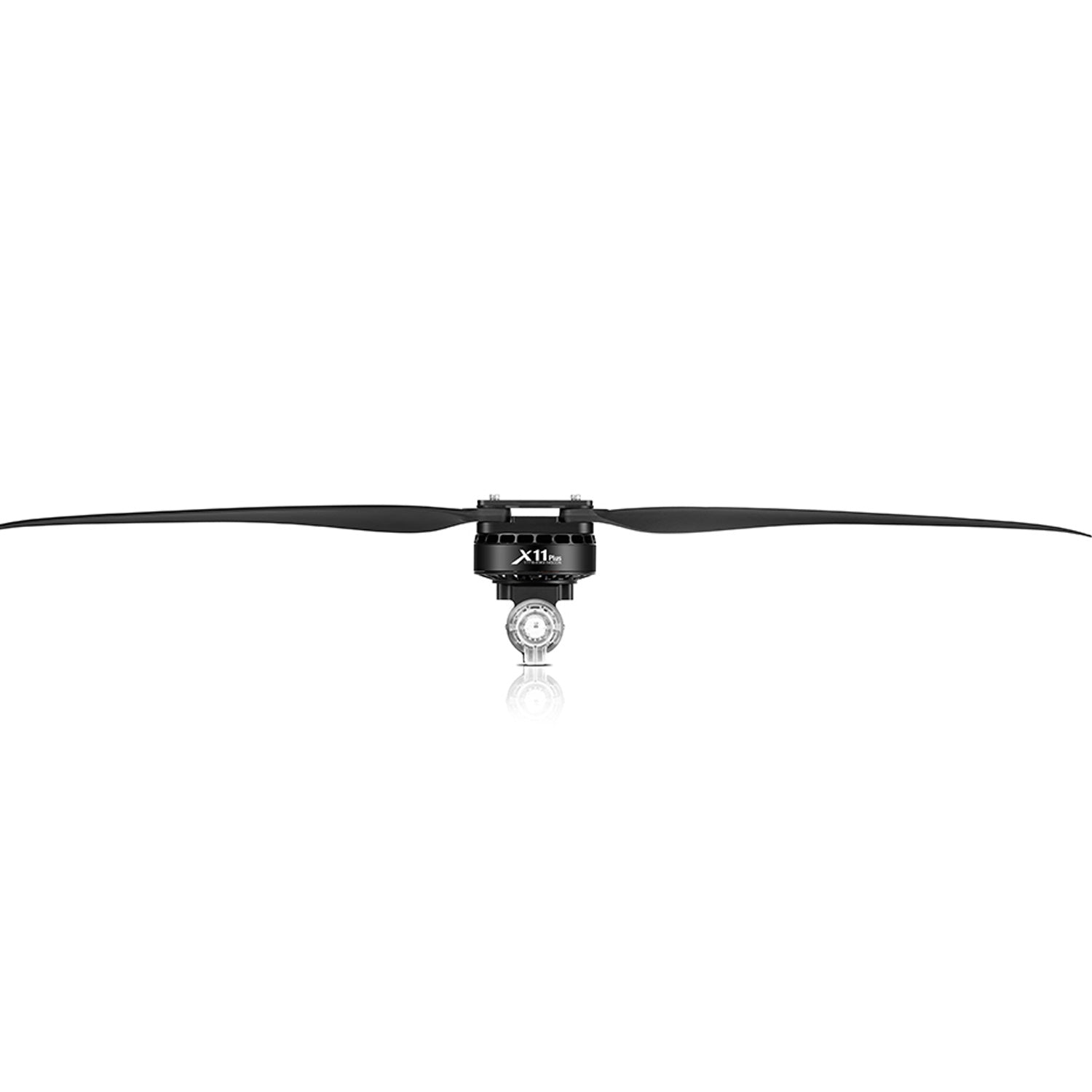

4PCS X11 Plus Power System 37KG Thrust 85KV Motor+ESC+Prop For Agriculture Drone

Name: 4PCS X11 Plus Power System 37KG Thrust 85KV Motor+ESC+Prop For Agriculture Drone
Brand: Flight Model
SKU: HW-X11P-CW+CCW-4PCS
Price: 851.99 USD
Availability: InStock

SKU:HW-X11P-CW+CCW-4PCS

$851.99 USD

~~$0.00 USD~~ $851.99 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

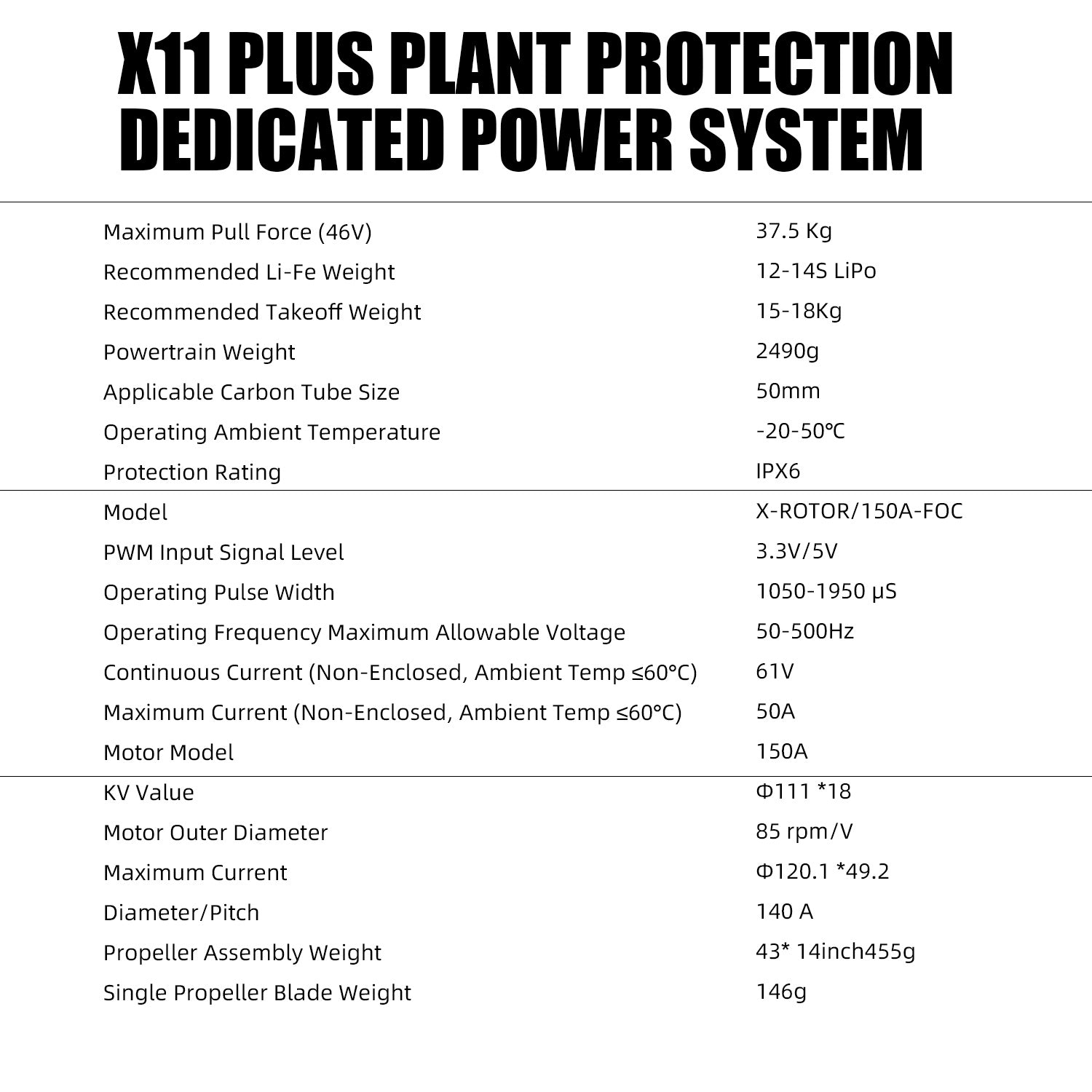

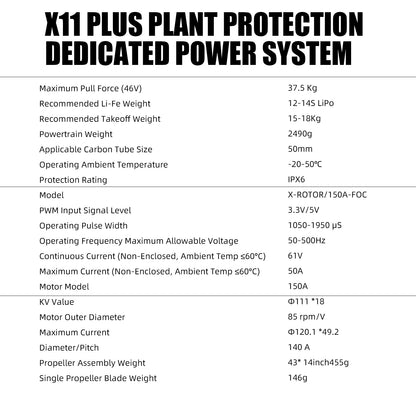

Technical Parameters

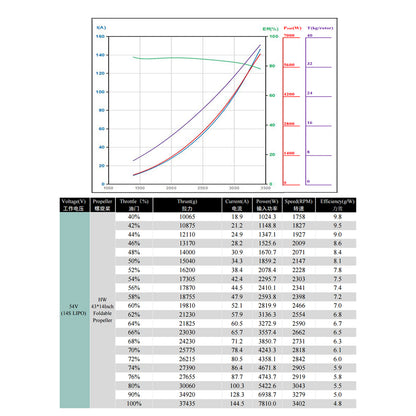

Maximum Pull Force（46V）：37.5 Kg
Recommended Takeoff Weight： 15-18Kg
Recommended Battery： 12-14S LiPo
Operating Temperature Range： -20~50°C
Powertrain Weight： 2490g
Ingress Protection Rating： IPX6

Model： X-ROTOR/150A-FOC
PwM input Signal Level： 3.3V/5V
Operating Pulse width： 1050-1950 μS
Operating Frequency Maximum Allowable Voltage：50-500Hz

Continuous Current (Non-Enclosed, Ambient Temp ≤60°C)： 61V

Maximum Current (Non-Enclosed, Ambient Temp ≤60°C)： 50A

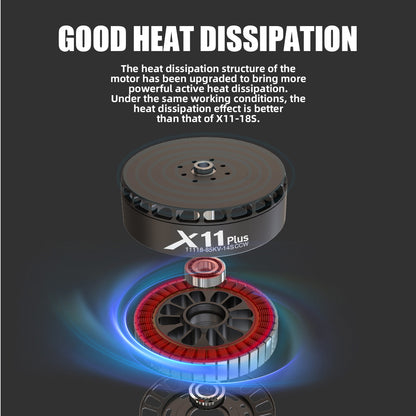

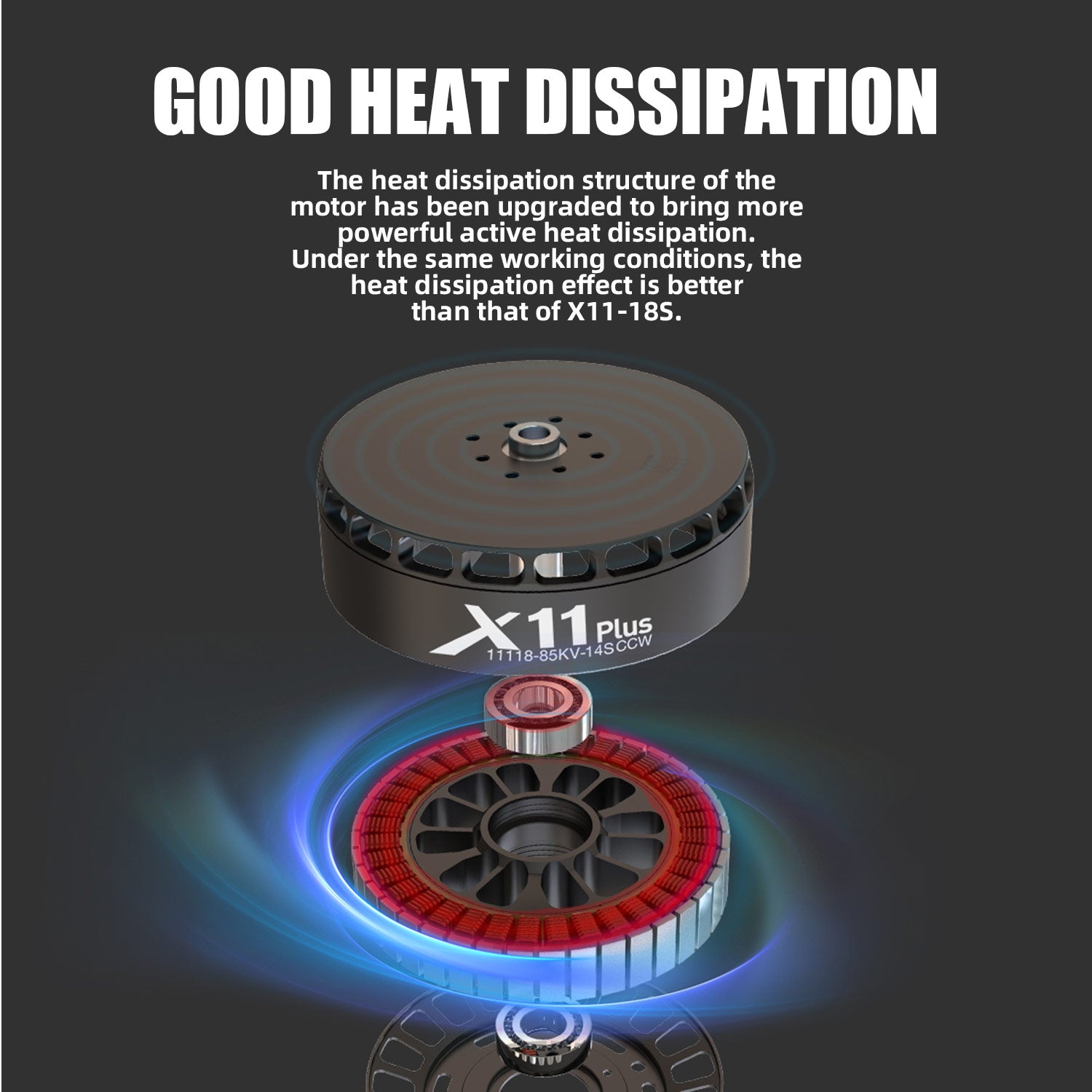

Motor Model： 150A

KV Value： Ф111*18
Motor Outer Diameter： 85 rpm/V
Maximum Current： Ф120.1*49.2
Diameter/Pitch： 140 A
Propeller Assembly Weight： 43*14inch455g
Single Propeller Blade Weight： 146g

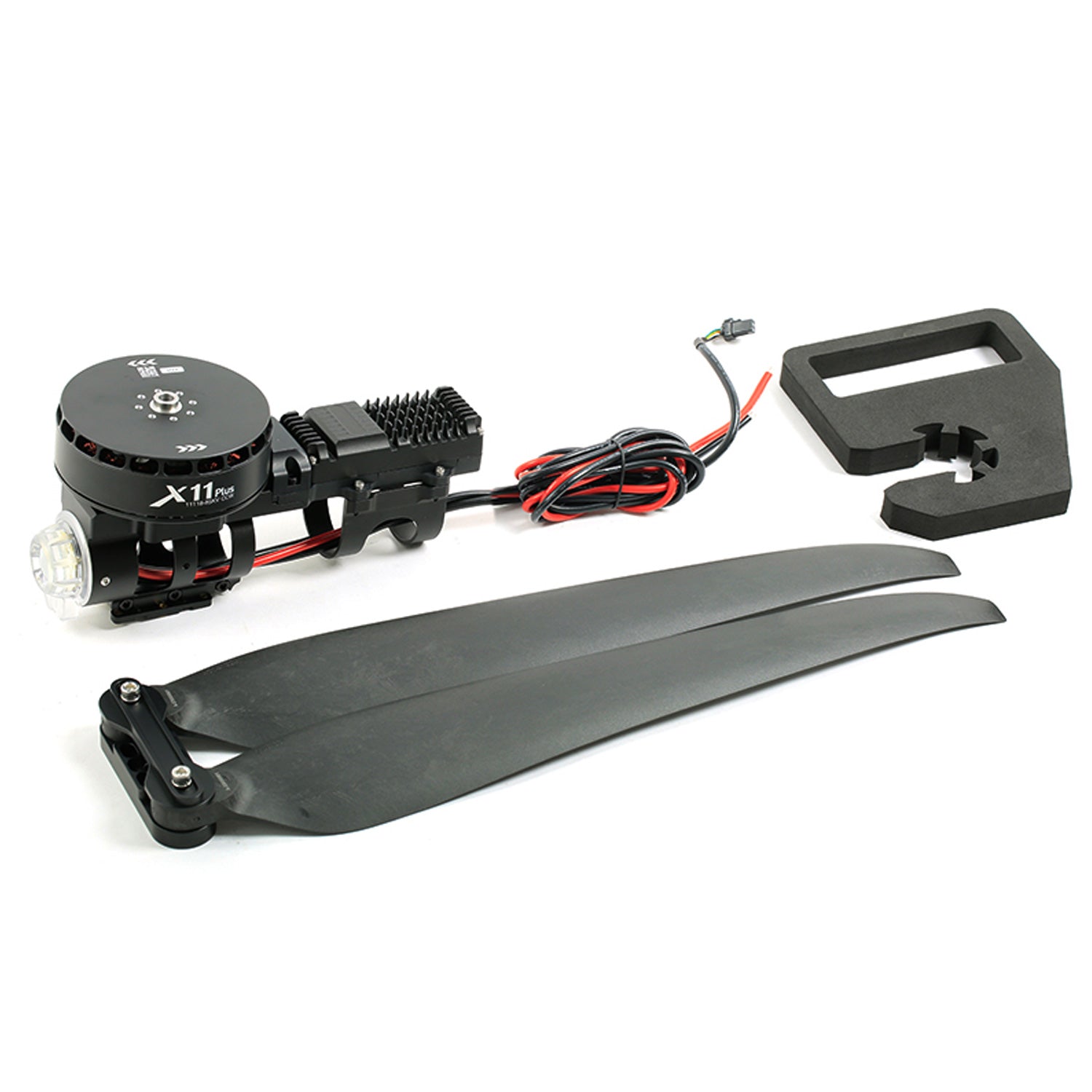

Included :

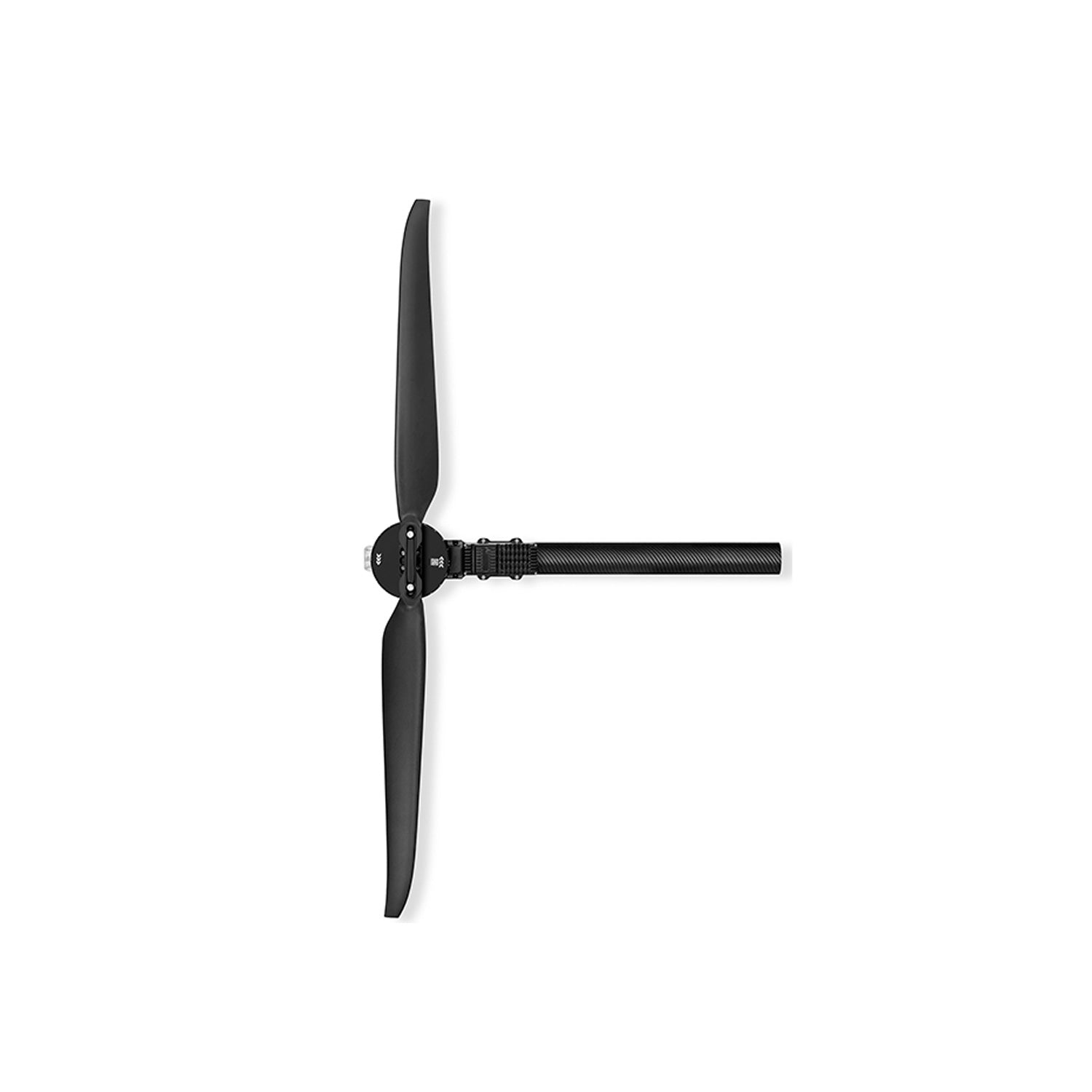

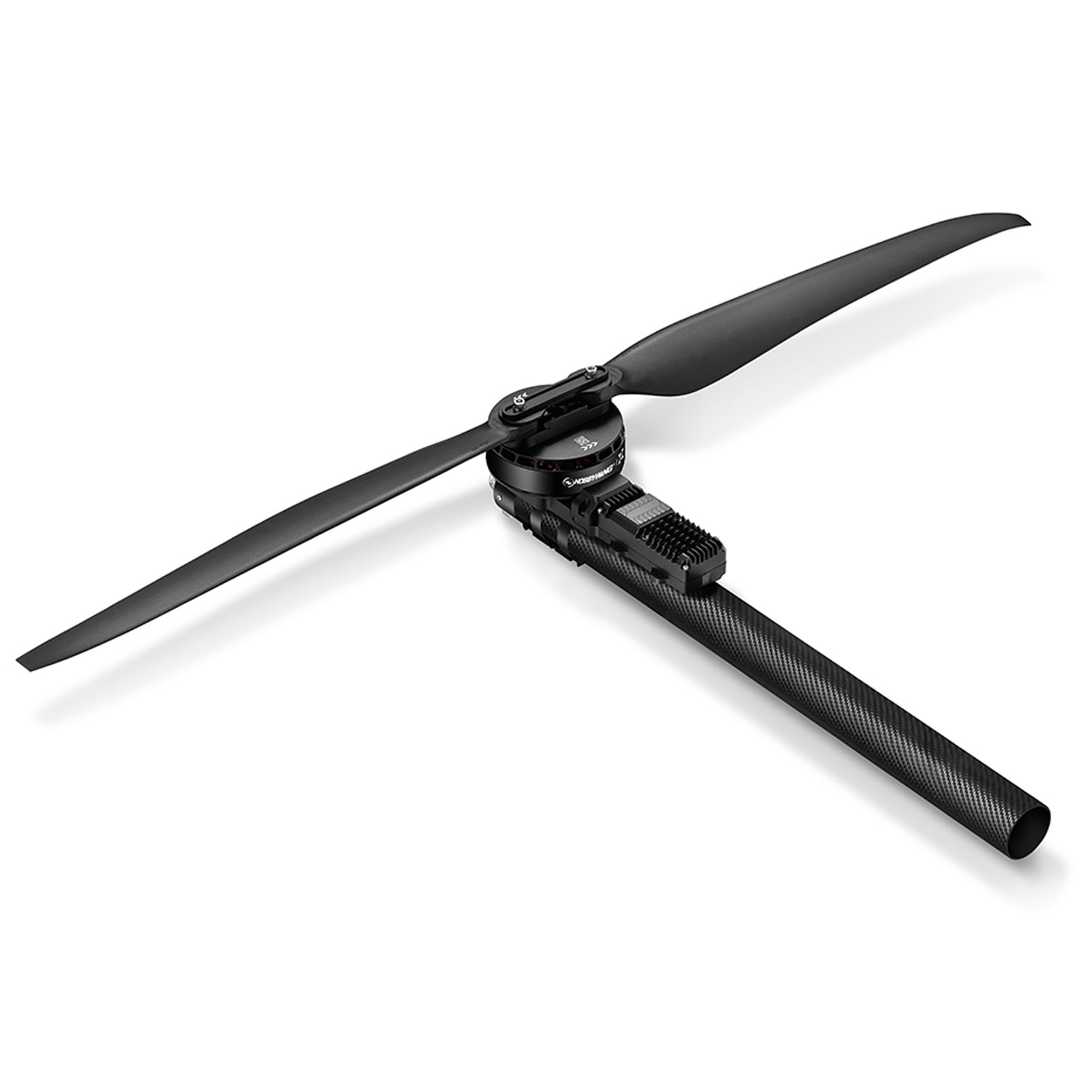

2*CW Motor+ESC+Propeller

2*CCW Motor+ESC+Propeller
