Features:

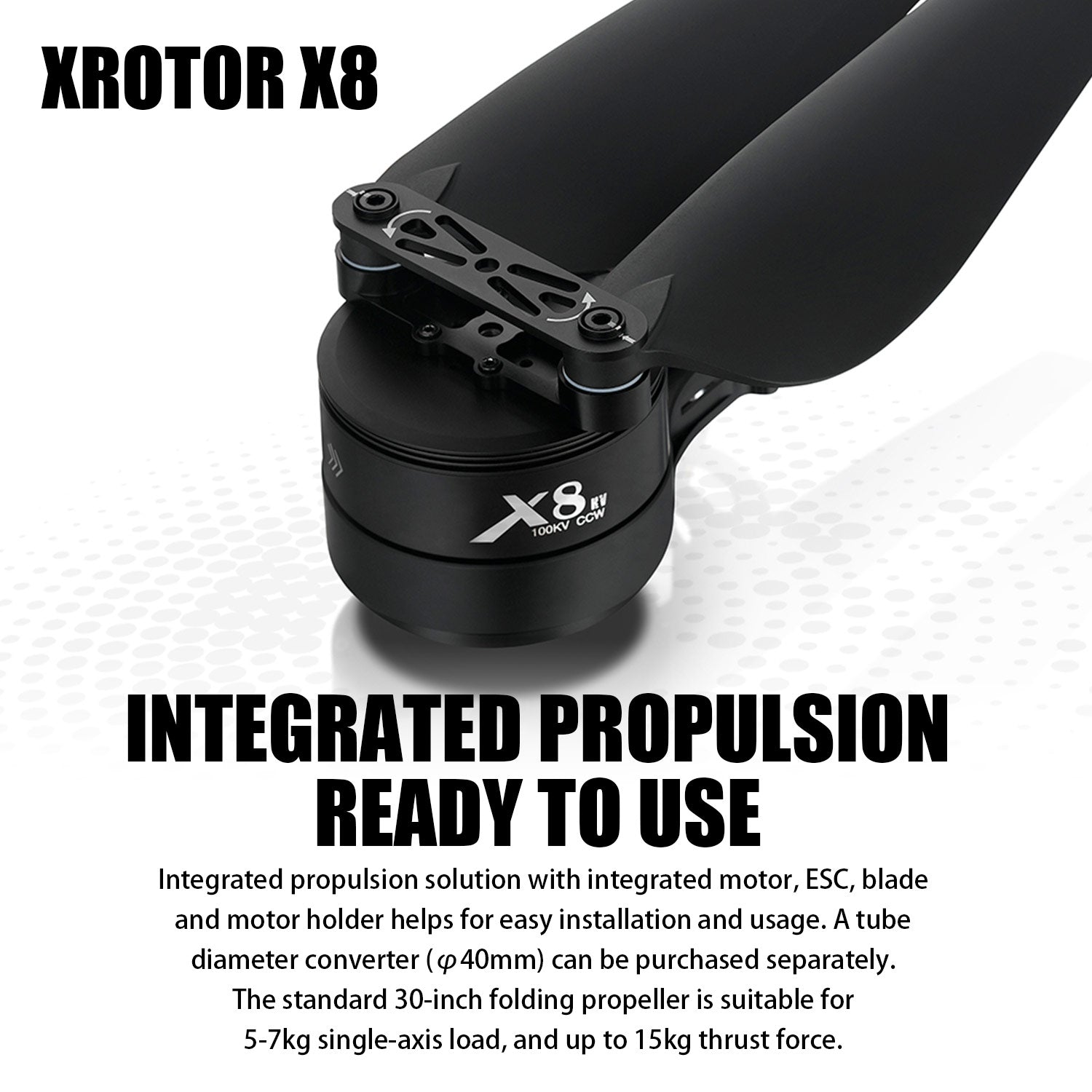

1.INTEGRATED PROPULSIONREADY TO USE
Integrated propulsion solution with integrated motor, EsC, bladeand motor holder helps for easy installation and usage. A tubediameter converter (p40mm) can be purchased separately.The standard 30-inch folding propeller is suitable for5-7kg single-axis load, and up to 15kg thrust force.

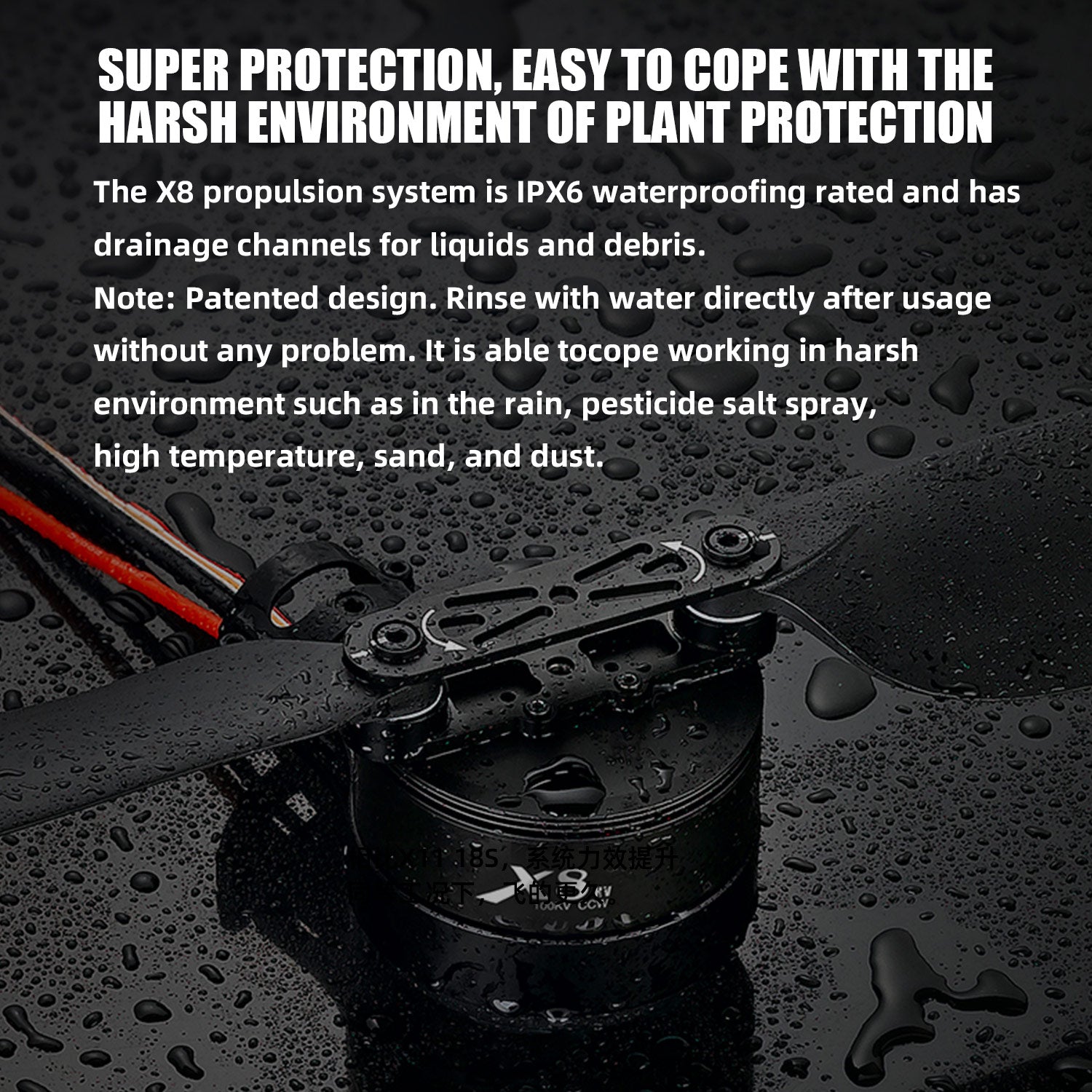

2.SUPER PROTECTION, EASY TO COPE WITH THEHARSH ENVIRONMENT OF PLANT PROTECTIONThe X8 propulsion system is lPX6 waterproofing rated and hasdrainage channels for liquids and debris.Note: Patented design. Rinse with water directly after usagewithout any problem. lt is able tocope working in harshenvironment such as in the rain, pesticide salt spray,high temperature, sand, and dust.

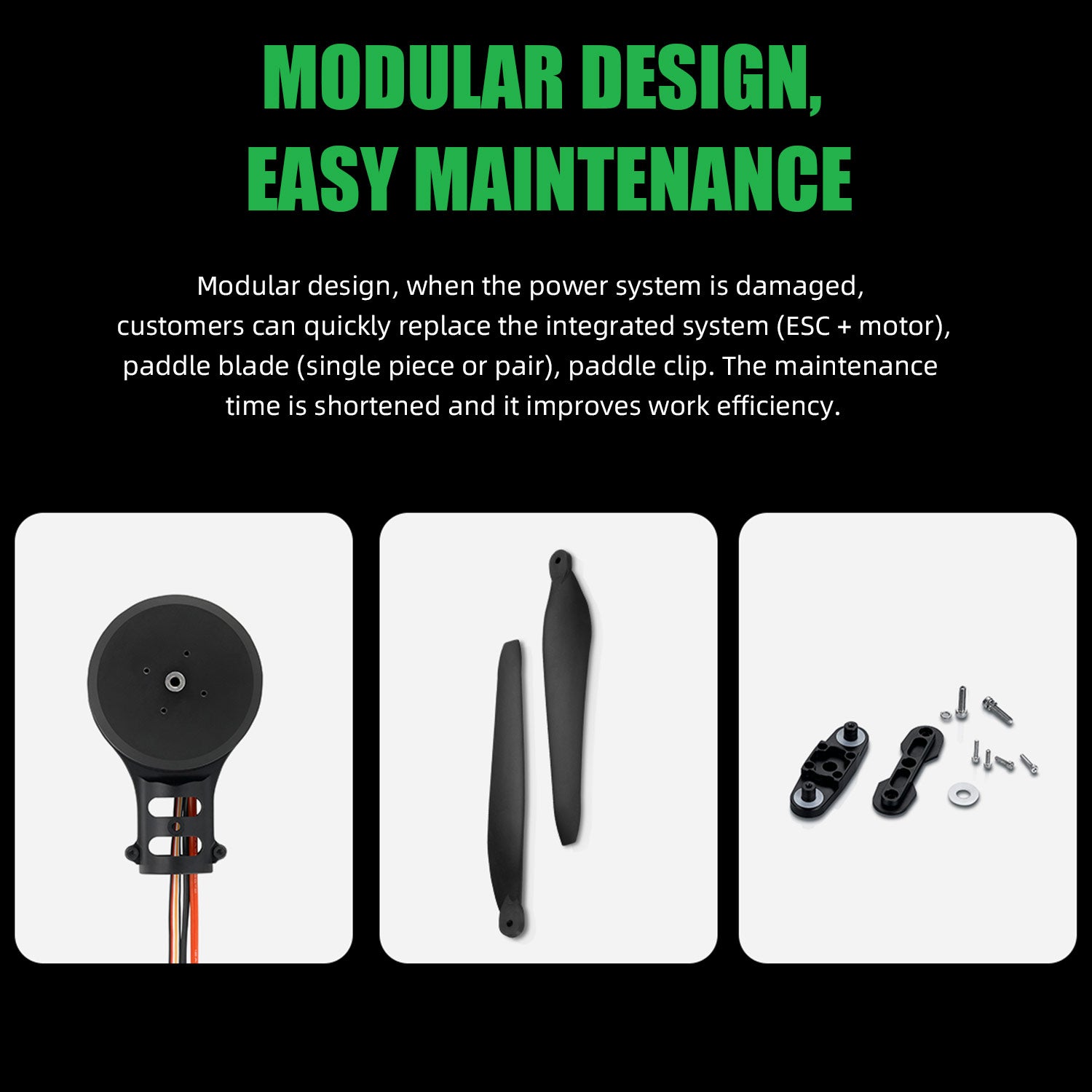

3.Modular design, when the power system is damagedcustomers can quickly replace the integrated system (ESC + motor)paddle blade (single piece or pair), paddle clip. The maintenance time is shortened and it improves work efficiency.
Technical Parameters

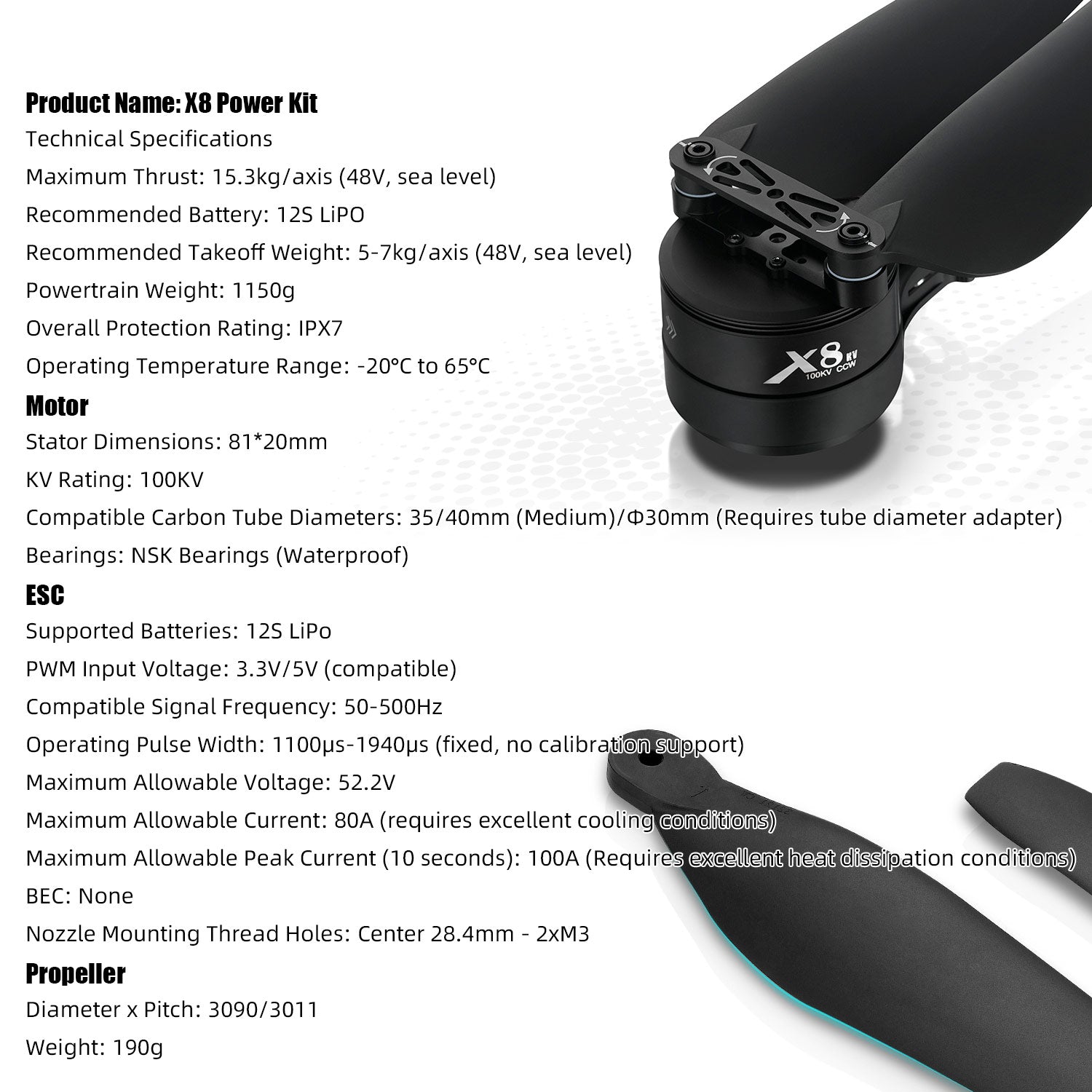

Technical Specifications
Maximum Thrust: 15.3kg/axis (48V, sea level)
Recommended Battery: 12S LiPO
Recommended Takeoff Weight: 5-7kg/axis (48V, sea level)
Powertrain Weight: 1150g
Overall Protection Rating: IPX7
Operating Temperature Range: -20°C to 65°C

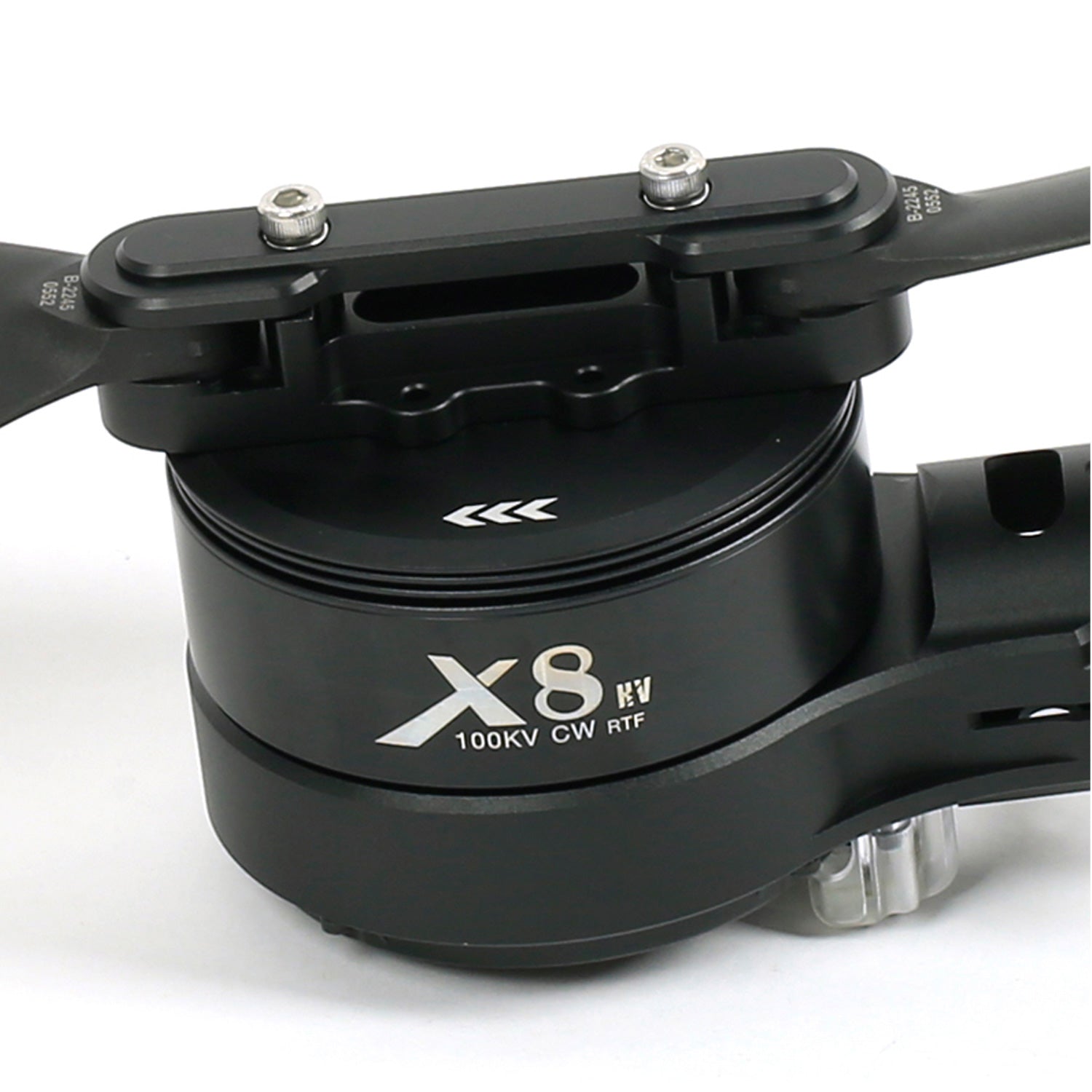

Motor：
Stator Dimensions: 81*20mm
KV Rating:100KV
Compatible Carbon Tube Diameters: 35/40mm (Medium)/Ф30mm (Requires tube diameter adapter)
Bearings: NSK Bearings (Waterproof)
ESC：
Supported Batteries: 12S LiPo
PWM Input Voltage: 3.3V/5V(compatible)
Compatible Signal Frequency: 50-500Hz
Operating Pulse Width:1100μs-1940μs (fixed, no calibration support)
Maximum Allowable Voltage: 52.2V
Maximum Allowable Current: 80A (requires excellent cooling conditions)
Maximum Allowable Peak Current (10 seconds): 100A (Requires excellent heat dissipation conditions)
BEC: None
Nozzle Mounting Thread Holes: Center 28.4mm-2xM3

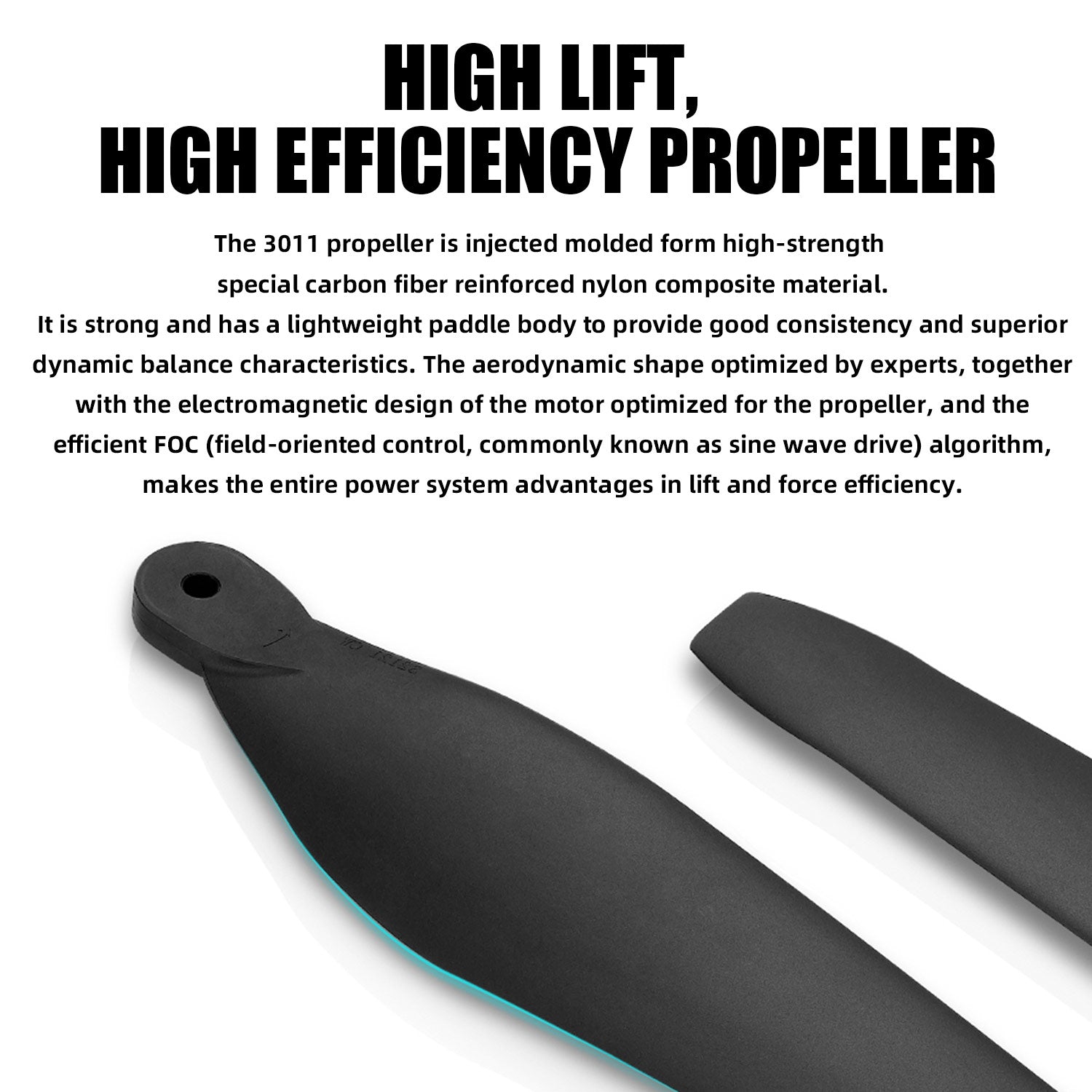

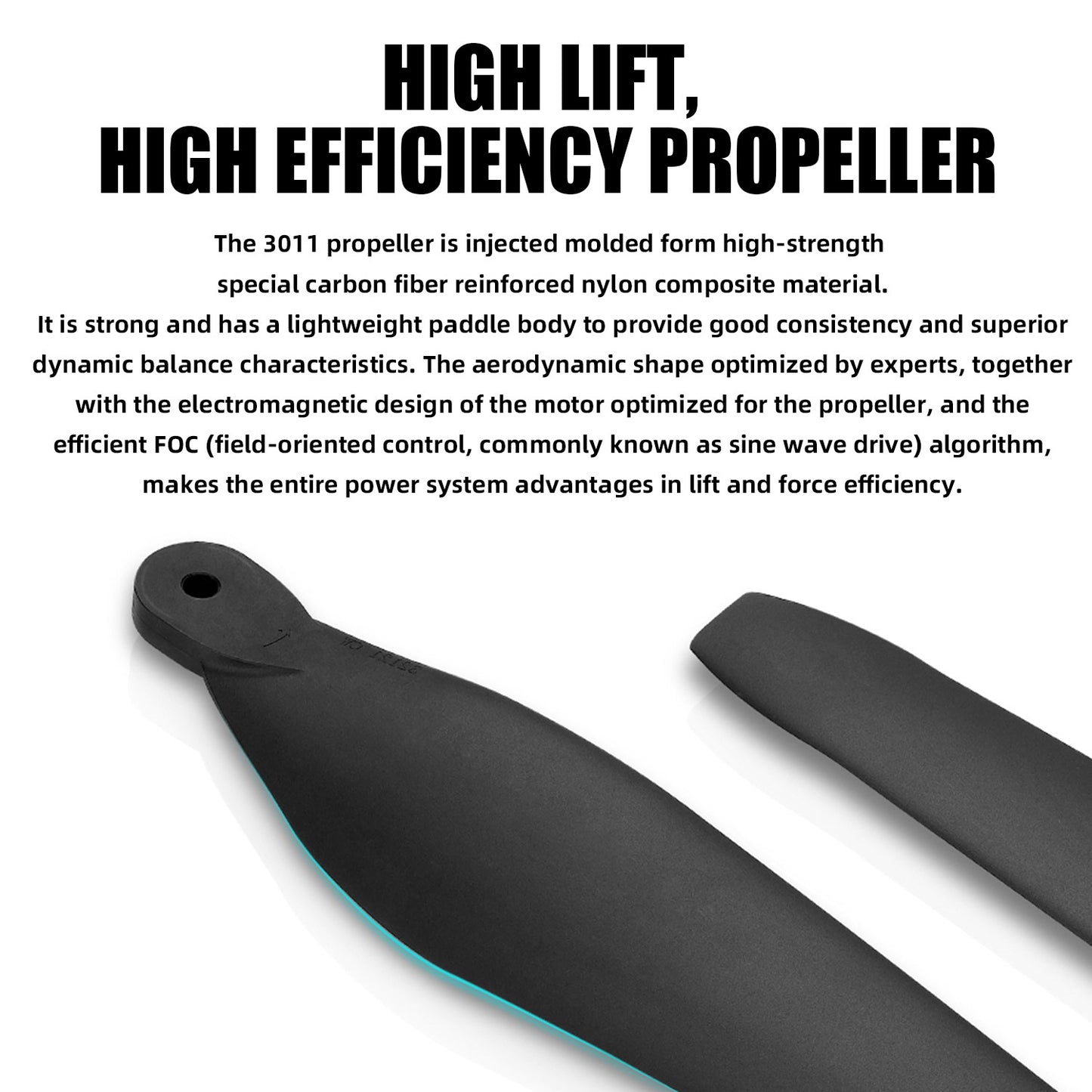

Propeller:
DiameterxPitch:3090/3011
Weight: 190g

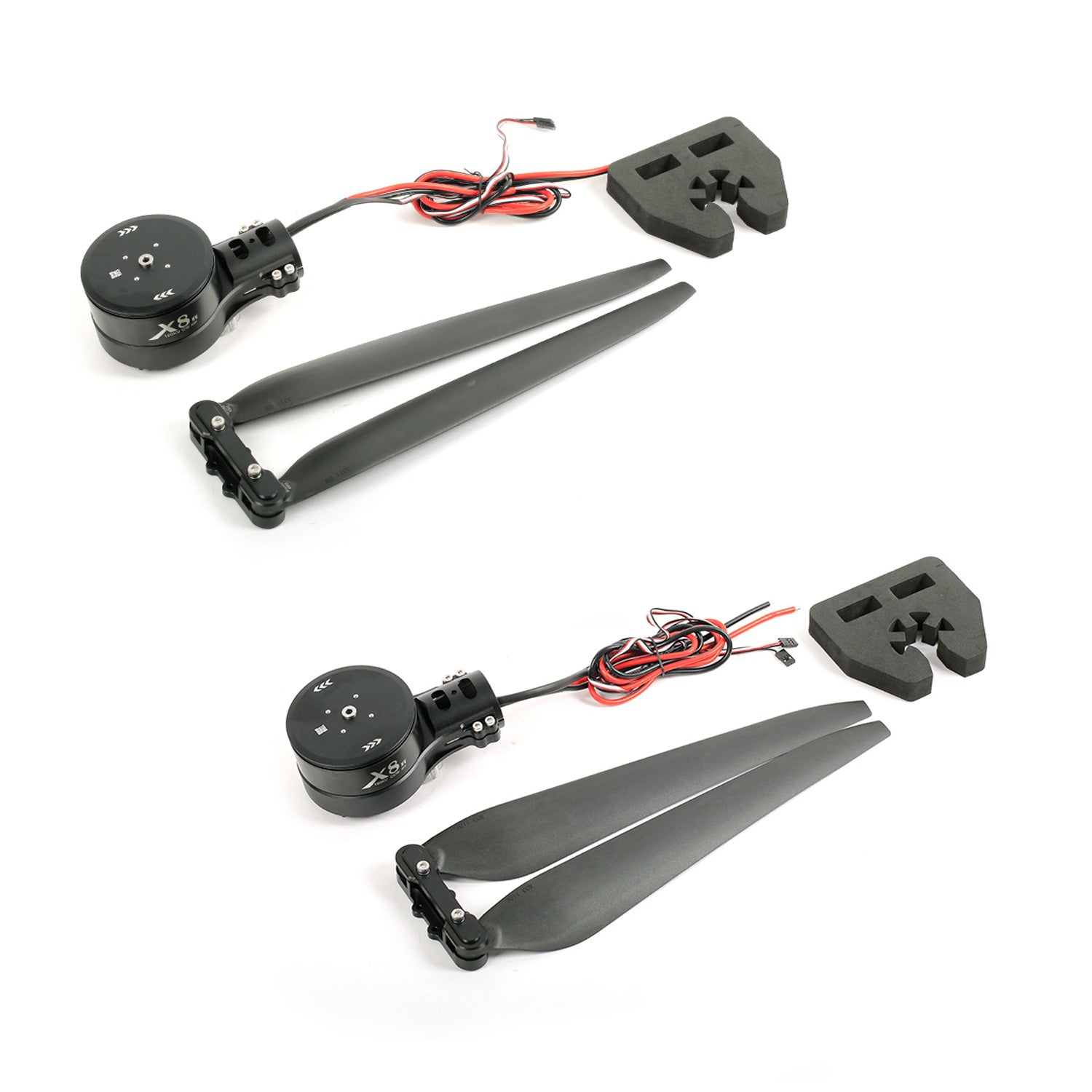

Included :
2*CW Motor+ESC+Propeller
2*CCW Motor+ESC+Propeller
