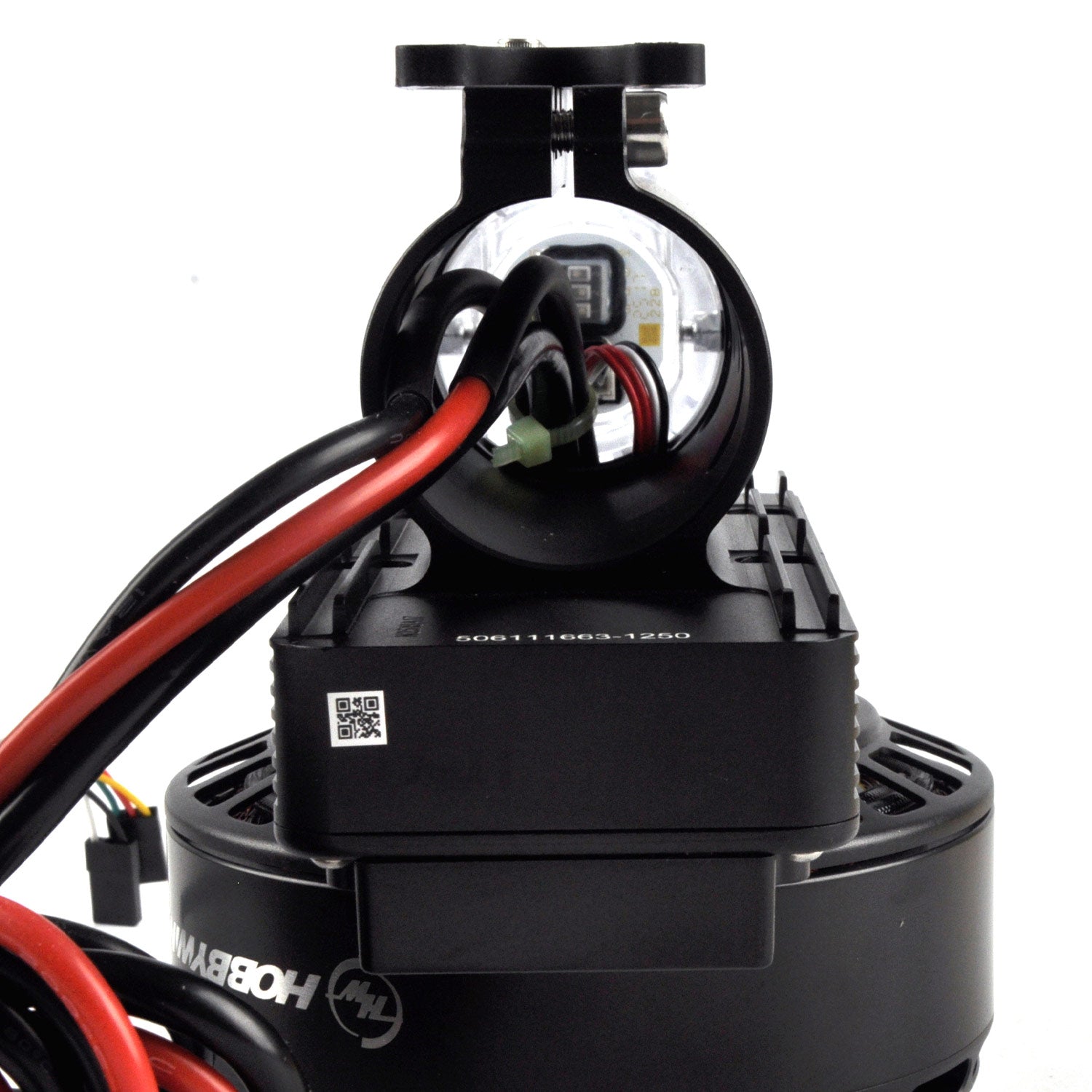

4PCS X9 Plus Power System 27KG Thrust 100KV Motor+ESC+Prop For Agriculture Drone
4PCS X9 Plus Power System 27KG Thrust 100KV Motor+ESC+Prop For Agriculture Drone
SKU:HW-X9P-CW+CCW-4PCS
Precio habitual
$595.99 USD
Precio habitual
$0.00 USD
Precio de oferta
$595.99 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro

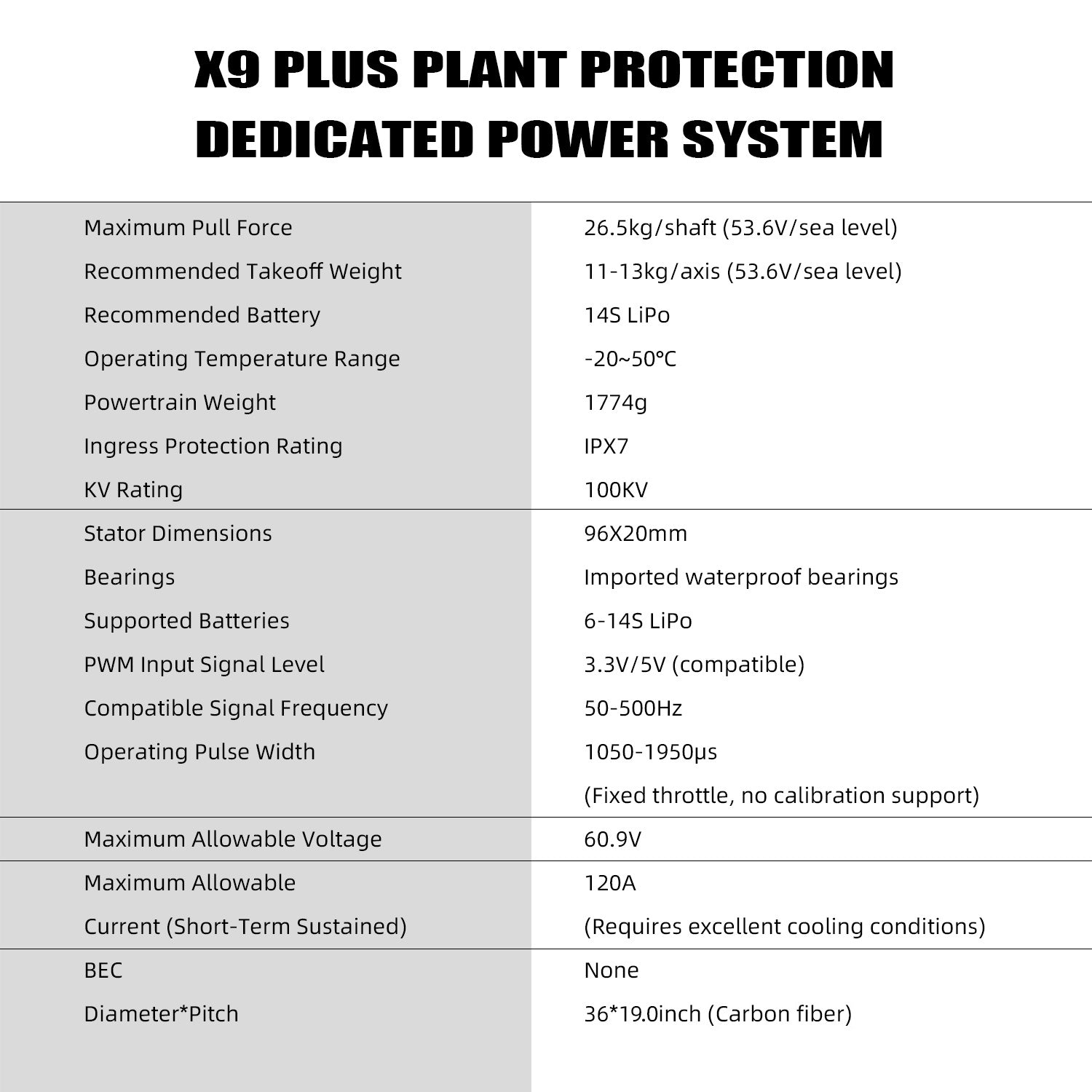

Technical Parameters
Maximum Pull Force：26.5kg/shaft (53.6V/sea level)
Recommended Takeoff Weight： 11-13kg/axis (53.6V/sea level)
Recommended Battery： 14S LiPo
Operating Temperature Range： -20~50°C
Powertrain Weight： 1774g
Ingress Protection Rating： IPX7
KV Rating： 100KV
Recommended Takeoff Weight： 11-13kg/axis (53.6V/sea level)
Recommended Battery： 14S LiPo
Operating Temperature Range： -20~50°C
Powertrain Weight： 1774g
Ingress Protection Rating： IPX7
KV Rating： 100KV
Stator Dimensions： 96X20mm
Bearings： imported waterproof bearings
Supported Batteries： 6-14S LiPo
PwM input Signal Level： 3.3V/5V (compatible)
Compatible Signal Frequency： 50-500Hz
Bearings： imported waterproof bearings
Supported Batteries： 6-14S LiPo
PwM input Signal Level： 3.3V/5V (compatible)
Compatible Signal Frequency： 50-500Hz
Operating Pulse width： 1050-1950μS
(Fixed throttle, no calibration support)
(Fixed throttle, no calibration support)
Maximum Allowable Voltage： 60.9V
Maximum Allowable：120A
Current (Short-Term Sustained)： (Requires excellent cooling conditions)
Maximum Allowable：120A
Current (Short-Term Sustained)： (Requires excellent cooling conditions)
BEC： None
Diameter*pitch： 36*19.0 inch (Carbon fiber)
Diameter*pitch： 36*19.0 inch (Carbon fiber)
Included :
2*CW Motor+ESC+Propeller
2*CCW Motor+ESC+Propeller
