CYS R2090 Electric Retracts with Control Panel for 6kg-12kg Plane

CYSSKU: CYS-R2090

Precio:
Precio de venta$162.50

Descripción


The Manual for CYS R2090

  • Item NO.: CYS-R2090
  • Description : Standard 90° Electronic Landing gear ( Retract)
  • Size : 103*24*32.5MM
  • Torque : 25Kg.cm
  • Speed : 5.6sec/90° at 6V ;  5.0sec/90° at 7V ; 4.6sec/90° at 8V
  • Weight:160g(nose gear) / 140g(Main gear)
  • Voltage : DC 6.0Volts ~8Volts
  • Input Voltage Range: DC 5 - 9 Volt
  • Pulse Width Range: 500~2500usec
  • Used for 6 – 12kg Vortex / Jet aircraft
  • Full aluminum case outside with unique design.
Usage / Using for
  • Used for 6 – 12kg Vortex / Jet aircraft .

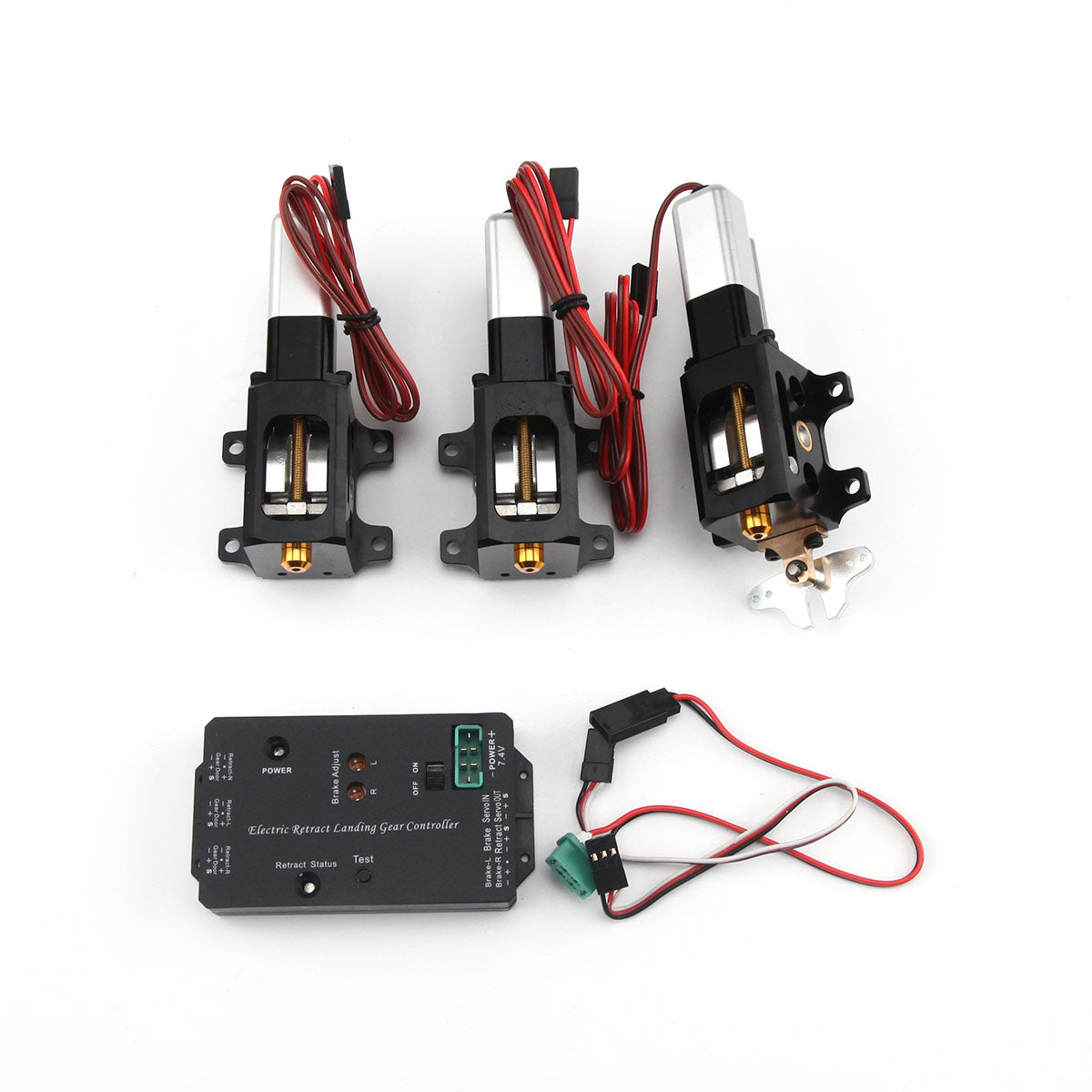

Package Included
  • 1* Nose Retract
  • 2* Main Retracts
  • 1* Controller
  • 2* Cables

Nose retract 2D drawing

Main Retract 2D drawing
