Full metal landing gear structs with wheel and brake
Overview

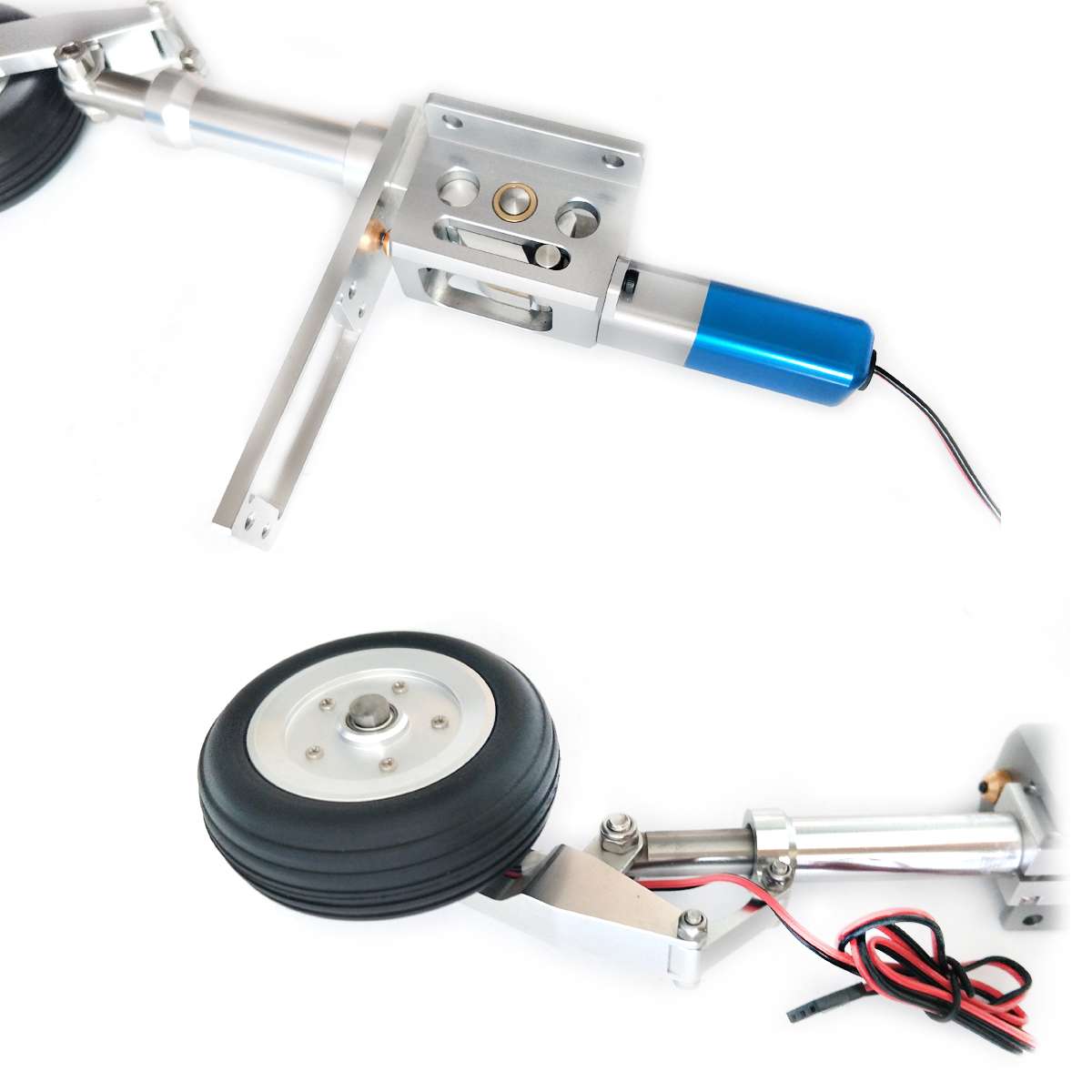

1. The body made by CNC processing.
2. Landing gear & structs with wheel and brake is a group

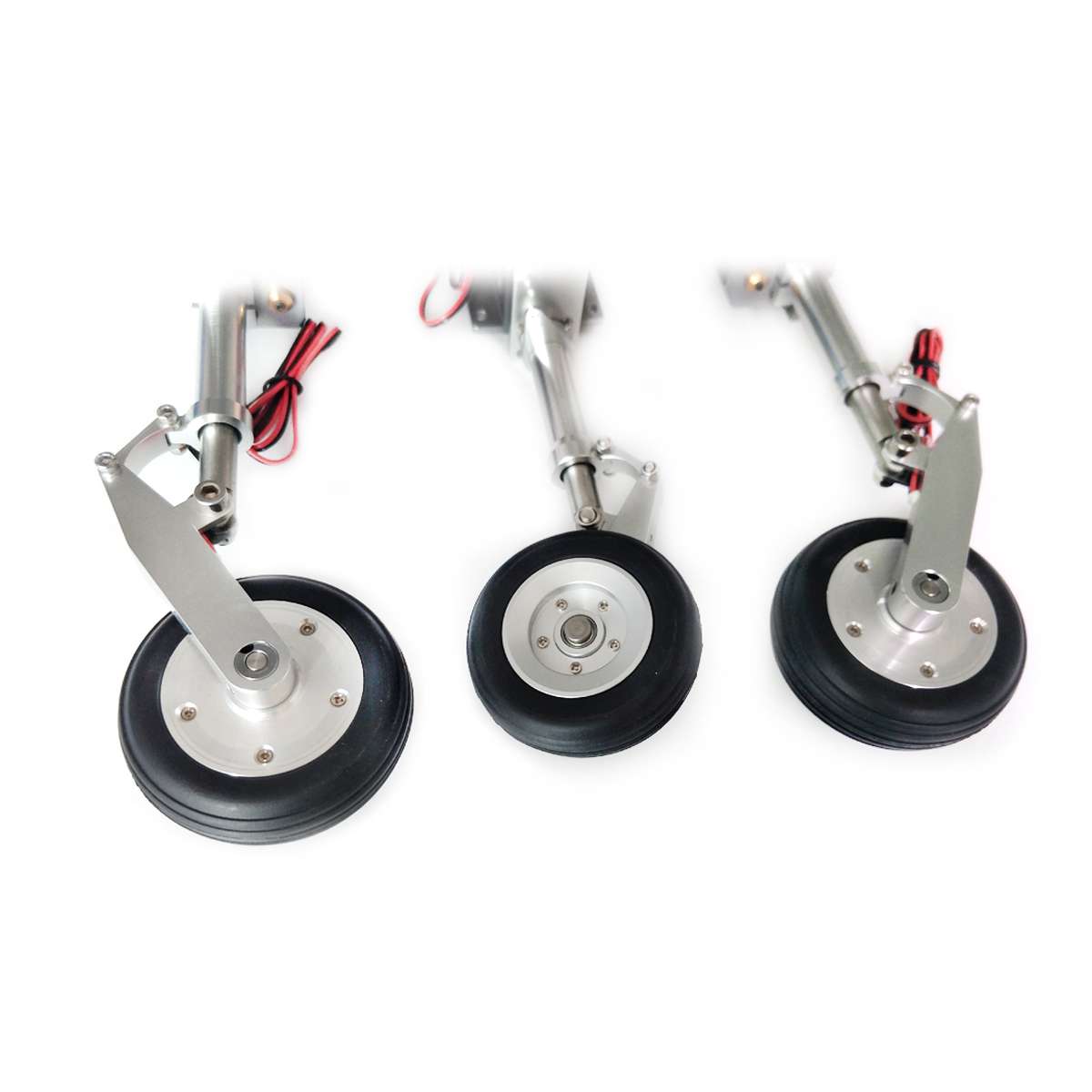

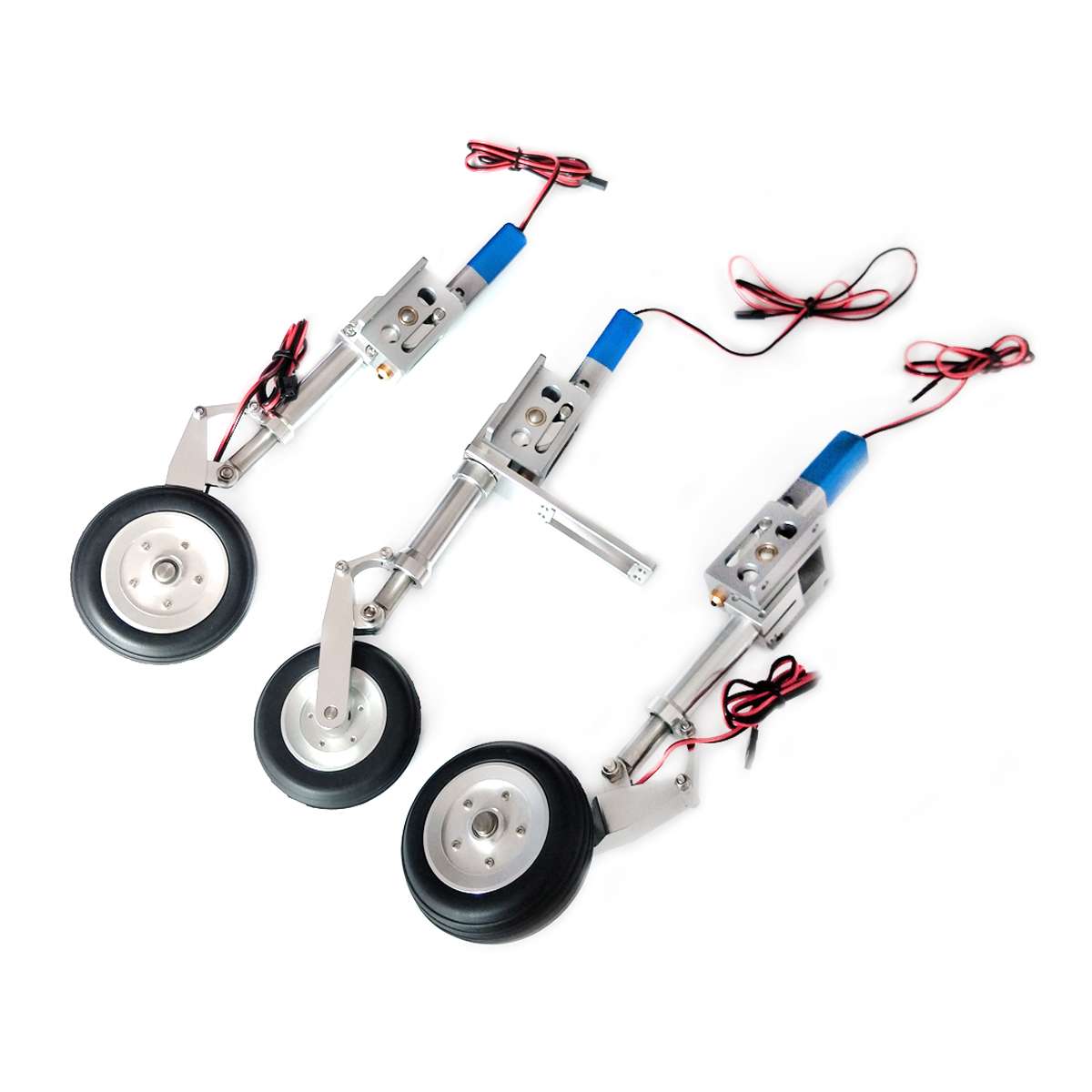

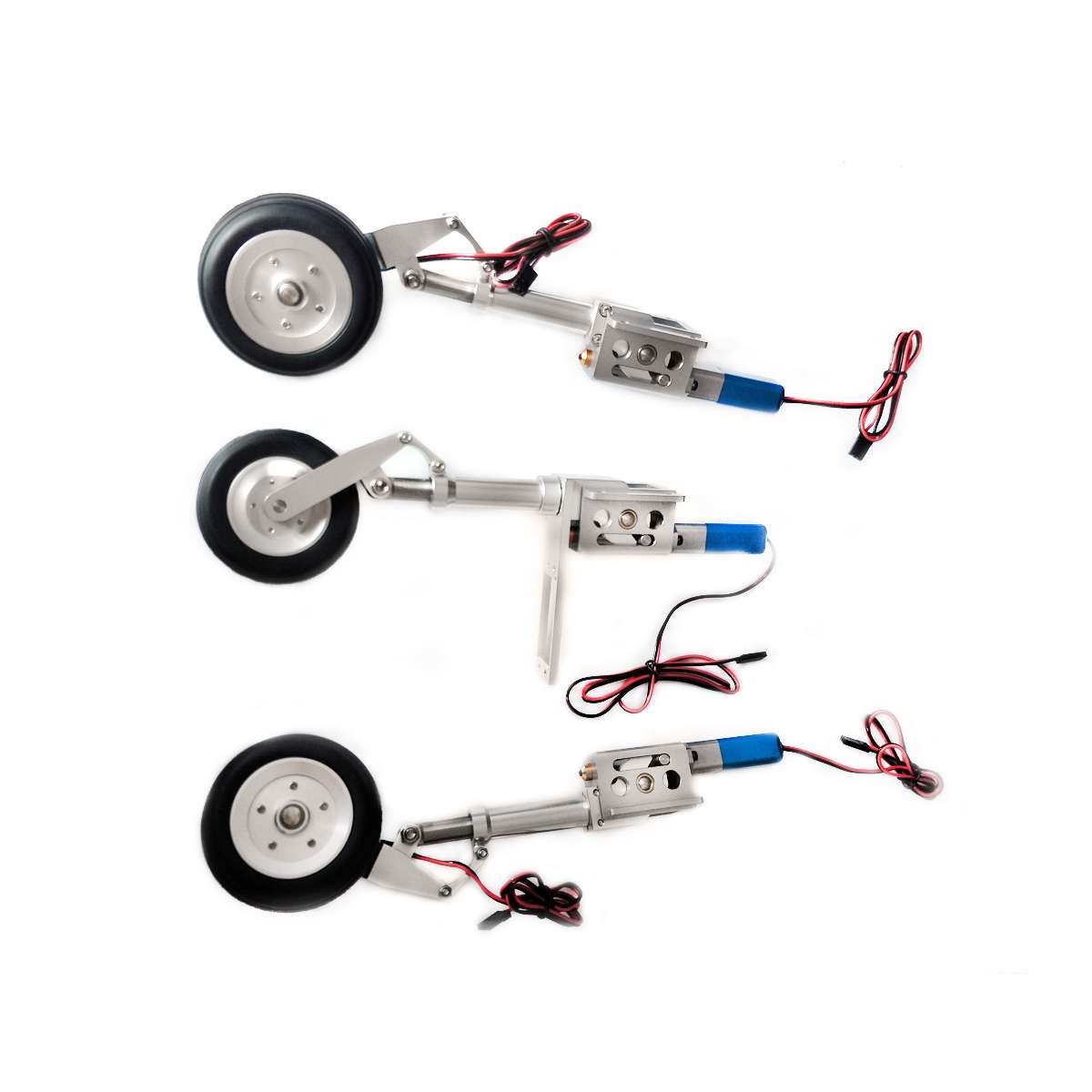

3. A set landing gear includes 1 pc nose gear and 2 pcs main gear; same as the structs with wheel and brakes
4. Total weight of a set landing gear is 390g, Total weight of a set structs with wheel and brakes is 746g

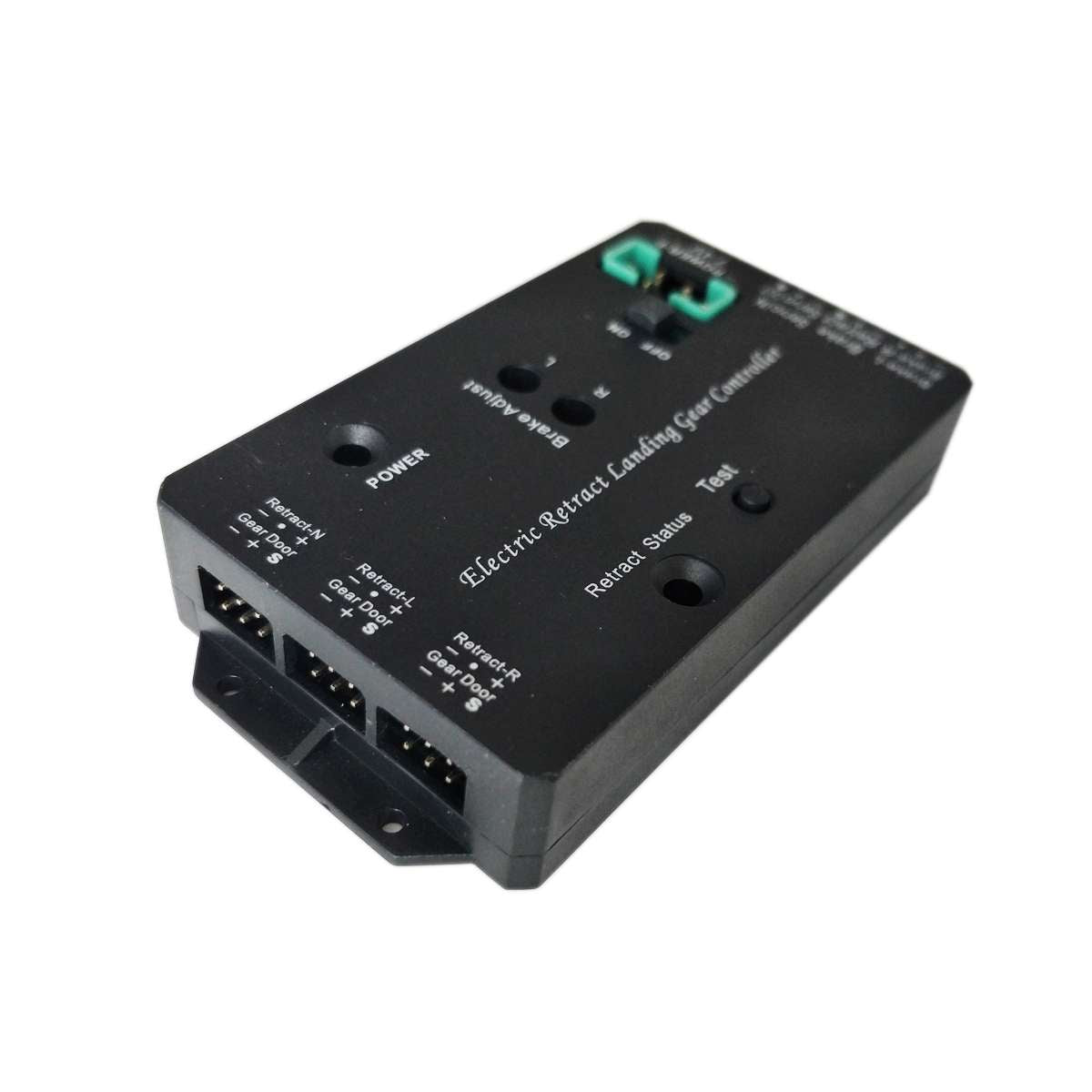

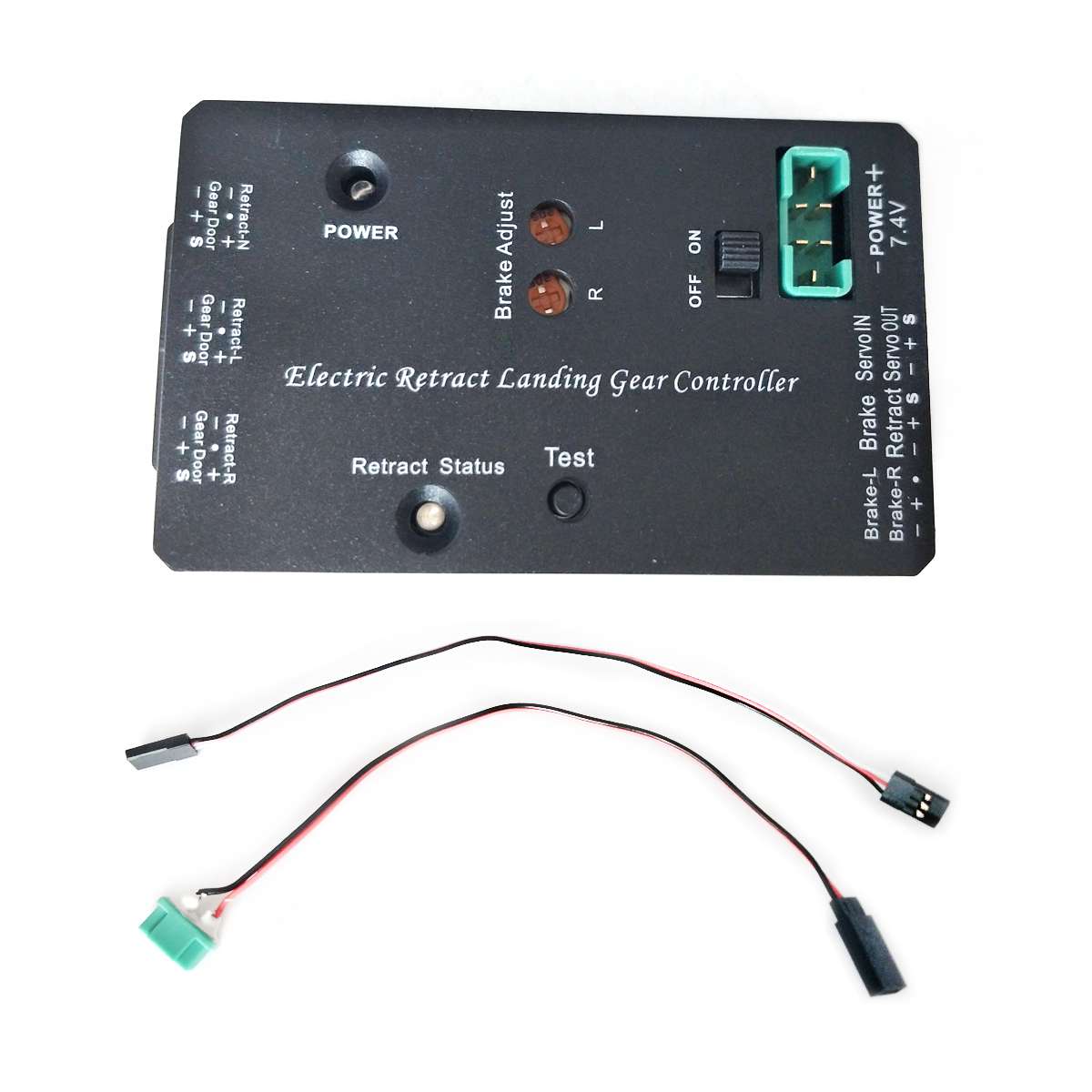

5. Owned the control program itself.
6 Suitable for fixed-wing airplane (Take off weight is 13~15kg)
Specifications:
1.Input voltage: DC6.0V~7.4V
2. Stall current: 800mA.
3. Landing gear opening time: 6s
4. Max current of brake: 1.3A(single)
5. Landing gear input pulse range: 300-2500us (<1200us--up, >1700us Down)
