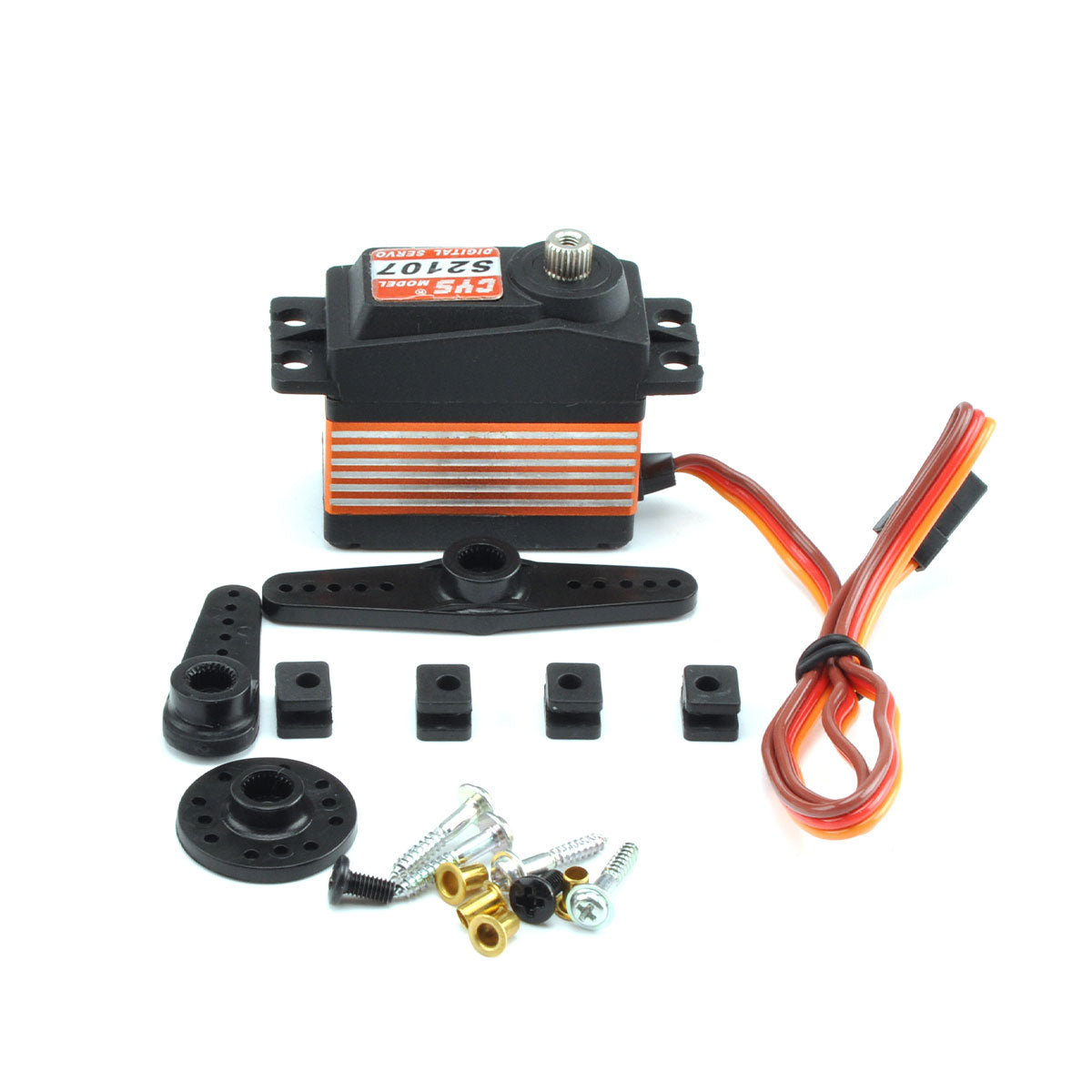

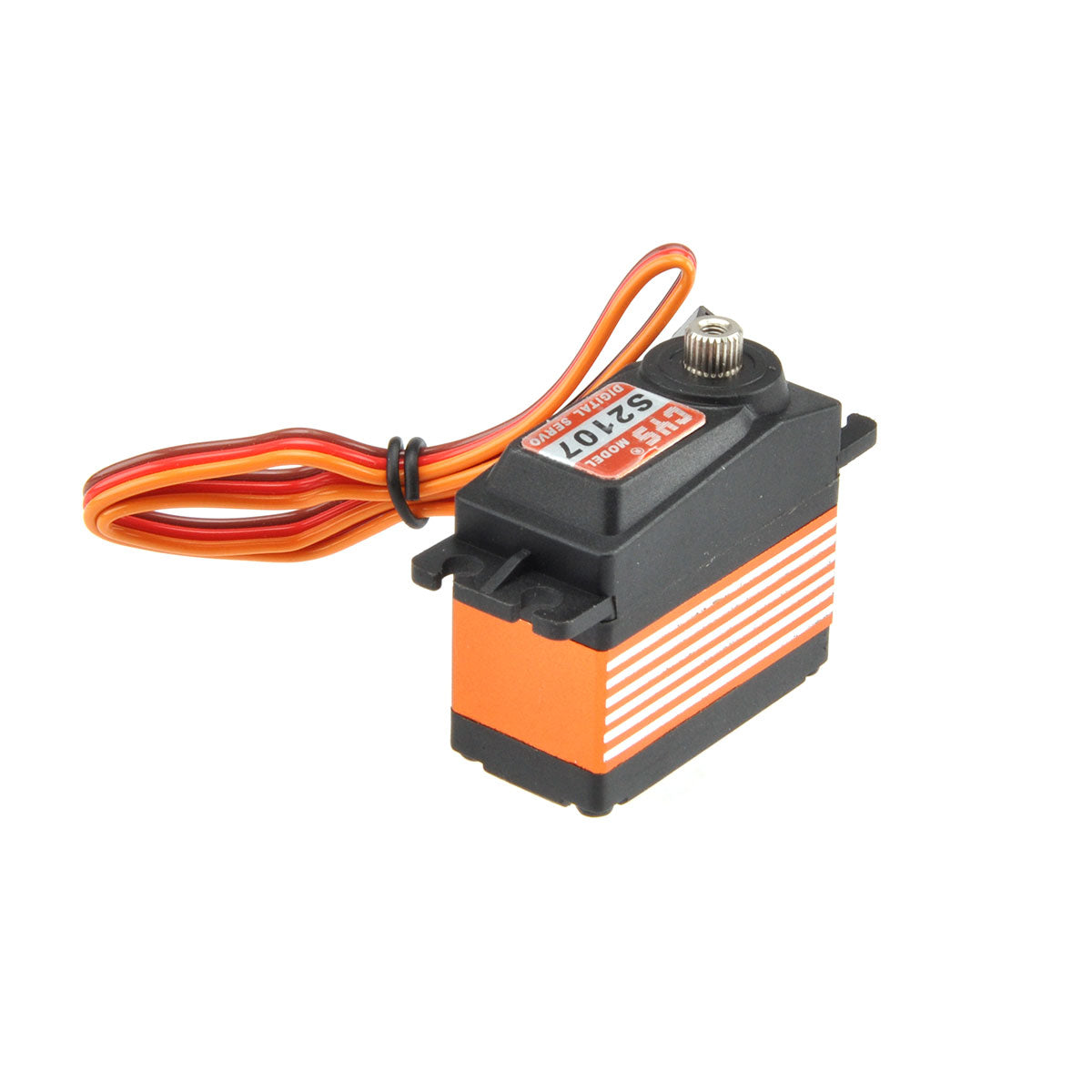

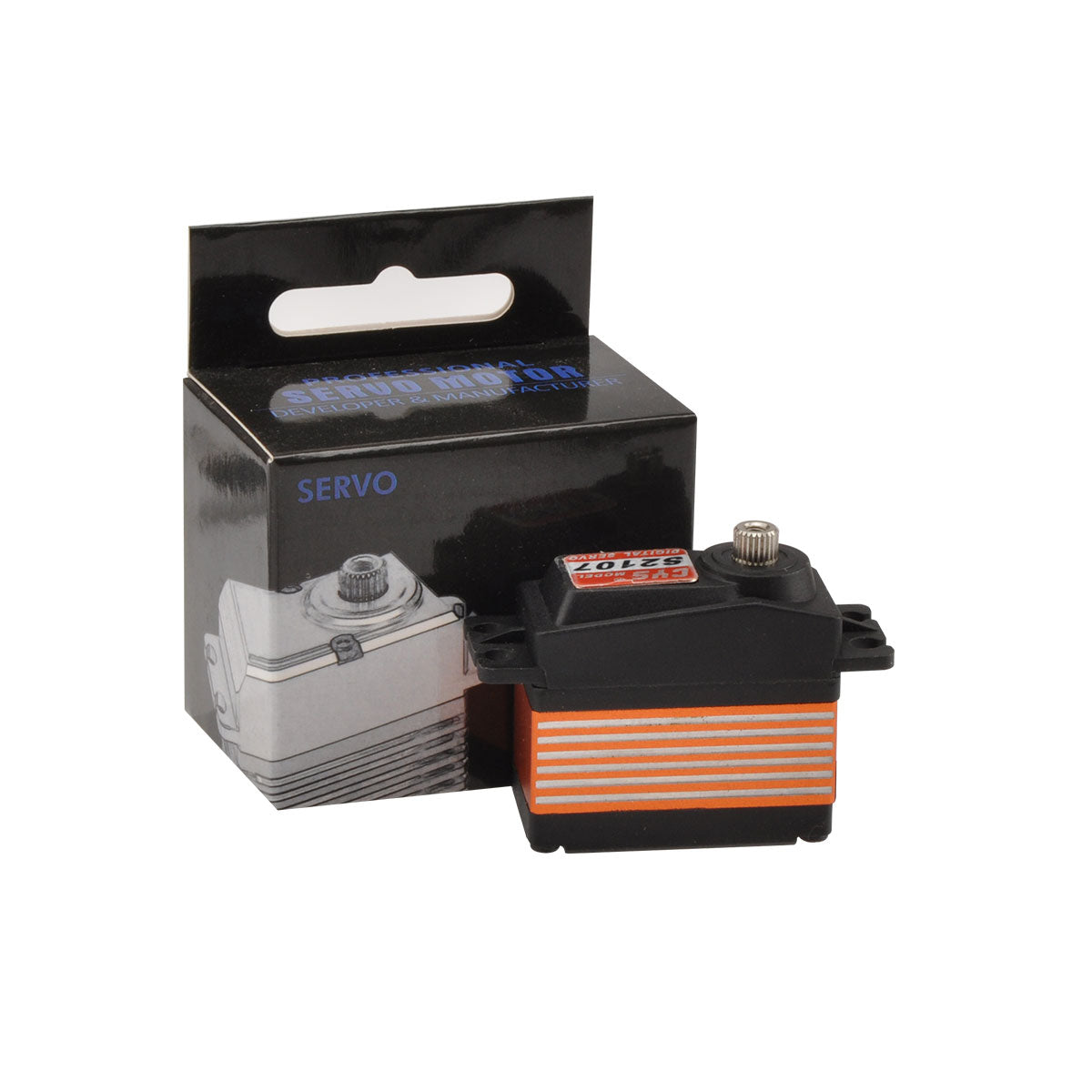

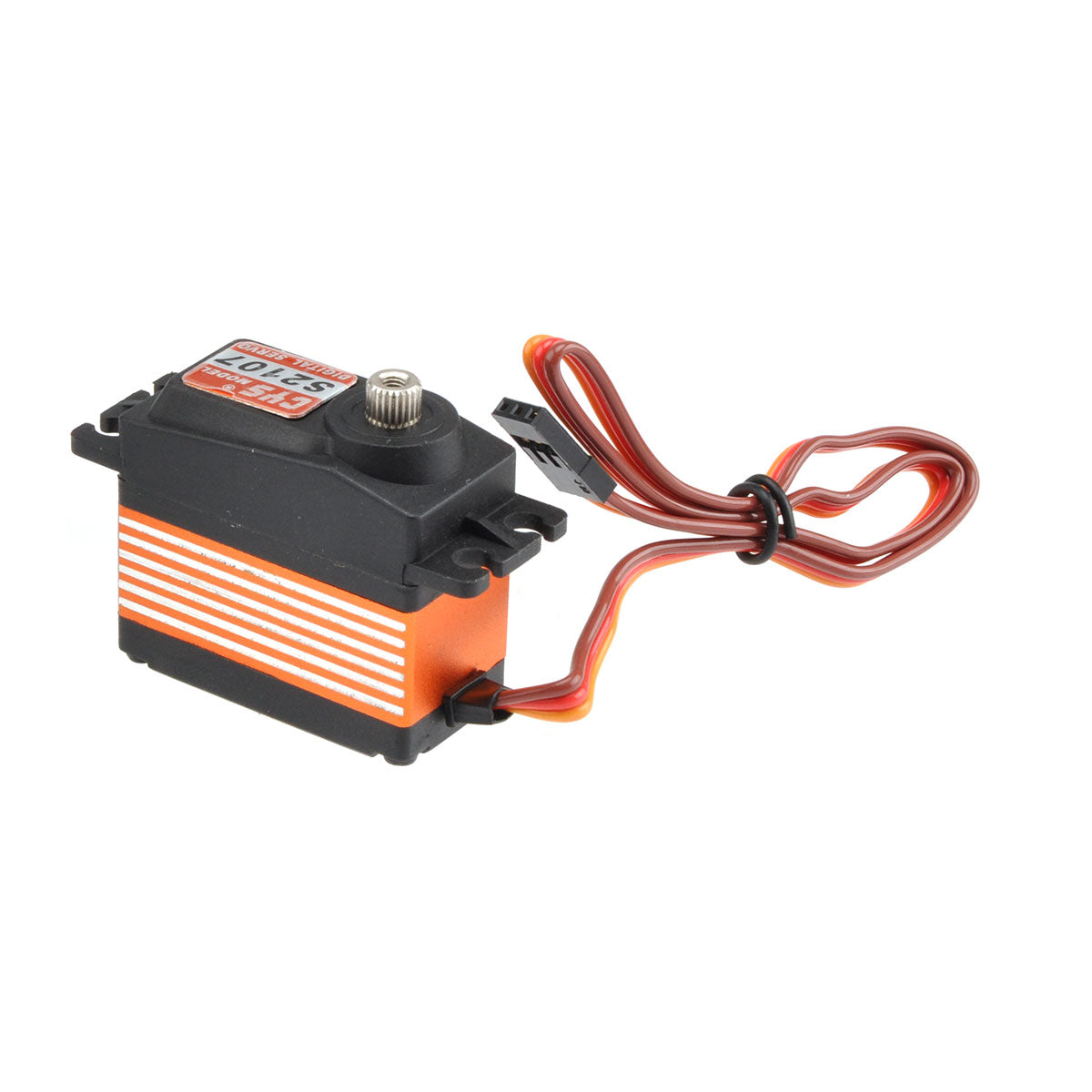

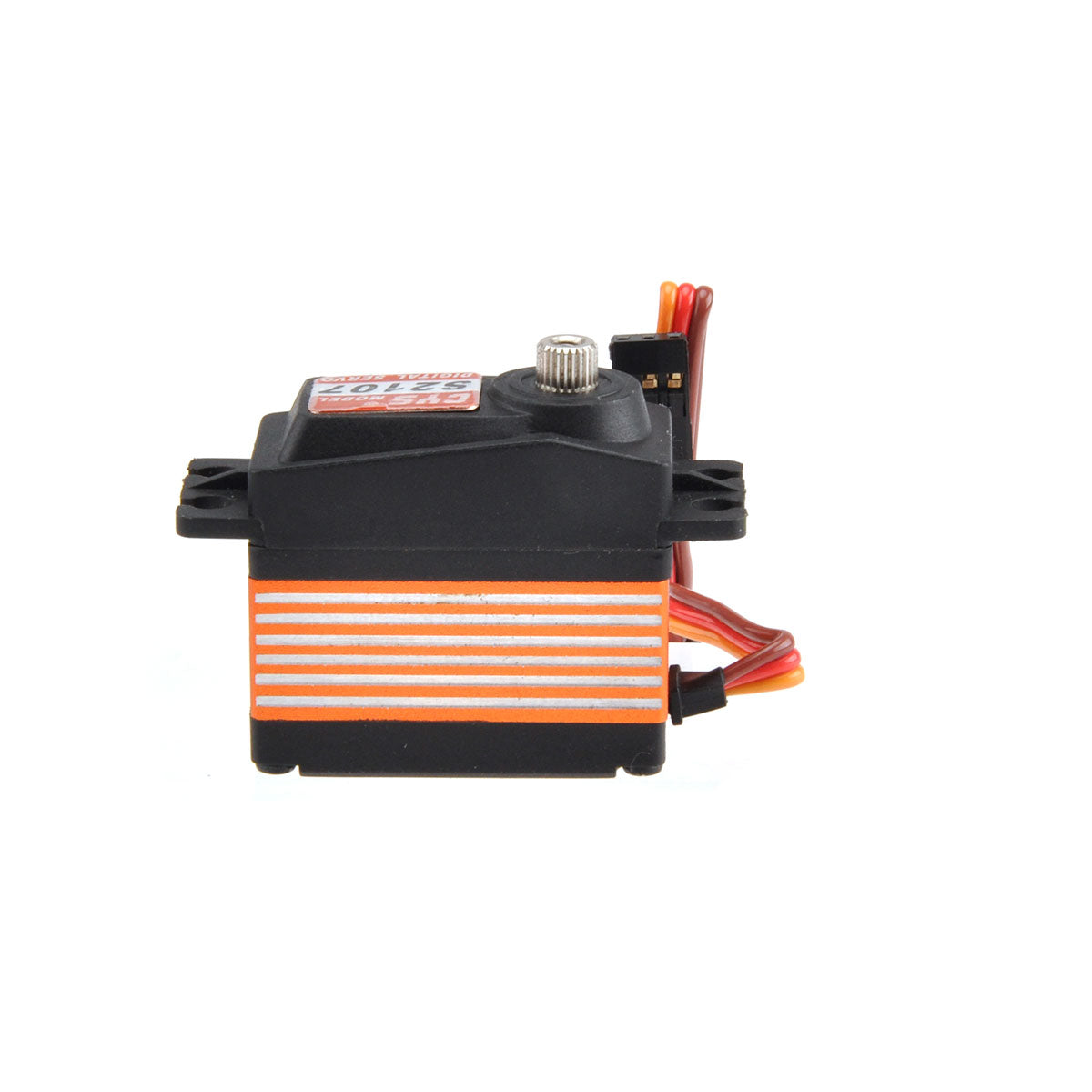

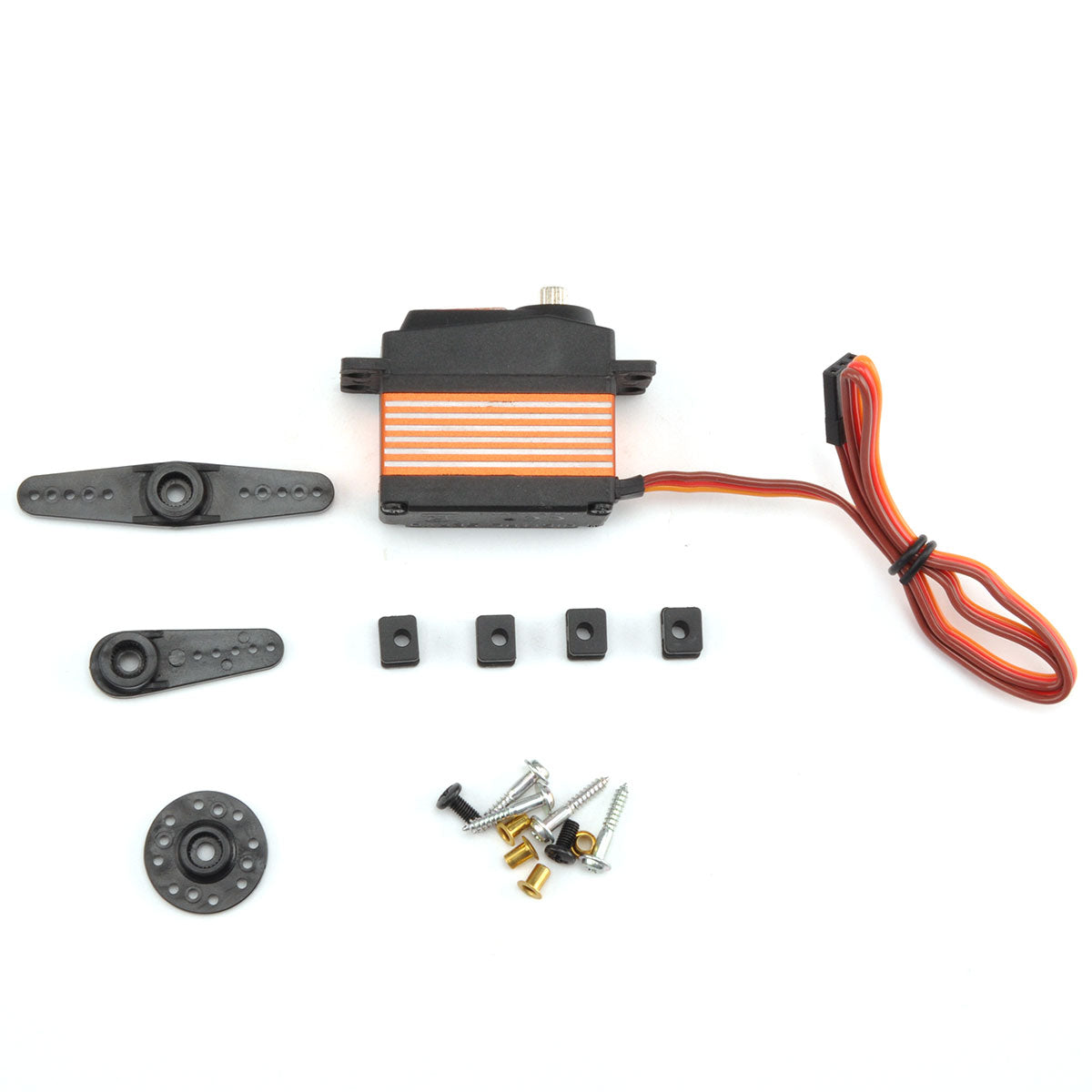

CYS-S2107 8.5kg.cm Digital Titanium Coreless Servo For RC Airplane Boat Cars

Specification

Dimensions :40.1x20.1x37.3mm

Operating Voltage:  DC6.0-7.4V

Dead band: 2μsec

Operating Speed (6.0V): 0.08sec/60 degrees

Operating Speed (7.4V): 0.07sec/60 degrees

Stall Torque (6.0V): 8 kg.cm (111.12oz/in)

Stall Torque (7.4V):  8.5 kg.cm (118.07 oz/in)

Running Current(6.0V): 100mA

Running Current(7.4V): 120mA

Stall Current(6.0V): 2.5A

Stall Current(7.4V): 2.8A

Idle Current(6.0V): 20mA

Idle Current(7.4V): 20mA

Weight: 50 g (1.76oz)
