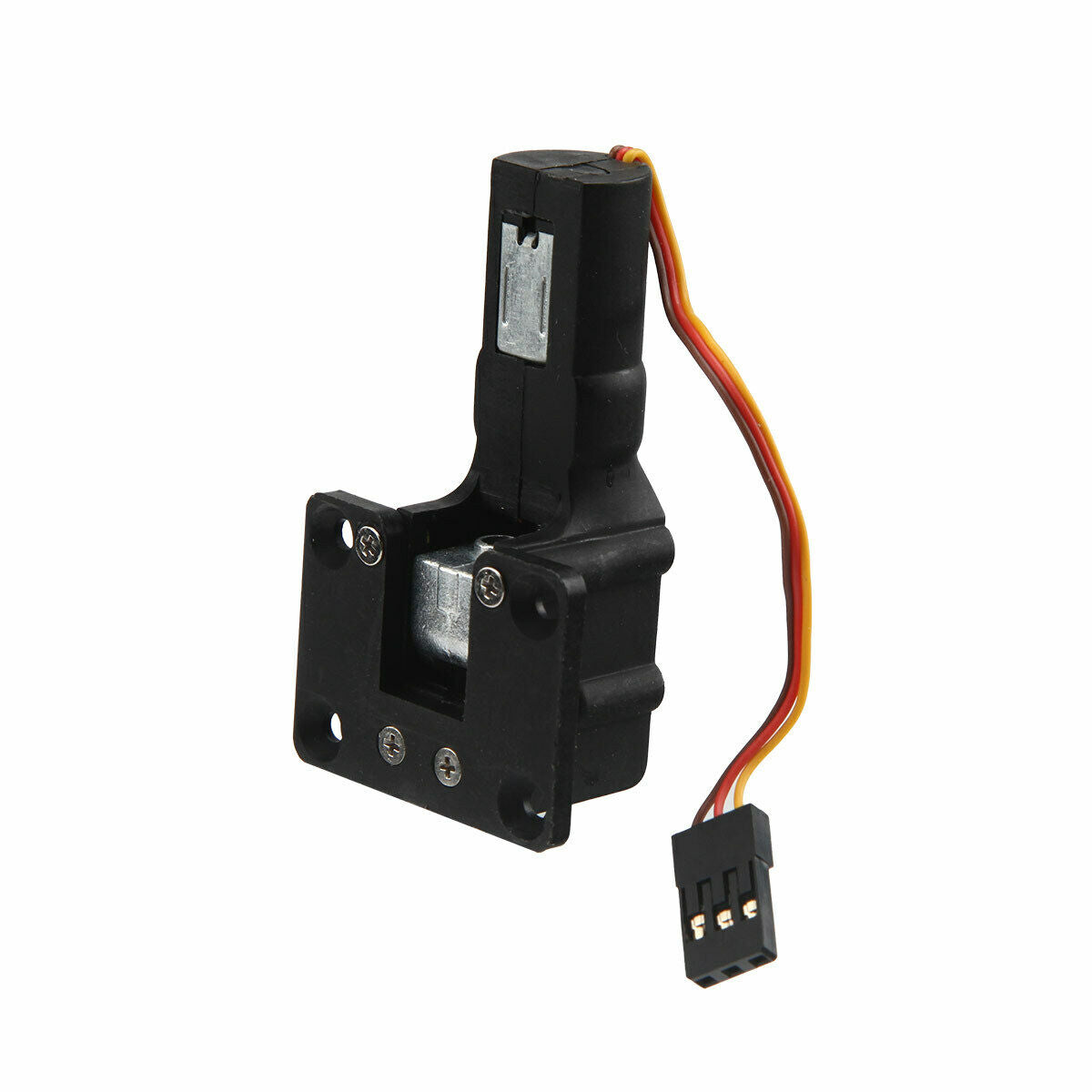

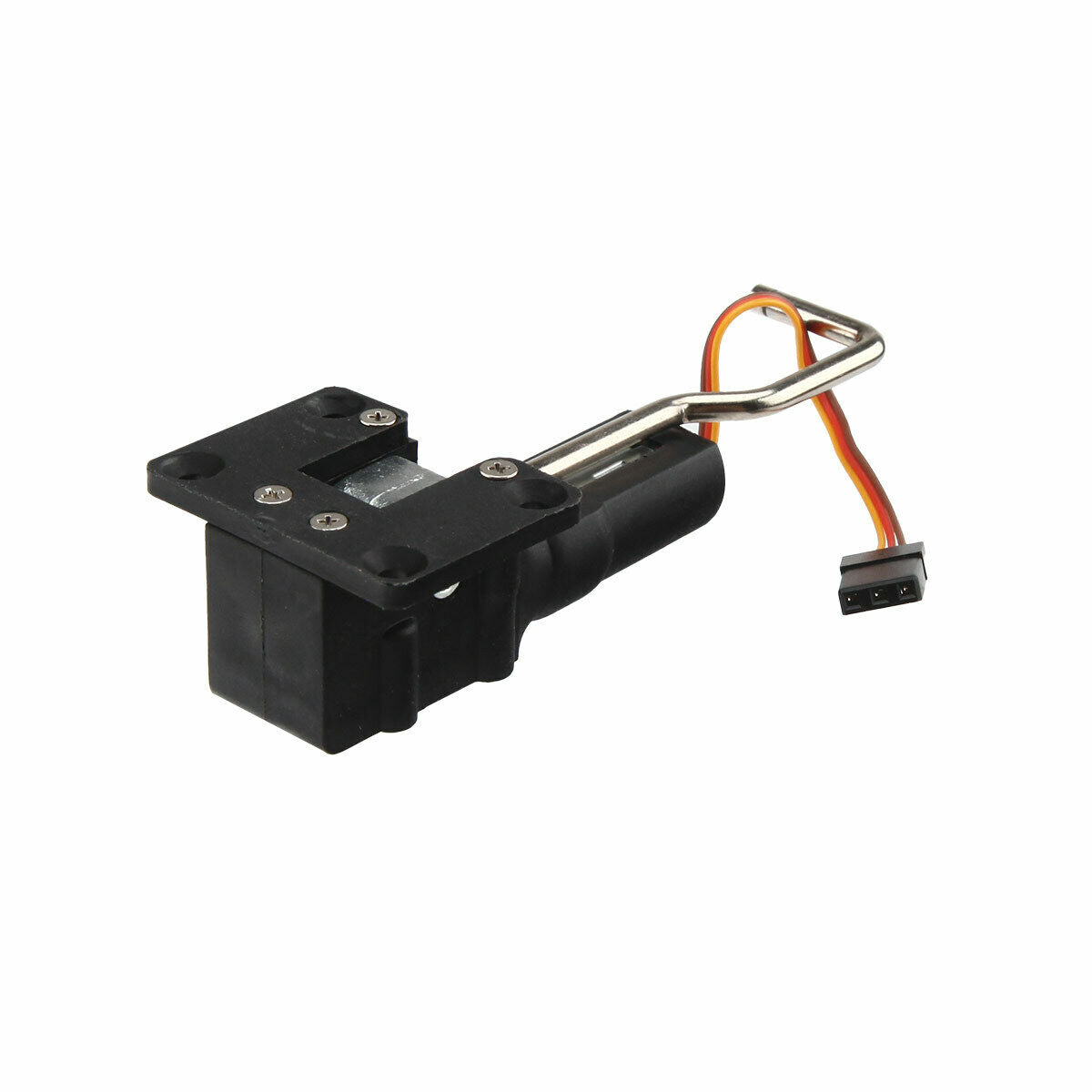

E-retract Landing Gears 2 kg Nose / Main Micro Electric Servoless

Electric Servoless Retracts

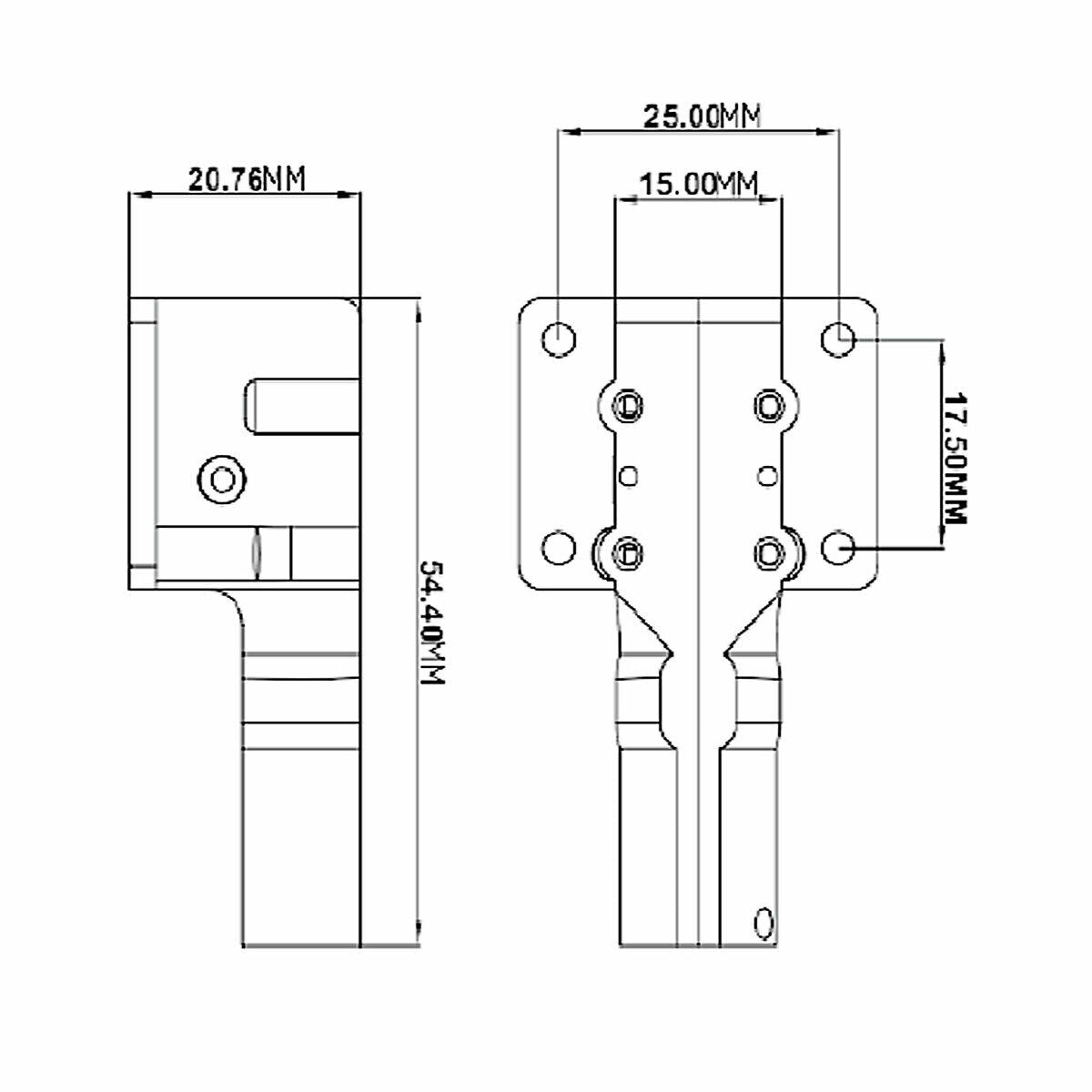

• Size(L*W*H): 54.8*32.0*21.0mm; 2.15*1.26*0.82″
• Speed: 0.55s/60°@4.8v; 0.45s/60°@6v
• Torque: 1.1kg-cm@4.8v; 1.4kg-cm@6v / 15.29oz-in@4.8v; 19.5oz-in@6v
• Landing Struct Diameter: Φ3mm
• Support Flight Weight: 2kg
• Operating Voltage: 4.8v-6.0v
• Maximum Travel: 90°
• Wire Length: 100mm

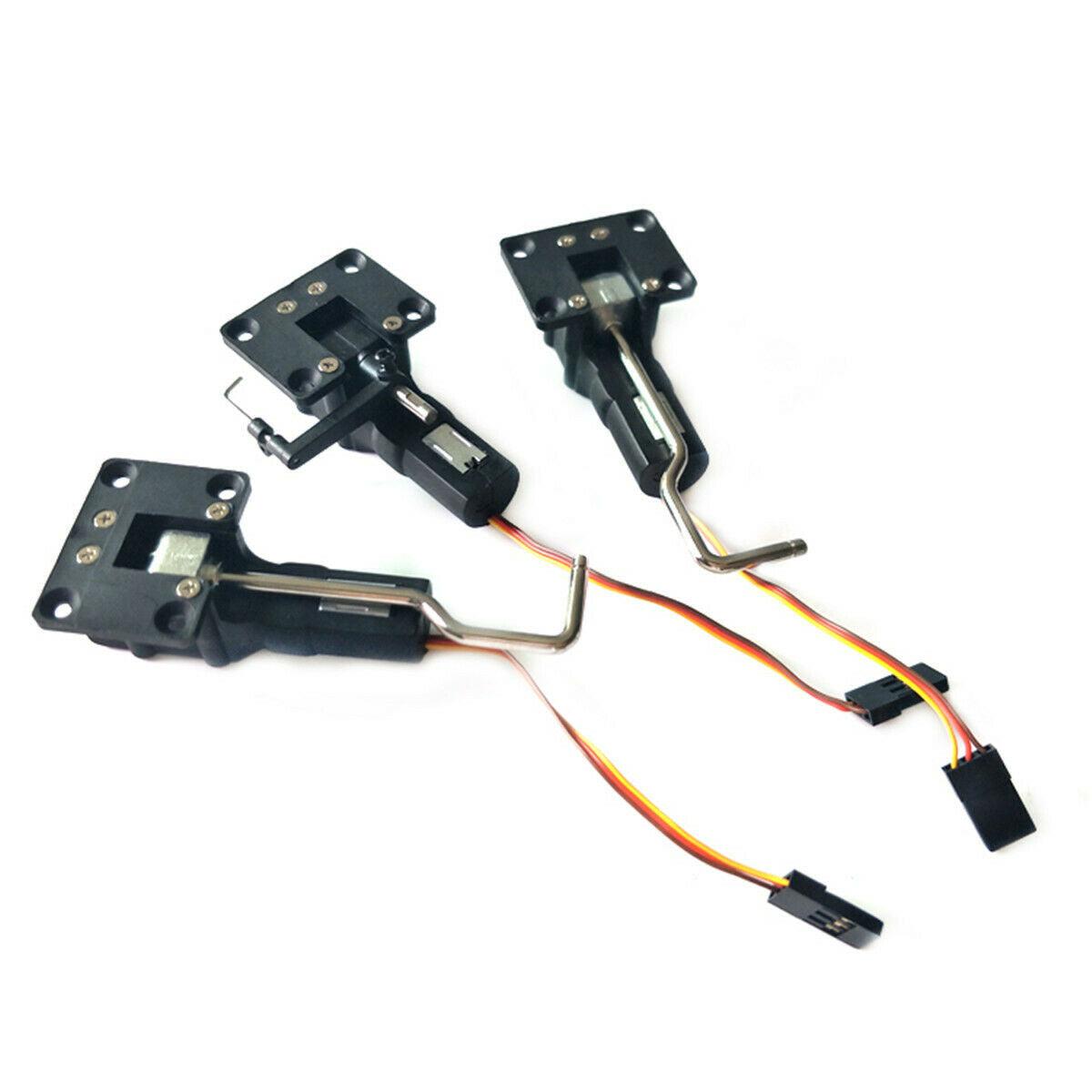

Package include:

2 main E-retracts and 1 E-retract.
