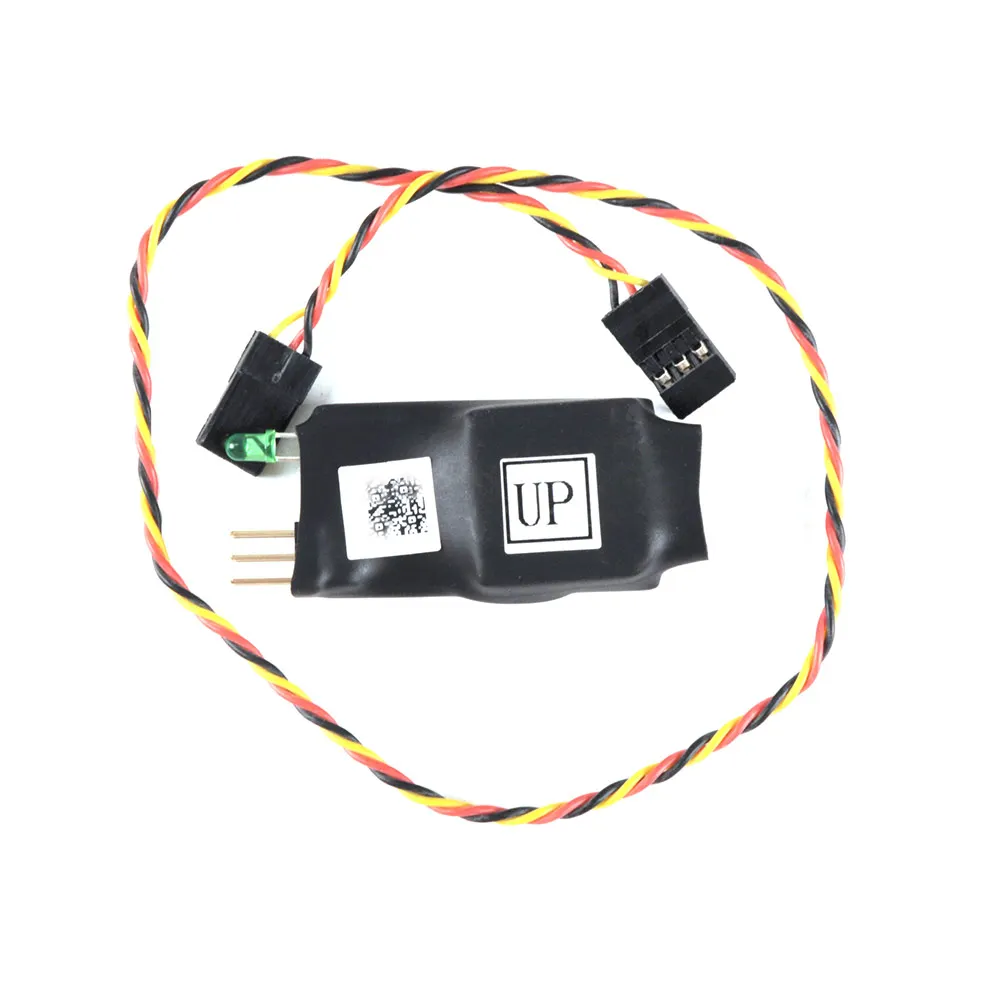

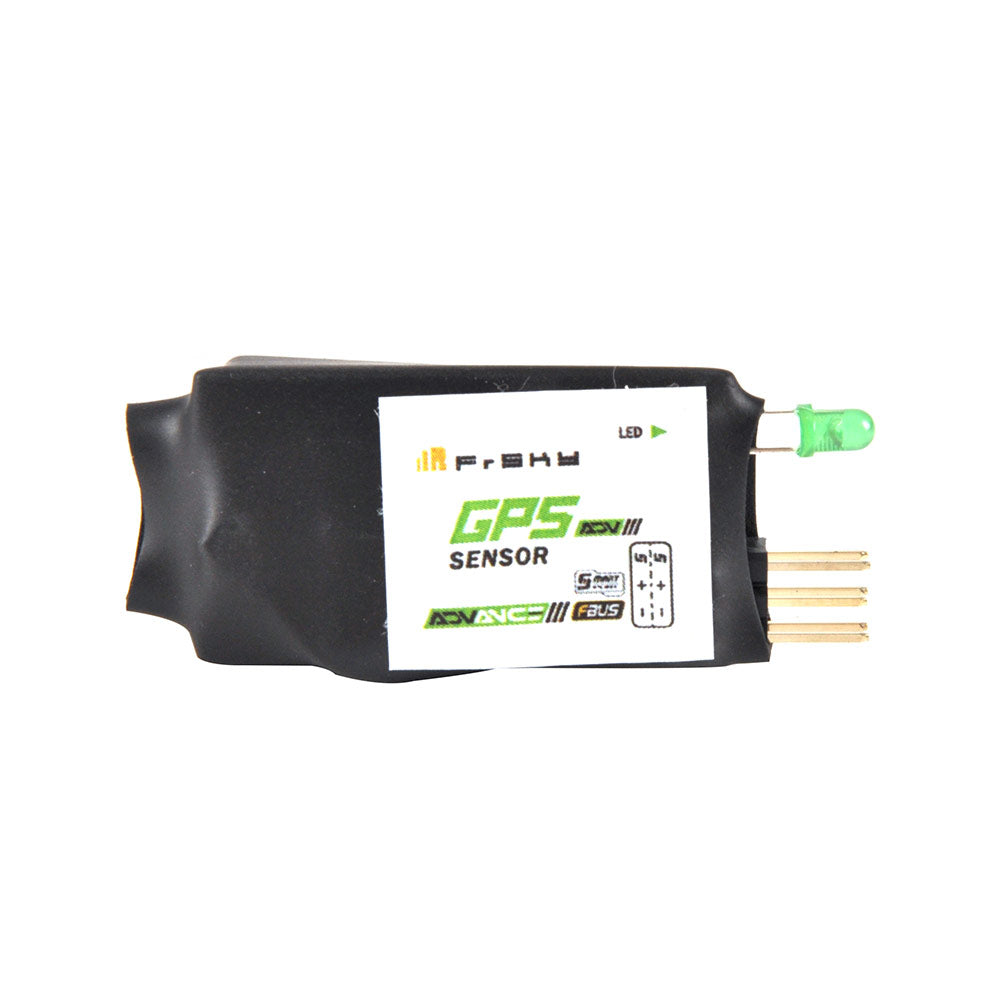

FrSky GPS ADV Sensor for RC Airplane Model Receivers

Specifications

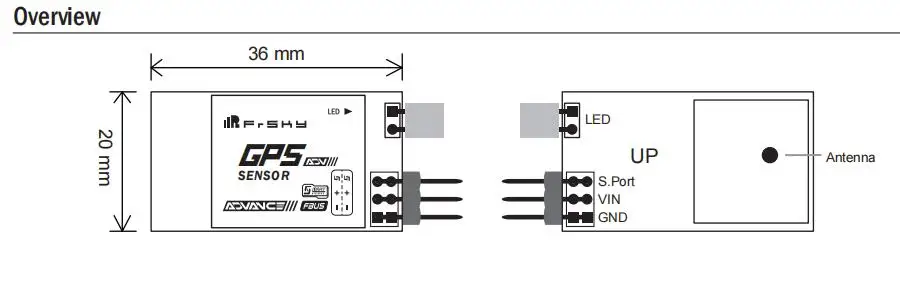

• Dimension: 45*20*10.4mm (L*W*H)
• Weight: 11g
• Operational Voltage: DC 4 -10V
• Current Draw: 40mA @5V
• Operating Temperature: -40℃~85℃
• Data Rate: 10Hz
• Time to fix: 30s cold start
• Speed Accuracy: Approx 0.1m/s
• Sensitivity: -164dBm
• Antenna: Built-in patch
• Position Accuracy: Approx 2.5m CEP
• Operation Limits: Dynamics 4g/Altitude 50,000m/
Velocity 500m/s
• Compatible with FBUS/S.Port protocol

Notice

FrSky Smart Port GPS is only compatible with FrSky Smart Port enabled receivers, such as X8R, X6R, X4R, etc..
