Descripción

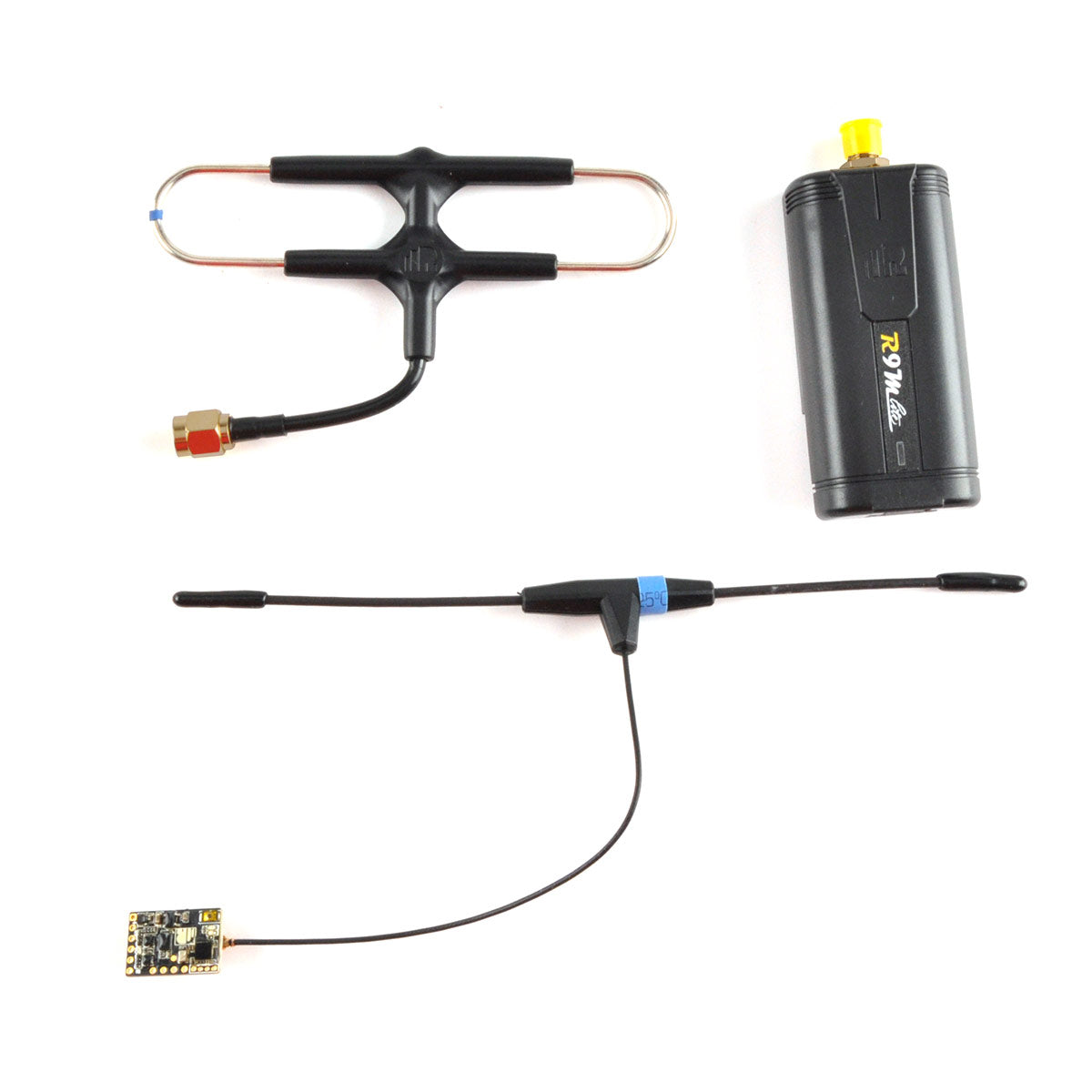

The R9 MX is the enhanced versions of the previous R9 MM/Mini series long-range capable receivers, equivalent in size and weight equipped with a robust detachable Ipex1 antenna connector.
The R9 MX takes features from the previous R9 Mini and R9 MM making it compatible with more external devices by providing an Inverted S.Port output and supporting the redundancy function. Additionally, it retains soldering points to connect 4 PWM channels. The enhanced design proves to be more durable, and in conjunction with the latest ACCESS firmware, the two are now synchronized and we are able to unlock the true potential of the ACCESS protocol.
Specifications
Frequency: 868MHz / 915MHz
Dimension: 18123.2mm
Weight: 3.2g
Numbers of Channel: 4 PWM / 16 SBUS (CH16 outputs RSSI)
Operating Voltage: DC 3.5V~10V
Operating Current: <100mA@5V
Compatibility: R9M Lite/ R9M Lite Pro / R9M 2019 with ACCESS firmware
Features
ACCESS protocol and supports OTA functions
900MHz/868MHz long-range with low latency
Enhanced and durable design
Support S.Port / F.Port (Configurable in OpenTX / FrOS menu)
With inverted S.Port outputs
Signal redundancy function
Detachable Ipex1 connector antenna

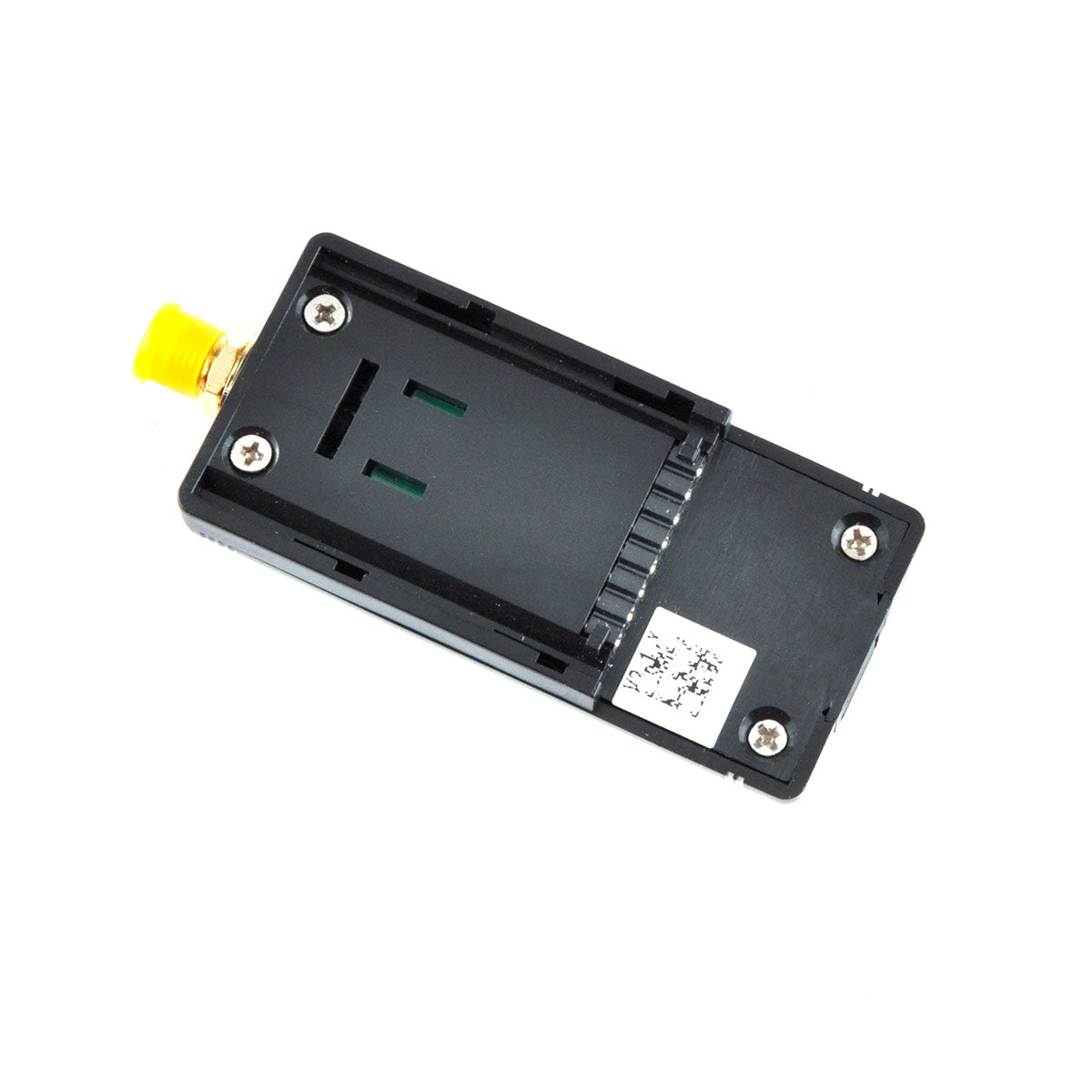

R9M Lite module is a 900MHz frequency system which is specially designed for FrSky Taranis X-Lite transmitter. This being the "Lite" version of the R9 series works perfectly with all receivers in the R9 series. In addition, it gets super low latency and high precision thanks to the upgraded digital interface and high-speed data transmission. The R9M Lite has the extreme performance with the ability to achieve long distances with one RF power output at 100mW.
SPECIFICATION
Dimension: 62.4mm × 30mm×14.5mm (L×W×H)
Weight: 20g
Number of channels: 16 channels
Operating Current: 100mA@7.2V
RF Operating Frequency: 900MHz/868MHz
RF Power (Non-EU): 100mW (with telemetry)
RF Power (EU): 25mW (with telemetry) /100mW (without telemetry)
RF Power (Flex):100mW (with telemetry)
Compatibility: R9 series receivers
FEATURE
Firmware upgradable on Taranis X-Lite
Telemetry data transmission supported
Long Range, Low Latency and High precision RC system
