HSM-700/800 size Roban Helicopter General accessories mechanic spare parts Model
Suitable for all Roban 700/800 size aircraft, please contact us if you need additional parts
Specification:
option
PART NO
DESCRIPTION(include)
QTY
Tail support set
1-JJ-70-00104
Tail support holder
4
1-JJ-70-00105
Bolt 1.5x7.8
4
Tail support rod
1-JJ-70-00106
Tail support rod
2
Tail support clamp
11-600UH1-007
Tail support clamp
1

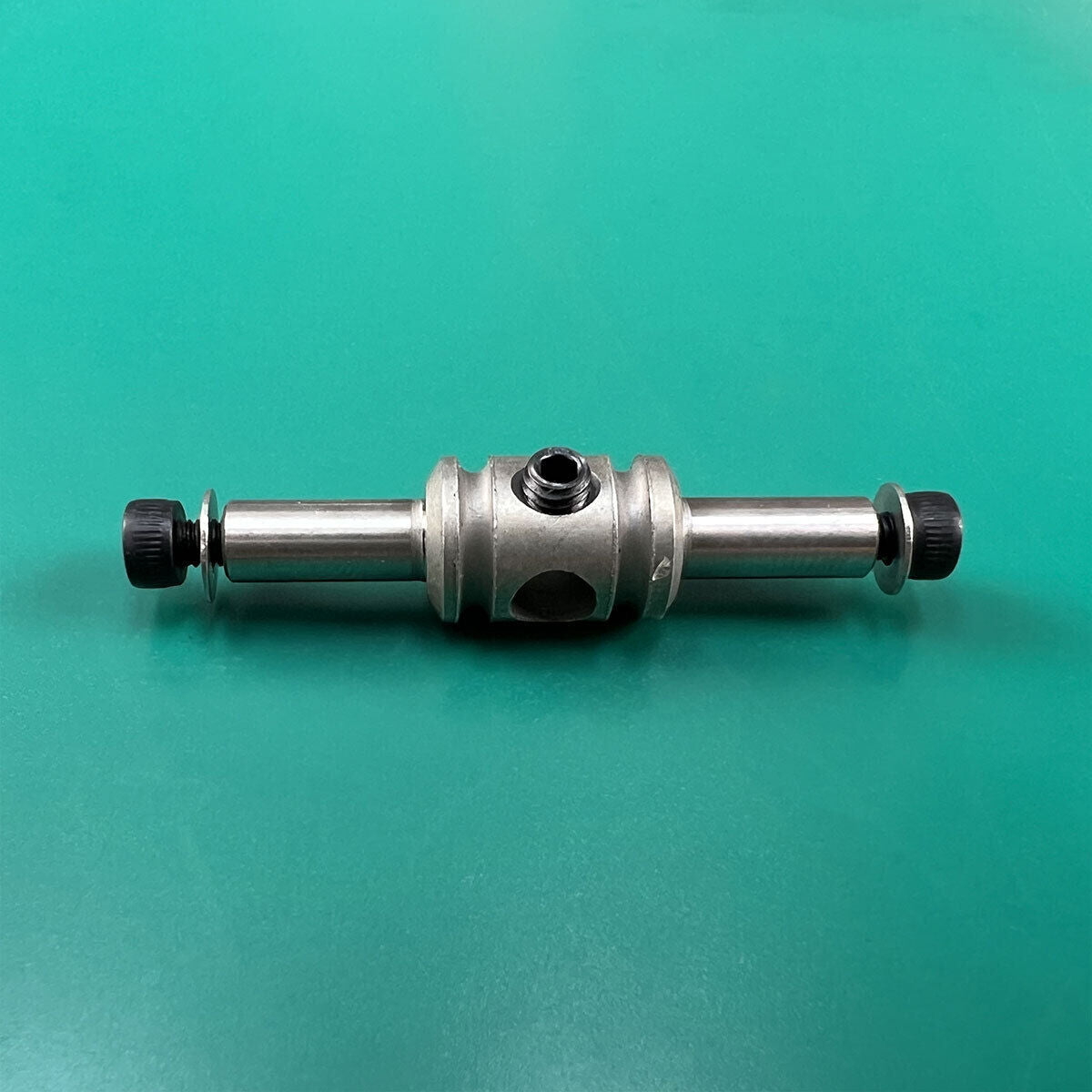

Tail shaft 2B
1-60-WJ-00010
Washer 5x7x5.7
1
1-60-WJ-00011
Washer 5x7x2.1
1
1-60-WJ-00006
Tail shaft 2 blade
1
Center hub 2B
1-JJ-70-00110
Center hub
1
M4x4 set hex
1
Washer 3.2x7x0.5
2
M3x8 socket
2
Pitch slider set
1-JJ-70-00111
Pitch lever
1
1-JJ-70-00112
Pitch slider
1
1-JJ-70-00113
Pitch sleeve
1
1-JJ-70-00122
Washer 7x8.5x4
1
1-JJ-70-00131
M2x10 socket half thread
2
1-JJ-70-00100
Bearing MR117ZZ
2
1-JJ-70-00048
Ball link 5mm
1
Dog bone set
1-JJ-70-00107
Dog bone
2
1-JJ-70-00108
Washer 2x3x4
2
1-JJ-70-00125
Sleeve 2x5x9.5
2
1-JJ-70-00126
Washer 2x5x0.5
2
M2 nyloc nut
2
Screw M2x17
1-JJ-70-00130
M2x17 socket half thread
2
Support
1-JJ-70-00123
Pitch lever support
1
M2x5 socket
2
Tail lever set 1
1-JJ-70-00114
Washer 3x4x0.5
2
1-JJ-70-00115
L-Lever
1
Bearing MR63ZZ
2
1-JJ-70-00068
Uniball 5mm
1
Sleeve 3x4x6
1
M2 nyloc nut
1
M3x16 socket
1
Tail lever set 2
1-JJ-70-00114
Washer 3x4x0.5
2
1-JJ-70-00115-1
L-Lever
1
Bearing MR63ZZ
2
1-JJ-70-00068
Uniball 5mm
1
Sleeve 3x4x6
1
M2 nyloc nut
1
M3x16 socket
1
Frame spacer
1-JJ-70-00119
Frame Spacer
1
Tail frame 1
1-JJ-70-00117
Tail Frame 1
1
1-JJ-70-00123
Pitch lever support
1
M2x5 socket
2
Bearing MR105ZZ
1
M3x6 round hex
3
Tail frame 2
1-JJ-70-00120
Tail frame 2
1
Bearing MR105ZZ
1
M3x6 round hex
3
Tail rotor hub
1-JJ-70-00118
Tail rotor hub
1
M3x12 socket
2
M3x6 round hex
5
Main Belt
1-JJ-70-00146
Main Belt
1
Screw M3x17
1-JJ-70-00002
M3x18 socket half thread
2
Screw M4x26-7
1-JJ-70-00010
M4x26 socket half thread
4
Screw M4x24-6.5
1-JJ-70-00006
M4x24 socket half thread
2
Self Locking Nut M4
1-JJ-70-00007
M4 nyloc nut
6
Screw M3x20
1-JJ-70-00128
M3x20 socket half thread
2
Screw M2x10
1-JJ-70-00131
M2x10 socket half thread
2
Screw M2x14
1-JJ-70-00140
M2x14 socket half thread
4
Tail boom bearing
1-JJ-70-00015
Bearing MR148ZZ
3
Servo rod guides
1-JJ-70-00040
Servo rod guide
3
Servo rod guides v2
1-JJ-70-00040V2
Servo rod guide
2
Bearing set 1
1-JJ-70-00045
Bearing MR105ZZ
12
Torque tube bearing and holder
1-JJ-70-02006
Bearing holder
2
1-JJ-70-00015
Bearing MR148ZZ
2
Torque tube bearing and holder v2
1-JJ-70-02006
Bearing holder
2
1-JJ-70-00015
Bearing MR148ZZ
2
Bearing set 2
1-JJ-70-00055
Bearing 6901-2RS
2
Bearing set 3
1-JJ-70-00056
Bearing 6800-ZZ
2
Bearing set 4
1-JJ-70-00100
Bearing MR117ZZ
2
Bearing set 5
1-JJ-70-00101
Bearing MR63ZZ
2
