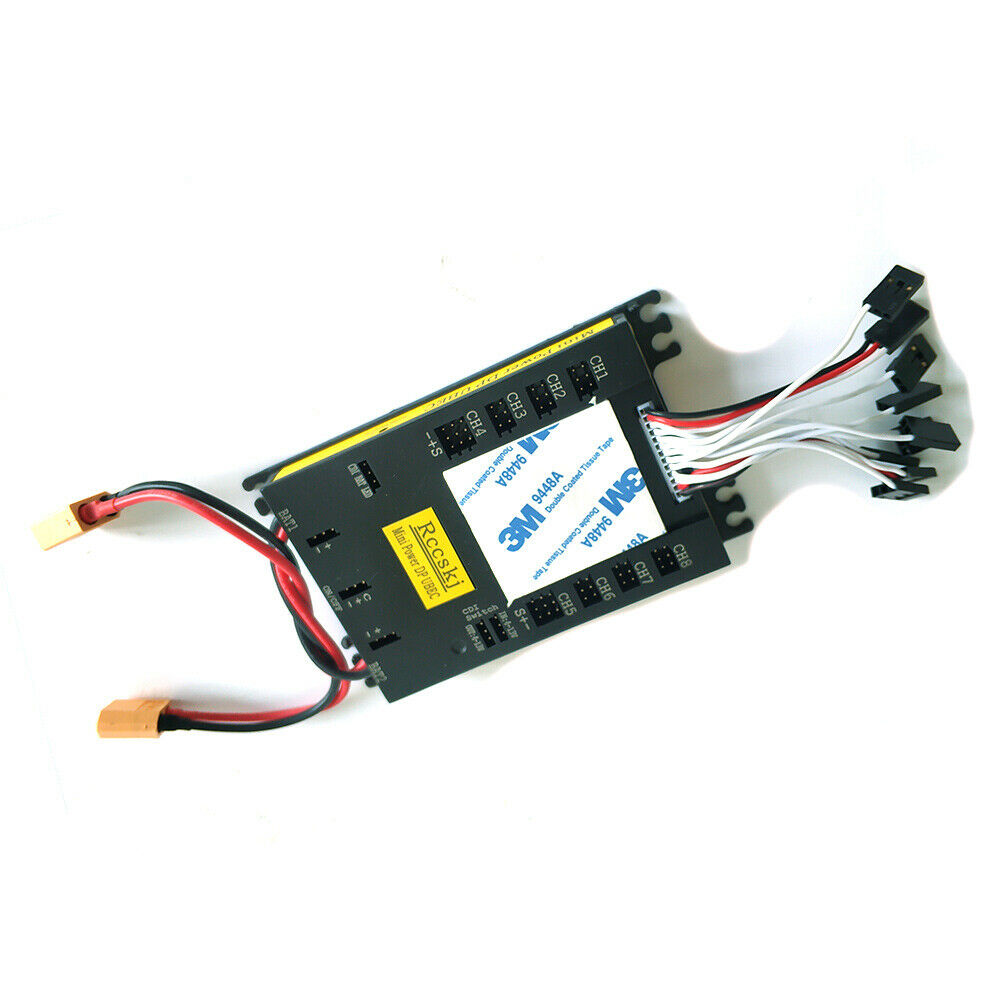

Mini Power DP Ubec 20A Servo Distribution Section Board 7-13V E2103

Precio de venta$69.98

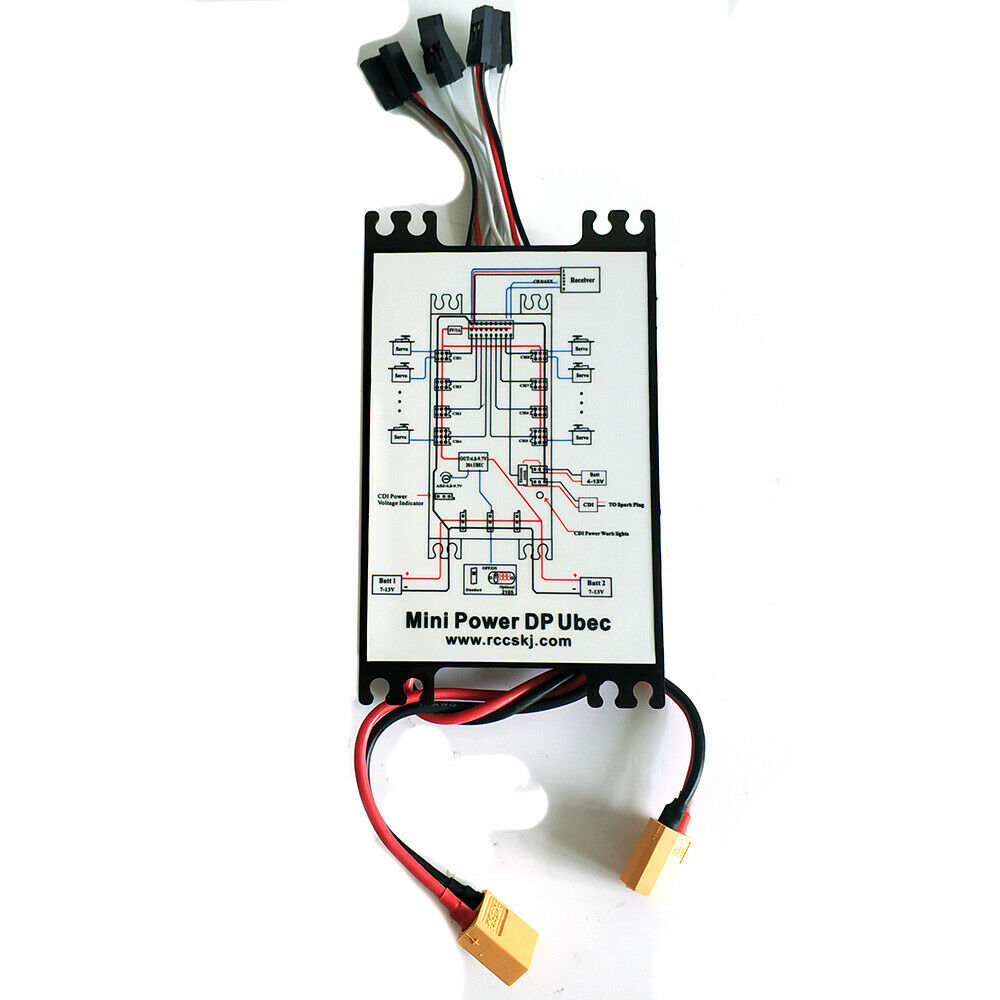

Mini Power DP Ubec E2103

Produce features:

1. Double power input to improve the stability of power supply, which can effectively avoids the accident cause by poor contact of a single block of power batteries.
2. Compared with the traditional mechanical switch integrated electronic switch has a higher security and stability.
3. Input / output voltage display switch
4. Nine channels for input, and sixteen channels for output.(every one channel input with two channels output ), one channel CDI remote flameout switch.
5. Integrated CDI remote flameout switch, making flying safer
6. Independent CDI power supply socket. Receiver power completely separates with the CDI power, so you should not worry about that CDI arouses high frequency signal will interfere the receiver.
7. Integrated 20ABEC ( MXA: 30A ), which can provide sufficient current to the actuator.
8. 4.8-9.7V output voltage, to adapt to a variety of high and low voltage actuator.
9. Independent 5V linear regulator which provide a separate pure working power supply to the receiver.
10. Five leds display the distribution board’s working states.
11. Special place is designed for receiver to avoid the accidental from bombing damage in receiver.
12. Optional voltage meter of the distribution board can display real-time input/output voltage

Technology parameters:

Working voltage: 7-13V
Steering current, voltage :0-20A ,4.8-9 .7 V (factory voltage is 5.2V)
Weight: 80g
Working temperature:-20 centigrade to 85 centigrade

CDI signal states of the power supply:

The green light on: Voltage above 4.8V
The green light flash: 4.5V-4.8V
The red light on: 4.2V-4.5V
The red light flash: Voltage below 4.2V
