- Feature :
- The brand new T-REX 760X features with new body length and new 760 main blade for F3C/3D flight design providing the outstanding performance than other series will give you the different flying feeling.
- The new 700FL rotor head system can use new F3C rotor holder arm and 3D rotor holder arm. F3C rotor holder arm effectively doubles the flight stability with excellent and precise control accuracy not only has more advantages in the static flight also provide the perfect controlling feel in 3D flight. 3D rotor holder arm suitable for extreme 3D flight provides the more direct and faster control response.
- Main rotor grip arm and linkage rod is at 90-degree angle symmetrically, allow to keep the best precise flight performance. Also the new 760 main blade features with better flight stability and superior lift making the T-REX 760X in the control feel and stability better than other models. Utilized the three tail blade set as standard accessory feature with excellent controlling feel and superior tail authority allowing you to enjoy the flying no matter F3C or 3D flight.
- T-REX 760X introduced the advanced engineered narrow body design efficiently decreases gear abrasion, machine deformation, increases power, and extends flying durability. The unique Split-Type Main Frame design, made of composite material side plates, is engineered using our proprietary embedding technology, which strengthens the entire structure. This extraordinary design includes a progressive lightweight landing skid making the T-REX 760X the leader in this class.
- The T-REX 700X is equipped with the new 850MX motor which is highly efficient with superior power, excellent torque, low current draw, and is the most advanced motor approved by World RC Champions. The new designed motor cooling mount plate can reduce the motor operating temperature up to 20°C (68°F).
Product description

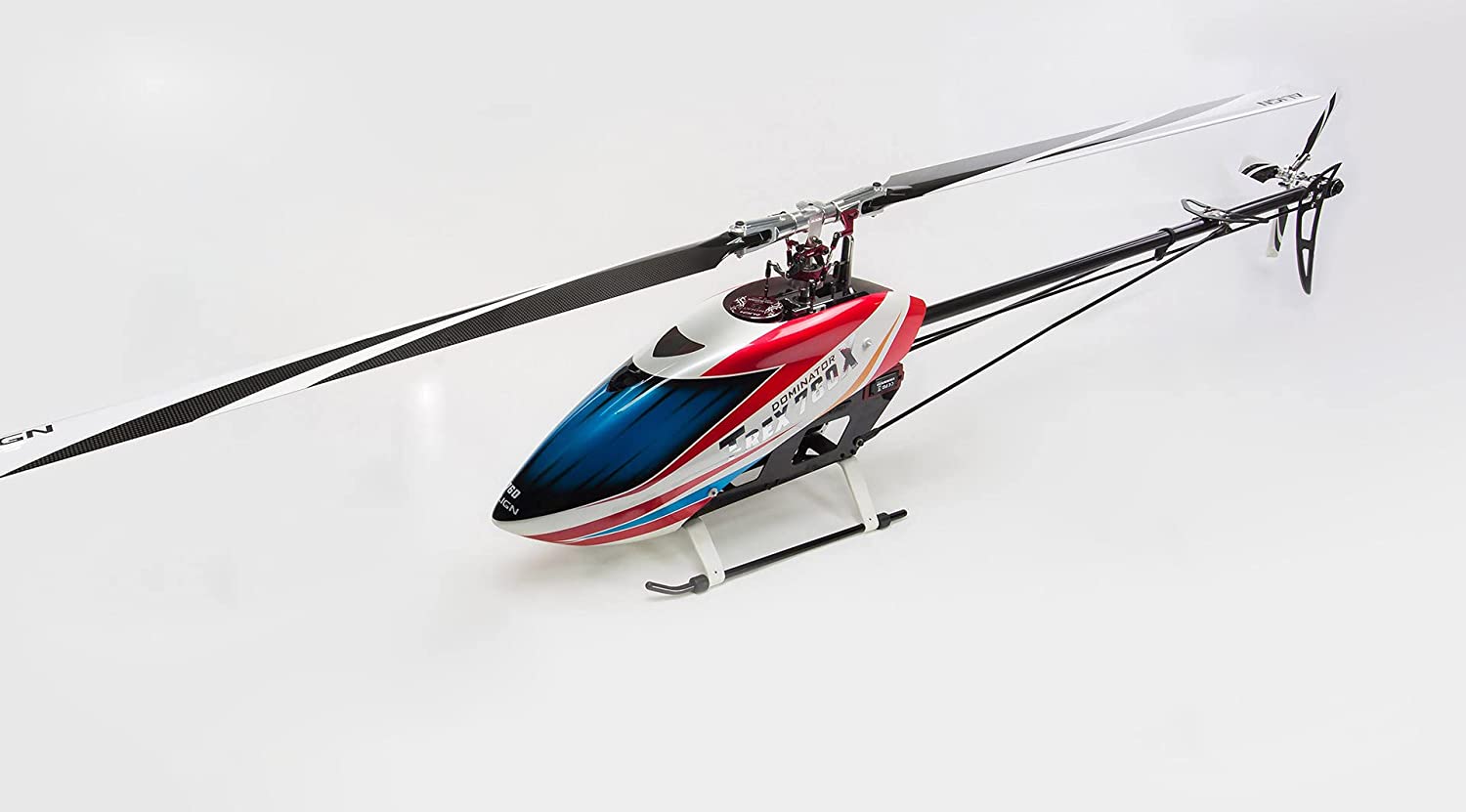

RC Helicopter T-REX 760X KIT 3D Helicopter

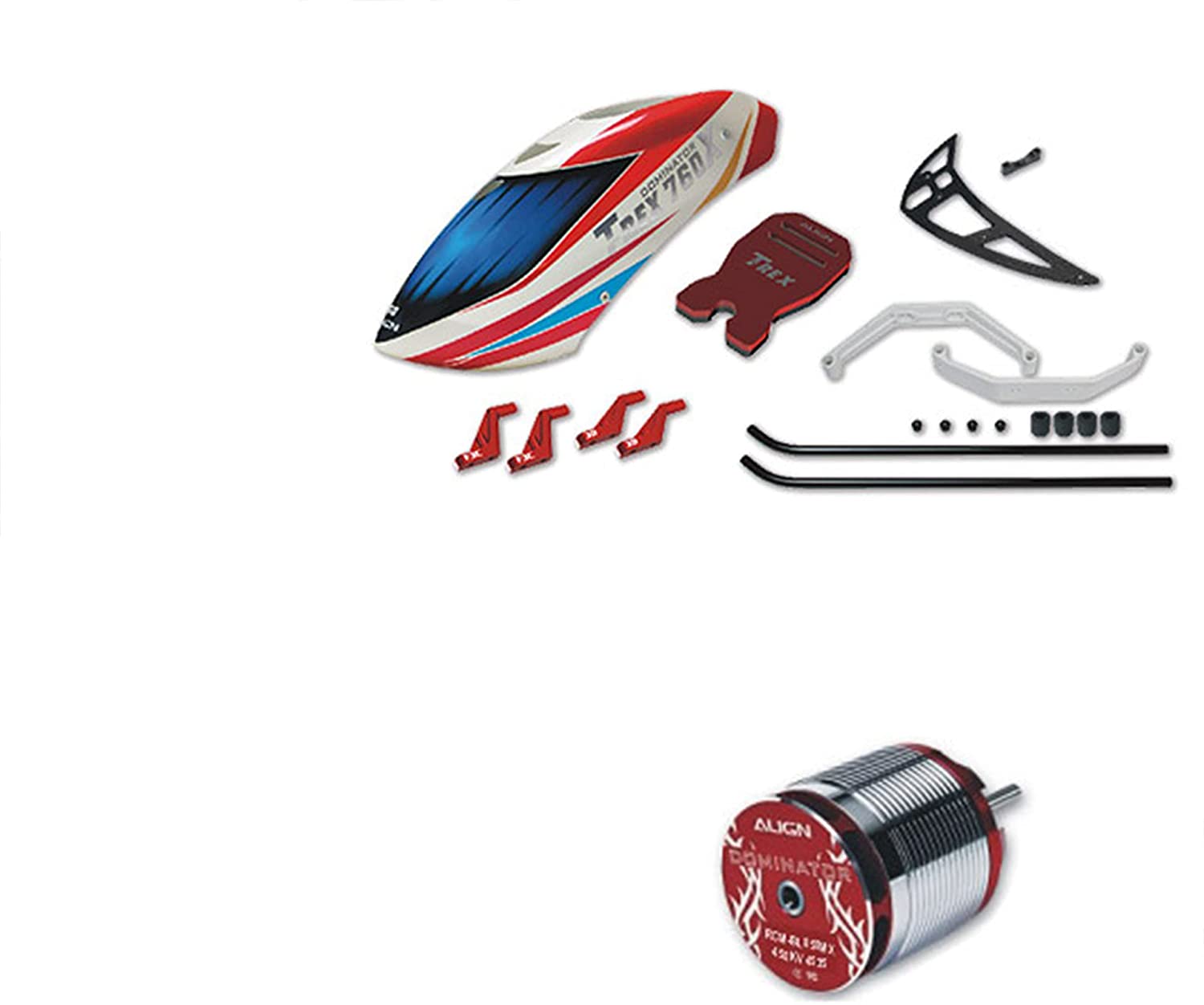

Standard equipment
760X Painted Canopy x 1
3D Holder Arm x 1
F3C Holder Arm x 1
Progressive Lightweight Landing Skid x 1
700 PRO Carbon Fiber Vertical Stabilizer x1
Main Blade Holder x 1
850MX Brushless Motor(490KV/4535)
Input Voltage:12S
Max Continuous Current: 115A/250A(2sec)
Max Output Power: 5100W/11000W(2sec)
KV Value: 490KV
Stator Dimension:4535
Stator Arms: 12
Magnet Poles: 10
Dimension: Spindle 6x56.7x112.5mm
Weight: 570g
Specification
Length: 1390mm
Height: 360mm
Width: 195mm
Main Blade Length: 760mm
Main Rotor Diameter: 1702mm
Tail Rotor Diameter: 287mm
Motor Drive Gear:12T
Main Drive Gear:112T
Autorotation Tail Drive Gear: 102T
Tail Drive Gear: 23T
Drive Gear Ratio: 9.33:1:4.43
Weight(w/o Battery): Approx. 3750g
Accessories
T-REX 760X Kit Set x 1 set
760 Carbon Fiber Blades x 1 set(2pcs)
105mm Carbon Fiber Tail Blades x 1 set(3pcs)
850MX Brushless Motor(490KV/4535) x 1
Radio transmitter and electronic equipment required for assembly:
Transmitter(6-channel or more, helicopter system)
Receiver(6-channel or more)
6S Li-Po 4500 ~ 6000mAh x 2
Digital Pitch Gauge
CCPM Servo x 3
Tail Servo x 1
ESC x 1
Flybarless System x 1
