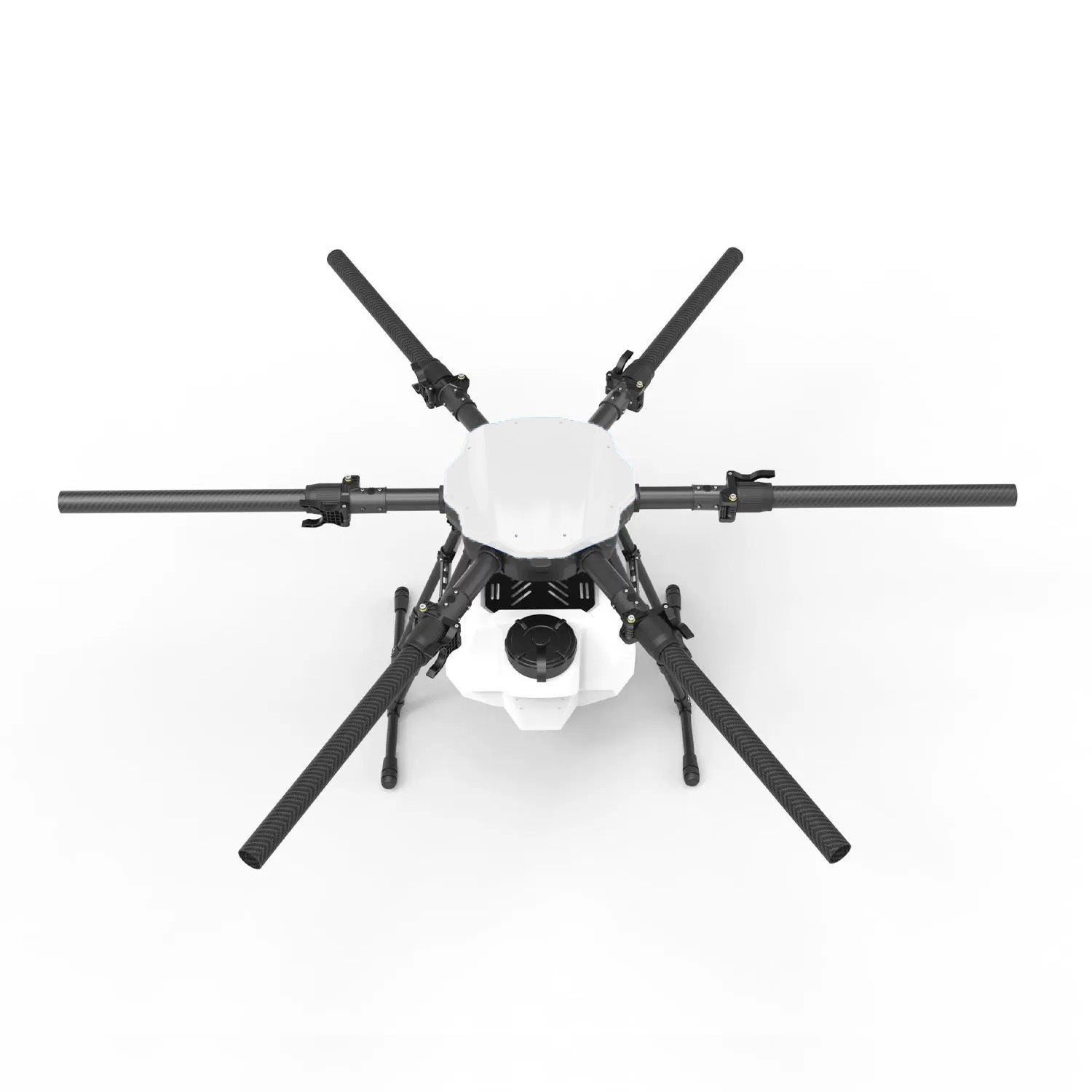

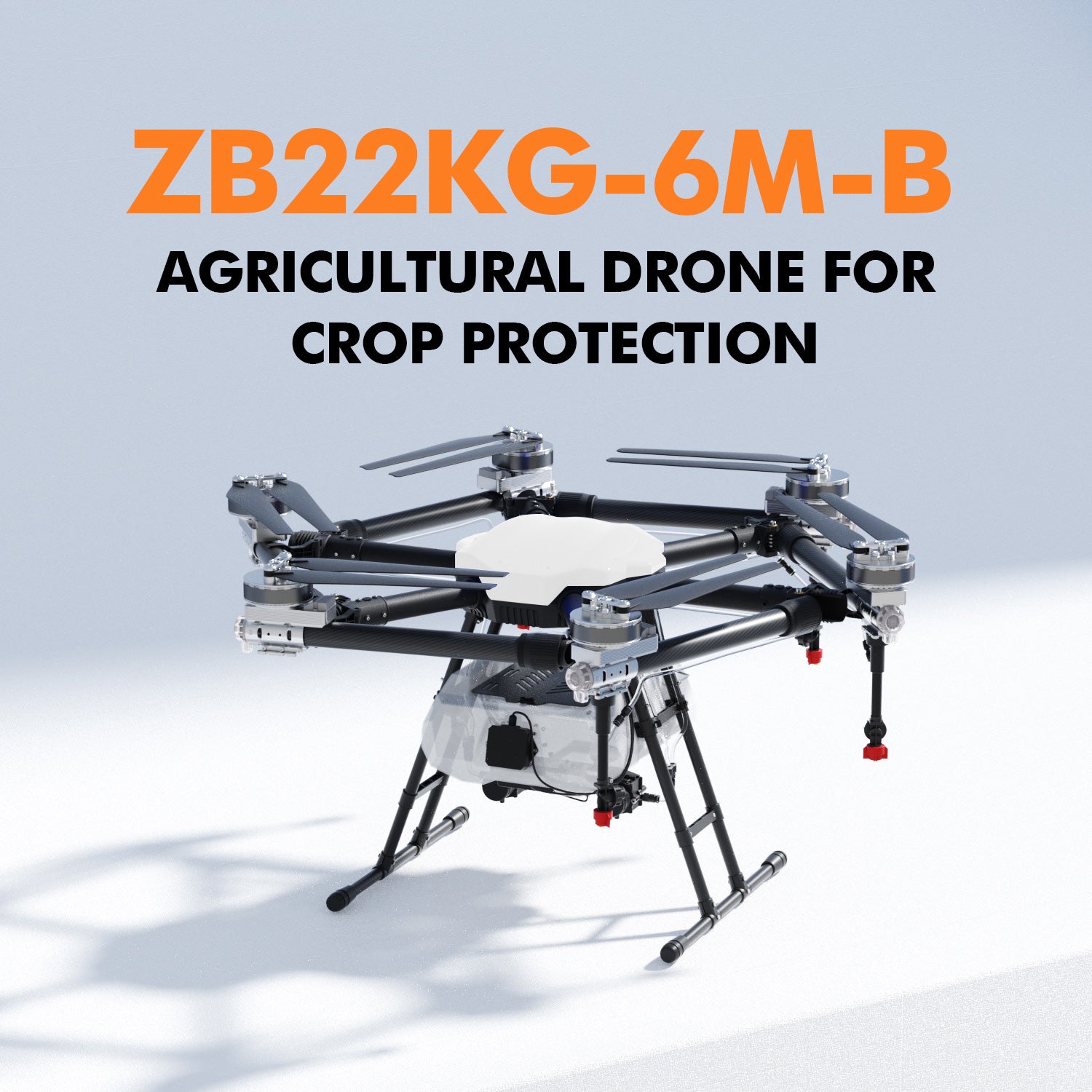

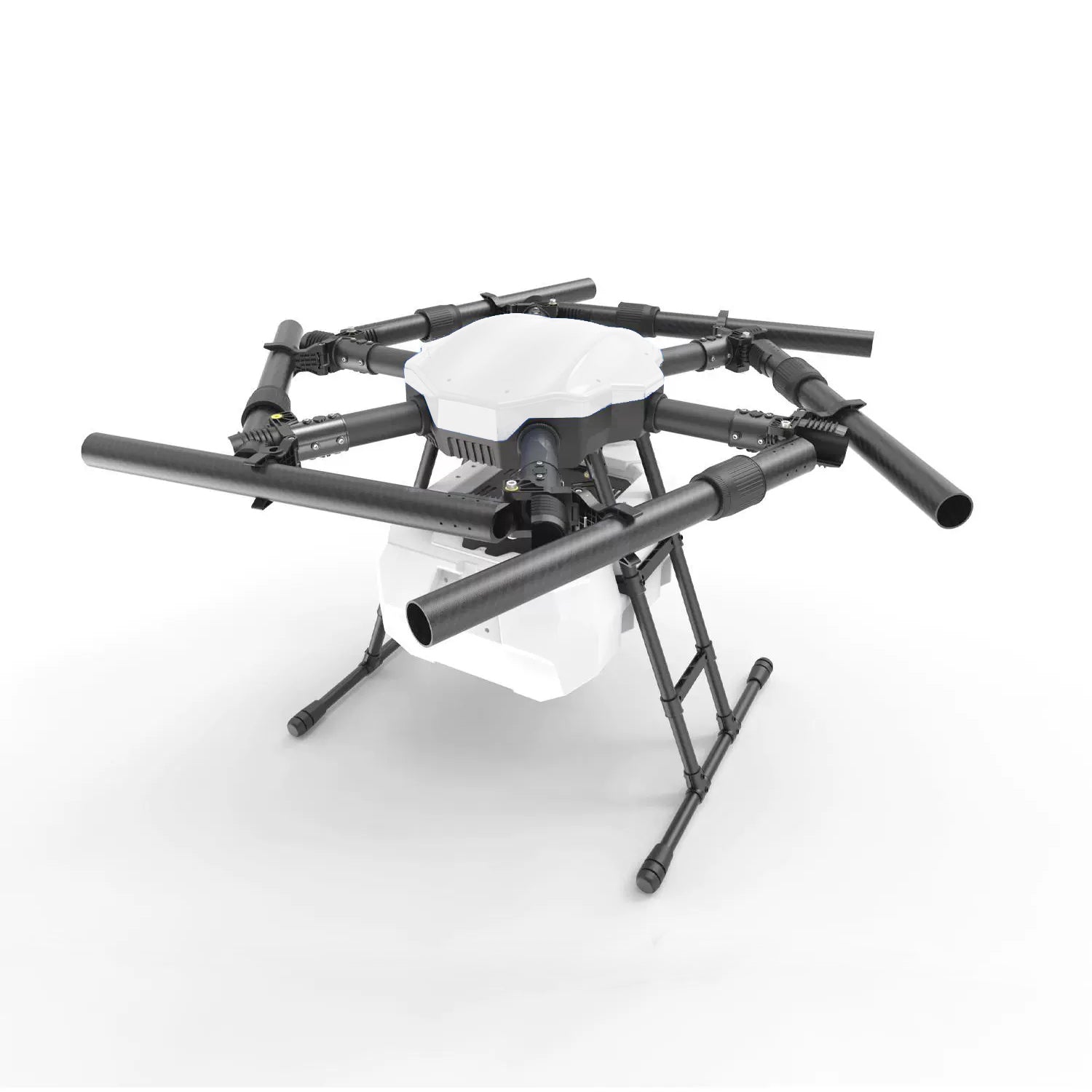

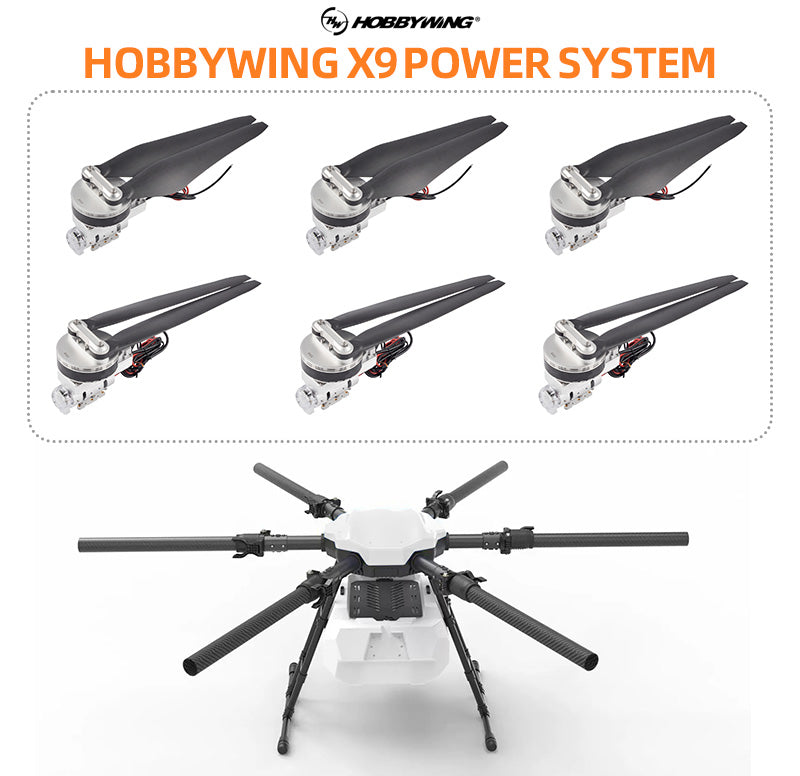

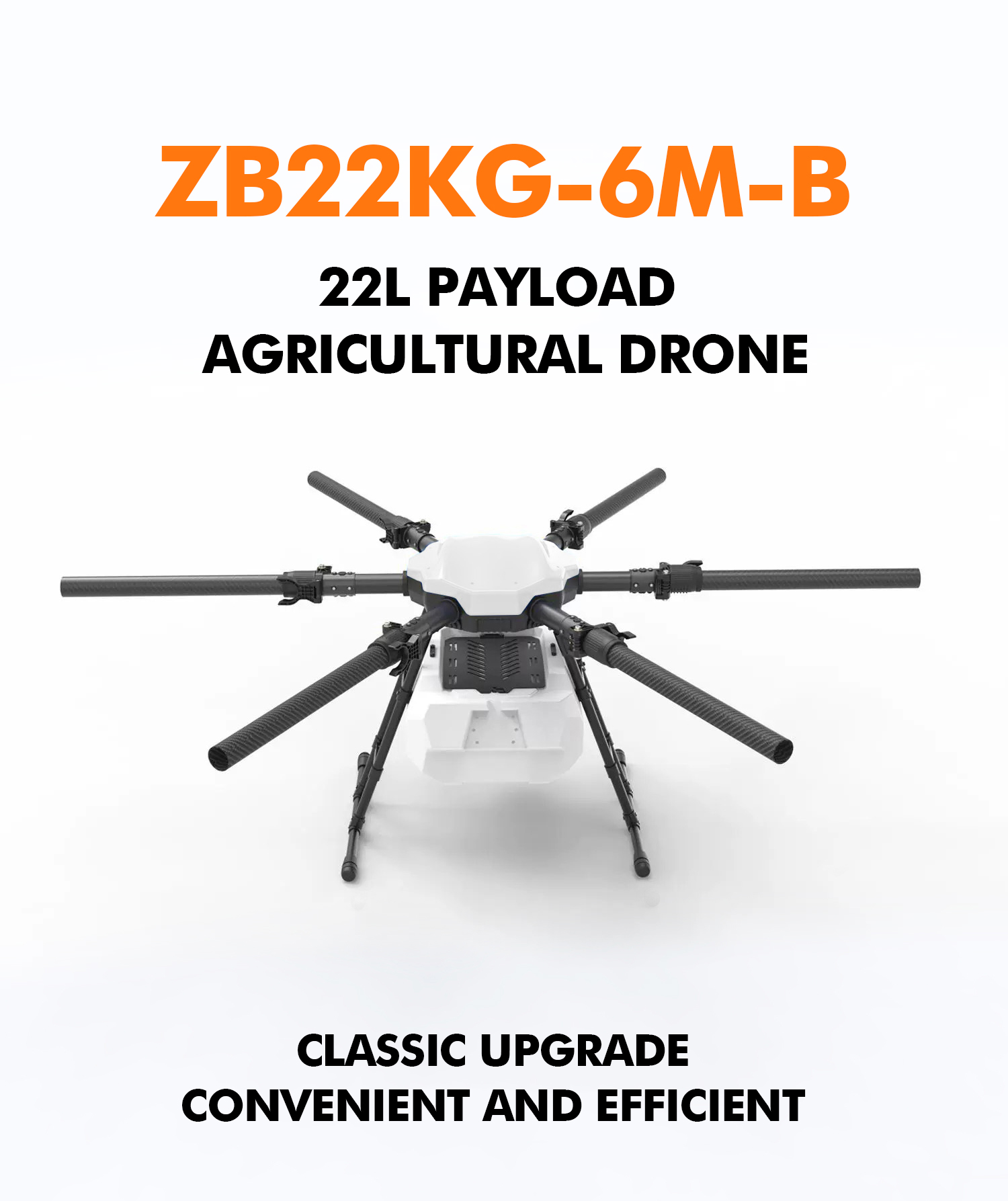

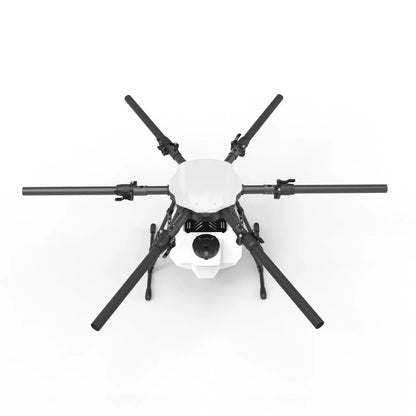

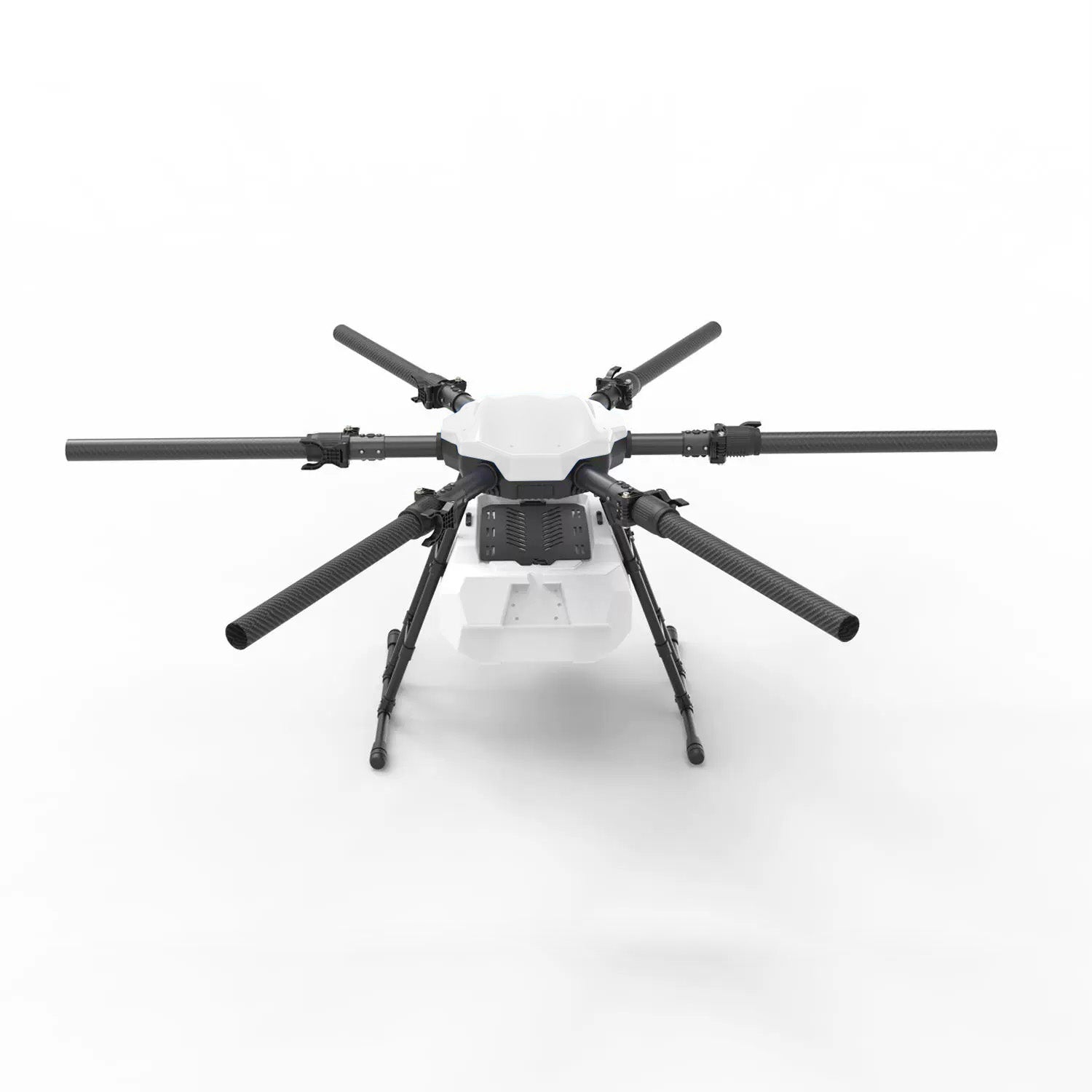

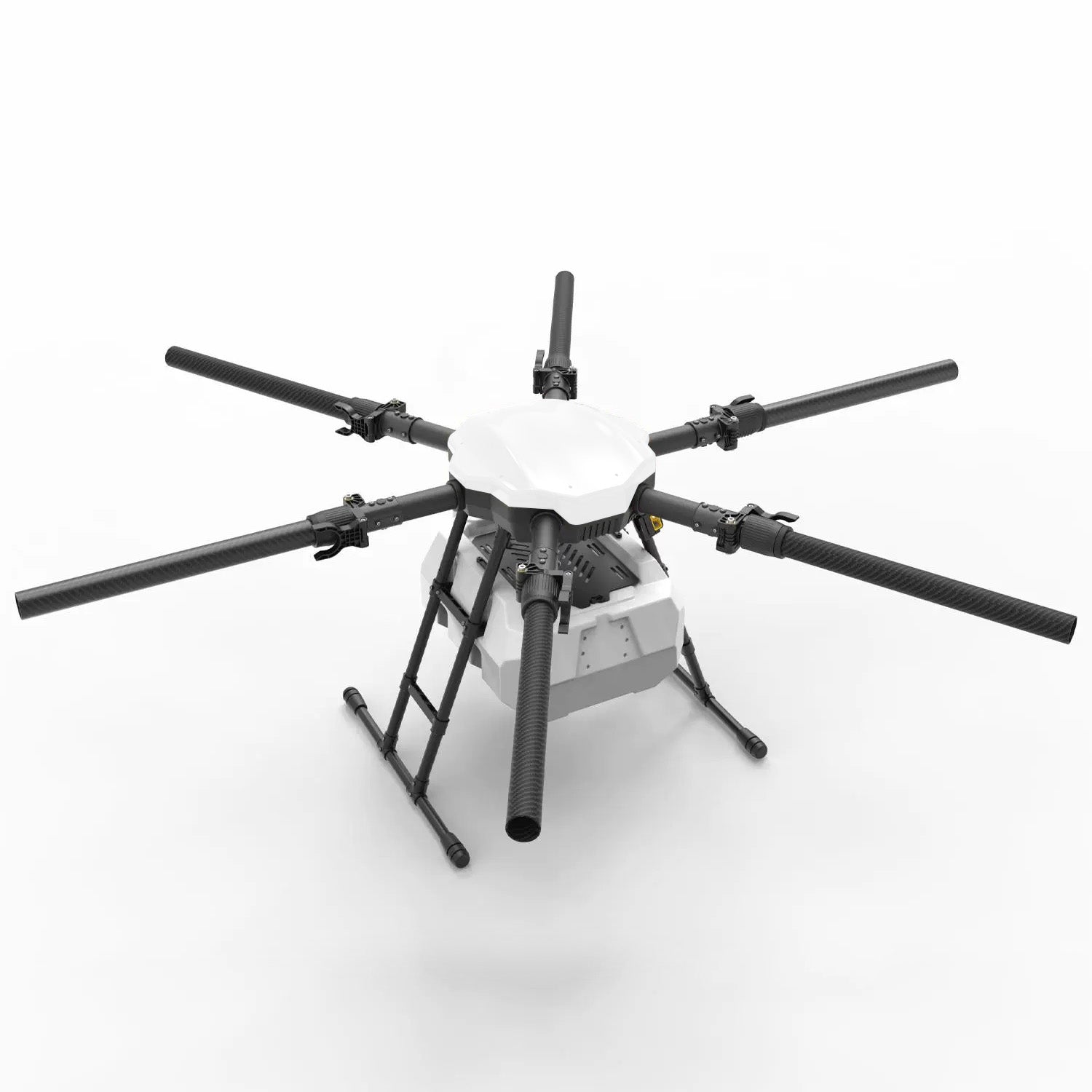

22L Agricultural Spraying Drone Multi-rotor Agricultural Spraying UAV Frame With Hobbywing X9 Power System
22L Agricultural Spraying Drone Multi-rotor Agricultural Spraying UAV Frame With Hobbywing X9 Power System
SKU:ZB22L-6EV
Regular price
$345.99 USD
Regular price
$0.00 USD
Sale price
$345.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

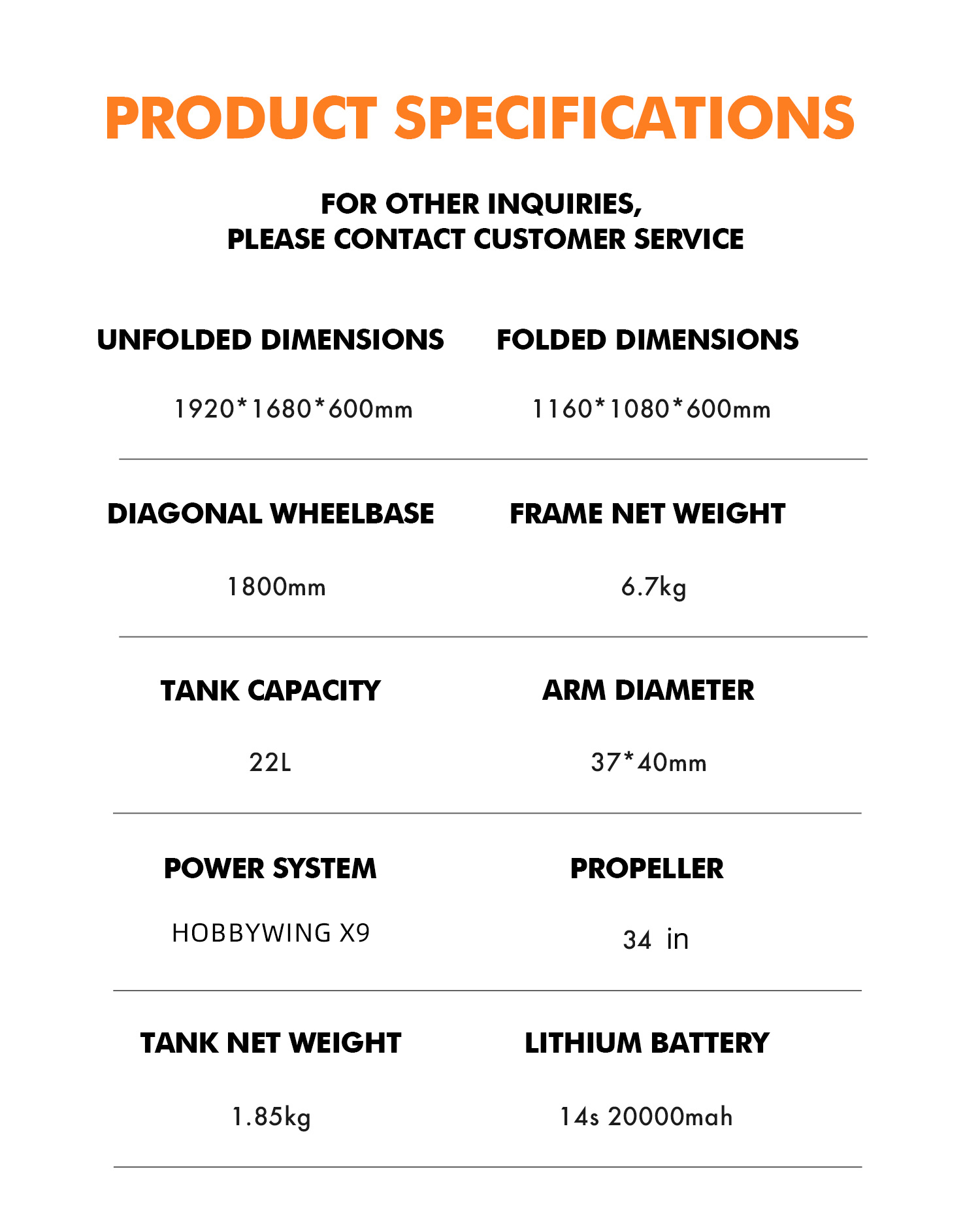

Product Specifications:
For Other Inquiries,Please Contact Customer Service
Please contact us in advance to obtain accurate shipping cost.
Unfolded Dimensions： 1920*1680*600mm

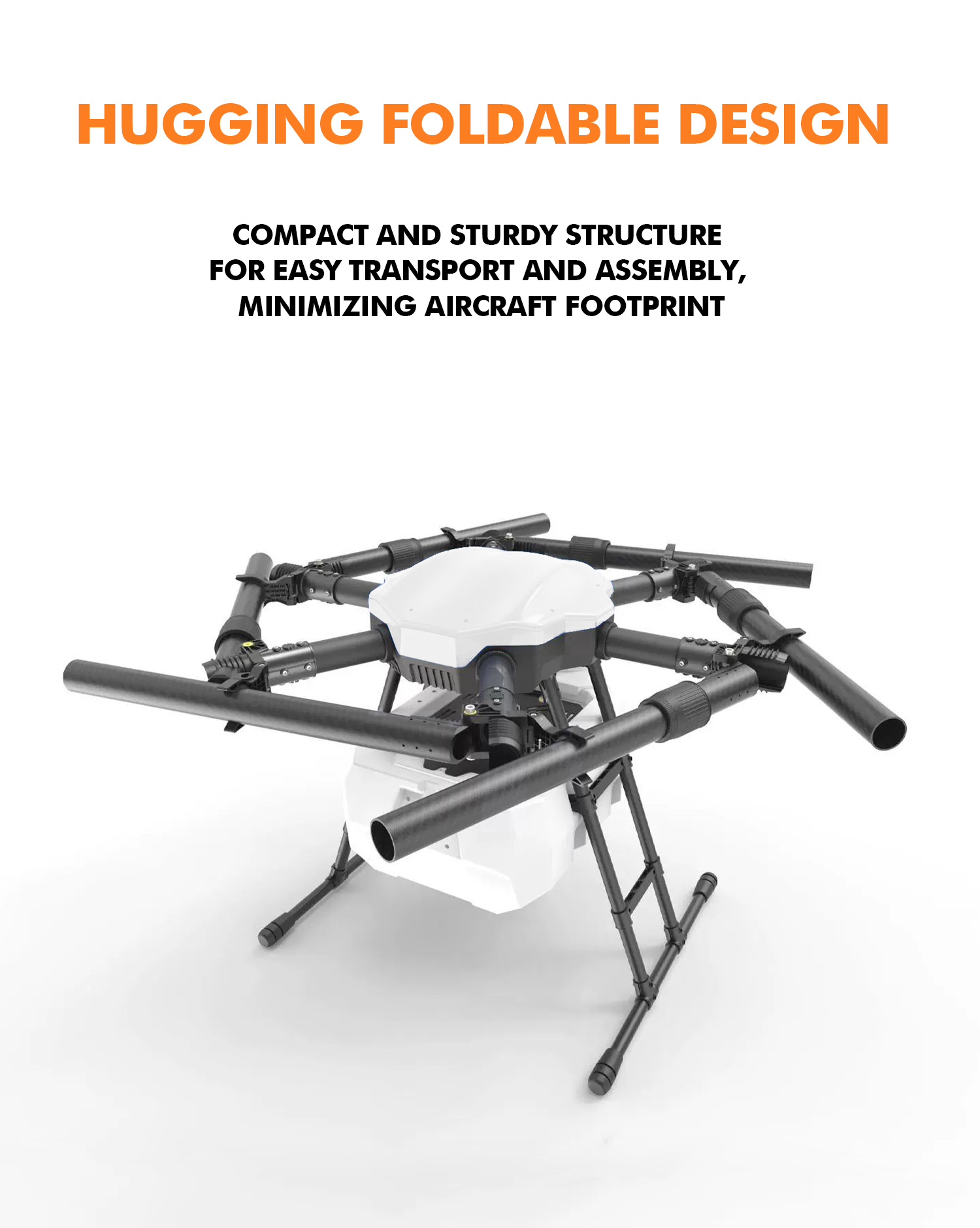

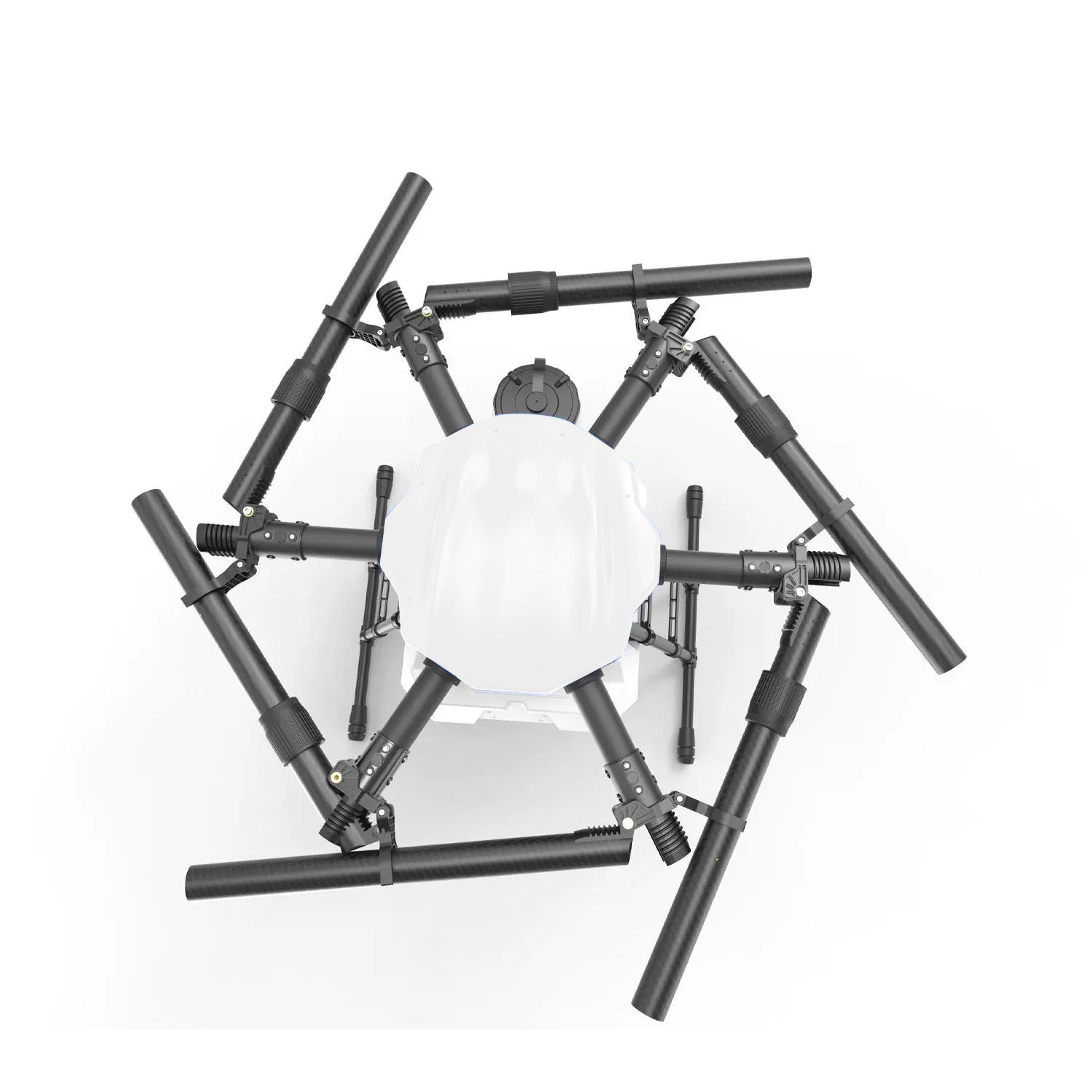

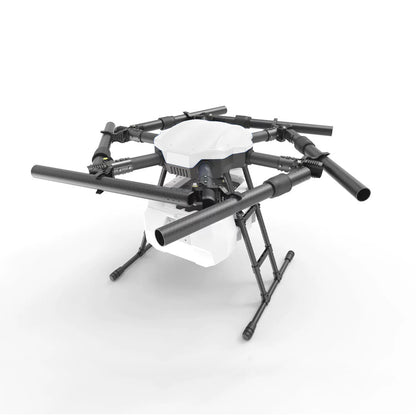

Folded Dimensions ： 1160*1080*600mm
Diagonal Wheelbase ： 1800mm
Frame Net Weight： 6.7kg
Tank Capacity： 22L
Arm Diameter ： 37*40mm

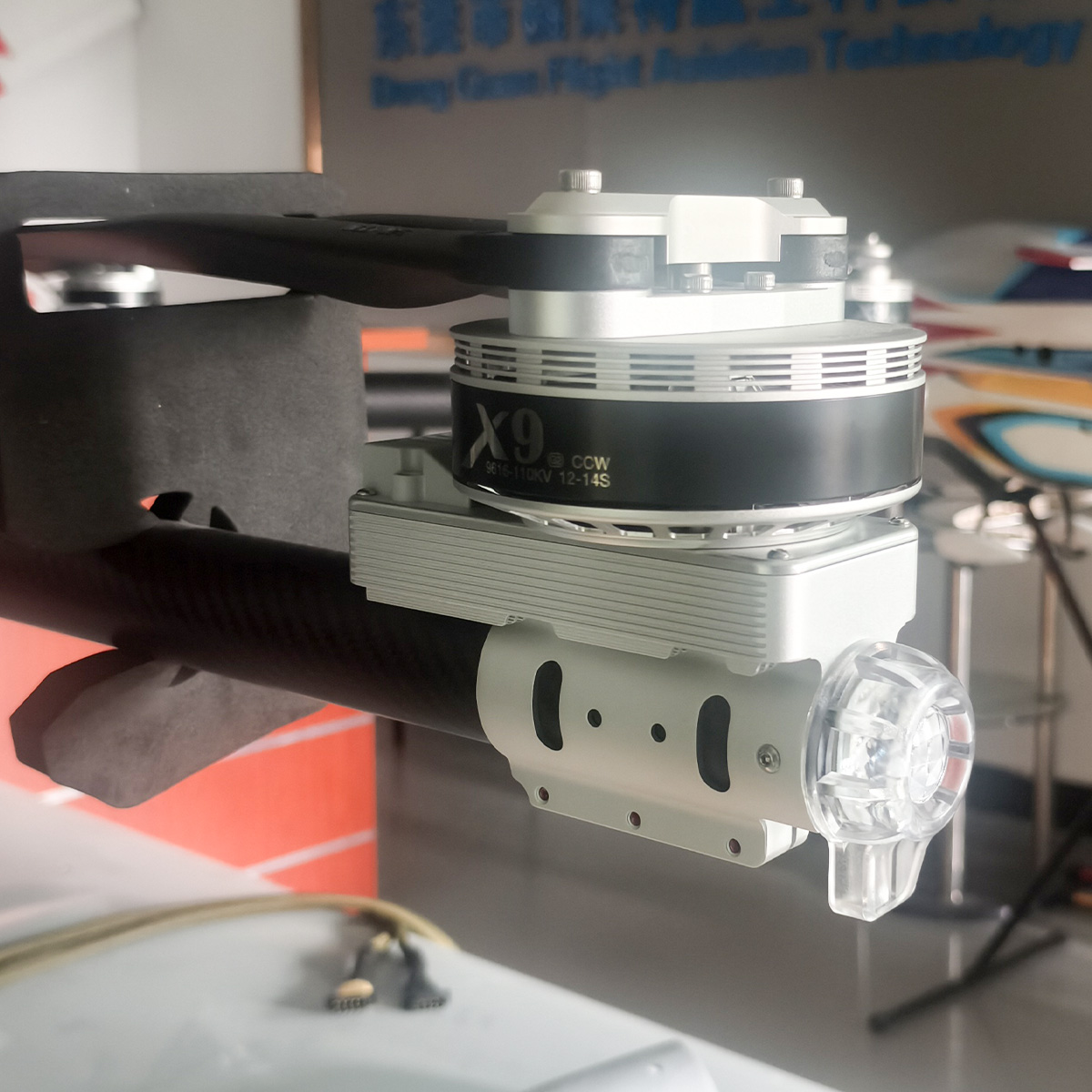

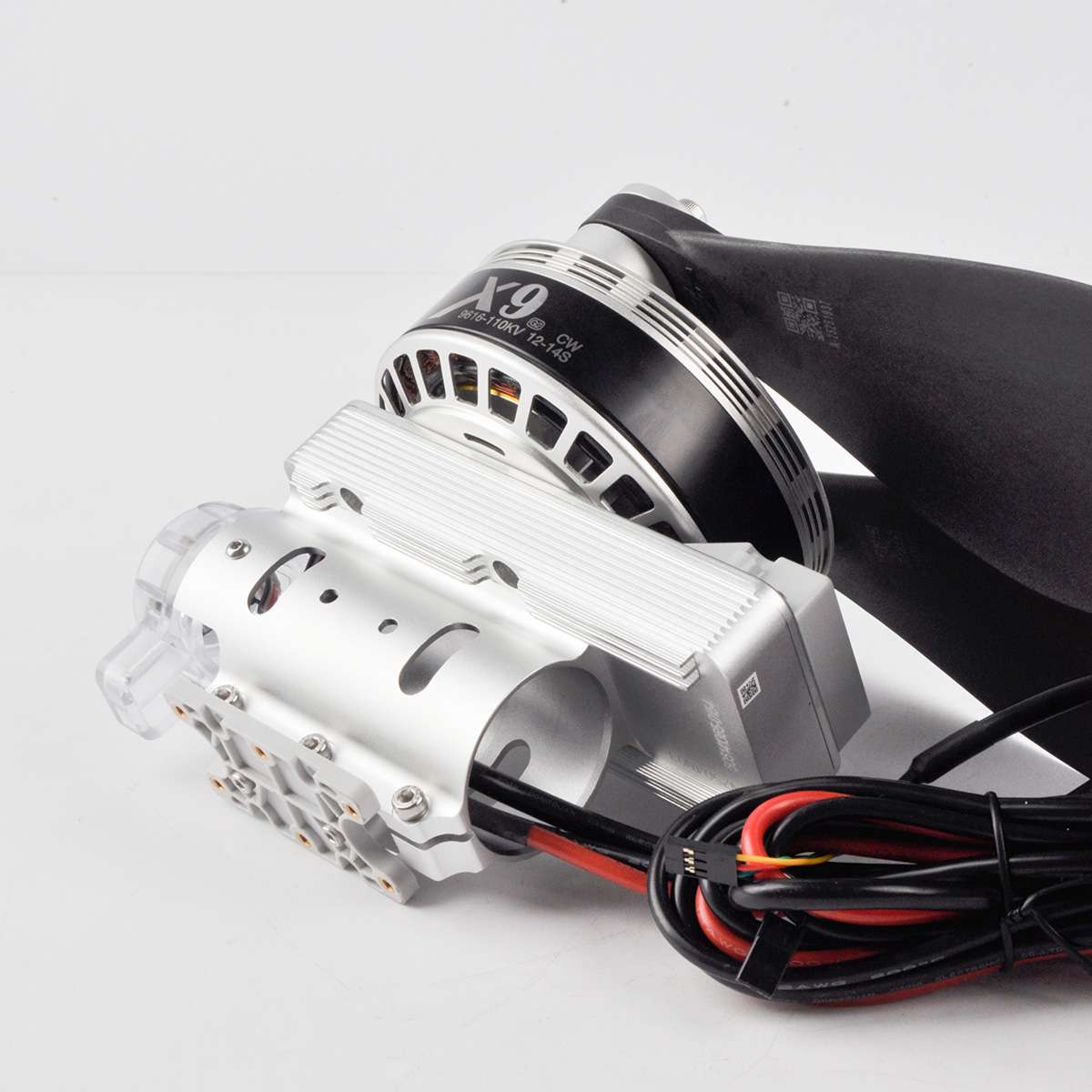

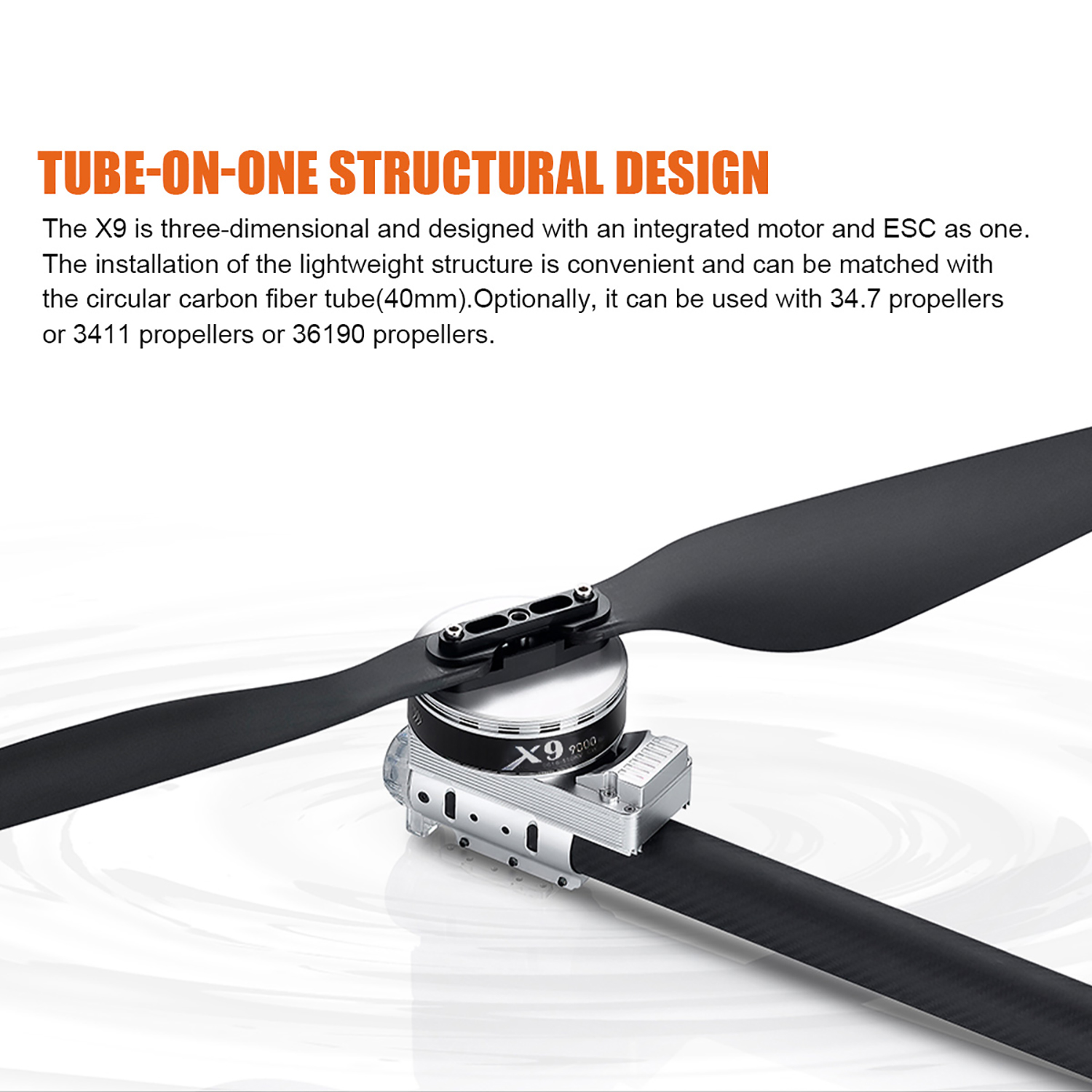

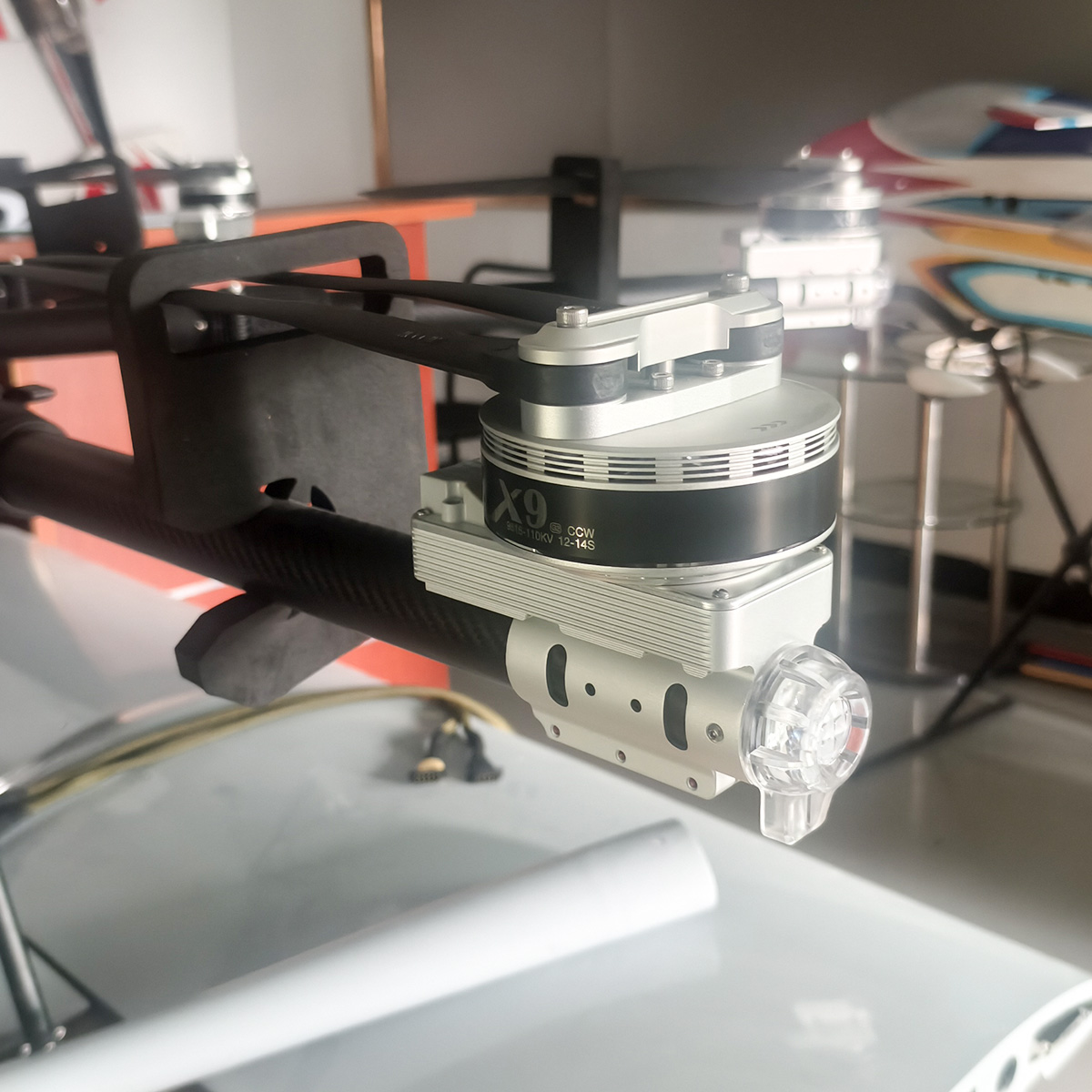

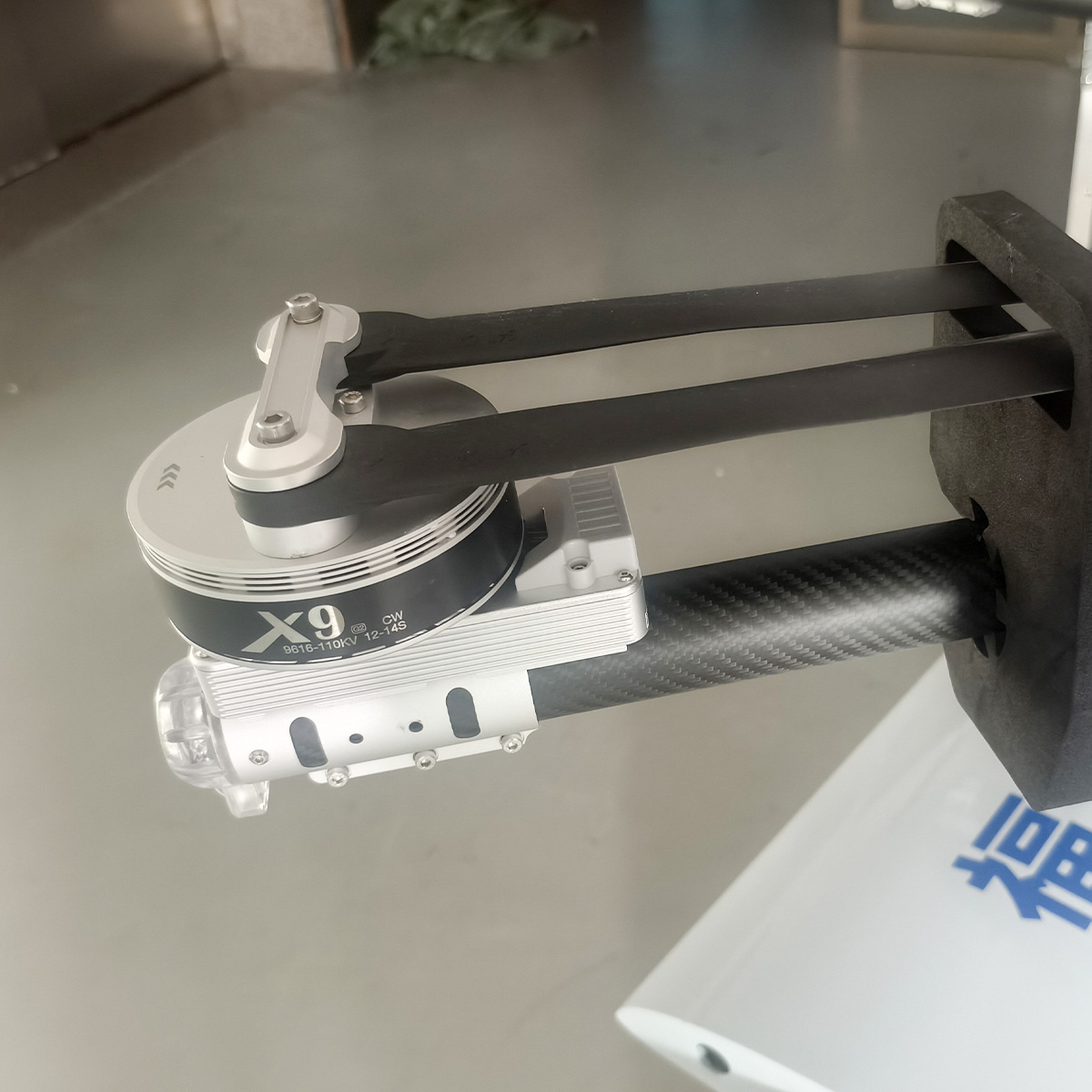

Power System ： Hobbywing X9
Propeller： 34 In
Tank Net Weight： 1.85KG
Lithium Battery： 14s 20000mah
For Other Inquiries,Please Contact Customer Service
Please contact us in advance to obtain accurate shipping cost.
Unfolded Dimensions： 1920*1680*600mm
Folded Dimensions ： 1160*1080*600mm
Diagonal Wheelbase ： 1800mm
Frame Net Weight： 6.7kg
Tank Capacity： 22L
Arm Diameter ： 37*40mm
Power System ： Hobbywing X9
Propeller： 34 In
Tank Net Weight： 1.85KG
Lithium Battery： 14s 20000mah

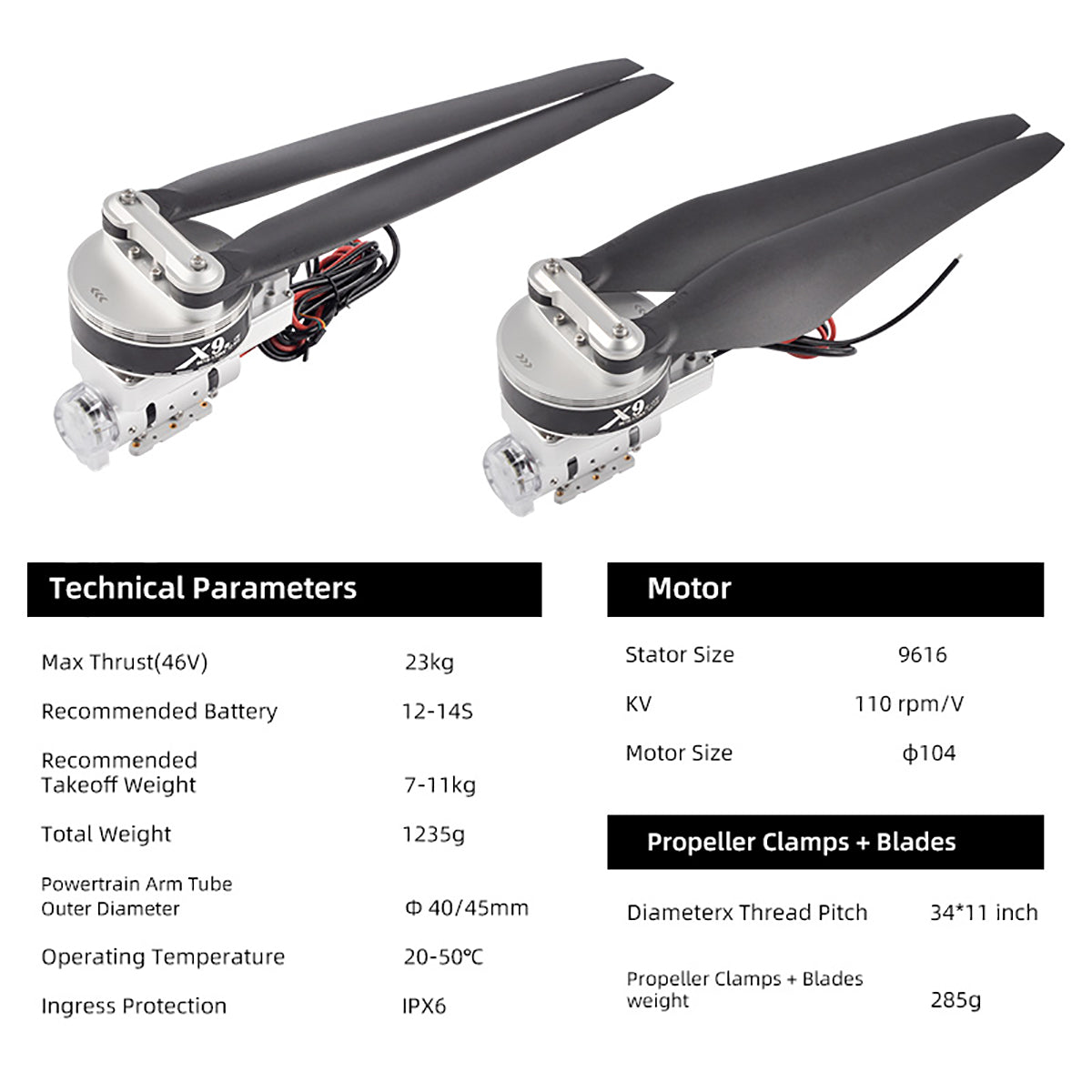

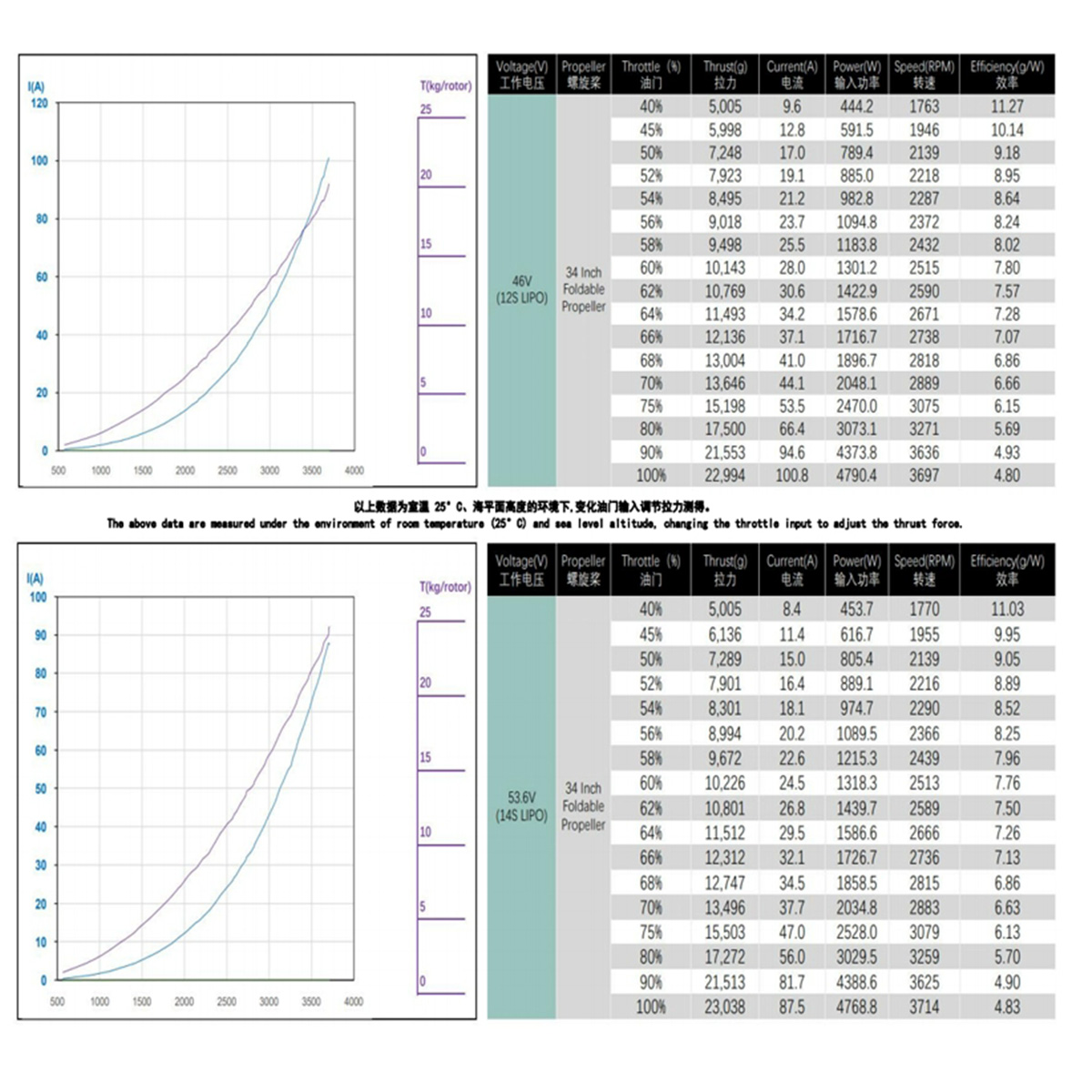

Technical Parameters
Max Thrust (46V):23kg
Max Thrust (46V):23kg
Recommended Battery:12-14S
Recommended Takeoff Weight:7-11kg
Total Weight
Powertrain Arm Tube 0uter Diameter:Ф 40/45mm
Operating Temperature:-20-50℃
Ingress Protection:IPX6
Recommended Takeoff Weight:7-11kg
Total Weight
Powertrain Arm Tube 0uter Diameter:Ф 40/45mm
Operating Temperature:-20-50℃
Ingress Protection:IPX6

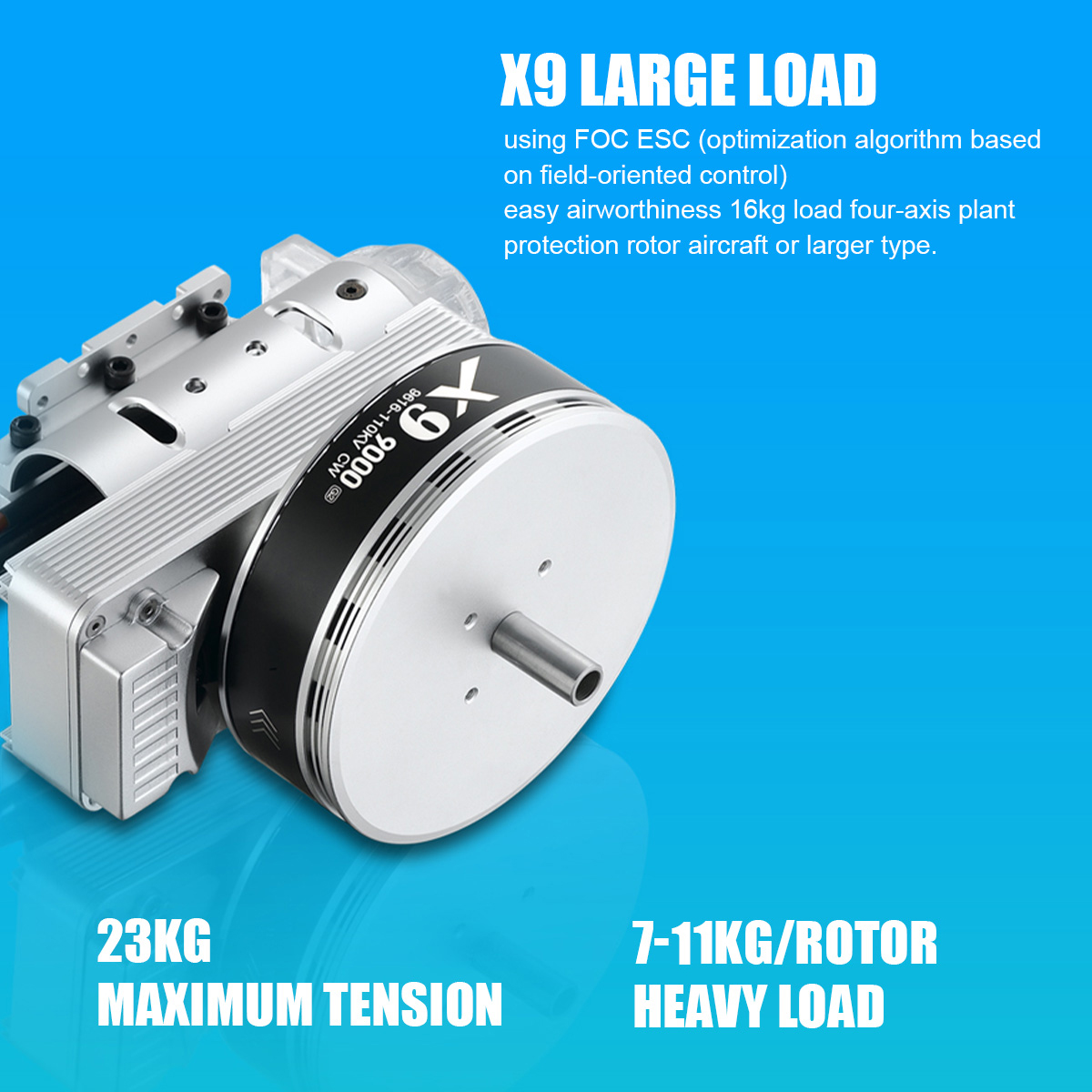

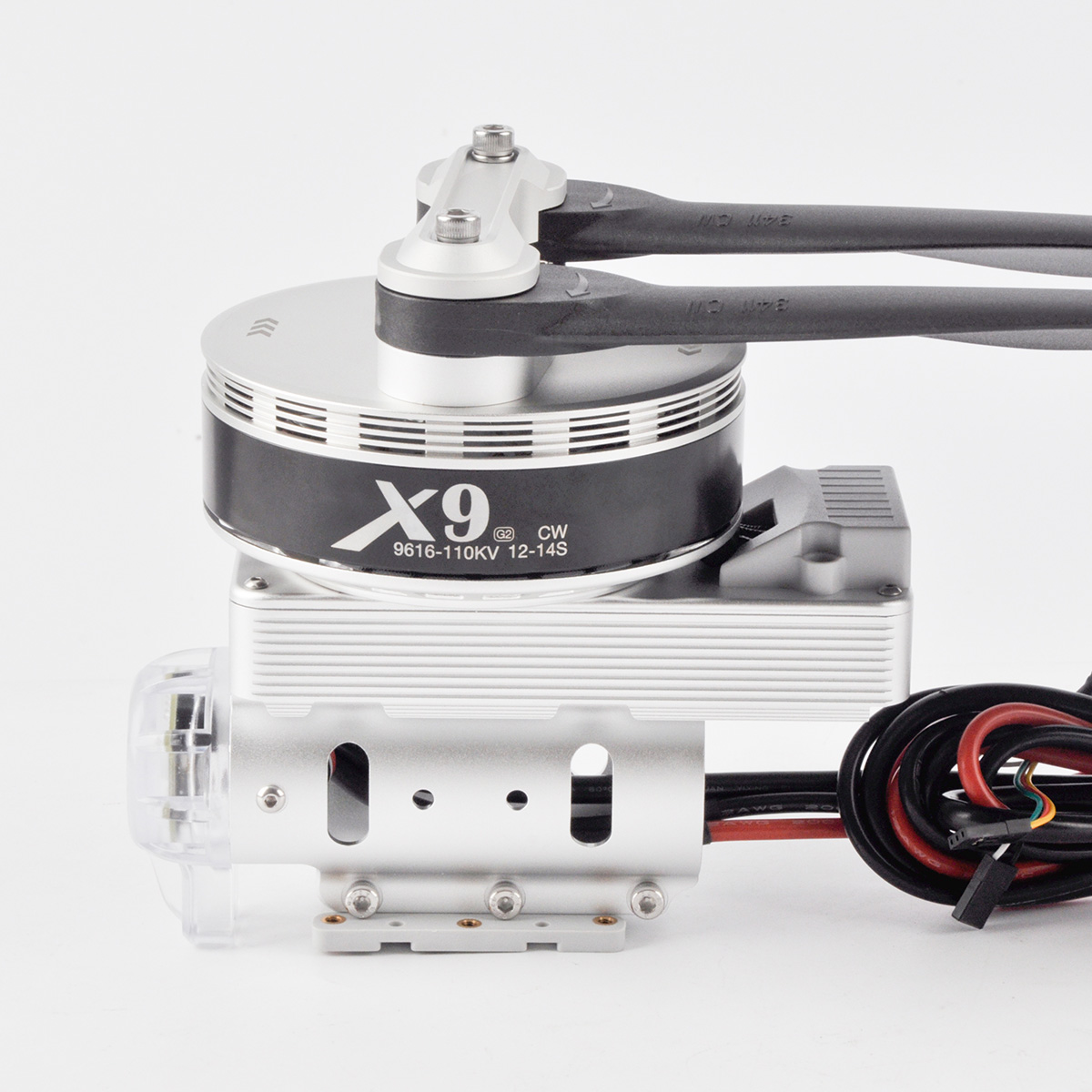

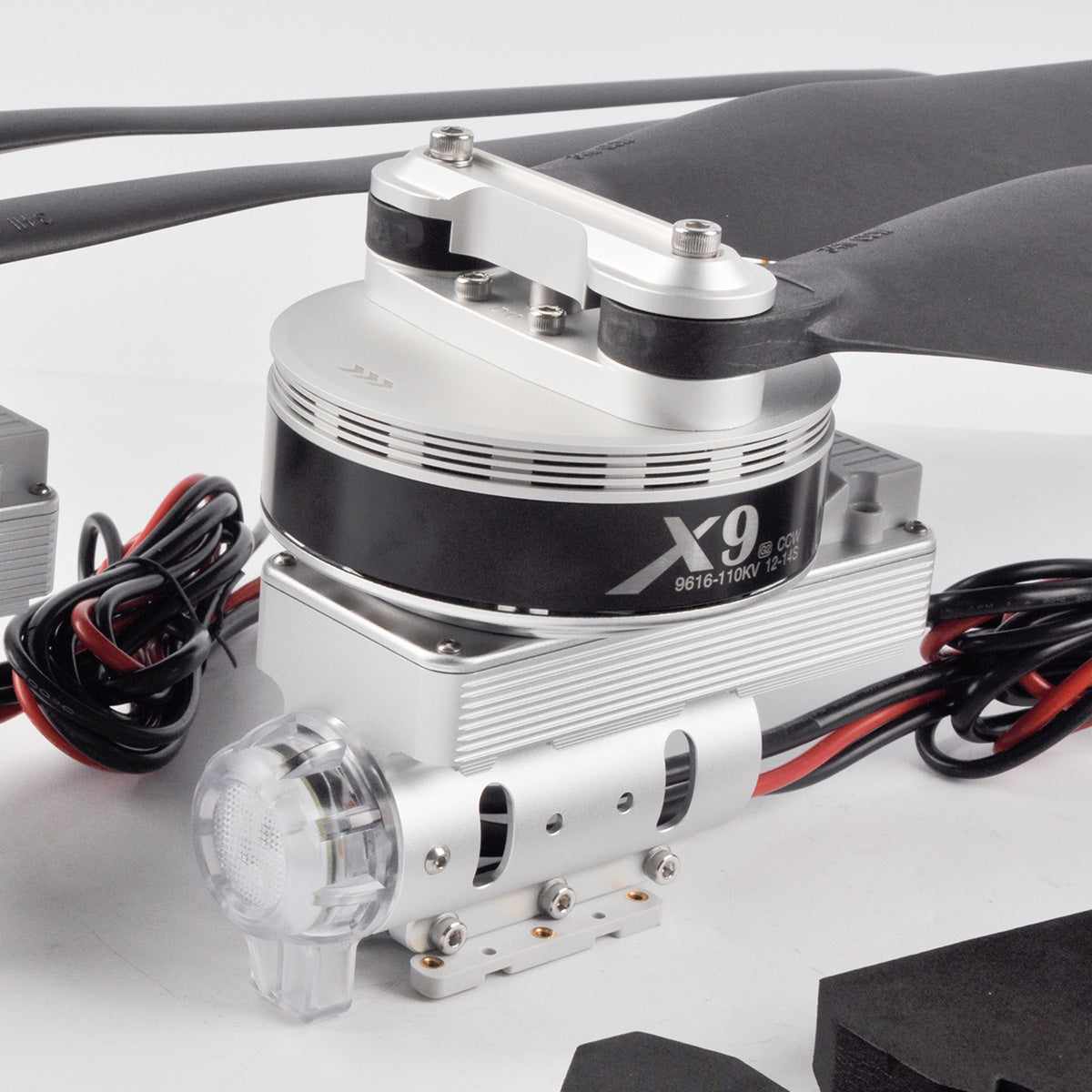

Motor：
Stator Size:9616
KV:110 rpm/V

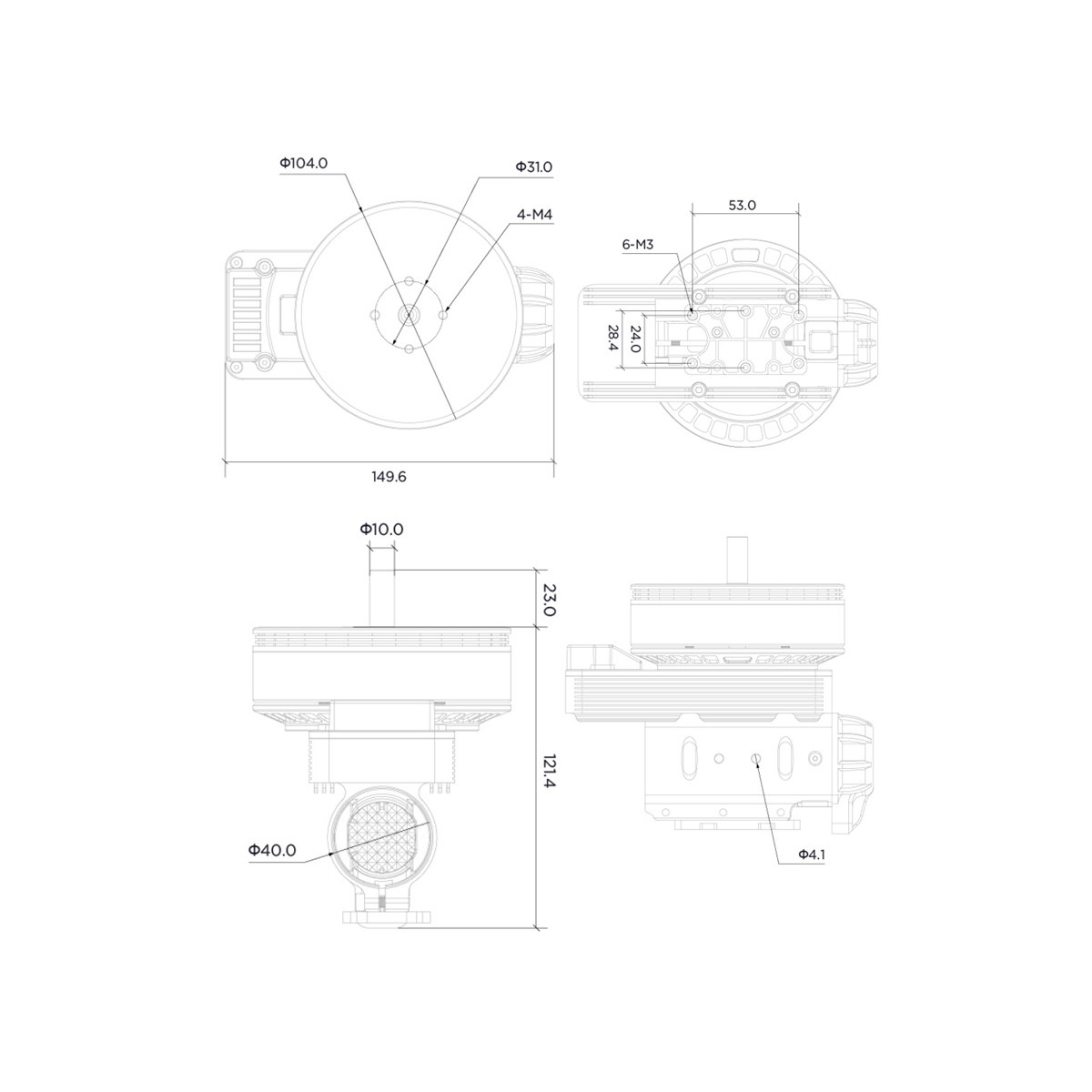

Motor Size:Ф 104
KV:110 rpm/V
Motor Size:Ф 104

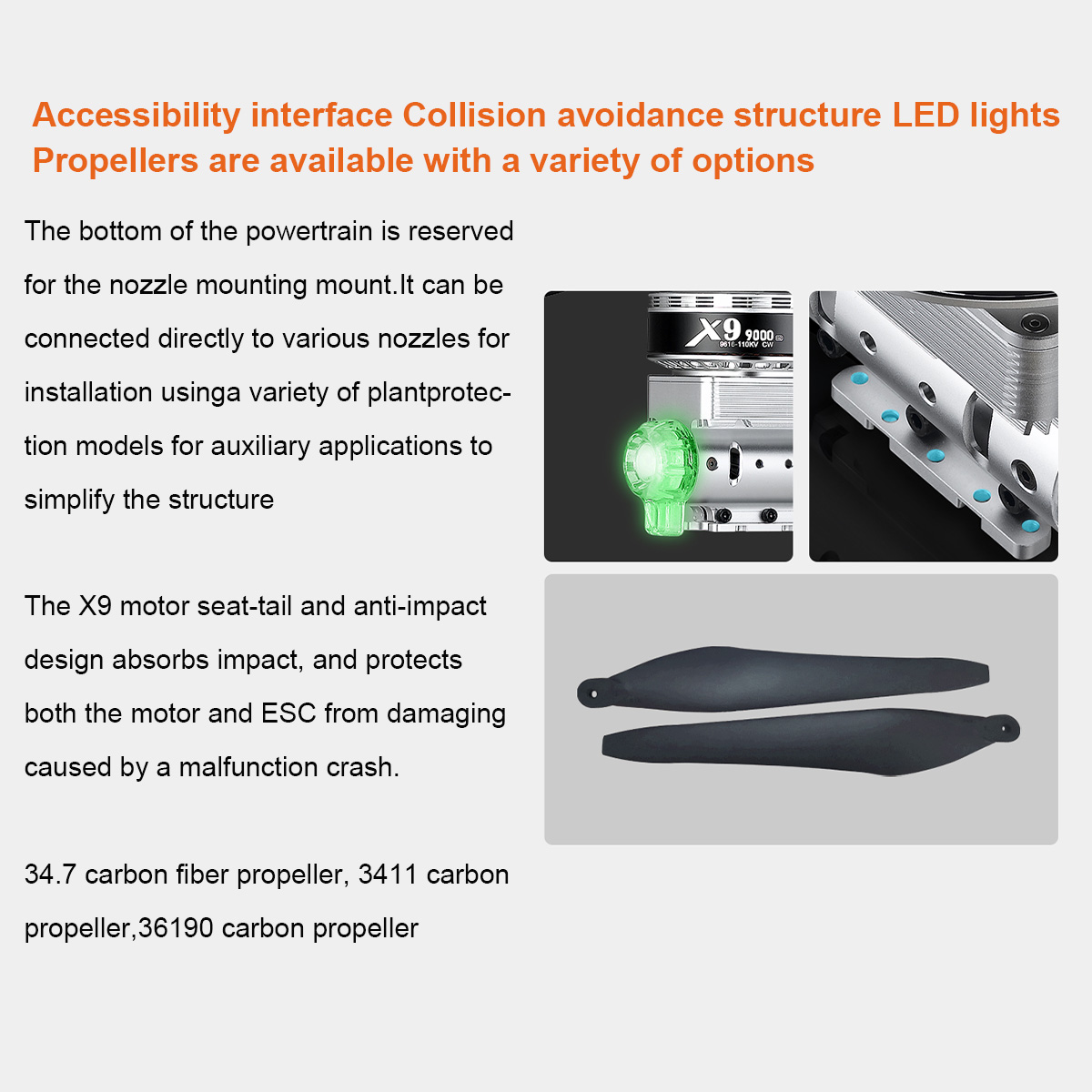

Propeller:
34*11inch
