FlyDragon Brushless Speed Controllers ESC 20A 30A 40A 50A for fixed wing RC model

Flight ModelSKU: FW50A

Size: 20A ESC
Price:
Sale price$13.48

Description

Using C8051F850 MCU, pipelined 8 bit C805 core.

FlyDragon Lite series ,small size and light weight.

Unique circuit design, strong anti-interference.

Start mode can be set, throttle response is fast and speed control is linear smooth.

Low-voltage protection threshold value can be set.

Multiple protection features: Abnormal startup protection, over-heat protection, throttle signal loss protection, low-voltage cut-off protection, etc.

High power safety performance : wherever the throttle lever is, the motor will not start immediately.

Judge the working condition via alarm.

Users can set functions as their demand, Cycle programming menu which easy to operate.

Built-in BEC, high output power, less power loss.

Model

Con.Current

Burst Current

BEC

LiPo

Size (mm)

Weight

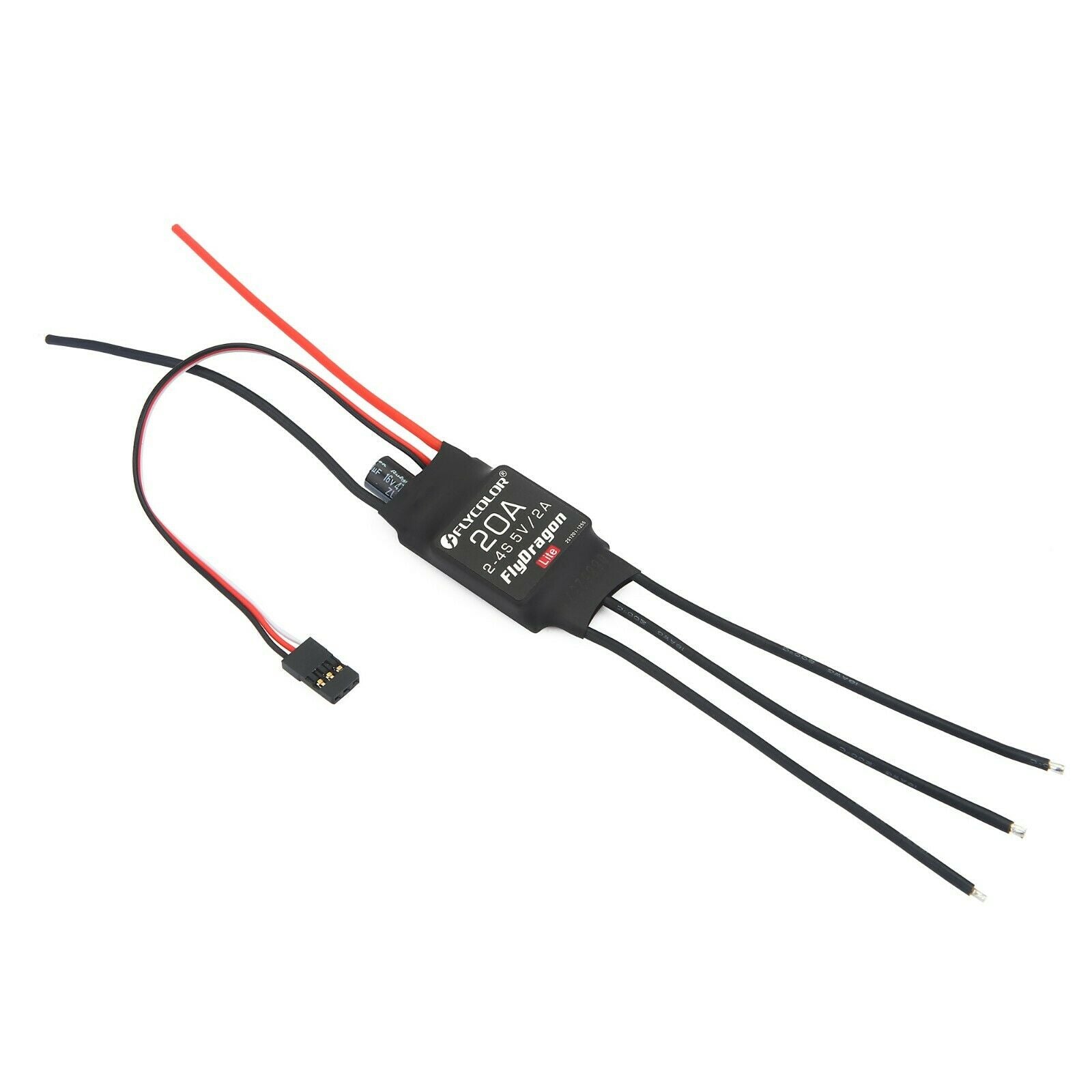

20A

20A

30A

5V/2A

2-4S

49x25.5x10.5

23g

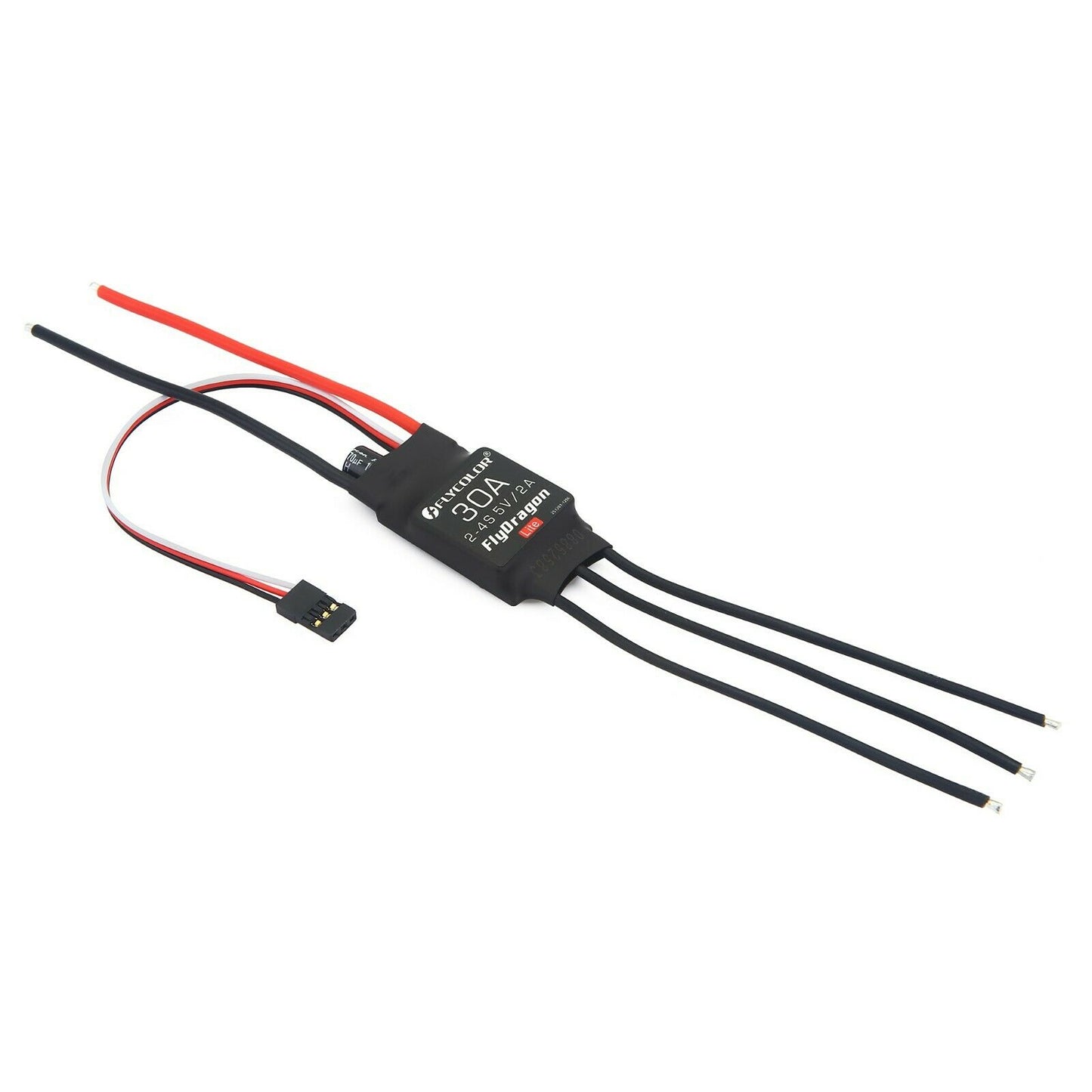

30A

30A

40A

5V/2A

2-4S

49x25.5x10.5

25g

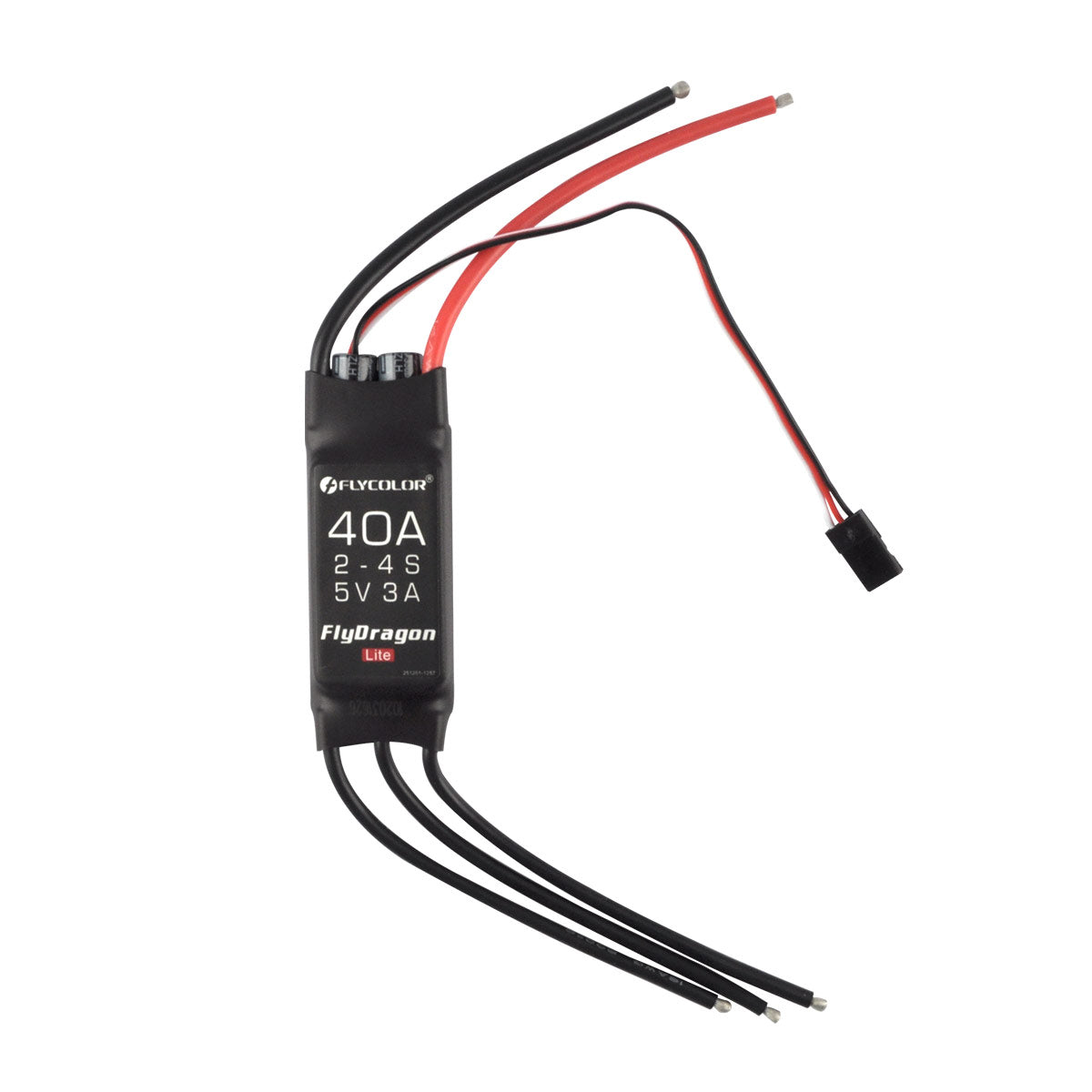

40A

40A

50A

5V/3A

2-4S

65x26x15.5

51g

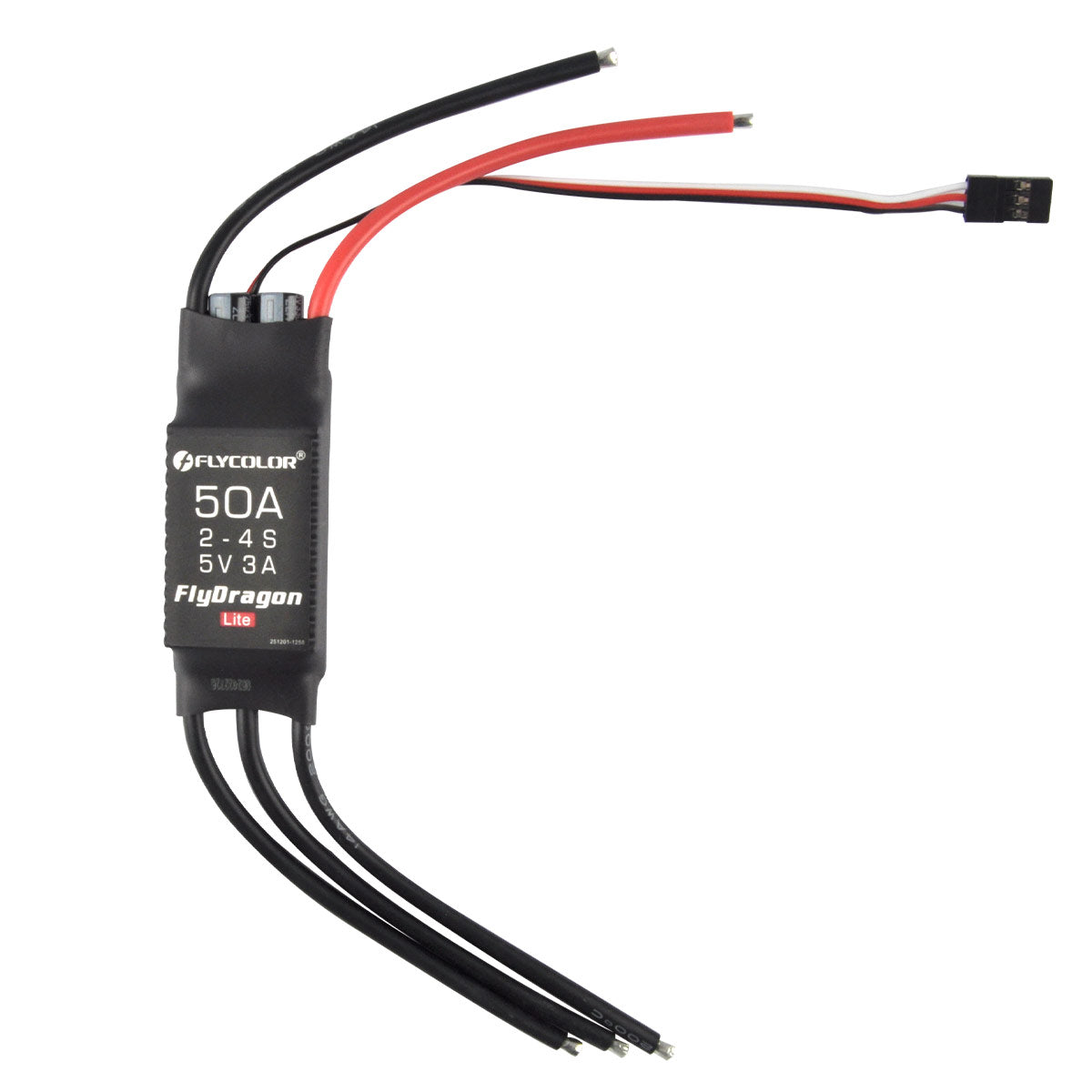

50A

50A

60A

5V/3A

2-4S

65x26x15.5

46.5g
