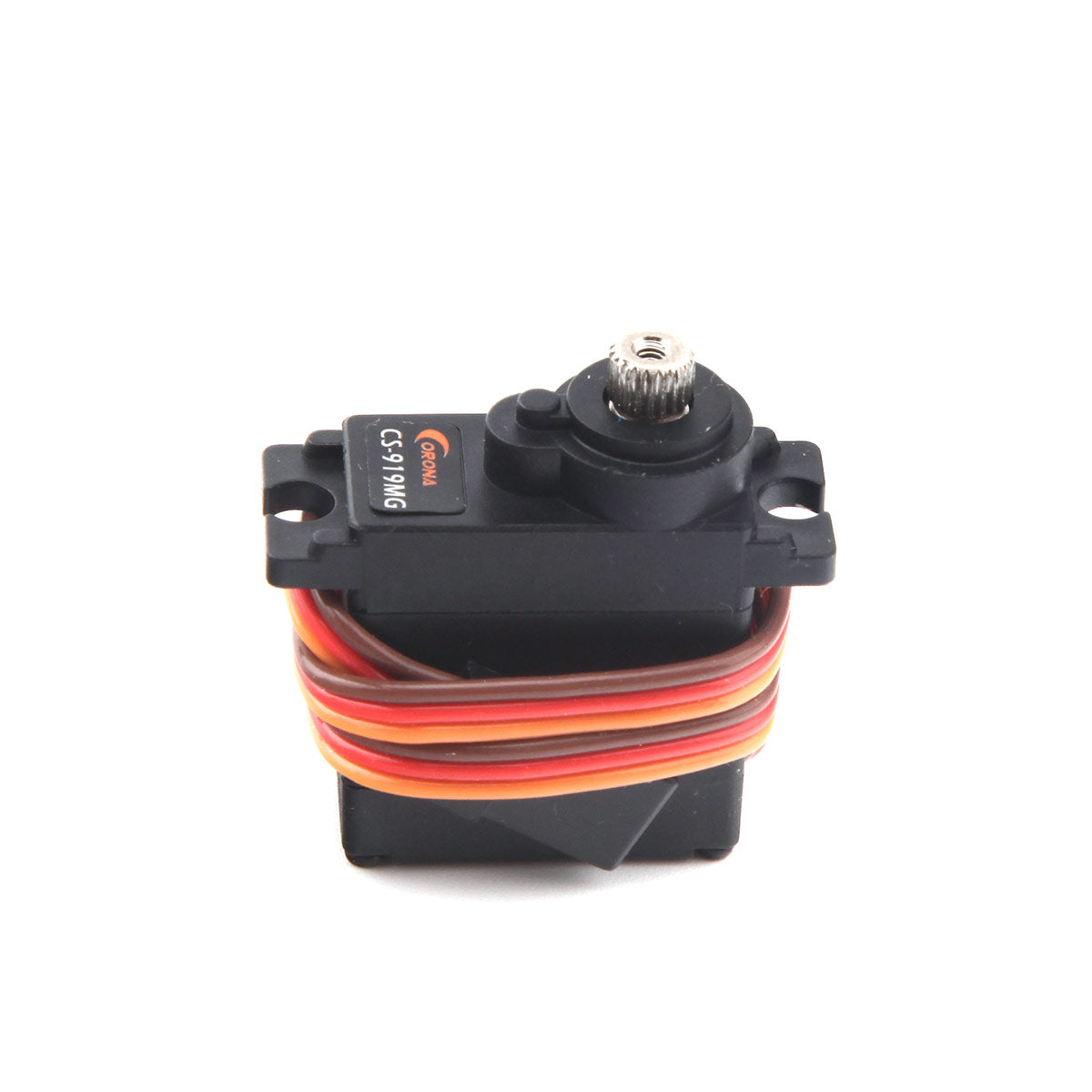

Corona CS919MG 2 Slider/Direct Drive 9g Rc Boat Digital Servo
Corona CS919MG 2 Slider/Direct Drive 9g Rc Boat Digital Servo
SKU:CS919MG
Regular price
$8.18 USD
Regular price
Sale price
$8.18 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| Item No | CS919MG |
| Size | 22.5X11.5X24.6mm(0.88''x0.45''x0.96'') |
| Weight | 12.5g |
| Operating Voltage | 4.8V / 6.0V |
| Operating Current | 200mA / 240mA |
| Operateing speed | 0.07sec.60º / 0.06sec.60º |
| Stall torque | 1.5kg.cm / 1.7kg.cm |
| Dead band | ≤5uSec |
| Operating Travel | 40º/one side pulse traveling 400us |
| Potentiometer | 2 slider/Direct Drive |
| Ball bearing | MR85 |
| Gear | Metal |
| Connector wire | 215mm |
| Operating Temperature Range | -20℃~+60℃ |
