Description
FEATURE:
-- High performance mini digital servo
-- High-precision metal gears
-- High quality core motor
-- Ball bearing
-- Ultra high torque
SPECIFICATIONS:
Dead band: 4us default
Working frequence: 1520us / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.18sec/60 degrees
Operating Speed (6.0V): 0.15 sec/60 degrees
Stall Torque (4.8V): 5.85 kg.cm (81.26oz/in)
Stall Torque (6.0V): 7.12 kg.cm (98.90oz/in)
Dimensions: 29.2X13.9X31mm /1.15X0.55X1.22 in
Weight: 21.3 g (0.75oz)
Connector Wire Length: JR185 mm (7.28in)

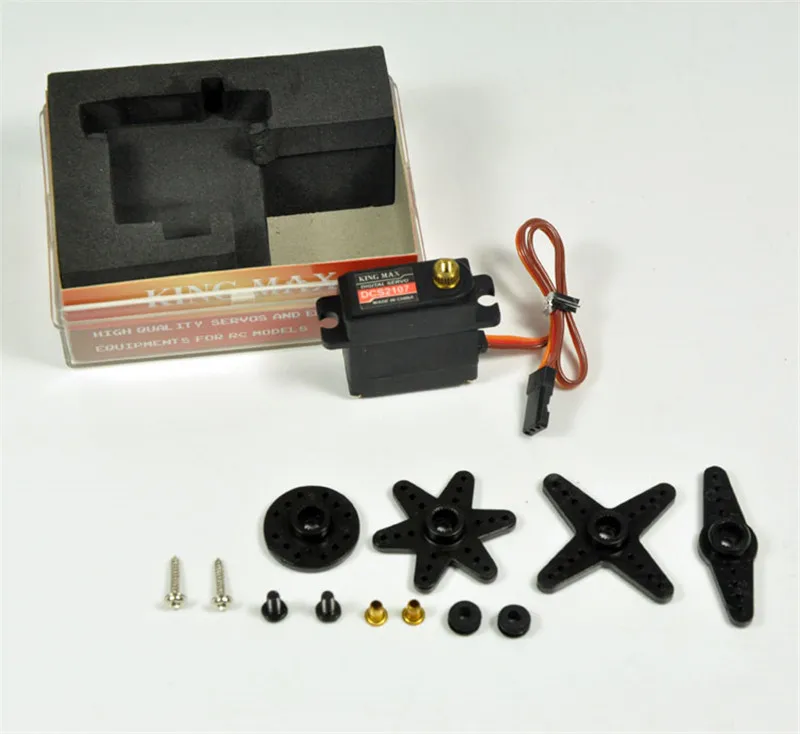

Packing Detail:
Transparency plastic box size: 83.5mmx63.5mmx37.5mm weight: 75g
