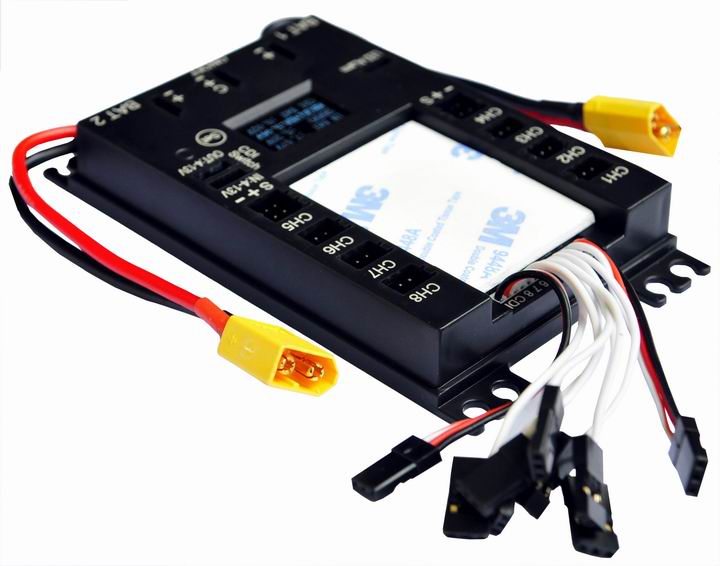

Double power input to improve the stability of power supply, which can effectively avoids the accident cause by poor contact of a single block of power batteries.
Compared with the traditional mechanical switch integrated electronic switch has a higher security and stability.

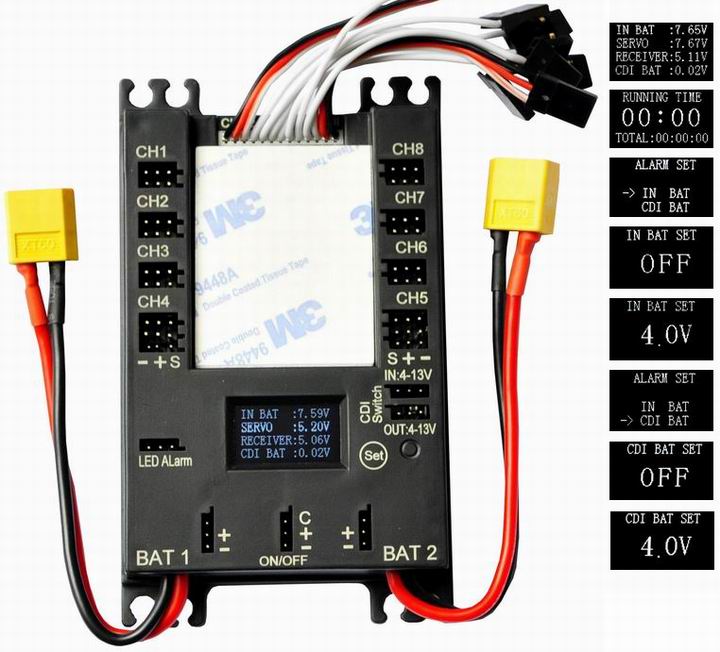

Input / output voltage display switch

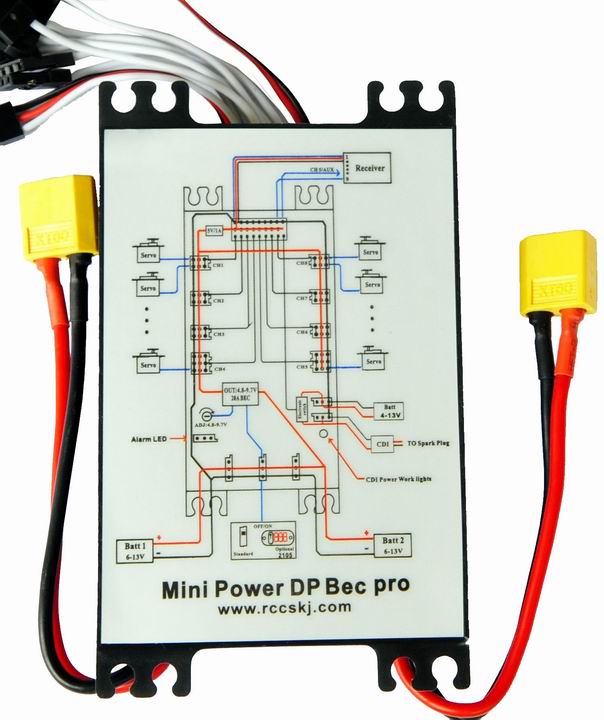

Nine channels for input, and sixteen channels for output.(every one channel input with two channels output ), one channel CDI remote flameout switch.
Integrated CDI remote flameout switch, making flying safer
Independent CDI power supply socket. Receiver power completely separates with the CDI power, so you should not worry about that CDI arouses high frequency signal will interfere the receiver.
Integrated 30ABEC ( MXA: 40A ) using linear regulator makes the power pure, which can provide sufficient current to the actuator.
4.8-9.7V output voltage, to adapt to a variety of high and low voltage actuator.
Independent 5V linear regulator which provide a separate pure working power supply to the receiver.
Five leds display the distribution board's working states.
Special place is designed for receiver to avoid the accidental from bombing damage in receiver.

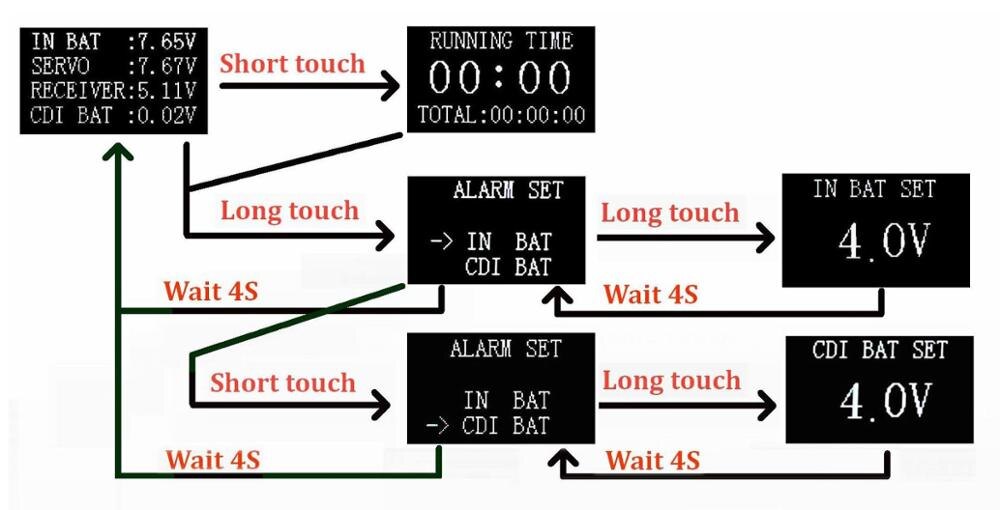

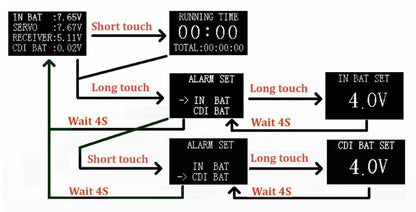

Optional voltage meter of the distribution board can display real-time input/output voltage
- Working voltage: 6-13V
- Steering current, voltage :0-20A(max 30A) ,4.8-9 .7 V (factory voltage is 5.2V)
- Weight: 80g
- Working temperature:-20Centigrade to 85Centigrade
