RadioLink AT9S Pro Transmitter 12 Channels Radio Controller for RC Airplane Car Boat Helicopter Gliders
RadioLink AT9S Pro Transmitter 12 Channels Radio Controller for RC Airplane Car Boat Helicopter Gliders
SKU:AT9S
Couldn't load pickup availability

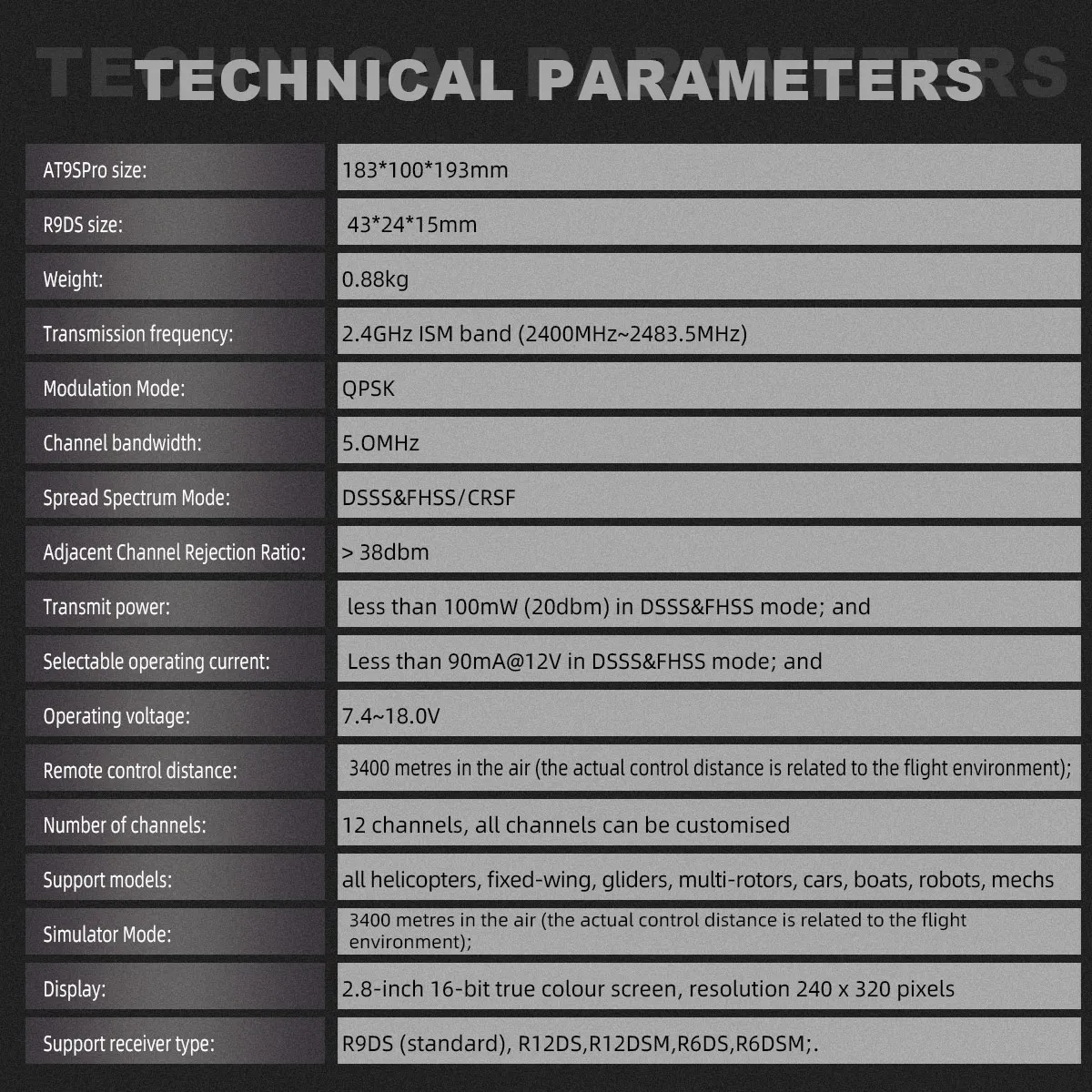

Parameters
AT9SPro size: |
183*100*193mm |
R9DS size: |
43*24*15mm |
Weight: |
0.88kg |
Transmission frequency: |
2.4GHz ISM band (2400MHz~2483.5MHz) |
Modulation Mode: |
QPSK |
Channel bandwidth: |
5.0MHz |
Spread Spectrum Mode: |
DSSS&FHSS/CRSF |
Adjacent Channel Rejection Ratio: |
> 38dbm |
Transmit power: |
less than 100mW (20dbm) in DSSS&FHSS mode; and |
Selectable operating crrent: |
Less than 90mA@12V in DSSS&FHSS mode; and |
Operating voltage: |
7.4~18.0V |
Remote control distance: |
3400 metres in the air (the actual control distance is related to the flight environment); |
Number of channels: |
12 channels, all channels can be customised |
Support models: |
all helicopters, fixed-wing, gliders, multi-rotors, cars, boats, robots, mechs |
simulator Mode: |
3400 metres in the air (the actual control distance is related to the flight environment); |
Display: |
2.8-inch 16-bit true colour screen, resolution 240 X 320 pixels |
Support receiver type: |
R9DS (standard), R12DS,R12DSM.R6DS,R6DSM;. |

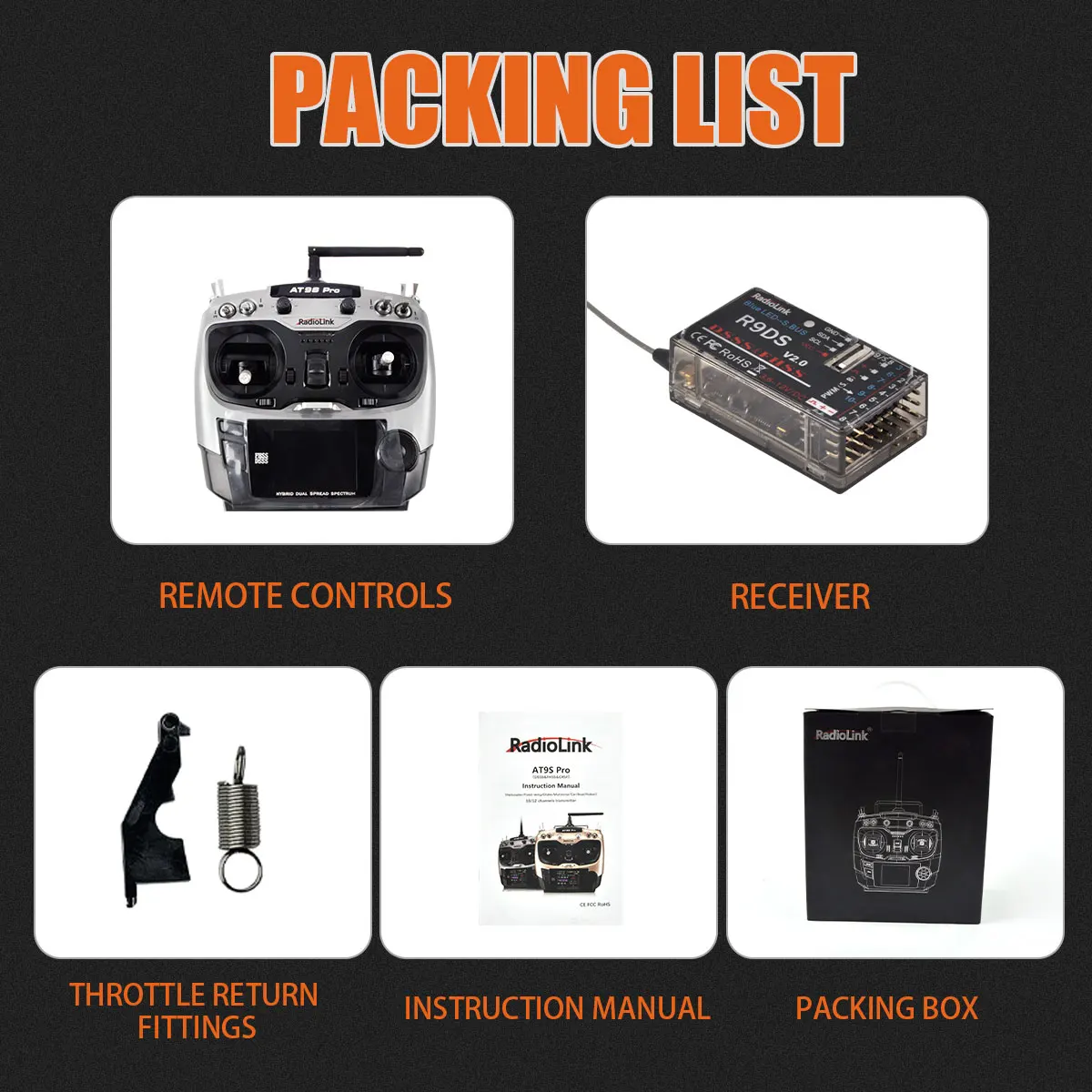

Packing list
