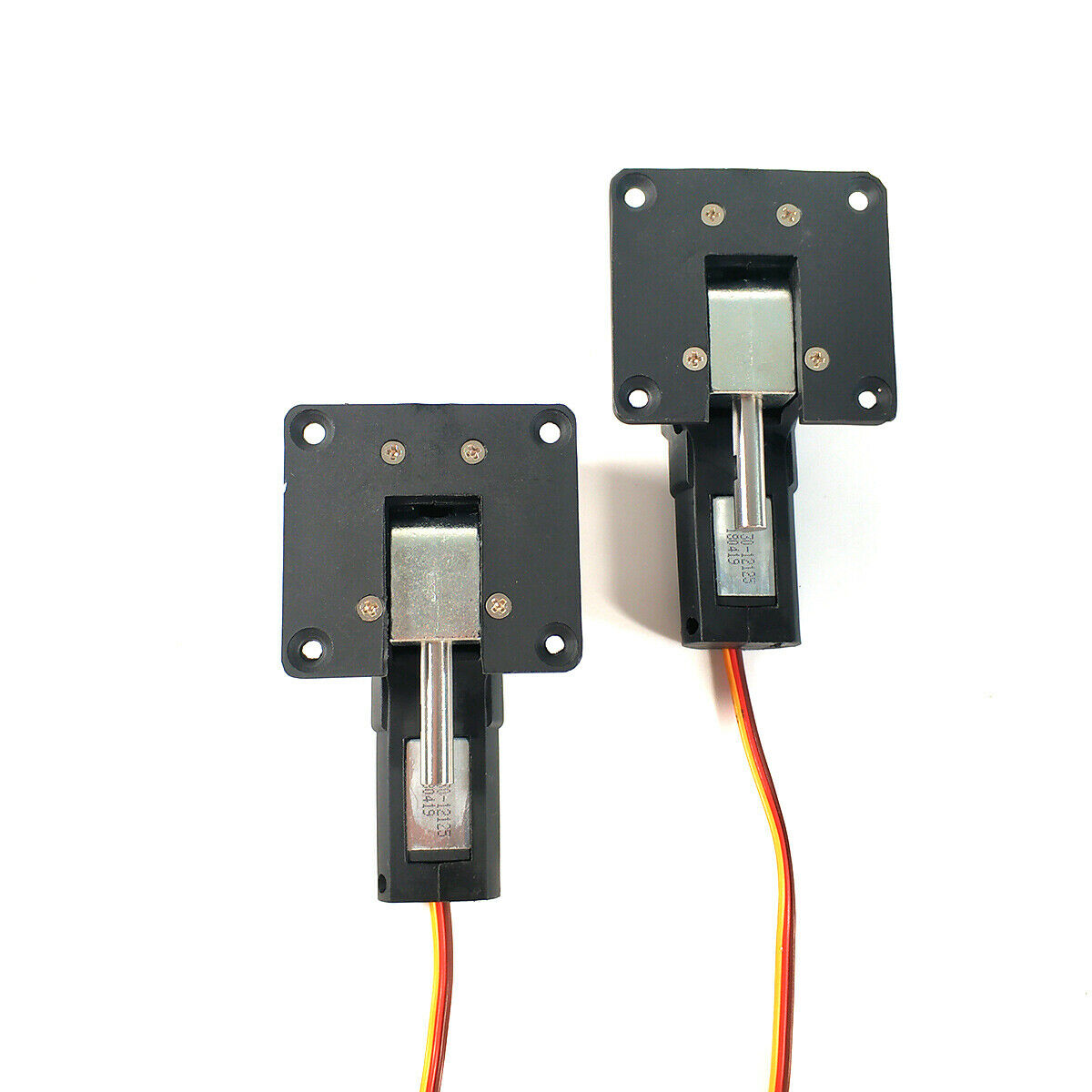

3.5kg PZ-15091 Nose/Main Servoless Electric Retractable Landing Gear

$6.97 $0.00 ( / )
Features and Specification: No. PZ-15091SN Nose Retract Size(L*W*H):73.5*44.0*28.0mm Weight: 82g Speed: 0.8s/90°@4.8v 0.6s/90°@6v Torque: 2.7kg-cm@4.8v 3.0kg-cm@6v Landing Struct Diameter: 5mm Support Flight Weight 3.5kg Operating Voltage: 4.8v-6.0v Wire Length: 150mm   No. PZ-15091SM Main Retract Size(L*W*H):73.5*44.0*28.0mm / 2.89*1.73*1.1" Weight: 80g Speed: 2.0s/90° at 4.8v 1.8s/90°at 6v Stall Torque: 2.9+/-0.2 kg-cm...
  • 1pc Nose Retract
  • 1pc Main Retract
  • 2pcs Main Retract
  • 2pcs Main + 1pc Nose
Add to Wishlist

Features and Specification:

15091 retract specification

No. PZ-15091SN Nose Retract

  • Size(L*W*H):73.5*44.0*28.0mm
  • Weight: 82g
  • Speed: 0.8s/90°@4.8v 0.6s/90°@6v
  • Torque: 2.7kg-cm@4.8v 3.0kg-cm@6v
  • Landing Struct Diameter: 5mm
  • Support Flight Weight 3.5kg
  • Operating Voltage: 4.8v-6.0v
  • Wire Length: 150mm



No. PZ-15091SM Main Retract

  • Size(L*W*H):73.5*44.0*28.0mm / 2.89*1.73*1.1"
  • Weight: 80g
  • Speed: 2.0s/90° at 4.8v 1.8s/90°at 6v
  • Stall Torque: 2.9+/-0.2 kg-cm at 4.8v 3.1kg+/-0.2kg-cm at 6v
  • Landing Struct Diameter: 5mm
  • Operating Voltage: 4.8v-6.0v
  • Wire Length: 150mm
  • Plug Type: JR Plug
  • Maximum travel: 90°
  • Use for wing span around 1m
  • Support flight weight 3.5kg

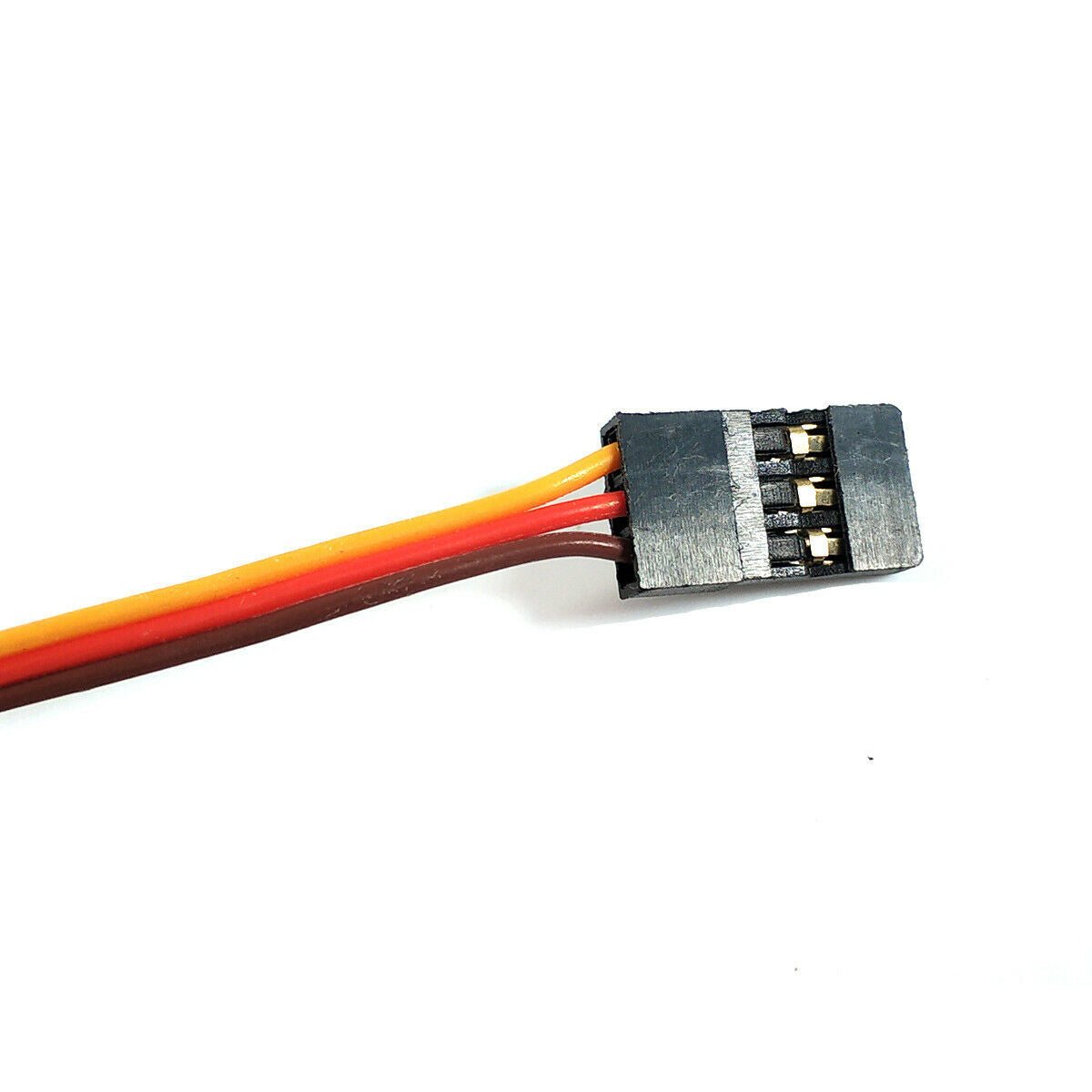

The connect Plug:
JR Golden Plated Plug

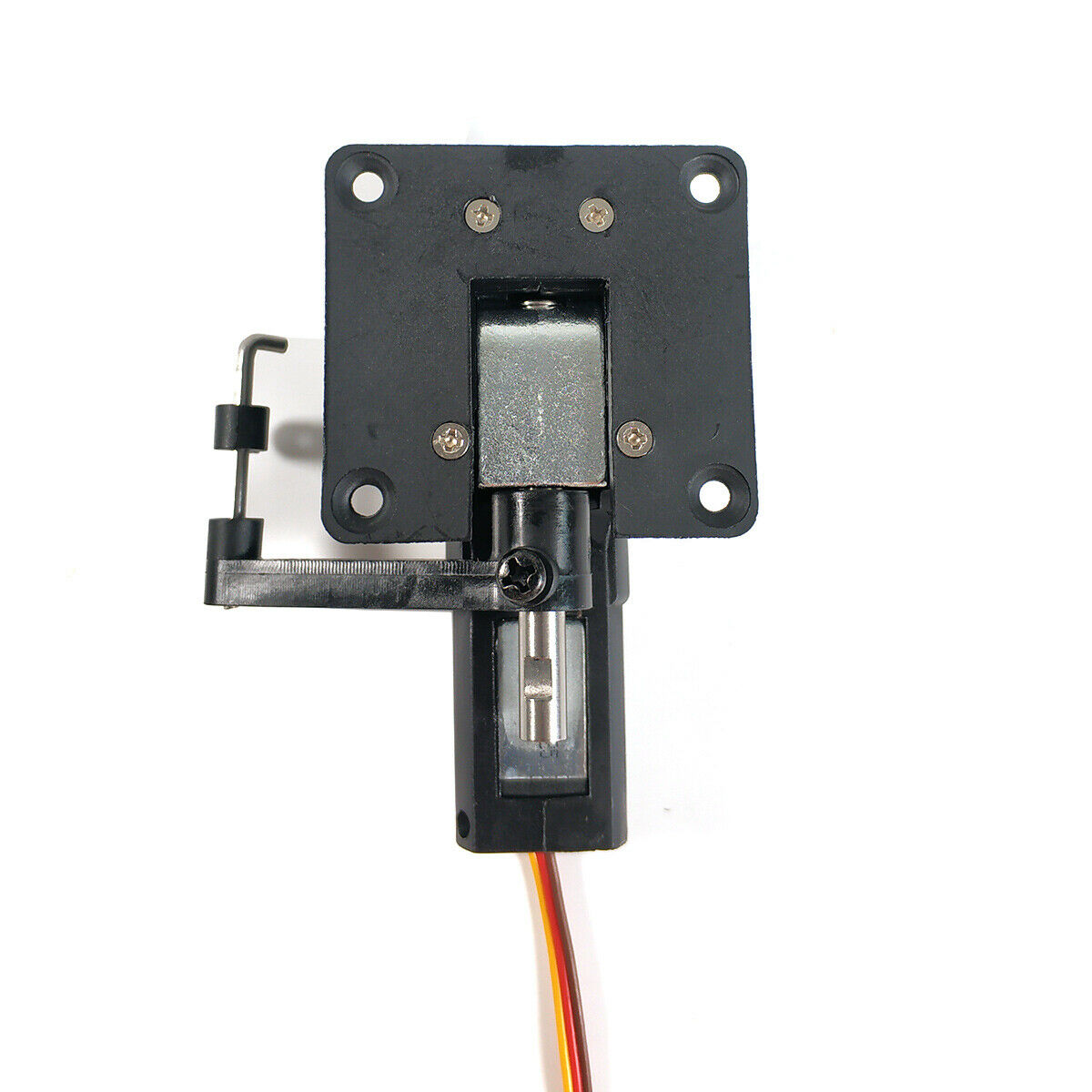

Nose Retract can turn direction

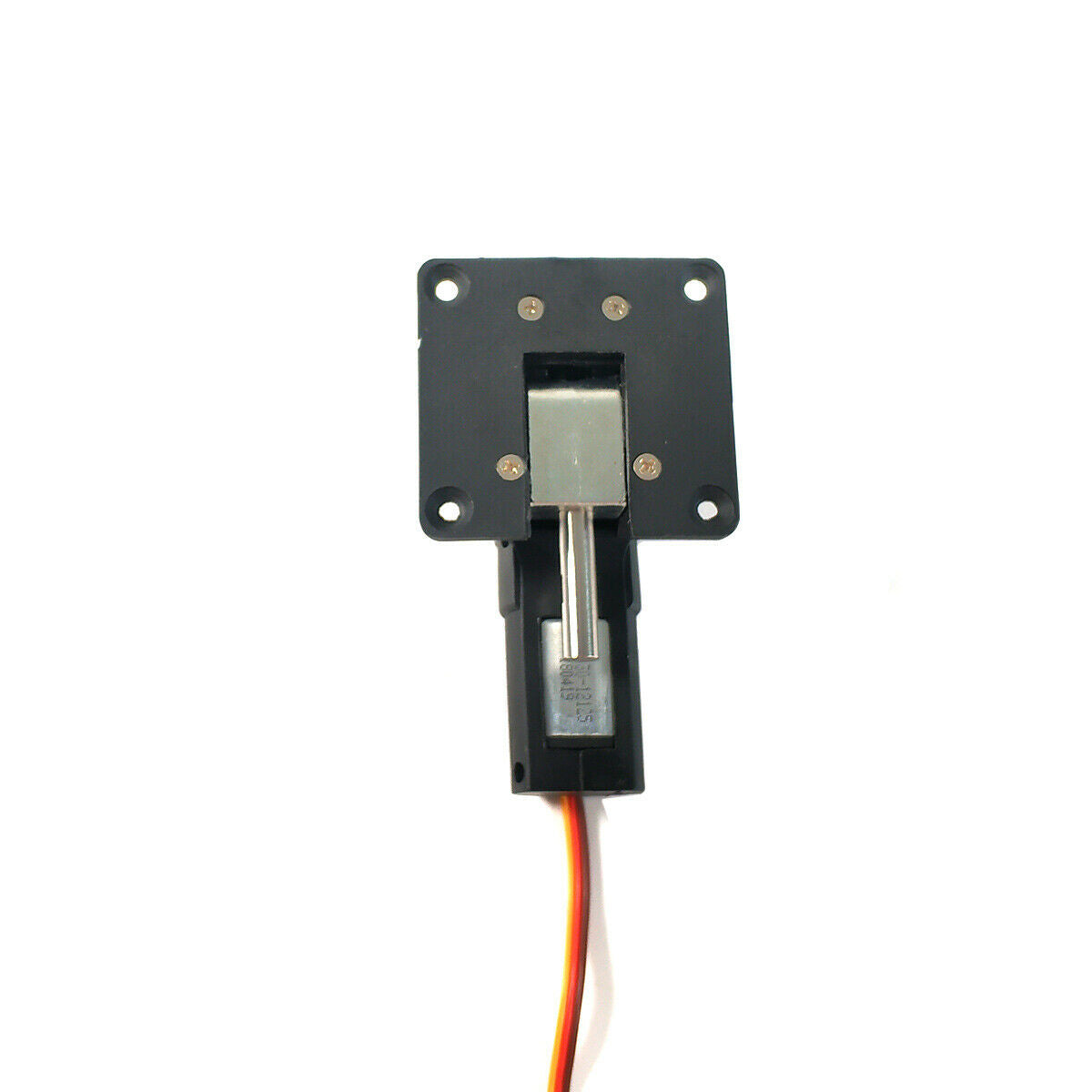

Main Retracts are fixed direction

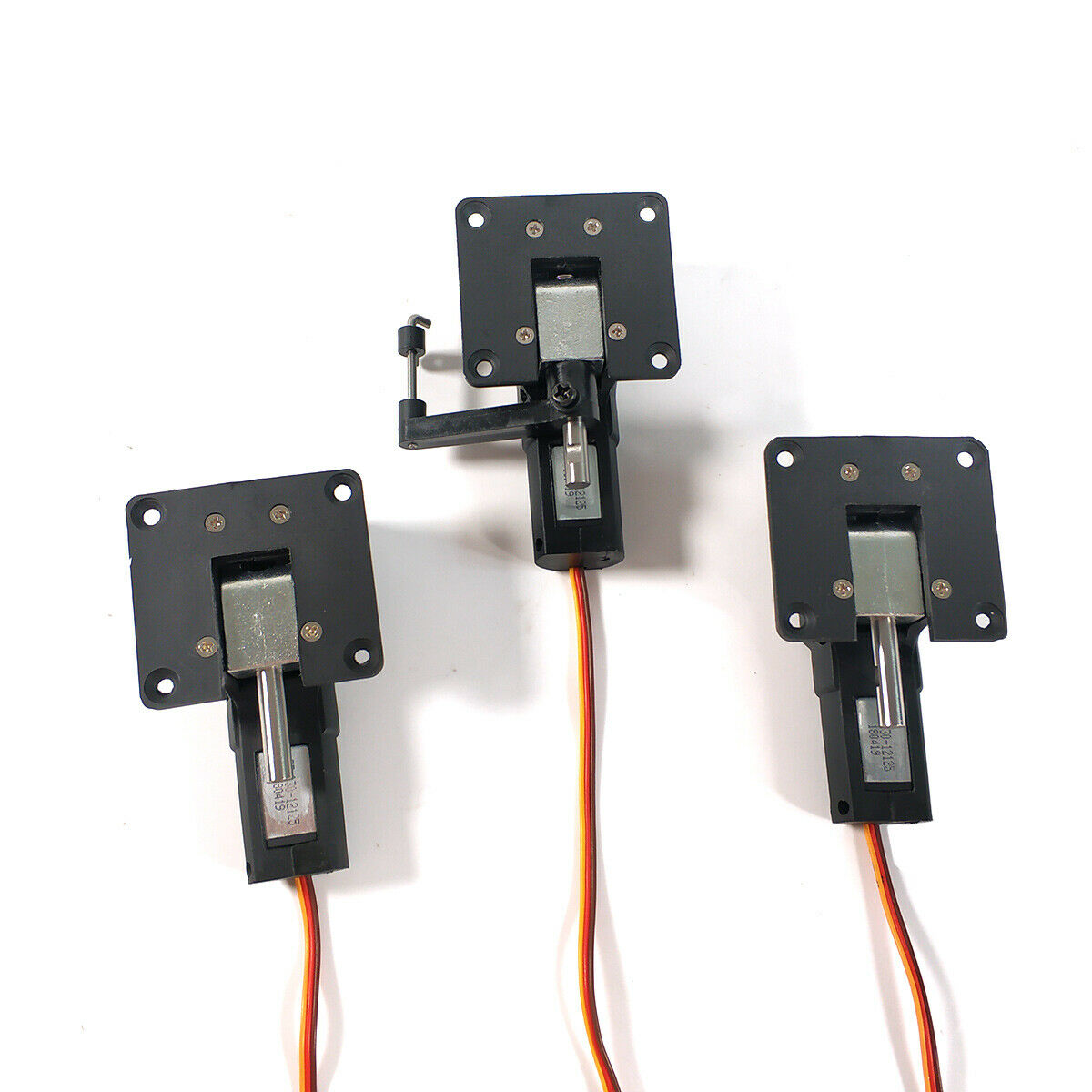

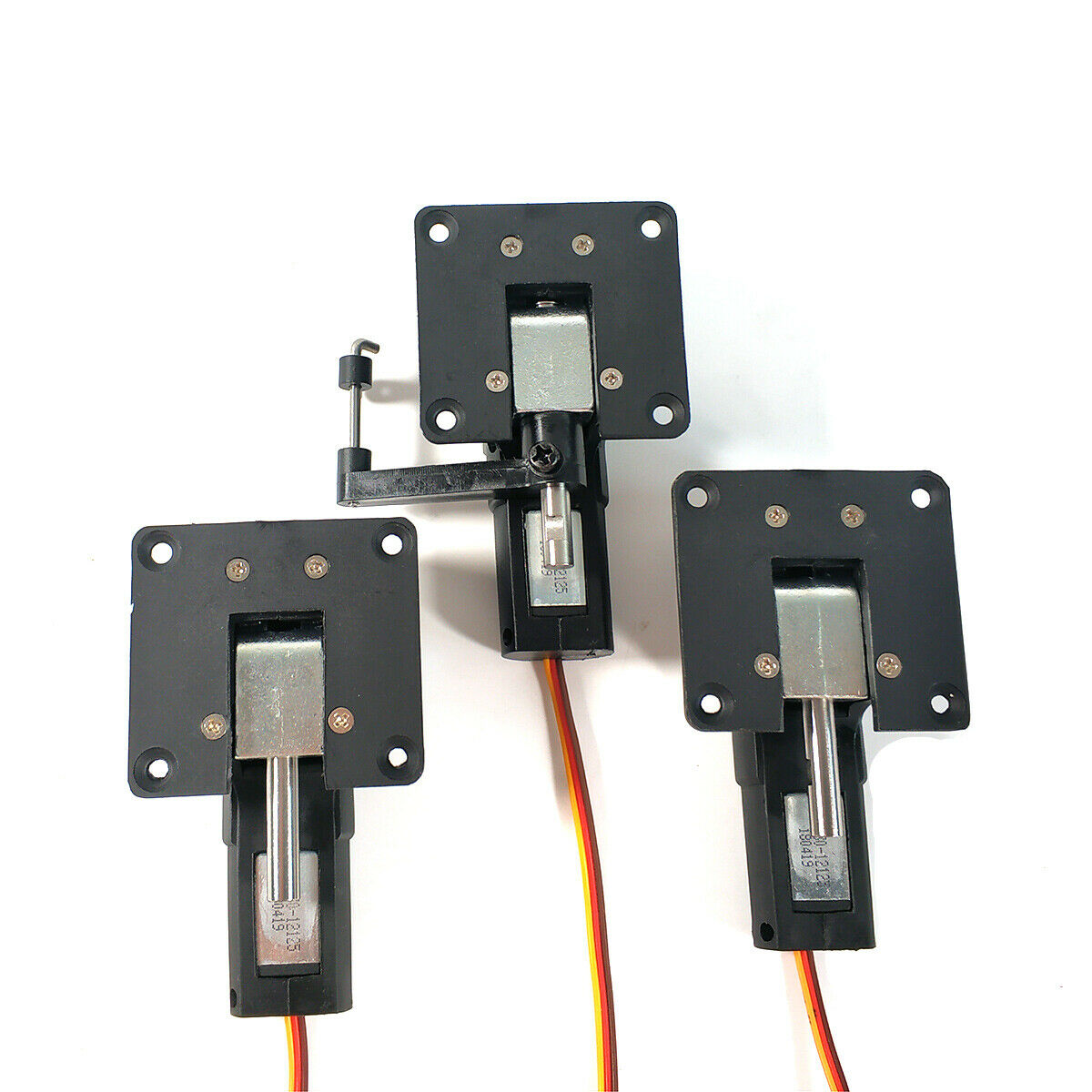

A plane usually needs 1 nose Retract and 2 main Retract for the landing gears.
Type:

Retracts

Vendor:

Flight Model

Type:

1pc Nose Retract, 1pc Main Retract, 2pcs Main Retract, 2pcs Main + 1pc Nose

SKU:

PZ-15091SN

Weight:

0.08 kg
