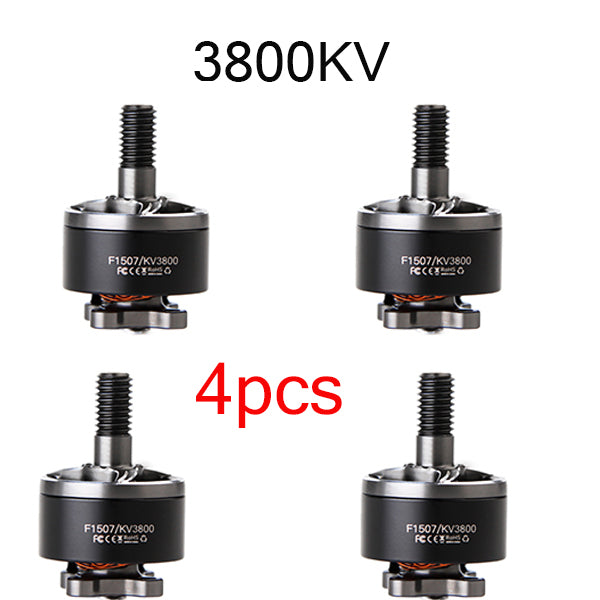

T-Motor F1507 1507 2700KV 3-6S / 3800KV 3-4S Brushless Motor for Cinewhoop RC Drone FPV Racing CineWhoop BetaFPV

$67.12 $78.97 ( / )
.T-Motor F1507 1507 2700KV 3-6S / 3800KV 3-4S Brushless Motor for Cinewhoop RC Drone FPV Racing Specification:  Brand Name: T-Motor Model: F1507 Item Name: 1507 2700KV 3-6S / 3800KV 3-4S Brushless Motor  KV 2700KV 3800KV Input Voltage: ( Lipo) 3-6S 3-4S Configuration: 12N14P 12N14P Shaft Diameter:  2mm 2mm Idle Current (...
  • 4PCS 2700KV
  • 4PCS 3800KV
Add to Wishlist

.T-Motor F1507 1507 2700KV 3-6S / 3800KV 3-4S Brushless Motor for Cinewhoop RC Drone FPV Racing

https://ae01.alicdn.com/img/pb/252/065/676/676065252_296.jpg


Specification:


Brand Name: T-Motor
Model: F1507
Item Name: 1507 2700KV 3-6S / 3800KV 3-4S Brushless Motor

KV 2700KV 3800KV
Input Voltage: ( Lipo) 3-6S 3-4S
Configuration: 12N14P 12N14P
Shaft Diameter:  2mm 2mm
Idle Current ( 5V):  0.6A   0.9A
Peak Current (60s):  22A 23A
Max. Power: 519W 372W
Internal Resistance:  131mΩ 81mΩ
Lead:  24#AWG 100mm 24#AWG 100mm
Dimension: 18.9x29.7mm   18.9x29.7mm
Weight: ( Include Cable) 15.2g 15g


Pakcage Included:
1x T-Motor T1057 Motor
1x 1x Motor Nut
1x bag of Screws

https://ae01.alicdn.com/img/pb/253/065/676/676065253_146.jpg



商城详情英文_01商城详情英文_02商城详情英文_03商城详情英文_04商城详情英文_05商城参数英文_01商城参数英文_02商城参数英文_03商城参数英文_04商城参数英文_05商城参数英文_06商城参数英文_07商城参数英文_08

Vendor:

T-MOTOR

KV:

4PCS 2700KV, 4PCS 3800KV

SKU:

F1507-4-2700KV

Weight:

100 g
