VVRC RCGF RCGF 10CC RE Rear Exhaust Gasoline Engine For RC Fixed-wing Airplane

Feature

Glow size：economy and powerful

NEW Engine ,NEW Design,More powerful,Stronger material , More precision , More shining

Latest Design & Strong Power ！

The NEW Stinger 10cc RE is the latest design engine.

The rear exhaust design make it fit more narrow airplanes especially the warbirds .

Strong Power give you unprecedented fly experience.

Parameter

Type: 2 cycle piston valve type gasoline engine for airplane
Displacement (cc): 10cc (.61 cu in)
Bore x Stroke (mm): 1.08 in (27.6mm)*0.67 in (17mm)
Recommended props: 13 x 6, 14 x6,13X8,13X7
Maximum Output: 1.9 hp @ 12000rpm
Power supply: 7.4V-14V

Specification

-Carburetor : Walbro

-Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)

-SPARK PLUG: M8 1/4-32

-Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 2000-12000rpm

-Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1)

-Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .

-Break in Propeller : 13*7 ; 14*6 (Standard Two leafs prop)

-Recommended Airplane: 50 size plane,40 size plane

-Cooling System : Air Cooled

-RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

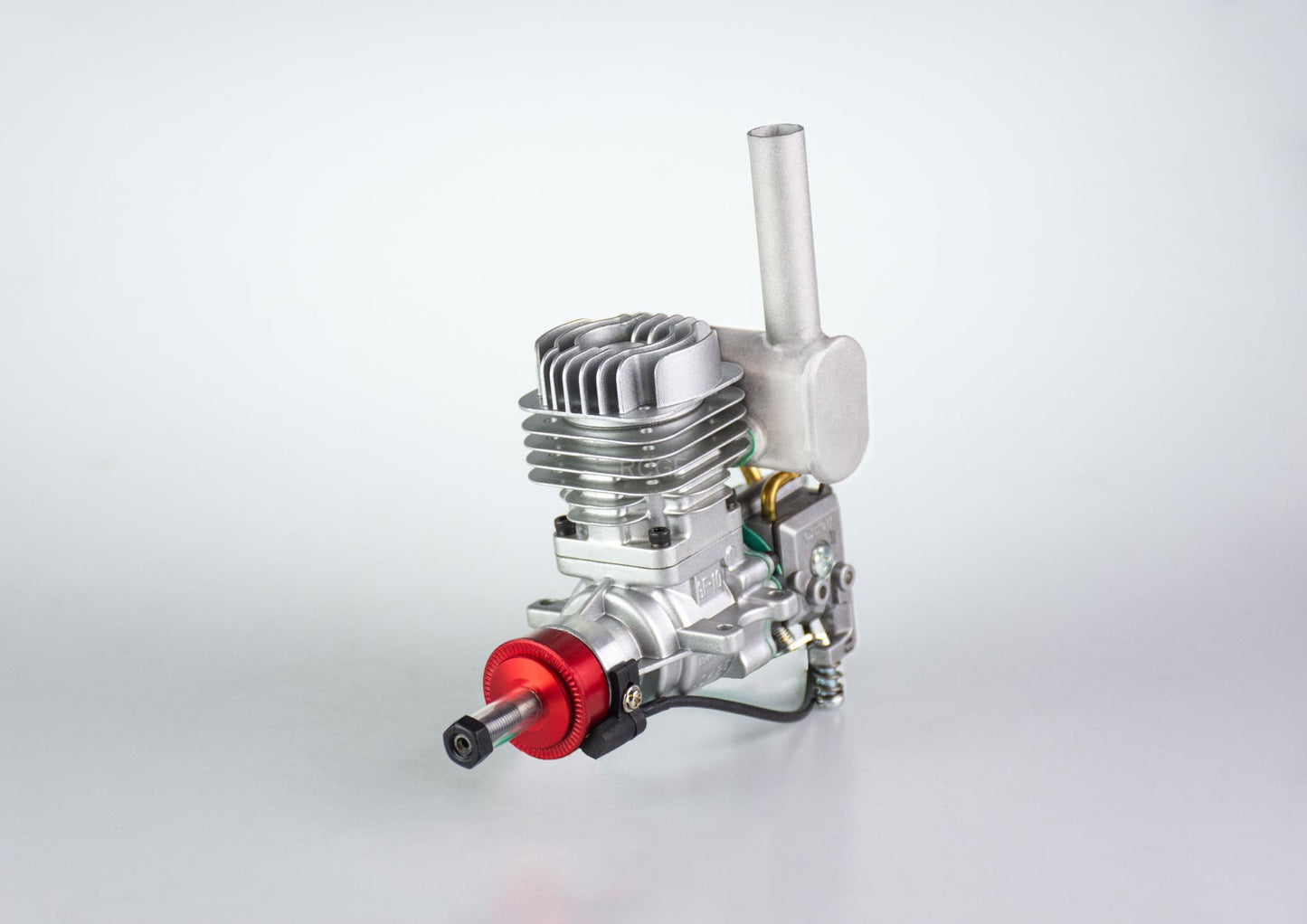

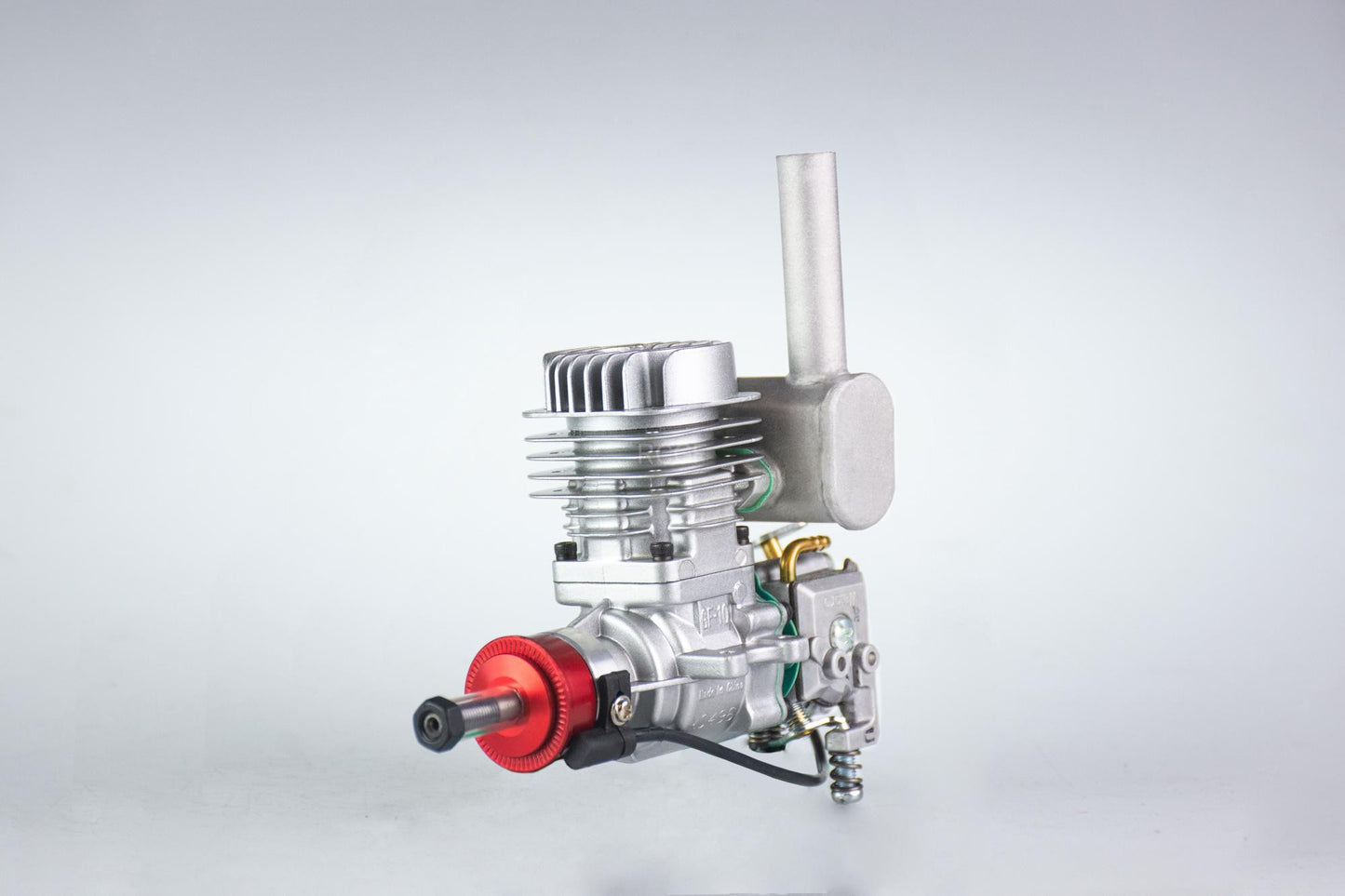

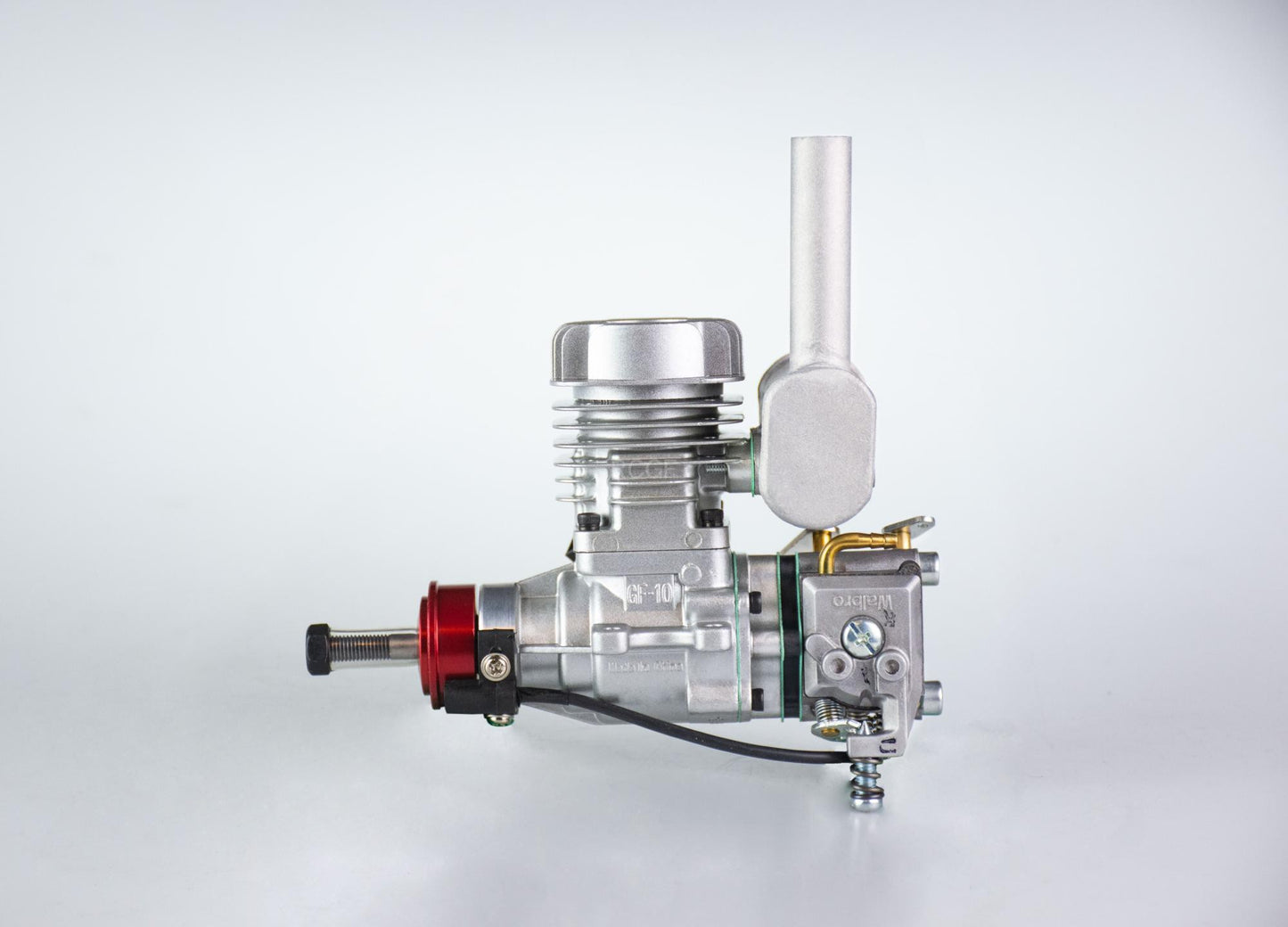

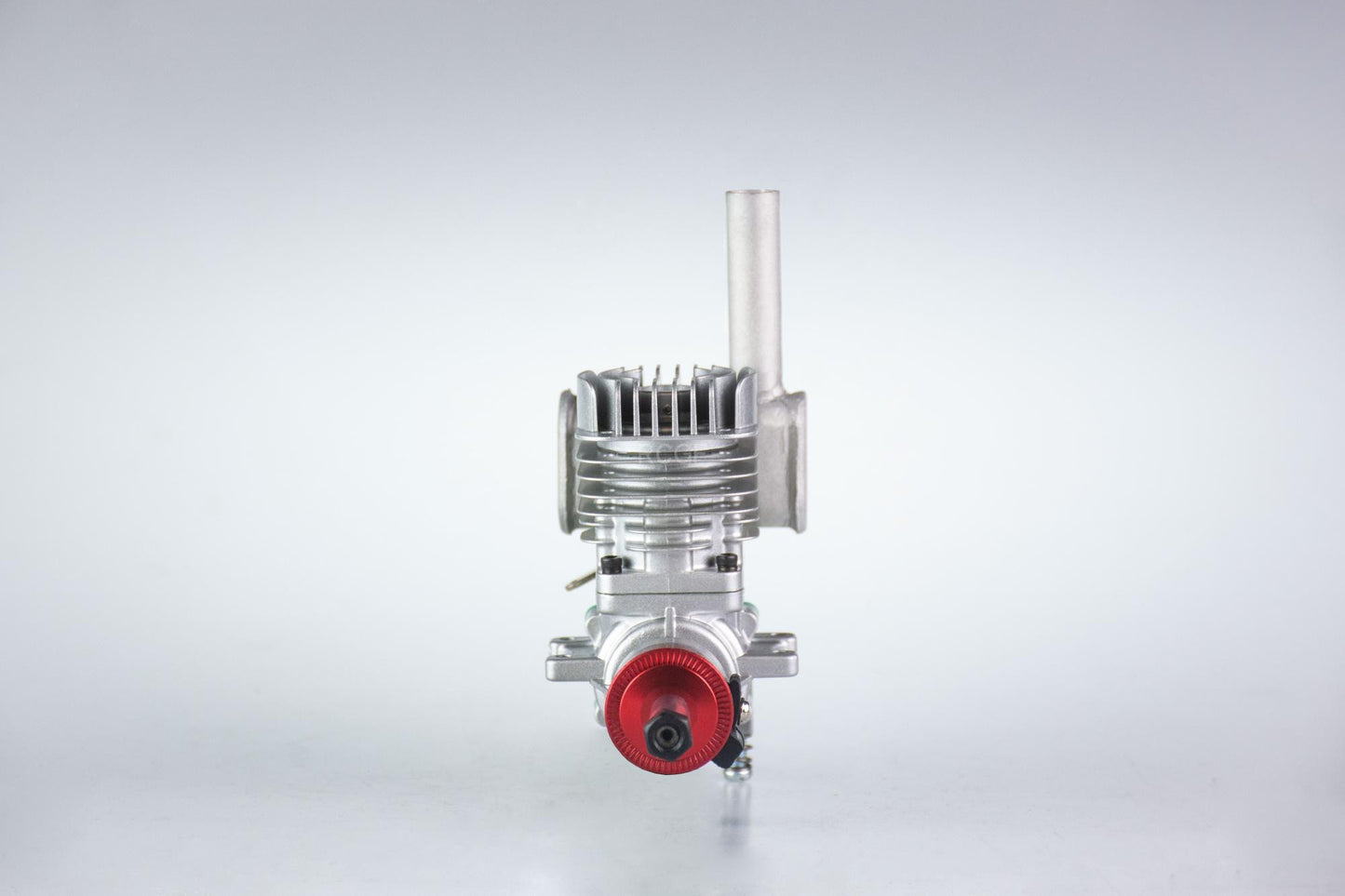

Product Display
