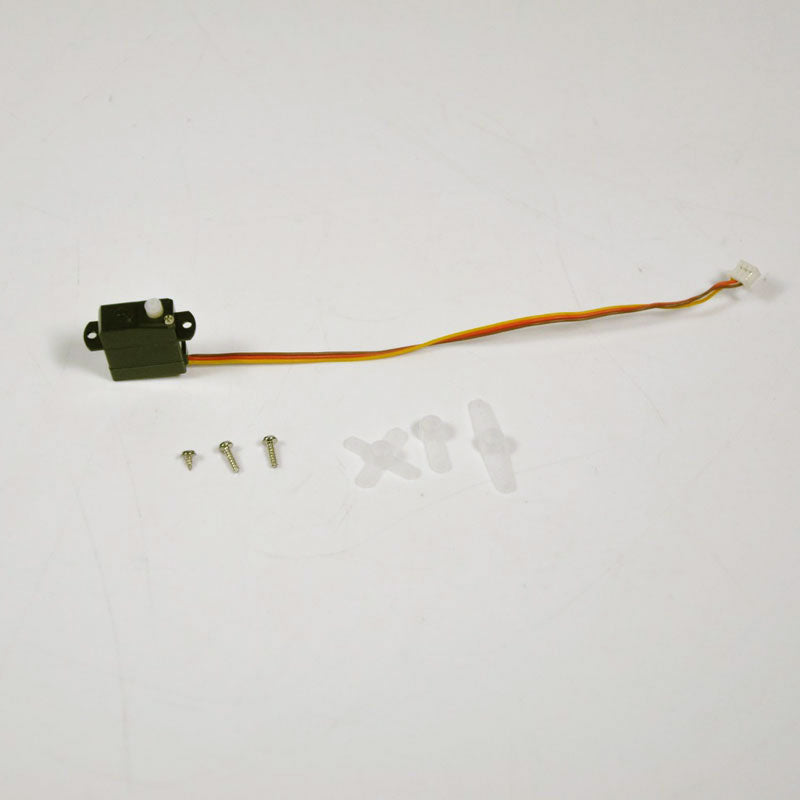

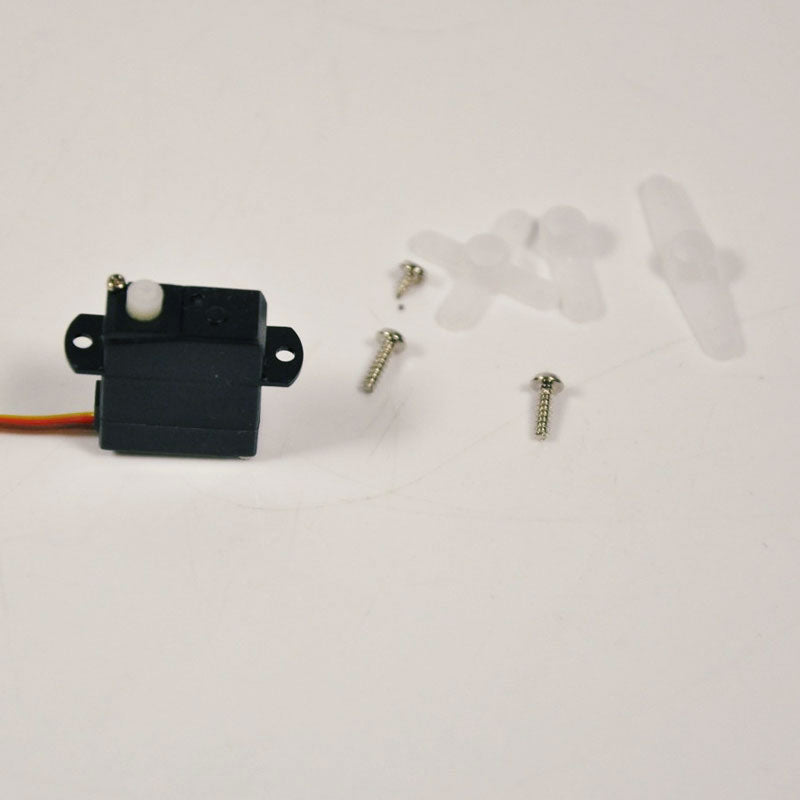

PZ-15320 14x6.2x17.9mm 1.7g Digital Sub-Micro Servo For RC Airplane model
PZ-15320 14x6.2x17.9mm 1.7g Digital Sub-Micro Servo For RC Airplane model
PZ-15320 14x6.2x17.9mm 1.7g Digital Sub-Micro Servo For RC Airplane model
PZ-15320 14x6.2x17.9mm 1.7g Digital Sub-Micro Servo For RC Airplane model
Roll over image to zoom in Click on image to zoom
PZ-15320 14x6.2x17.9mm 1.7g Digital Sub-Micro Servo For RC Airplane model
PZ-15320 14x6.2x17.9mm 1.7g Digital Sub-Micro Servo For RC Airplane model
PZ-15320 14x6.2x17.9mm 1.7g Digital Sub-Micro Servo For RC Airplane model
PZ-15320 14x6.2x17.9mm 1.7g Digital Sub-Micro Servo For RC Airplane model

PZ-15320 14x6.2x17.9mm 1.7g Digital Sub-Micro Servo For RC Airplane model

Flight modelSKU: PZ-15320
Price:
$4.48

Description

Features:

This is the PZ-15320 low voltage digital Servo
The smallest servo all over the world
Key Features:
Sub-micro servo only 1.7g
Coreless Motor
Precision POM Gear
None BALL BEARING

Specifications:

Type: PZ-15320

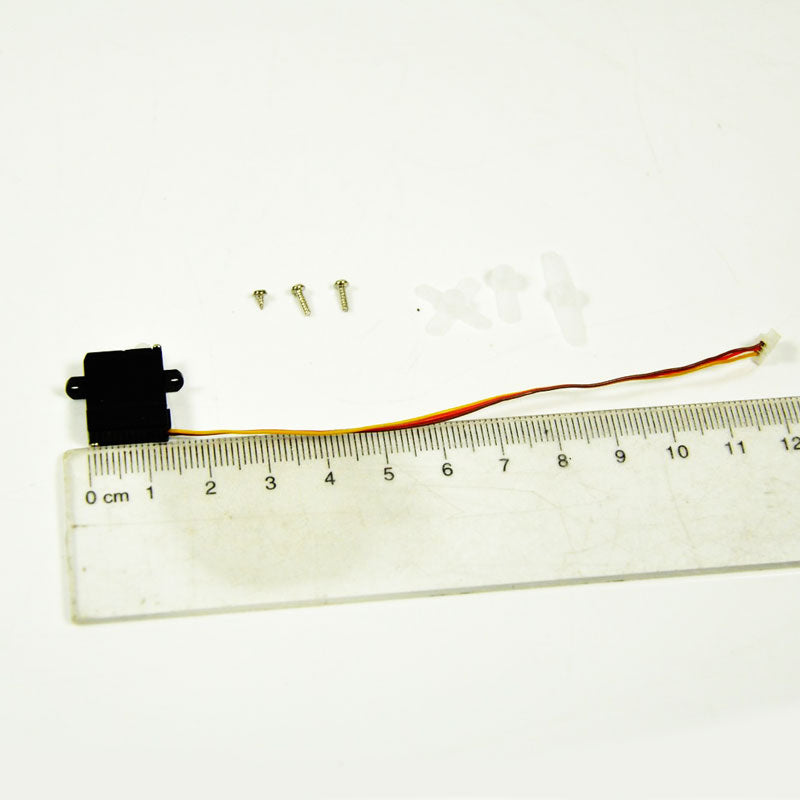

Dimensions: 0.55x0.24x0.70inch (14x6.2x17.9mm)

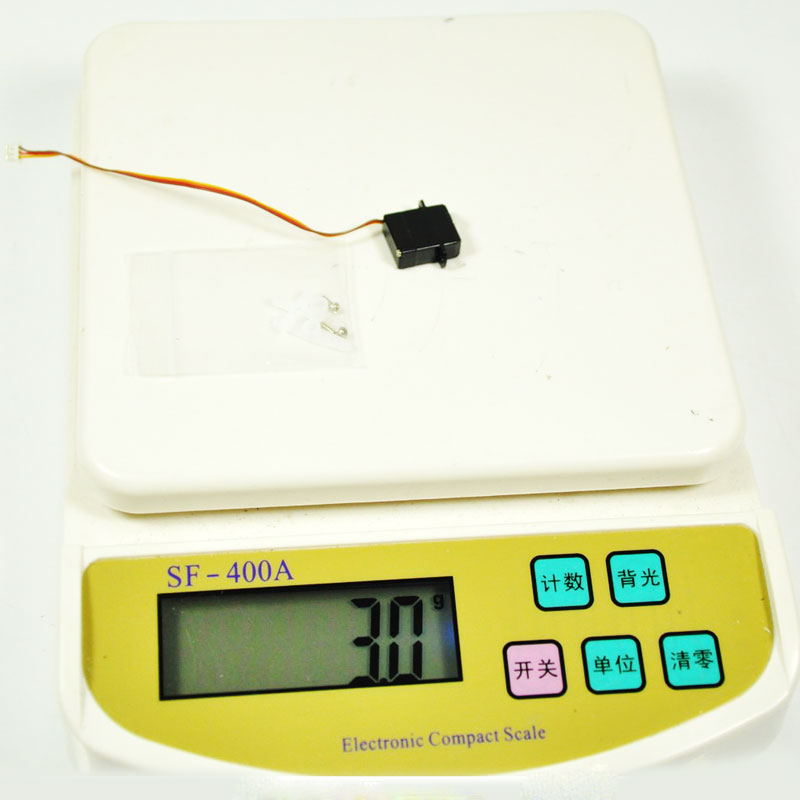

Weight: 0.06 oz (1.7g)
Speed: 0.05s/60° @   2.5v 0.05s/60° @   3.7v
Torque: 0.06kg/cm @  2.5v 0.075kg/cm@  3.7v
Excellent for micro aerobatic 3D flying
Operating Voltage: 2.8V-4.2V
Wire length: 10cm
Motor type: high speed, coreless
Connector type: Mini JST

* Voltage input can NOT higher than 4.2V.
