Description

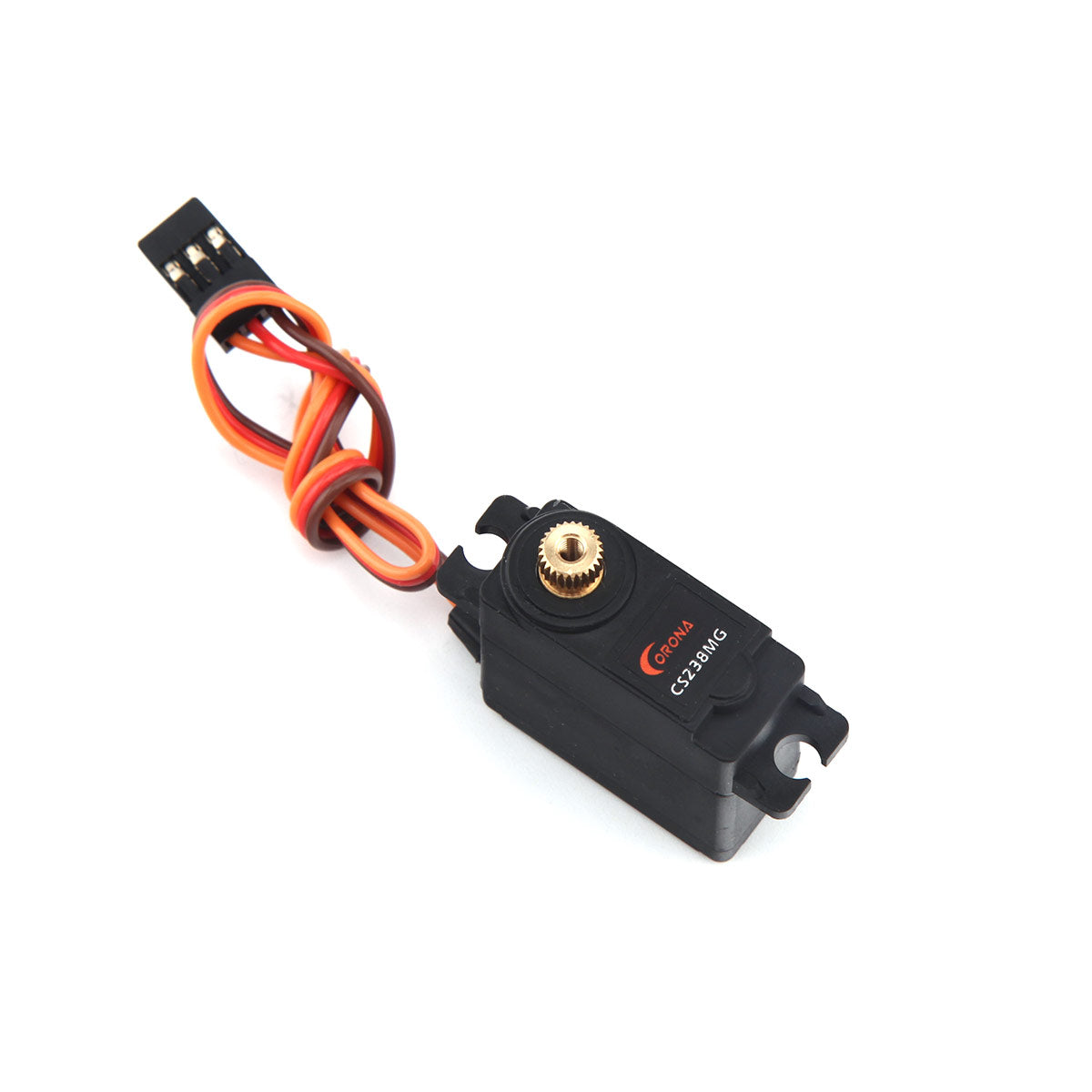

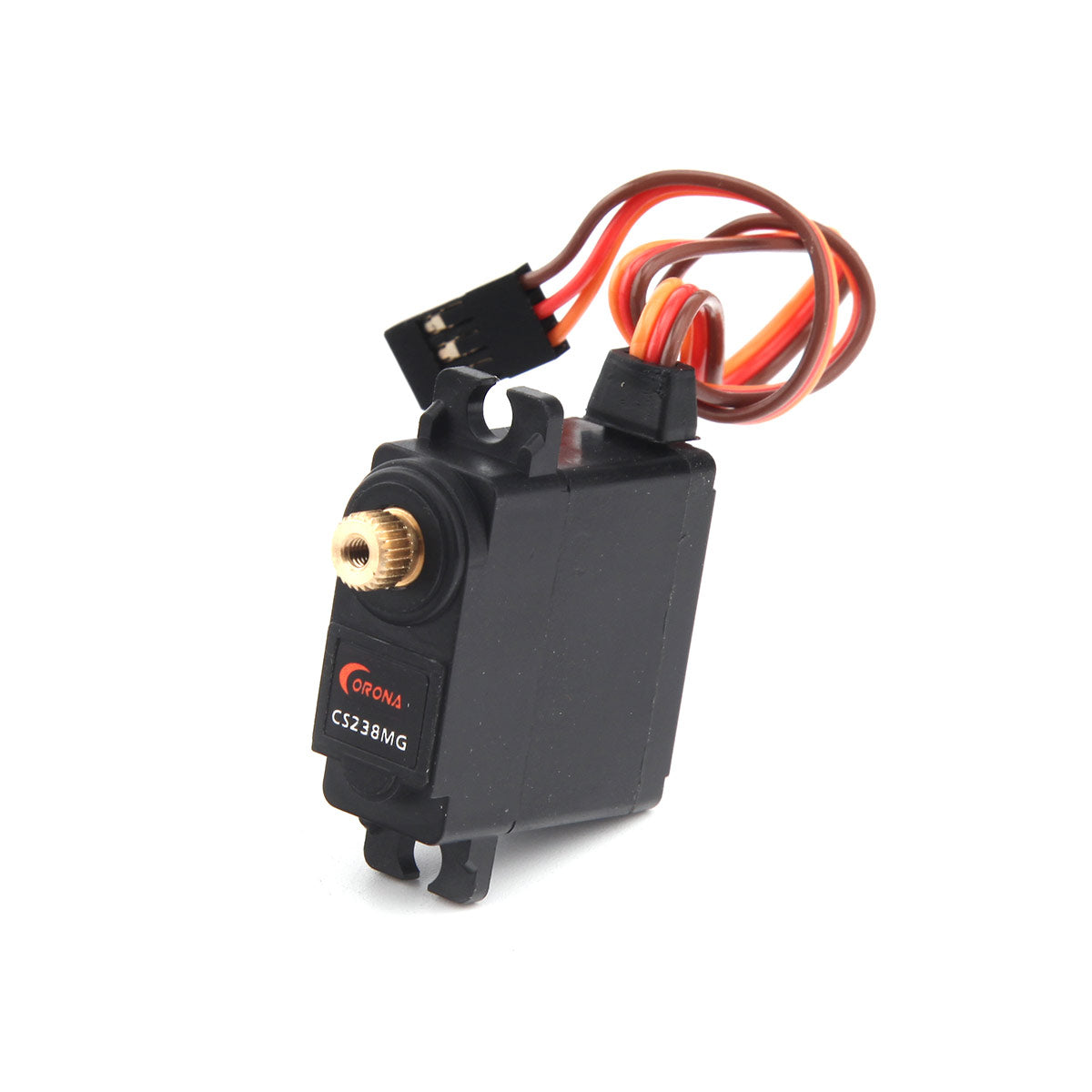

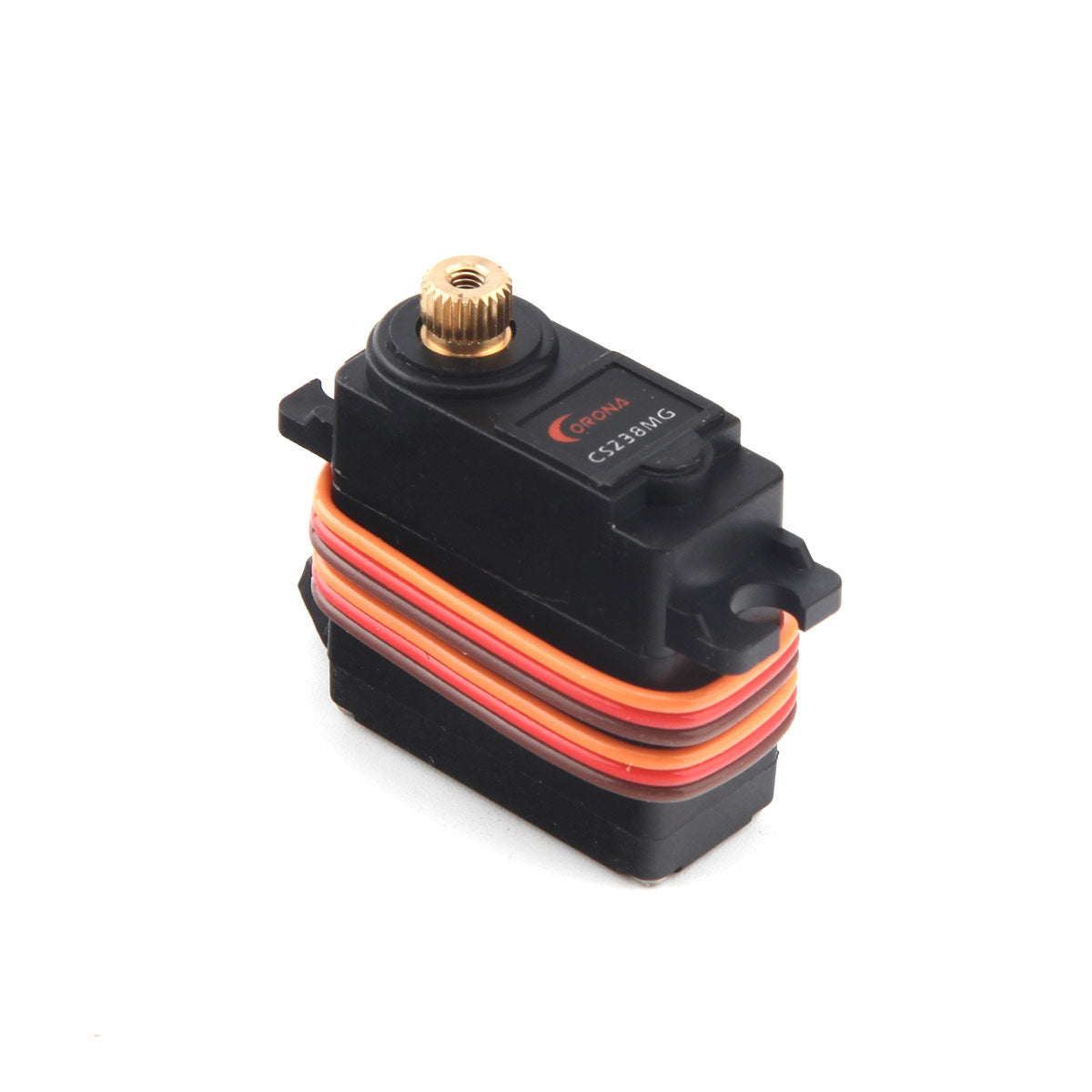

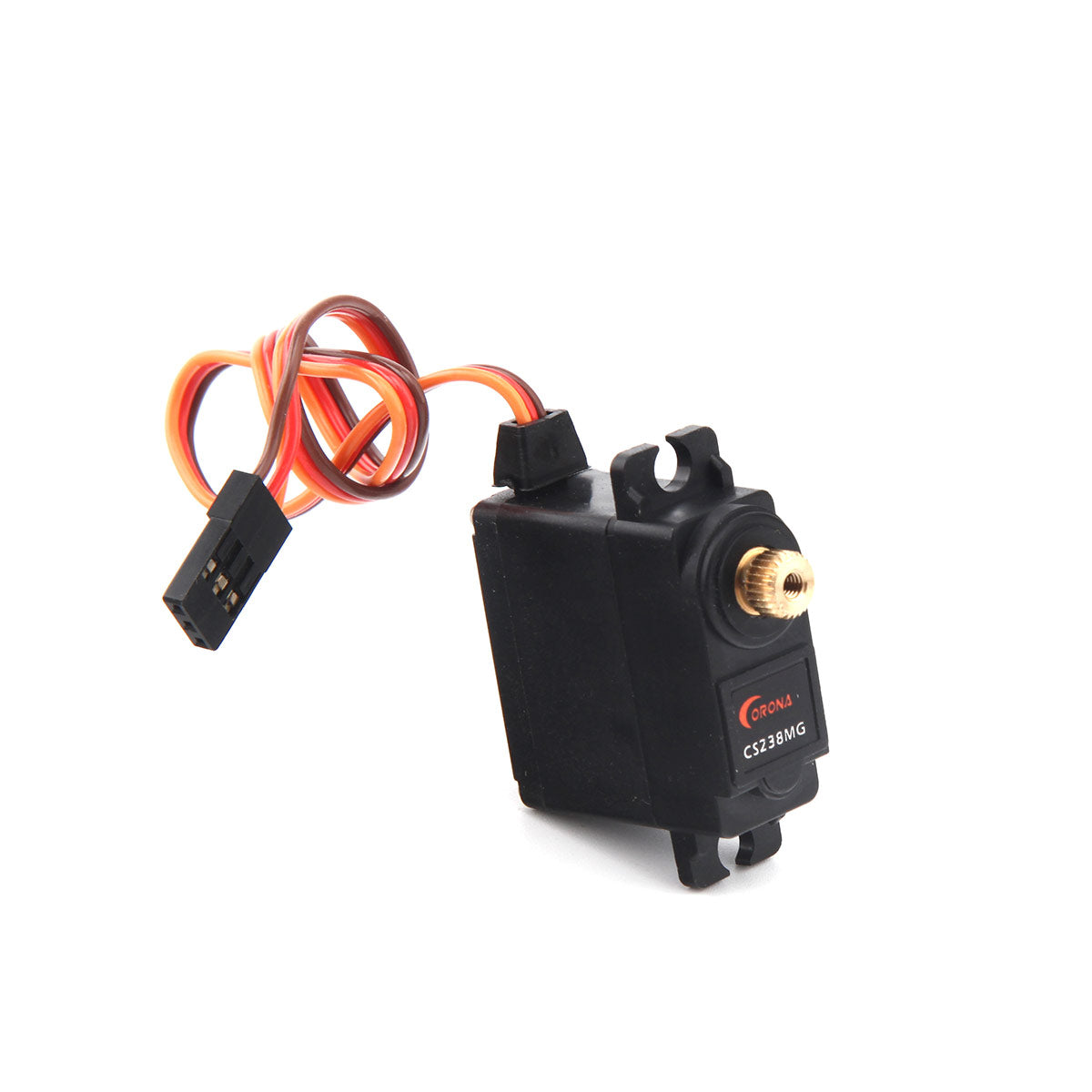

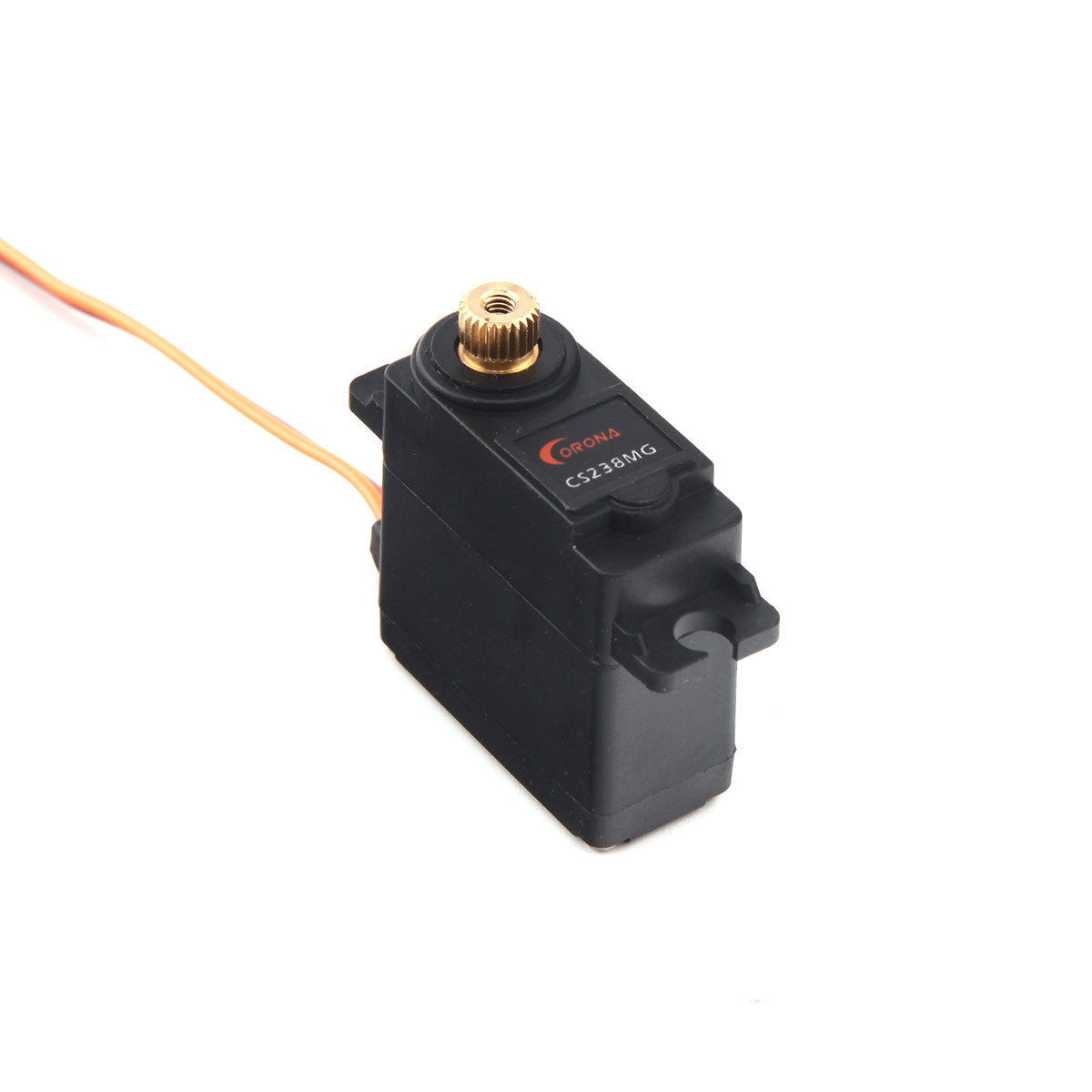

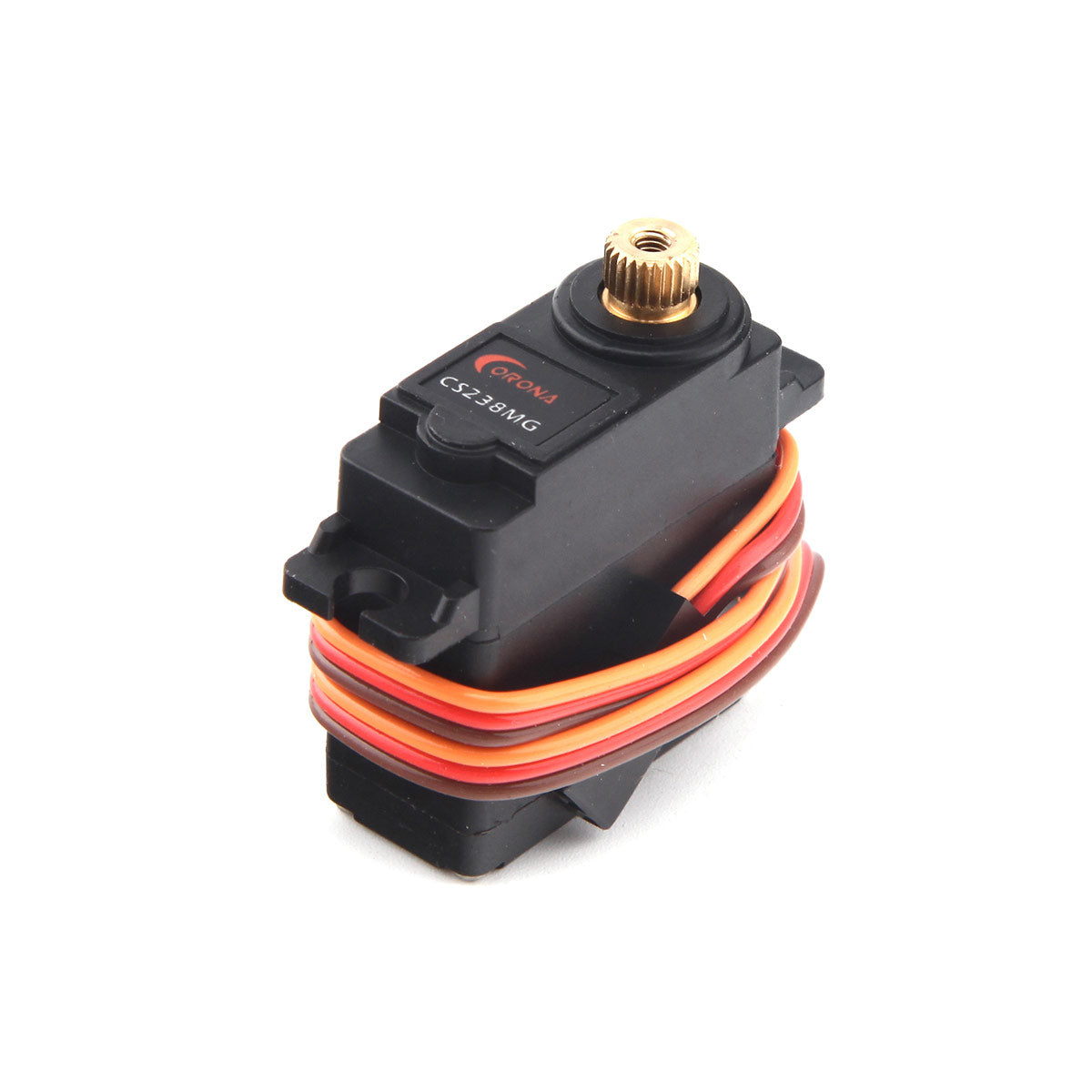

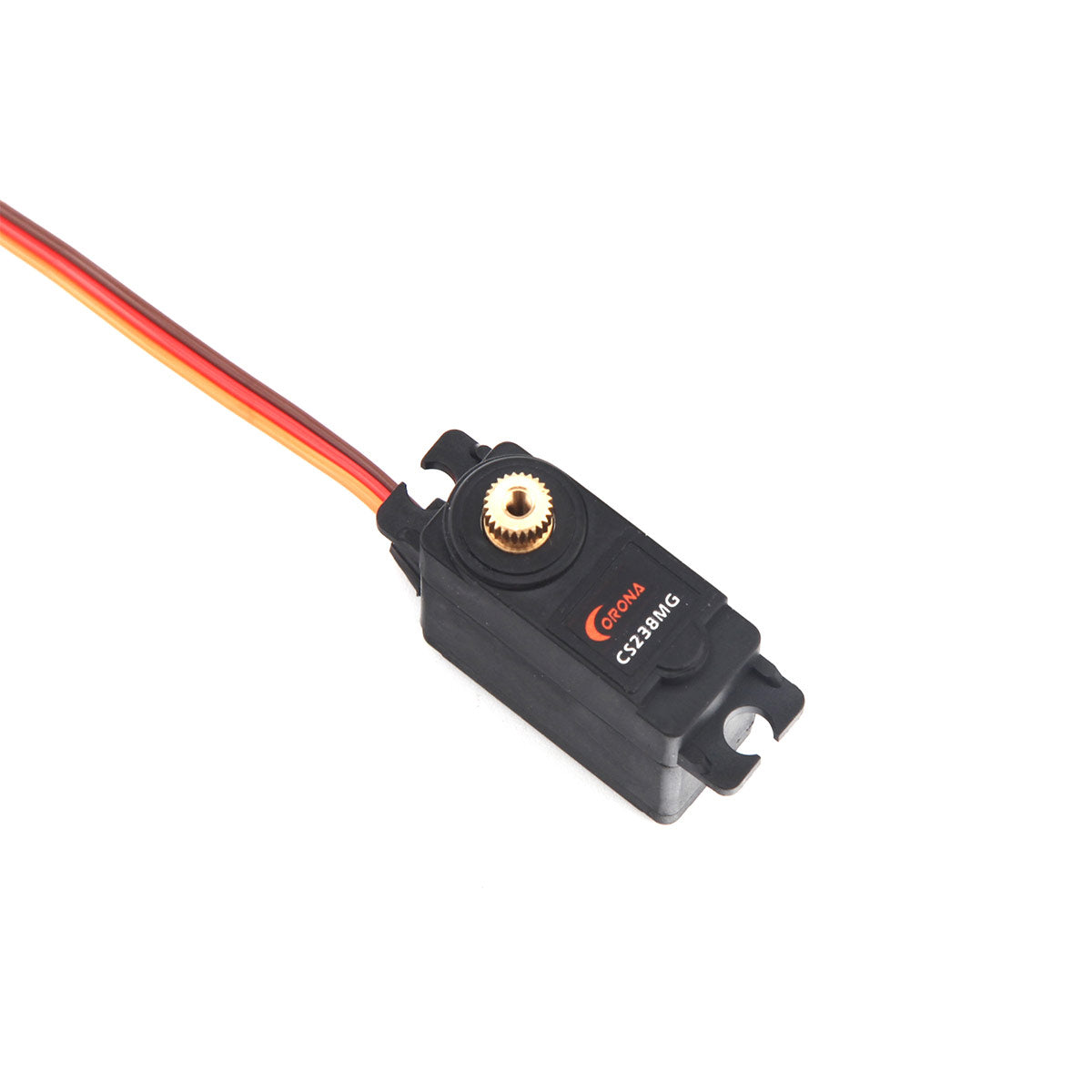

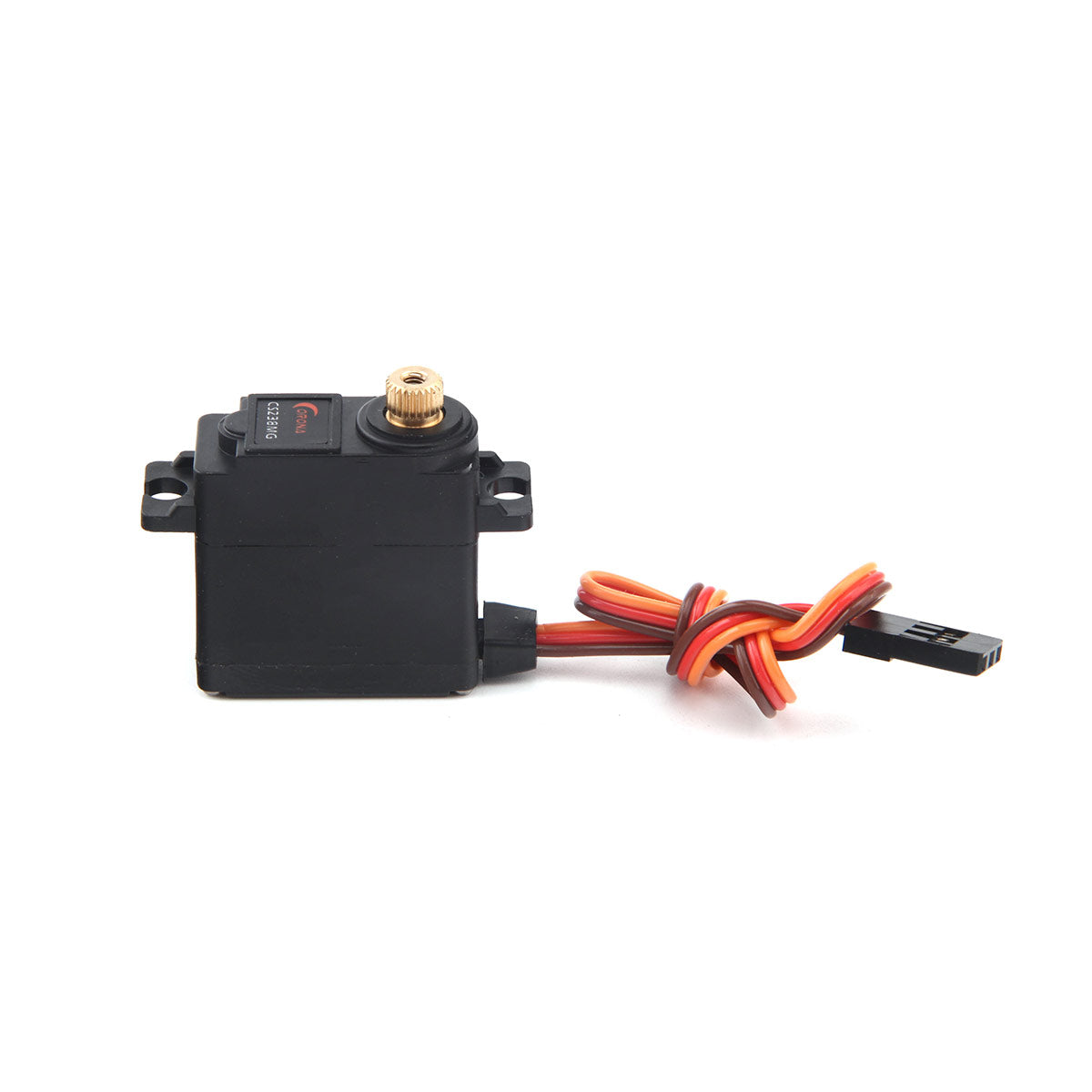

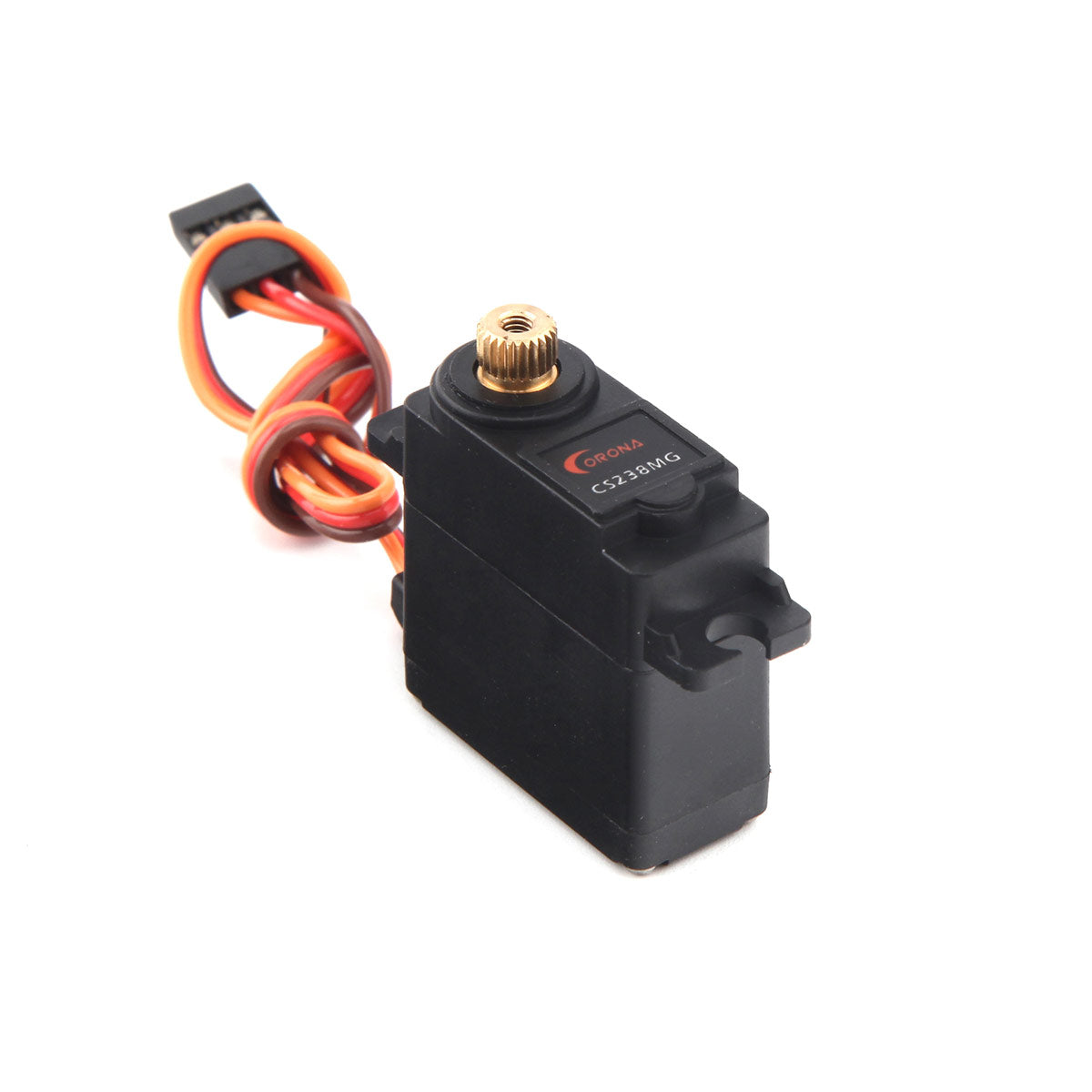

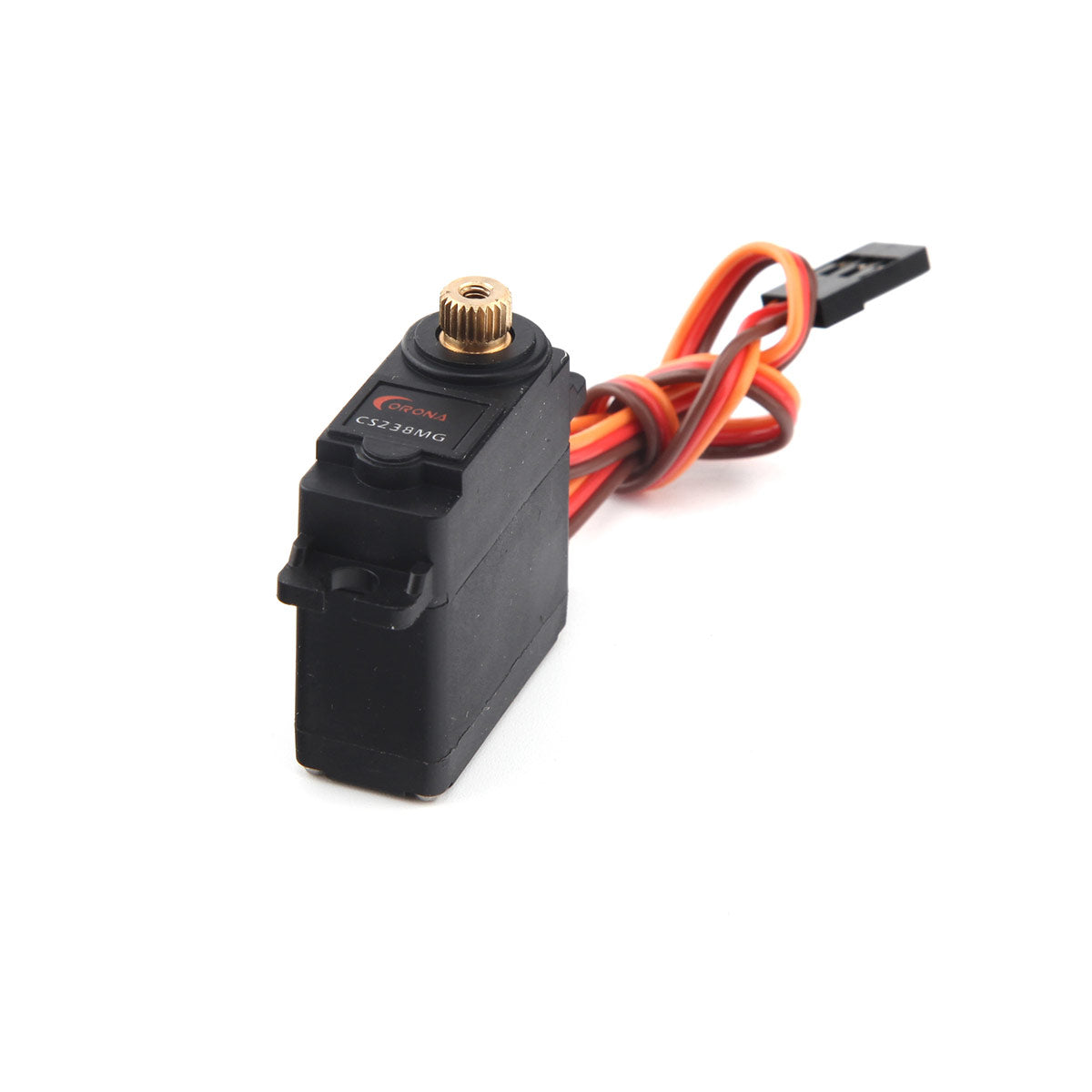

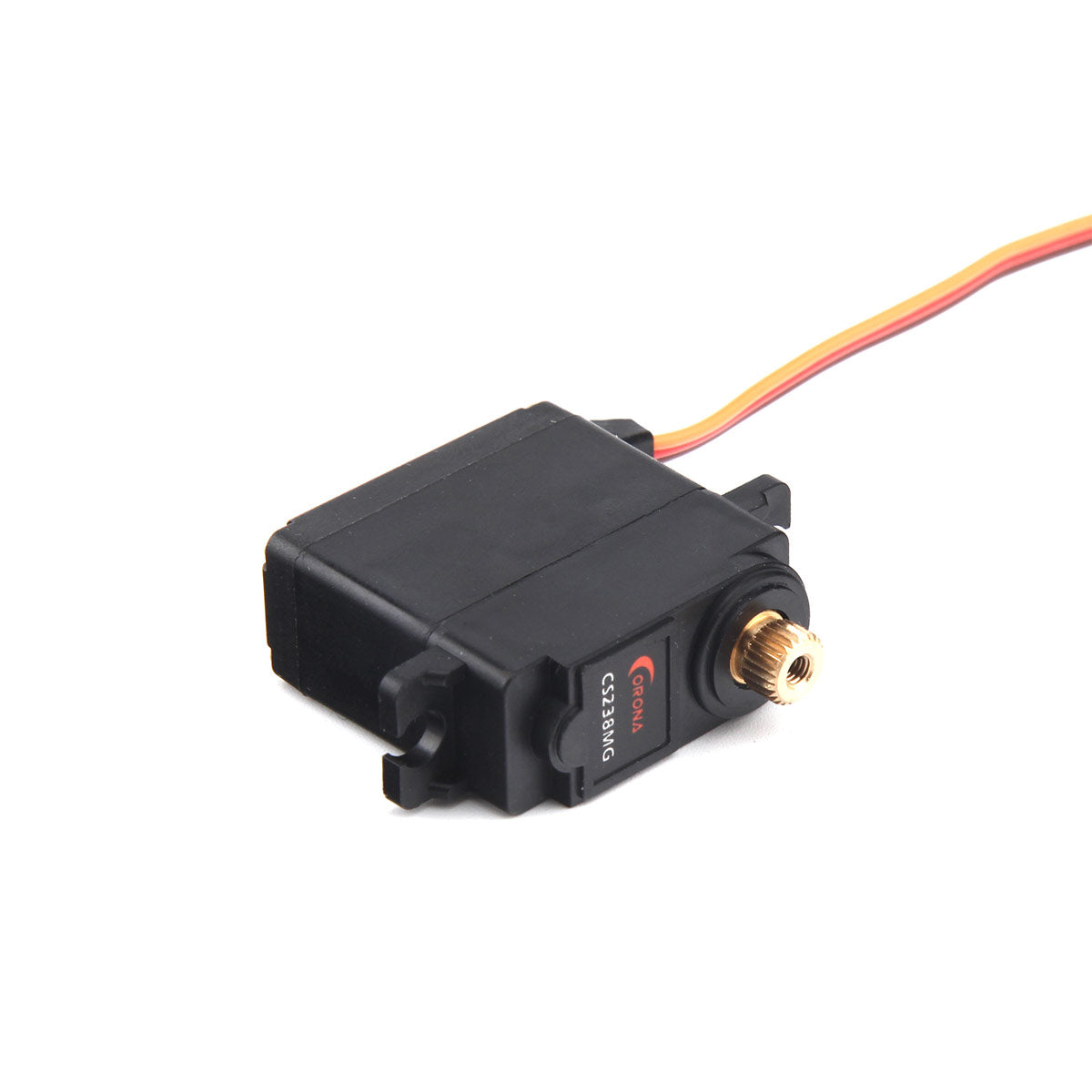

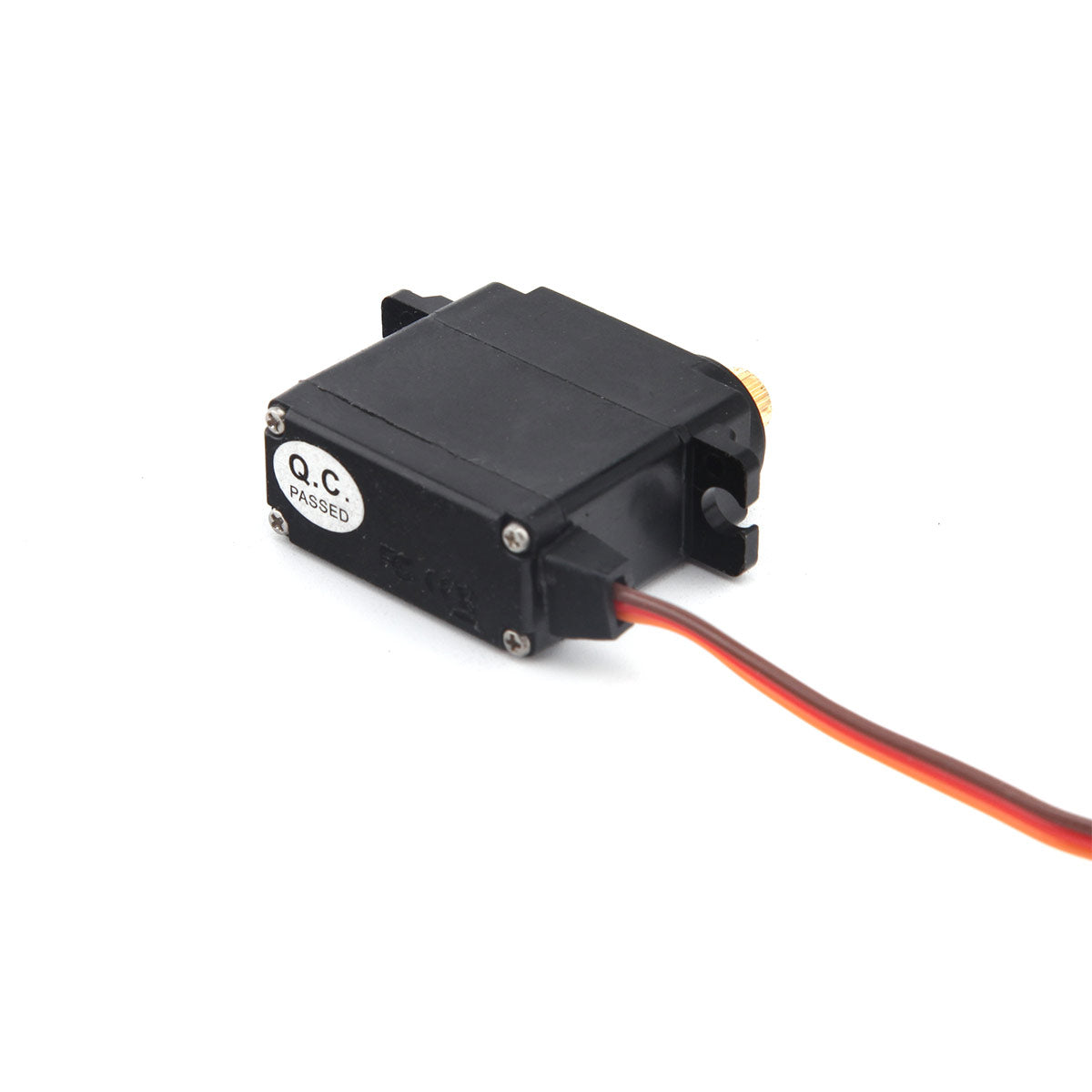

Corona CS238MG Metal Gear Servo 4.6kg / 0.14sec / 22g
Brand:Corona
Item:CS238MG Analog Servo
Model: CS238MG
Operating Voltage: 4.8V / 6.0V
Operating Current: 300mA / 400mA
Operating Speed: 0.15sec.60º/ 0.14sec.60º
Stall Torque: 4kg.cm / 4.6kg.cm
Size: 29X13X30mm
Weight: 22g
Dead Band: ≤5uSec
Operating Travel: 40º/one side pulse traveling 400us
Potentiometer: 3 slider/Direct Drive
Ball bearing: MR106
Gear: Metal
Connector wire: 215mm
Operating Temperature Range: -20°C ~ +60°C

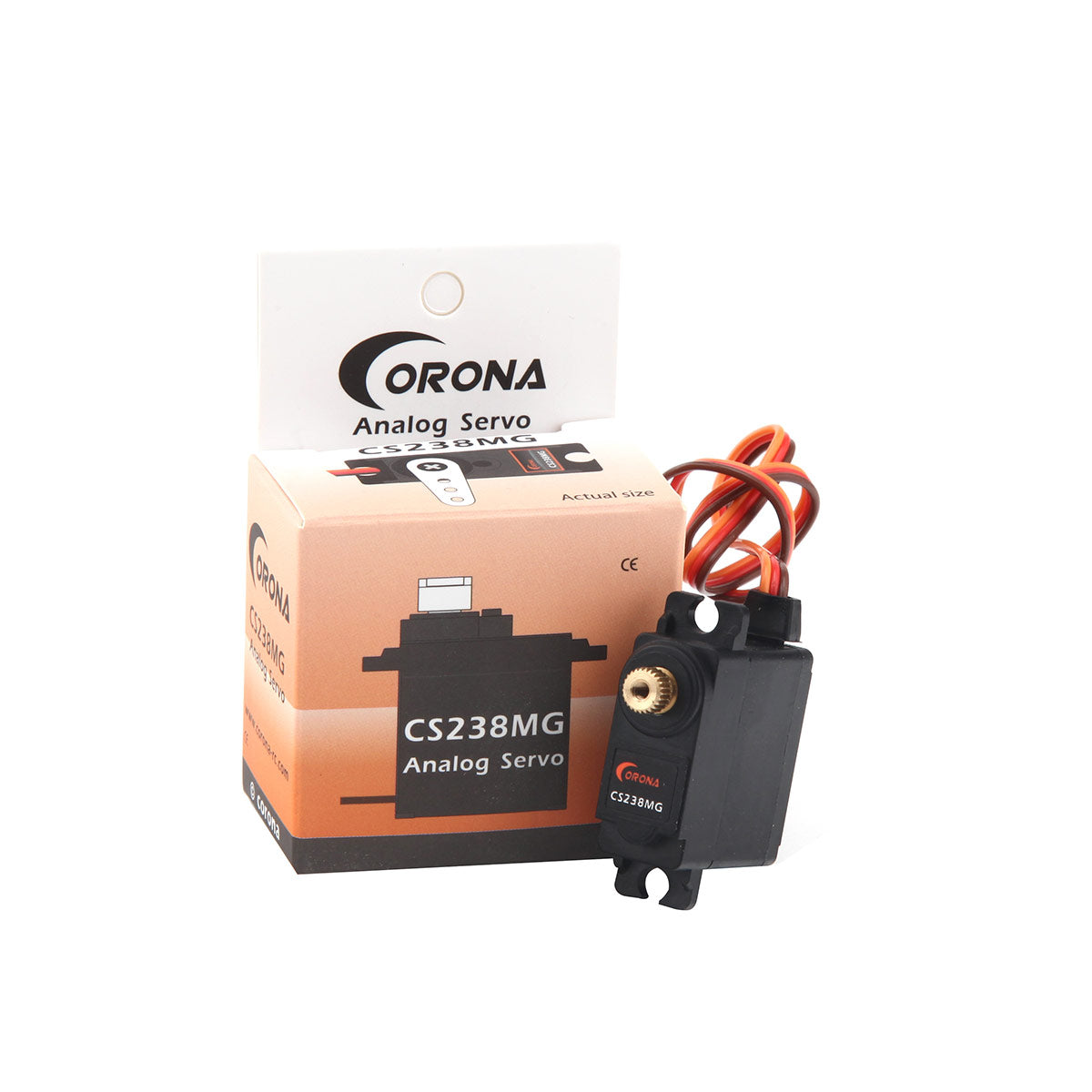

Package Included:
1 x CS238MG Metal Wing Analog Servo
