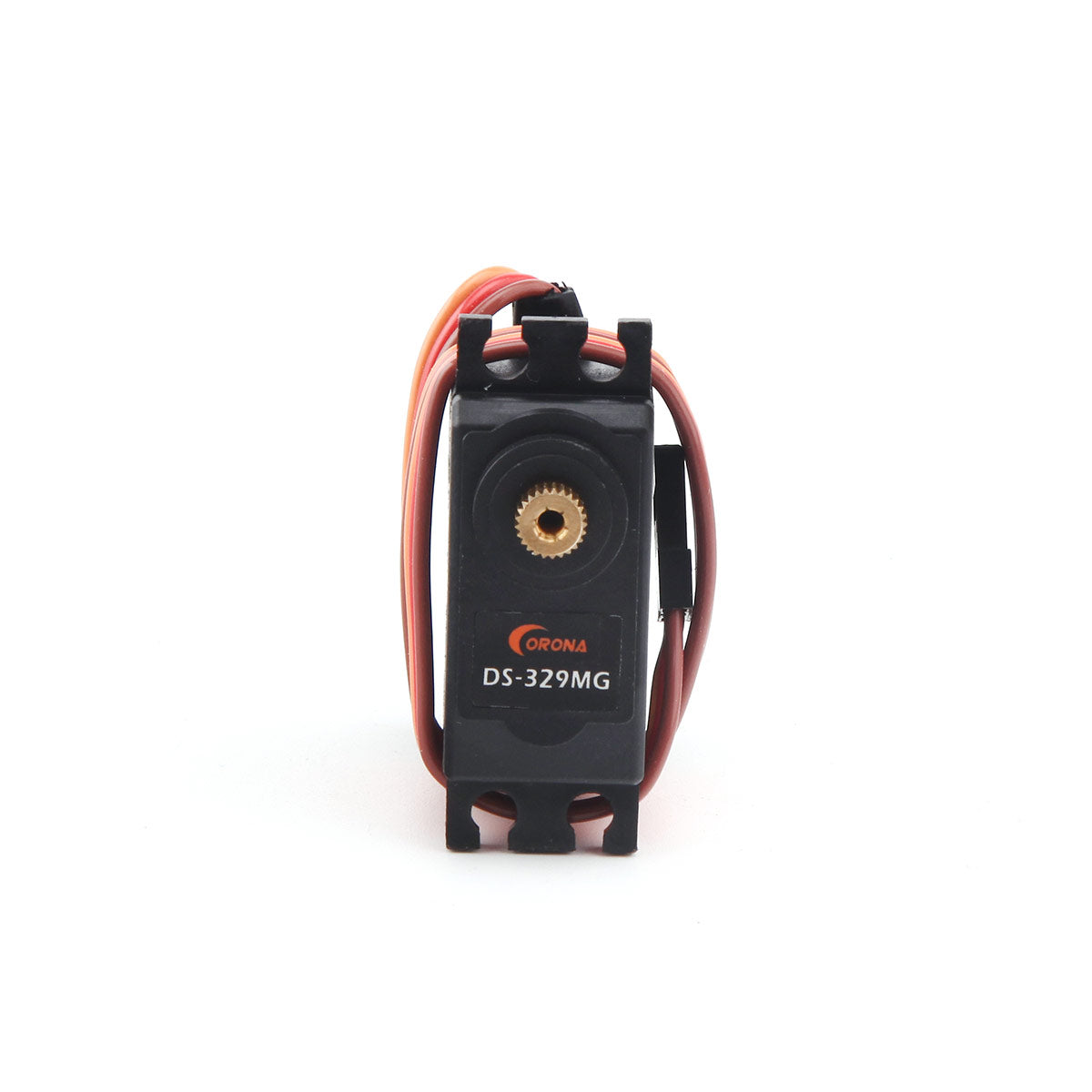

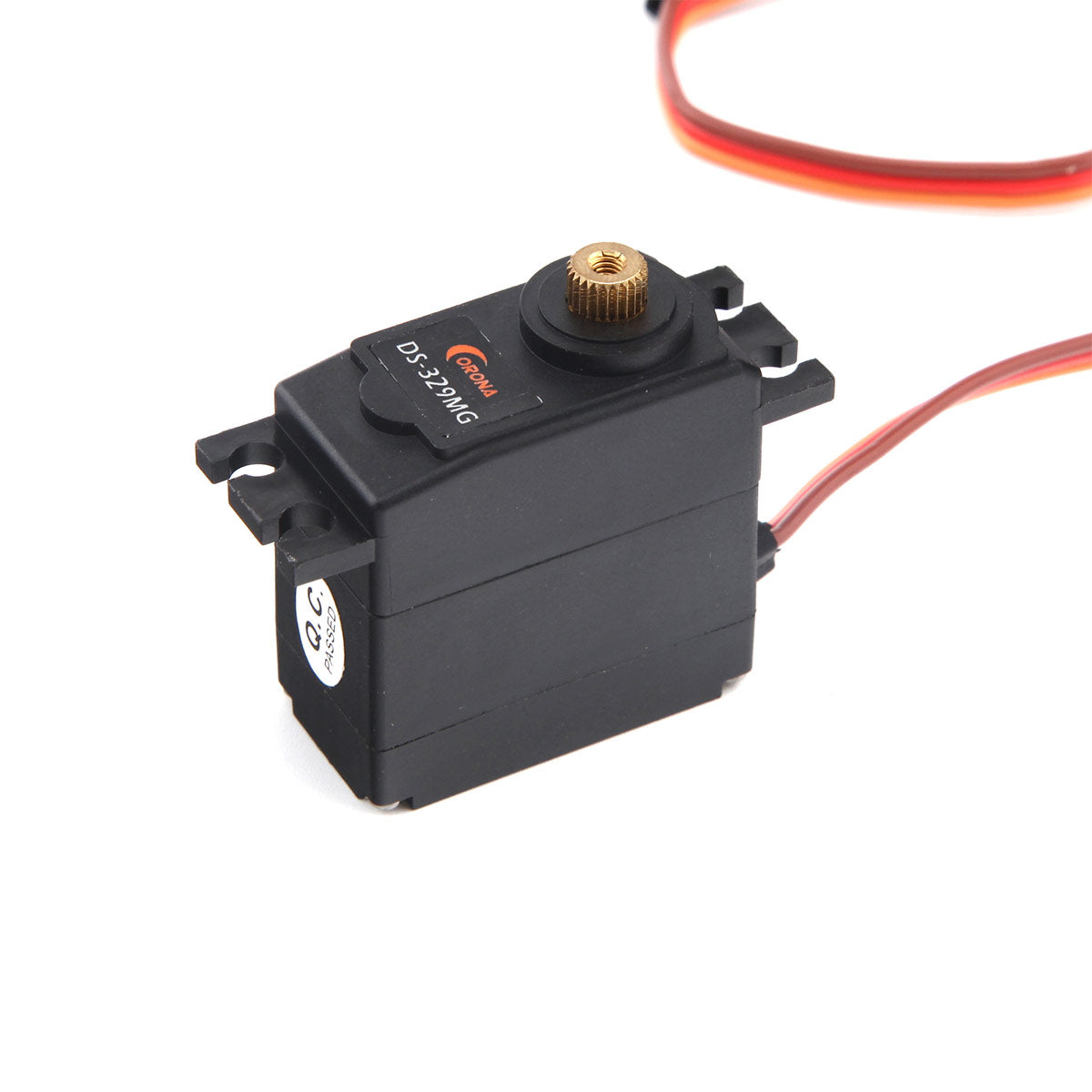

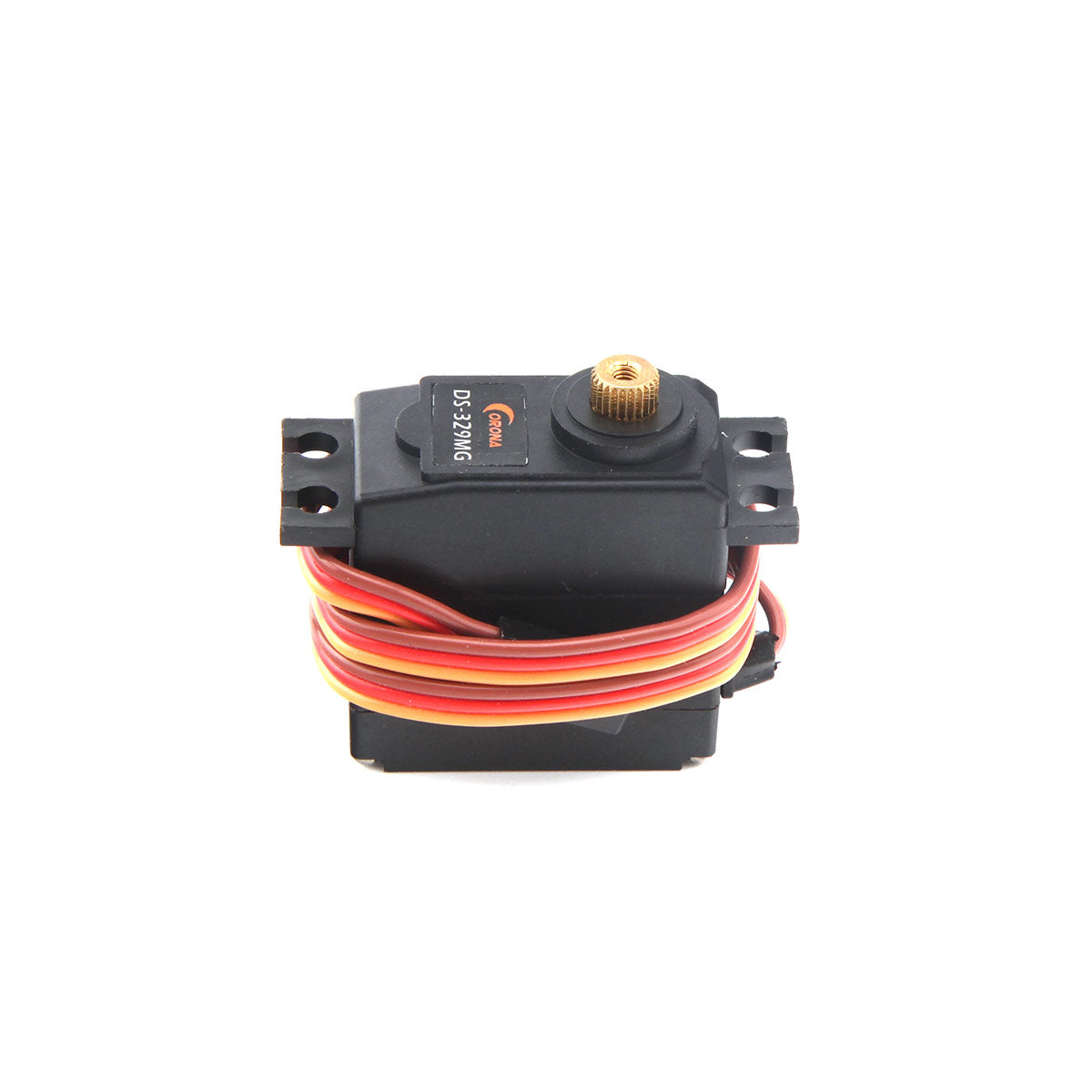

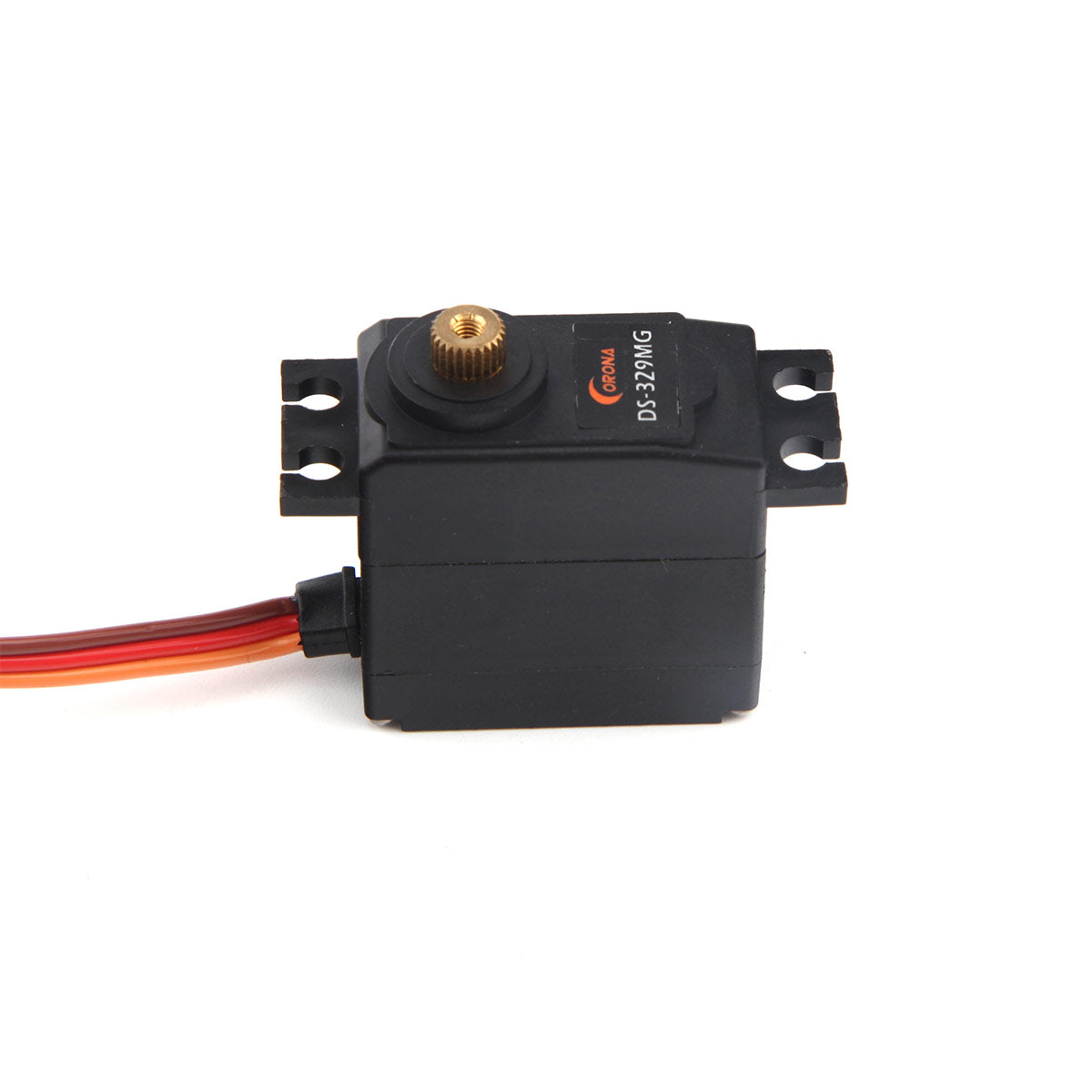

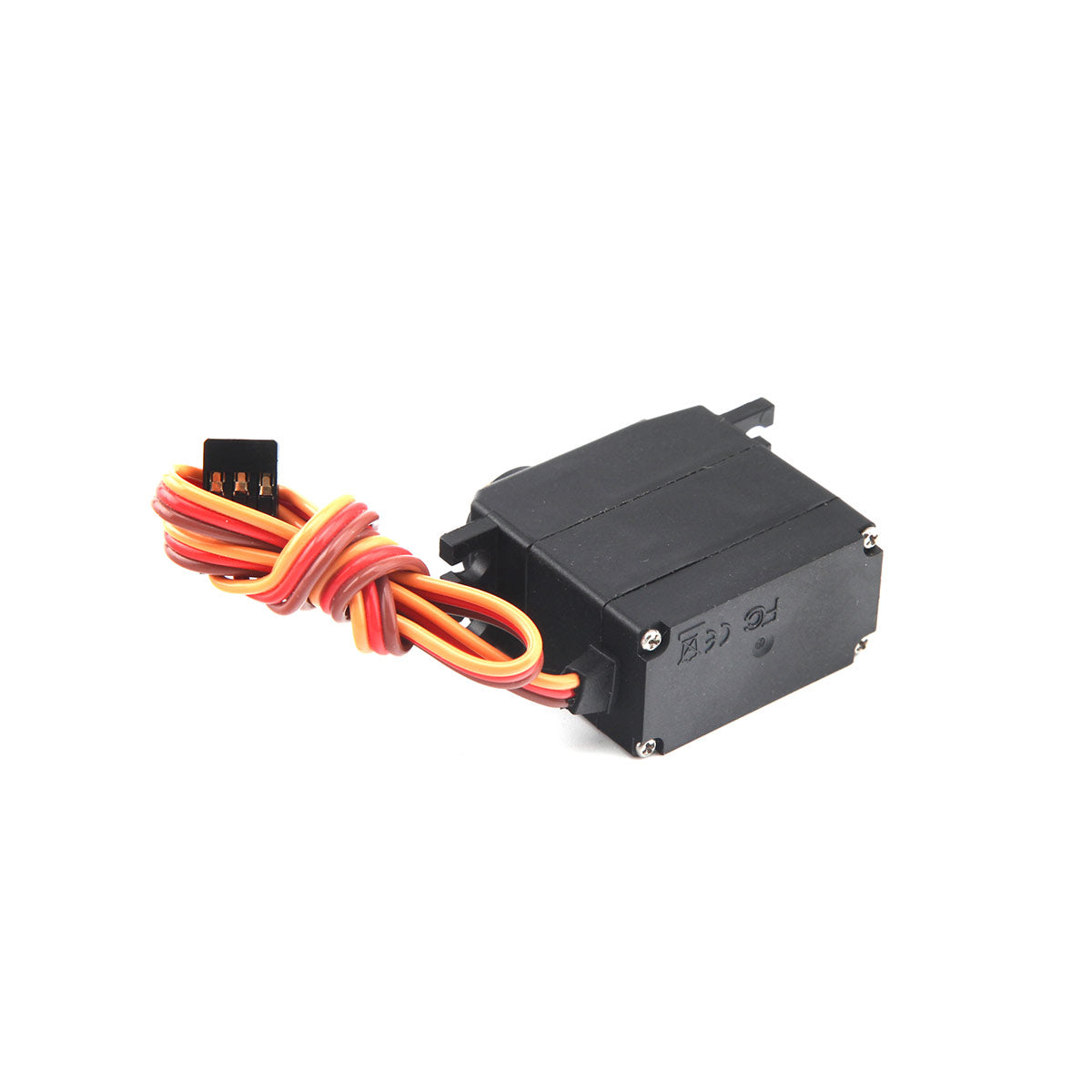

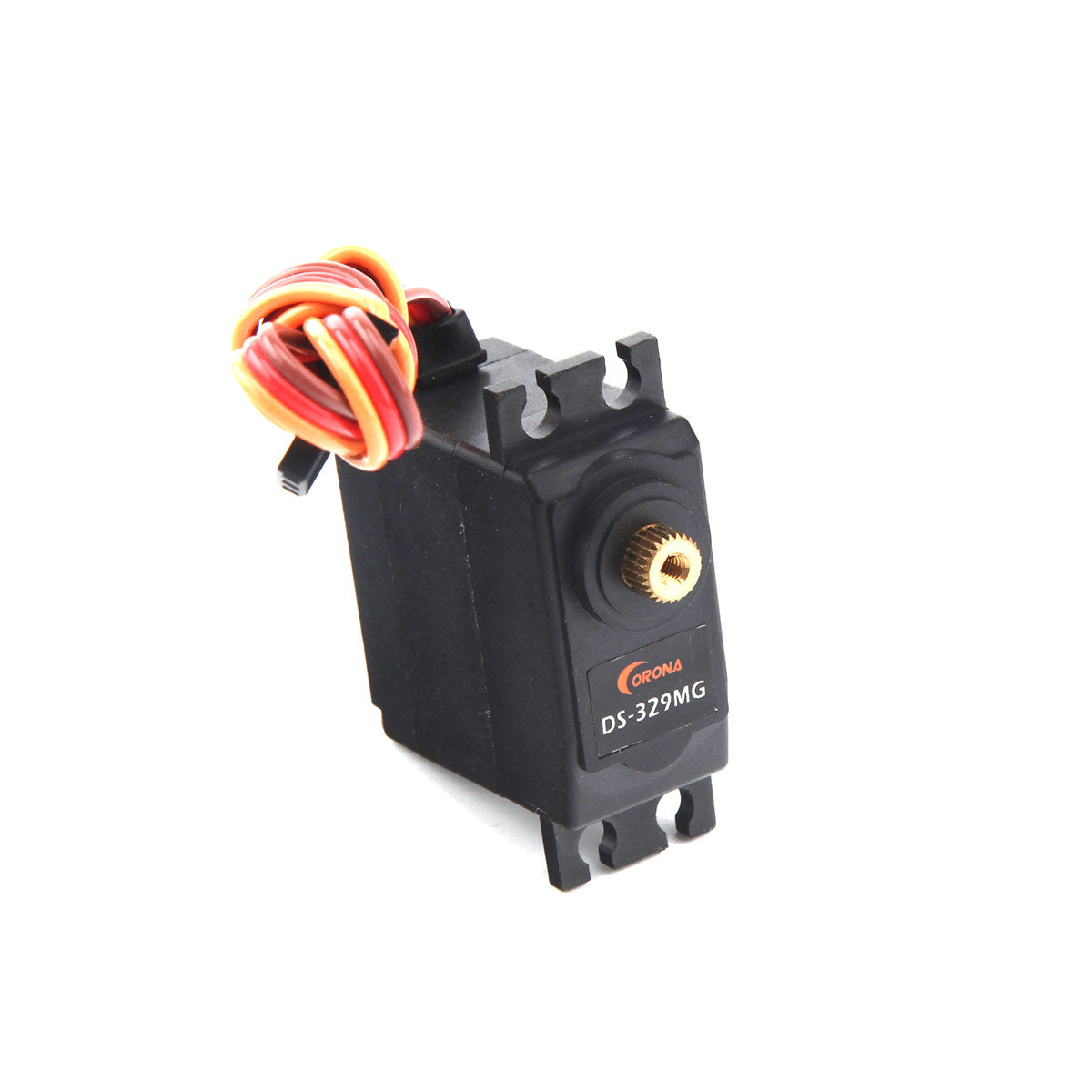

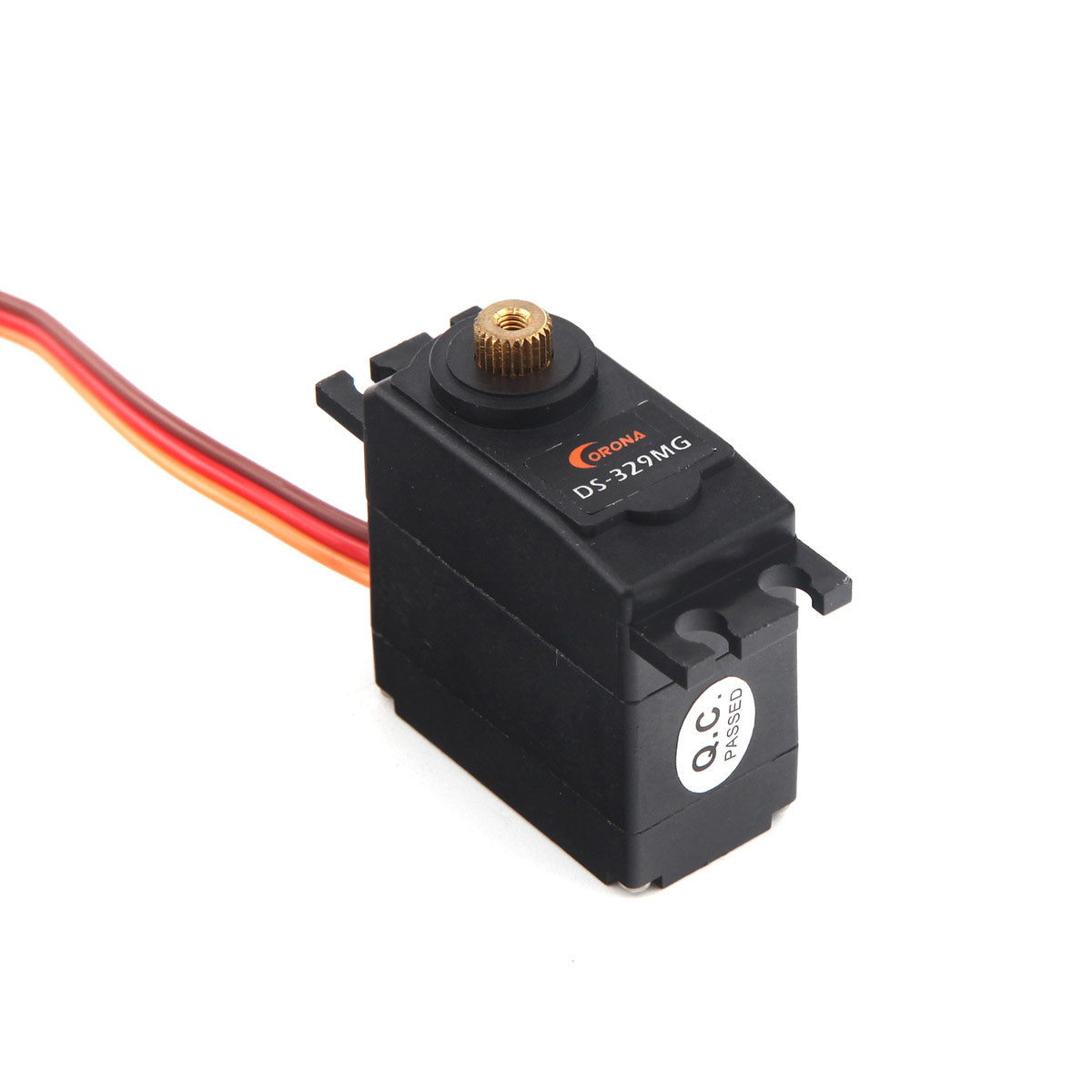

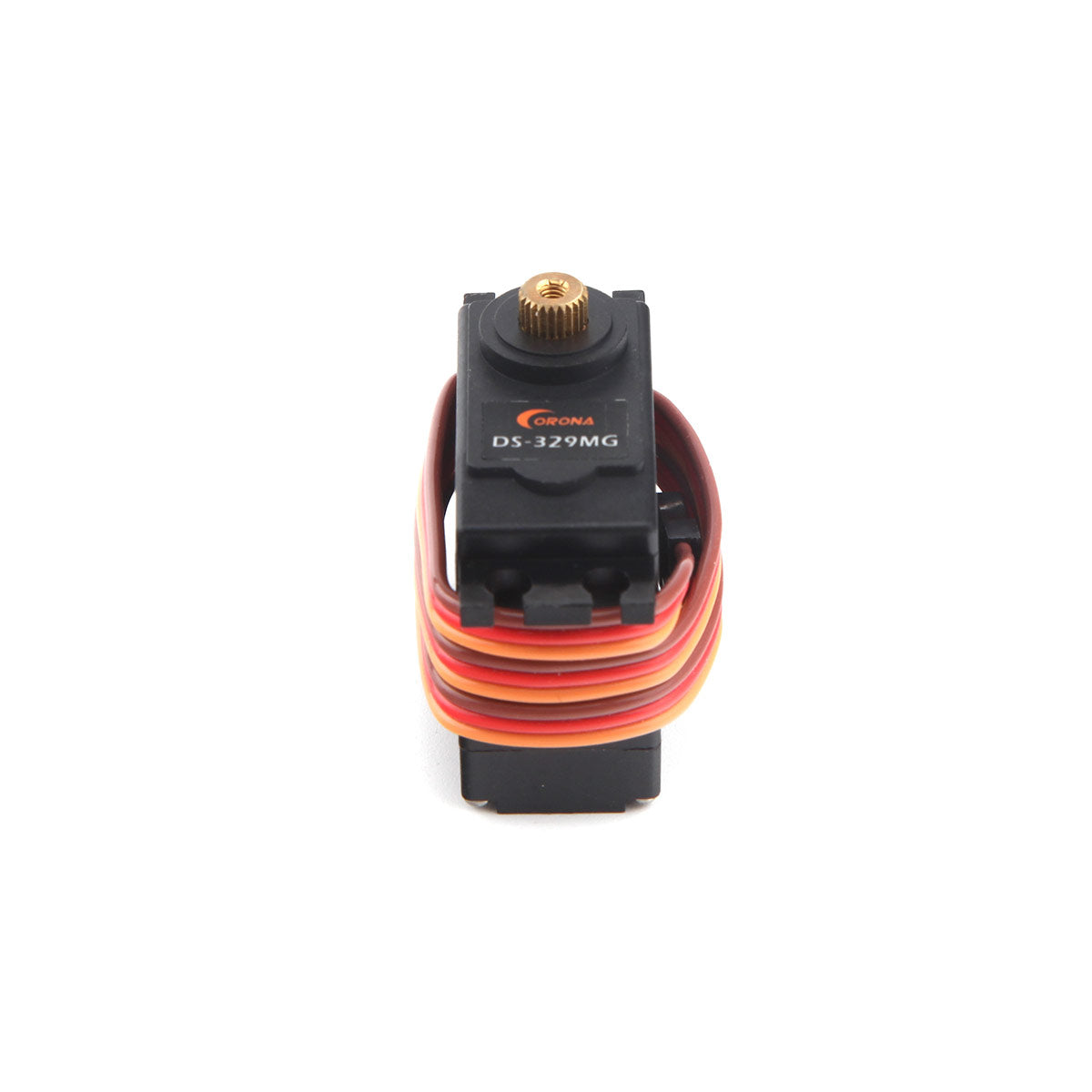

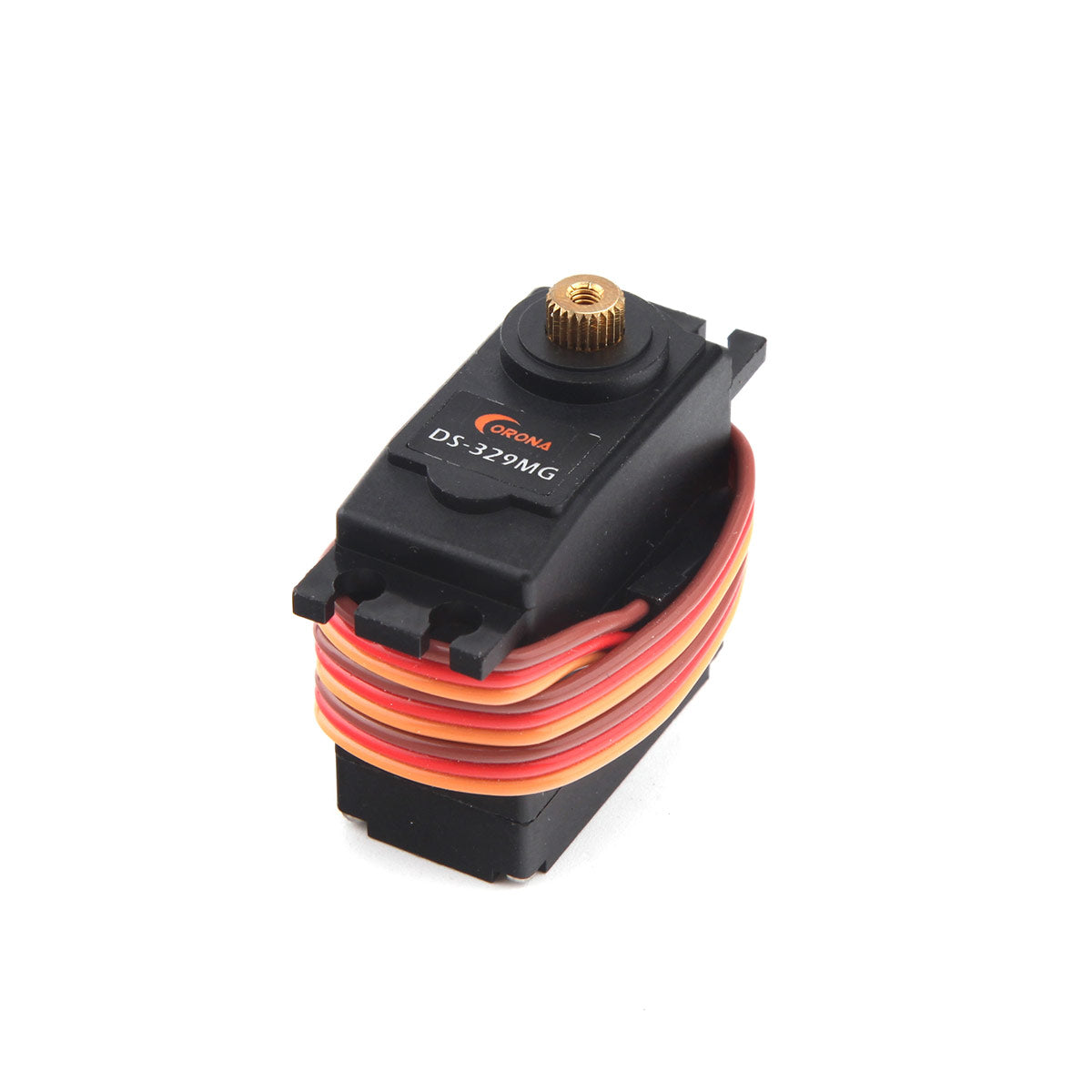

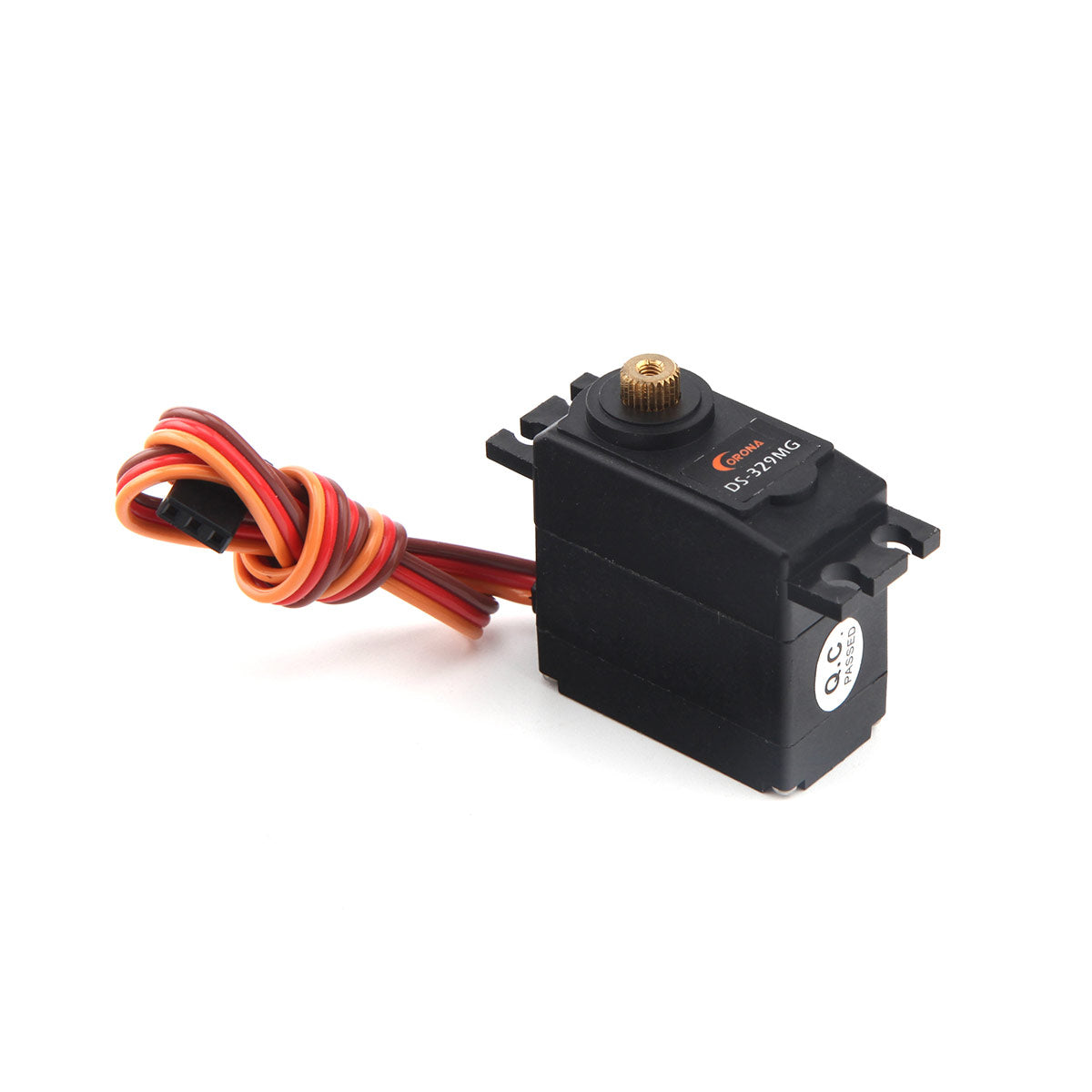

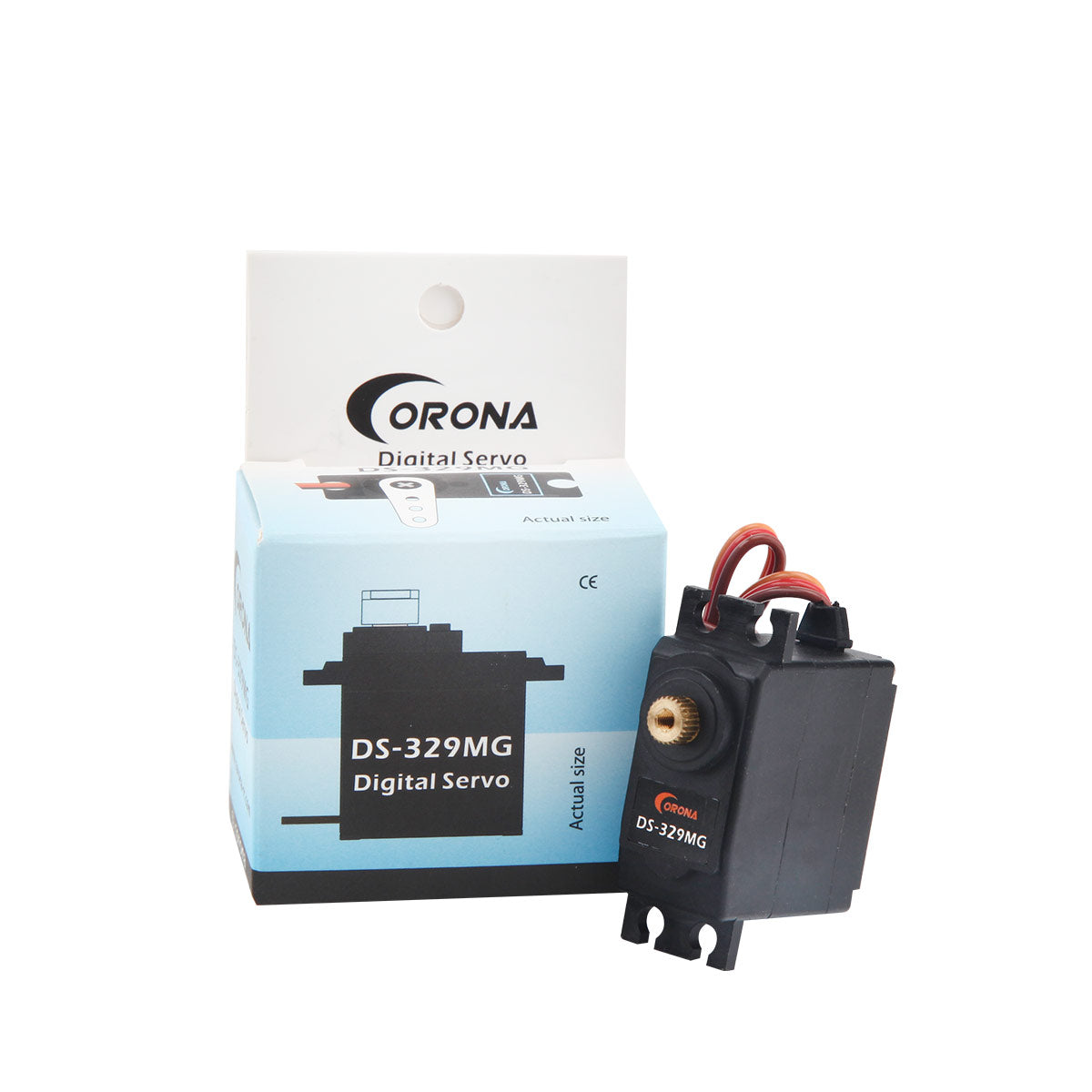

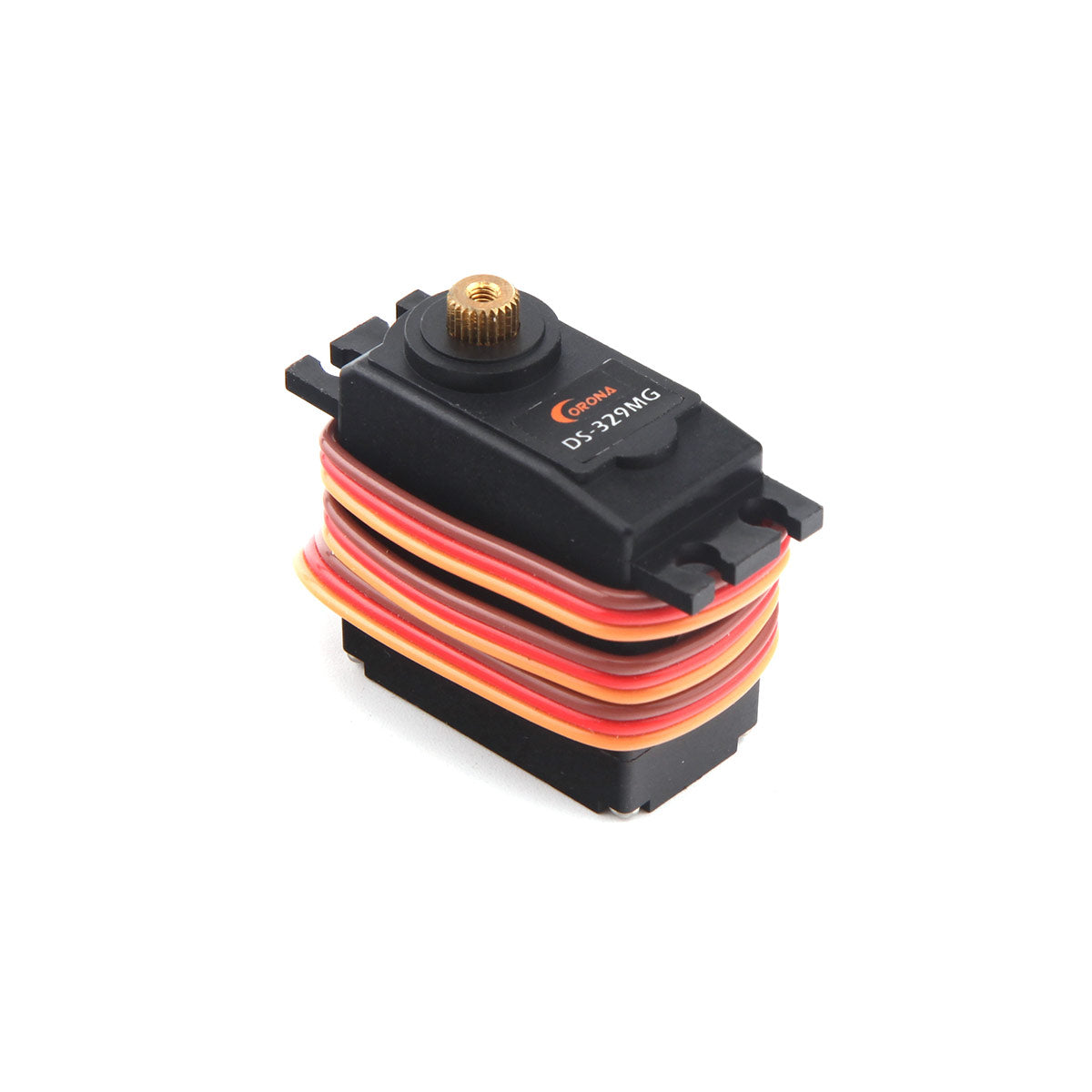

Corona DS329MG 4.5kg 0.11sec 32g Digital Metal Gear Mini Servo for Hobby Robotics Education Industrial

Flight ModelSKU: DS329MG

Price:
Sale price$10.91

Description

Corona DS329MG 4.5kg 0.11sec 32g Digital Metal Gear Mini Servo for Hobby Robotics Education Industrial

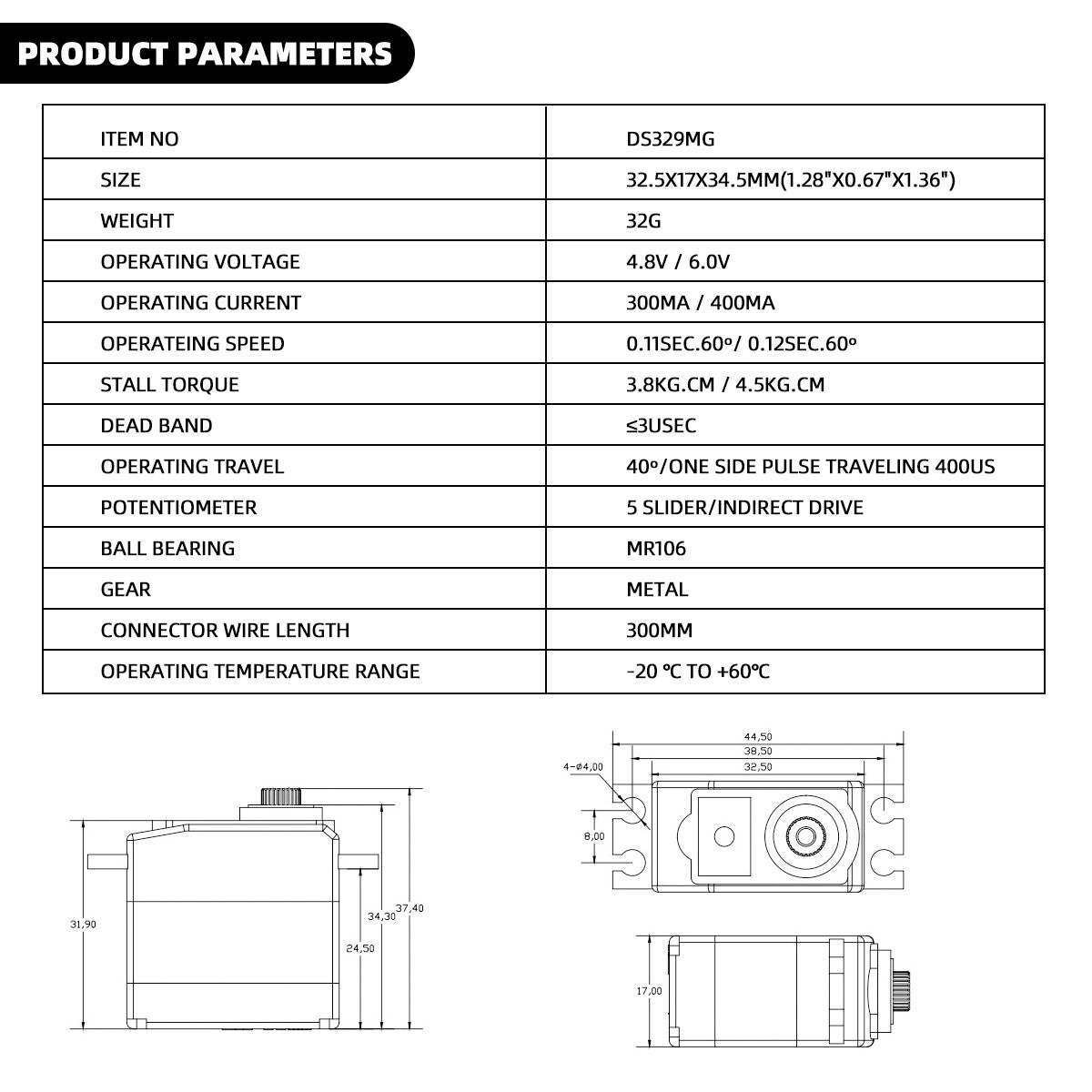

Specifications

Size: 32.5x17x34.5mm(1.28''x0.67''x1.36'')
Weight: 32g
Operating voltage: 4.8V / 6.0V
Operating current: 300mA / 400mA
Operating speed: 0.11sec.60º/ 0.12sec.60º
Stall torque: 3.8kg.cm / 4.5kg.cm
Dead band: ≤3uSec
Operating speed: 40º/one side pulse traveling 400us
Potentiometer: 5 slider/Indirect Drive
Ball bearing: MR106
Gear Material: Metal
Connector wire length: 300mm
Temperature: -20 ℃ to +60℃
