  • SKU: DS843MG
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Corona DS843MG/ DS-843MG Digital High Torque Micro Servo 4.8kg / 0.10sec / 8.5g

$10.91
DESCRIPTION

Corona DS 843MG Digital High Torque Micro Servo 4.8kg / 0.10sec / 8.5g

Specification

Corona digital servos are a must for the discerning pilot. They have higher resolution, accurate positioning, faster control response, constant torque throughout the servos travel, increased holding power and a really tight deadband.

The Corona DS-843MG metal geared servo is not only fast (0.10sec/60°) but it has an incredible amount of torque (4.8kg) which for a servo weighing only 8.5g is quite something.

Features:
• High resolution
• Accurate positioning
• Fast control response
• Constant torque throughout servo travel
• Excellent holding power
• Tight deadband
• Quick acceleration
• High torque

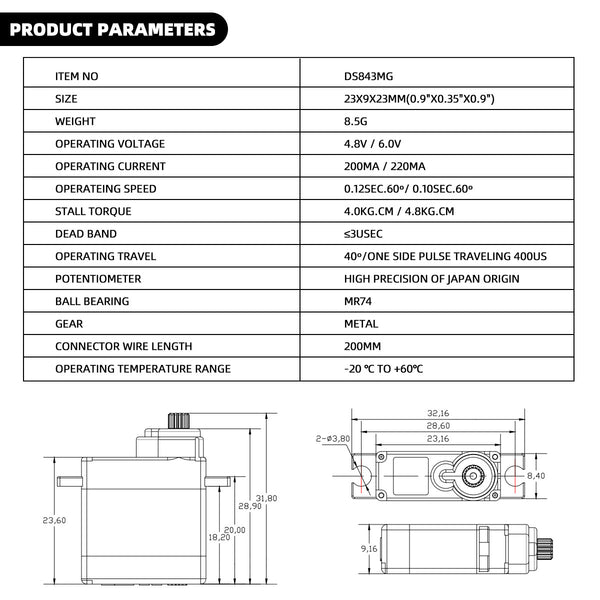

Specs:
Model: DS-843MG
Operating Voltage: 4.8~6V
Speed: 0.12- 0.10sec/60°@6v
Torque: 4.0-4.8kg@6V
Gears: Metal
Motor: Coreless
Bearing: Ball bearing
Amplifier: Digital with Mosfet drive
Weight: 8.5g
Dimensions: 23 x 9 x 23mm
Servo Plug: JR type
Servo Lead Length: 190mm
Spline count: 15
