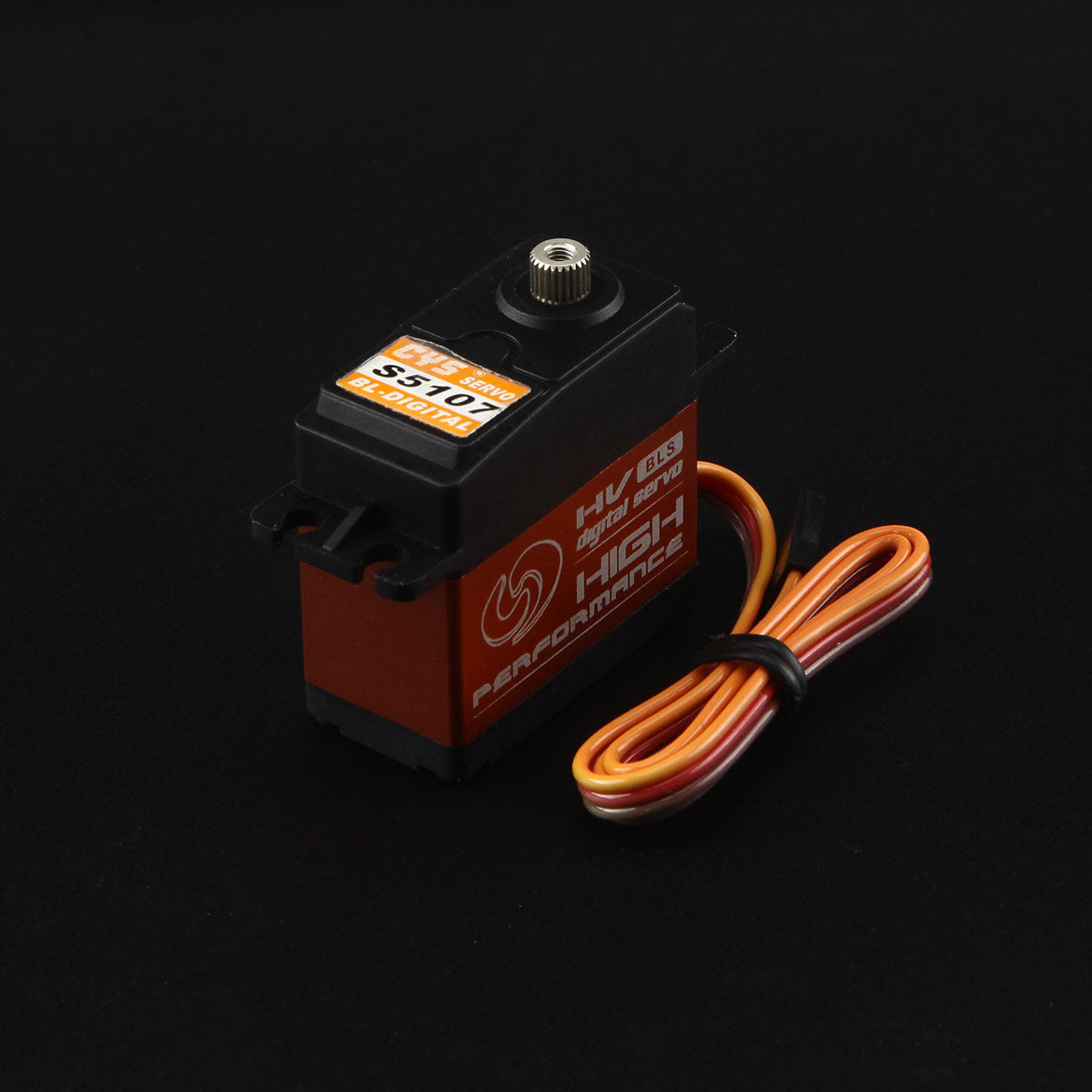

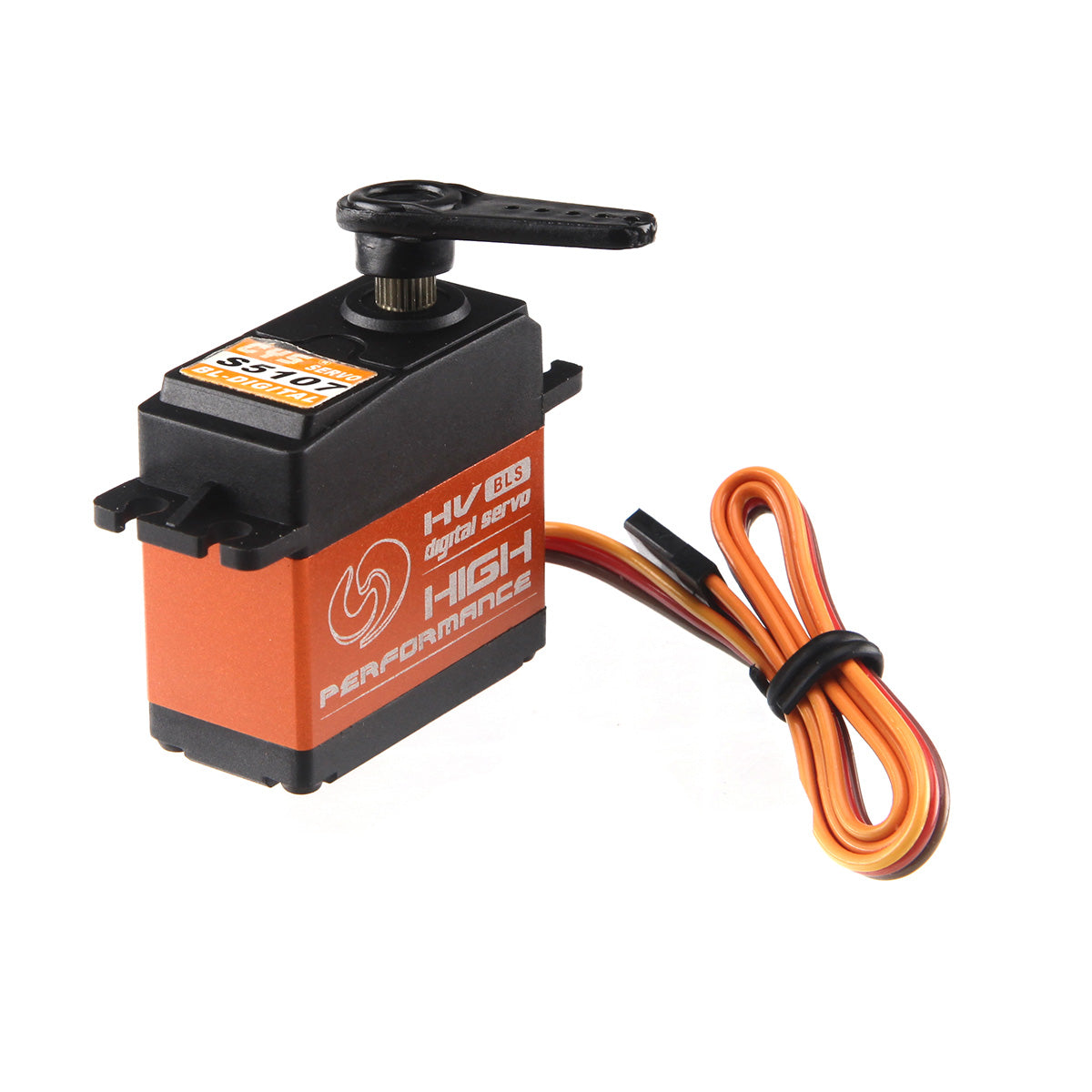

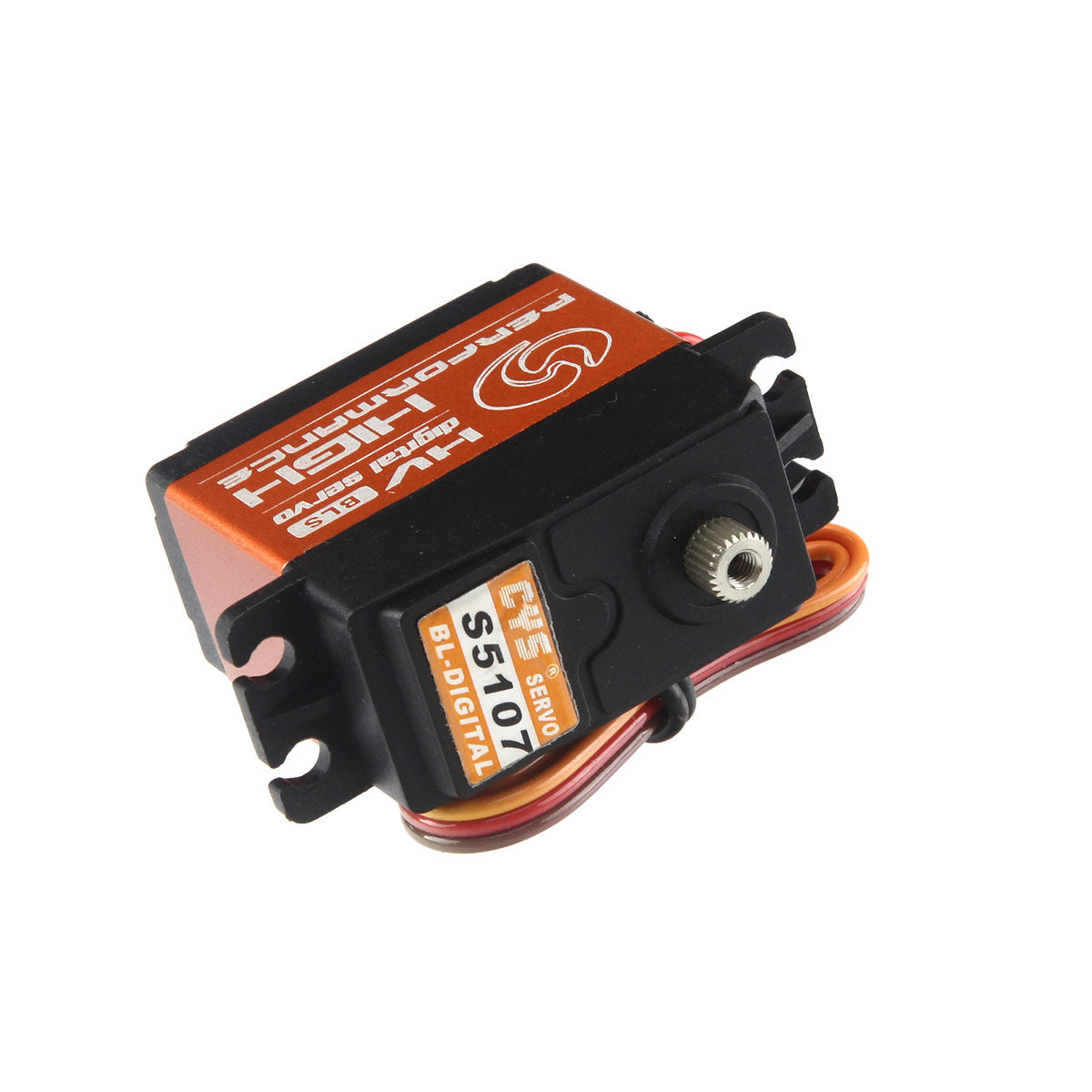

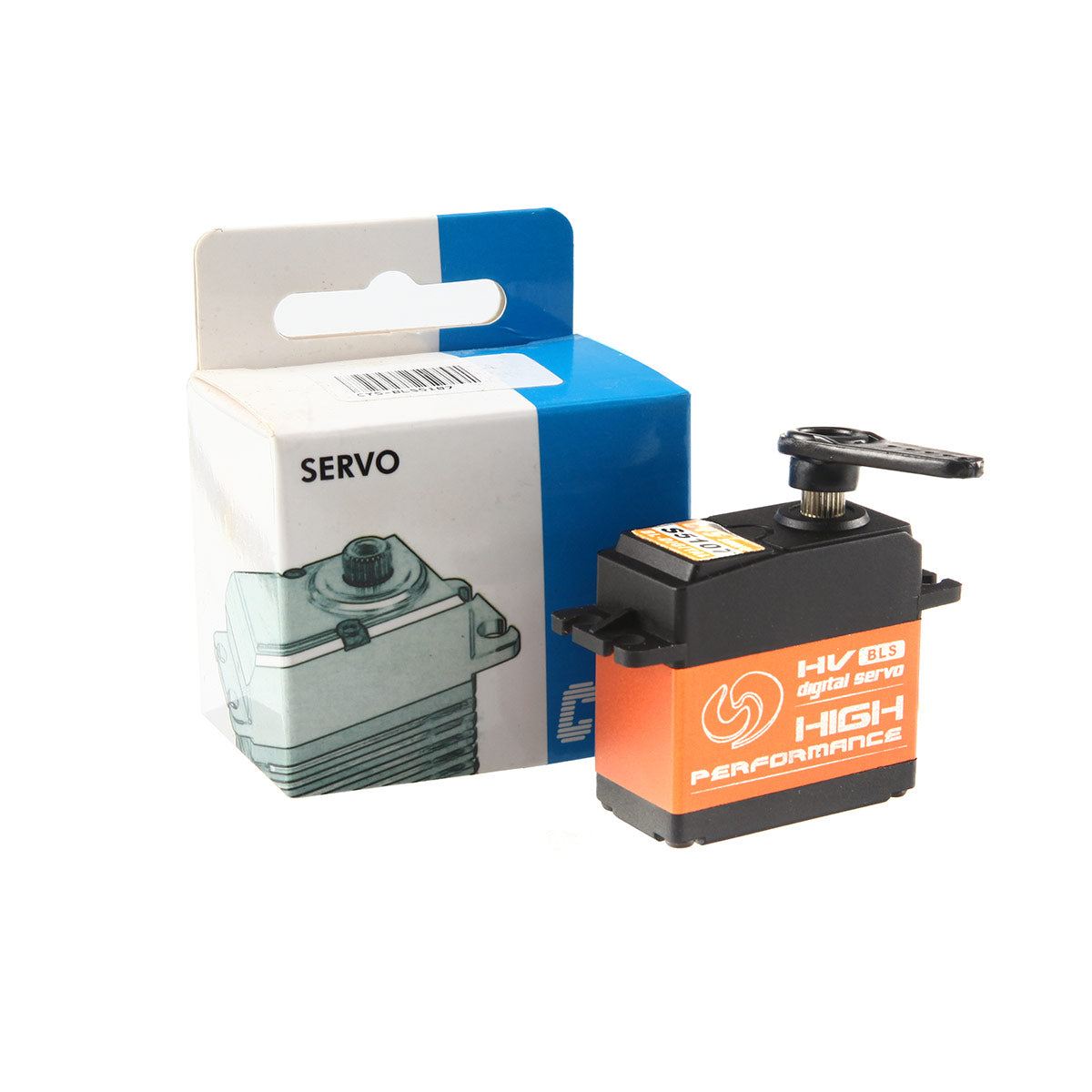

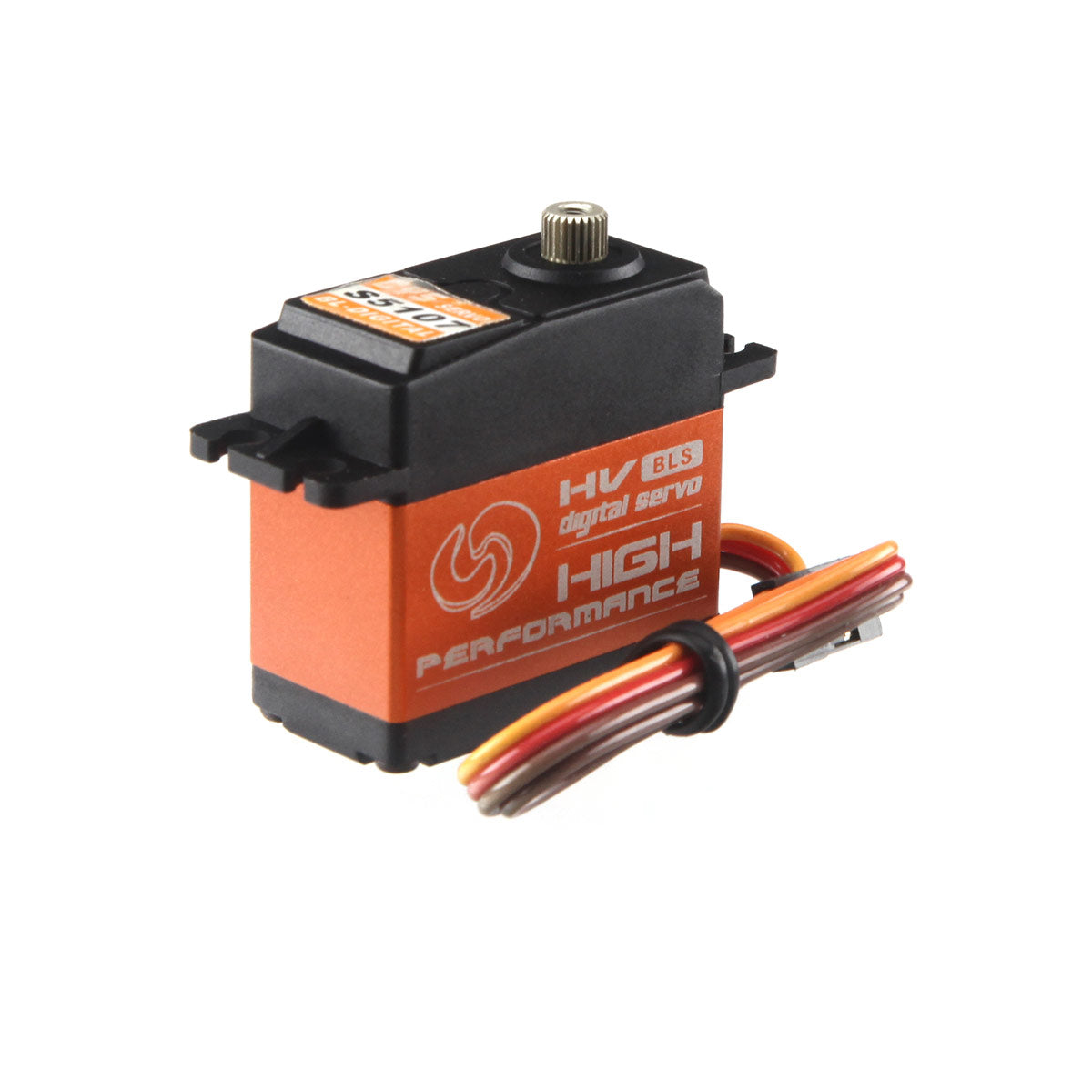

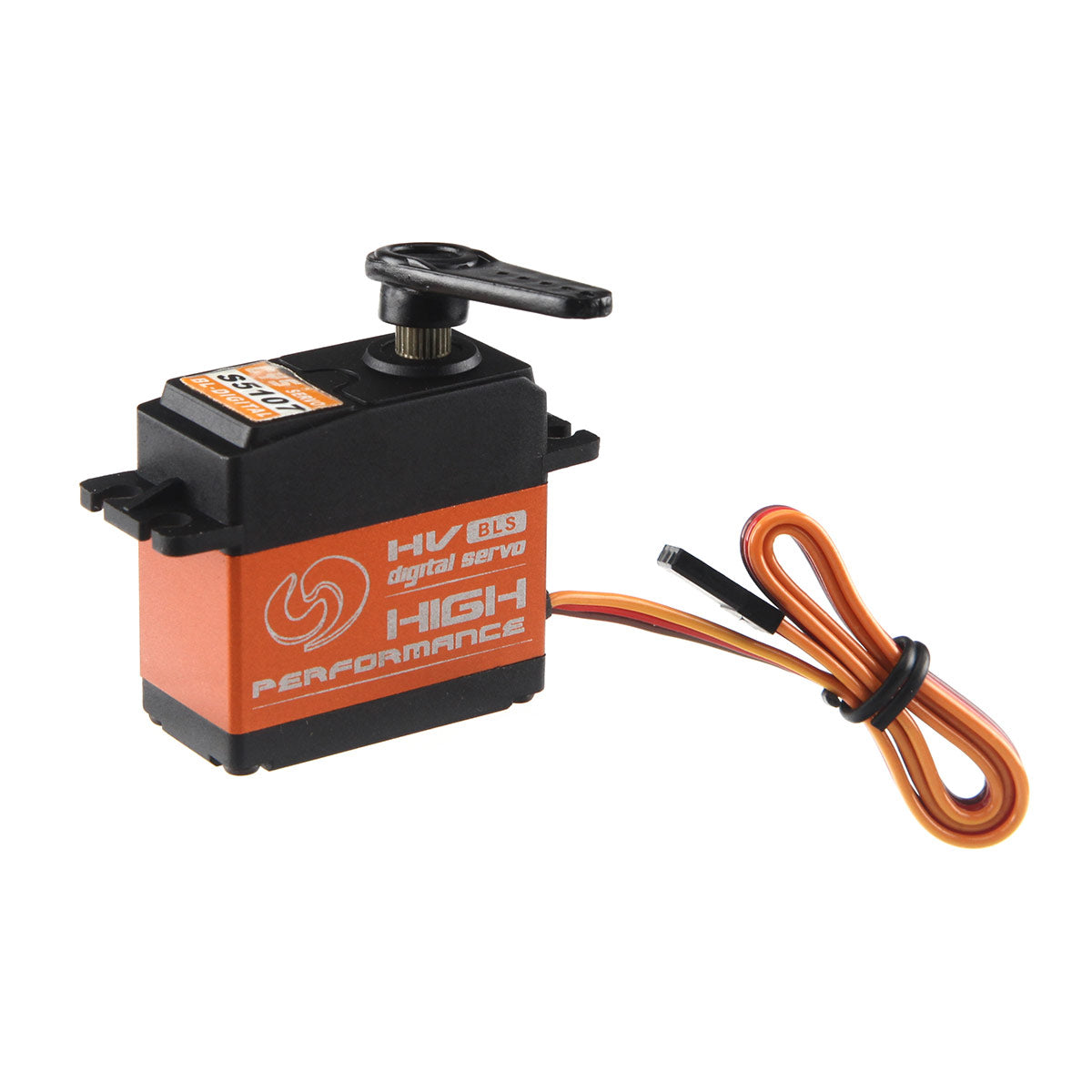

CYS-BLS5107 PWM Control 6.0-7.4V 7KG Torque Digital Servo for 600/700 Heli Fixed Wing

Flight model cys servoSKU: CYS-BLS5107

Price:
Sale price$52.70

Description

Size: 40.3 * 20.3 * 39.2mm
Control method: PWM signal control, neutral position 1500usec
Working voltage: 6.0-7.4V
Temperature range: (-) 10 to +50 °
Idle speed @ 6.0V: 0.06sec / 60 °
Idle speed @ 7.4V: 0.05sec / 60 °
Torque @ 6.0V: 5.5kg.cm
Torque @ 7.4V: 7.0kg.cm
Operating angle: 90 ° in total, 45 ° in one side
Running direction: reverse, range 1000usec ~ 2000 usec
Standby / idle current @ 6.0V: 4mA / 100mA
Standby / idle current @ 7.4V: 5mA / 120mA
Stall current: 2.7A / 3.2A
Dead zone: 2usec
Motor type: brushless
Bearing type: double bearing
Number of output teeth: 25T
Gear type: aluminum teeth titanium plated
Cable length: 300mm without plug
Wire Information: Negative: Brown / Black
Positive: red
Signal line: orange / white

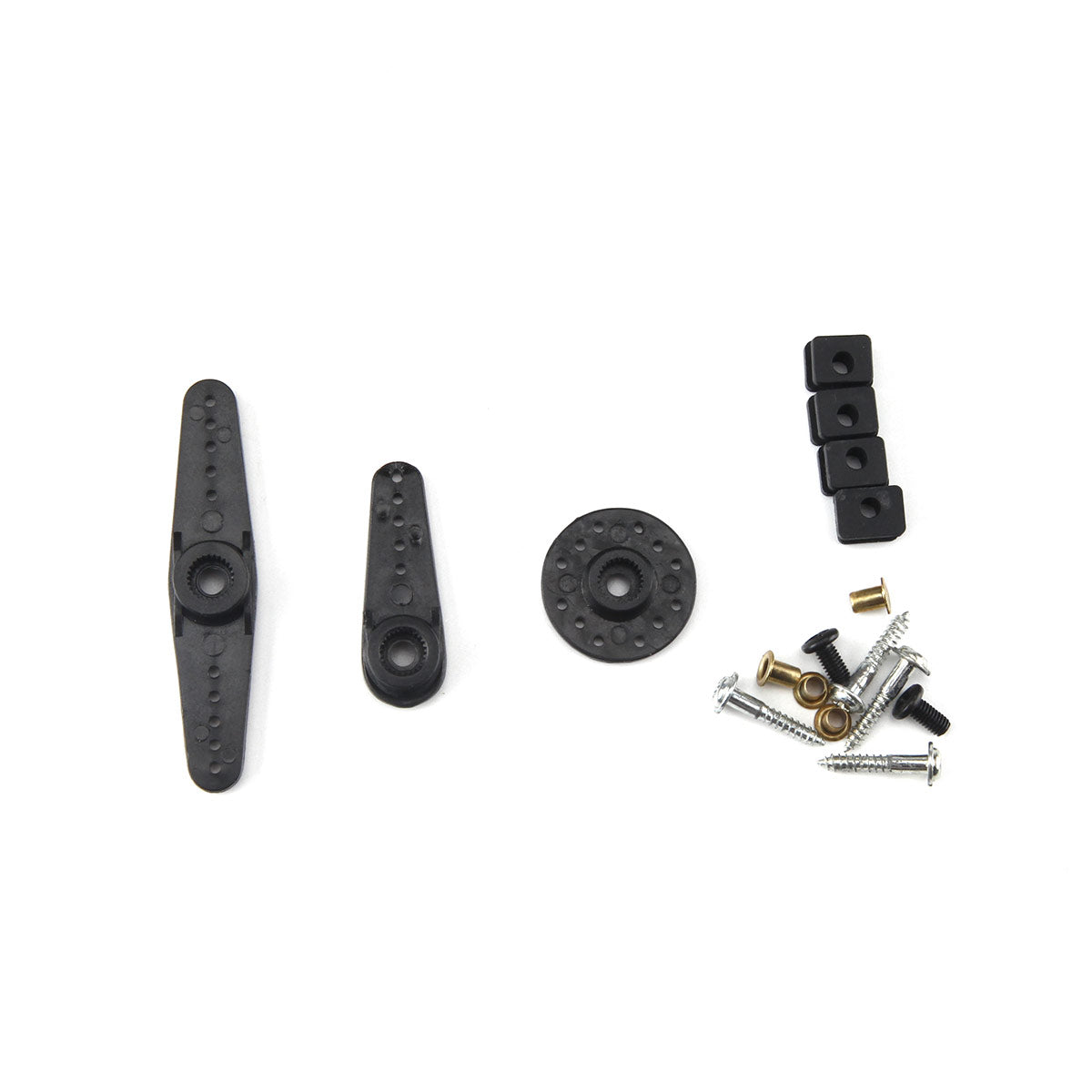

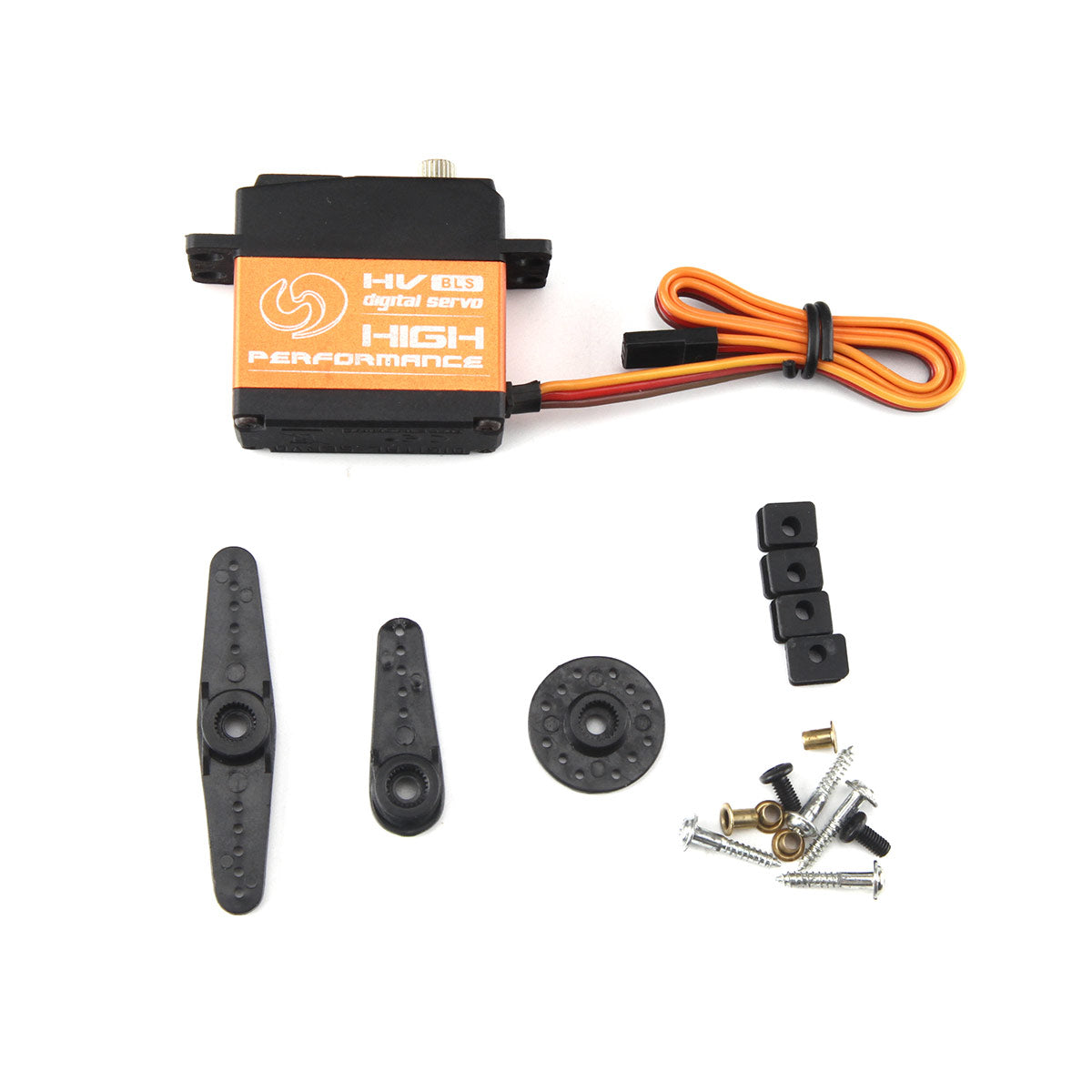

Package includes:

1pcs x servo
