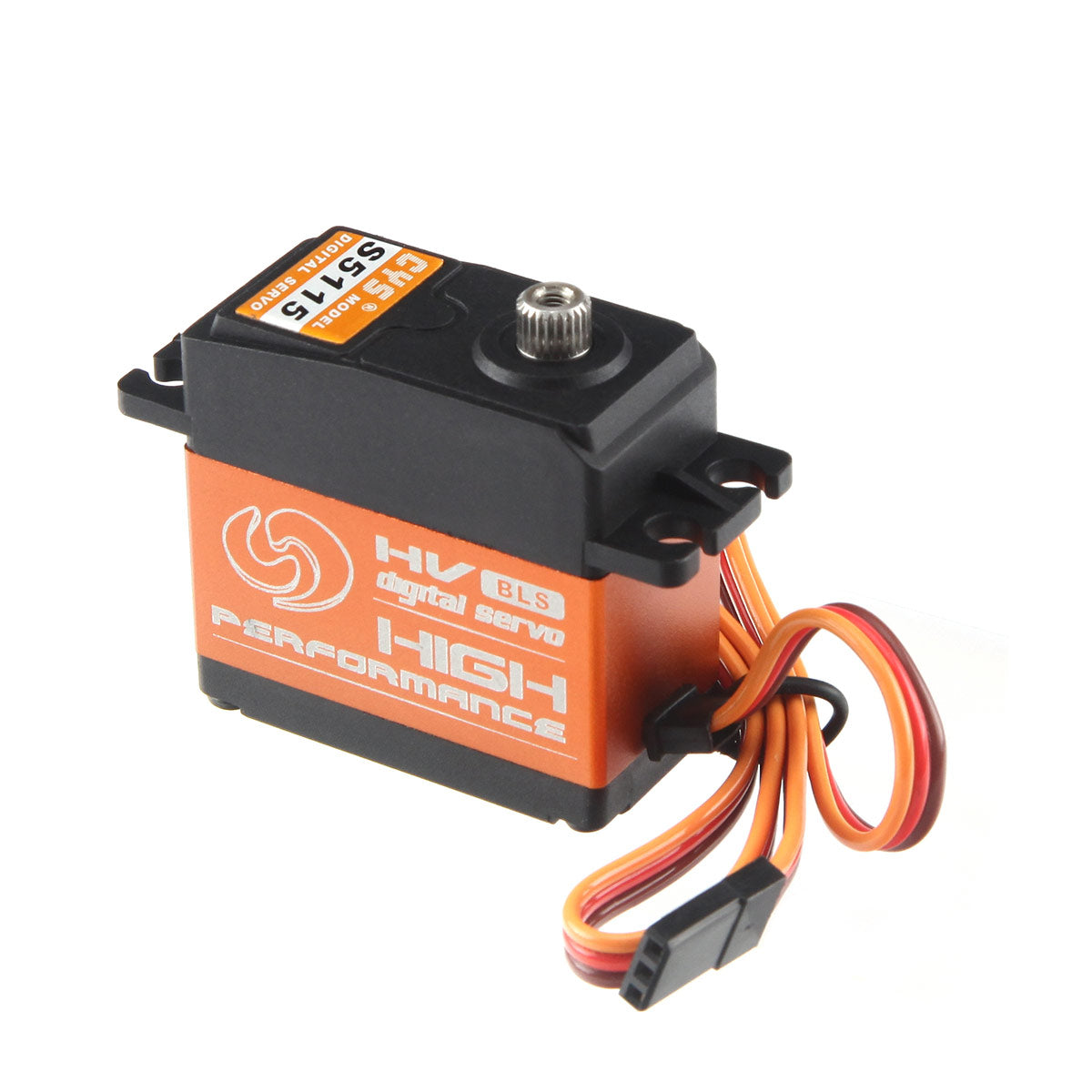

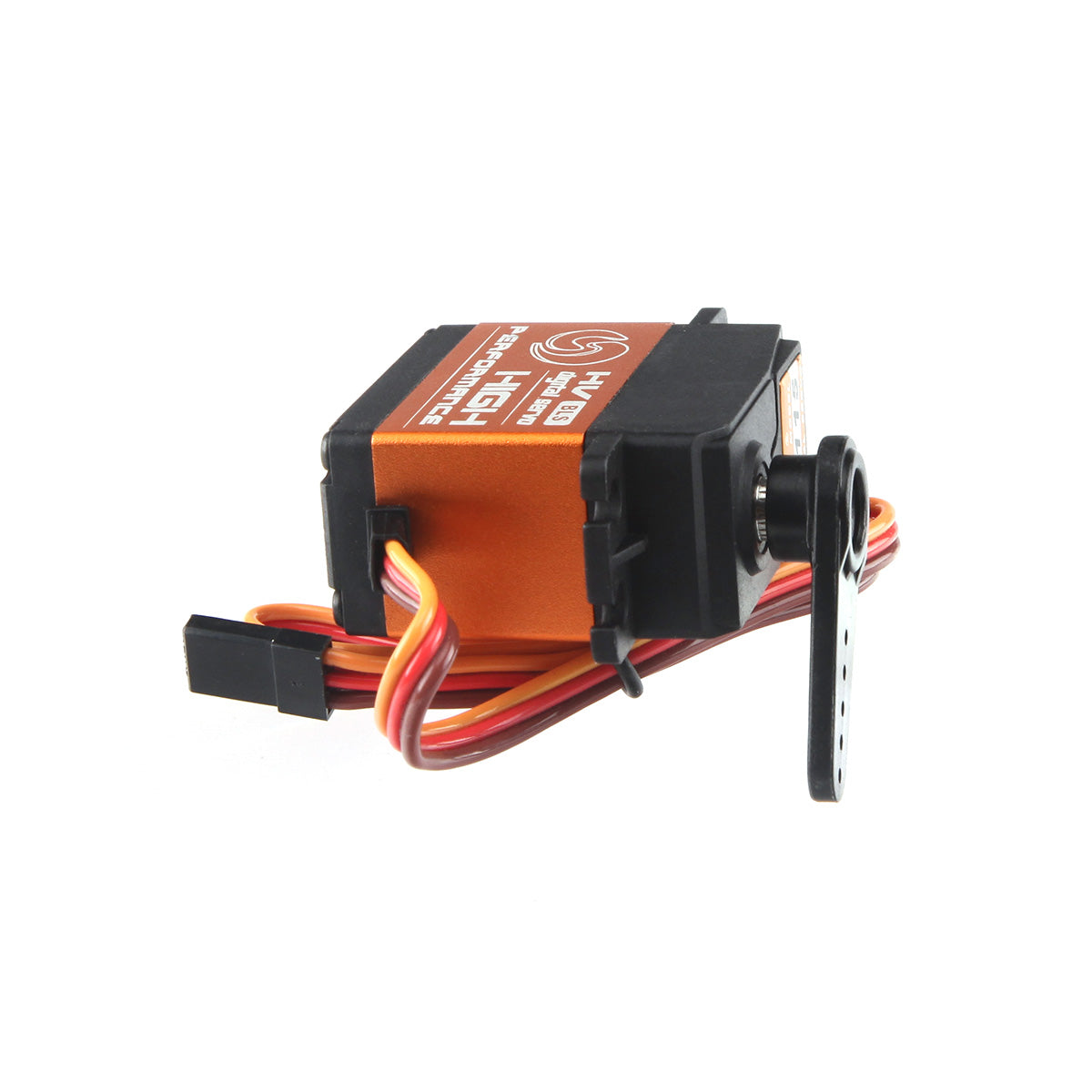

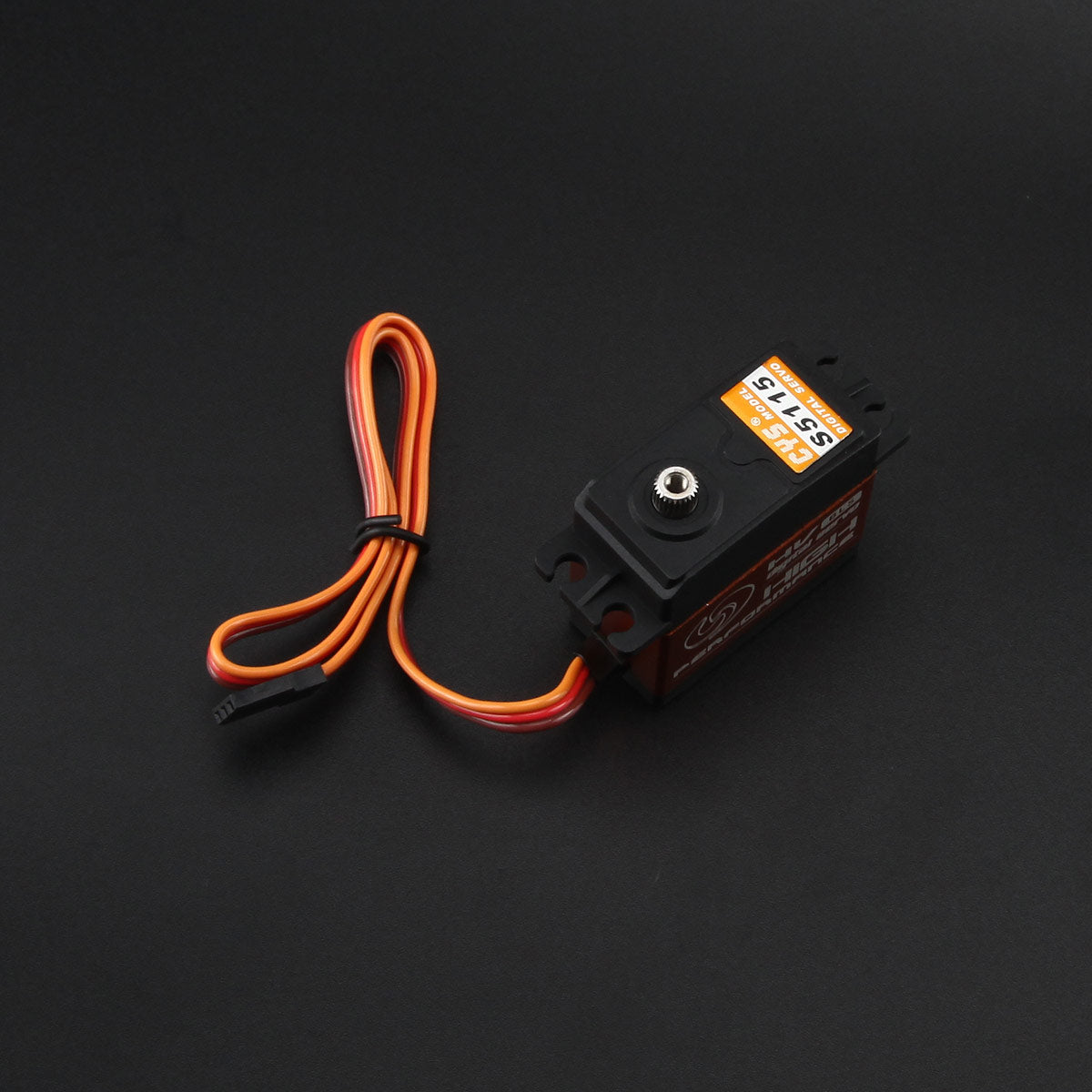

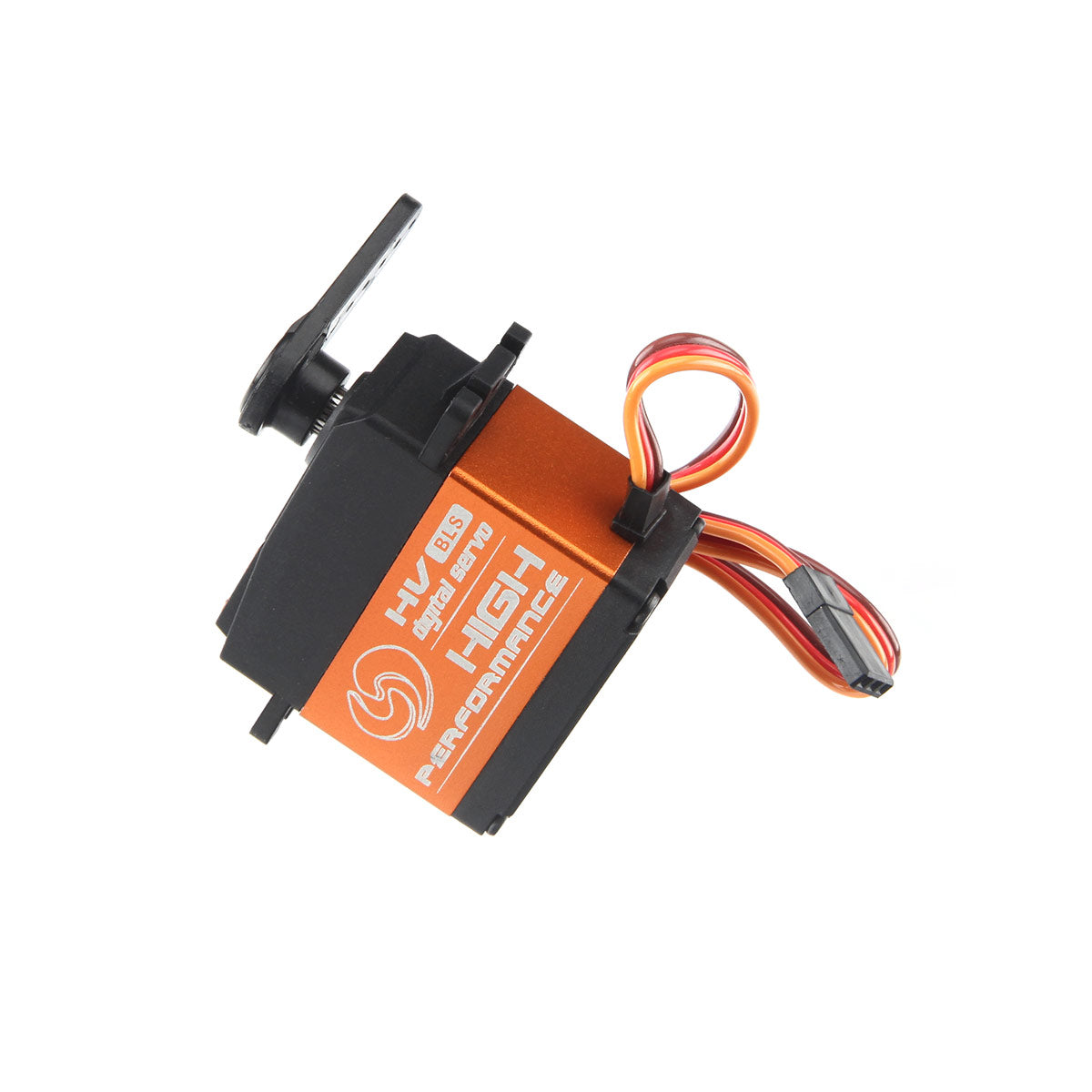

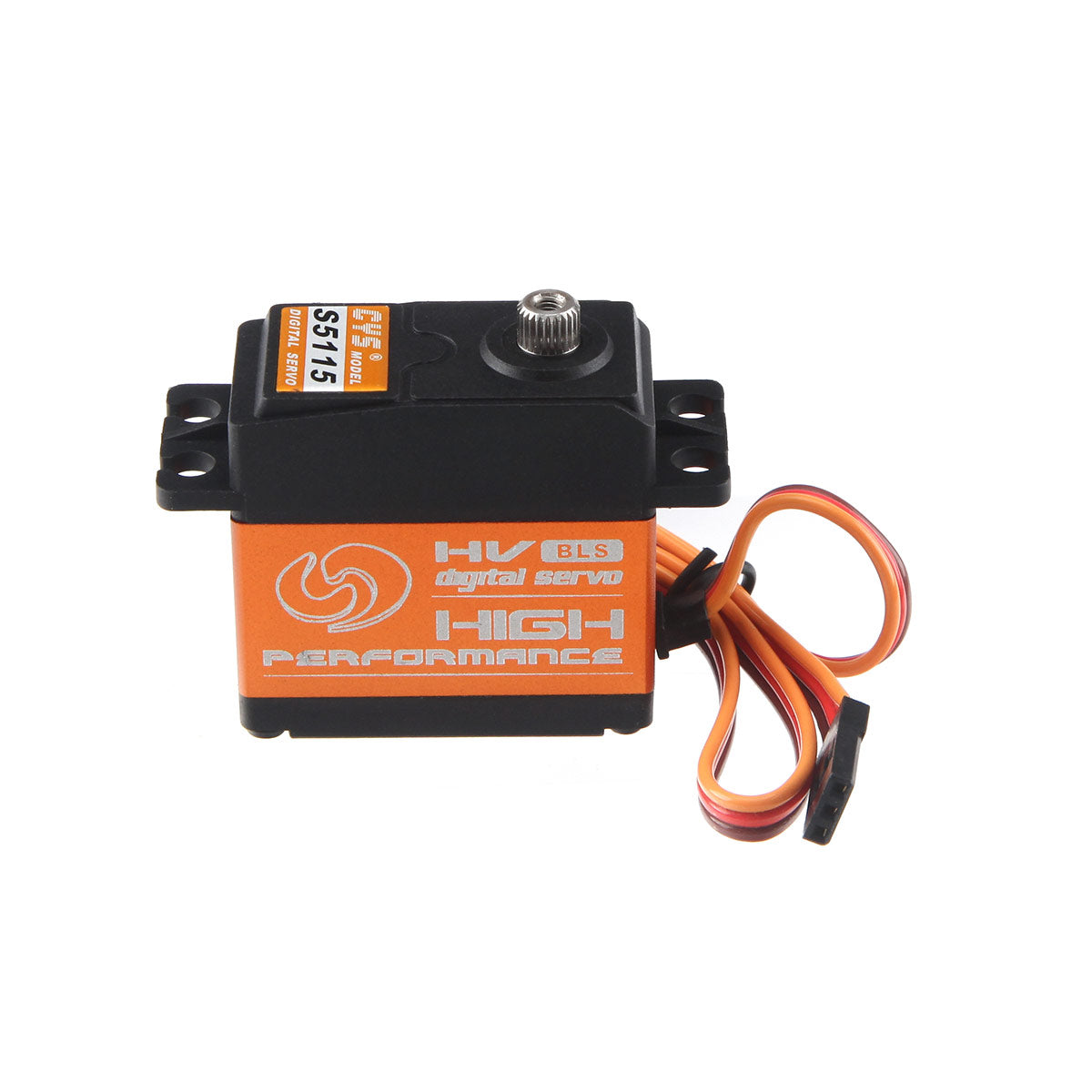

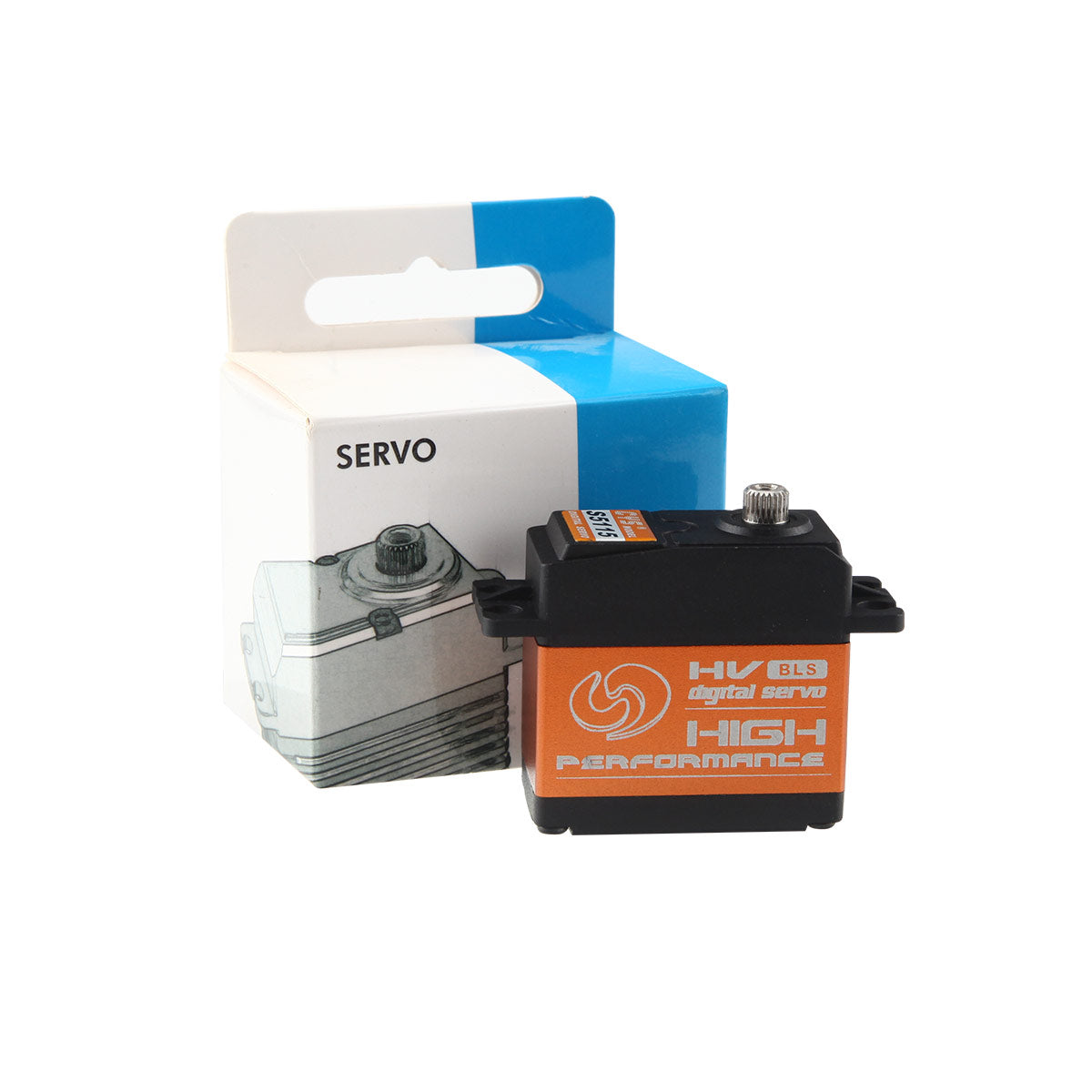

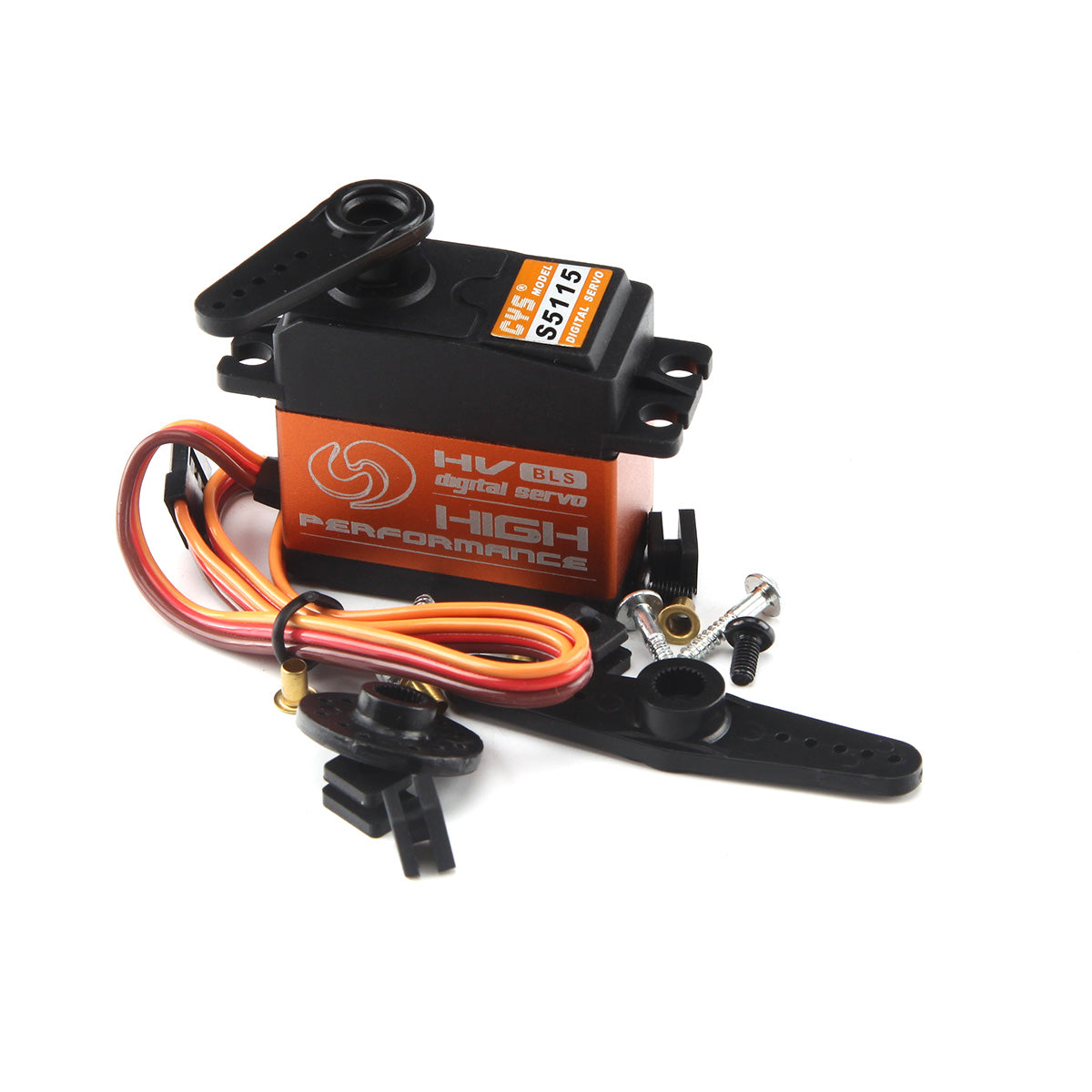

CYS-BLS5115 64g 15Kg.cm Metal Gear Brushless Servo For RC Cars Boat Plane

CYS-BLS5115 64g 15Kg.cm Metal Gear Brushless Servo For RC Cars Boat Plane

CYS-BLS5115

$55.48 USD
$55.48 USD
Sale Sold out
Shipping calculated at checkout.

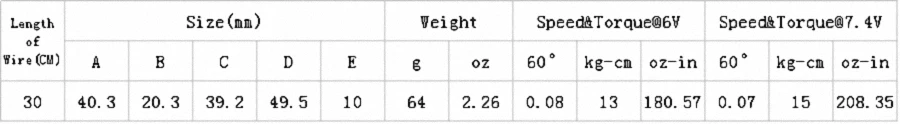

Specifications:

Dimensions :40.3*20.3*39.2mm
Operating Voltage:  DC6.0-7.4V
Dead band: 2μsec
Operating Speed (6.0V): 0.08sec/60 degrees
Operating Speed (7.4V): 0.07sec/60 degrees
Stall Torque (6.0V):13kg.cm
Stall Torque (7.4V):15kg.cm
Running Current(6.0V): 100mA
Running Current(7.4V):120mA
Stall Current(6.0V): 3.2A
Stall Current(7.4V): 3.8A
Idle Current(6.0V): 5mA
Idle Current(7.4V): 5mA
Weight: 64g (2.26oz)

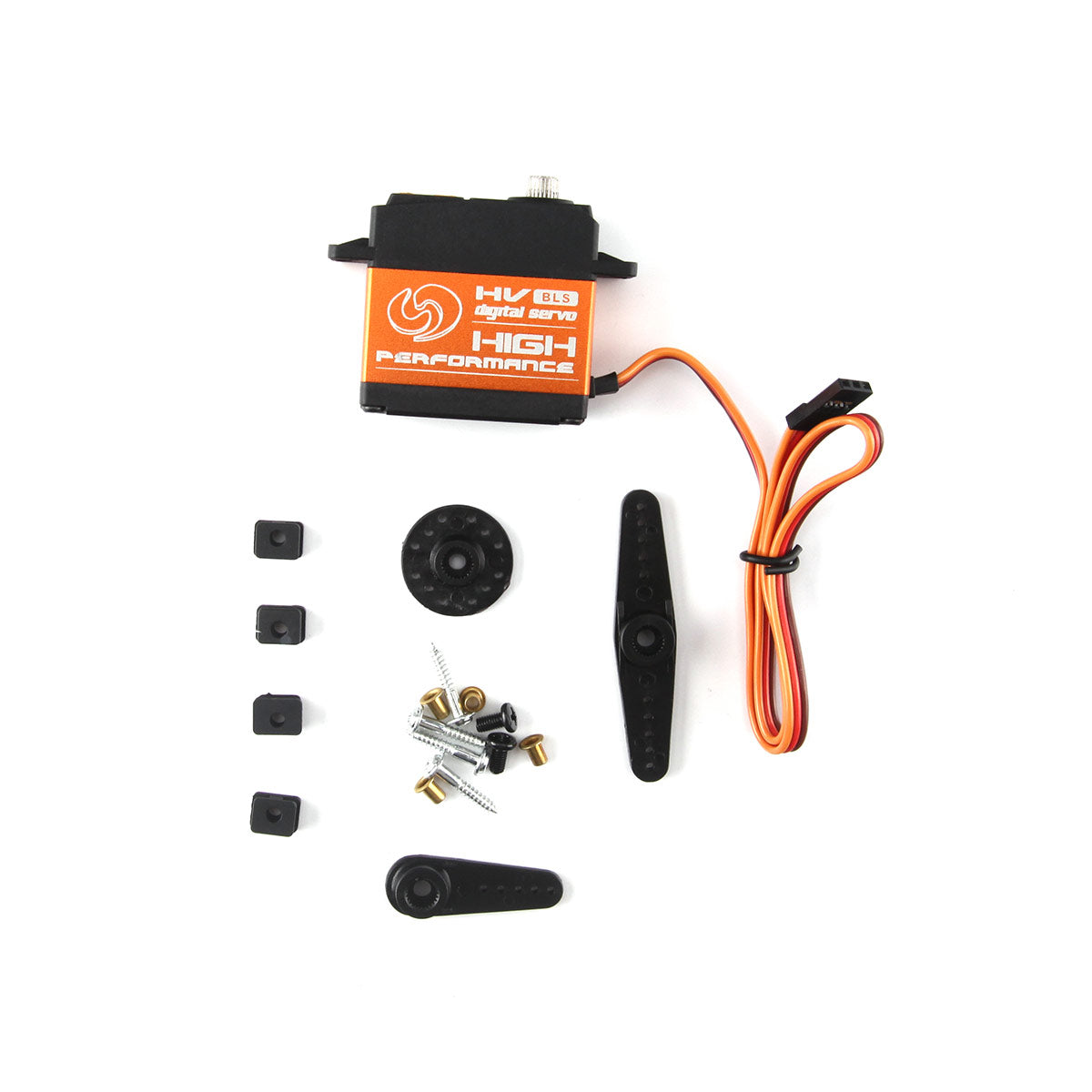

Package include :1X BLS5115 servo
