CYS R2090 Electric Retracts with Control Panel for 6kg-12kg Plane

• Item NO.: CYS-R2090
• Description : Standard 90° Electronic Landing gear ( Retract)
• Size : 103*24*32.5MM
• Torque : 25Kg.cm
• Speed : 5.6sec/90° at 6V ;  5.0sec/90° at 7V ; 4.6sec/90° at 8V
• Weight：160g(nose gear) / 140g(Main gear)
• Voltage : DC 6.0Volts ~8Volts
• Input Voltage Range: DC 5 - 9 Volt
• Pulse Width Range: 500~2500usec
• Used for 6 – 12kg Vortex / Jet aircraft
• Full aluminum case outside with unique design.

• Used for 6 – 12kg Vortex / Jet aircraft .

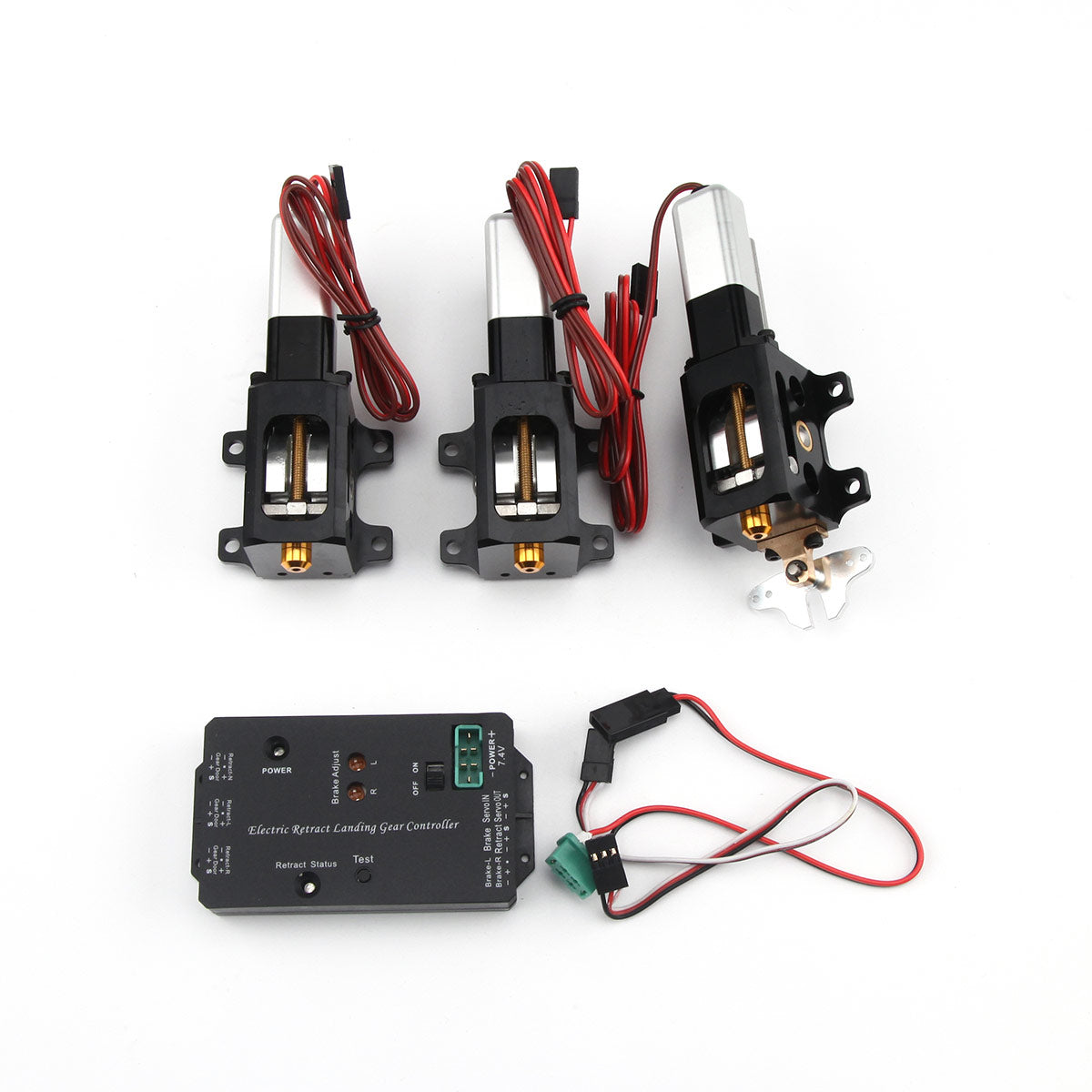

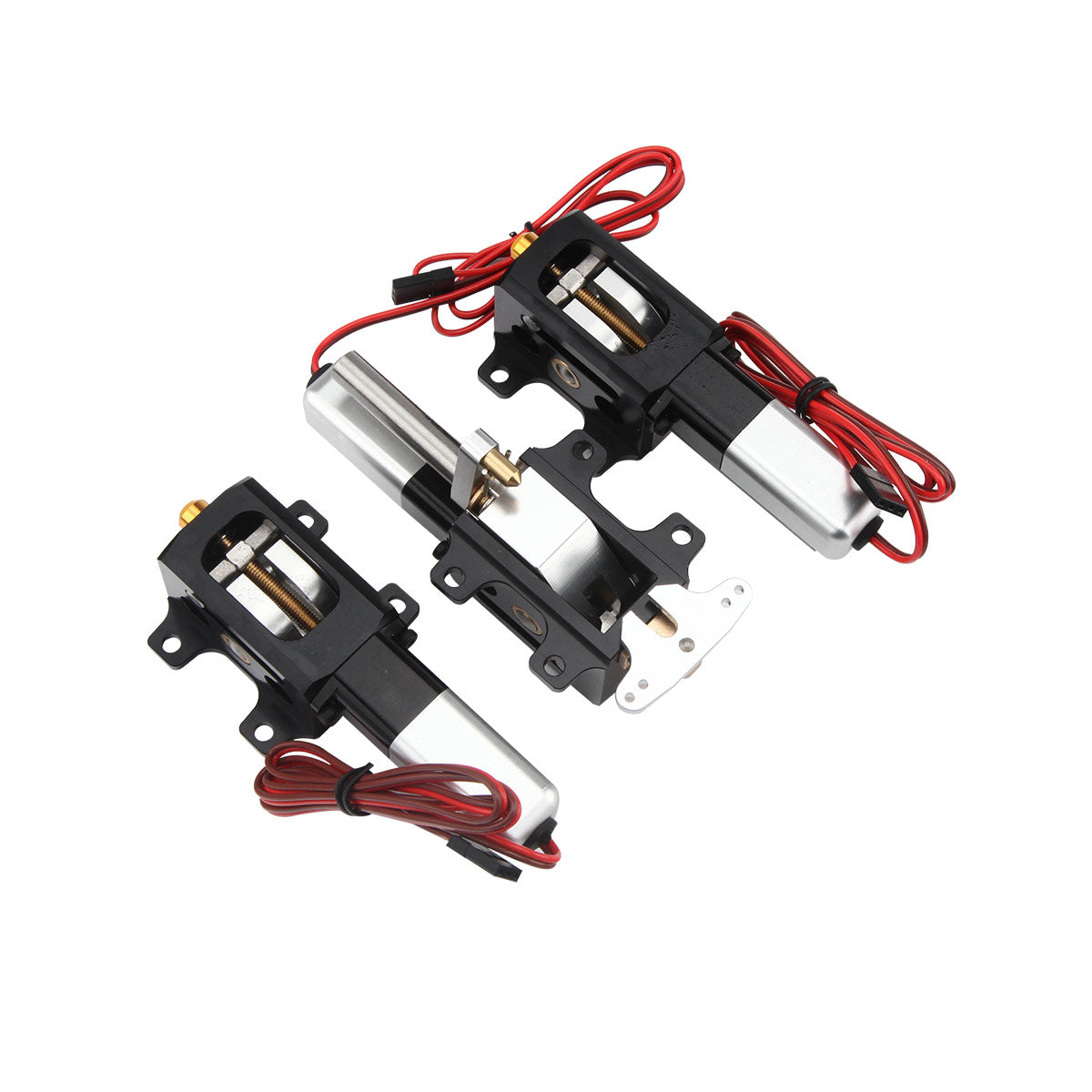

• 1* Nose Retract

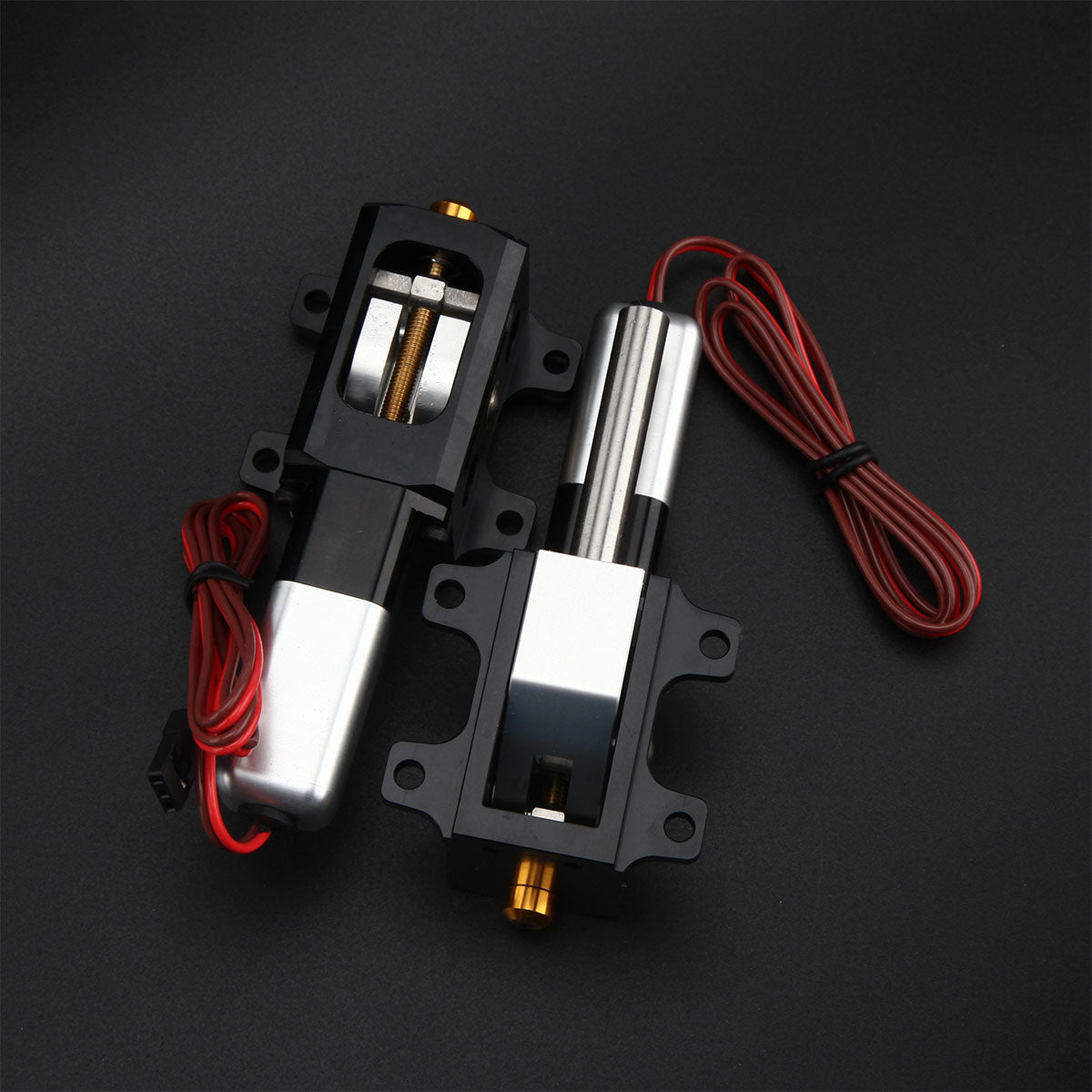

• 2* Main Retracts

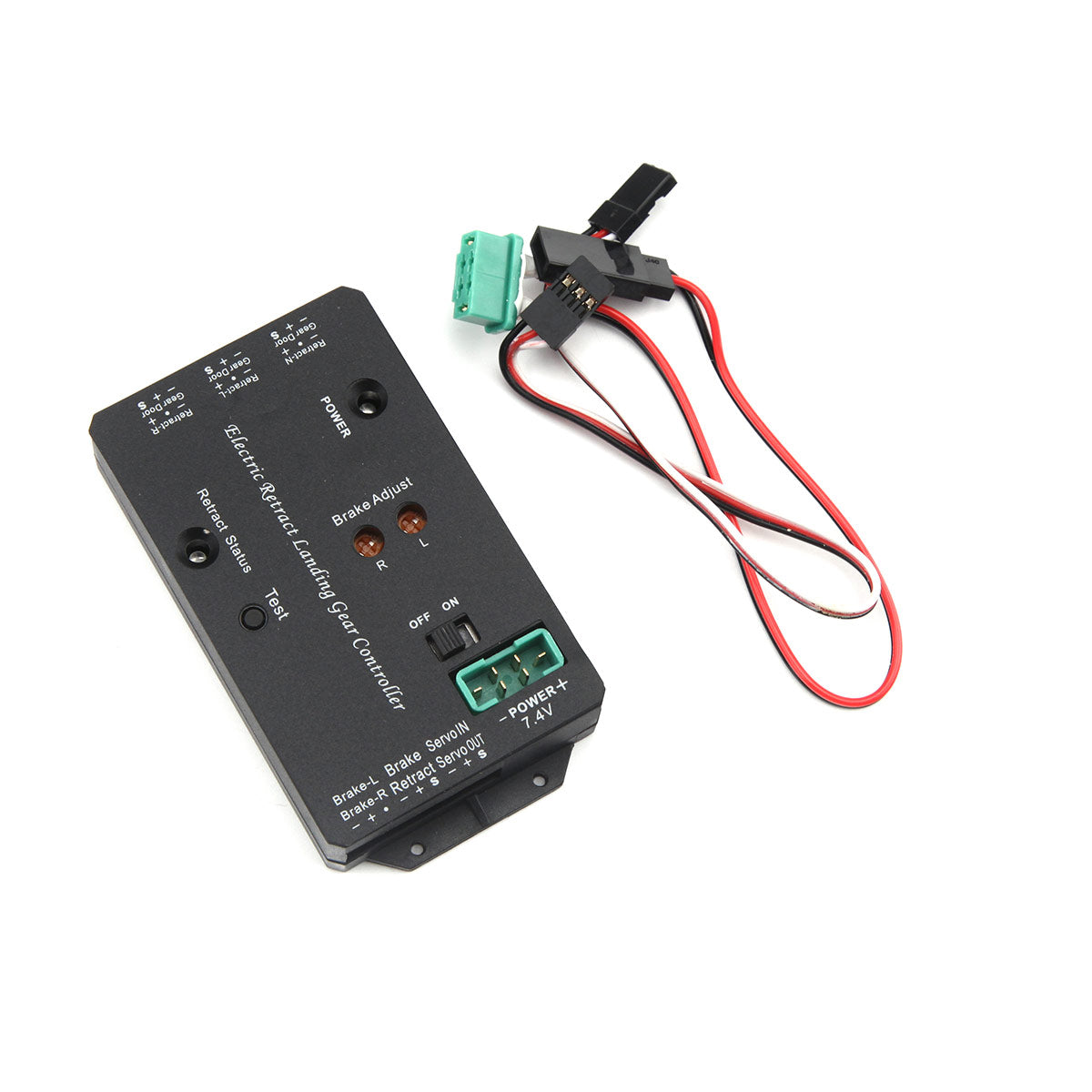

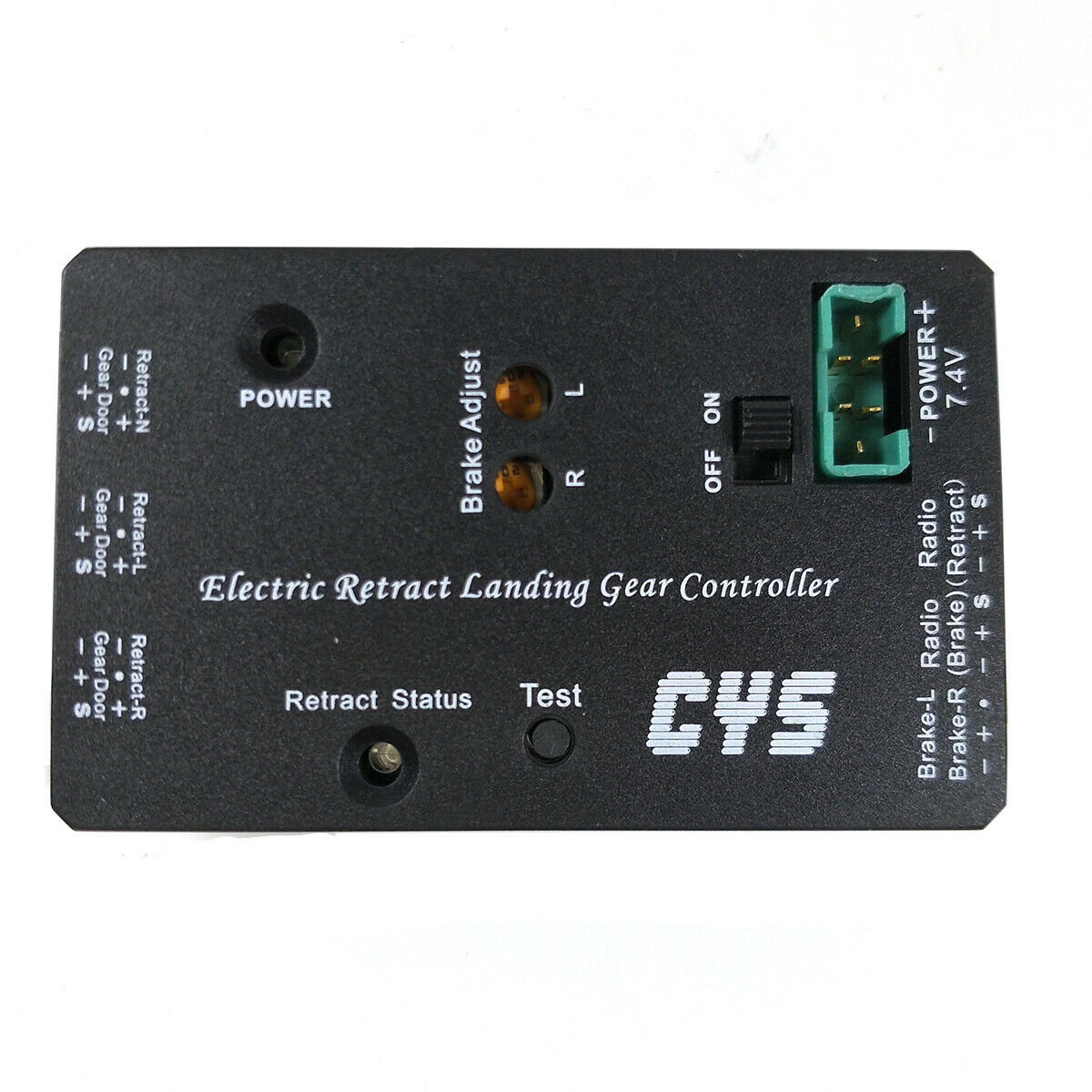

• 1* Controller
• 2* Cables

Nose retract 2D drawing

Main Retract 2D drawing
