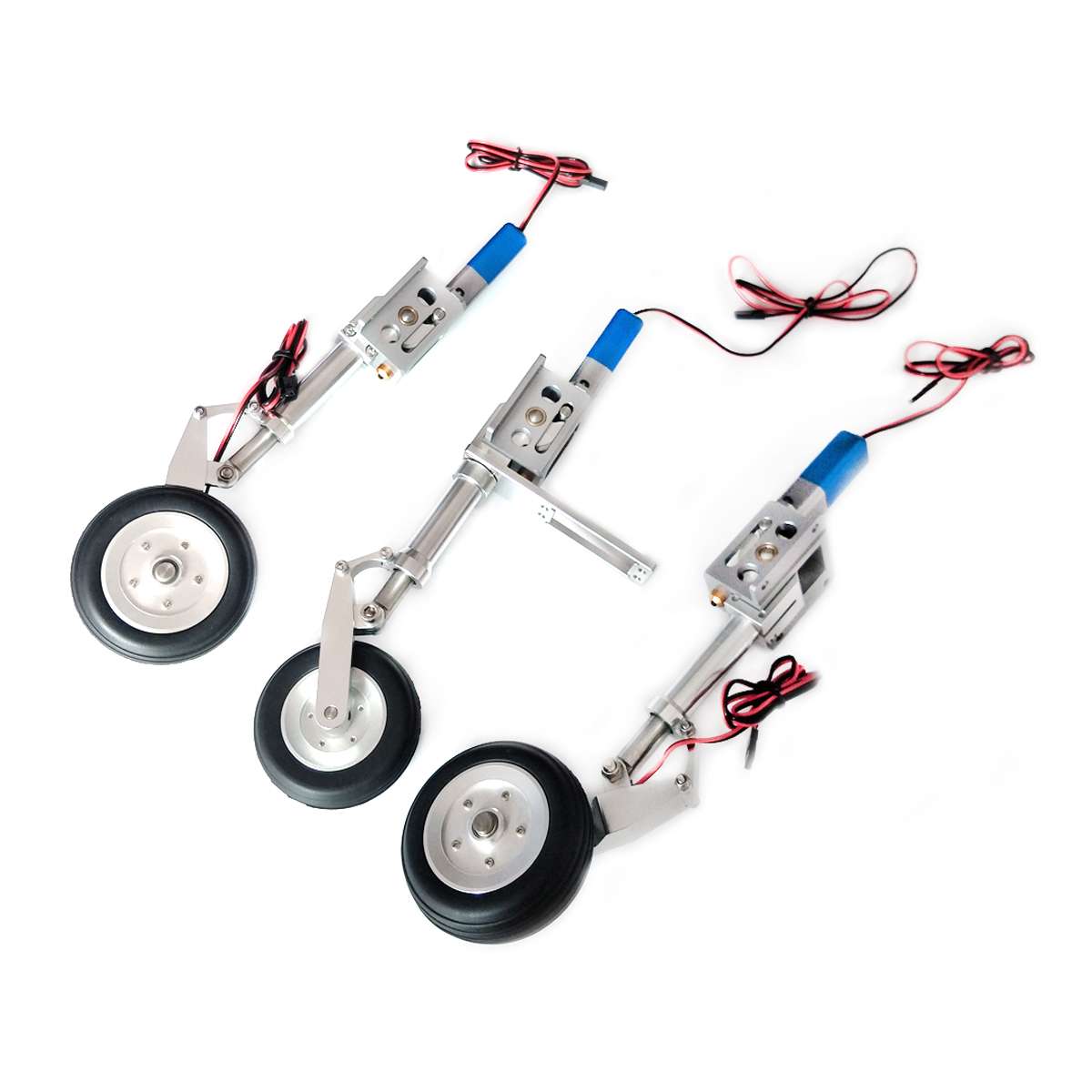

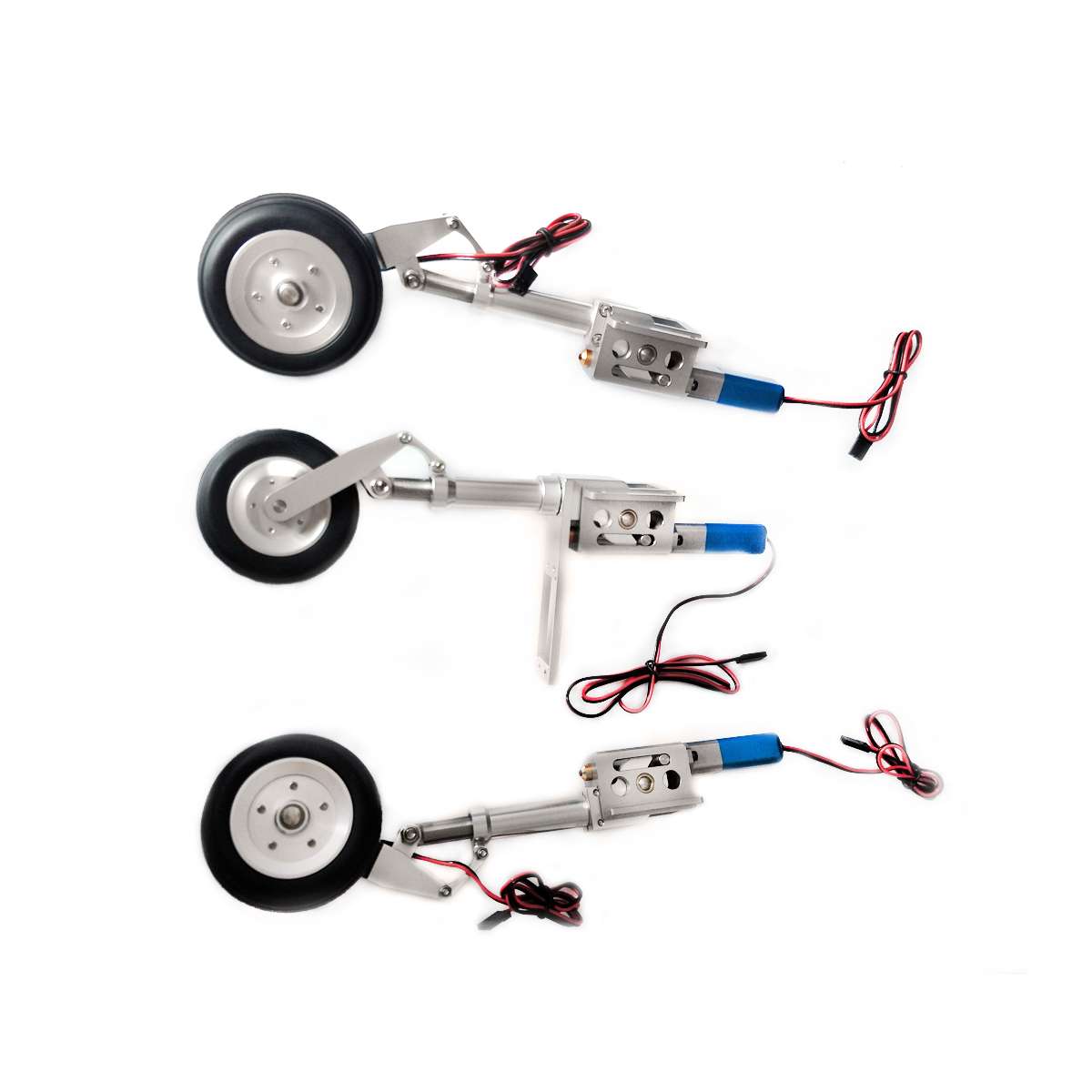

CYS-R2290 Full Metal Retract Landing Gear w/wheel and Brake for Takeoff <15kg

Full metal landing gear structs with wheel and brake

Overview

1. The body made by CNC processing.

2. Landing gear & structs with wheel and brake is a group

3. A set landing gear includes 1 pc nose gear and 2 pcs main gear; same as the structs with wheel and brakes

4. Total weight of a set landing gear is 390g, Total weight of a set structs with wheel and brakes is 746g

5. Owned the control program itself.

6 Suitable for fixed-wing airplane (Take off weight is 13~15kg)

Specifications:

1.Input voltage: DC6.0V~7.4V

2. Stall current: 800mA.

3. Landing gear opening time: 6s

4. Max current of brake: 1.3A(single)

5. Landing gear input pulse range: 300-2500us (<1200us--up, >1700us Down)
