CYS-S2105 6kg.cm Digital Titanium Coreless Servo for RC Airplane Boat Cars

Flight ModelSKU: CYS-S2105

Price:
Sale price$28.50

Description

Specification

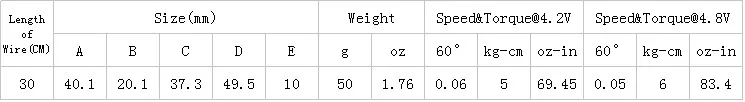

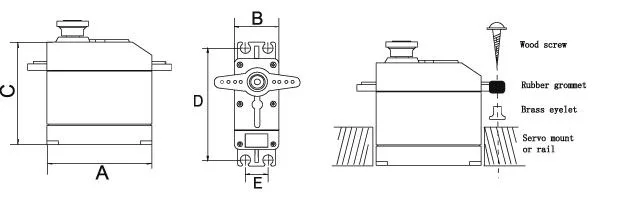

nbspDimensions :40.1x20.1x37.3mm

Operating Voltage: nbspDC6.0-7.4V

Dead band: 2musec

Operating Speed (6.0V): 0.06sec/60 degrees

Operating Speed (7.4V): 0.05sec/60 degrees

Stall Torque (6.0V):nbsp5 kg.cm (69.45oz/in)

Stall Torque (7.4V): nbsp6nbspkg.cm (83.4 oz/in)

Running Current(6.0V): 100mA

Running Current(7.4V): 120mA

Stall Current(6.0V): 2.5A

Stall Current(7.4V): 2.8A

Idle Current(6.0V): 20mA

Idle Current(7.4V): 20mA

Weight: 50 g (1.76oz)
