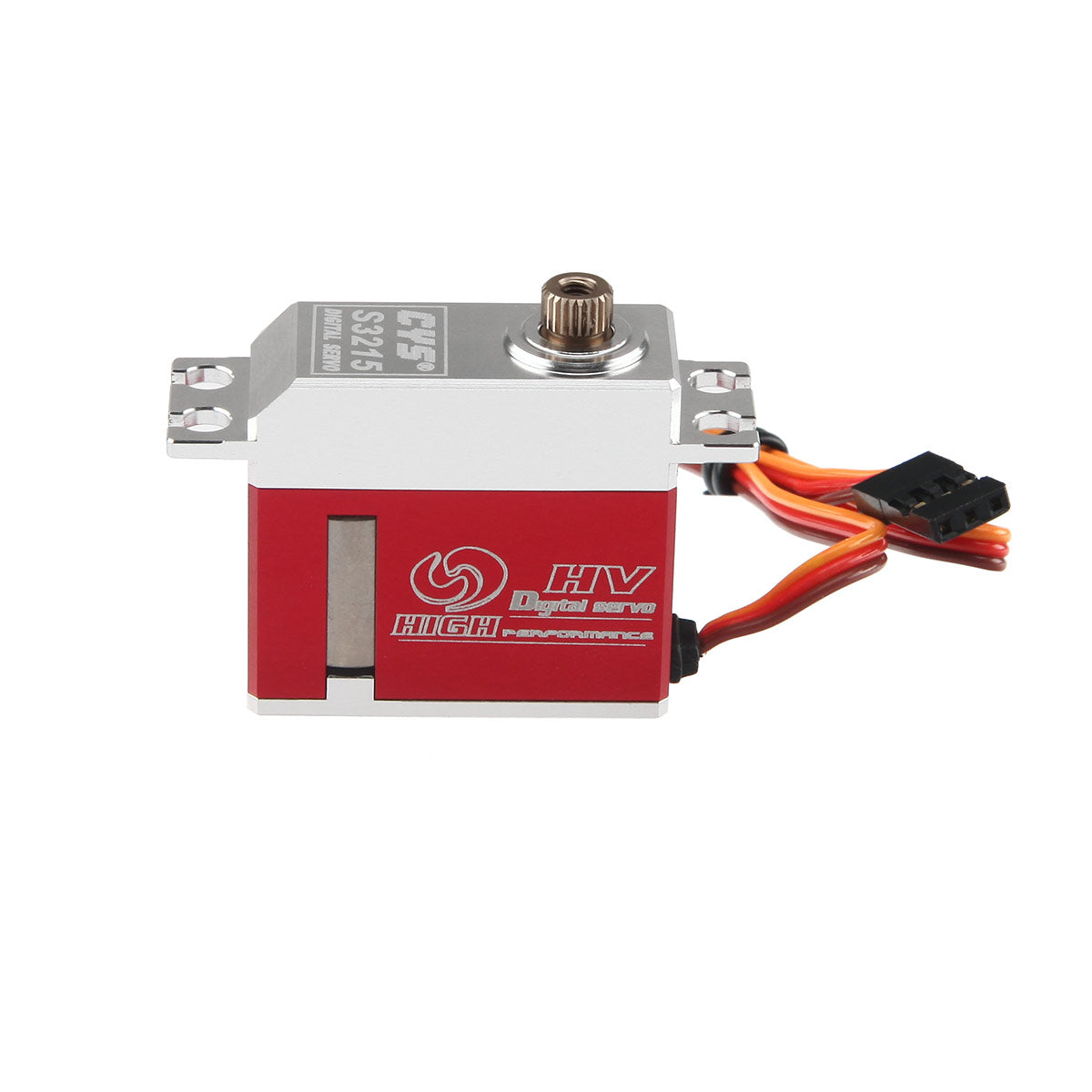

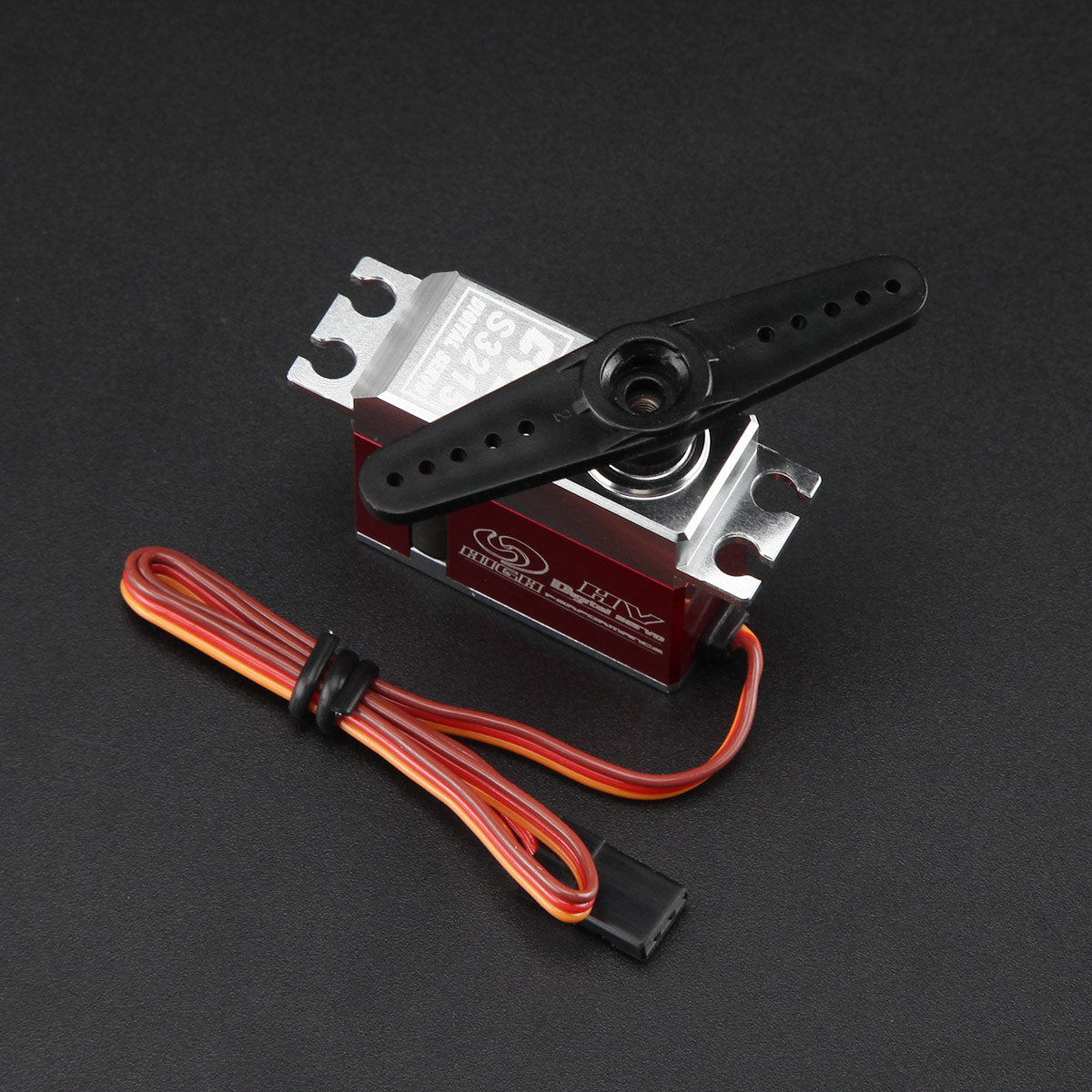

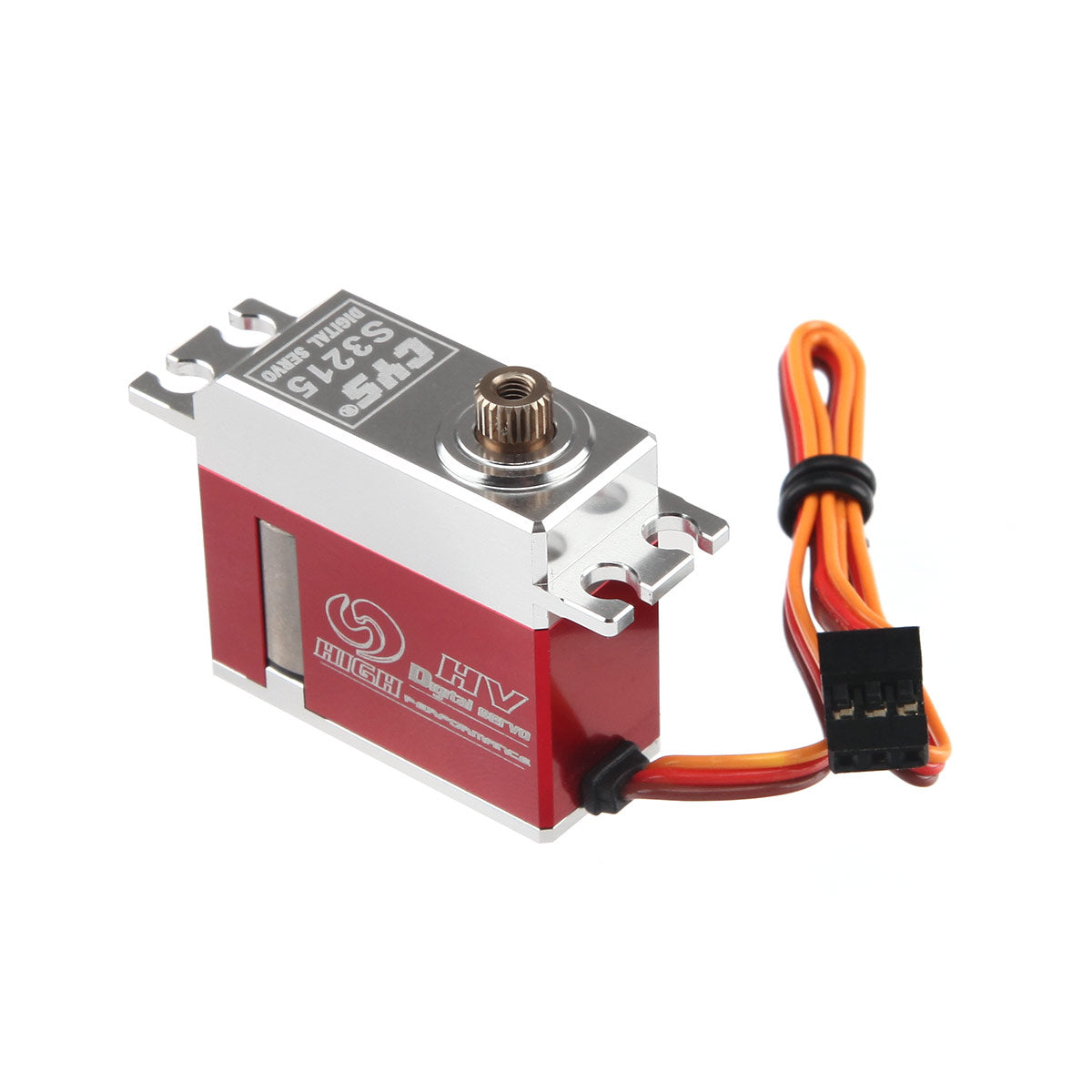

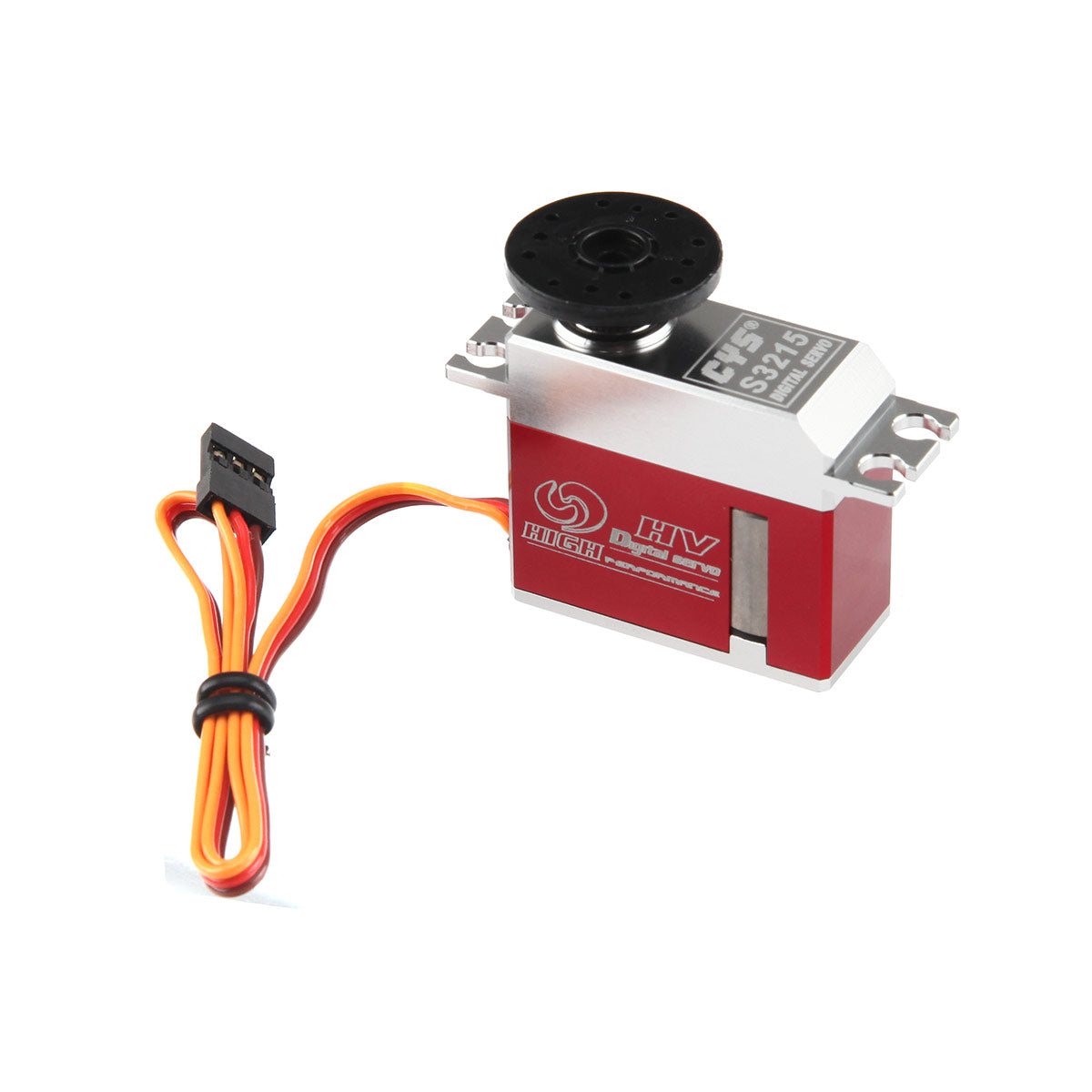

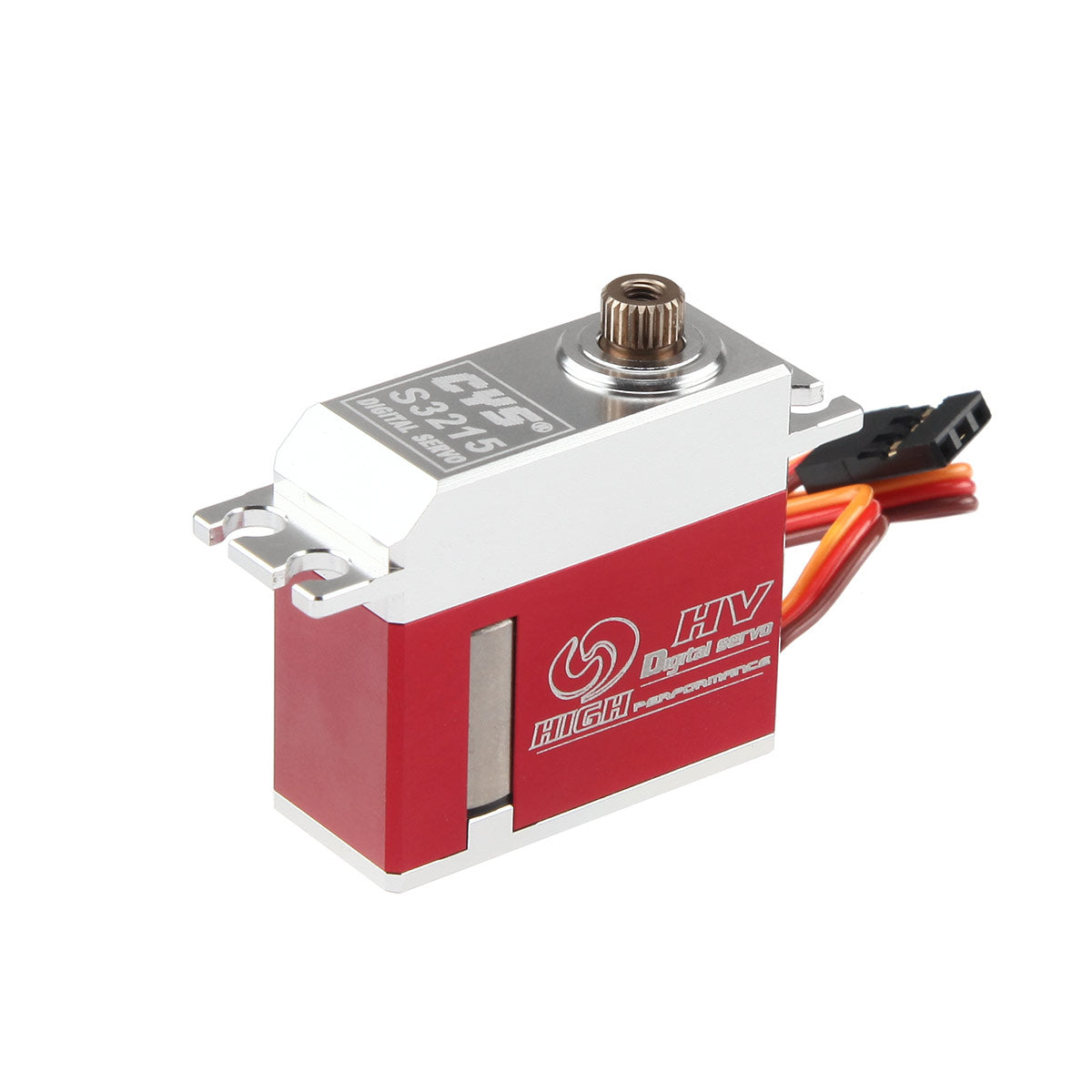

CYS-S3215 10KG Torque Metal Digital Coreless Gear Servo

Flight model cys servoSKU: CYS-S3215

Price:
Sale price$36.48

Description

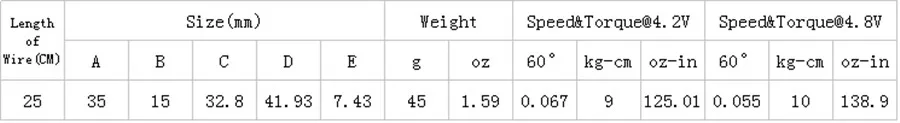

Specifications:

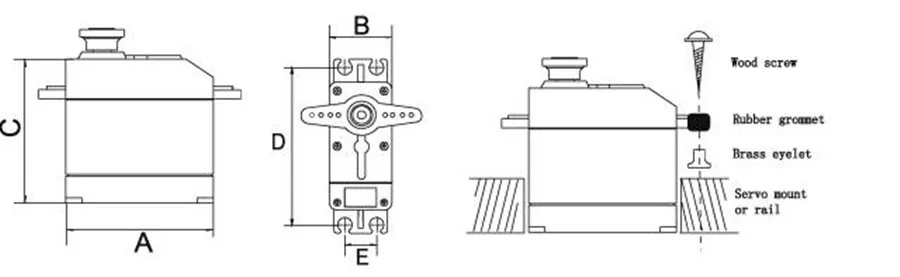

Dimensions :35*15*32.8mm

Operating Voltage:  DC6.0-7.4V

Dead band: 2μsec

Operating Speed (6.0V): 0.067sec/60 degrees

Operating Speed (7.4V): 0.055sec/60 degrees

Stall Torque (6.0V):9kg.cm

Stall Torque (7.4V): 10kg.cm

Running Current(6.0V): 80mA

Running Current(7.4V):120mA

Stall Current(6.0V): 2.6A

Stall Current(7.4V): 3.2A

Idle Current(6.0V): 20mA

Idle Current(7.4V): 20mA

Weight: 45g (1.59oz)

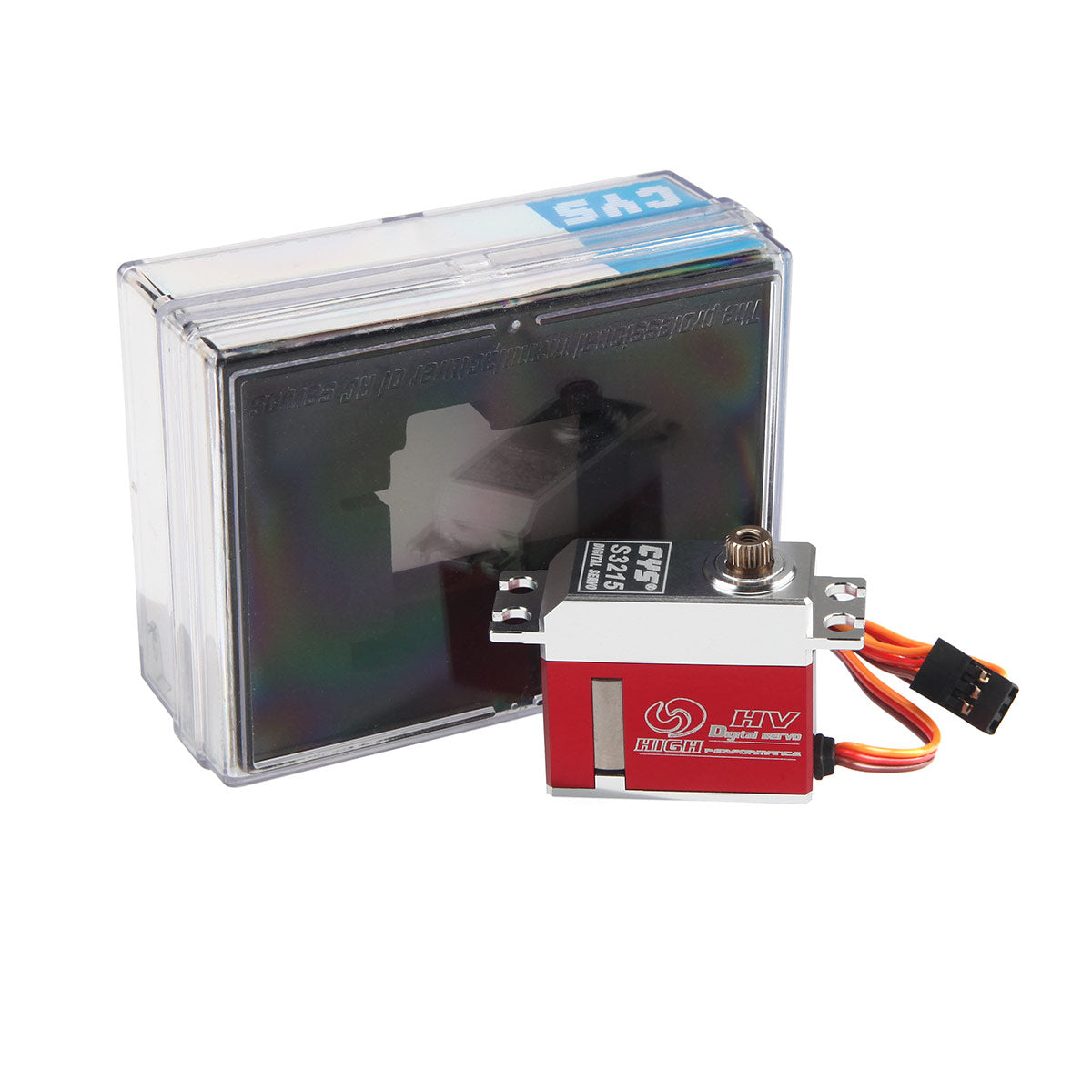

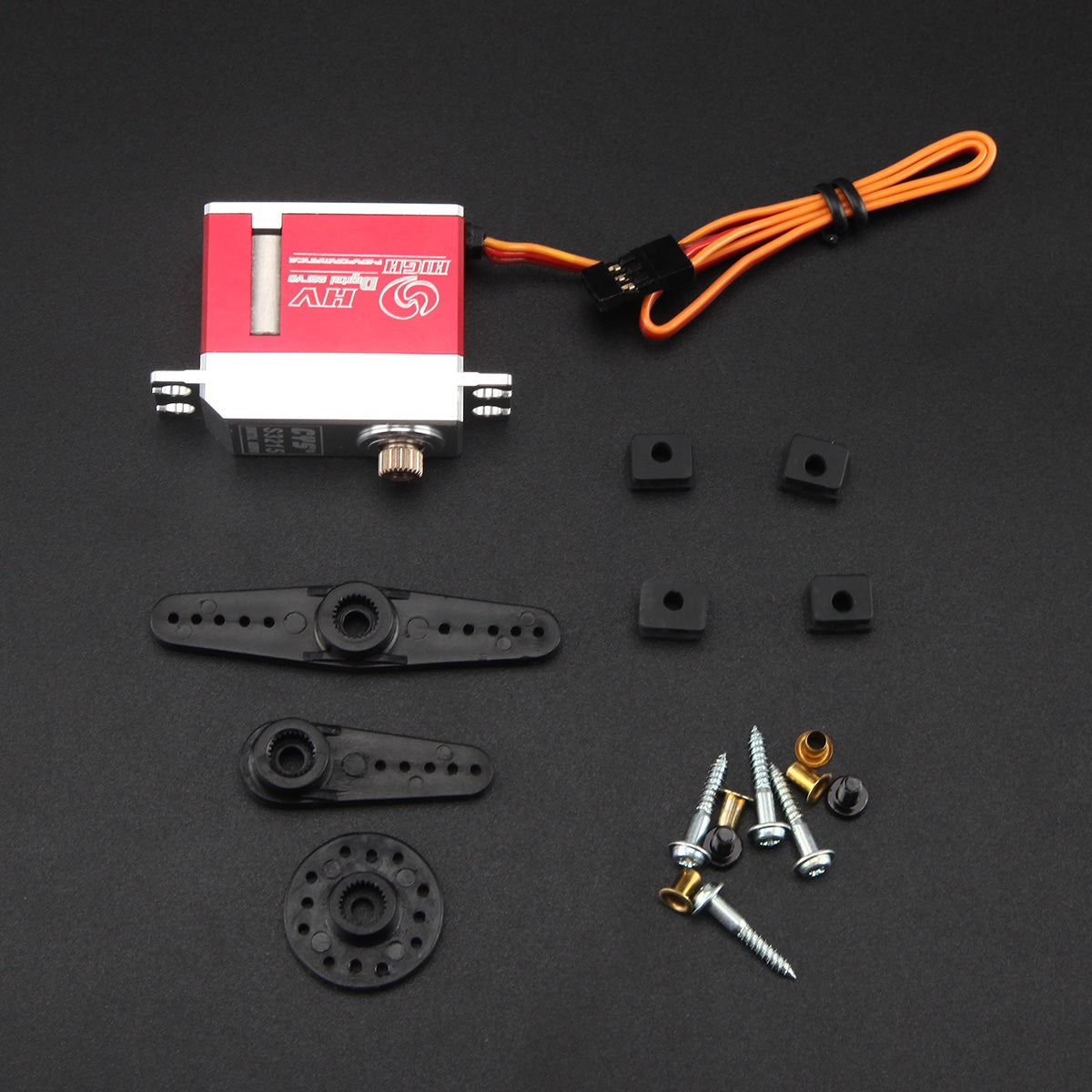

Package include :

1X servo
