Flight model cys servo

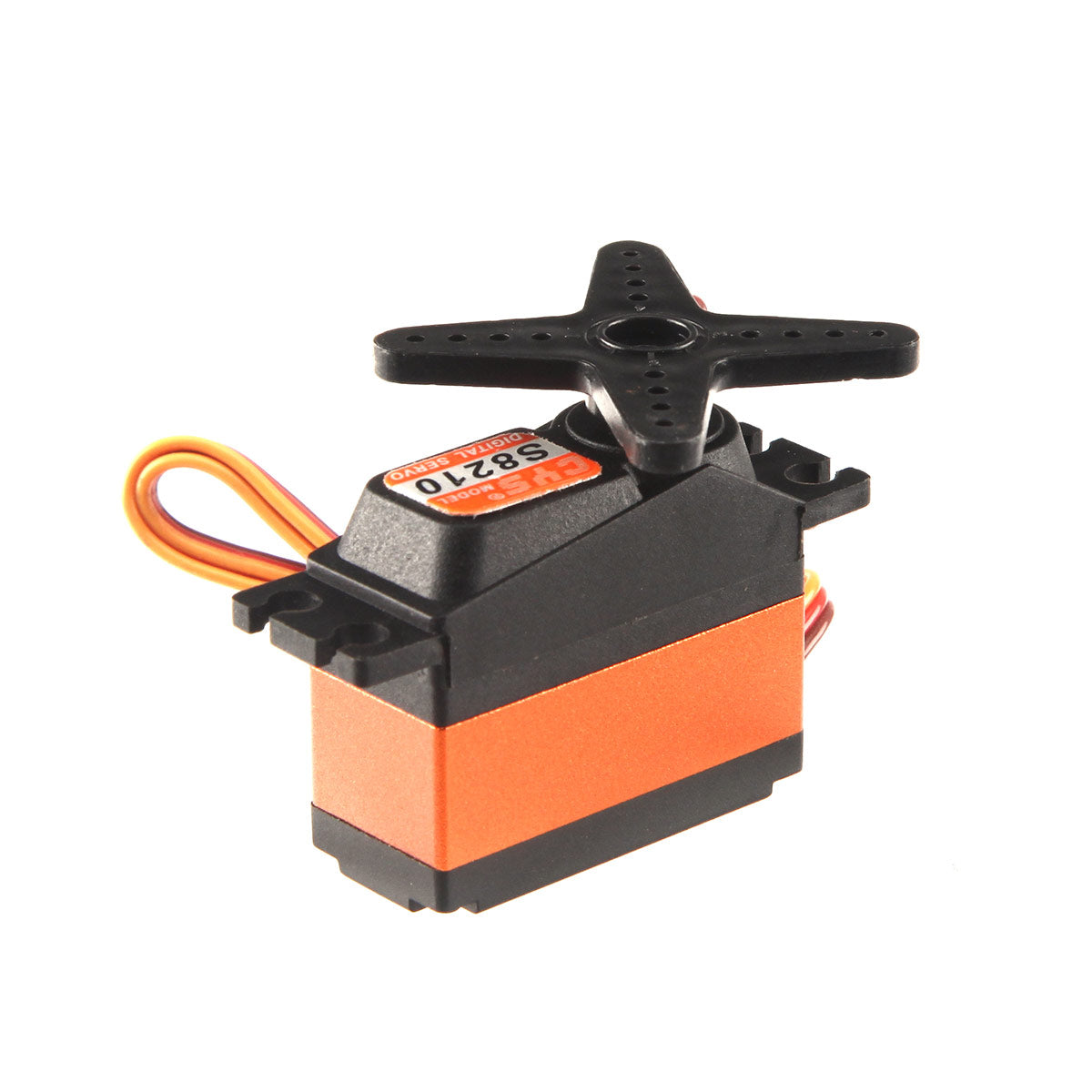

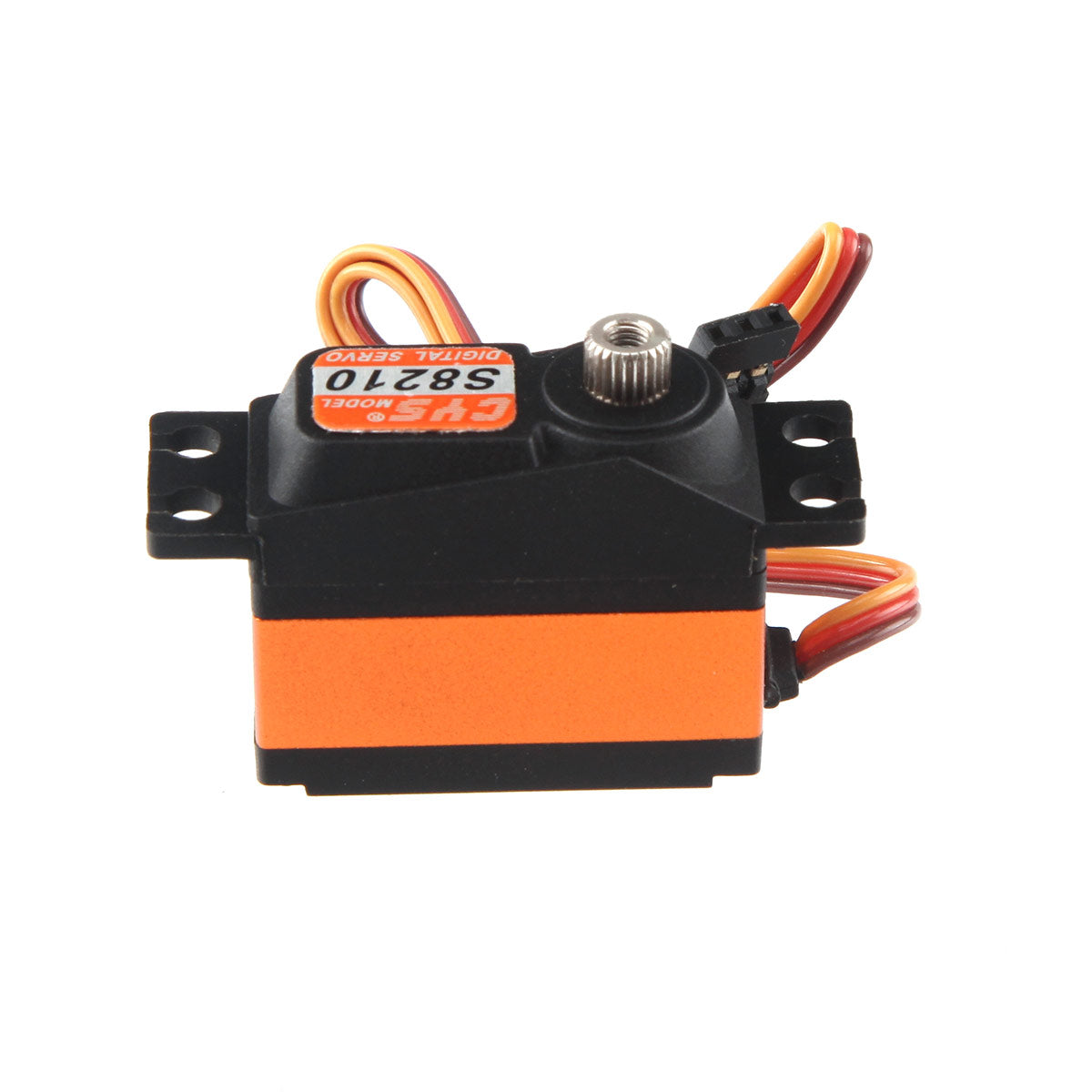

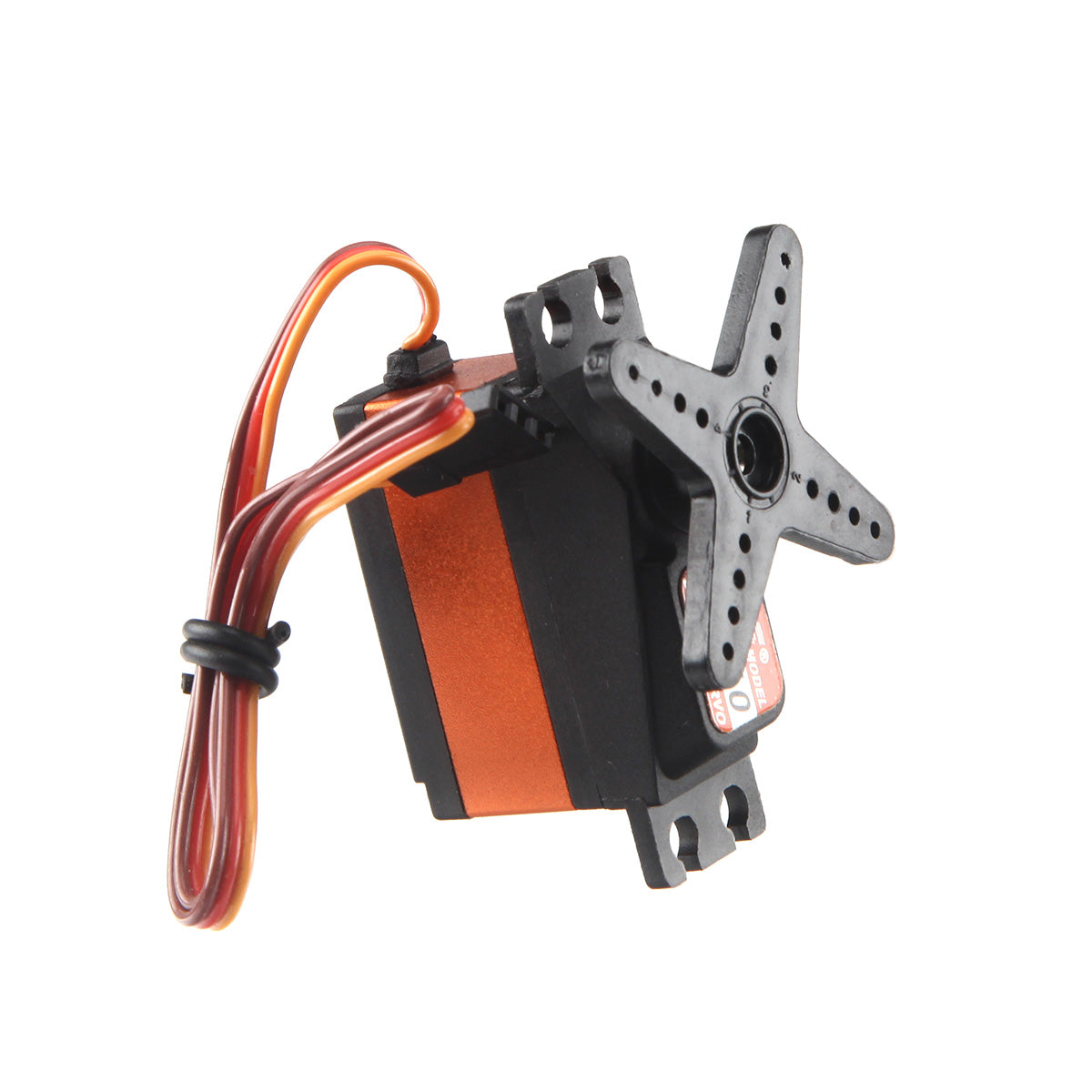

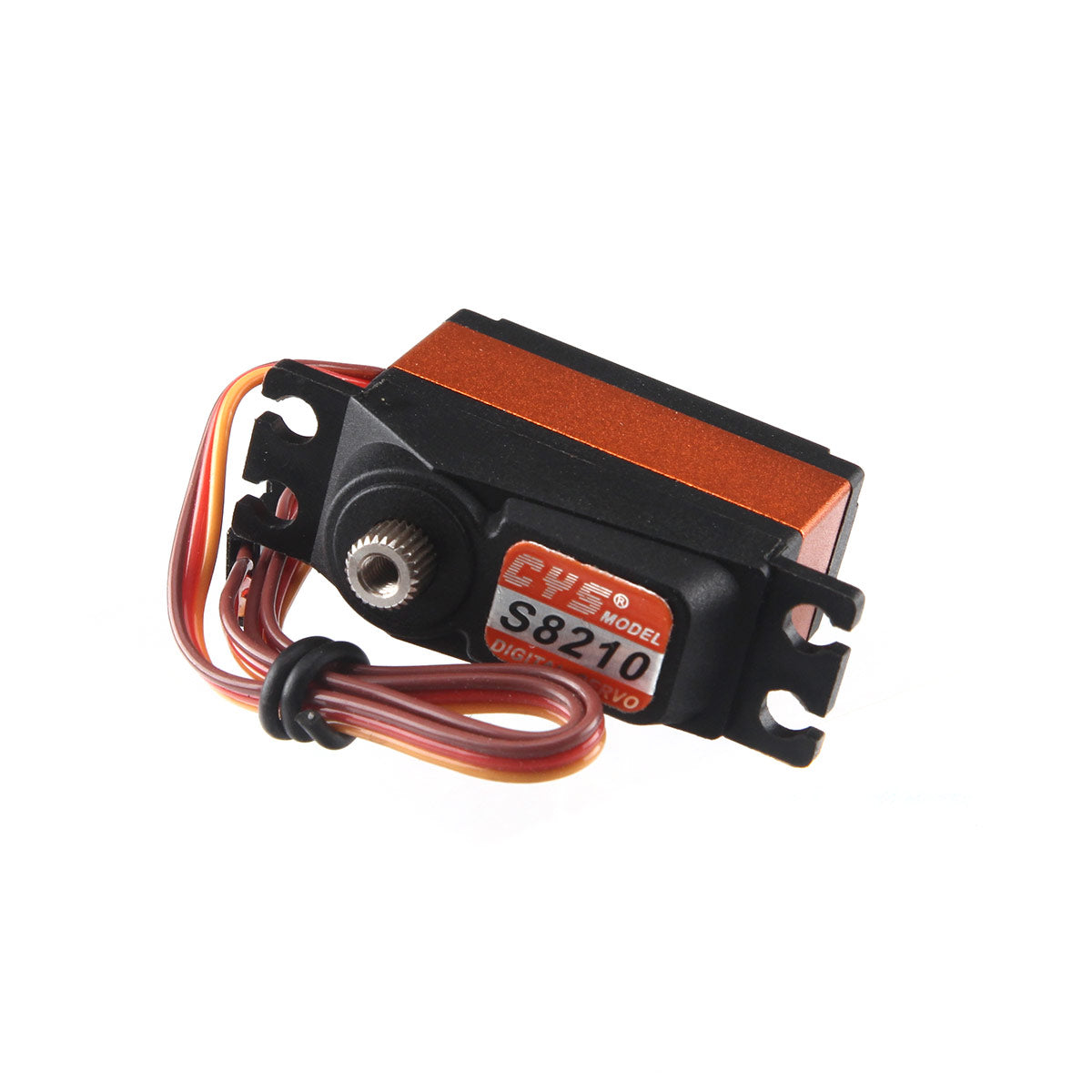

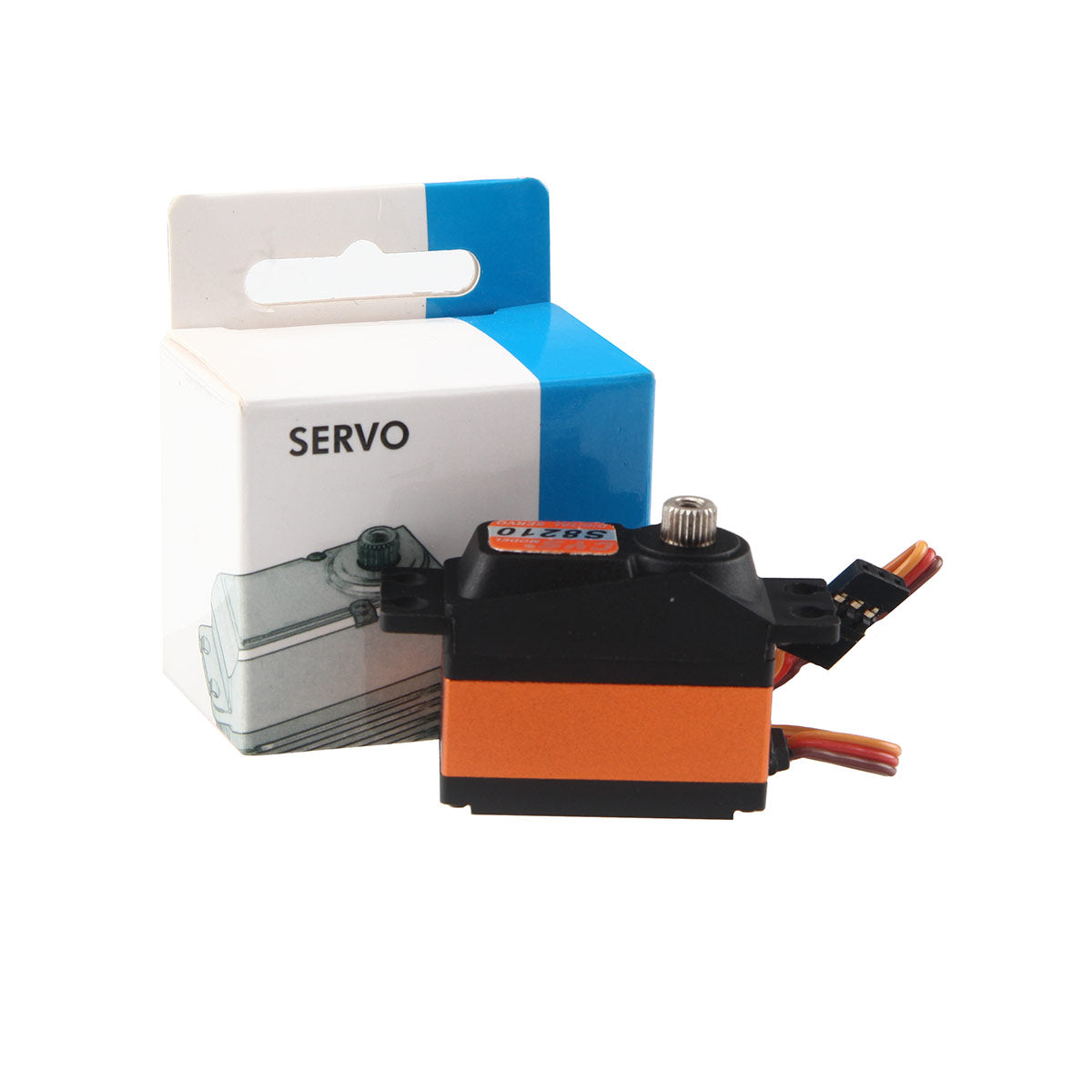

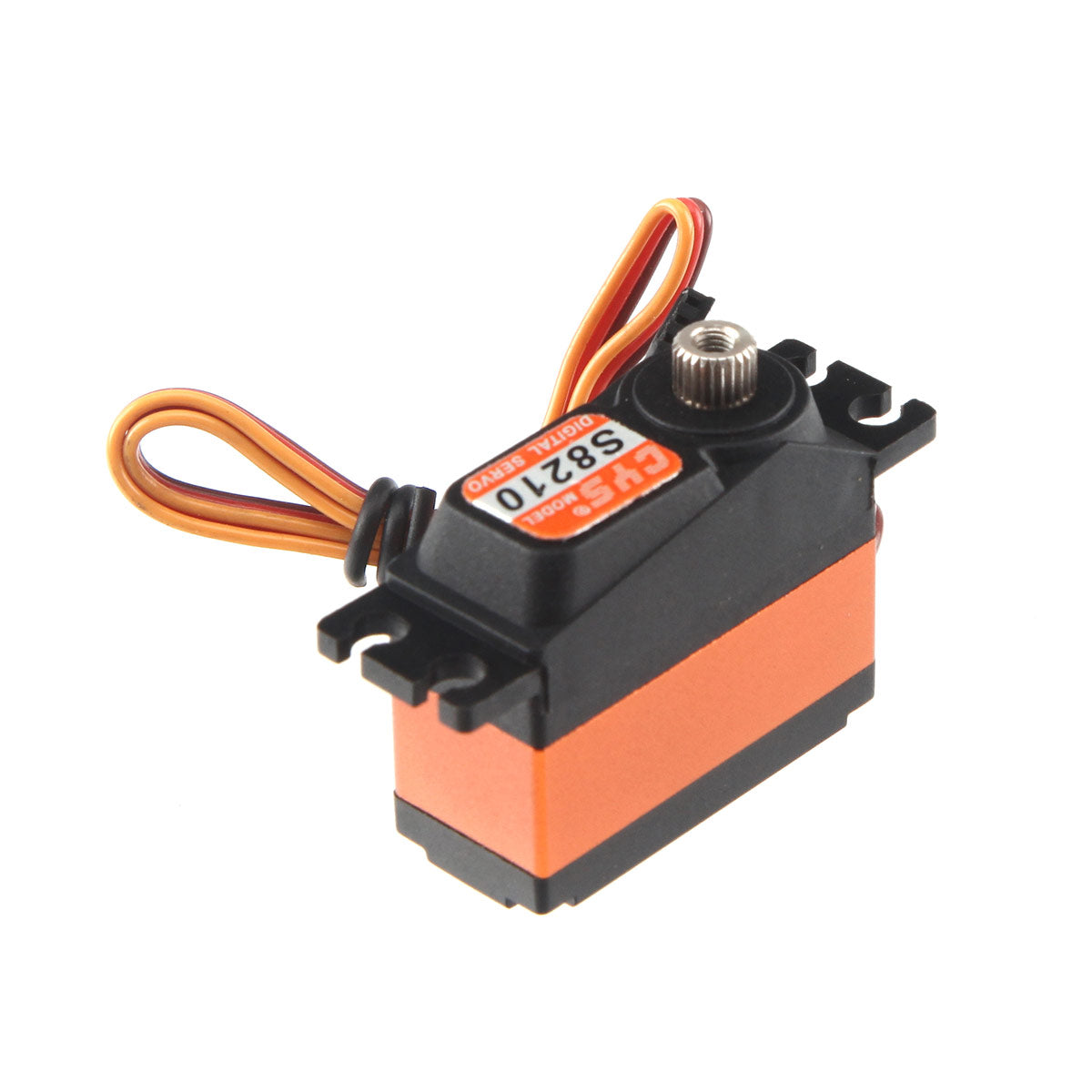

CYS-S8210 25g 2.5kg.cm 4.8-6.0V Digital Metal Gear Servo For 500 helicopter

CYS-S8210 25g 2.5kg.cm 4.8-6.0V Digital Metal Gear Servo For 500 helicopter

CYS-S8210

$17.20 USD
$0.00 USD $17.20 USD
Sale Sold out
Shipping calculated at checkout.
Flight-model CYS-S8210 25g 2.5kg.cm 4.8-6.0V Digital Metal Gear Servo For 500 helicopter RC Model

Specifications:

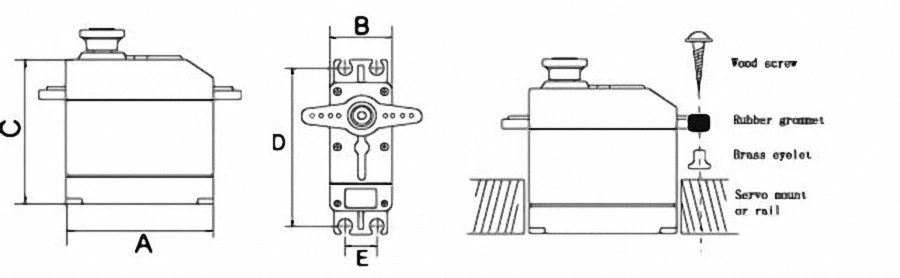

Dimensions :35*15*30mm
Operating Voltage:  DC4.8-6.0V
Dead band: 2μsec
Operating Speed (4.8V): 0.10sec/60 degrees
Operating Speed (6.0V): 0.08sec/60 degrees
Stall Torque (4.8V): 2.0kg.cm
Stall Torque (6.0V):  2.2kg.cm
Running Current(4.8V): 120mA
Running Current(6.0V):150mA
Stall Current(4.8V): 800mA
Stall Current(6.0V): 900mA
Idle Current(4.8V): 20mA
Idle Current(6.0V): 20mA
Weight: 25 g (0.88oz)

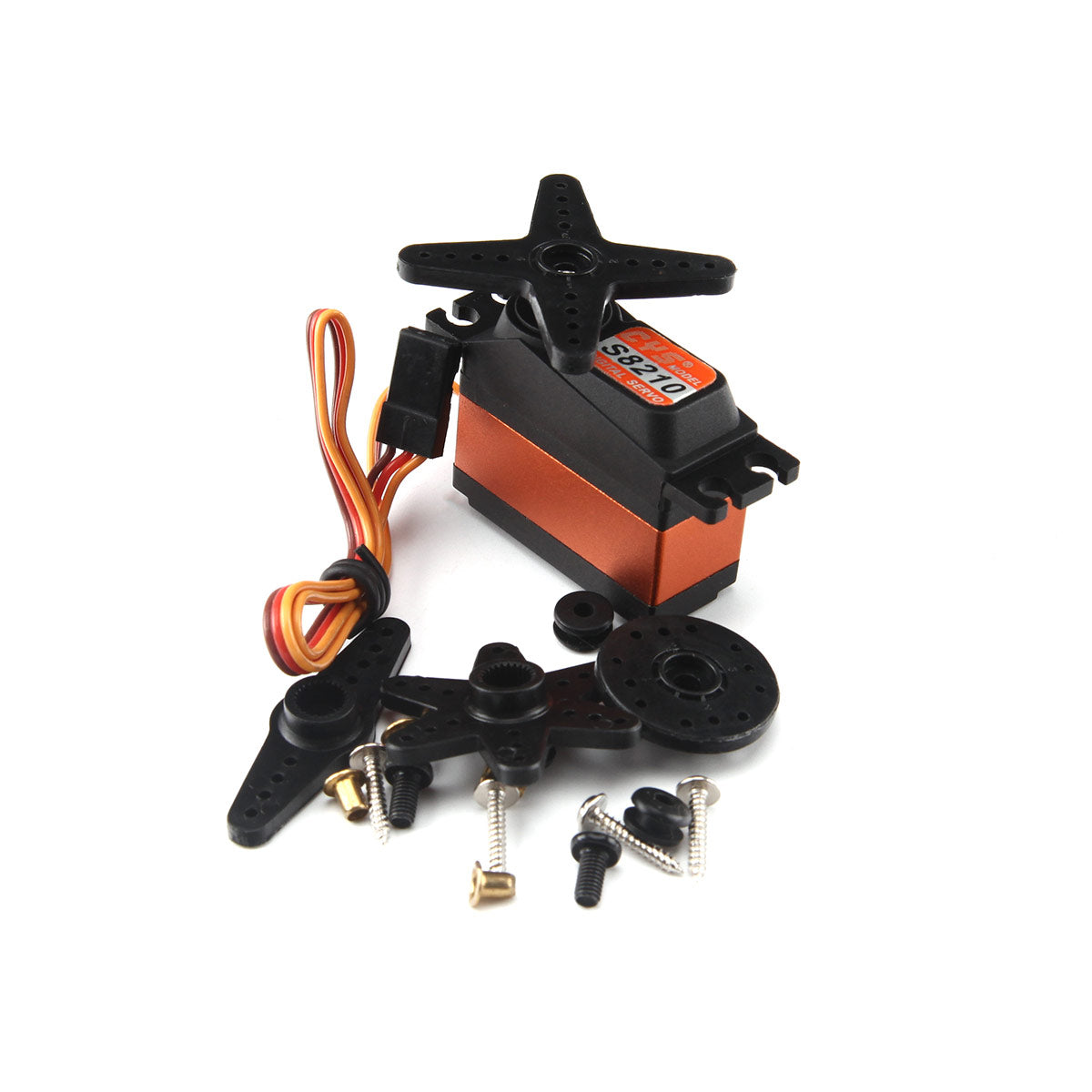

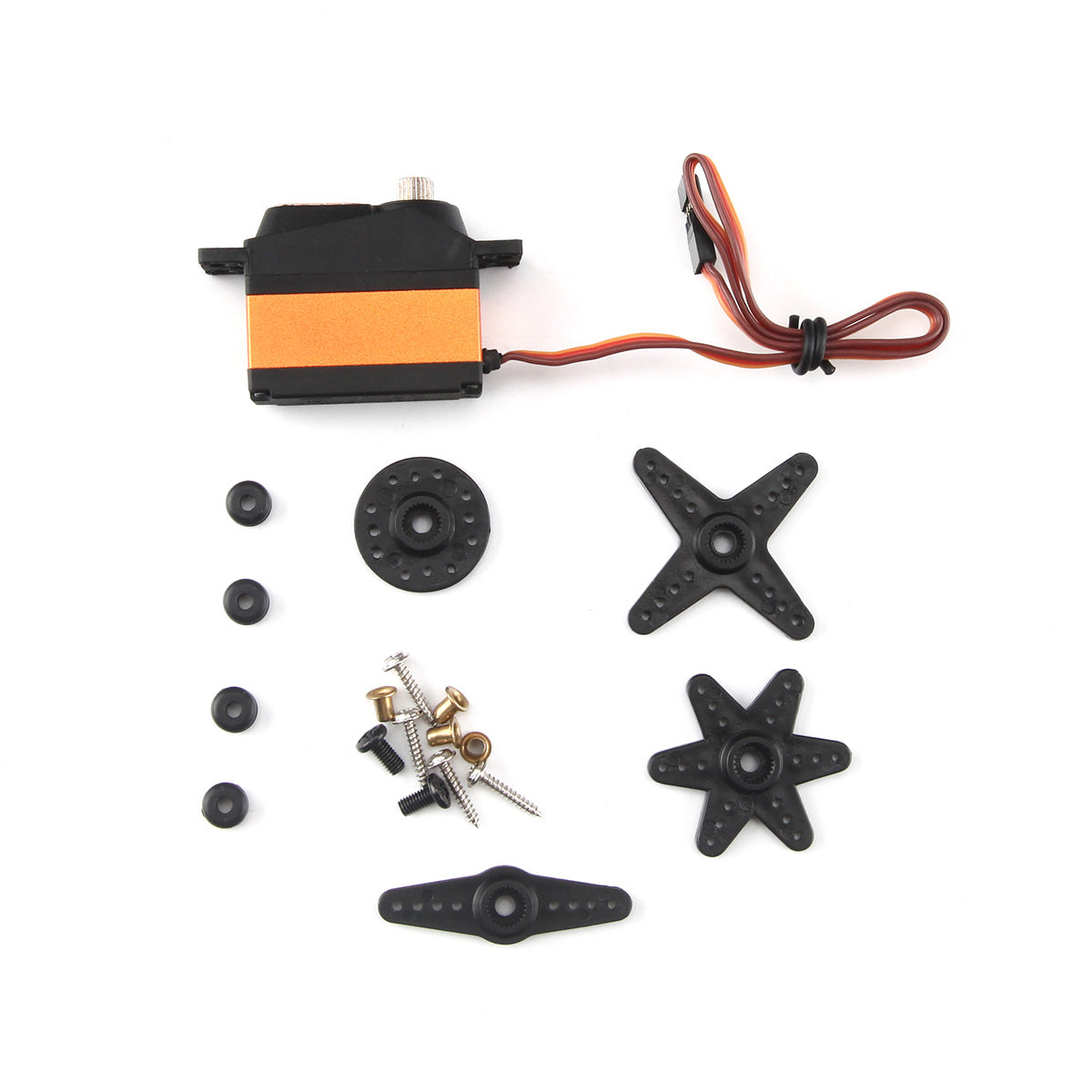

Package include :1X S8202 servo
