FLT - DLE Attachment

DLE120T4 Engine

DLE120T4 Engine

SKU:DLE120T4

Regular price $1,350.00 USD
Regular price Sale price $1,350.00 USD
Sale Sold out
Shipping calculated at checkout.

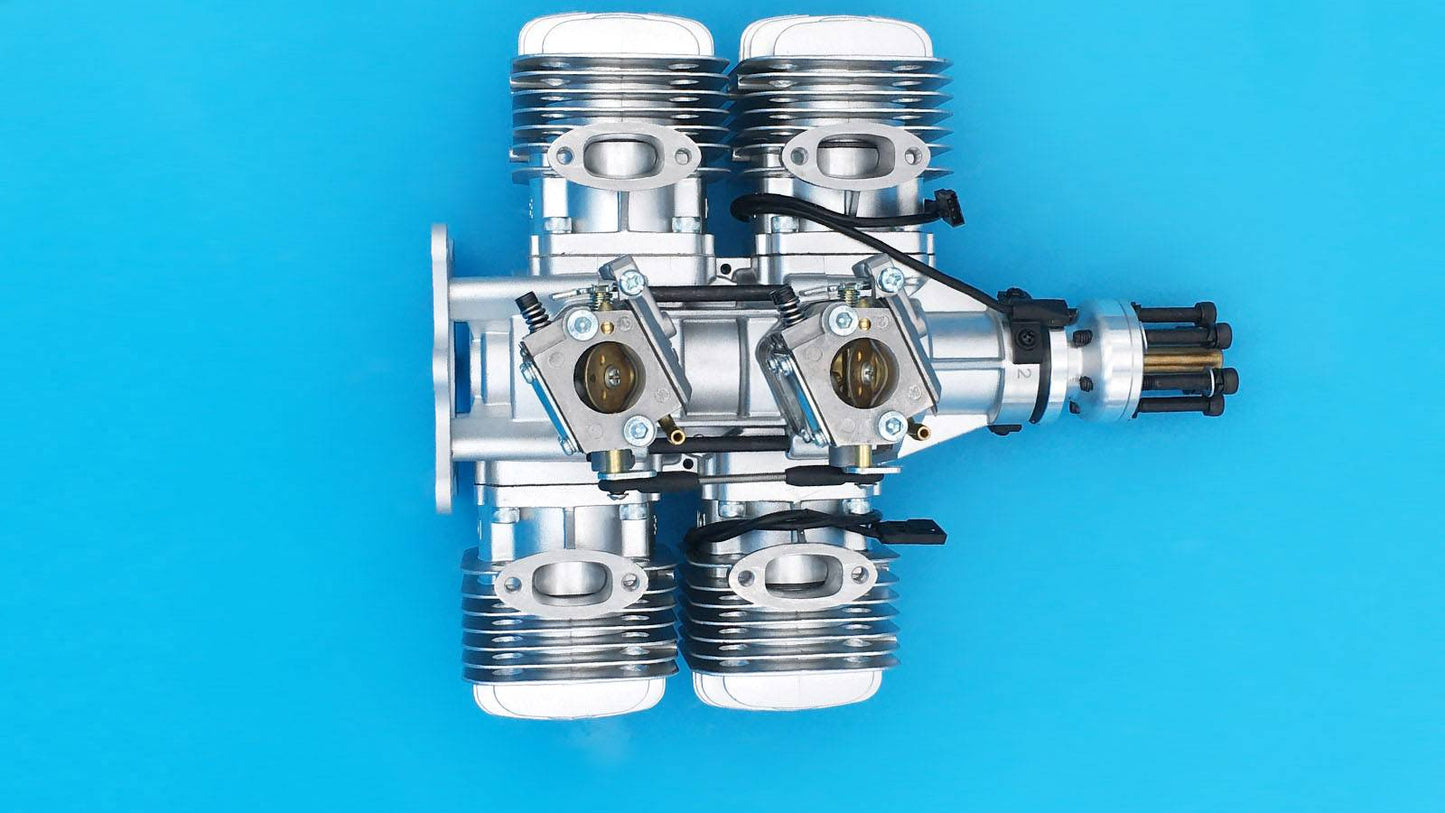

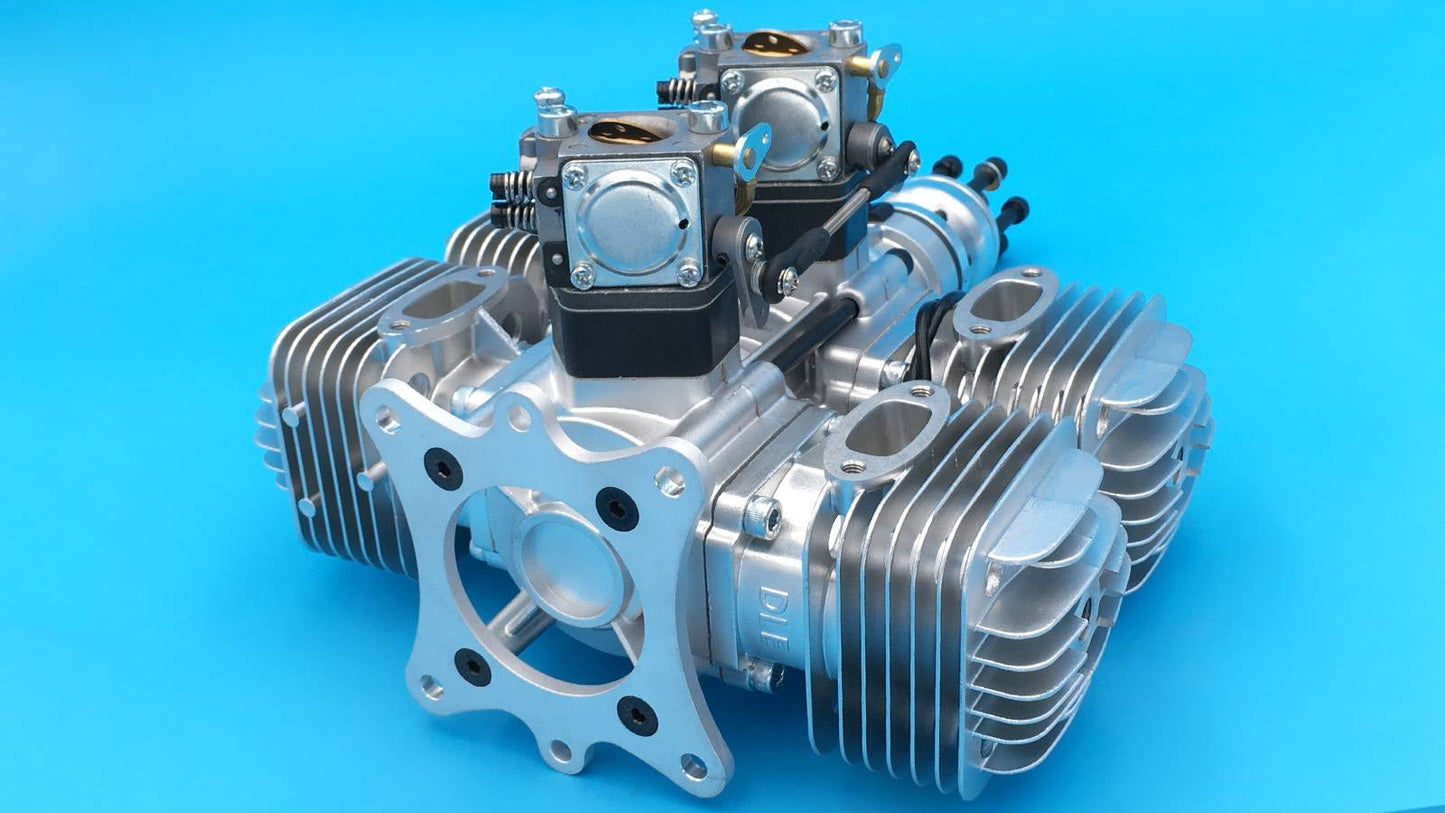

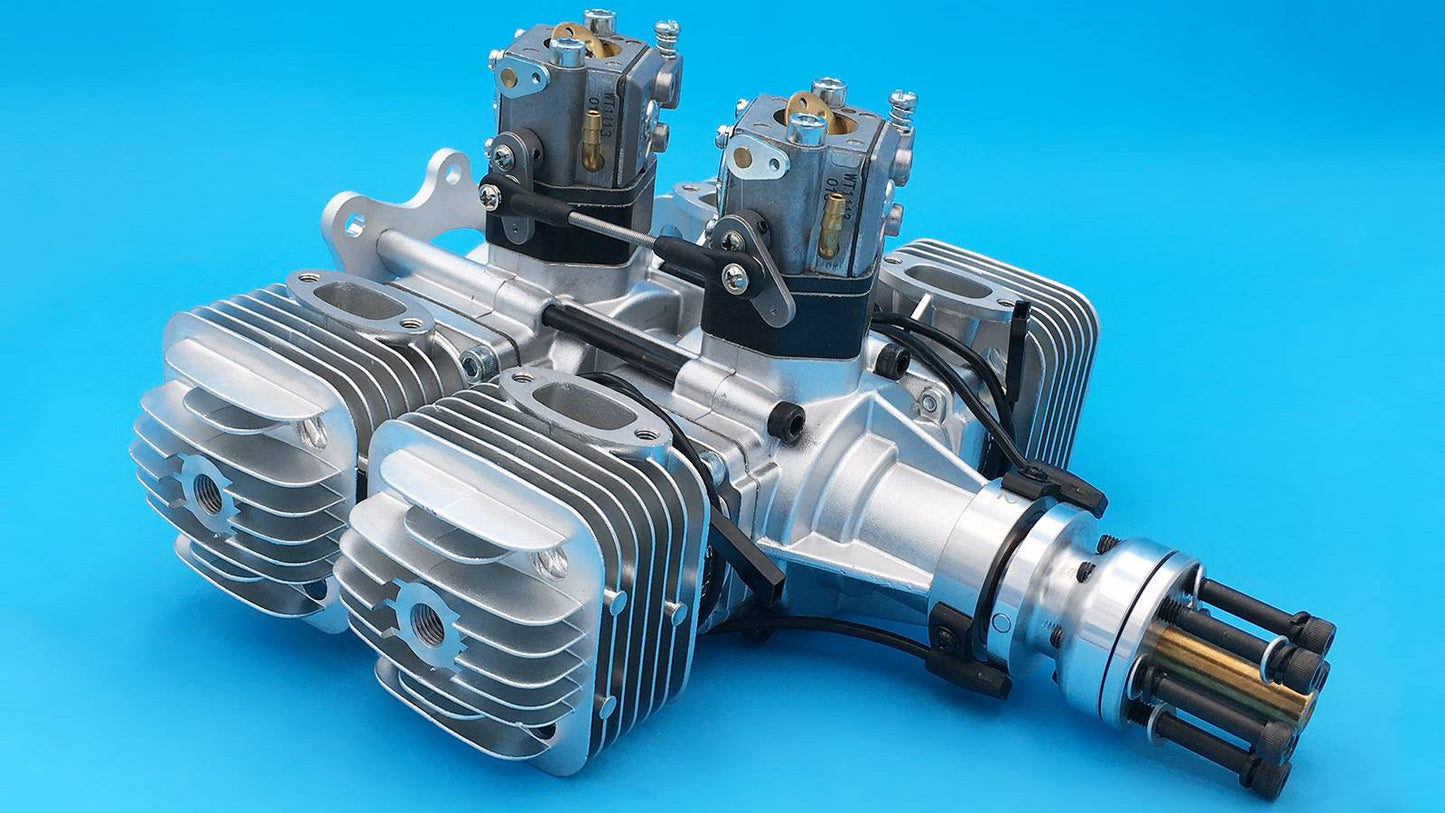

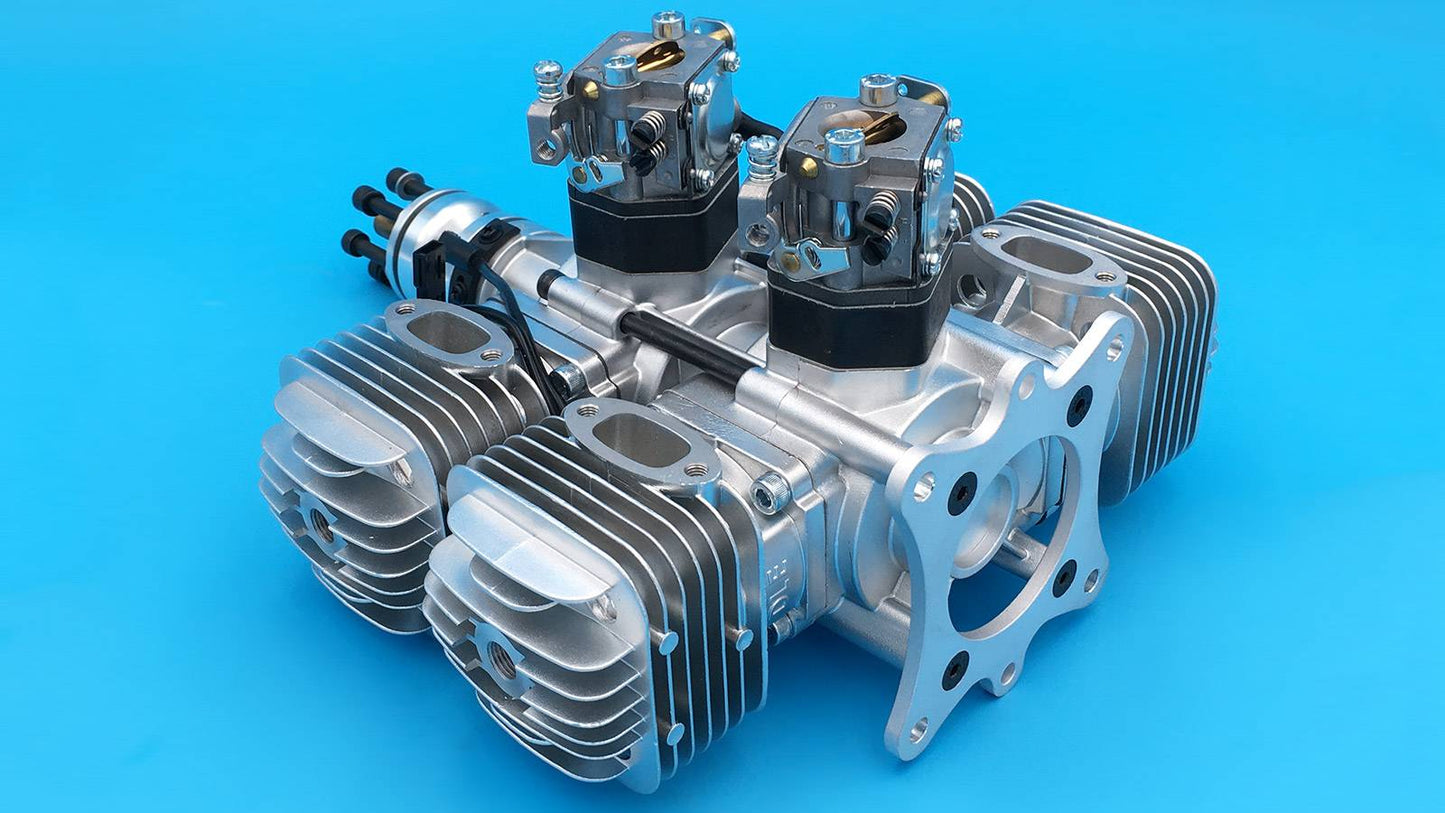

DLE120T4 120cc four cylinder gasoline aeromodel engine, launched in May 2020, is a four cylinder two-stroke piston engine, which is currently the smallest displacement four cylinder aeromodel engine of DLE. The fuel uses clean 92 unleaded gasoline and above, and the ratio of fuel to engine oil is 30:1.



 Performance :

12HP/7500rpm

  Idle Speed :

1200 rmp/min

  Static Thrust :

26.5kg/100 meters  Altitude

  Static Thrust :

23.5kg/1800 meters  Altitude

  Recommended Propeller :

27x10 ; 26x12 ; 28x10 ;

  Spark Plug Type :

DLE CM6



  Displacemen :

120cm3

  Diameter × Stroke :

36mm×30mm

  Compression Ratio :

 7.1 :1

  Lubrication Ratio :

 30:1

  Weight of Main Engine :

 920g

  Weight of Exhaust :

 500g

  Weight of Ignition :

 140g

  Ignition voltage :

 4.8V-12V
