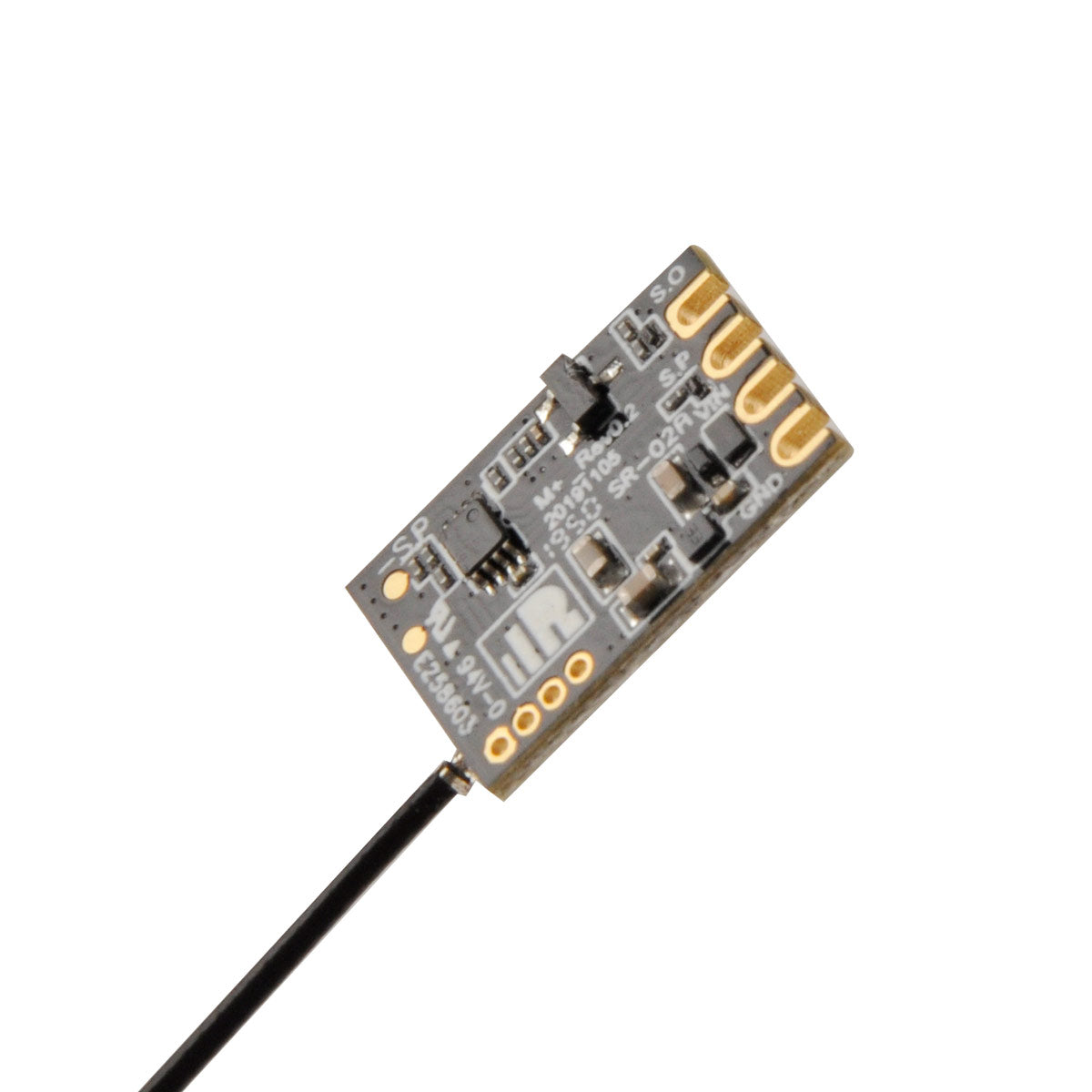

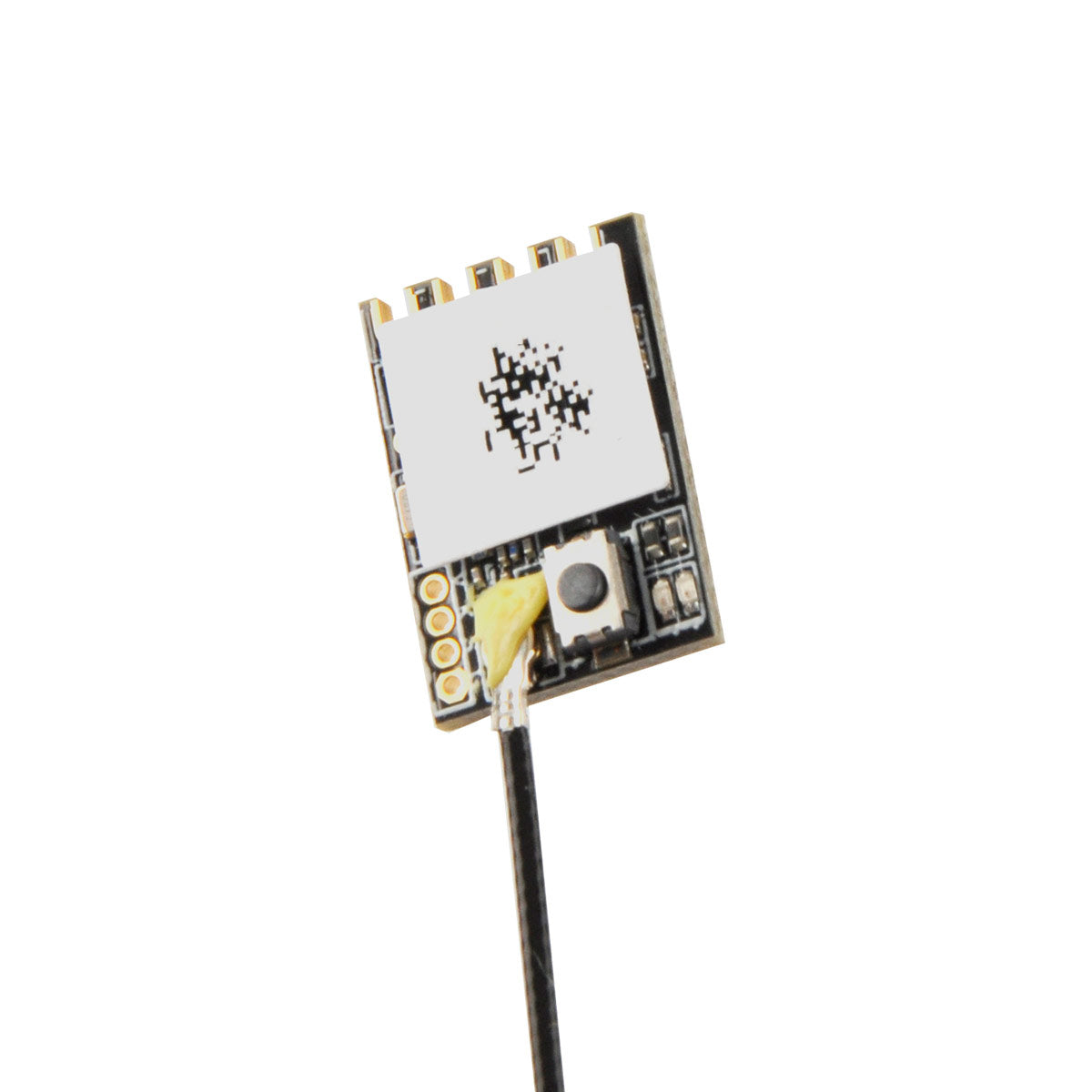

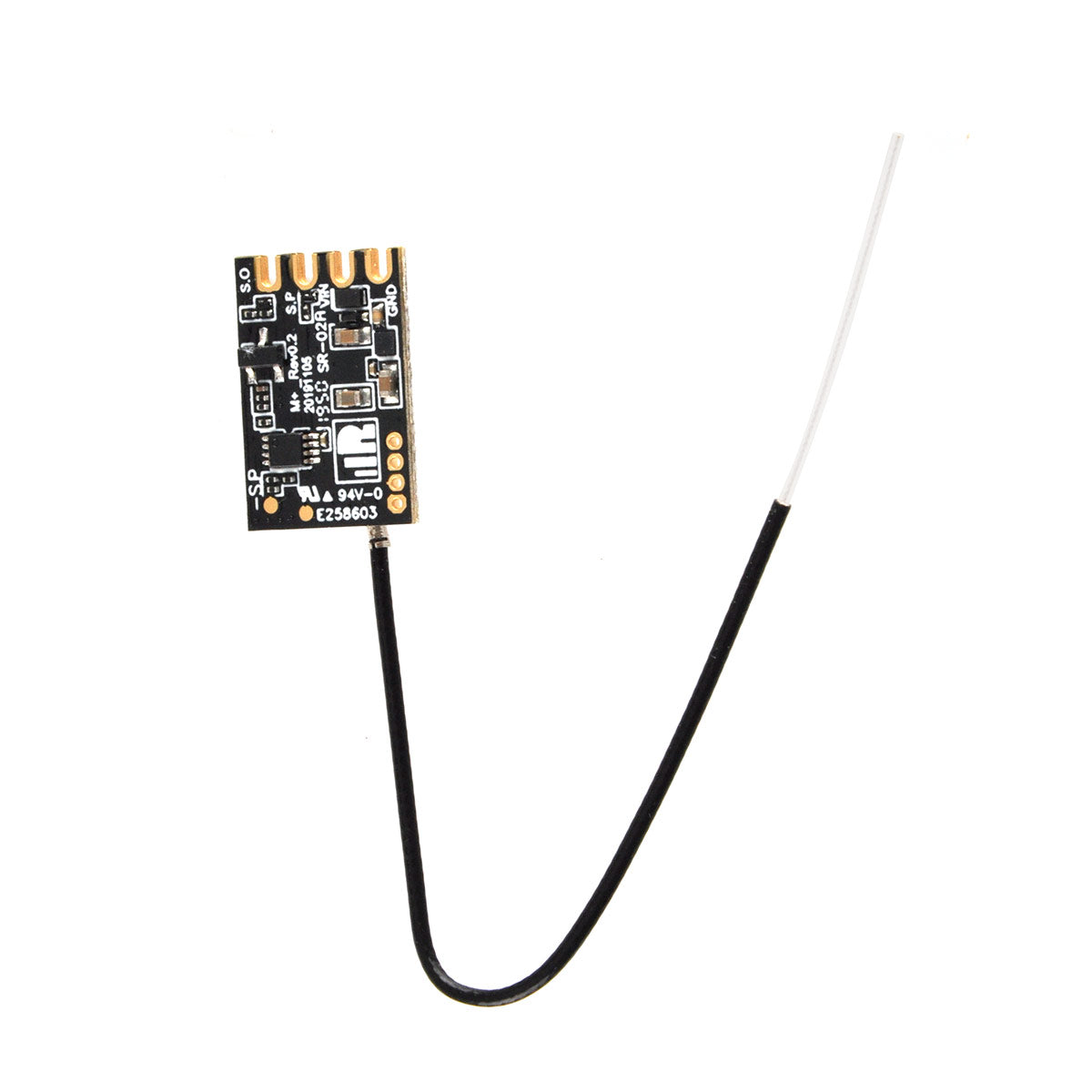

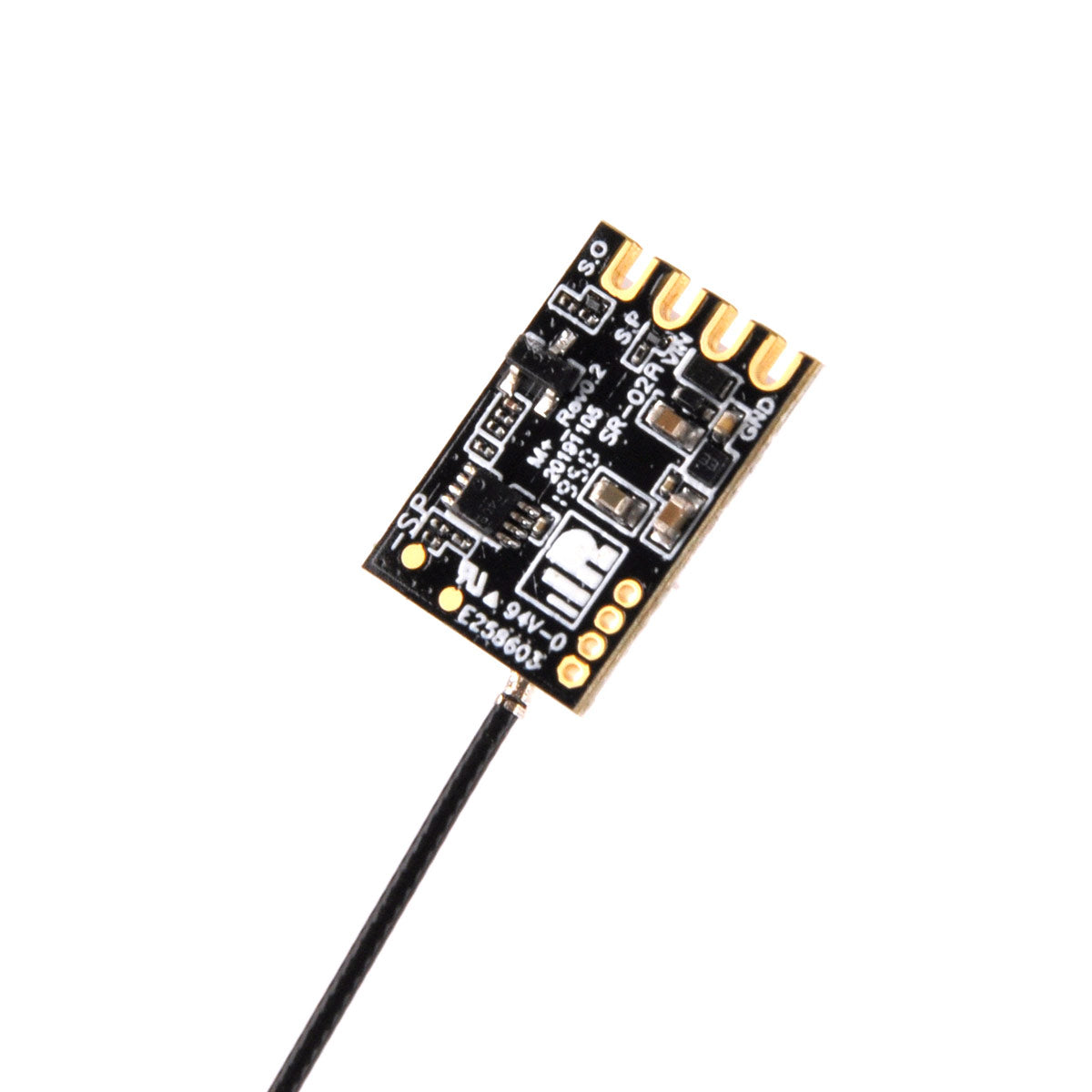

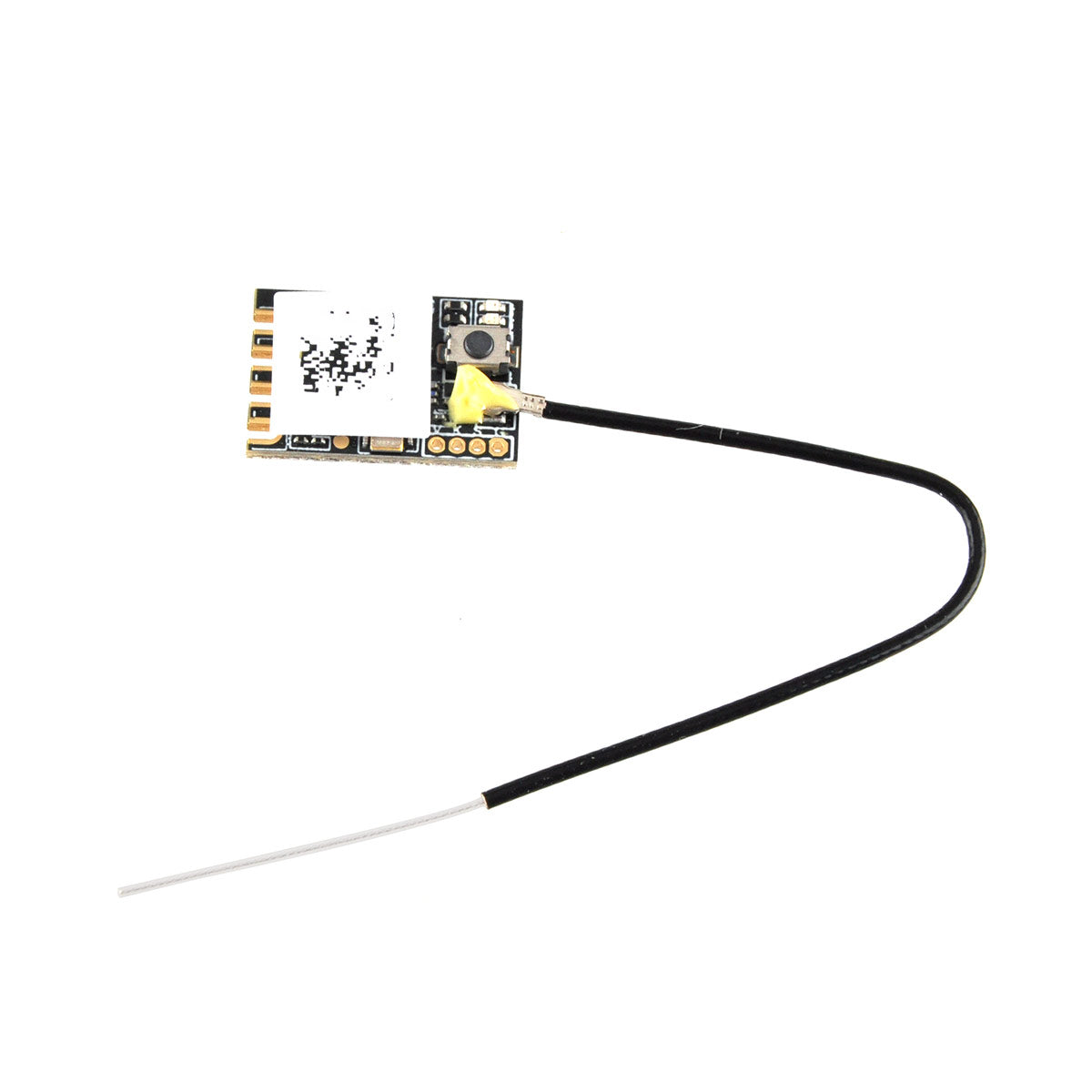

The ARCHER M+ receiver features its tiny form factor and new ACCESS protocol. ACCESS provides the lower latency and increased performance of our previous XM+ receivers. With OTA (Over-The-Air) function support firmware upgrades will be very easy, no more wires.
The ARCHER M+ has an S.Port/F.Port that makes this tiny receiver also support the telemetry function with around 500 to 600 meters telemetry range. Now you can enjoy the audio feedback with it from your FrSky ACCESS enabled transmitter.
Dimension: 1711.74mm (LWH)
Number of Channels: 16/24 SBUS channels
– 16 SBUS channels
– 24 SBUS channels (Stay tuned)
Operating Voltage Range: 3.5 -10V
Operating Current: 16mA@5V typ
Operating Range: ＞1.2km (Full range) (*Range may vary based on local conditions.)
Compatibility: All FrSky ACCESS transmitters
ACCESS protocol with Over The Air (OTA)
Tiny and super lightweight
Full control range & 500 to 600 meters telemetry range
S.Port / F.Port
