Description
OVERVIEW：

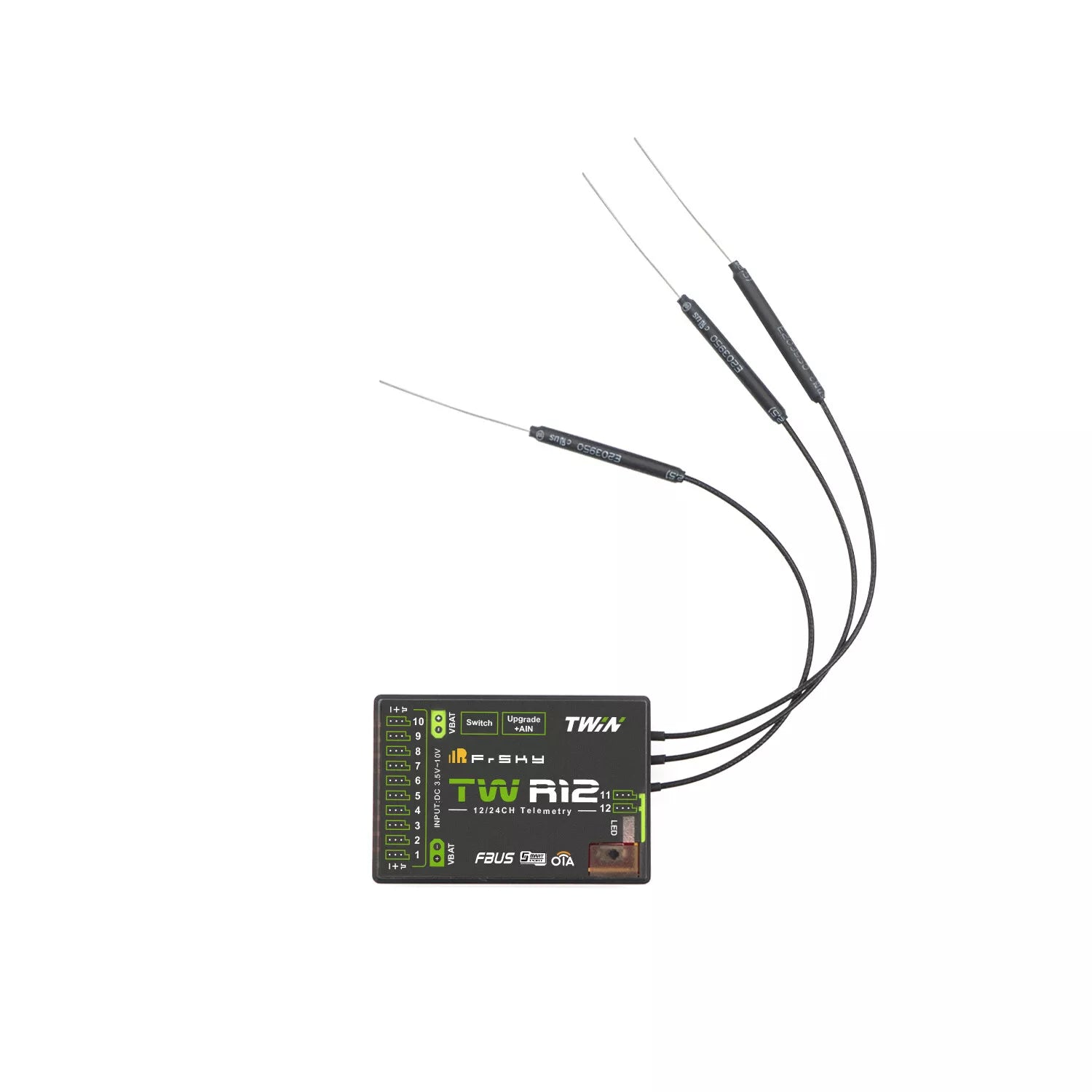

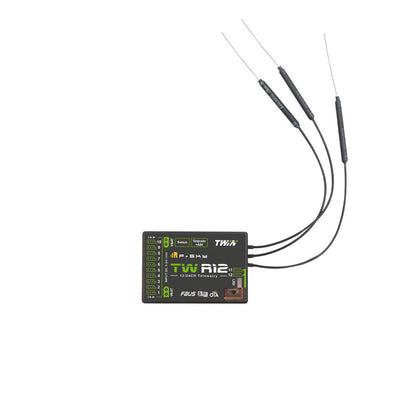

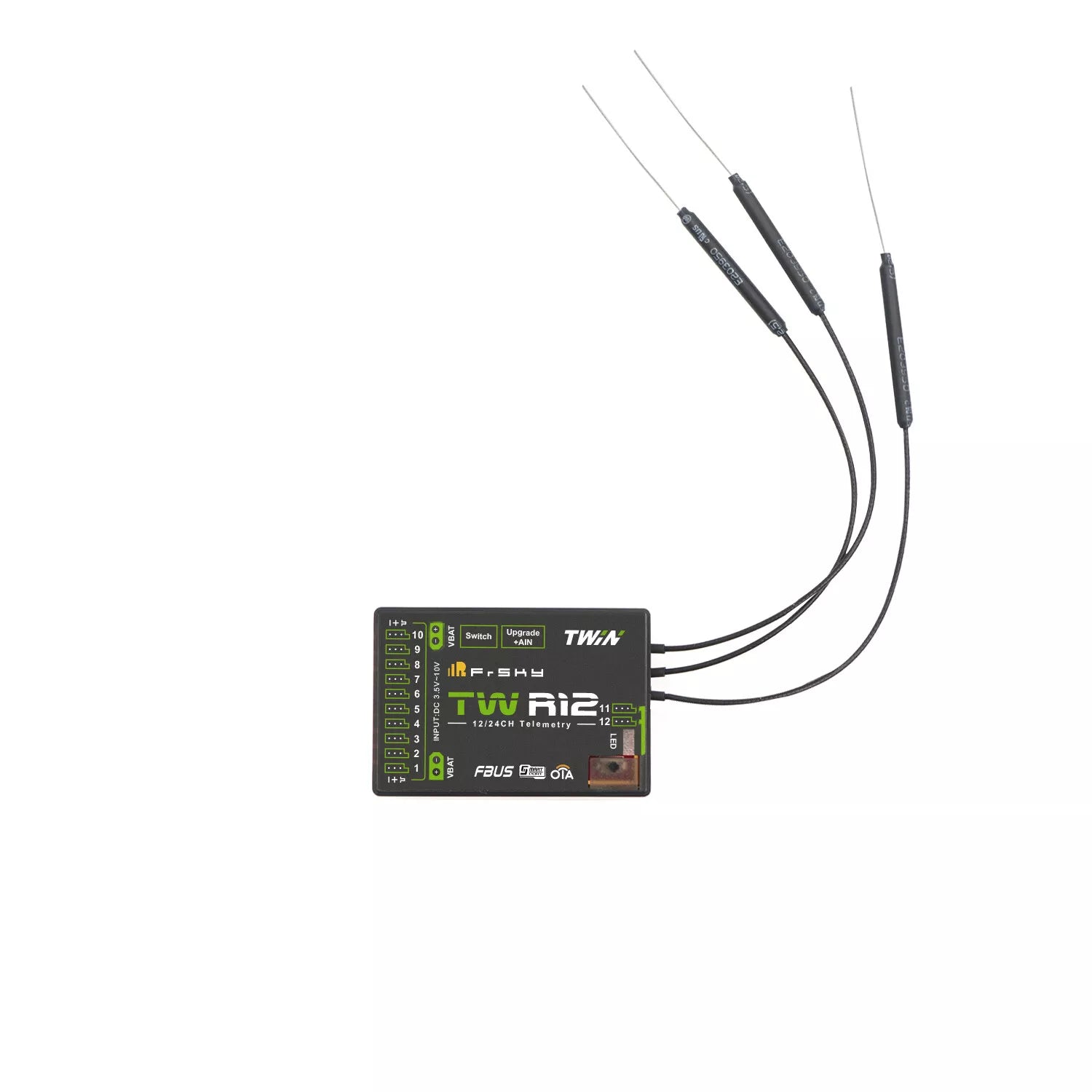

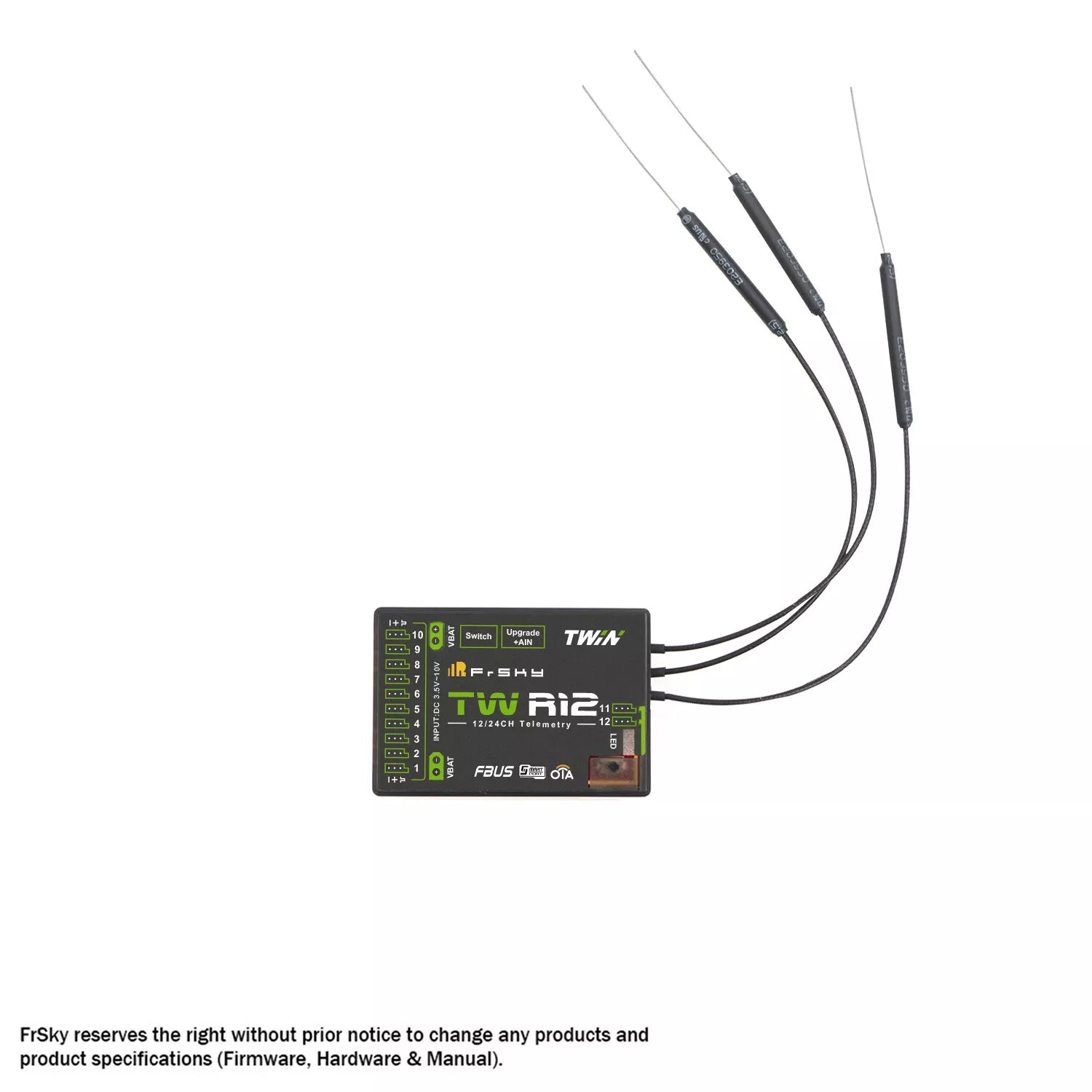

TWIN series receiver features a new stable TW protocol that benefits from simultaneously integrating dual active 2.4G frequency bands. The TW active-active protocol is different from the general active-standby redundancy solutions, with the TW protocol, dual 2.4G frequency bands are active on the TW series receiver at the same time. This receiver is equipped with 3×2.4G antennas and designed for RC users who want to benefit from resilience and long-range in their radio communications.
FEATURES ：
Simultaneous Working Dual 2.4G TW Mode
Basic Black-Box Data Record Function
Built-in Power Switch Function | Match with Different External Switches (Optional)
Long Control Range (Range varies based on the RF Power settings.)
12 Configurable Channel Ports
– CP1: PWM / SBUS OUT / FBUS / S.Port / SBUS IN
– CP2-12: PWM / SBUS OUT / FBUS / S.Port
FBUS / S.Port
SBUS Out Port (Supports 16CH / 24CH mode)
SBUS In Port (Supports Signal Redundancy)
Over-The-Air (OTA) FW update
SPECIFICATIONS：
Frequency: Dual 2.4GHz
Dimension: 48.5*33*17.9mm (L*W*H)
Weight: 22.5g
Operating Voltage Range: 3.5 -10V (Recommend 2S Li-Batteries)
Operating Current: ≤130mA
Continuous Current: ≤20A (power the device) ｜ Instaneous Current: ≤40A (power the device)
Voltage Measurement Range via AIN (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
Compatibility: Twin series radio & TW protocol capable RF module
Triple 2.4GHz Antennas
Dual XT30 Power Input Connector
