FrSky R9 Slim+ Slim plus OTA Receiver Optimized 900MHz long range Sbus ACCST FCC double T antennas RC Quadcopter Multicopter FPV

$33.59 $0.00 ( / )
The FrSky R9 Slim+ receiver is the updated version of R9 Slim, with optimized performance and 2 detachable antennas. The R9 Slim+ has all the features of the R9 Slim with the flexibility to work with more external devices by incorporating the inverted SBUS and S.Port outputs.   SPECIFICATION Dimension:...
  • R9 Slim plus OTA FCC
Add to Wishlist
Categories:

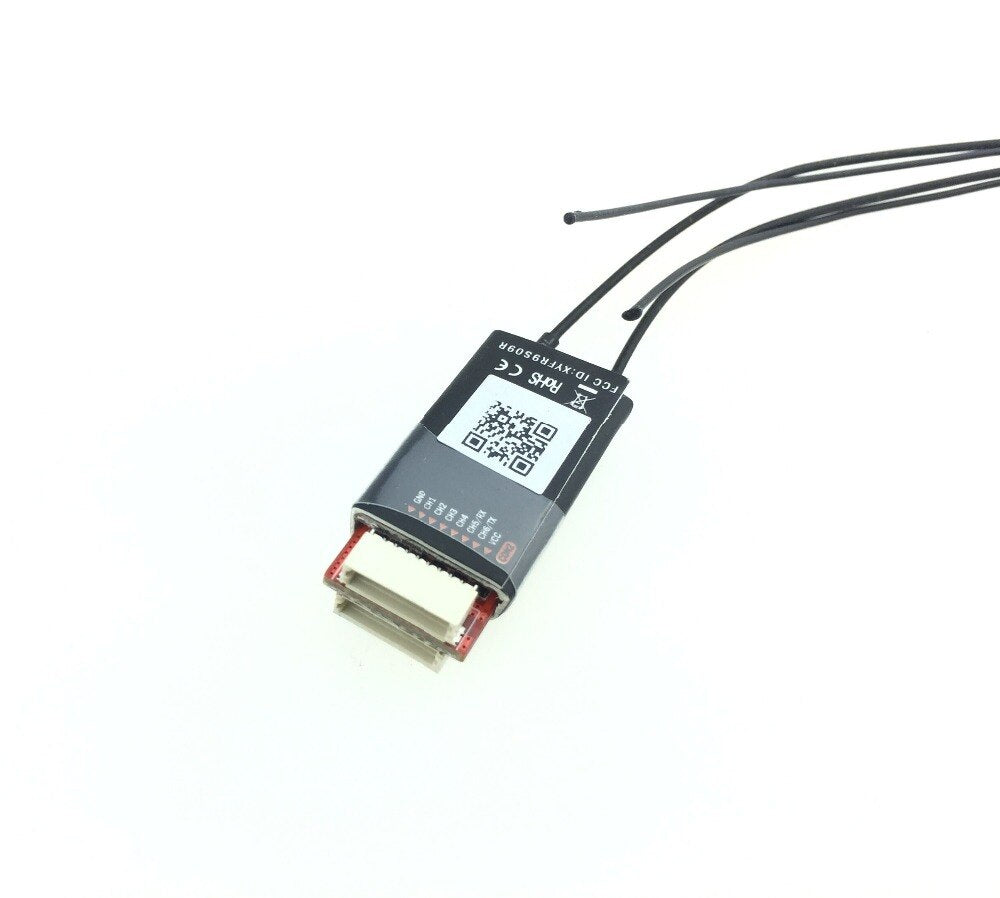

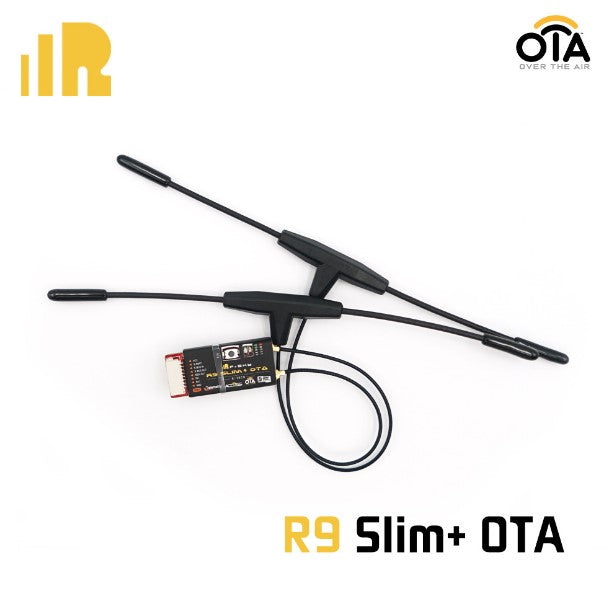

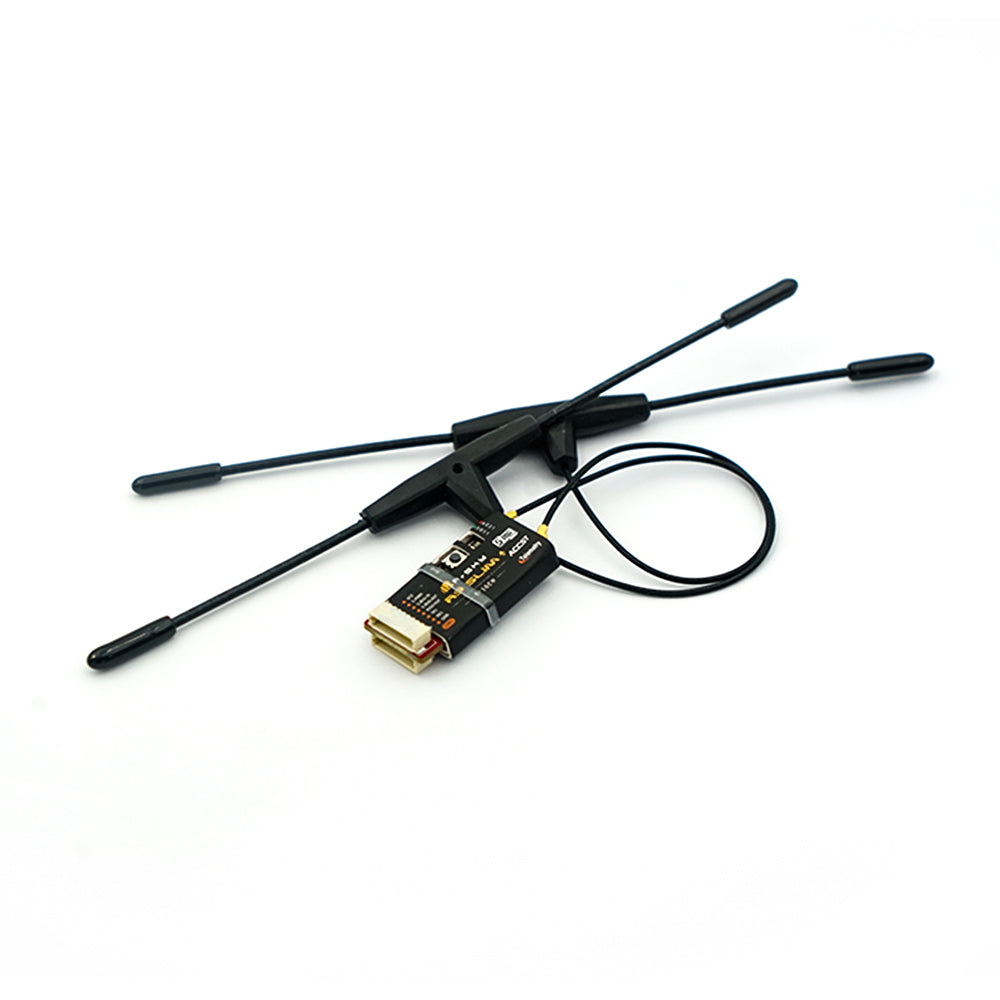

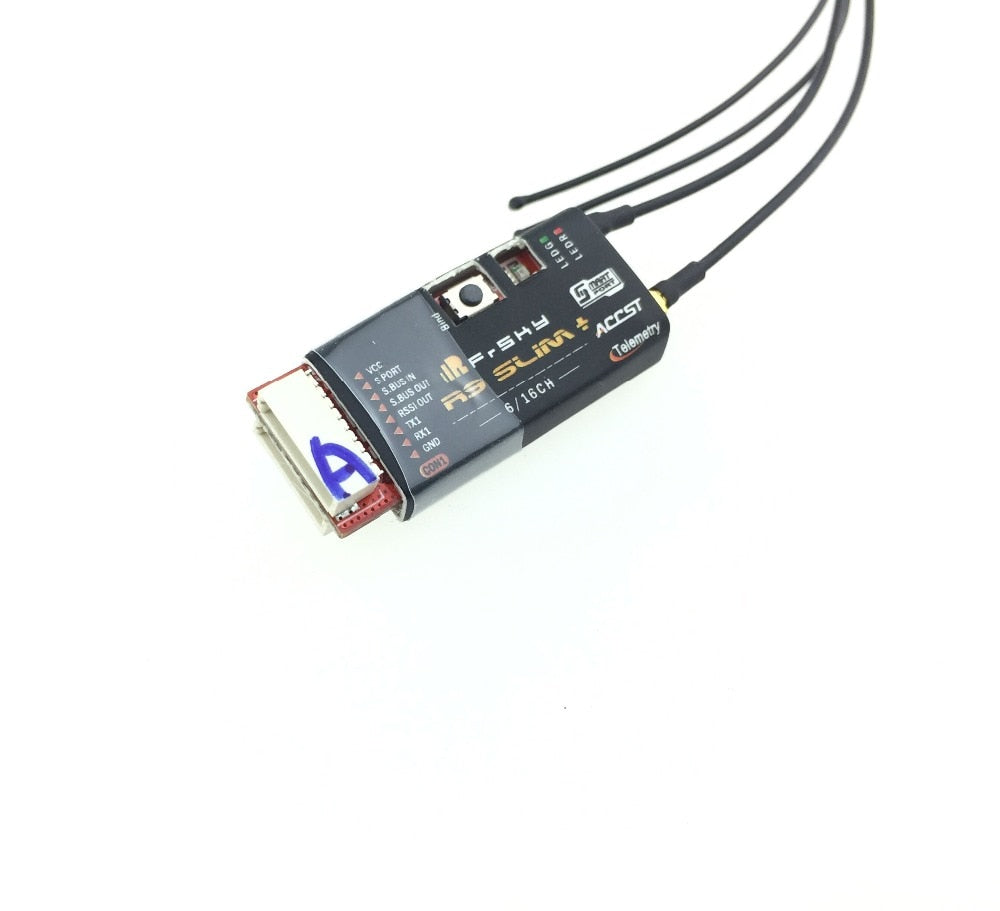

The FrSky R9 Slim+ receiver is the updated version of R9 Slim, with optimized performance and 2 detachable antennas. The R9 Slim+ has all the features of the R9 Slim with the flexibility to work with more external devices by incorporating the inverted SBUS and S.Port outputs.



SPECIFICATION

Dimension: 32*13.5*5mm (L × W × H)

Weight: 4.3g (with antennas)

Number of Channels:

Non-EU Version: 6/16CH (Telemetry)

EU Version: 6/8CH (Telemetry) / 6/16CH (Telemetry) / 6/16CH (No Telemetry)

With RSSI Output: Analog 0~3.3V

Operating Voltage Range: DC 3.5V~12.6V(3s Li-Battery)

Operating Current: 100mA at 5V

Operating Range: Up to 10km or above

Firmware Upgradable

Compatibility: R9M and R9M Lite



FEATURE

915MHz (Non-EU Version)/ 868MHz(EU Version)

Performance optimized

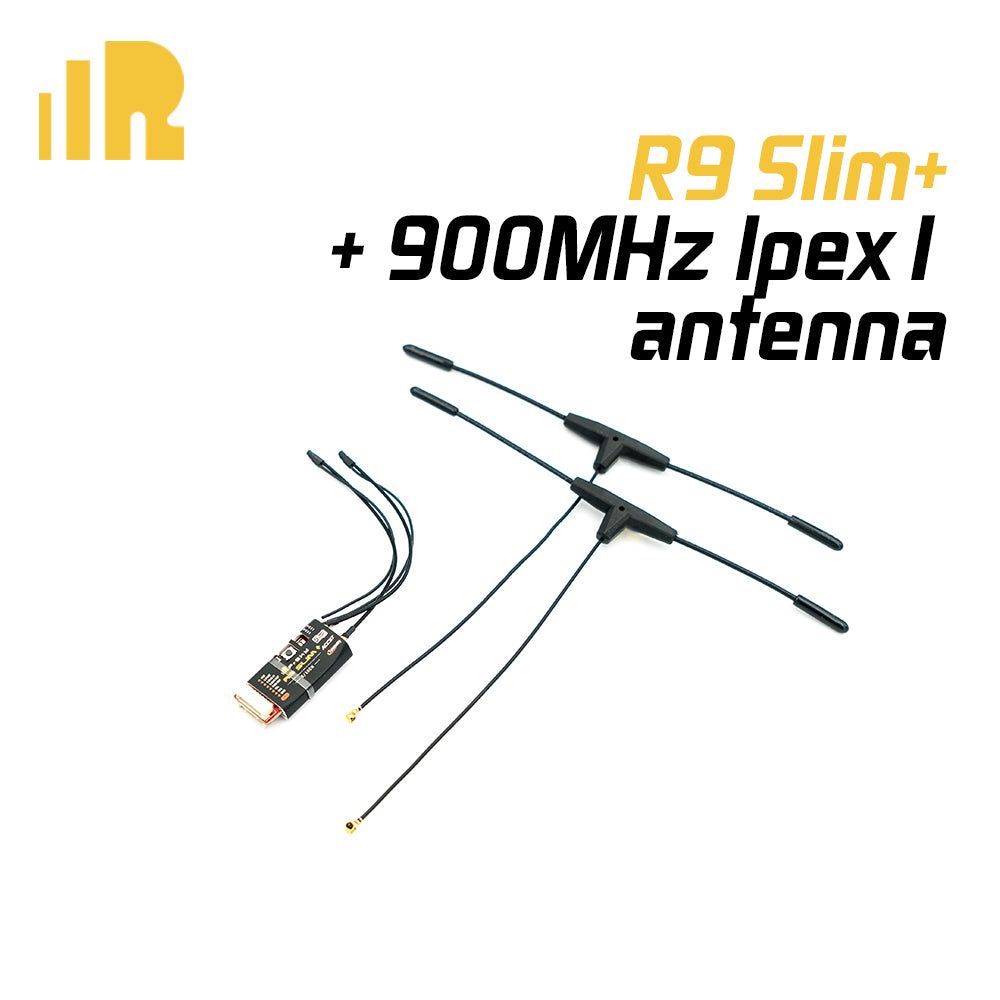

2 detachable ipex connector antennas

Small and conveniently setup

Low latency and high precision

Support redundancy function

Smart Port enabled and support telemetry data transmission

Battery voltage detection

With RSSI output

With inverted SBUS and S.Port outputs

Vendor:

Frsky

Optional:

R9 Slim plus OTA FCC

SKU:

FS03021811

Weight:

0.05 kg
