Description
Product Description
Product Description

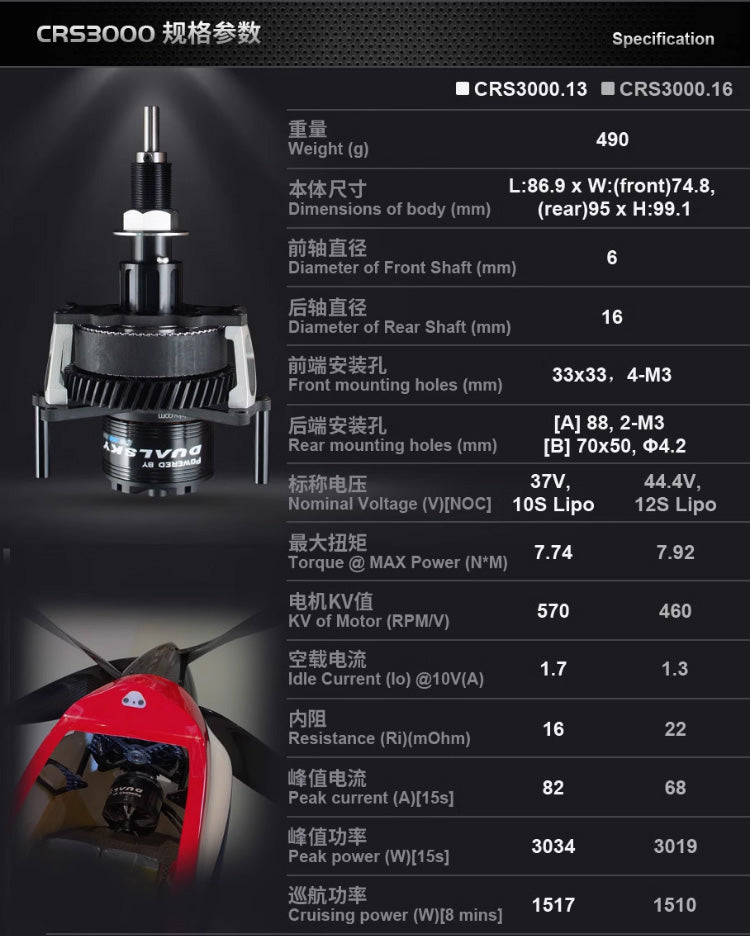

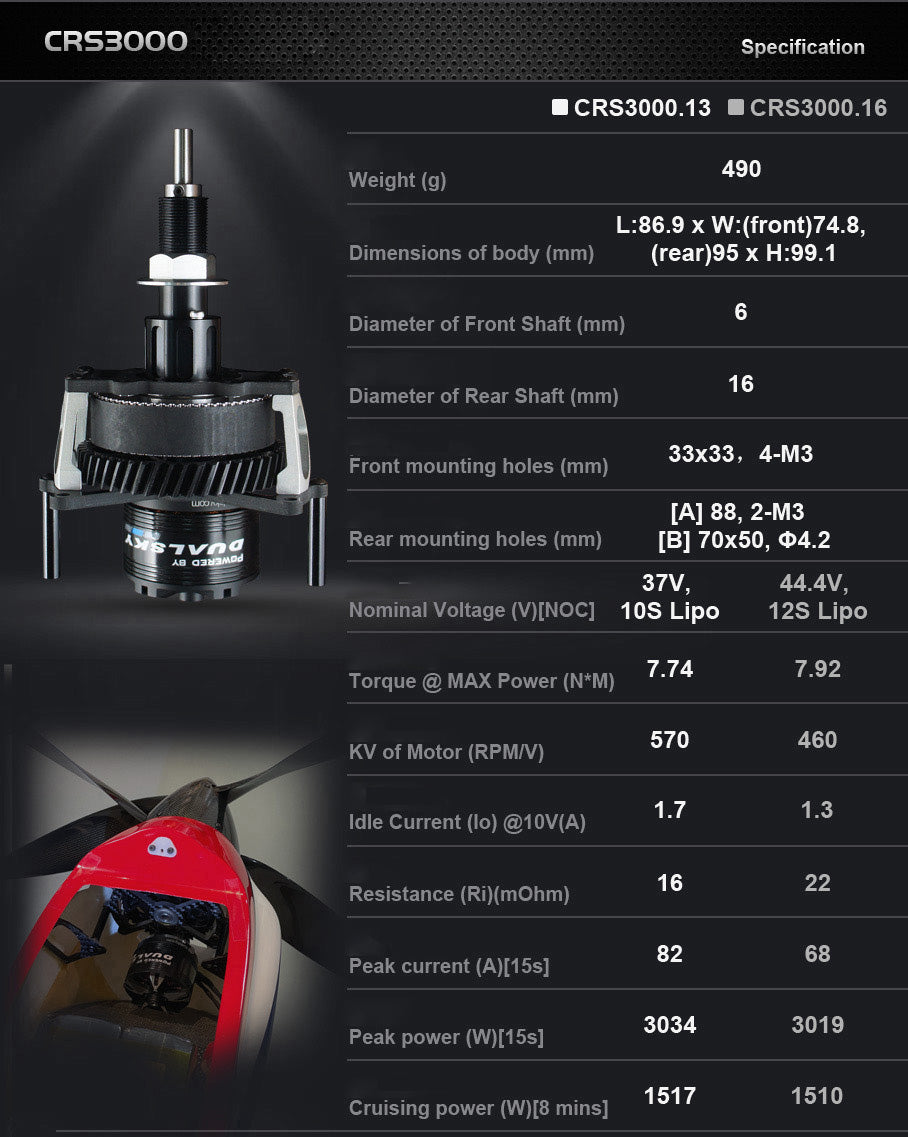

CRS3000.13
Weight (g):490

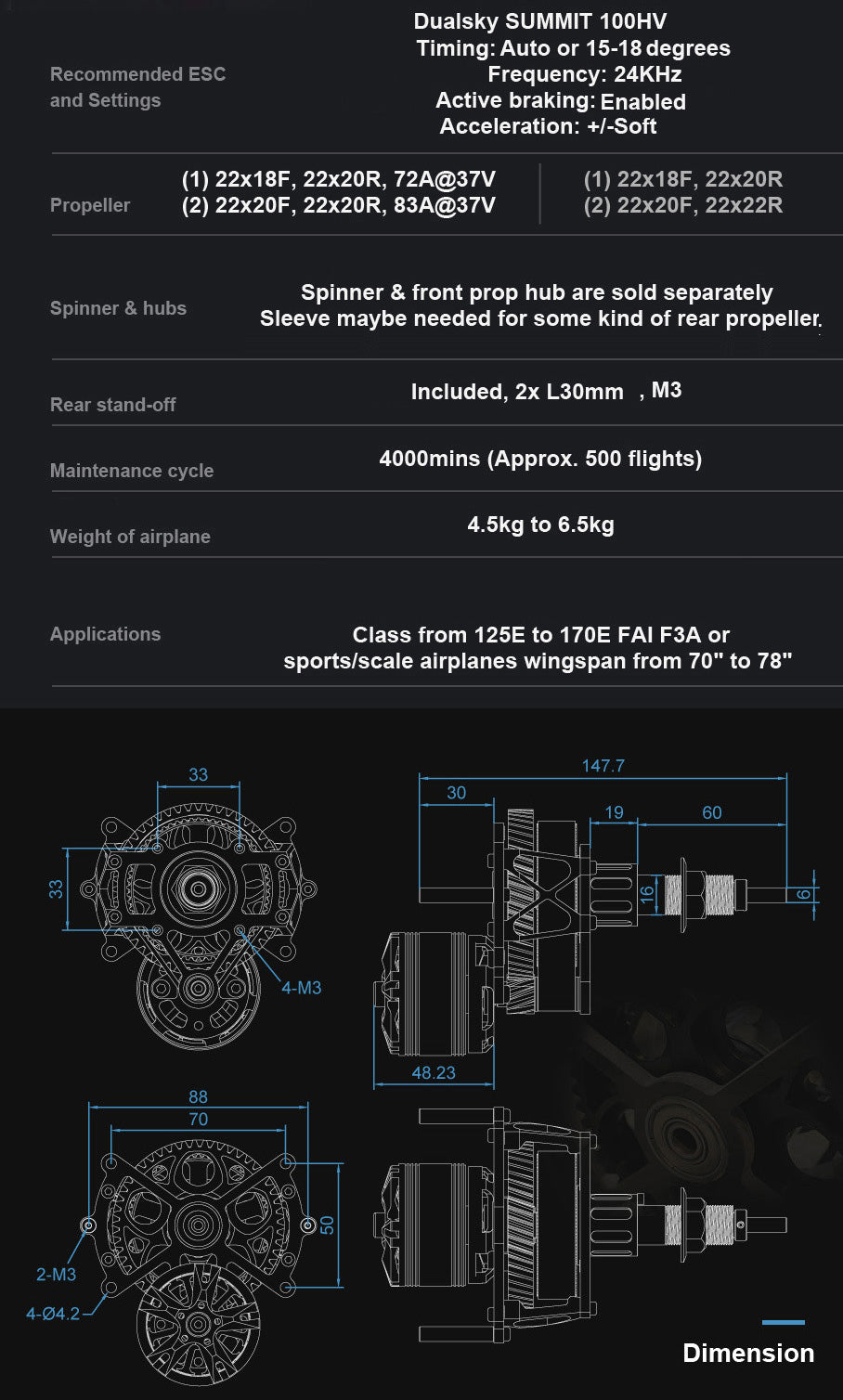

Dimensions of body (mm):
L:86.9 xW:(front)74.8
(rear)95 x H:99.1
Diameter of Front Shaft (mm):16
Diameter of Rear Shaft (mm):6
Front mounting holes (mm):33x33，4-M3
Rear mounting holes (mm):[A]88,2-M3 [B]70x50,φ4.2
Nominal Voltage (V)[NOC]:37V 10S Lipo
Torque @ MAX Power (N*M):7.74
KV of Motor (RPM'V]:570
ldle Current (lo) @10V(A):1.7
Resistance (Ri)(mOhm):16
Peak current (A)[15s]:82
Peak power (W)[15s]:3034
Cruising power ('][8 mins]:1517
CRS3000.16
Weight (g):490
Dimensions of body (mm):L:86.9 xW:(front)74.8(rear)95 x H:99.1
Diameter of Front Shaft (mm):16
Diameter of Rear Shaft (mm):6
Front mounting holes (mm):33x33，4-M3
Rear mounting holes (mm):[A]88,2-M3 [B]70x50,φ4.2
Nominal Voltage (V)[NOC]: 44.4V,12S Lipo
Torque @ MAX Power (N*M): 7.92
KV of Motor (RPM'V]: 460
ldle Current (lo) @10V(A): 1.3
Resistance (Ri)(mOhm): 22
Peak current (A)[15s]:68
Peak power (W)[15s]: 3019
Cruising power ('][8 mins]:1510
