8kg Airplane Nose/Main Wheel Servoless Electric Retracts

Flight ModelSKU: PZ-15096SN

Type: 1pc Nose Retract
Price:
Sale price$20.06

Description

Features

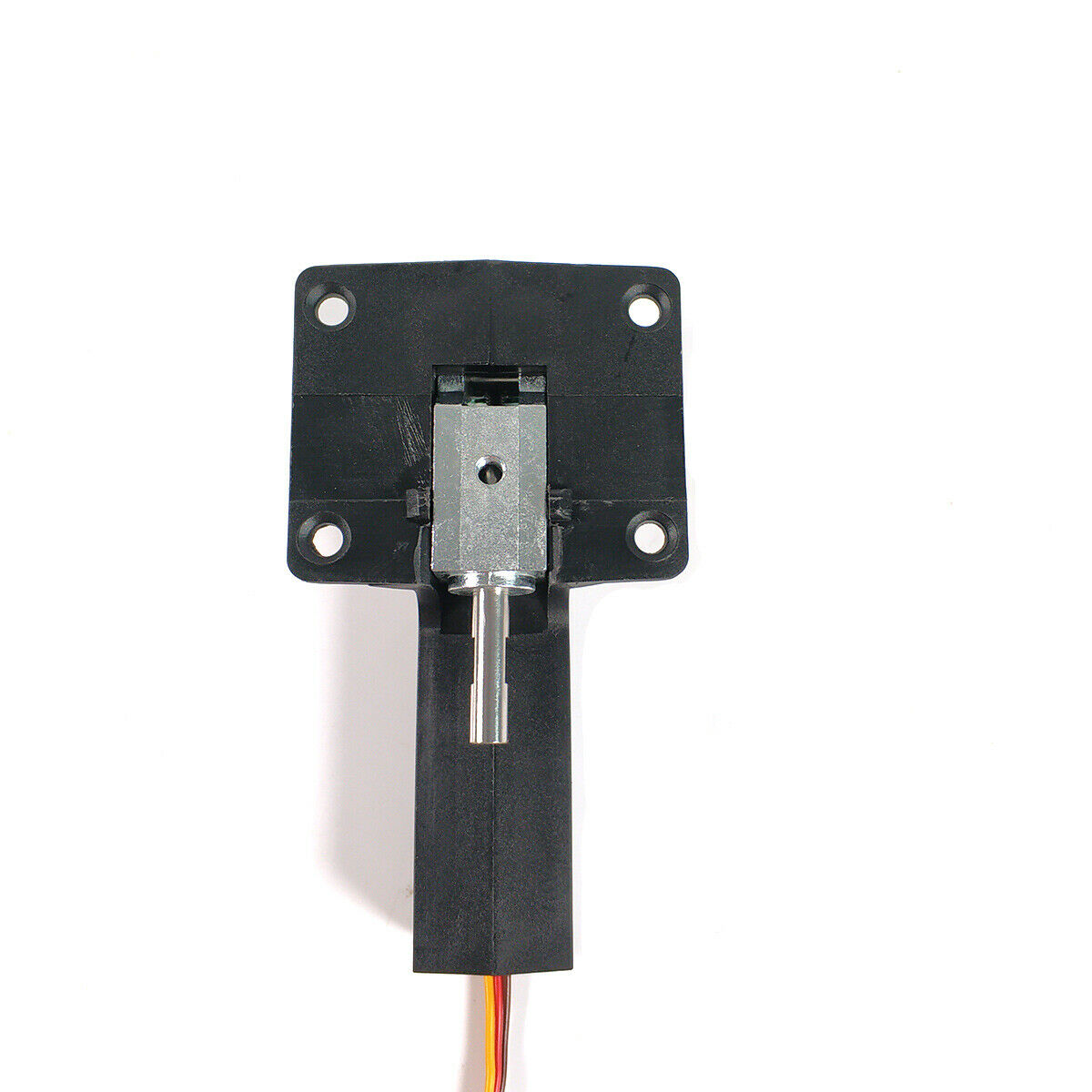

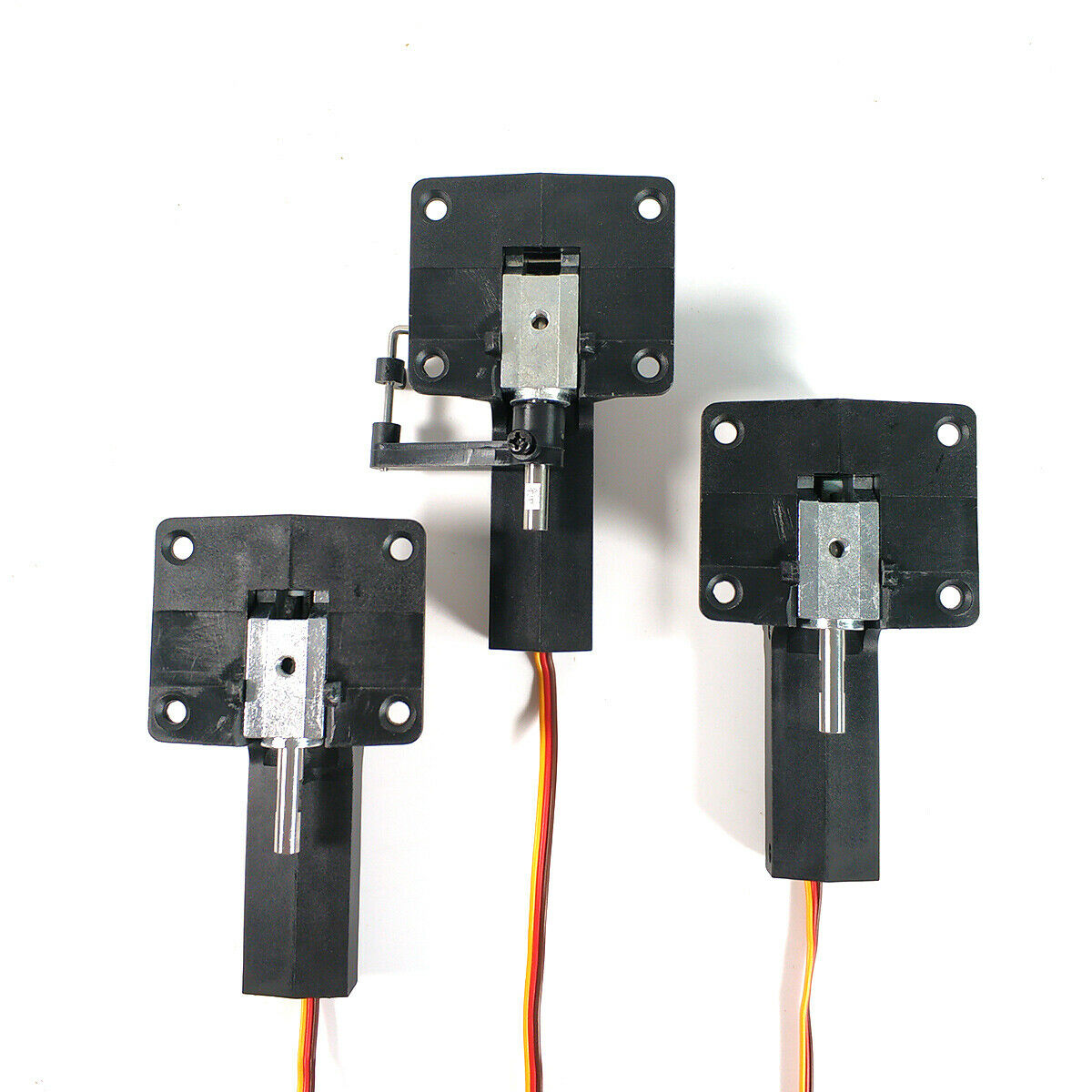

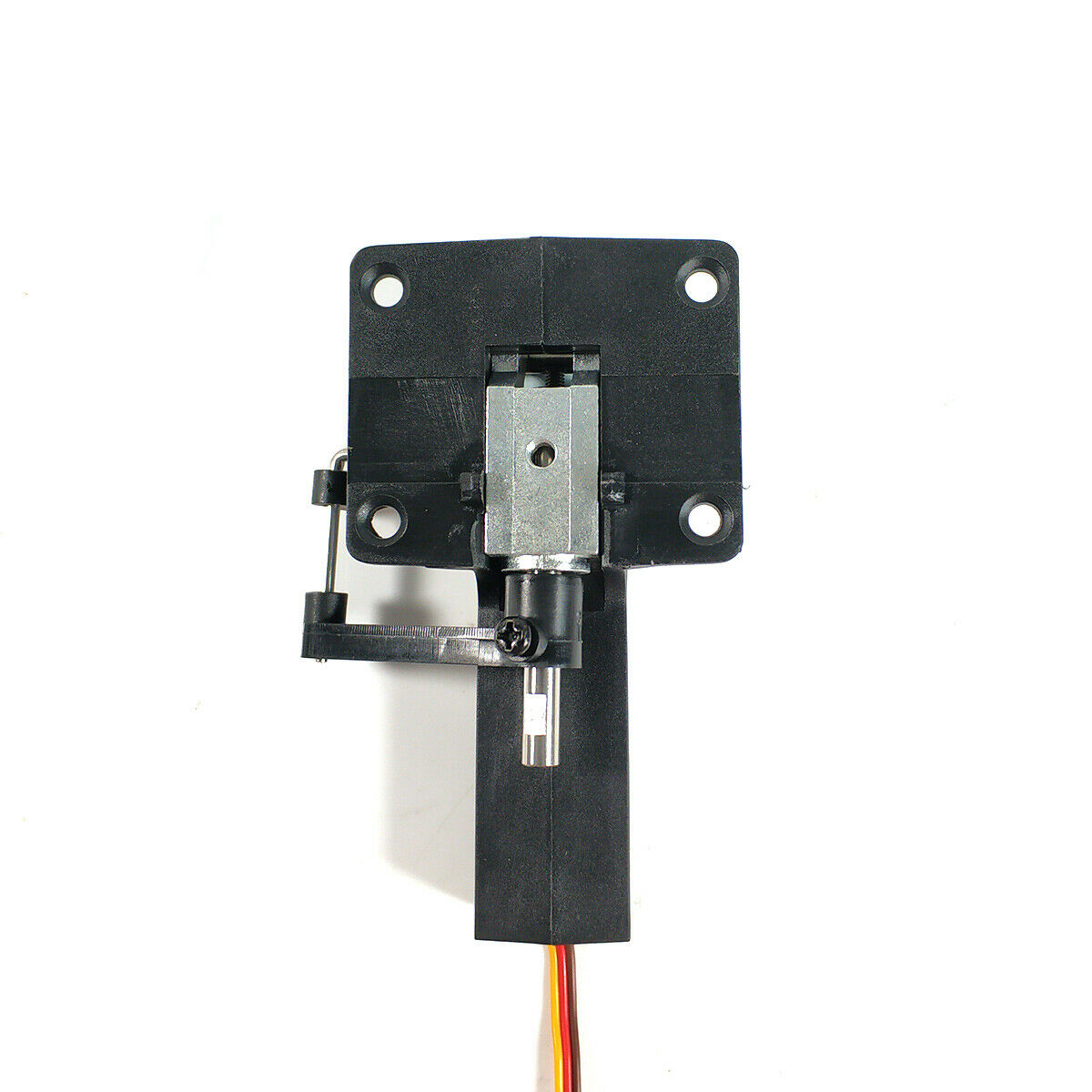

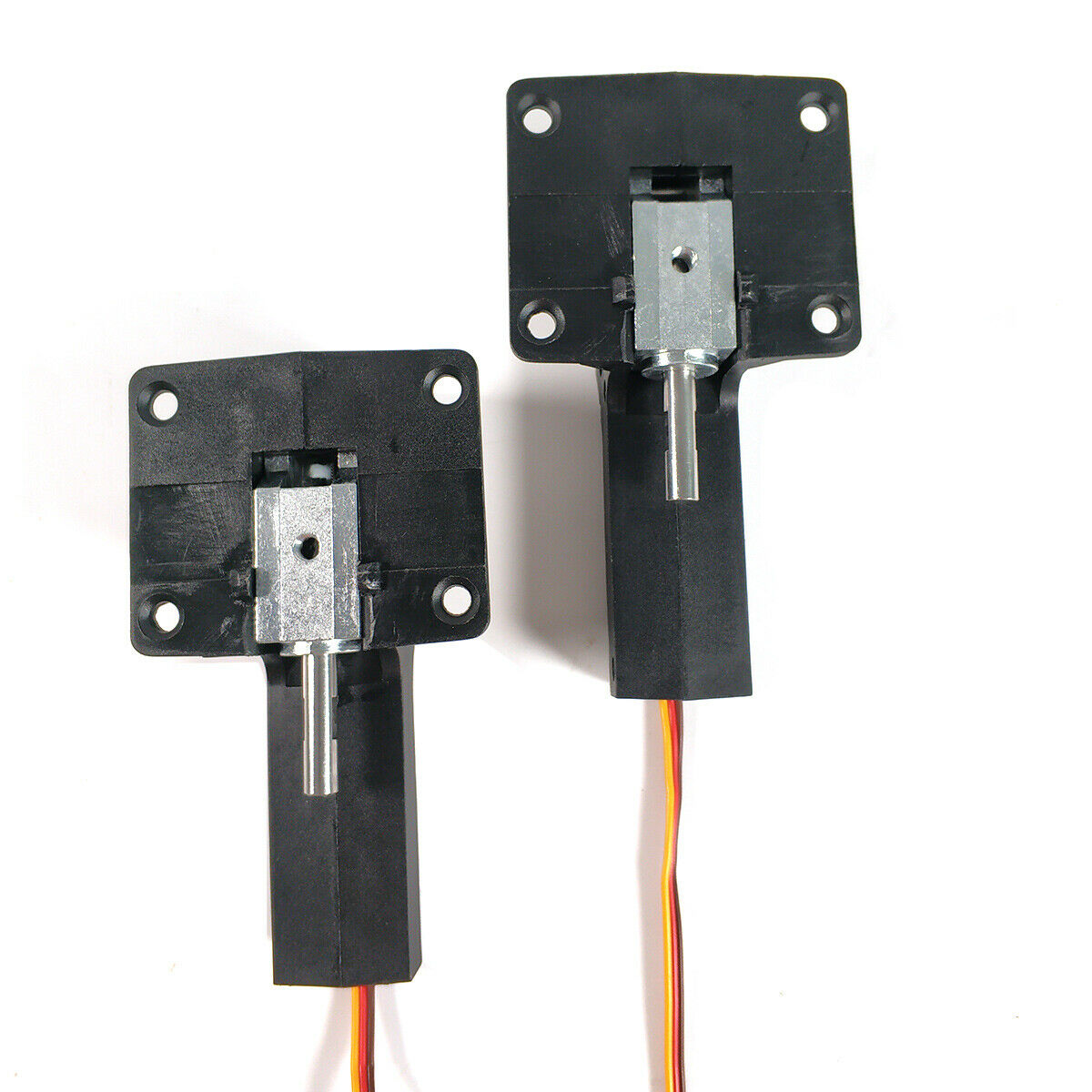

No. PZ-15096SN Nose Retract

  • Gear Size: 93*51*30.8mm(L*W*H)
  • Weight: 94g
  • Speed: 6S/90°@4.8V; 5S/90°@6.0V, 4S/90°@7.4V
  • Torque: 15.5kg-cm@4.8V: 18.6kg-cm@6.0V: 20.6kg-cm@7.4V
  • Operating Voltage: 4.8V-7.4V
  • Landing Struct Diameter: Φ 5mm
  • Support Flight Weight: 8kg
  • Wire Length: 420mm
  • Wire Color: Brown, Red, Orange
  • Plug Type: JR Plug



No. PZ-15096SM Main Retract

  • Size: 93*51*30.8(L*W*H)
  • Weight: 94g
  • Speed: 6S/90°@4.8V; 5S/90°@6.0V, 4S/90°@7.4V
  • Torque: 15.5kg-cm@4.8V: 18.6kg-cm@6.0V: 20.6kg-cm@7.4V
  • Operating Voltage: 4.8V-7.4V
  • Landing Struct Diameter: Φ 5mm
  • Support Flight Weight: 8kg
  • Wire Length: 420mm
  • Wire Color: Brown, Red, Orange
  • Plug Type: JR Plug

No. PZ-15096B Full Metal Nose Retract

  • Size: 93*51*35(L*W*H)
  • Weight: 173G
  • Speed: 6S/90&deg@4.8V; 5S/90&deg@6.0V, 4S/90&deg@7.4V
  • Torque: 15.5kg-cm@4.8V: 18.6kg-cm@6.0V: 20.6kg-cm@7.4V
  • Operating Voltage: 4.8V-7.4V
  • Landing Struct Diameter:  Φ 10mm
  • Support Flight Weight: 10kg-12kg
  • Wire Length: 420mm
  • Wire Color: Brown, Red, Orange
  • Plug Type: JR Plug


No. PZ-15096D Full Metal Main Retract

  • Size: 93*51*30.6(L*W*H)
  • Weight: 188G
  • Speed: 6S/90°@4.8V; 5S/90°@6.0V, 4S/90°@7.4V
  • Torque: 15.5kg.cm@4.8V: 18.6kg.cm@6.0V: 20.6kg.cm@7.4V
  • Operating Voltage: 4.8V-7.4V
  • Support Flight Weight: about 10kg-12kg
  • Landing Struct Diameter: Φ 8mm
  • Wire Length: 420mm
  • Wire Color: Brown, Red, Orange
  • Plug Type: JR Plug

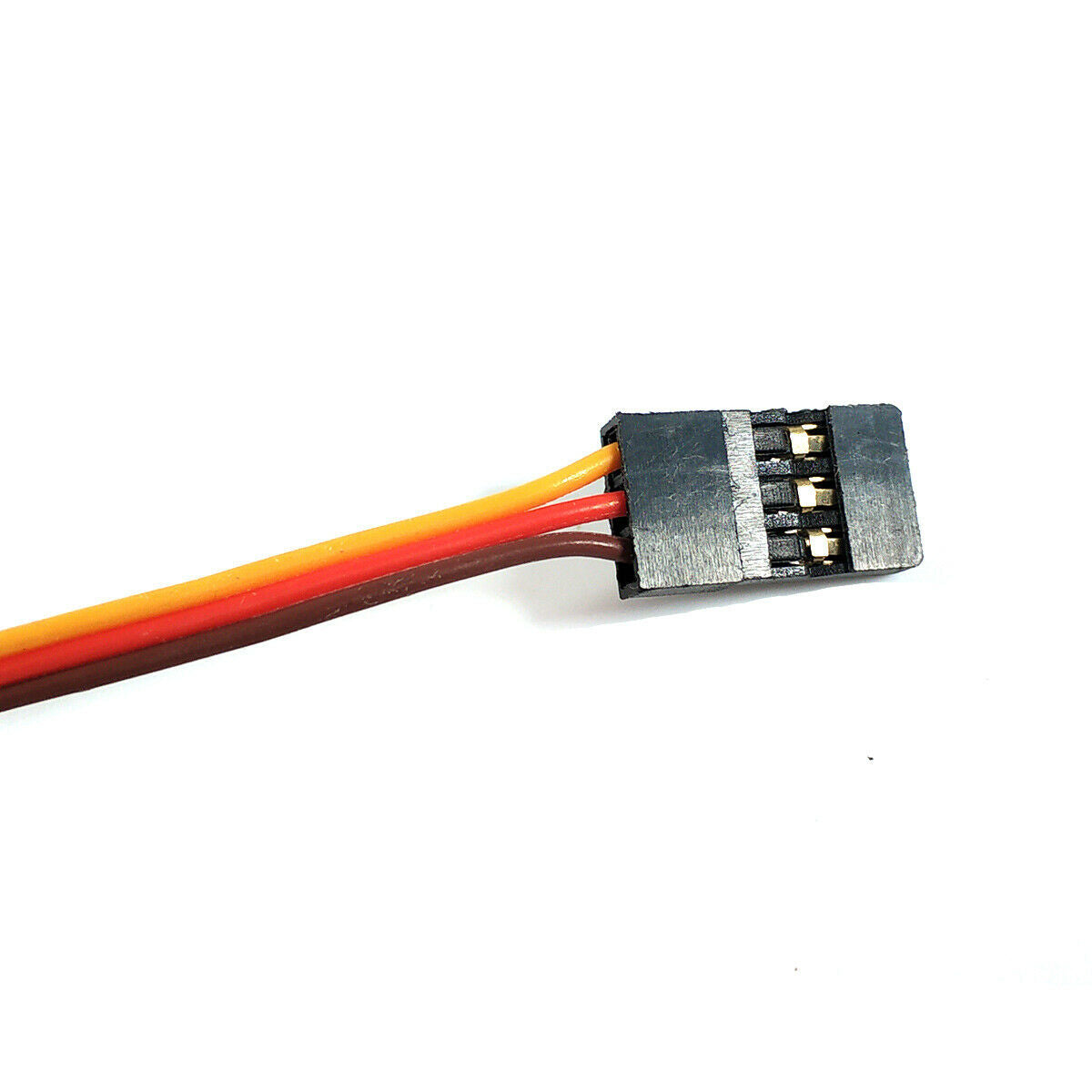

The Plug:
JR Golden Plated Plug
