EPHIL XG-Series Model Aircraft Gasoline Engine with Electric Starter S

Product Description

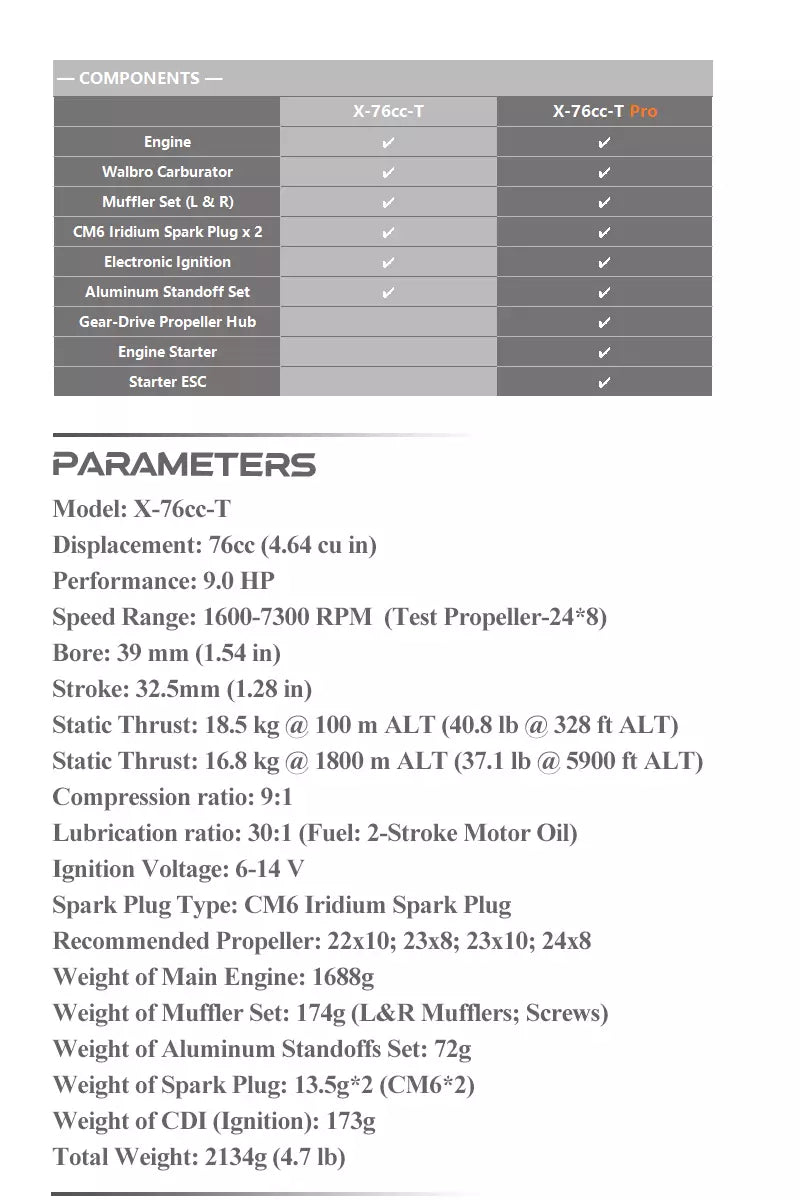

X-76cc
Displacement: 76cc (4.64 cu in)
Performance: 9.0 HP
Speed Range: 1800-7300 RPM (Test Propeller-24*9)
Bore: 39 mm (1.54 in)
Stroke: 32.5mm (1.28 in)
Static Thrust: 18.5 kg @ 100 m ALT (40.8 lb @ 328 ft ALT)
Static Thrust: 16.8 kg @ 1800 m ALT (37.1 lb @ 5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-14 V
Spark Plug Type: CM6 Iridium Spark Plug
Recommended Propeller: 22x10; 23x8; 23x10; 24x8
Weight of Main Engine: 1688g
Weight of Muffler Set: 174g (L&R Mufflers; Screws)
Weight of Aluminum Standoffs Set: 72g
Weight of Spark Plug: 13.5g*2 (CM6*2)
Weight of CDI (Ignition): 173g
Total Weight: 2134g (4.7 lb)

XG-20cc-R
Displacement: 20cc (1.22 cu in)
Performance: 2.4 HP
Speed Range: 2000-8500 RPM (Test Propeller-16*8)
Bore: 32 mm (1.26 in)
Stroke: 27mm (1.06 in)
Static Thrust: 6.9 kg @ 100 m ALT (15.2 lb @ 328 ft ALT)
Static Thrust: 5.3 kg @ 1800 m ALT (11.7 lb @ 5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-8.4 V
Glow Plug Type: E8 (or OS G5) Glow Plug & AET Power System
Recommended Propeller: 16x8; 14x10; 15x8; 16x6; 17x6
Weight of Main Engine: 697g
Weight of Muffler Set: 62g
Weight of Engine Mount Set: 115g
Weight of Glow Plug: 3.6g
Weight of AET (Ignition): 30g
Total Weight: 908g (2.0 lb)

XG-20cc-R PRO
Displacement: 20cc (1.22 cu in)
Performance: 2.4 HP
Speed Range: 2000-8500 RPM (Test Propeller-16*8)
Bore: 32 mm (1.26 in)
Stroke: 27mm (1.06 in)
Static Thrust: 6.9 kg @ 100 m ALT (15.2 lb @ 328 ft ALT)
Static Thrust: 5.3 kg @ 1800 m ALT (11.7 lb @ 5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-8.4 V
Glow Plug Type: E8 (or OS G5) Glow Plug & AET Power System
Recommended Propeller: 16x8; 14x10; 15x8; 16x6; 17x6
Weight of Main Engine: 697g
Weight of Muffler Set: 60g
Weight of Engine Mount Set: 65g
Weight of Glow Plug: 3.6g
Weight of AET (Ignition): 30g
Weight of Starter: 85g
Weight of ESC: 36g
Total Weight: 1099g (2.42 lb)

XG-20cc-S
Displacement: 20cc (1.22 cu in)
Performance: 2.4 HP
Speed Range: 2000-8500 RPM (Test Propeller-16*8)
Bore: 32 mm (1.26 in)
Stroke: 27mm (1.06 in)
Static Thrust: 6.9 kg @ 100 m ALT (15.2 lb @ 328 ft ALT)
Static Thrust: 5.3 kg @ 1800 m ALT (11.7 lb @ 5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-8.4 V
Glow Plug Type: E8 (or OS G5) Glow Plug & AET Power System
Recommended Propeller: 16x8; 14x10; 15x8; 16x6; 17x6
Weight of Main Engine: 697g
Weight of Muffler Set: 62g
Weight of Engine Mount Set: 115g
Weight of Glow Plug: 3.6g
Weight of AET (Ignition): 30g
Total Weight: 908g (2.0 lb)

XG-20cc-S PRO
Displacement: 20cc (1.22 cu in)
Performance: 2.4 HP
Speed Range: 2000-8500 RPM (Test Propeller-16*8)
Bore: 32 mm (1.26 in)
Stroke: 27mm (1.06 in)
Static Thrust: 6.9 kg @ 100 m ALT (15.2 lb @ 328 ft ALT)
Static Thrust: 5.3 kg @ 1800 m ALT (11.7 lb @ 5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-8.4 V
Glow Plug Type: E8 (or OS G5) Glow Plug & AET Power System
Recommended Propeller: 16x8; 14x10; 15x8; 16x6; 17x6
Weight of Main Engine: 697g
Weight of Muffler Set: 60g
Weight of Engine Mount Set: 65g
Weight of Glow Plug: 3.6g
Weight of AET (Ignition): 30g
Weight of Starter: 85g
Weight of ESC: 36g
Total Weight: 1099g (2.42 lb)

X-38cc-R
Displacement: 38cc (2.33 cu in)
Performance: 4.2HP
Speed Range: 1800-7300 RPM (Test Propeller-20*9)
Bore: 39mm (1.54 in)
Stroke: 32.5mm (1.28 in)
Static Thrust: 10.5 kg @ 100 m ALT (23.1 lb @ 328 ft ALT)
Static Thrust: 8.5 kg @ 1800 m ALT (18.7 lb @ 5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-14 V
Spark Plug Type: CM6 Iridium Spark Plug
Recommended Propeller: 19x8; 19x10; 20x8; 20x10
Weight of Main Engine: 1040g
Weight of Muffler Set: 73g
Weight of Aluminum Standoffs Set: 100g
Weight of Spark Plug: 13.5g
Weight of CDI (Ignition): 104g
Total Weight: 1330.5g (2.93 lb)
